  1. Replacement for COROS LS-C ?

  2. Starting situation • Spare parts are not available • Invest „los Engineering" ? • Alternative „new control system„ • Confine teeth with automation • Complete new project engineering, there no conversion of project engineering data (e.g. after WinCC) available • Different control concepts • Performance losses possible

  3. The Solution ! • new control system • migration on WINCC • COROS LS-C ME

  4. Replacement for COROS LS-C ? • new control system • migration on WINCC (cemat V5) • COROS LS-C ME

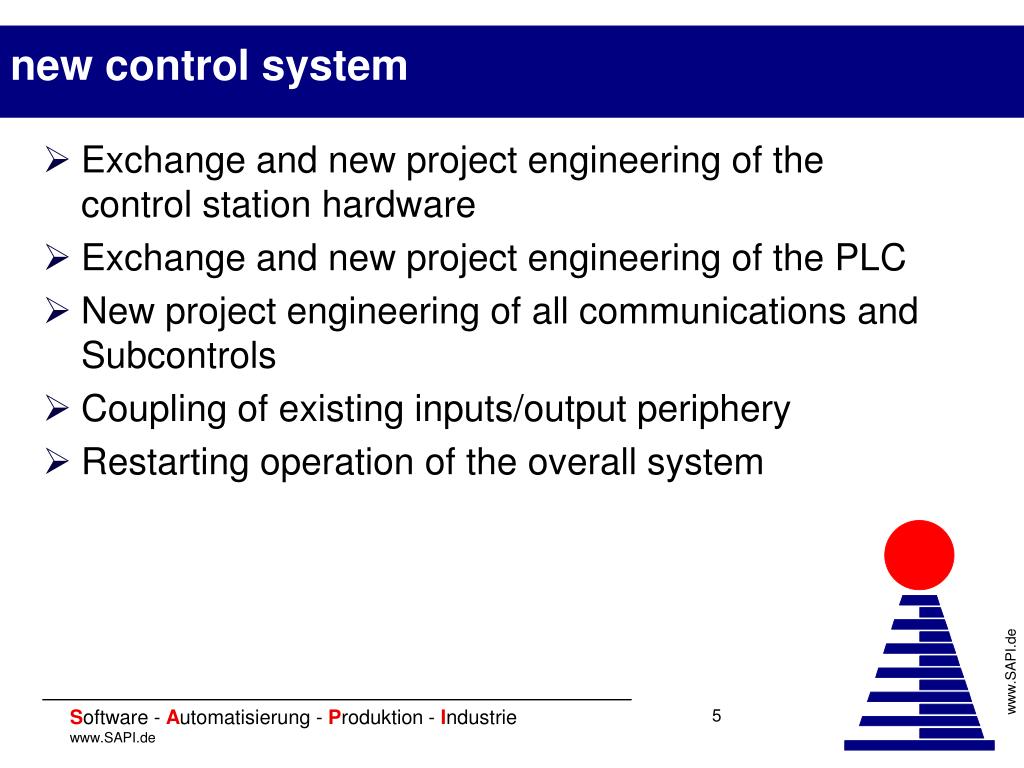

  5. new control system • Exchange and new project engineering of the control station hardware • Exchange and new project engineering of the PLC • New project engineering of all communications and Subcontrols • Coupling of existing inputs/output periphery • Restarting operation of the overall system

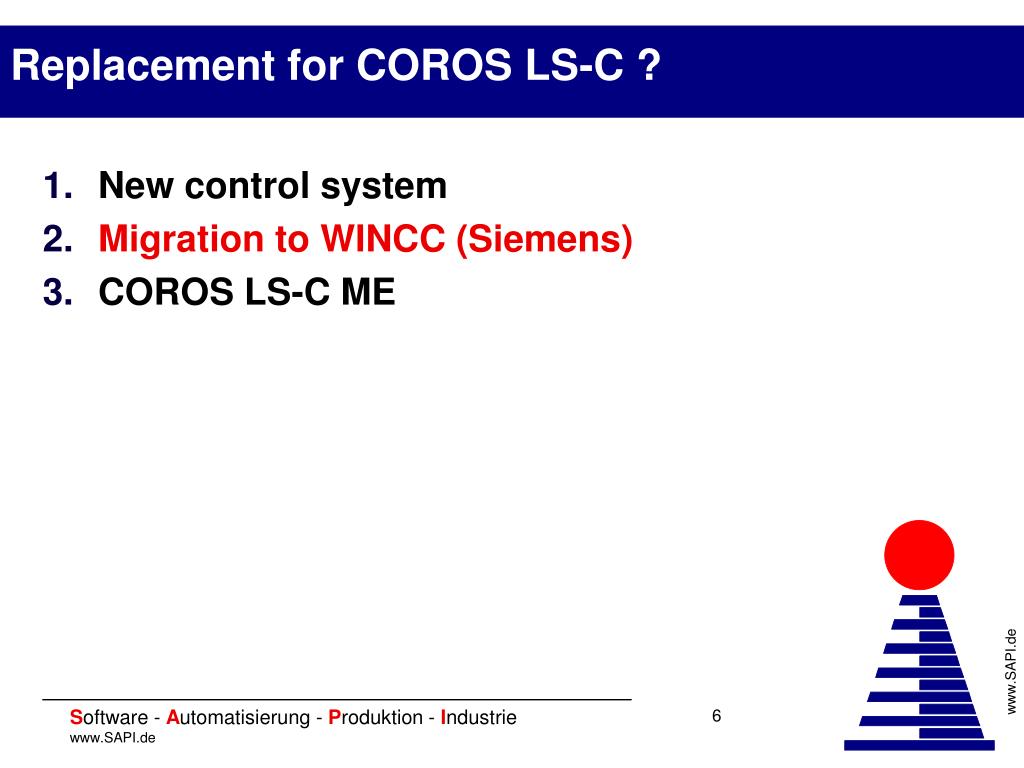

  6. Replacement for COROS LS-C ? • New control system • Migration to WINCC (Siemens) • COROS LS-C ME

  7. Engineering-Station control Station expansion Color Graphic Color Graphic COROS Master Server OS - AG SIMATIC S5 155U SIMATIC S7-400 • CPU 948 SIMATIC S5 155U SIMATIC S5 155U • CP143 oder CP1430 Profibus DP • 30 kWorte = 60 kByte R I/O R I/O R I/O R I/O D A D A D A D A Profibus DP Migration on WINCC SIMATIC-suppostion

  8. Migration on WINCC • Exchange and new project engineering of the control station hardware • No costs on the automation side (PLC) for - New project engineering - New start-up - Wiring - Input/output periphery - Re-education of your service personnel • Resembles control philosophy • Minimum plant stop

  9. Which costs a migration on WINCC ? • OS Client RT License per Client • WINCC ca. 6.000 € • OS Server RT License per Server • WINCC, CP1613 ca. 13.000 € • Engineering Station License, 1x • WINCC, CP1613 ca. 17.000 €

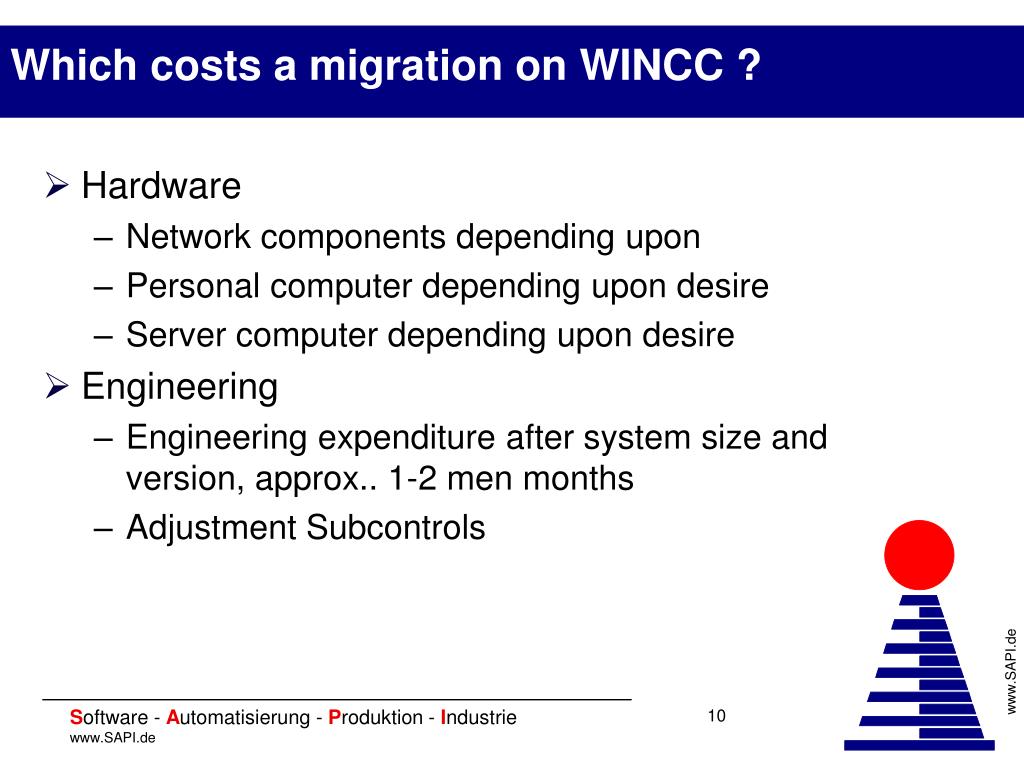

  10. Which costs a migration on WINCC ? • Hardware • Network components depending upon • Personal computer depending upon desire • Server computer depending upon desire • Engineering • Engineering expenditure after system size and version, approx.. 1-2 men months • Adjustment Subcontrols

  11. Replacement for COROS LS-C ? • new control system • migration on WINCC • COROS LS-C ME

  12. Example of a configuration COROS LS-C

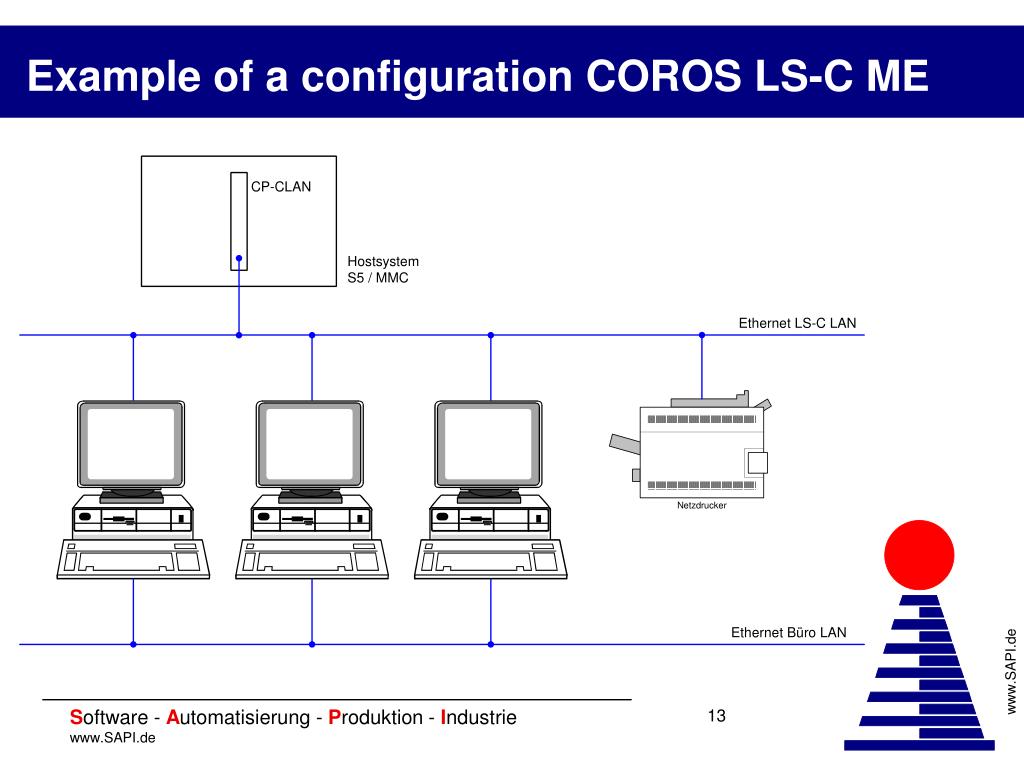

  13. Example of a configuration COROS LS-C ME

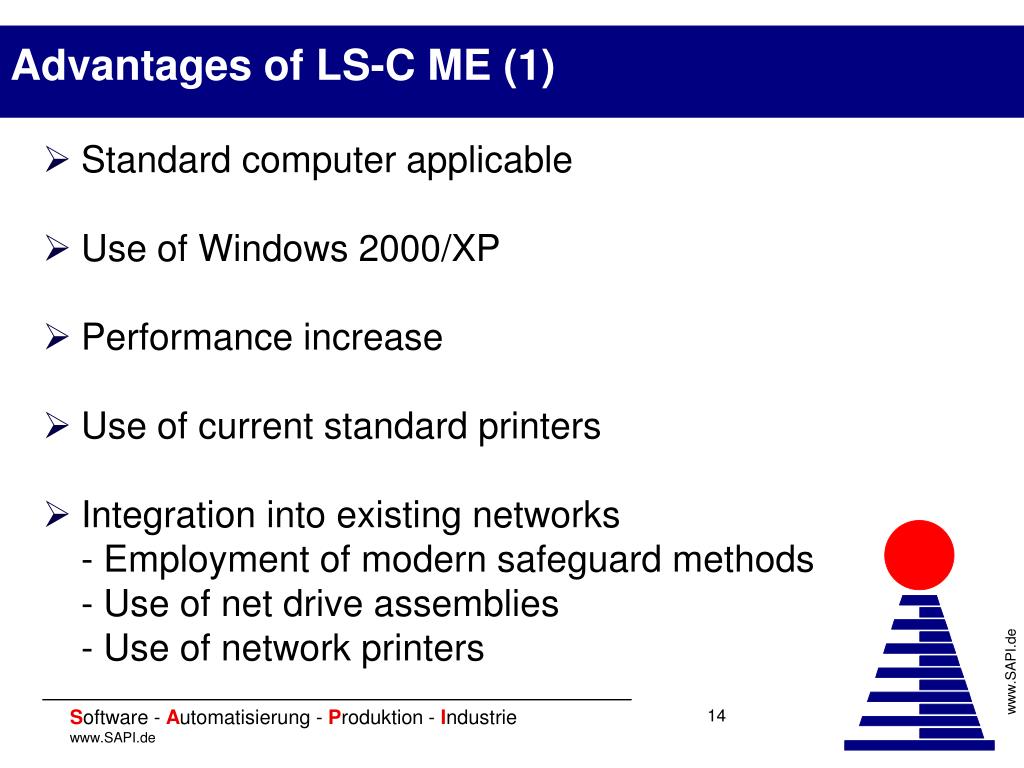

  14. Advantages of LS-C ME (1) • Standard computer applicable • Use of Windows 2000/XP • Performance increase • Use of current standard printers • Integration into existing networks - Employment of modern safeguard methods - Use of net drive assemblies - Use of network printers

  15. Advantages of LS-C ME (2) • Increase of the reliability possible, by - RAID CONTROLLER - high-available servers • Simple data protection • Over network possible • Disaster Recovery, e.g. with Norton Ghost • Remote maintenance, (e.g. pcAnywhere) • Operator station at the same time also for other applications usable • Multi-monitoring possible (not LS-C ME)

  16. Transferred for LS-C ME • LS-C ME is compatible, i.e. no changes - in project engineering or - in the host system necessarily • With necessary an on-line setting did not even transfer from LS-C V5,72 is • Conversion of the disks (5¼ and/or 3½) IRMX format) takes place via third • The old system remains unchanged, i.e. back stairs are at any time possible • Projecting bar remains complete

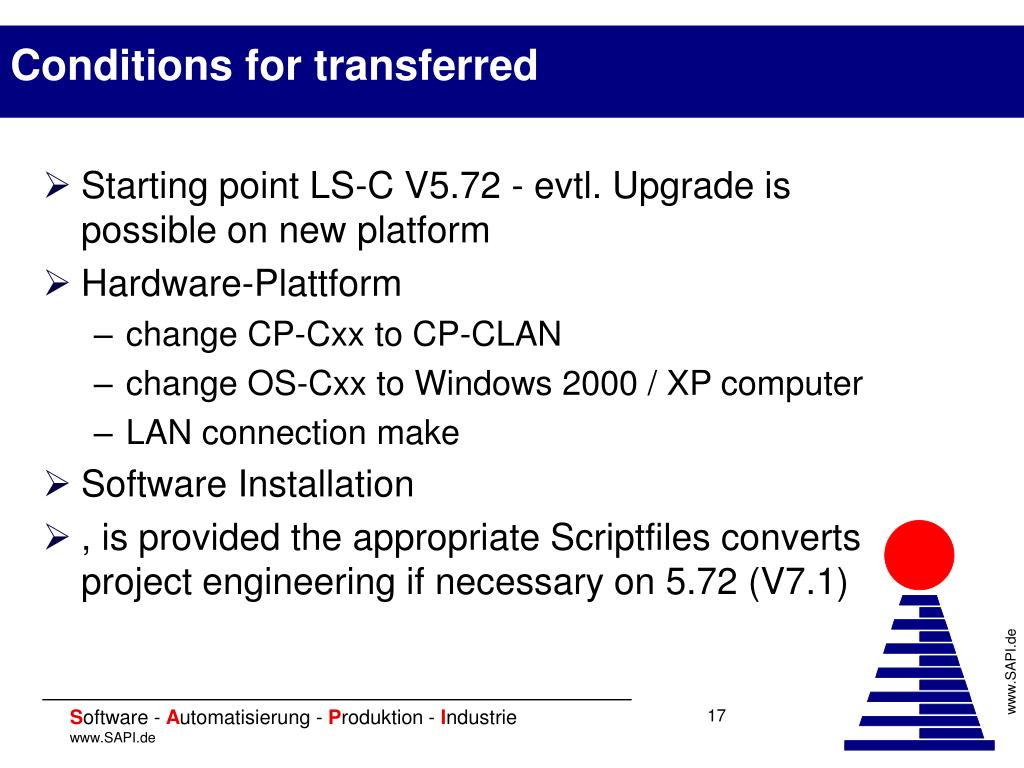

  17. Conditions for transferred • Starting point LS-C V5.72 - evtl. Upgrade is possible on new platform • Hardware-Plattform • change CP-Cxx to CP-CLAN • change OS-Cxx to Windows 2000 / XP computer • LAN connection make • Software Installation • , is provided the appropriate Scriptfiles converts project engineering if necessary on 5.72 (V7.1)

  18. Restrictions of LS-C ME • Light pen is not supported • Touch screen does not implement at present • Dissolution of diagram reduced, i.e. small differences in picture geometry possible • Process control keyboards must be attached over converters • CP printers must (to be allowed!) as network printers to be installed

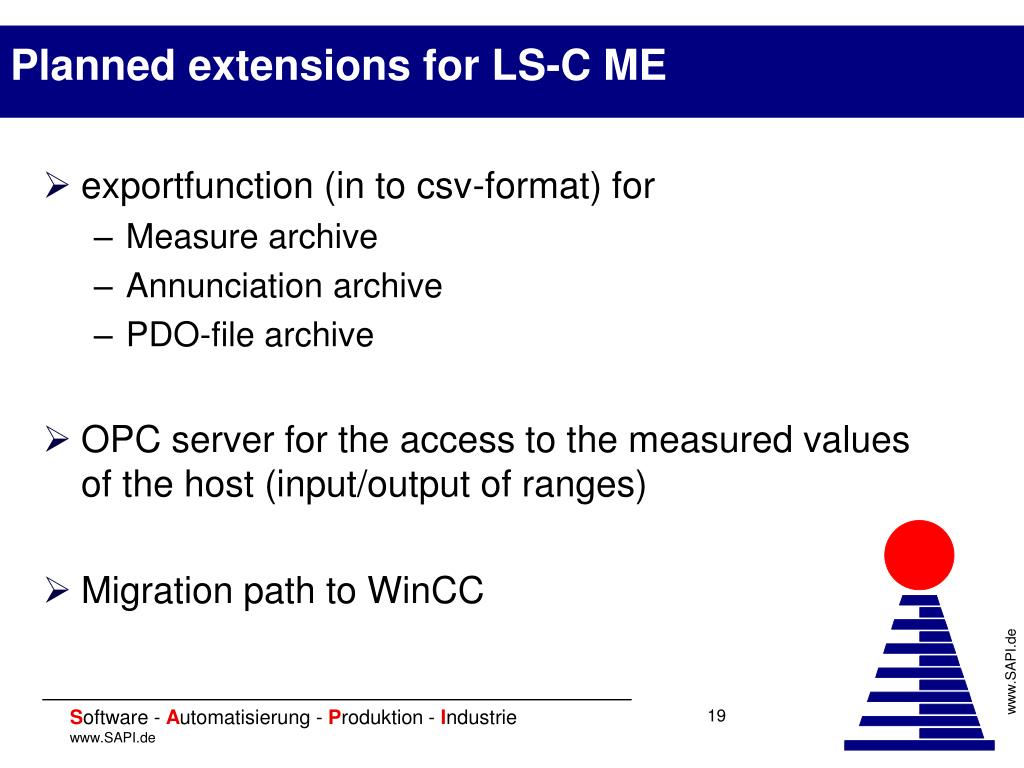

  19. Planned extensions for LS-C ME • exportfunction (in to csv-format) for • Measure archive • Annunciation archive • PDO-file archive • OPC server for the access to the measured values of the host (input/output of ranges) • Migration path to WinCC

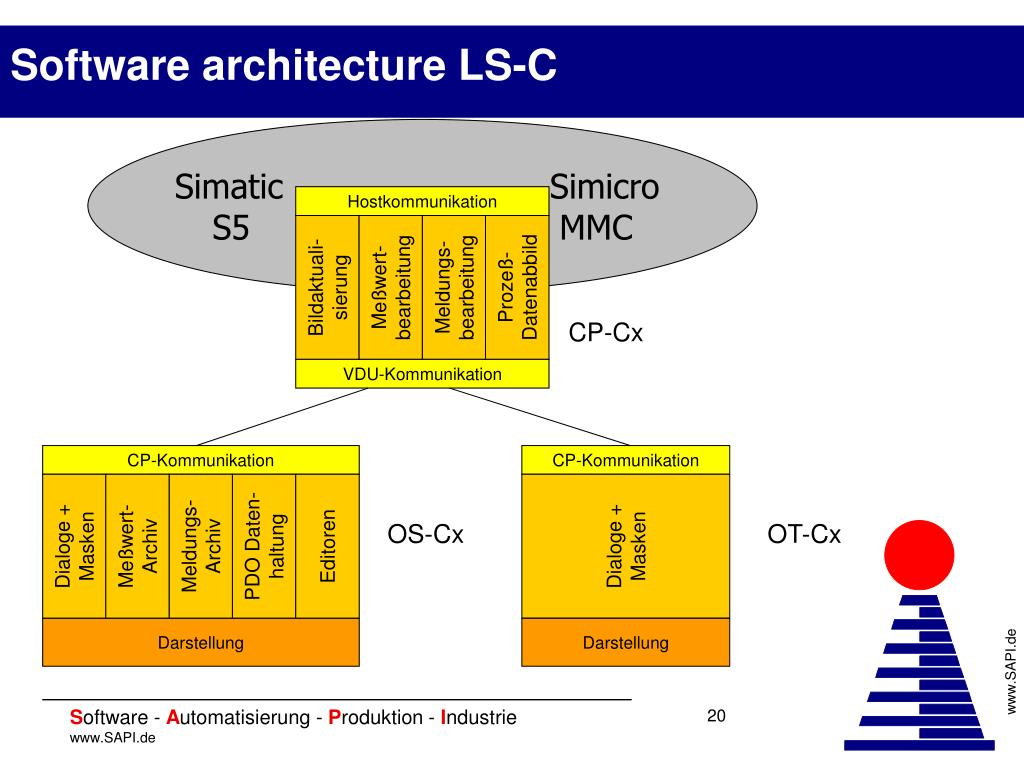

  20. Simatic Simicro S5 MMC Hostkommunikation Bildaktuali-sierung Meßwert-bearbeitung Meldungs-bearbeitung Prozeß-Datenabbild VDU-Kommunikation CP-Cx CP-Kommunikation CP-Kommunikation Dialoge + Masken Meßwert-Archiv Meldungs-Archiv PDO Daten-haltung Editoren Dialoge + Masken OS-Cx OT-Cx Darstellung Darstellung Software architecture LS-C

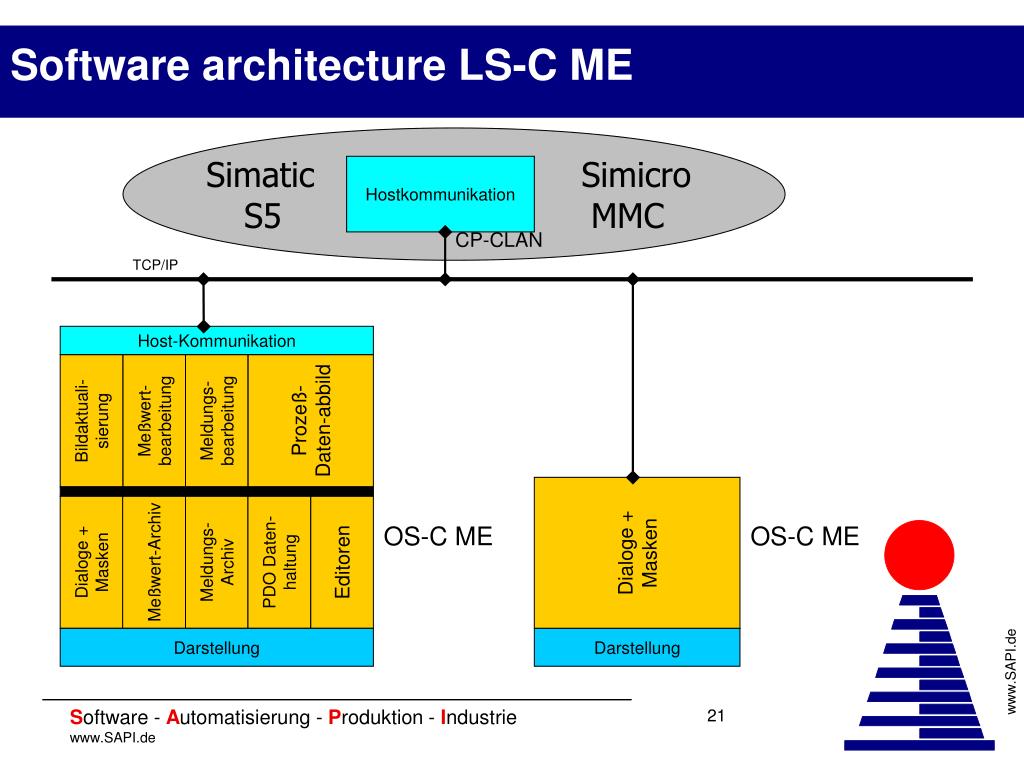

  21. Simatic Simicro S5 MMC Hostkommunikation CP-CLAN TCP/IP Host-Kommunikation Bildaktuali-sierung Meßwert-bearbeitung Meldungs-bearbeitung Prozeß-Daten-abbild Dialoge + Masken Dialoge + Masken Meßwert-Archiv Meldungs-Archiv PDO Daten-haltung Editoren OS-C ME OS-C ME Darstellung Darstellung Software architecture LS-C ME

  22. Simatic Simicro S5 MMC Hostkommunikation CP-CLAN TCP/IP Prozeß-Datenabbild Host-Kommunikation OPC-Server B+B-System z.B.WinCC Migration path to WinCC

  23. What costs transferred to LS-C ME? • Licencens • OS-C ME Masterlizenz € 13.000,- • OS-C ME Slavelizenz € 9.000,- • Hardware • CP-C ME € 6.000,- • netware component € 500,- • Industrial PC computer P4 € 2.000,- • 18“ Flat screen € 500,- • Engineering • Engineering expenditure after system size and version, approx.. 2-3 men days

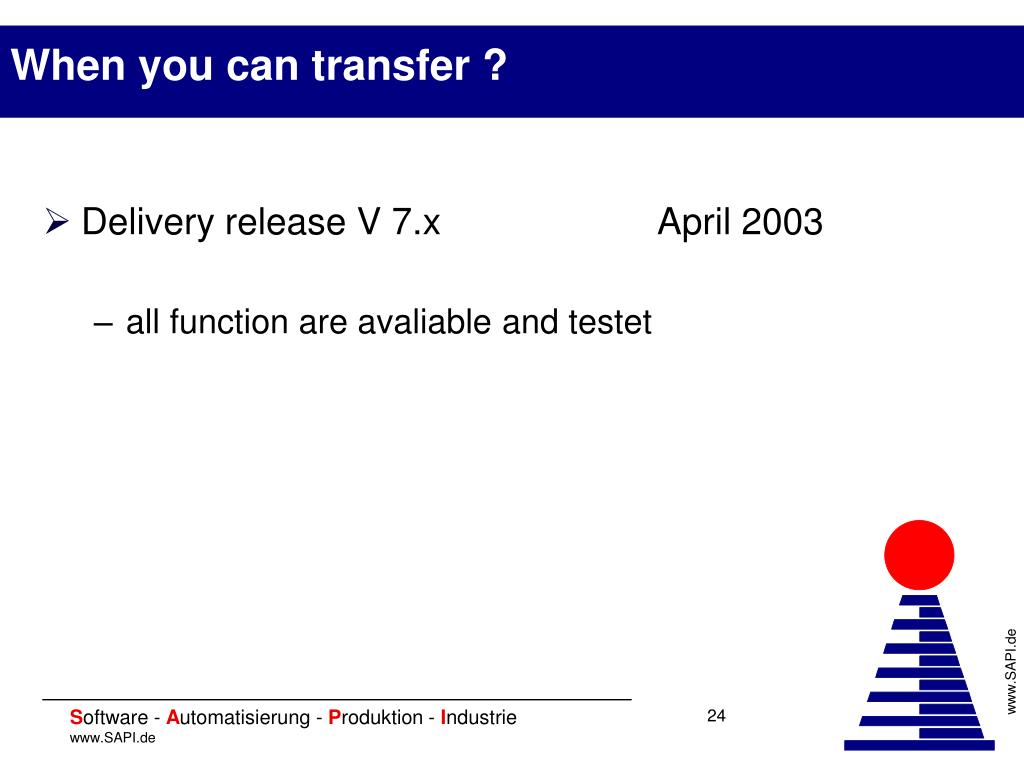

  24. When you can transfer ? • Delivery release V 7.x April 2003 • all function are avaliable and testet

  25. Which use does COROS LS-C ME have ? • Solution of the spare part problems by standard hardware • 10 years supply and to support warranty • Simple administration by operation system (WIN2000/XP) up-to-date

  26. with further question ? SAPI Software GmbH D-67346 SPEYER Fon: +49 (0) 6232 6018 0 Fax: +49 (0) 6232 6018 50 Email: INFO@SAPI.de
