  1. From Twistors to Calculations

  2. Precision Perturbative QCD • Predictions of signals, signals+jets • Predictions of backgrounds • Measurement of luminosity • Measurement of fundamental parameters (s, mt) • Measurement of electroweak parameters • Extraction of parton distributions — ingredients in any theoretical prediction Everything at a hadron collider involves QCD

  3. AdS/CFT Duality • Strong-coupling N =4 supersymmetric gauge theory String Theory on AdS5 S5for large Nc , g2 Nc perturbative supergravity Maldacena (1997) Gubser, Klebanov, & Polyakov; Witten (1998) Strong–weak duality • Many tests on quantities protected by supersymmetry D’Hoker, Freedman, Mathur, Matusis, Rastelli, Liu, Tseytlin, Lee, Minwalla, Rangamani, Seiberg, Gubser, Klebanov, Polyakov & others • More recently, tests on unprotected quantities Berenstein, Maldacena, Nastase; Beisert, Frolov, Staudacher & Tseytlin; Minahan & Zarembo; & others (2002–4)

  4. A New Duality Topological B-model string theoryN=4 supersymmetric gauge theory Weak–weak duality • Computation of scattering amplitudes • Novel differential equations Witten (2003) Roiban, Spradlin, & Volovich; Berkovits & Motl; Vafa & Neitzke; Siegel (2004) • Novel factorizations of amplitudes Cachazo, Svrcek, & Witten (2003)

  5. Witten, hep-th/0312171 Cachazo, Svrček & Witten, hep-th/0403047, hep-th/0406177, hep-th/0409245 Bena, Bern & DAK, hep-th/0406133 DAK, hep-th/0406175 Brandhuber, Spence, & Travaglini, hep-th/0407214 Bena, Bern, DAK & Roiban, hep-th/0410054 Cachazo, hep-th/0410077; Britto, Cachazo, & Feng, hep-th/0410179 Bern, Del Duca, Dixon, DAK, hep-th/0410224

  6. The Amazing Simplicity of N=4 Perturbation Theory • Manifestly N=4 supersymmetric calculations are very hard off-shell — much harder than ordinary gauge theory offshell onshell

  7. But on-shell calculations are much simpler than in nonsupersymmetric theories: • 4-pt one-loop = tree  one-loop scalar box Green & Schwartz (1982) • 5, 6-pt one-loop known & simpler than QCD Bern, Dixon, Dunbar, DAK (1994) • all-n one-loop known for special helicities Bern, Dixon, Dunbar, DAK (1994)

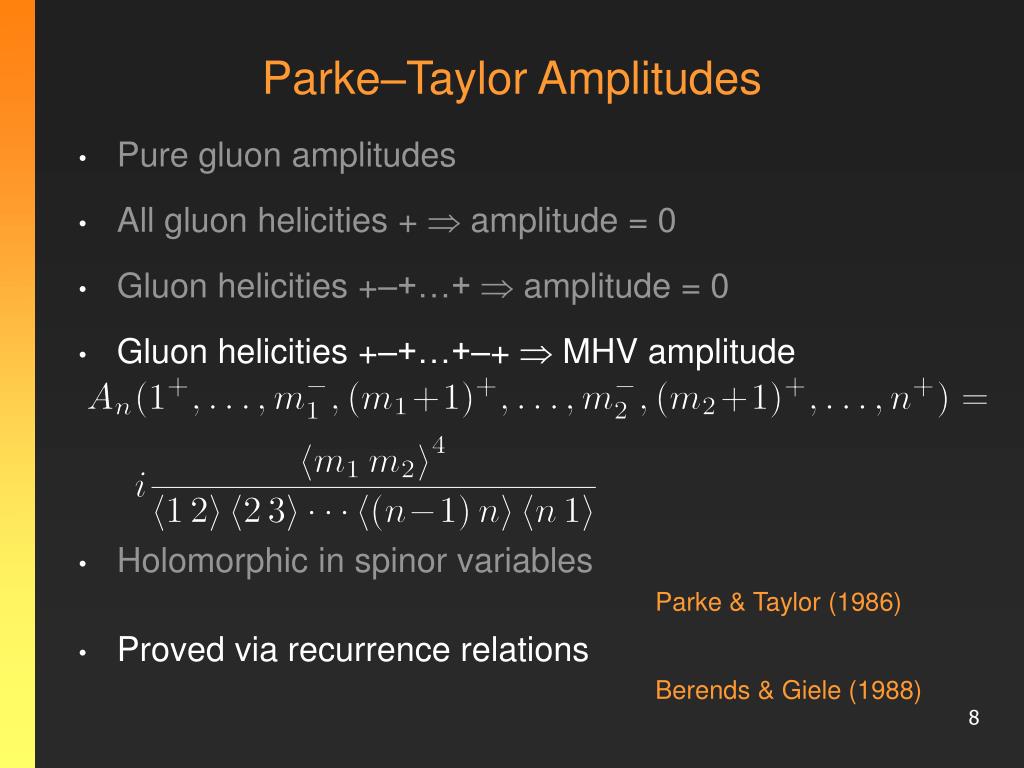

  8. Parke–Taylor Amplitudes • Pure gluon amplitudes • All gluon helicities +  amplitude = 0 • Gluon helicities +–+…+  amplitude = 0 • Gluon helicities +–+…+–+  MHV amplitude • Holomorphic in spinor variables Parke & Taylor (1986) • Proved via recurrence relations Berends & Giele (1988)

  9. Correlators in Projective Space Nair (1988) • Null cones  points in twistor space Penrose (1972) • Spinors are homogeneous coordinates on complex projective spaceCP1 • Current algebra on CP1 amplitudes • Reproduce maximally helicity violating (MHV) amplitudes

  10. Spinors • Want square root of Lorentz vector  need spin ½ • Spinors , conjugate spinors • Spinor product • (½,0)  (0, ½) = vector • Signature – + + +: complex conjugates • Signature + + – –: independent and real • Helicity 1:  Amplitudes as pure functions of spinor variables

  11. What is Twistor Space? • Half-Fourier transform of spinors: transform , leave alone  Penrose’s original twistor space, real or complex • Definite helicity: introduce homogeneous coordinates ZI CP3 orRP3 (projective) twistor space • Supertwistor space: with fermionic coordinates A • Back to momentum space by Fourier-transforming 

  12. Strings in Twistor Space • String theory can be defined by a two-dimensional field theory whose fields take values in target space: • n-dimensional flat space • 5-dimensional Anti-de Sitter × 5-sphere • twistor space: intrinsically four-dimensional  Topological String Theory • Spectrum in Twistor space is N = 4 supersymmetric multiplet (gluon, four fermions, six real scalars) • Gluons and fermions each have two helicity states

  13. Color Ordering • Separate out kinematic and color factors (analogous to Chan-Paton factors in open string theory)

  14. Curves in Twistor Space • Each external particle represented by a point in twistor space • Witten’s proposal: amplitudes non-vanishing only when points lie on a curve of degree d and genus g, where • d = # negative helicities – 1 + # loops • g  # loops • Obtain amplitudes by integrating over all possible curves  moduli space of curves • Can be interpreted as D1-instantons

  15. Novel Differential Equations • Amplitudes with two negative helicities (MHV) live on straight lines in twistor space • Amplitudes with three negative helicities (next-to-MHV) live on conic sections (quadratic curves) • Amplitudes with four negative helicities (next-to-next-to-MHV) live on twisted cubics • Fourier transform back to spinors  differential equations in conjugate spinors

  16. Differential Equations for Amplitudes • Line operators Should annihilate MHV amplitudes • Planar operators Should annihilate next-to-MHV (NMHV) amplitudes

  17. Even String Theorists Can Do Experiments • Apply F operators to NMHV (3 – ) amplitudes:products annihilate them! K annihilates them; • Apply F operators to N2MHV (4 – ) amplitudes:longer products annihilate them! Products of K annihilate them; • Interpretation: twistor-string amplitudes are supported on intersecting line segments Simpler than expected: what does this mean in field theory?

  18. Parke–Taylor Amplitudes • Pure gluon amplitudes • All gluon helicities +  amplitude = 0 • Gluon helicities +–+…+  amplitude = 0 • Gluon helicities +–+…+–+  MHV amplitude • Holomorphic in spinor variables Parke & Taylor (1986) • Proved via recurrence relations Berends & Giele (1988)

  19. Cachazo–Svrcek–Witten Construction • Vertices are off-shell continuations of MHV amplitudes • Connect them by propagators i/K2 • Draw all diagrams

  20. Corresponds to all multiparticle factorizations • Not completely local, not fully non-local • Can write down a Lagrangian by summing over vertices Abe, Nair, Park (2004)

  21. Practical Applications • Compact expressions for amplitudes suitable for numerical use • Compact analytic expressions suitable for use in computing loop amplitudes • Extend older loop results for MHV to non-MHV

  22. A New Analytic Form • All-n NMHV (3 – : 1, m2, m3) amplitude • Generalizes adjacent-minus resultDAK (1989)

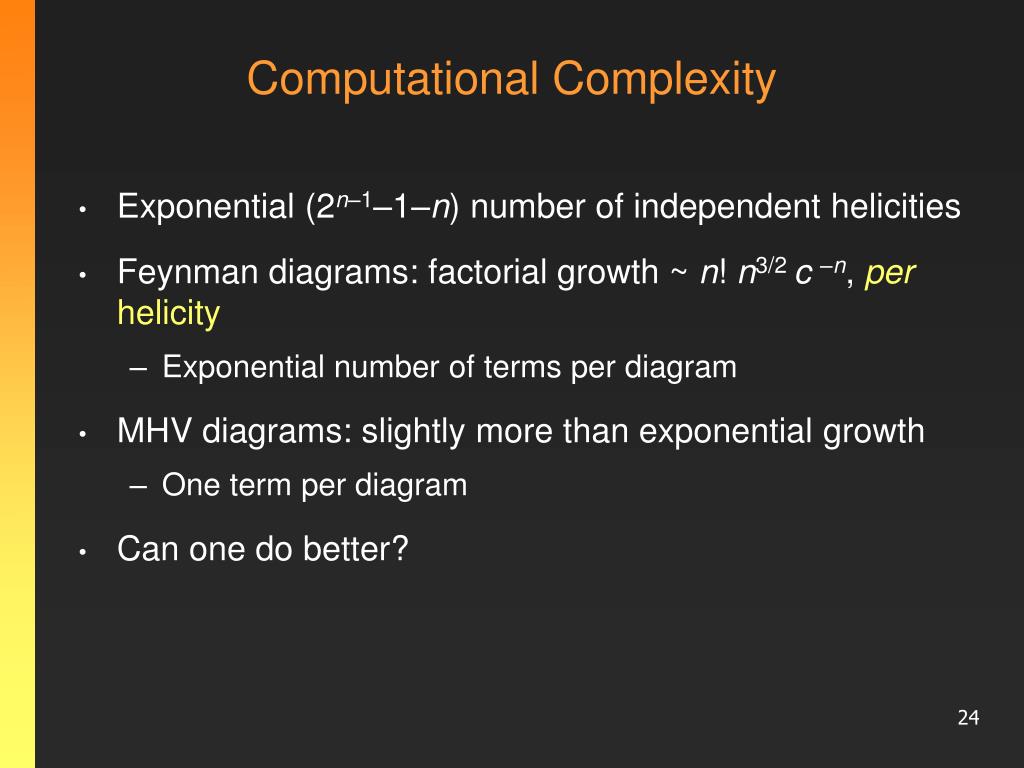

  23. Computational Complexity • Exponential (2n–1–1–n) number of independent helicities • Feynman diagrams: factorial growth ~ n! n3/2 c–n, per helicity • Exponential number of terms per diagram • MHV diagrams: slightly more than exponential growth • One term per diagram • Can one do better?

  24. Recurrence Relations Berends & Giele (1988); DAK (1989)  Polynomial complexity per helicity

  25. Recursive Formulation Bena, Bern, DAK (2004) • Recursive approaches have proven powerful in QCD • Can formulate higher-degree vertices and reformulate CSW construction in a recursive manner

  26. Degenerate Limits of Curves • CSW construction: sets ofd intersecting lines for all amplitudes • Vertices in CSW construction  lines in twistor space • Crossing points in twistor space propagators in momentum space • d disconnected instantons • Original proposal: single, connected, charge d instanton • Two inequivalent ways of computing same object

  27. Underlying Symmetry • Integrating over higher-degree curves is equivalent to integrating over collections of intersecting straight lines! Gukov, Motl, & Nietzke (2004)

  28. From Trees To Loops • Sew together two MHV vertices Brandhuber, Spence, & Travaglini (2004)

  29. Simplest off-shell continuation lacks i prescription • Use alternate form of continuation  to map the calculation on to the cut + dispersion integral Brandhuber, Spence, & Travaglini (2004) • Reproduces MHV loop amplitudes originally calculated byDixon, Dunbar, Bern, & DAK (1994)

  30. Unitarity Method for Higher-Order Calculations Bern, Dixon, Dunbar, & DAK (1994) • Proven utility as a tool for explicit calculations • Fixed number of external legs • All-n equations • Tool for formal proofs • Yields explicit formulae for factorization functions • I-duality: phase space integrals  loop integrals cf. Melnikov & Anastasiou • Color ordering

  31. Unitarity-Based Calculations Bern, Dixon, Dunbar, & DAK (1994) • At one loop in D=4 for SUSY  full answer(also for N =4 two-particle cuts at two loops) • In general, work in D=4-2Є  full answer van Neerven (1986): dispersion relations converge • Reconstruction channel by channel: find function w/given cuts in all channels

  32. Unitarity-Based Method at Higher Loops • Loop amplitudes on either side of the cut • Multi-particle cuts in addition to two-particle cuts • Find integrand/integral with given cuts in all channels • In practice, replace loop amplitudes by their cuts too

  33. Twistor-space structure • Can be analyzed with same differential operators • ‘Anomaly’ in the analysis; once taken into account, again support on simple sets of lines Cachazo, Svrček, & Witten; Bena, Bern, DAK, & Roiban (2004) • Non-supersymmetric amplitudes also supported on simple sets Cachazo, Svrček, & Witten (2004)

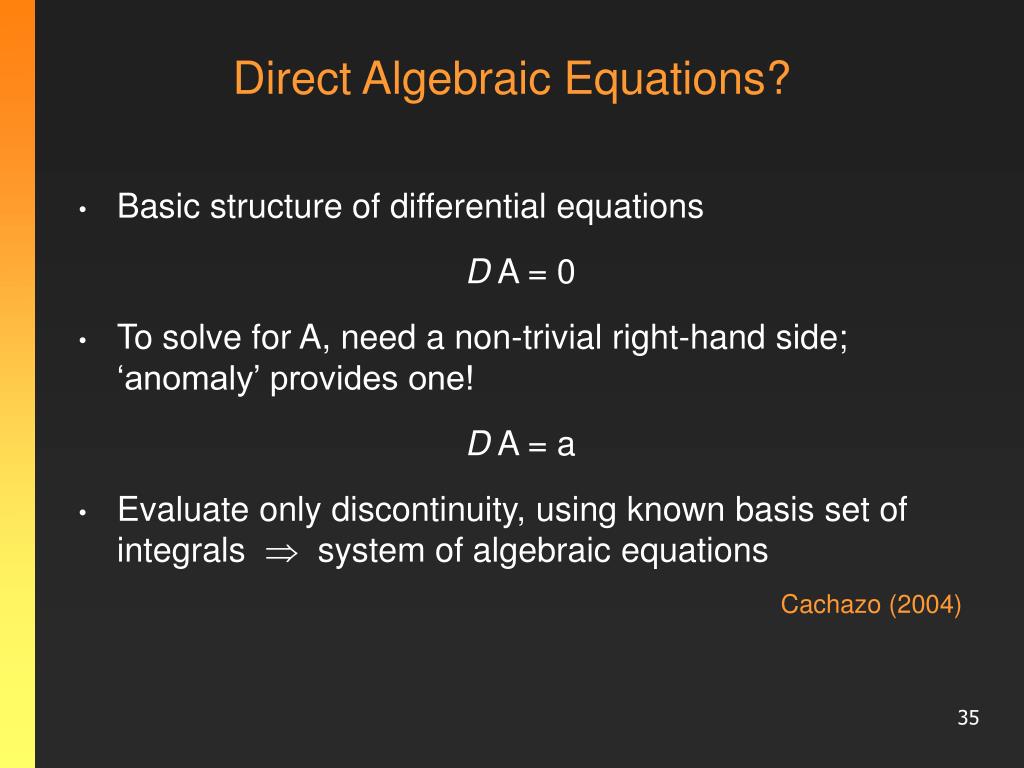

  34. Direct Algebraic Equations? • Basic structure of differential equations D A = 0 • To solve for A, need a non-trivial right-hand side; ‘anomaly’ provides one! D A = a • Evaluate only discontinuity, using known basis set of integrals  system of algebraic equations Cachazo (2004)

  35. Challenges Ahead • Incorporate massive particles into the picture  D = 4–2 helicities • Interface with non-QCD parts of amplitudes • Reduce one-loop calculations to purely algebraic ones in an analytic context, avoiding intermediate-expression swell • Twistor string at one loop (conformal supergravitons); connected-curve picture?

  36. Another Amazing Result: Iteration Relation Anastasiou, Bern, Dixon, DAK (2003) • This should generalize
