Presentation Transcript
sercos iii bosch rexroth
SERCOS III - Bosch Rexroth

Dave Cameron

Regional Sales Mgr

9-13-09

Electric Drives and Controls

A5

bosch rexroth
Bosch Rexroth
  • Is a wholly-owned subsidiary of Robert Bosch GmbH
  • Is a result of the merger of Mannesmann Rexroth with Bosch’s Automation Technology
  • Covers All relevant technology forDrive, Control and Motion
  • Is dedicated to industrial and factory automation, and mobile applications
  • Has a worldwide presence

Electric Drives and Controls

bosch rexroth ag within the bosch group
Bosch Rexroth AG within the Bosch Group

Automotive Technology

Consumer Goods and

Building Technology

Robert Bosch GmbH

Industrial Technology

Bosch Rexroth AG

Electric Drives and Controls

Electric Drives and Controls

bosch rexroth the products
Bosch Rexroth – The Products

Electric

drives andcontrols

Linearmotion technology

Assemblytechnologies

Gears

Hydraulics, industrial

Pneumatics

Hydraulics,

mobile

Service

Electric Drives and Controls

sercos iii the next generation rexroth system products with sercos iii

IndraMotion MLD

IndraMotion MLC

IndraMotion MLP

IndraControl L15(Slave)

Inline Block I/O

IndraControl VEP

IndraControl L Option module(Master)

Inline Bus coupler

IndraControl L45

IndraControl L65

IndraDrive

BDC PneumaticValve Manifold

IAC-R Control Valve with integrated hydraulic axis control

HNC100 HydraulicAxis control

SERCOS III – The Next Generation Rexroth System Products with SERCOS III

Electric Drives and Controls

slide7

Rexroth System Architecture

IndraWorks

IndraControl V

IndraControl L

Inline

FieldLine

IndraControl V

Rexroth Pneumatic

IndraDrive

IndraDyn

Rexroth Hydraulic

Electric Drives and Controls

slide8

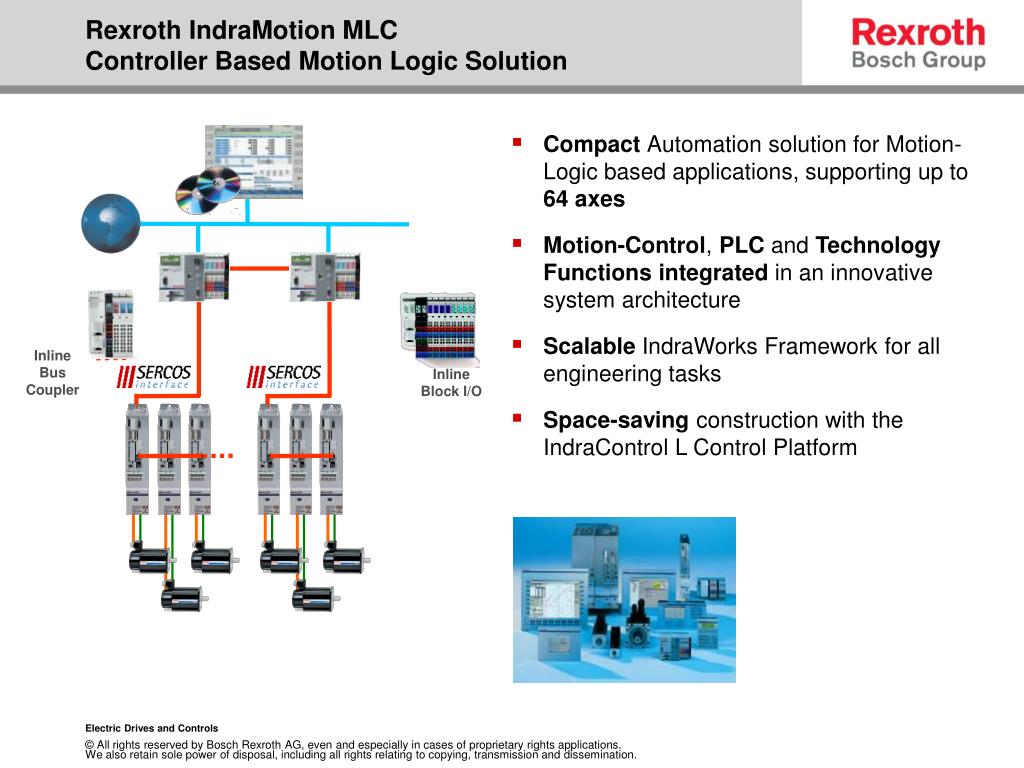

Rexroth IndraMotion MLCController Based Motion Logic Solution

  • Compact Automation solution for Motion-Logic based applications, supporting up to 64 axes
  • Motion-Control, PLC and Technology Functions integrated in an innovative system architecture
  • Scalable IndraWorks Framework for all engineering tasks
  • Space-saving construction with the IndraControl L Control Platform

Inline Bus Coupler

Inline Block I/O

Electric Drives and Controls

slide9

MLD-M

(Multi-axes)

Rexroth IndraMotion MLDDrive Based Motion Logic Solution

  • Powerful & compact solution for drive based applications with integrated motion & logic control for up to 8 axes.
  • Economical solution without the need for additional control hardware
  • Scalable & expandable using the IndraDrive Drive Platform
  • Ideal characteristics for modular & decentralized Control topologies

MLD-S

(single axis)

Electric Drives and Controls

partial list of rexroth sercos iii customers
Partial list of Rexroth SERCOS III Customers

Conversion presses, Germany

Roll forming machines, Belgium

Pull nose box loader, Norway

System integrator, Canada

Production of wheel hub motor „Active Wheel“

Switzerland

Tubular bag machine, USA/Germany

Robot control, Germany

Packaging machine, USA

Engineering, USA

Tea bag machines, Germany

Packaging machine

Injection molding machine, Canada

Press systems, Canada

Packaging machine

Grinding machine, Japan

Automation systems, Canada

Pipe production machine, Germany

Die and device bonding

France/Sweden

Board turner in saw mill, Canada

Packaging machine, Germany

More than 100 customers

in more than 20 countries

Distributor, Automation

Switzerland

Packaging machine, Italy

Electric Drives and Controls

examples of sercos iii applications
Examples of SERCOS III Applications

Crank Shaft Grinding

High Speed Milling

Test Stands

Plastic Injection Molding

Packaging Machines

Printing Machines

Presses

Profilers

Roll Feeds

Electric Drives and Controls

example panel with indradrive cs and indradrive c
Example Panel with IndraDrive Cs and Indradrive C

Safety technology

IndraDrive C

30HP

Quantity 2

MLC

Motion-Logic

Controller

IndraDrive Cs

750 Watts

Quantity 15

Electric Drives and Controls

Electric Drives and Controls

slide13

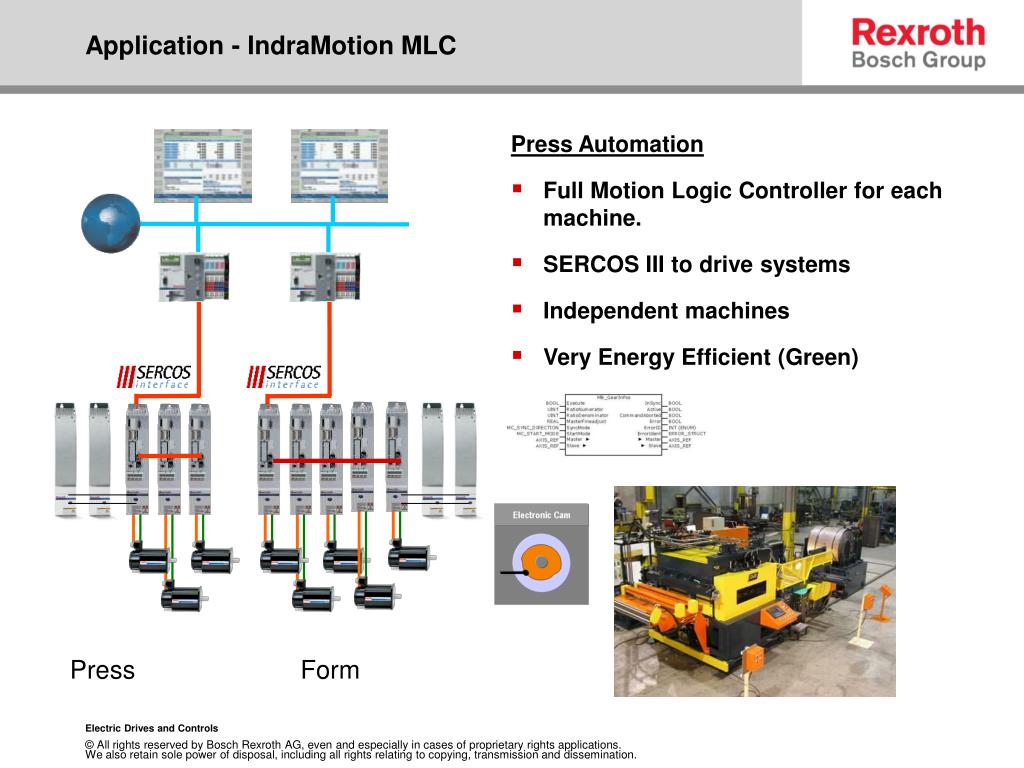

Application - IndraMotion MLC

Press Automation

  • Full Motion Logic Controller for each machine.
  • SERCOS III to drive systems
  • Independent machines
  • Very Energy Efficient (Green)

Press

Form

Electric Drives and Controls

application indramotion mlc

(Slave)

(Master)

(Master)

(Master)

(Master)

Simatic S7

Application - IndraMotion MLC

Web Machine of 150 Axis

Electric Drives and Controls

sercos iii and industrial ethernet reference customers rovema
SERCOS III and Industrial EthernetReference customers (Rovema)
  • Flow wrapper VPL260
  • PC based control architecture
    • ROVEMA P@ck-Control
    • with SERCOS III-Master(from AUTOMATA)
  • IndraDrive drives with SERCOS III
  • SERCOS III I/Os
  • presented at Interpack 2008

Electric Drives and Controls

sercos iii and industrial ethernet reference customers jtekt
SERCOS III and Industrial EthernetReference customers (JTEKT)
  • Standard Grinding Machine
  • SERCANS III PCI card
  • IndraDrive Cs
  • IndraDyn etc.
  • IMTS, Chicago, 08-13 September 2008
  • New Generation ofHigh-End Grinding Machine
  • SERCANS III PCI board
  • IndraDrive M
  • Cross Communication & I/Os
  • IndraDyn etc.
  • In development!

Electric Drives and Controls

sercos iii drive based with i o
SERCOS III – Drive Based with I/O

Material Handling

Master Drive with PLC – IEC61131

MLD-M

(Multi-axes)

Electric Drives and Controls

indradrive mld ccd system layout
IndraDrive MLD/CCD System Layout

Horizontal

#1

Horizontal

#2

Horizontal#3

Vertical

#2

Vertical

#3

System PLC

Ethernet IP

Ethernet

SSI Laser

MASTER

SLAVE 1

SLAVE 2

SLAVE 3

SLAVE 4

Material Handling

Electric Drives and Controls

Electric Drives and Controls

18

slide19

THANK YOU

Electric Drives and Controls
