rexroth inline sercos iii block i o digital
Rexroth Inline SERCOS III Block I/O Digital
  • SERCOS III Block I/O Digital
    • Inputs
      • Connections for 16 digital sensors
      • Connection of sensors in 2 and 3-wire technology
      • Maximum permissible load current per sensor: 125 mA
    • Combined Inputs and Outputs
      • Connections for 16 digital sensors/actuators
      • Each single channel can only be used as input or as output
      • Connection of sensors in 2 and 3-wire technology
      • Maximum permissible load current per sensor: 125 mA
      • Connection of actuators in 2-wire technology
      • Nominal current per output: 0.5 A
      • Short-circuit and overload protected outputs

Prototypes: Week 23/07

Electric Drives and Controls Stand 05/2006 PRM3 / Norbert Gehre

rexroth inline sercos iii block i o digital3
Rexroth Inline SERCOS III Block I/O Digital

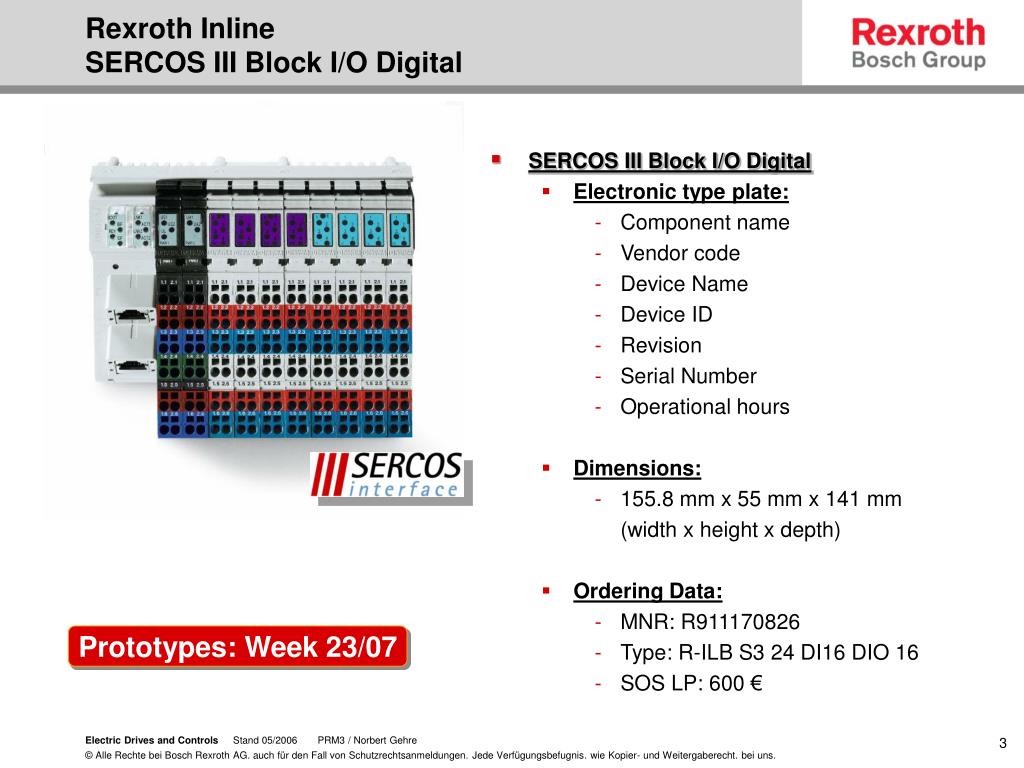

  • SERCOS III Block I/O Digital
    • Electronic type plate:
      • Component name
      • Vendor code
      • Device Name
      • Device ID
      • Revision
      • Serial Number
      • Operational hours
    • Dimensions:
      • 155.8 mm x 55 mm x 141 mm

(width x height x depth)

    • Ordering Data:
      • MNR: R911170826
      • Type: R-ILB S3 24 DI16 DIO 16
      • SOS LP: 600 €

Prototypes: Week 23/07

Electric Drives and Controls Stand 05/2006 PRM3 / Norbert Gehre

rexroth inline sercos iii block i o analog
Rexroth Inline SERCOS III Block I/O Analog

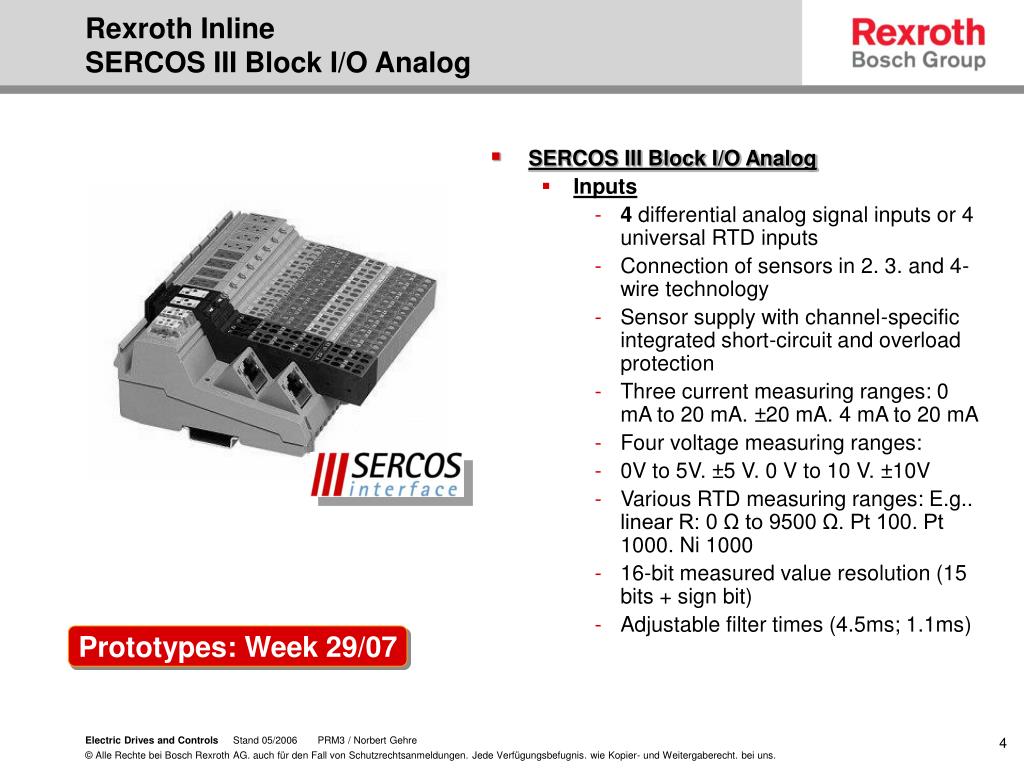

  • SERCOS III Block I/O Analog
    • Inputs
      • 4 differential analog signal inputs or 4 universal RTD inputs
      • Connection of sensors in 2. 3. and 4-wire technology
      • Sensor supply with channel-specific integrated short-circuit and overload protection
      • Three current measuring ranges: 0 mA to 20 mA. ±20 mA. 4 mA to 20 mA
      • Four voltage measuring ranges:
      • 0V to 5V. ±5 V. 0 V to 10 V. ±10V
      • Various RTD measuring ranges: E.g.. linear R: 0 Ω to 9500 Ω. Pt 100. Pt 1000. Ni 1000
      • 16-bit measured value resolution (15 bits + sign bit)
      • Adjustable filter times (4.5ms; 1.1ms)

Prototypes: Week 29/07

Electric Drives and Controls Stand 05/2006 PRM3 / Norbert Gehre

rexroth inline sercos iii block i o analog5
Rexroth Inline SERCOS III Block I/O Analog
  • SERCOS III Block I/O Analog
    • Outputs:
      • 2 universal analog signal outputs to connect either voltage or current signals
      • Connection of actuators in 2-wire technology
      • Three current ranges: 0 mA to 20 mA. ±20 mA. 4 mA to 20 mA
      • Four voltage ranges: 0 V to 5 V. ±5 V. 0 V to 10 V. ±10 V
      • Short-circuit-proof outputs

Prototypes: Week 29/07

Electric Drives and Controls Stand 05/2006 PRM3 / Norbert Gehre

rexroth inline sercos iii block i o analog6

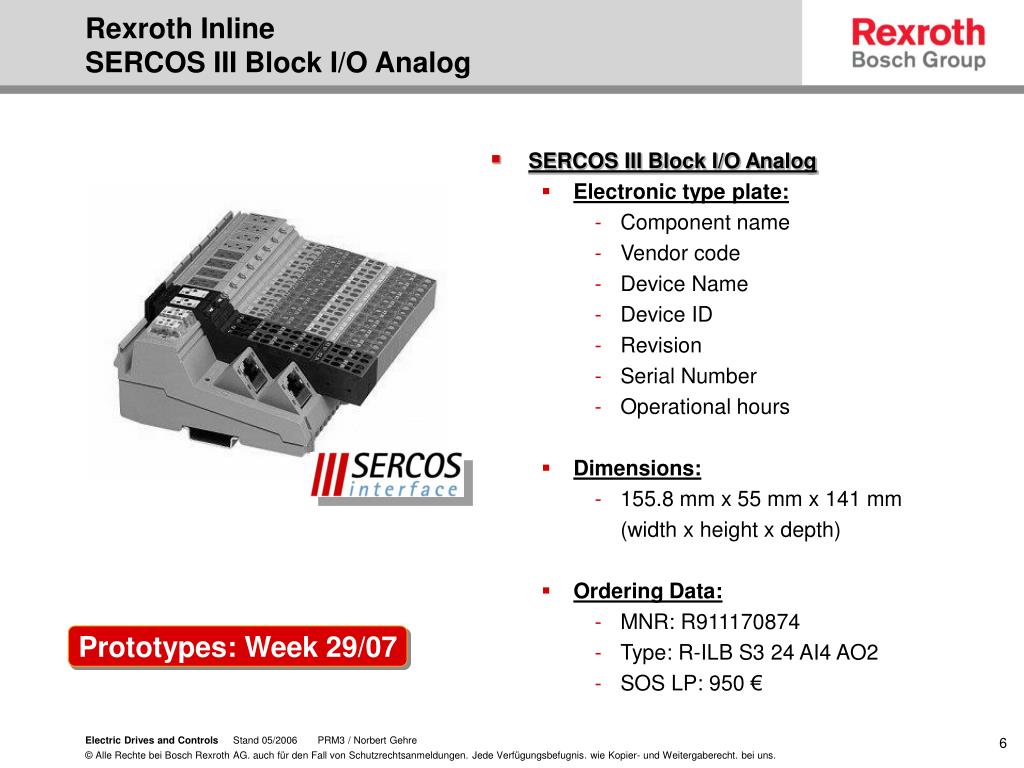

Rexroth Inline SERCOS III Block I/O Analog
  • SERCOS III Block I/O Analog
    • Electronic type plate:
      • Component name
      • Vendor code
      • Device Name
      • Device ID
      • Revision
      • Serial Number
      • Operational hours
    • Dimensions:
      • 155.8 mm x 55 mm x 141 mm

(width x height x depth)

    • Ordering Data:
      • MNR: R911170874
      • Type: R-ILB S3 24 AI4 AO2
      • SOS LP: 950 €

Prototypes: Week 29/07

Electric Drives and Controls Stand 05/2006 PRM3 / Norbert Gehre

rexroth inline sercos iii i o
Rexroth Inline SERCOS III I/O
  • SERCOS III Buscoupler
    • Connects up to 62 standard Inline modules
    • Automatic baudrate detection on localbus (500kBaud or 2MBaud)
    • Inputs
      • Connections for 8 digital sensors
      • Connection of sensors in 2 and 3-wire technology
      • Maximum permissible load current per sensor: 125 mA
    • Outputs
      • Connections for 4 digital actuators
      • Connection of actuators in 2- and 3- wire technology
      • Nominal current per output: 0.5 A
      • Short-circuit and overload protected outputs

Prototypes: Week 47/07

Electric Drives and Controls Stand 05/2006 PRM3 / Norbert Gehre

rexroth inline sercos iii i o8
Rexroth Inline SERCOS III I/O
  • SERCOS III Bus coupler
    • Electronic type plate:
      • Component name
      • Vendor code
      • Device Name
      • Device ID
      • Revision
      • Serial Number
      • Operational hours
    • Dimensions:
      • 80 mm x 70 mm x 121 mm

(width x height x depth)

    • Ordering Data:
      • MNR: R911170875
      • Type: R-IL S3 PB BK DI8 DO4
      • SOS LP: approx.: 550 € *)

*) not fixed!

Prototypes: Week 47/07

Electric Drives and Controls Stand 05/2006 PRM3 / Norbert Gehre

rexroth inline sercos iii cabeling
Rexroth InlineSERCOS III Cabeling
  • Free length:
    • RKB0011 R911316888
  • Fix length:
    • RKB0013
      • 0.25 R911317797
      • 0.35 R911317800
      • 0.55 R911317801

Electric Drives and Controls Stand 05/2006 PRM3 / Norbert Gehre
