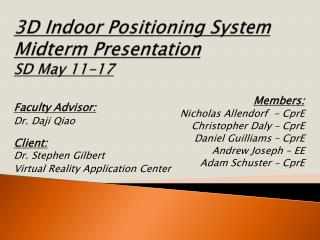

3D Indoor Positioning System Midterm Presentation SD May 11-17. Faculty Advisor: Dr. Daji Qiao. Members: Nicholas Allendorf - CprE Christopher Daly – CprE Daniel Guilliams – CprE Andrew Joseph – EE Adam Schuster – CprE. Client: Dr. Stephen Gilbert Virtual Reality Application Center.
Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author.While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server.
3D Indoor Positioning SystemMidterm PresentationSD May 11-17 Faculty Advisor: Dr. DajiQiao Members: Nicholas Allendorf - CprE Christopher Daly – CprE Daniel Guilliams – CprE Andrew Joseph – EE Adam Schuster – CprE Client: Dr. Stephen Gilbert Virtual Reality Application Center
Big Picture Goals • Create a system capable of accurately tracking fingertips in three dimensions • Incorporate the ability to support as many as six users simultaneously • Design the system so that it is easily reproducible Slide of 12
Project Requirements • Provide a 3D position of all tracked fingertips within a 2m x 2m x 2m indoor region with 1 centimeter accuracy • Update positions 15 times per second (15 Hz) with low latency • The system shall be capable of tracking as many as 60 fingertip positions simultaneously • Positions shall be displayed in a graphical interface so the position may be viewed in real time Slide of 12
Project Plan • Use Optical/Infrared tracking • Most practical solution and cost effective solution • Use stereo cameras to track and localize IR LEDs embedded on gloves • Process images with a desktop computer and open source computer vision software Slide of 12
System Design and Layout • Glove • Contains IR LEDs/color markers on fingertips which will be tracked by the cameras • Infrastructure • Provides stable and measurable mounting points for the cameras • Cameras • Mounted in stereo pairs around periphery of infrastructure • Detect IR LEDs and pass images to server for processing • Server/Computer • Performs image processing, calculates position, and runs the GUI Slide of 12
System Hardware/Software • Cameras : Logitech QuickCam Pro 9000 • Computer : Dell XPS • LEDs : 950 nm Surface Mount Infrared LEDs • Infrastructure : 8020 Aluminum Framing • Operating System: Windows 7 • Image Processing: OpenCV Slide of 12
Preliminary Results • Gloves • A seamstress is working on making a glove of our design • Battery Pack consists of 4 AAA batteries to give ~20 hrs of continuous use • Stereo Cameras • The first stereo camera is assembled and working well • Another set of cameras arrived just this week – assembly imminent • IR Filter • The developed film filters worked ok, but image quality was an issue • Changed to a low cost commercial Longpass IR Filters, which is much more effective than than the old developed film • Infrastructure • Rudimentary infrastructure in place, but more parts are needed Slide of 12
Preliminary Results IR LED with new filter on camera IR LED with old filter on camera Slide of 12
Preliminary Results Assembled stereo camera with filters Infrastructure around TV Slide of 12
Preliminary Results • Camera Calibration • Using a checkerboard pattern and OpenCV to rectify images • Initially, Calibration was inaccurate and unusable • Calibration has improved, and our average error values are now in an acceptable range • Image Processing and Finger Identification • Currently able to easily identify locations of IR LEDs in filtered images • Initially we were unsure of how to discriminate between fingers • New solution: One camera with a filter, and one without, and colored fingertips on the glove to discriminate between fingers • Localization/Tracking • With an accurate calibration and good LED location we are able to produce a 3D location of a single LED • Nearly able to do so for multiple LEDs • Localization needs to be improved – Good precision, poor accuracy Slide of 12
Current Schedule Slide of 12
Questions? Slide of 12
