T-110.5110 Computer Networks II Transport Issues 29.9.2008

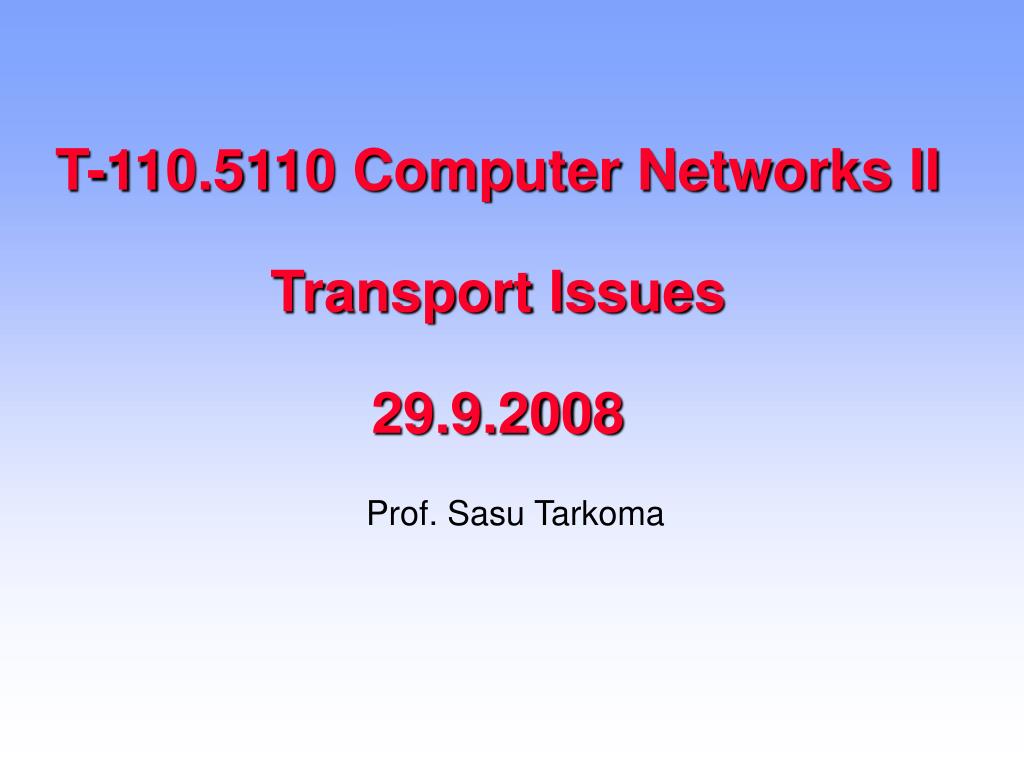

1. T-110.5110 Computer Networks IITransport Issues29.9.2008 Prof. Sasu Tarkoma

2. Contents • Transport Layer Overview • Congestion Control • TCP, TCP improvements, TCP and wireless • Stream Control Transmission Protocol (SCTP) • Datagram Congestion Protocol (DCCP) • TLS and DTLS

3. Transport Layer Overview • TCP congestion control principles introduced in late 1980s • Not part of the original transport layer functionality • Important design factor in today’s Internet protocol development • Important issues • Preventing congestion collapse • Fairness

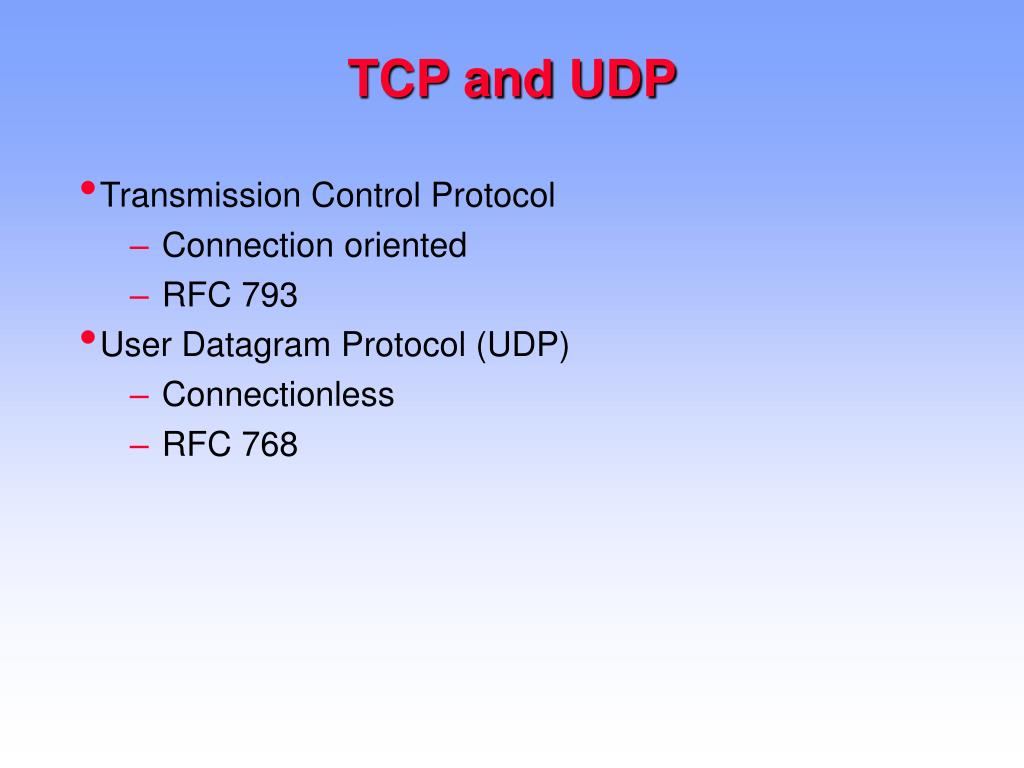

4. TCP and UDP • Transmission Control Protocol • Connection oriented • RFC 793 • User Datagram Protocol (UDP) • Connectionless • RFC 768

5. Motivation for Congestion Control • UDP used instead of TCP by applications that prefer timeliness over reliability • UDP does not have congestion control • A problem with long-lived flows and traffic intensive flows (streaming video, audio, internet telephony) • Greater use increases risk of congestion collapse • Congestion control mechanisms refers to techniques and mechanisms that can either prevent congestion, before it happens, or remove congestion, after it has happened open-loop congestion control (prevention) and closed loop congestion control (removal)

6. Congestion Prevention • Transmission rate must be reduced when congestion is detected • Responsibility of transport layer, i.e., the sending end host • Packet loss is assumed to be congestion signal • No deployed explicit congestion notification scheme • At most one congestion action / round-trip time • Burst of packet losses can be indication of same congestion situation

7. Fairness • Transport implementations must be fair to other flows • Transmission rate should be roughly similar to that of TCP • Components of TCP-friendly congestion control • Slow-start • Additive Increase, Multiplicative Decrease (AIMD) • Retransmission timers relative to round-trip time

8. Solutions • Implement congestion control below UDP: too low • Above UDP: implement congestion control at application level • Reinventing the wheel each time • Complex, might not be done correctly • New protocol more interoperable than a user-level library • In transport layer: modification of TCP, UDP, RTP, SCTP • More complex protocols • Not general enough • Introduces a fundamental change • Current trend: new transport protocols, namely DCCP and SCTP

9. TCP • Reliable • Cumulative acknowledgements • Fast retransmit / fast recovery • Reno [RFC 2581], NewReno [RFC 3782] • Retransmission timeouts [RFC 2988] • Stream-oriented • no concept of datagram boundaries • ideal for transferring files • transferring series of structured messages more difficult

10. TCP Services • Reliable communication between pairs of processes • Across variety of reliable and unreliable networks and internets • Two labeling facilities • Data stream push • TCP user can require transmission of all data up to push flag • Receiver will deliver in same manner • Avoids waiting for full buffers • Urgent data signal • Indicates urgent data is upcoming in stream • User decides how to handle it

11. TCP Header Source: William Stallings, Data and Computer Communications, Chapter 17.

12. TCP Mechanisms • Connection establishment • Between ports • Three way handshake • Data transfer service • Stream of octets • Octets numbered modulo 223 • Flow control by credit allocation of number of octets • Data buffered at sender and receiver • Connection termination • Graceful close • Transport entity sets FIN flag on last segment sent • Abrupt termination by ABORT primitive

13. Congestion Control • RFC 1122, Requirements for Internet hosts • Retransmission timer management • Estimate round trip delay by observing pattern of delay • Set time to value somewhat greater than estimate • Simple average • Exponential average • RTT Variance Estimation (Jacobson’s algorithm)

14. Exponential RTO Backoff • Since timeout is probably due to congestion (dropped packet or long round trip), constant RTO is not good idea • RTO increased each time a segment is re-transmitted • RTO = q*RTO • Commonly q=2 • Binary exponential backoff

15. Retransmission Mechanism • TCP receiver acknowledges next sequence number it expects to receive • If receiver gets packet out of order it acknowledges same sequence number than earlier • When sender receives 3 duplicate acknowledgements it considers the first unacknowledged segment lost • Congestion response: reduce the congestion window by half • Retransmit the first unacknowledged segment • If no acknowledgements arrive for time RTO, sender retransmits the first unacknowledged segment • Reset window to one segment

16. Karn’s Algorithm • If a segment is re-transmitted, the ACK arriving may be: • For the first copy of the segment • RTT longer than expected • For second copy • No way to tell • Do not measure RTT for re-transmitted segments • Calculate backoff when re-transmission occurs • Use backoff RTO until ACK arrives for segment that has not been re-transmitted

17. Window Management • Slow start • awnd = MIN[credit, cwnd] • Start connection with cwnd=1 • Increment cwnd at each ACK, to some max • Dynamic windows sizing on congestion • When a timeout occurs • Set slow start threshold to half current congestion window • ssthresh=cwnd/2 • Set cwnd = 1 and slow start until cwnd=ssthresh • Increasing cwnd by 1 for every ACK • For cwnd >=ssthresh, increase cwnd by 1 for each RTT

18. Congestion Example Source: http://dpnm.postech.ac.kr/itec522/lecture/Chapter12-3.ppt

19. Congestion avoidance Source: http://dpnm.postech.ac.kr/itec522/lecture/Chapter12-3.ppt

20. TCP timers Source: http://dpnm.postech.ac.kr/itec522/lecture/Chapter12-3.ppt

21. TCP Congestion Summary Source: http://dpnm.postech.ac.kr/itec522/lecture/Chapter12-3.ppt

22. TCP Summary and Improvements • Concepts: Congestion window, round-trip time, retransmission timeout, duplicate acknowledgement (triggered by out of order segment) • Congestion control • Packet loss as a signal, reduce rate • Fairness • Transport implementations must be fair to other flows • Retransmission mechanism • Selective acknowledgements (SACK), RFC 2018 • Additional information about ”holes” in sequence number space • Limited transmit & early retransmit, timestamps

23. TCP Problems • Minimal information from cumulative acknowledgements • Problems in environments with frequent packet losses (wireless) • Small window and packet retransmissions • May prevent fast retransmit from working • Retransmission ambiguity -- is ACK for original or retransmit? • Hinders the round-trip time measurement • Unnecessary retransmissions • Unnecessary use of bandwidth (sometimes expensive in wireless)

24. SACK • Additional information about “holes” in sequence number space • TCP option that reports discontinuous blocks of received data • Sender gets better information about which segments are lost • Allows more efficient retransmissions • Without SACK sender can retransmit only one segment in round-trip time • With SACK more retransmissions can be made in a round-trip time • Allows more efficient tracking of number of outstanding segments • SACK option specified in RFC 2018 • SACK-based retransmission algorithm specified in RFC 3517

25. Timestamps • Specified in RFC 1323 • TCP option for sender to include timestamp in every packet • TCP receiver echoes the timestamp back to sender • Retransmissions have different timestamp than original • Allows round-trip time measurement for retransmitted segments • Not allowed without timestamps • Allows detection of spurious retransmissions [Ludwig00] • Allows protection against wrapped sequence numbers

26. Queue Management • Simple router implementation drops packet when queue is full • Lock-out: Sometimes few flows get to dominate most of queue space • Queue delay: Long packet queues increase transmission delays • Active Queue Management marks packets before queue is full • Random Early Detection (RED) [Floyd93] • Mark a packet at probability P when queue length is more than L • Marks are distributed more evenly between flows

27. Explicit Congestion Notification • Sender marks a bit in IP header if transport is ECN capable • Routers to indicate congestion with a congestion bit in IP header • Used with Active Queue Management • Reduces the number of packet losses • Transport layer receiver echoes congestion notification to sender • In transport header • When receiving notification, sender reduces its transmission rate • Implemented in many end-hosts, but not too many routers • Problem: Some devices in network drop IP packets with ECN bits

28. 1984 Nagel’s algorithm to reduce overhead of small packets; predicts congestion collapse 1975 Three-way handshake Raymond Tomlinson In SIGCOMM 75 1996 SACK TCP (Floyd et al) Selective Acknowledgement 1987 Karn’s algorithm to better estimate round-trip time 1983 BSD Unix 4.2 supports TCP/IP 1988 Van Jacobson’s algorithms congestion avoidance and congestion control (most implemented in BSD Tahoe) 1986 Congestion collapse observed 1993 TCP Vegas (Brakmo et a.l) delay-based congestion avoidance 1994 ECN (Floyd) Explicit Congestion Notification 1974 TCP described by Vint Cerf and Bob Kahn In IEEE Trans Comm 1982 TCP & IP RFC 793 & 791 1990 1975 1980 1985 1994 1993 1996 TCP Evolution

29. SYN Cookies • Client • sends SYN packet and ACK number to server • waits for SYN-ACK from server w/ matching ACK number • Server • responds w/ SYN-ACK packet w/ initial SYN-cookie sequence number • Sequence number is cryptographically generated value based on client address, port, and time. • Client • sends ACK to server w/ matching sequence number • server • If ACK is to an unopened socket, server validates returned sequence number as SYN-cookie • If value is reasonable, a buffer is allocated and socket is opened SYN ack-number SYN-ACK seq-number as SYN-cookie, ack-number NO BUFFER ALLOCATED ACK seq_number ack-number+data SYN-ACK seq-number, ack-number TCP BUFFER ALLOCATED

30. Stream Control Transmission Protocol (SCTP)

31. SCTP • Stream Control Transmission Protocol (SCTP) • Specified in RFC 2960 • Additional features to TCP • Preservation of message boundaries • Support for multiple streams • Support for multi-homing • Packets consist of chunks: INIT, SACK, HEARBEAT, DATA, ABORT, SHUTDOWN, ERROR, and AUTH • Partial reliability • Retransmissions until abort • Extended Socket API (bind(), context data with sendmsg()) • Suitable for signalling traffic • Challenges with middleboxes

32. Motivation • TCP, UDP do not satisfy all application needs • SCTP evolved from work on IP telephony signaling • Proposed IETF standard (RFC 2960) • Like TCP, it provides reliable, full-duplex connections • Unlike TCP and UDP, it offers new delivery options that are particularly desirable for telephony signaling and multimedia applications • TCP + features • Congestion control similar; some optional mechanisms mandatory • Two basic types of enhancements: • performance • robustness

33. Comparison • Services/Features SCTP TCP UDP • Full-duplex data transmission yes yes yes • Connection-oriented yes yes no • Reliable data transfer yes yes no • Unreliable data transfer yes no yes • Partially reliable data transfer yes no no • Ordered data delivery yes yes no • Unordered data delivery yes no yes • Flow and Congestion Control yes yes no • ECN support yes yes no • Selective acks yes yes no • Preservation of message boundaries yes no yes • Application data fragmentation yes yes no • Multistreaming yes no no • Multihoming yes no no • Protection agains SYN flooding attack yes no n/a • Half-closed connections no yes n/a

34. Packet format • Unlike TCP, SCTP provides message-oriented data delivery service • key enabler for performance enhancements • Common header; three basic functions: • Source and destination ports together with the IP addresses • Verification tag • Checksum: CRC-32 instead of Adler-32 • followed by one or more chunks • chunk header that identifies length, type, and any special flags • concatenated building blocks containg either control or data information • control chunks transfer information needed for association (connection) functionality and data chunks carry application layer data. • Current spec: 14 different Control Chunks for association establishment, termination, ACK, destination failure recovery, ECN, and error reporting • Packet can contain several different chunk types

35. App waits Performance • Decoupling of reliable and ordered delivery • Unordered delivery: eliminate head-of-line blocking delay TCP receiver buffer Chunk 2 Chunk 3 Chunk 4 Chunk 1 • Application Level Framing • Support for multiple data streams (per-stream ordered delivery) • Stream sequence number (SSN) preserves order within streams • no order preserved between streams • per-stream flow control, per-association congestion control

36. App stream 1 TCP sender Chunk 1 Chunk 1 Chunk 2 Chunk 2 Chunk 3 Chunk 3 Chunk 4 Chunk 4 Chunk 1 Chunk 1 Chunk 2 Chunk 1 Chunk 2 Chunk 2 Chunk 2 Chunk 1 App stream 2 1 1 4 2 3 3 4 2 App 1 waits Multiple Data Streams • Application may use multiple logical data streams • e.g. pictures in a web browser • Common solution: multiple TCP connections • separate flow / congestion control, overhead (connection setup/teardown, ..) TCP receiver

37. Multihoming • TCP connection is equivalent to SCTP association • 2 IP addresses, 2 port numbers  2 sets of IP addresses, 2 port numbers • Goal: robustness • automatically switch hosts upon failure • eliminates effect of long routing reconvergence time • TCP: no guarantee for “keepalive“ messages when connection idle • SCTP monitors each destination's reachability via ACKs of • data chunks and heartbeat chunks • SCTP uses multihoming for redundancy, not for load balancing

38. Association phases • Association establishment: 4-way handshake • Host A sends INIT chunk to Host B • Host B returns INIT-ACK containing a cookie • information that only Host B can verify • No memory is allocated at this point (prevents DoS) • Host A replies with COOKIE-ECHO chunk; may contain A's first data. • Host B checks validity of cookie; association is established • Data transfer • SCTP assigns each chunk a unique Transmission Sequence Number (TSN) • SCTP peers exchange starting TSN values during association establishment phase • Message oriented data delivery; fragmented if larger than destination path MTU • Reliability through acks, retransmissions, and end-to-end checksum • Association shutdown: 3-way handshake • SHUTDOWN SHUTDOWN-ACK SHUTDOWN-COMPLETE • Does not allow half-closed connections

39. Datagram Congestion Control Protocol (DCCP)

40. Motivation • Some apps want unreliable, timely delivery • For example: VoIP • UDP: no congestion control • Unresponsive long-lived applications • endanger others (congestion collapse) • may hinder themselves (queuing delay, loss, ..) • Implementing congestion control is difficult • may require precise timers; should be placed in kernel

41. DCCP • Datagram Congestion Control Protocol (DCCP) • Unreliable datagram-oriented protocol (RFC 4340) • UDP with congestion control • Connection-oriented, requires connection state machine • Congestion control requires ack mechanism and sequence numbers • Negotiable features and options • Checksums, congestion control parameters • Some features: partial checksums, service codes • Suitable for long-lived non-reliable flows • Challenges with middleboxes

42. DCCP Requirements • DCCP was designed for time-sensitive applications • Application requirements: • Choice of congestion control mechanism: TFRC vs. TCP-like • Buffering control: do not deliver old data • Low per-packet overhead • Additional features • Explicit Congestion Notification (ECN): mark congested packets • NAT and firewall support: TCP-style explicit connection setup and teardown

43. DCCP Requirements • Well-known features from TCP and UDP: • Port numbers, checksums, sequence numbers (with difficulty), acks (congestion and ECN info), piggybacked acks • Three-way handshake to set up, two-way with wait to tear down • New features: • Negotiate congestion control mechanism and parameters on setup • Two half-connections (A → B, B → A)

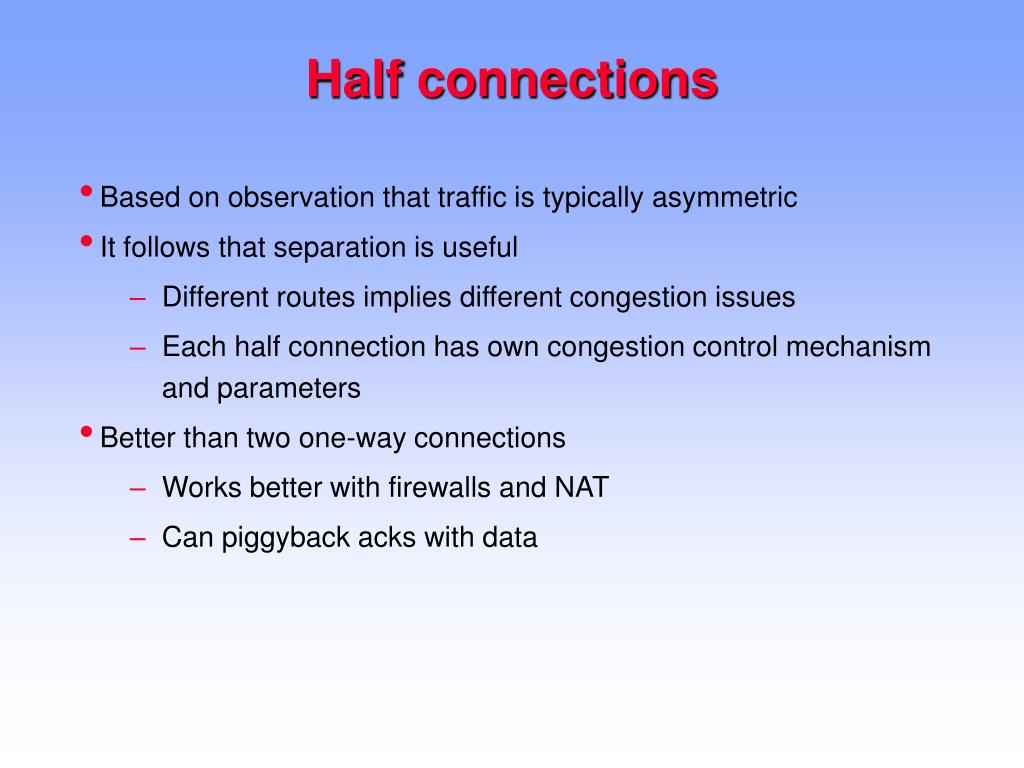

44. Half connections • Based on observation that traffic is typically asymmetric • It follows that separation is useful • Different routes implies different congestion issues • Each half connection has own congestion control mechanism and parameters • Better than two one-way connections • Works better with firewalls and NAT • Can piggyback acks with data

45. DCCP Feature Selection • Reliable feature selection: • A: change(f, α) • B: confirm(f, α) / prefer(f, β) • [A: confirm(f, β) ] • Selection for both half-connections done in parallel at startup • Generic, extensible

46. Issues with Acknowledgements (ACKs) • Acks must be at least partially reliable • TCP-style cumulative acks won’t work, so must ack everything (ack vector) • But ack state at receiver may grow without bound! • So sender occasionally acks the receiver’s acks • Receiver can throw away state for that ack • Acks take up sequence number space • Useful: can be used to detect reverse-path congestion

47. Packet Structure • Basic packet similar to UDP • Small (12 bytes) • Extensible for additional features instead of using a fixed-length flag field 0 1 2 3 0 1 2 3 4 5 6 7 8 9 0 1 2 3 4 5 6 7 8 9 0 1 2 3 4 5 6 7 8 9 0 1 +-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+ | Source Port | Dest Port | +-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+ | Data Offset | CCVal | CsCov | Checksum | +-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+ | Type |X|# NDP| Sequence Number | +-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+

48. “Plug ‘n Play” Congestion Control • CC mechanism and parameters (both ways) chosen during connection setup • Currently two mechanisms: • TFRC (control equation) • TCP-like (TCP with tweaked parameters) • Can add more later

49. Partial checksums • Checksum covers DCCP header and (optionally) any number of bytes into payload • Allows delivery of some damaged data • May be useful on error-prone links (eg. wireless) • Drawbacks: • Might conflict with IP-level authentication (eg. IPSec’s AH)

50. When is a packet received? • TCP: acked packets must be delivered to application • DCCP: acked packet might be dropped from application’s queue (apps might favour new data over old) • Ack means received and placed into application queue
