lumps and bumps

Lumps and Bumps

Anne Moore, MD

Assistant Professor Radiology

Children’s Mercy Hospital and

University of Missouri, Kansas City

imaging modalities

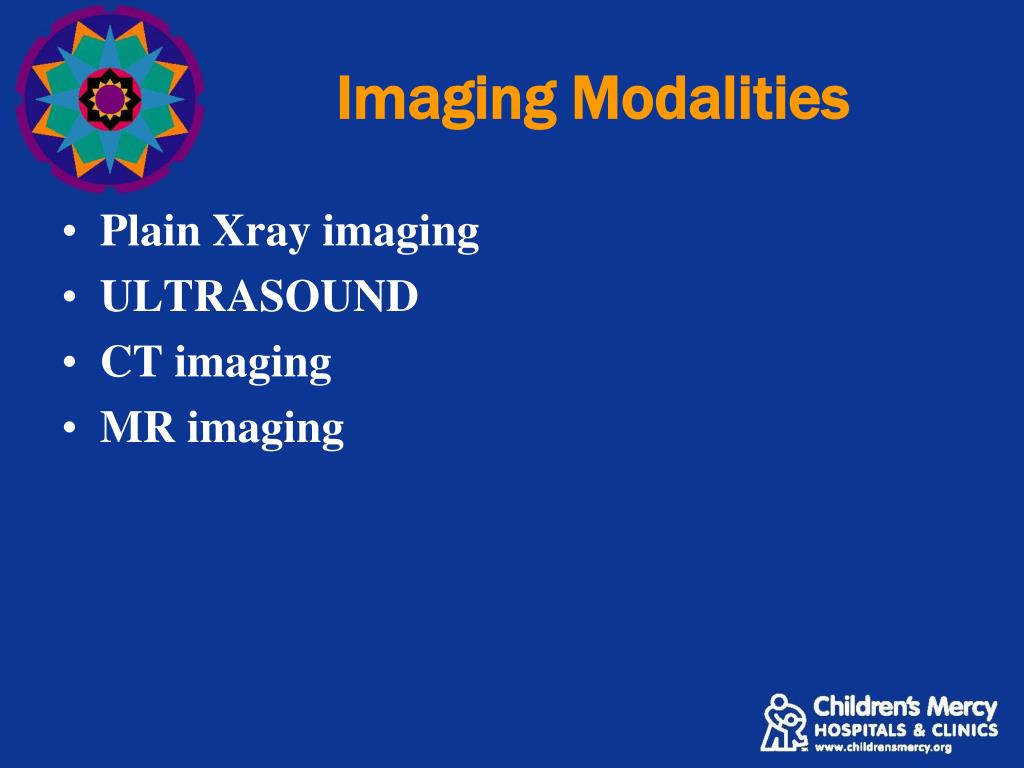

Imaging Modalities
  • Plain Xray imaging
  • ULTRASOUND
  • CT imaging
  • MR imaging
lumps and bumps3

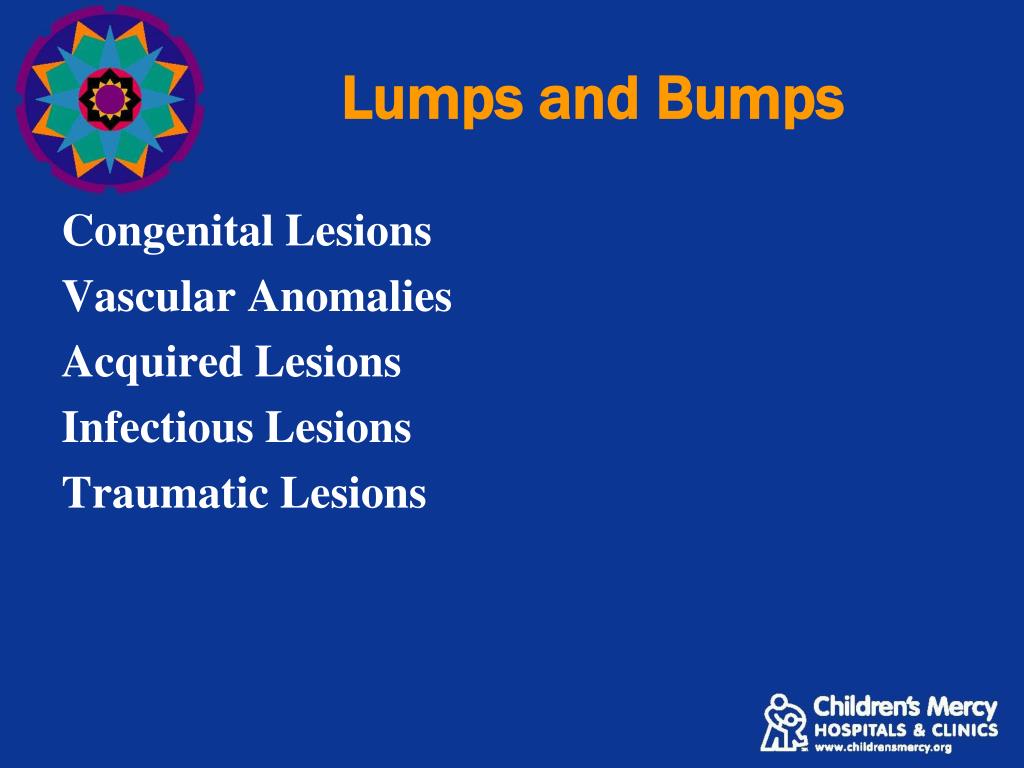

Lumps and Bumps

Congenital Lesions

Vascular Anomalies

Acquired Lesions

Infectious Lesions

Traumatic Lesions

head and neck
Head and neck
  • Start with Ultrasound!
head and neck7
Head and Neck
  • Dermoid/Epidermoid
  • Branchial Cleft Cyst
  • Thyroglossal Duct Cyst
  • Accessory Parotid Tissue
  • Fibromatosis Coli
  • Vascular Anomalies
    • Hemangioma
    • Lymphatic/Venous Malformation
dermoid epidermoid

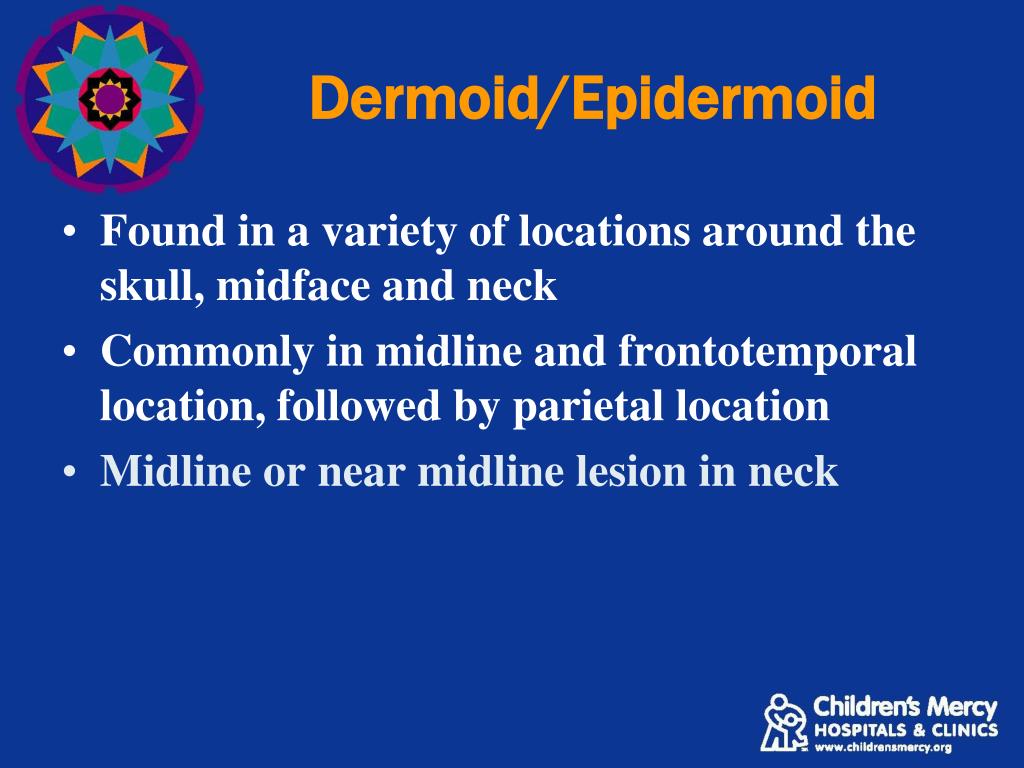

Dermoid/Epidermoid
  • Found in a variety of locations around the skull, midface and neck
  • Commonly in midline and frontotemporal location, followed by parietal location
  • Midline or near midline lesion in neck
dermoid epidermoid10

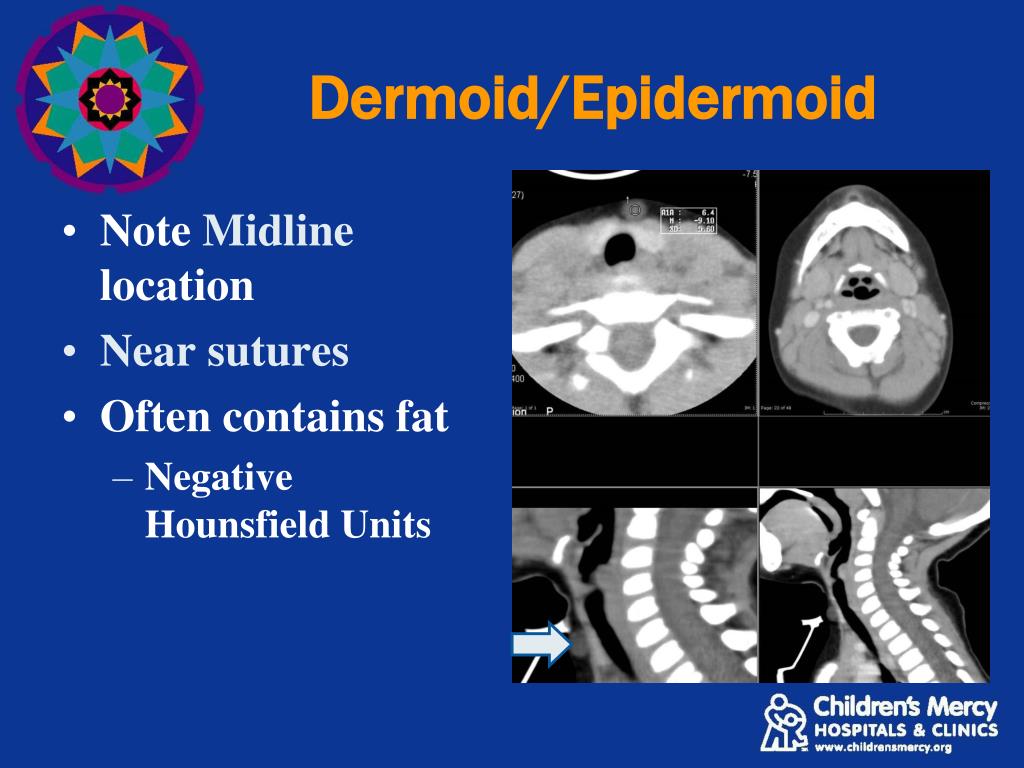

Note Midline location

Near sutures

Often contains fat

Negative Hounsfield Units

Dermoid/Epidermoid
branchial cleft cyst second

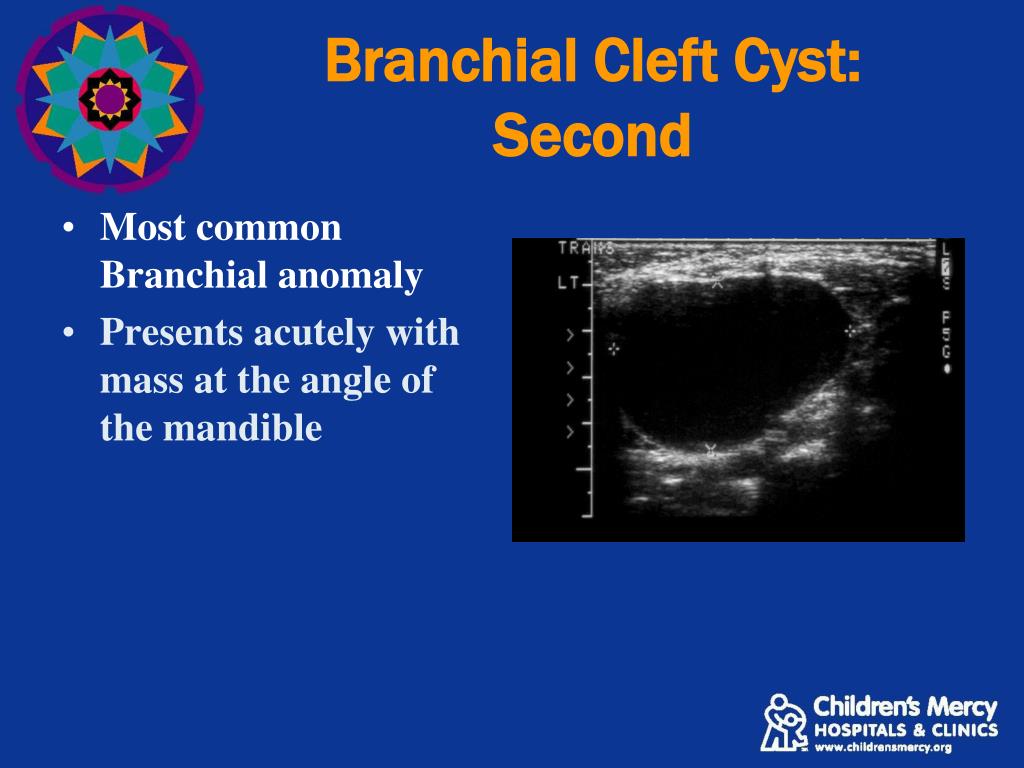

Branchial Cleft Cyst:Second
  • Most common Branchial anomaly
  • Presents acutely with mass at the angle of the mandible
accessory parotid tissue
Accessory Parotid Tissue
  • Superficial and lateral to masseter muscle and anterior to superficial lobe
  • Rarely palpable
fibromatosis coli
Fibromatosis Coli
  • Idiopathic intramuscular hematoma
  • Focal mass or fusiform enlargement of sternocleidomastoid
  • Presents with torticollis < 8 weeks of age
fibromatosis coli14
Fibromatosis Coli

Fibromatosis Coli

Normal for comparison

in a 6 week old with torticollis which imaging study is initially suggested

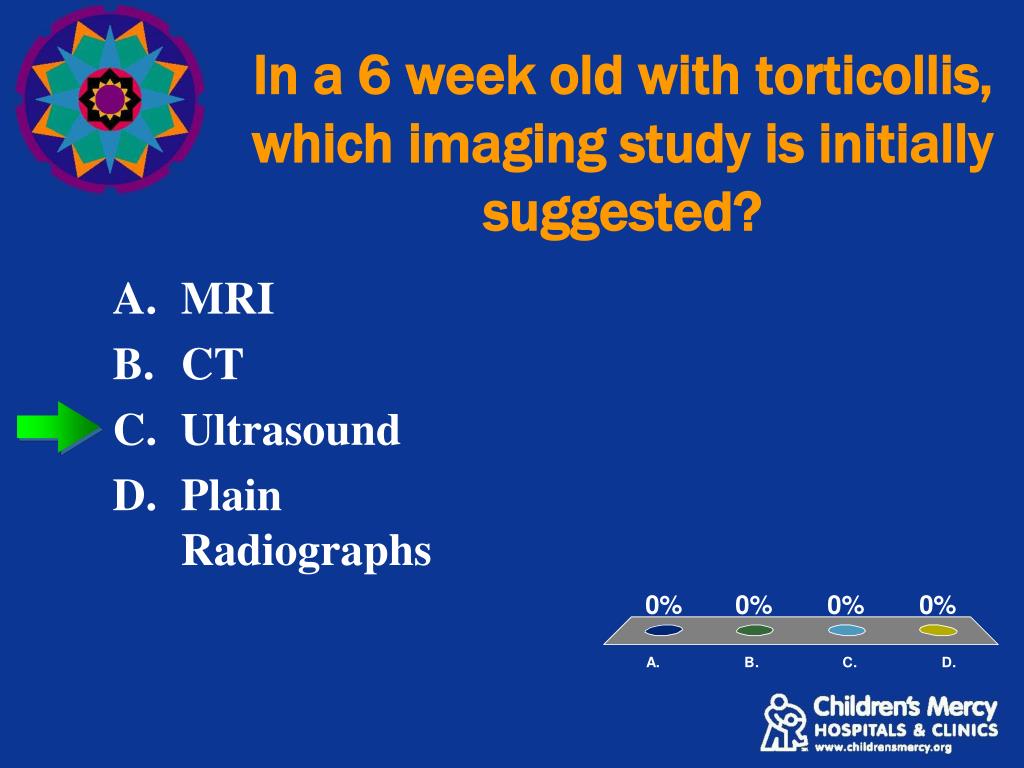

In a 6 week old with torticollis, which imaging study is initially suggested?
  • MRI
  • CT
  • Ultrasound
  • Plain Radiographs
thyroglossal duct cyst

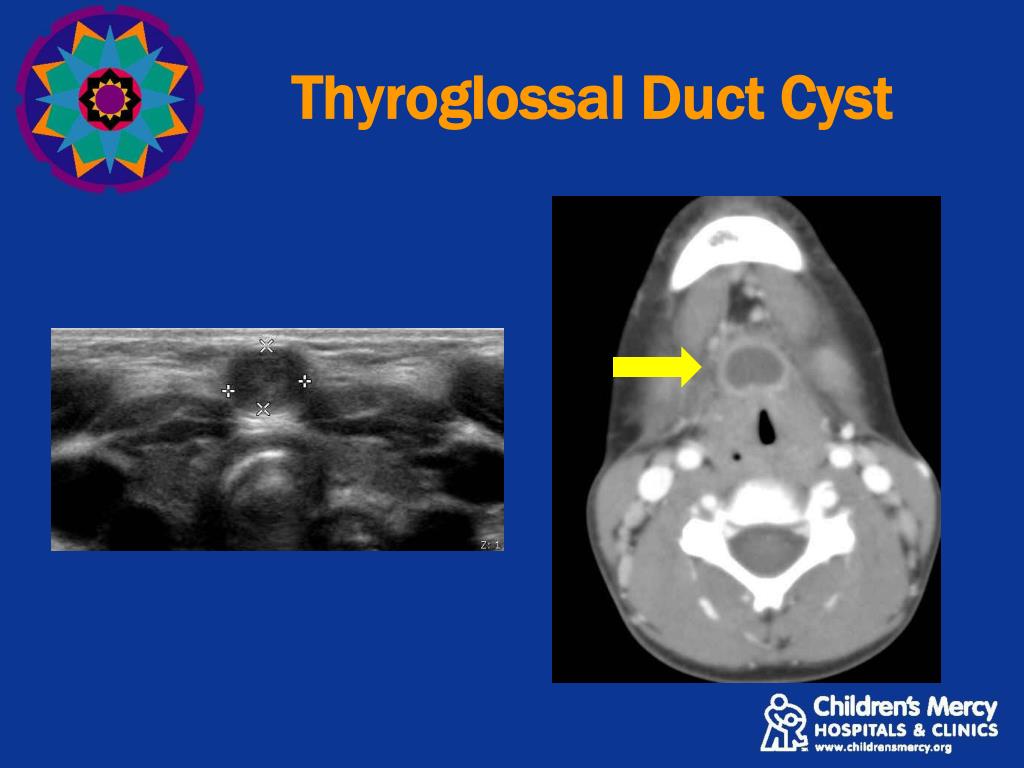

Thyroglossal duct cyst
  • Most common midline developmental lesion of the neck in childhood
  • Abuts hyoid bone
  • Presents acutely
    • Often after URI
hemangioma
Hemangioma
  • Most common tumor of infancy & childhood
  • Female > Male
  • Characteristic growth: proliferation, then regression
  • Presents 2weeks-2 months of age
  • Often skin changes
hemangioma19

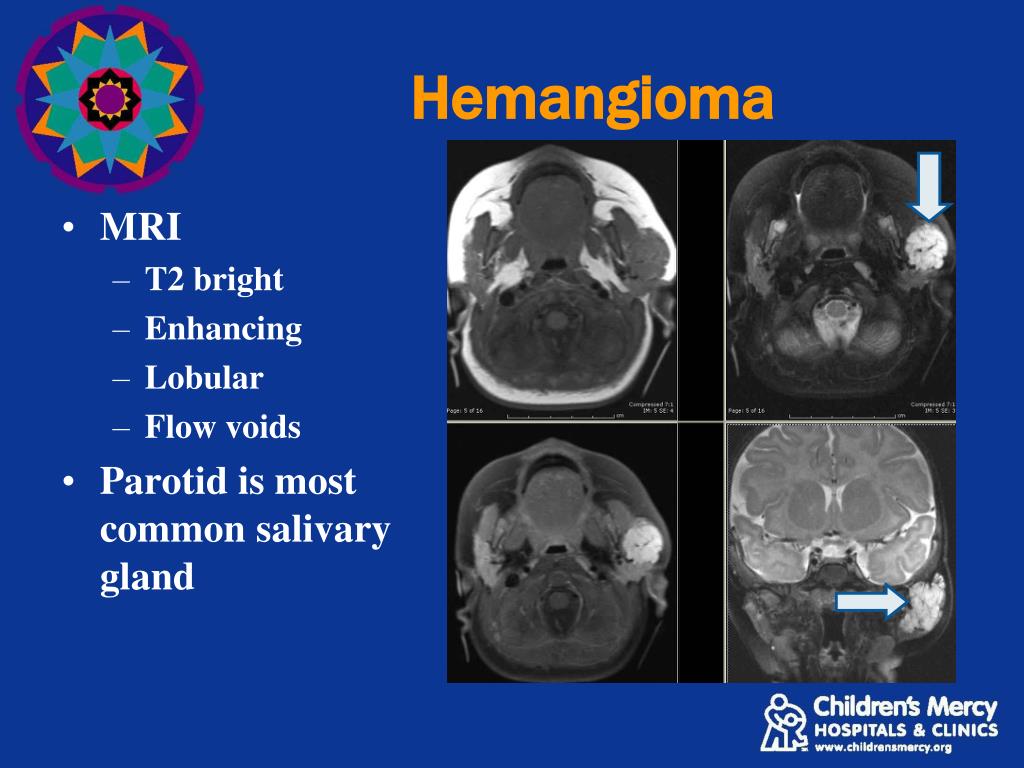

Hemangioma
  • MRI
    • T2 bright
    • Enhancing
    • Lobular
    • Flow voids
  • Parotid is most common salivary gland
hemangioma20

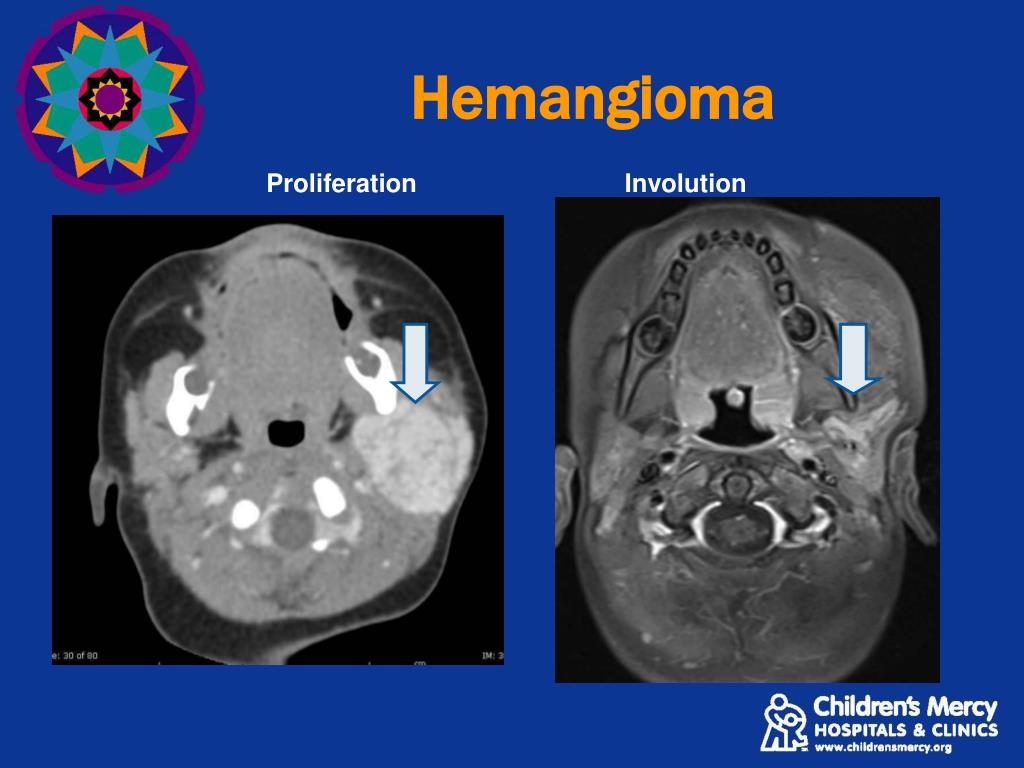

Hemangioma

Proliferation

Involution

venous and lymphatic malformations
Venous and Lymphatic Malformations

Present any age, but usually beyond infancy

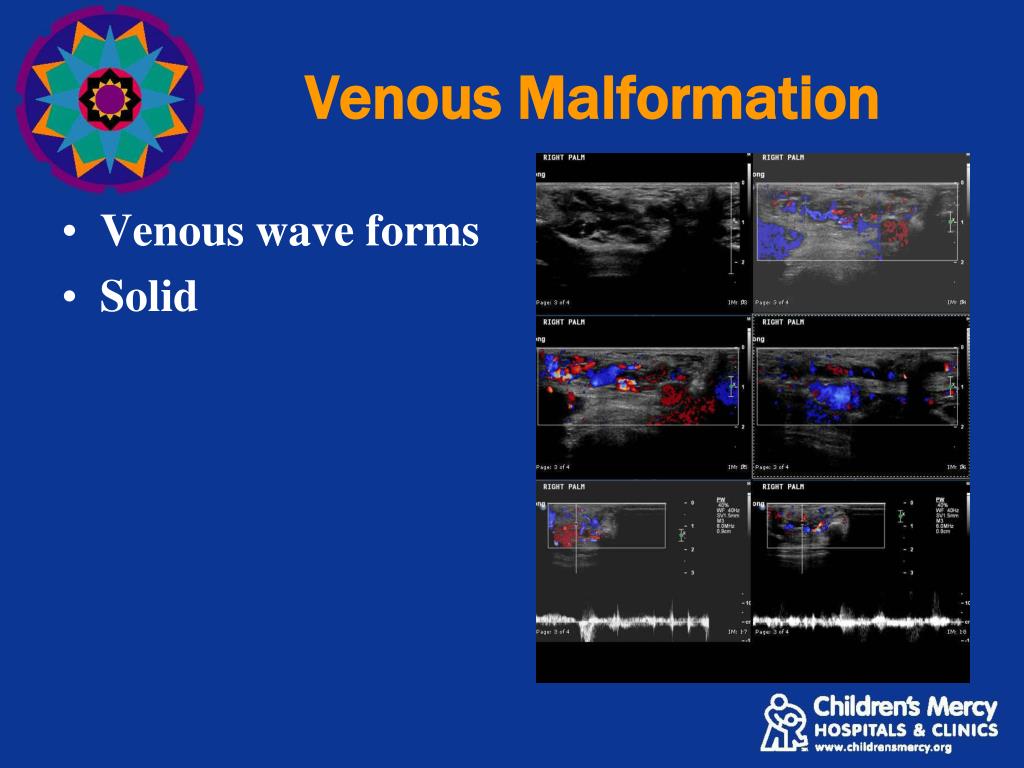

  • Venous Malformation:
    • Dysplastic venous channels; Solid with phleboliths and venous Doppler wave forms
  • Lymphatic Malformation:
    • Dysplastic lymphatic structures; Cystic with fluid levels
lymphatic malformation
Lymphatic Malformation

Note cystic and solid components

in a 1 month old child with a hemangioma on the arm what is the suggested imaging study
In a 1-month-old child with a hemangioma on the arm, what is the suggested imaging study?
  • No imaging needed
  • MRI
  • Bone scan
  • Plain radiographs
rhabdomyosarcoma

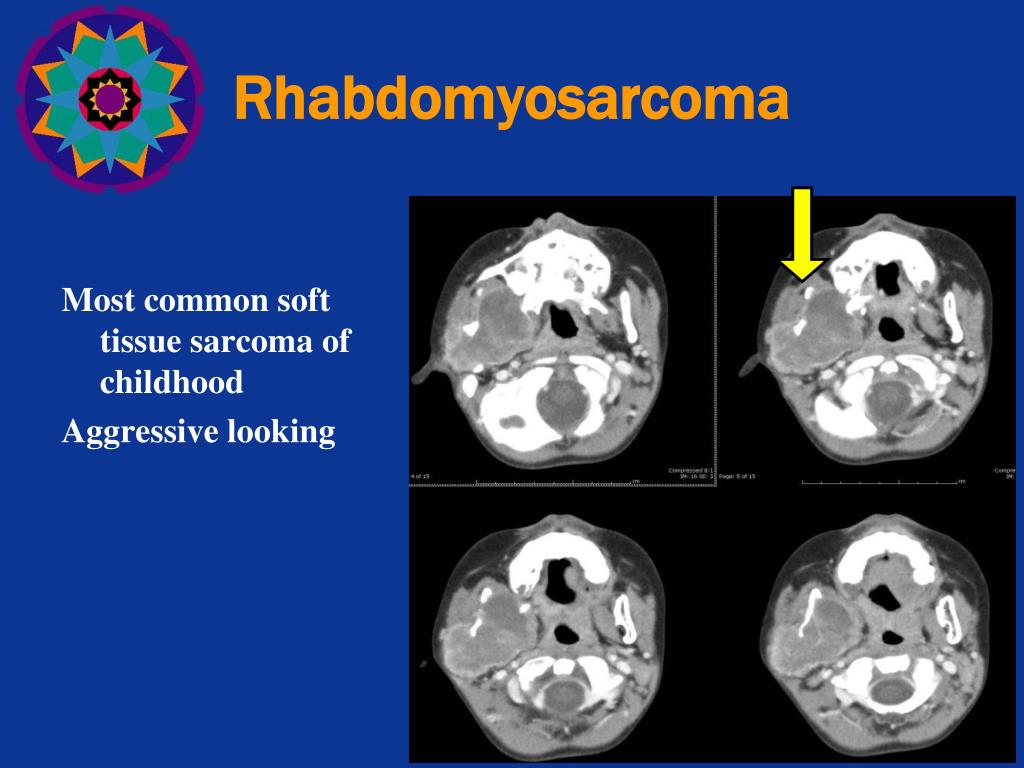

Rhabdomyosarcoma

Most common soft tissue sarcoma of childhood

Aggressive looking

lymphoma
Lymphoma
  • Third most common childhood malignancy
  • Asymptomatic lymphadenopathy
cervical lymphadenopathy
Cervical Lymphadenopathy
  • Common in children
  • Imaging studies will show size, number and location of enlarged lymph nodes
suppurative lymphadenitis
Suppurative Lymphadenitis
  • Bacterial infection may result in abscess formation
cephalohematoma

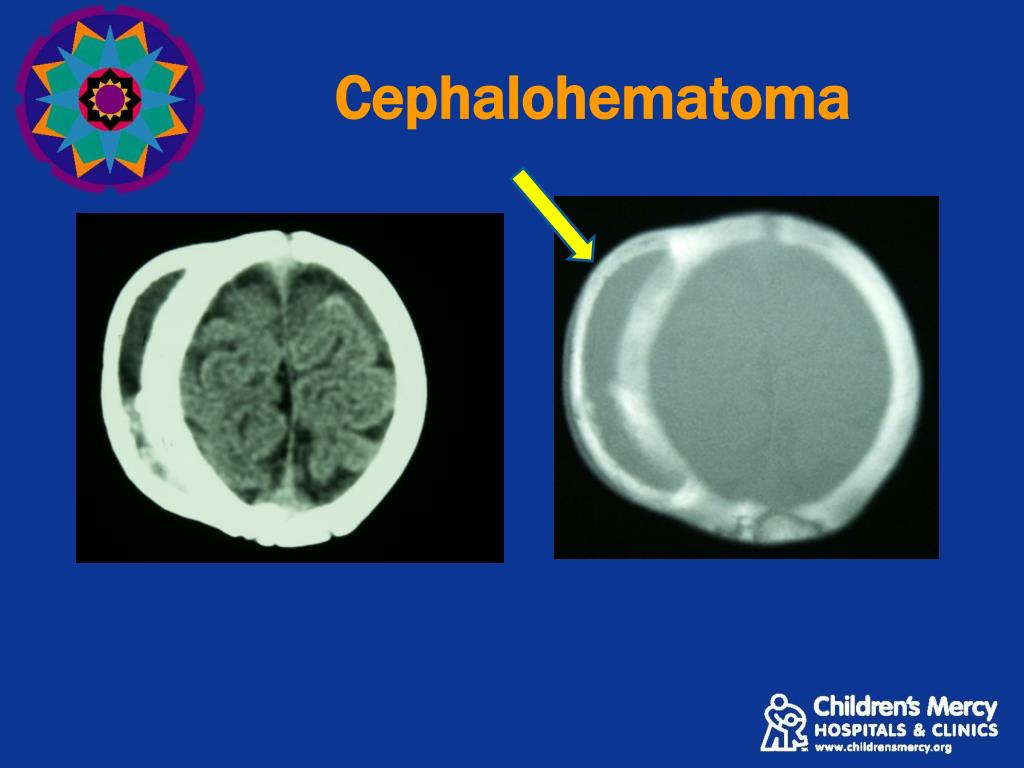

Cephalohematoma
  • Subperiosteal accumulation of blood
  • Confined by sutures
  • Most commonly parietal
  • No imaging usually needed
    • ? ultrasound
in a newborn male with unilateral parietal swelling since birth which imaging study is indicated
In a newborn male with unilateral parietal swelling since birth, which imaging study is indicated?
  • MRI
  • CT
  • Plain radiographs
  • No imaging indicated
baker s popliteal cyst
Baker’s/Popliteal Cyst
  • Synovial cyst in posterior aspect of knee joint
  • Intact cyst
  • Dissected Cyst
  • Ruptured Cyst
ganglion cyst
Ganglion Cyst
  • Cystic lesion usually attached to a tendon sheath
  • Location: hand, wrist, dorsum of foot
langerhan cell histiocystosis

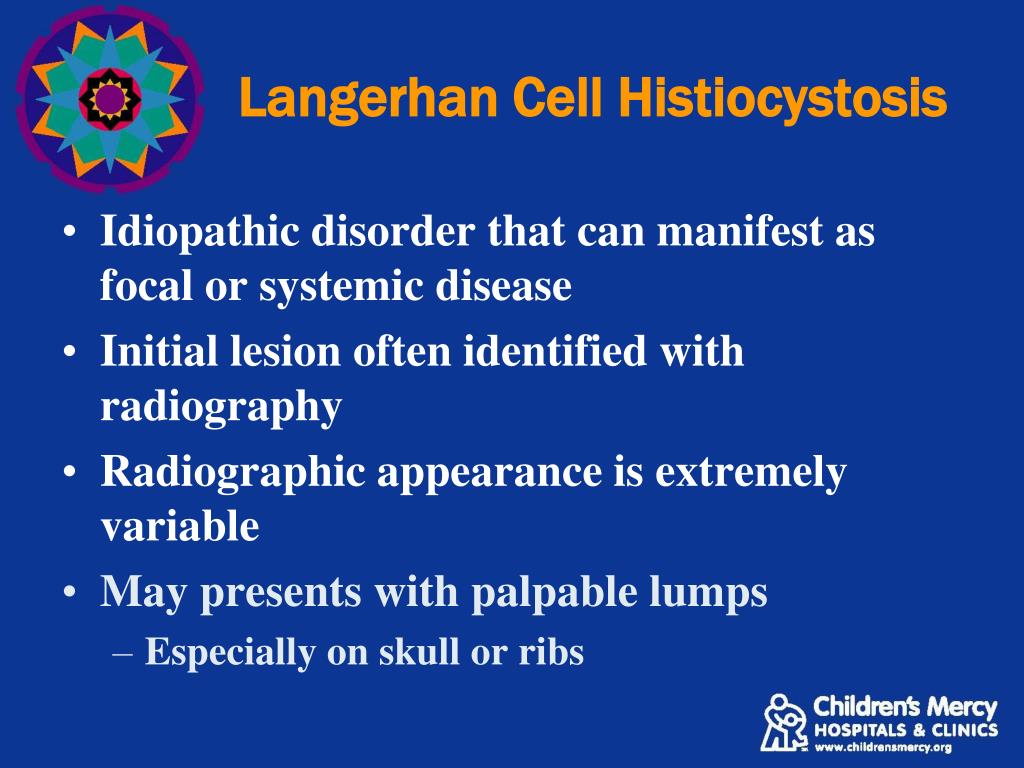

Langerhan Cell Histiocystosis
  • Idiopathic disorder that can manifest as focal or systemic disease
  • Initial lesion often identified with radiography
  • Radiographic appearance is extremely variable
  • May presents with palpable lumps
    • Especially on skull or ribs
slide39
LCH

15 month old

slide40
LCH

15 month old

slide41
LCH

15 month old clavicle/chest wall mass

11 year old female left chest wall mass

inguinal hernia
Inguinal Hernia
  • Patent processus vaginalis
  • Imaging not usually needed
    • Ultrasound if unsure about etiology
osteochondroma
Osteochondroma
  • Most common benign growth of the skeleton
  • Usually painless mass
  • Painful=possible malignancy and need MRI
sacral dimple
Sacral Dimple
  • Classified as low or high risk
  • Low risk does not require imaging
  • High risk require imaging
    • Ultrasound if < 6 months
    • MR imaging thereafter
sacral dimple46
Sacral dimple
  • Low risk
    • Midline
    • Less than 5mm in diameter
    • Located with the gluteal crease
    • No cutaneous abnormalities or drainage
    • Can see bottom of dimple
sacral dimple47
Sacral dimple
  • High risk
    • Greater than 5mm in diameter
    • Located above the gluteal crease
    • Cutaneous abnormalities
    • Draining cerebrospinal fluid
    • Bottom of dimple cannot be seen
sacral dimple48
Sacral Dimple

Tethered Cord

Normal

lumps and bumps51
Lumps and bumps
  • Ultrasound First
  • Use Ultrasound and Clinical Setting to Determine Next Best Step in Evaluation and Treatment
in a 4 mo old with skin lesion which imaging study is indicated
In a 4-mo-old with skin lesion. Which imaging study is indicated?
  • MRI
  • Ultrasound
  • No imaging needed
  • Plain radiographs
