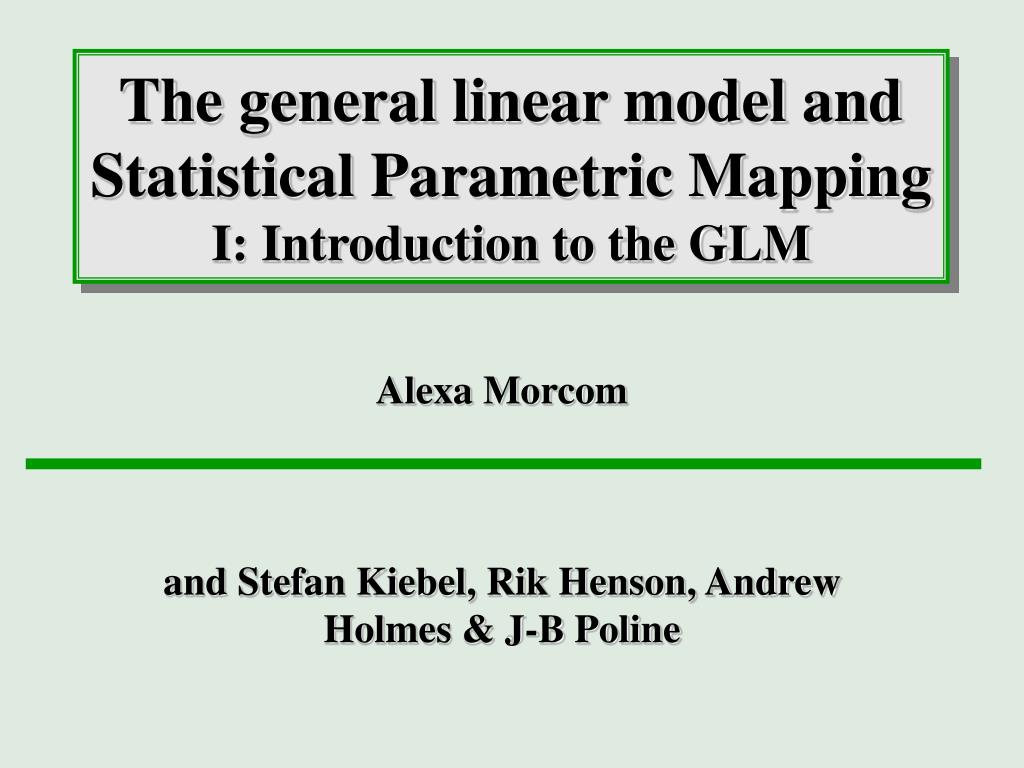

  1. The general linear model and Statistical Parametric MappingI: Introduction to the GLM Alexa Morcom and Stefan Kiebel, Rik Henson, Andrew Holmes & J-B Poline

  2. Overview • Introduction • Essential concepts • Modelling • Design matrix • Parameter estimates • Simple contrasts • Summary

  3. Some terminology • SPM is based on a mass univariate approachthat fits a model at each voxel • Is there an effect at location X? Investigate localisation of function or functional specialisation • How does region X interact with Y and Z? Investigate behaviour of networks or functional integration • A General(ised) Linear Model • Effects are linear and additive • If errors are normal (Gaussian), General (SPM99) • If errors are not normal, Generalised(SPM2)

  4. Classical statistics... • Parametric • one sample t-test • two sample t-test • paired t-test • ANOVA • ANCOVA • correlation • linear regression • multiple regression • F-tests • etc… all cases of the (univariate) General Linear Model Or, with non-normal errors, the Generalised Linear Model

  5. Classical statistics... • Parametric • one sample t-test • two sample t-test • paired t-test • ANOVA • ANCOVA • correlation • linear regression • multiple regression • F-tests • etc… all cases of the (univariate) General Linear Model Or, with non-normal errors, the Generalised Linear Model

  6. Classical statistics... • Parametric • one sample t-test • two sample t-test • paired t-test • ANOVA • ANCOVA • correlation • linear regression • multiple regression • F-tests • etc… • Multivariate? all cases of the (univariate) General Linear Model Or, with non-normal errors, the Generalised Linear Model PCA/ SVD, MLM

  7. Classical statistics... • Parametric • one sample t-test • two sample t-test • paired t-test • ANOVA • ANCOVA • correlation • linear regression • multiple regression • F-tests • etc… • Multivariate? • Non-parametric? all cases of the (univariate) General Linear Model Or, with non-normal errors, the Generalised Linear Model PCA/ SVD, MLM  SnPM

  8. Why modelling? Why? Make inferences about effects of interest • Decompose data into effects and error • Form statistic using estimates of effects and error How? Model? Use any available knowledge effects estimate statistic data model error estimate

  9. Choose your model “All models are wrong, but some are useful” George E.P.Box A very general model Variance Bias No normalisation Lots of normalisation default SPM No smoothing Lots of smoothing Massive model Sparse model Captures signal High sensitivity but ... not much sensitivity but ... may miss signal

  10. Modelling with SPM Functional data Design matrix Contrasts Smoothed normalised data Parameter estimates Generalised linear model SPMs Preprocessing Thresholding Templates Variance components

  11. Modelling with SPM Design matrix Contrasts Preprocessed data: single voxel Parameter estimates Generalised linear model SPMs Variance components

  12. fMRI example One session Time series of BOLD responses in one voxel Passive word listening versus rest 7 cycles of rest and listening Each epoch 6 scans with 7 sec TR Stimulus function Question: Is there a change in the BOLD response between listening and rest?

  13. GLM essentials • The model • Design matrix: Effects of interest • Design matrix: Confounds (aka effects of no interest) • Residuals (error measures of the whole model) • Estimate effects and error for data • Parameter estimates (aka betas) • Quantify specific effects using contrasts of parameter estimates • Statistic • Compare estimated effects – the contrasts – with appropriate error measures • Are the effects surprisingly large?

  14. GLM essentials • The model • Design matrix: Effects of interest • Design matrix: Confounds (aka effects of no interest) • Residuals (error measures of the whole model) • Estimate effects and error for data • Parameter estimates (aka betas) • Quantify specific effects using contrasts of parameter estimates • Statistic • Compare estimated effects – the contrasts – with appropriate error measures • Are the effects surprisingly large?

  15. Regression model General case error e~N(0, s2I) (error is normal and independently and identically distributed) = + + b1 b2 Time e x1 x2 Intensity Question: Is there a change in the BOLD response between listening and rest? Hypothesis test: b1 = 0? (using t-statistic)

  16. Regression model General case = + + Model is specified by • Design matrix X • Assumptions about e

  17. Matrix formulation Yi= b1xi + b2+ eii = 1,2,3 Y1 = b1x1 + b2× 1 + e1 Y2 = b1x2 + b2 × 1 + e2 Y3 = b1x3 + b2× 1 + e3 dummy variables Y1x1 1 b1e1 Y2 = x2 1 + e2 Y3x3 1 b1e3 Y= Xb +e

  18. y x Matrix formulation ^ Hats = estimates Linear regression Yi Yi= b1xi + b2+ eii = 1,2,3 ^ b1 1  ^  Y1 = b1x1 + b2× 1 + e1 Y2 = b1x2 + b2 × 1 + e2 Y3 = b1x3 + b2× 1 + e3 Yi ^  b2 dummy variables ^ ^ Parameter estimates b1 &b2 Fitted values Y1&Y2 Residuals e1 &e2 Y1x1 1 b1e1 Y2 = x2 1 + e2 Y3x3 1 b1e3 Y= Xb +e ^ ^ ^ ^

  19. (x1, x2, x3) X1 (1,1,1) X2 Geometrical perspective Y1x1 1 b1e1 Y2 = x2 1 + e2 Y3x3 1 b2e3 DATA (Y1, Y2, Y3) Y Y= b1X1 + b2X2 + e O design space

  20. GLM essentials • The model • Design matrix: Effects of interest • Design matrix: Confounds (aka effects of no interest) • Residuals (error measures of the whole model) • Estimate effects and error for data • Parameter estimates (aka betas) • Quantify specific effects using contrasts of parameter estimates • Statistic • Compare estimated effects – the contrasts – with appropriate error measures • Are the effects surprisingly large?

  21. Parameter estimation Ordinary least squares residuals Parameter estimates Estimate parameters Least squares parameter estimate such that minimal

  22. Parameter estimation Ordinary least squares residuals = r Parameter estimates Error variance 2= (sum of) squared residuals standardised for df = rTr / df (sum of squares) …where degrees of freedom df(assuming iid): = N - rank(X) (=N-P if X full rank)

  23. ^ ^ ^ (x1, x2, x3) X1 (1,1,1) X2 Estimation (geometrical) Y1x1 1 b1e1 Y2 = x2 1 + e2 Y3x3 1 b2e3 DATA (Y1, Y2, Y3) Y RESIDUALS Y= b1X1 + b2X2 + e ^ e = (e1,e2,e3)T ^ ^ ^ ^ (Y1,Y2,Y3) Y O design space

  24. GLM essentials • The model • Design matrix: Effects of interest • Design matrix: Confounds (aka effects of no interest) • Residuals (error measures of the whole model) • Estimate effects and error for data • Parameter estimates (aka betas) • Quantify specific effects using contrasts of parameter estimates • Statistic • Compare estimated effects – the contrasts – with appropriate error measures • Are the effects surprisingly large?

  25. Inference - contrasts A contrast = a linear combination of parameters: c´ x b  spm_con*img t-test: one-dimensional contrast, difference in means/ difference from zero F-test: tests multiple linear hypotheses – does subset of model account for significant variance boxcar parameter > 0 ? Does boxcar parameter model anything? Null hypothesis: Null hypothesis: variance of tested effects = error variance • ess_000*.img SPM{F} map • spmT_000*.img SPM{t} map

  26. t-statistic - example Contrast of parameter estimates Variance estimate c = 1 0 0 0 0 0 0 0 0 0 0 Standard error of contrast depends on the design, and is larger with greater residual error and ‚greater‘ covariance/ autocorrelation Degrees of freedom d.f. then = n-p, where n observations, p parameters X Tests for a directional difference in means

  27. F-statistic - example Do movement parameters (or other confounds) account for anything? test H0 : c´ x b = 0 ? H0: b3-9 = (0 0 0 0 ...) H0: True model is X0 X0 X0 X1(b3-9) Null hypothesis H0: That all these betas b3-9are zero, i.e. that no linear combination of the effects accounts for significant variance This is a non-directional test This model ? Or this one ?

  28. F-statistic - example Do movement parameters (or other confounds) account for anything? test H0 : c´ x b = 0 ? H0: b3-9 = (0 0 0 0 ...) H0: True model is X0 X0 X0 X1(b3-9) 0 0 1 0 0 0 0 0 0 0 01 0 0 0 0 0 0 0 0 1 0 0 0 0 0 0 0 0 1 0 0 0 0 0 0 0 0 1 0 0 0 0 0 0 0 01 c’ = SPM{F} This model ? Or this one ?

  29. Summary so far • The essential model contains • Effects of interest • A better model? • A better model (within reason) means smaller residual variance and more significant statistics • Capturing the signal – later • Add confounds/ effects of no interest • Example of movement parameters in fMRI • A further example (mainly relevant to PET)…

  30. b1 b2 b3 b4 rank(X)=3 Example PET experiment 12 scans, 3 conditions (1-way ANOVA) yj = x1j b1 + x2j b2 + x3j b3 + x4j b4 + ej where (dummy) variables: x1j = [0,1] = condition A (first 4 scans) x2j = [0,1] = condition B (second 4 scans) x3j = [0,1] = condition C (third 4 scans) x4j = [1] = grand mean (session constant)

  31. x x x x x x o o o x x x x x x o o o x x x o o o x x x o o o o o o o o o AnCova global Scaling global Global effects • May be variation in PET tracer dose from scan to scan • Such “global” changes in image intensity (gCBF) confound local / regional (rCBF) changes of experiment • Adjust for global effects by: -AnCova (Additive Model) - PET? - Proportional Scaling - fMRI? • Can improve statistics when orthogonal to effects of interest… • …but can also worsen when effects of interest correlated with global global x x o o x x o x o o x o

  32. b1 b2 b3 b4 b5 rank(X)=4 Global effects (AnCova) 12 scans, 3 conditions, 1 confounding covariate yj = x1j b1 + x2j b2 + x3j b3 + x4j b4 + x5j b5+ ej where (dummy) variables: x1j = [0,1] = condition A (first 4 scans) x2j = [0,1] = condition B (second 4 scans) x3j = [0,1] = condition C (third 4 scans) x4j = [1] = grand mean (session constant) x5j = global signal (mean over all voxels)

  33. b1 b2 b3 b4 b1 b2 b3 b4 b5 rank(X)=4 rank(X)=3 Global effects (AnCova) No Global Orthogonal global Correlated global b1 b2 b3 b4 b5 • Global effects not accounted for • Maximum degrees of freedom (global uses one) rank(X)=4 Global effects independent of effects of interest Smaller residual variance Larger T statistic More significant Global effects correlated with effects of interest Smaller effect &/or larger residuals Smaller T statistic Less significant
