D-15 Calculator

This guide provides detailed instructions for utilizing the D-15 calculator as outlined by Foutch, Stringham, & Vengu (2011). Open the "EXCEL_D15_Calculator.xls" file and navigate to the "Errors Only" tab. Follow the sorting process for D-15 panels: select data, sort by column A, and use custom lists to input your panels one at a time. After completing your entries, view the D-15 arrangement graphic and the summary table, which includes raw and modeled indices. Ensure no duplicates are present, as the file lacks a check for completeness.

malory
Download Presentation

D-15 Calculator

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

  1. D-15 Calculator Based on: Foutch, Stringham, & Vengu JMO, 2011

  2. Ground rules 1. Open “EXCEL_D15_Calculator.xls” 2. Work in the “Errors Only” tab

  3. Sorting the D15 panels 2. Select “Data” 1. “Grab” A3:C17

  4. Sorting the panels (cont’d) Choose drop-down menu under “Order” - Ensure the following: -- Sort by: Column A -- Sort On: Values 3. Select “Sort” box

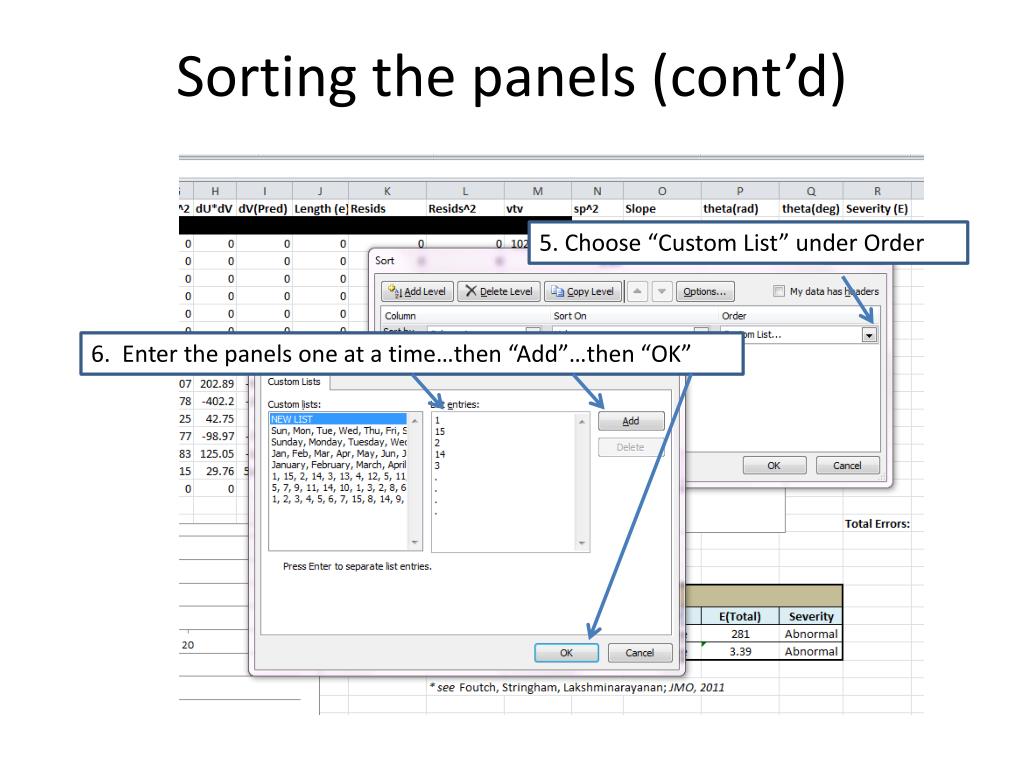

  5. Sorting the panels (cont’d) 5. Choose “Custom List” under Order 6. Enter the panels one at a time…then “Add”…then “OK”

  6. Sorting the panels (cont’d) 7. After entering all panels (there is no “check” for completeness or duplicates in this Excel file)…hit “OK”

  7. Sorting the panels (cont’d) 8. You are done! The first “useful” graphic is the D-15 arrangement. 9. Here’s your summary table. It contains the “raw” and “modeled” indices.
