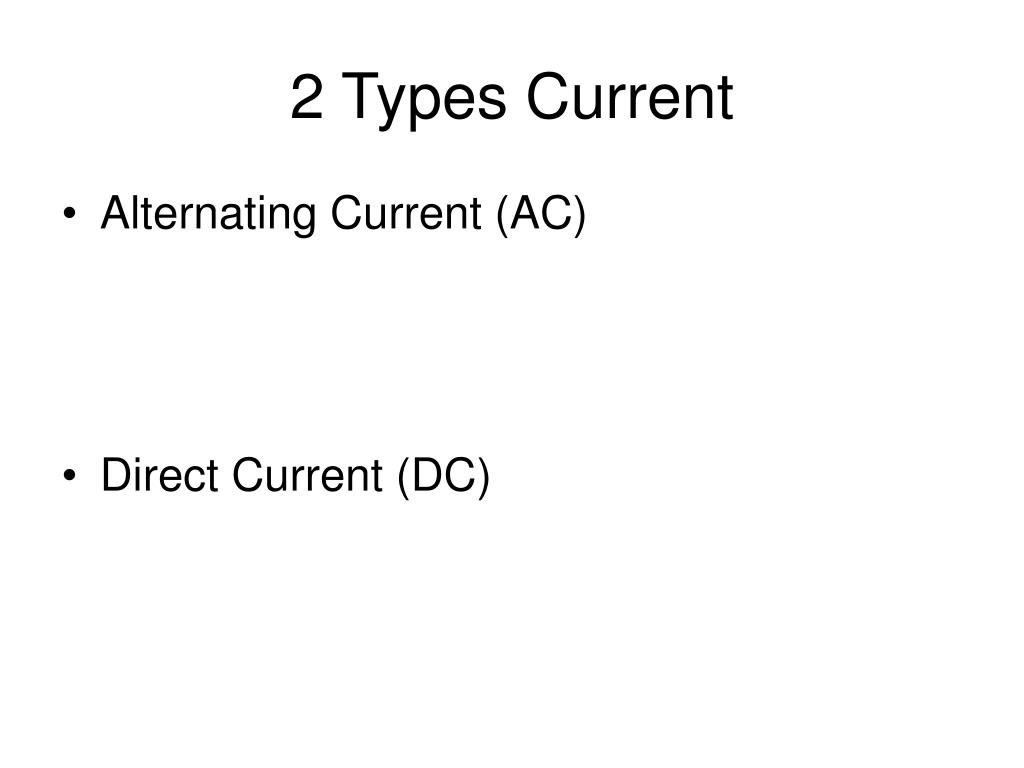

  1. 2 Types Current • Alternating Current (AC) • Direct Current (DC)

  2. Circuit Diagram Components • Wire: • Resistor: • Voltage Source:

  3. Circuit Diagram Components • Light Bulb: • Open Switch: • Closed Switch:

  4. Warm Up 11 A student compares the viscosities of two solutions at room temperature. The student uses a metal block and equal volumes of the two solutions in identical containers. Which procedure would provide the best comparison of the viscosities of the solutions? A Determining whether the block raises or lowers the density of either solution B Determining whether the block raises or lowers the temperature of either solution C Measuring the volume of liquid the block displaces in each solution D Measuring the time it takes the block to sink in each solution

  5. TAKS Bring a Sack Lunch Bring a good book or books Do NOT bring backpacks and purses Do NOT bring cell phones, iPods, etc.

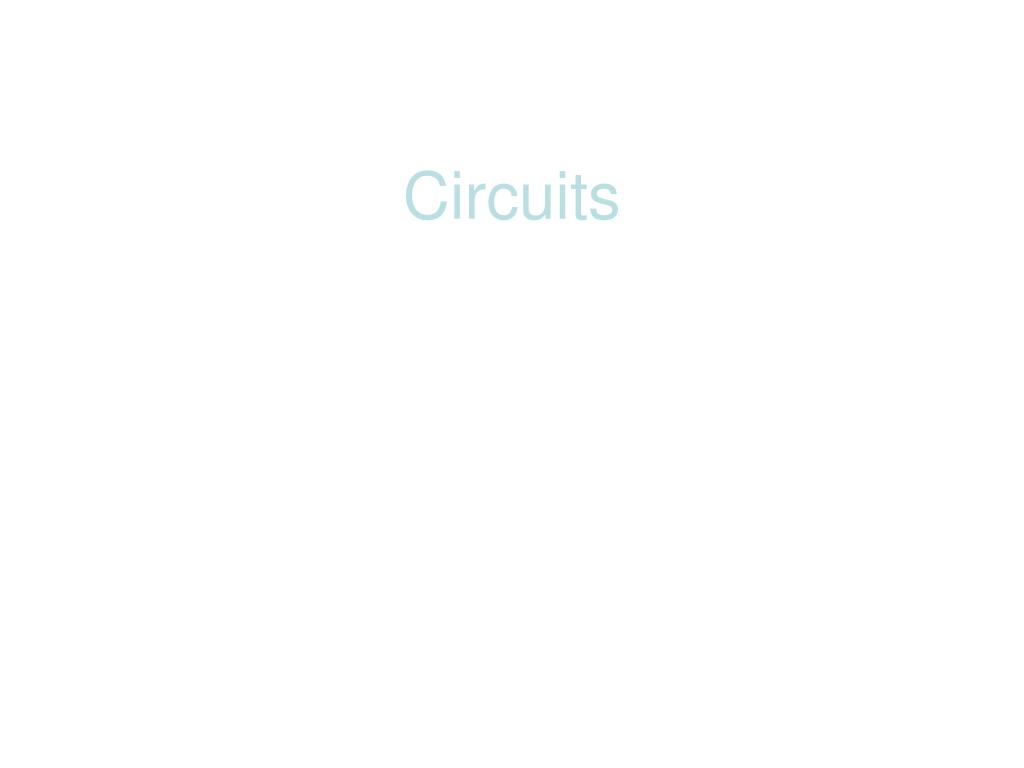

  6. Circuits

  7. What is a Circuit? • A path or paths that conducts a charge • A closed circuit occurs when: • Charge can flow from start to finish without interruption • There are no breaks • An open circuit has something that stops the flow of electricity

  8. Circuit Diagrams A simplified picture of a circuit Uses symbols to represent components (pieces) of a circuit CORRECTION: symbol for a voltage source

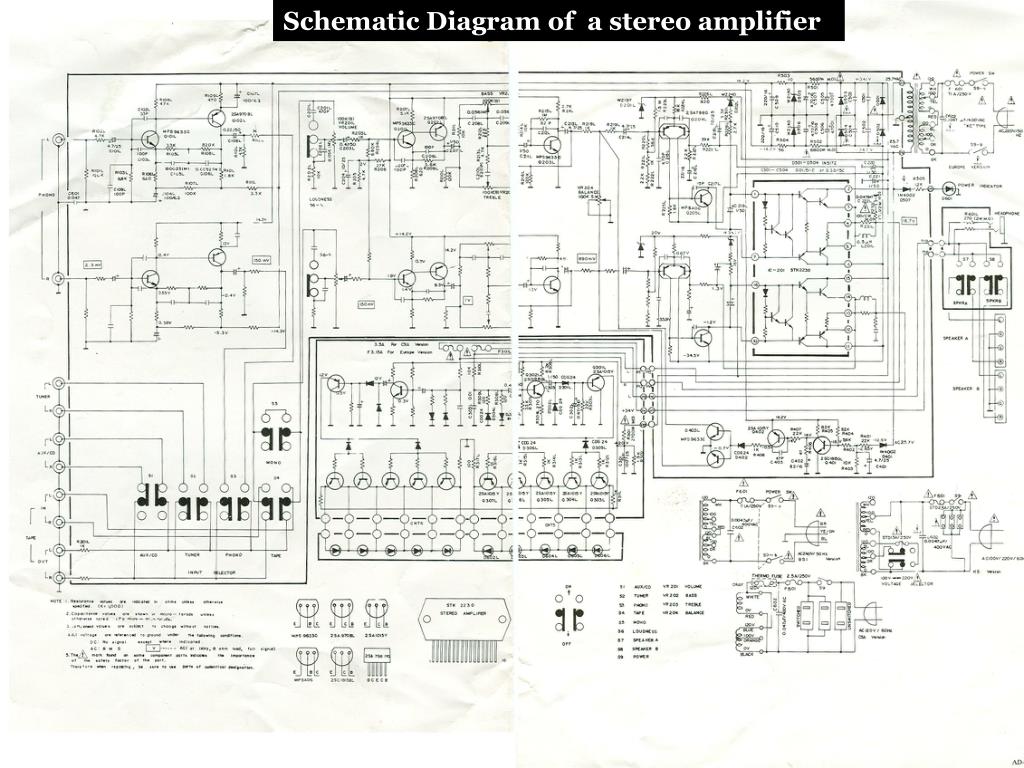

  9. Schematic Diagram of a stereo amplifier We won’t be getting this complex.

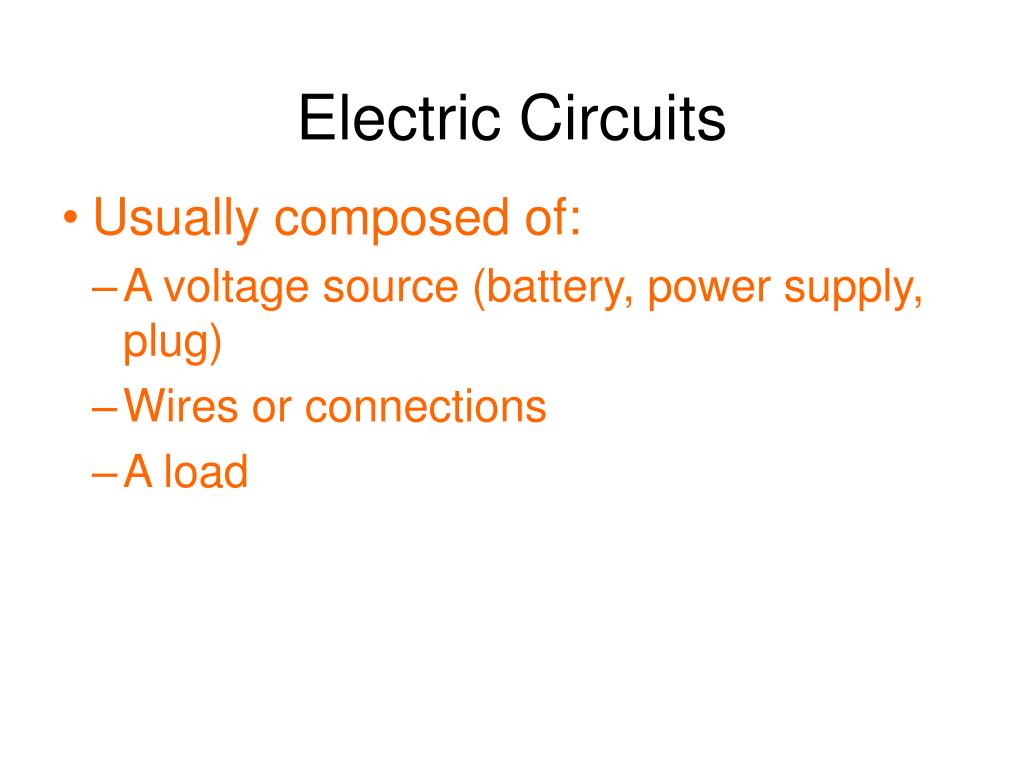

  10. Electric Circuits • Usually composed of: • A voltage source (battery, power supply, plug) • Wires or connections • A load

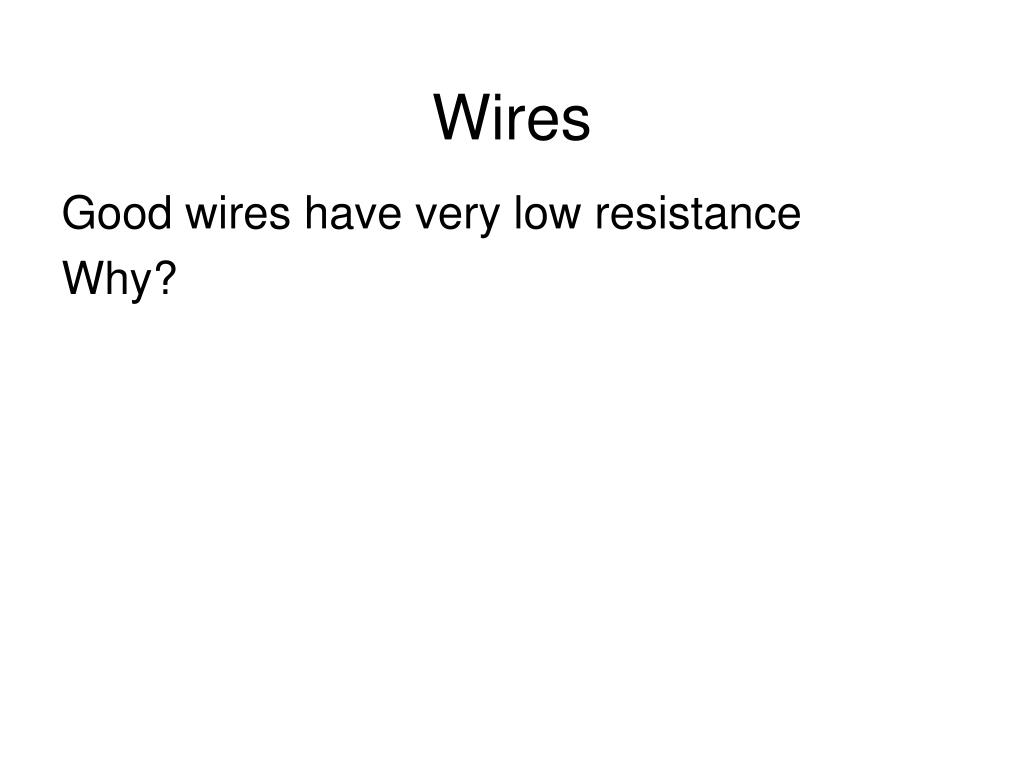

  11. Wires Good wires have very low resistance Why?

  12. Hands On • Using a multimeter, determine the resistance of several different components: • Wire • Battery • Light bulb • Resistor • Diode • Classify each item as a source, load, or wire.

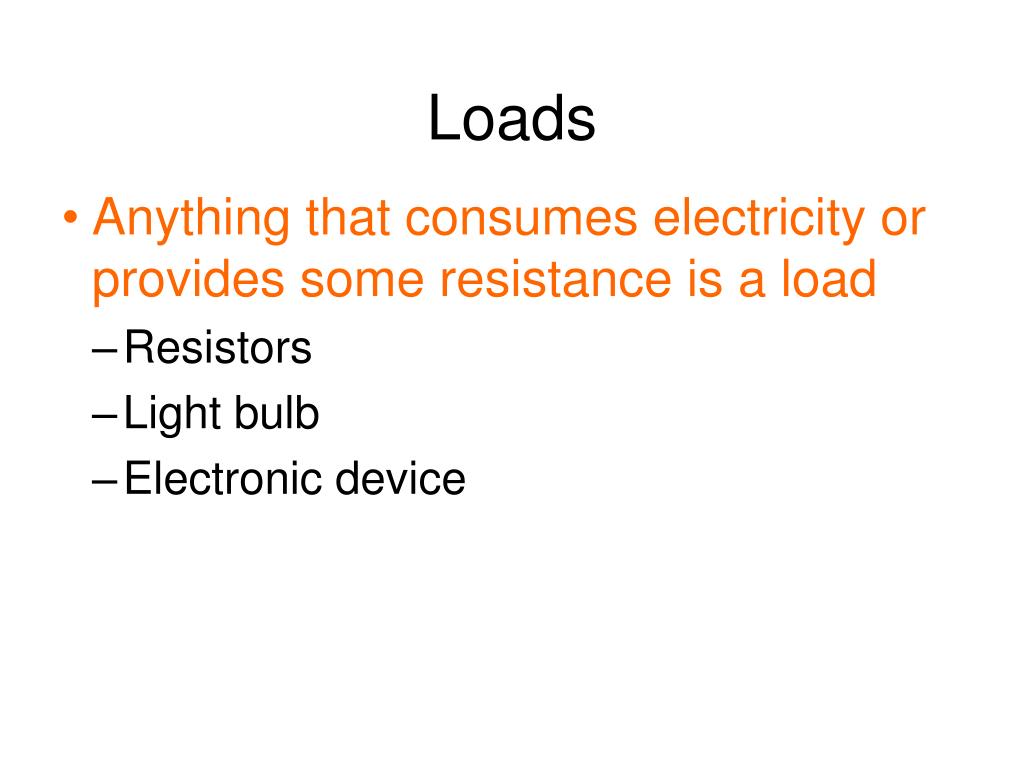

  13. Loads • Anything that consumes electricity or provides some resistance is a load • Resistors • Light bulb • Electronic device

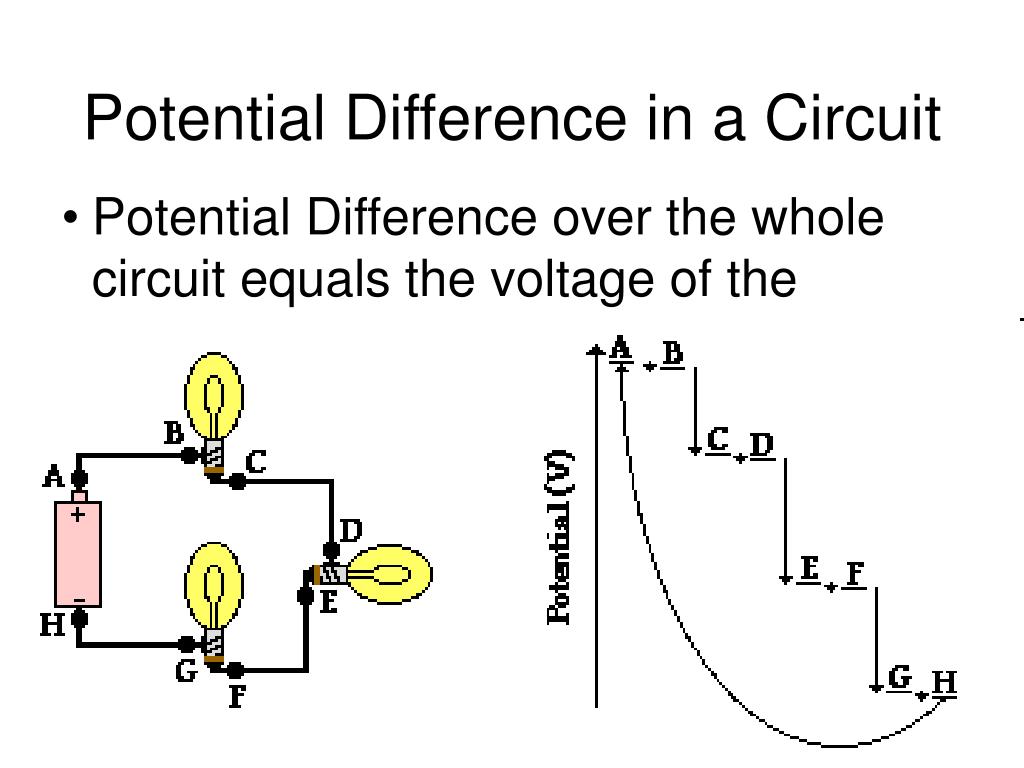

  14. Potential Difference in a Circuit Potential Difference over the whole circuit equals the voltage of the source

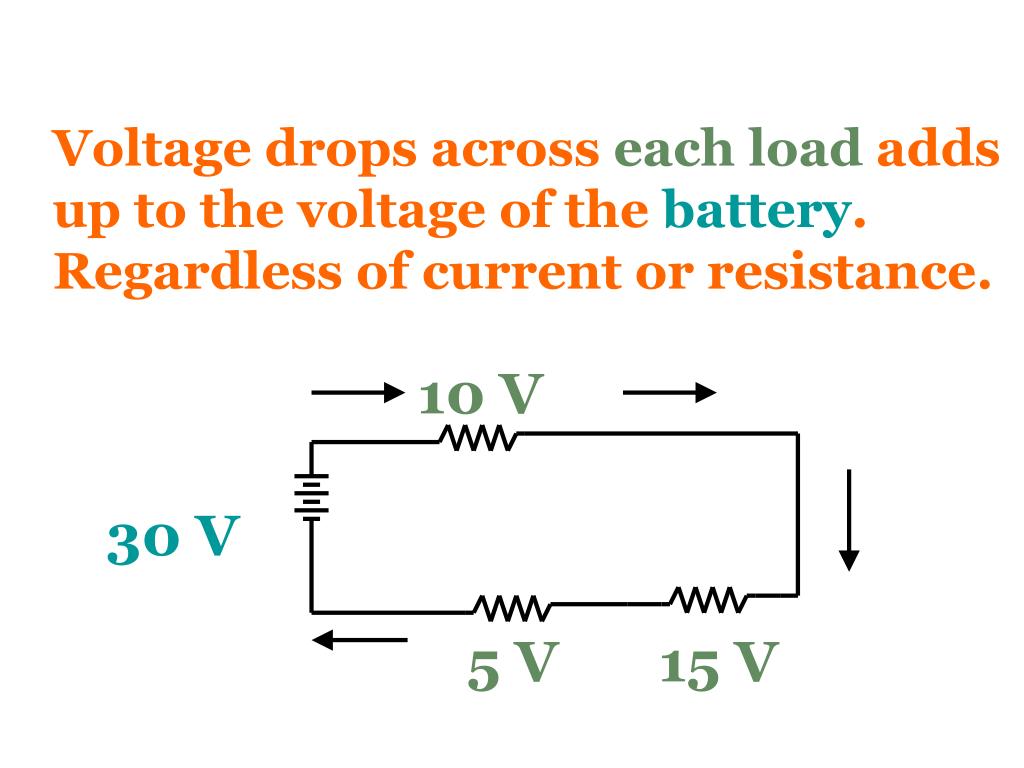

  15. Voltage drops across each load adds up to the voltage of thebattery.Regardless of current or resistance. 10 V 30 V 5 V 15 V

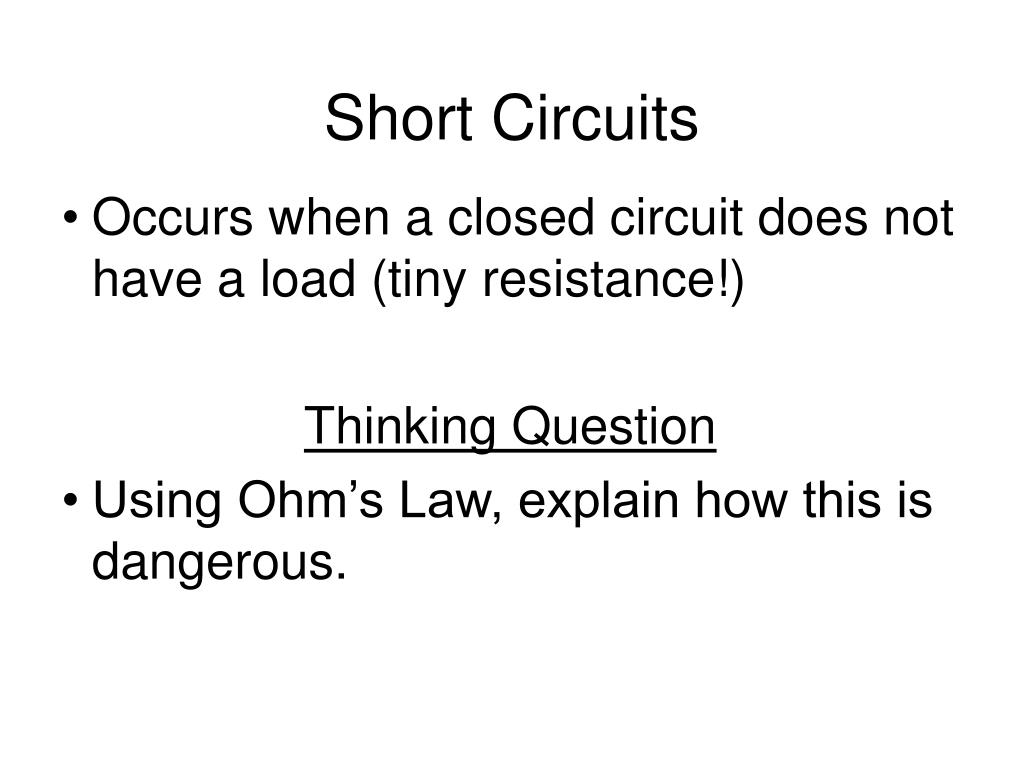

  16. Short Circuits • Occurs when a closed circuit does not have a load (tiny resistance!) Thinking Question • Using Ohm’s Law, explain how this is dangerous.

  17. Short Circuits • With little resistance and constant voltage, current increases • What does the current do? • Usually transforms to heat.

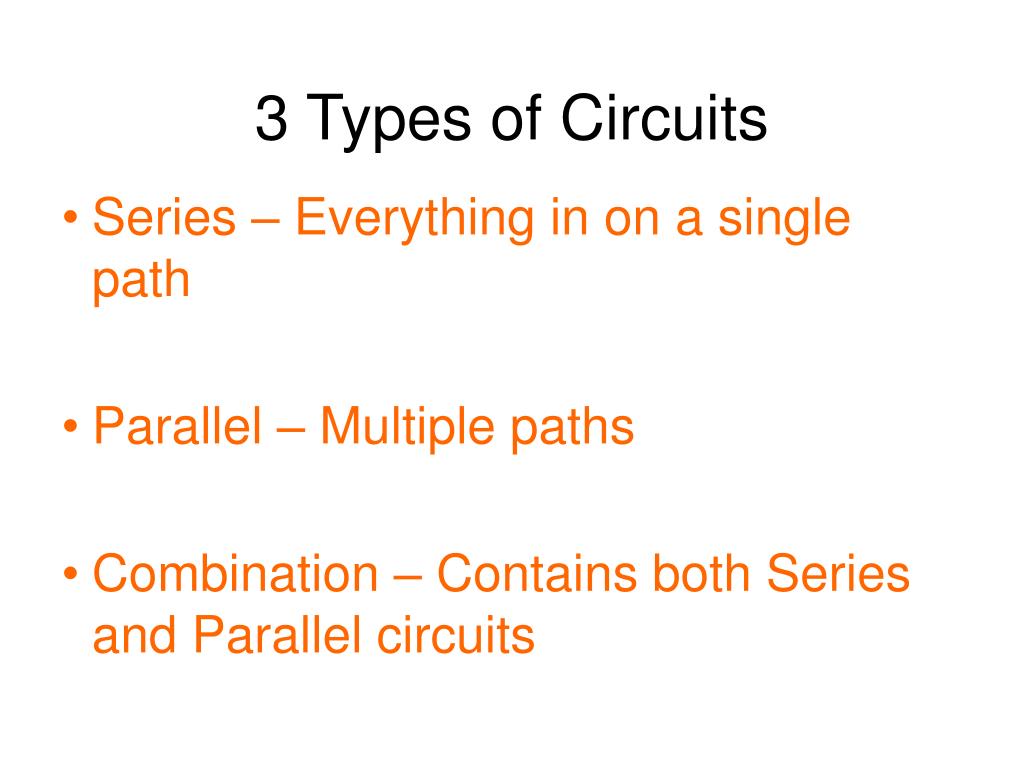

  18. 3 Types of Circuits Series – Everything in on a single path Parallel – Multiple paths Combination – Contains both Series and Parallel circuits

  19. Exit Ticket 3 You have 3 light bulbs connected in series. What happens to the other 2 light bulbs if the middle one breaks?

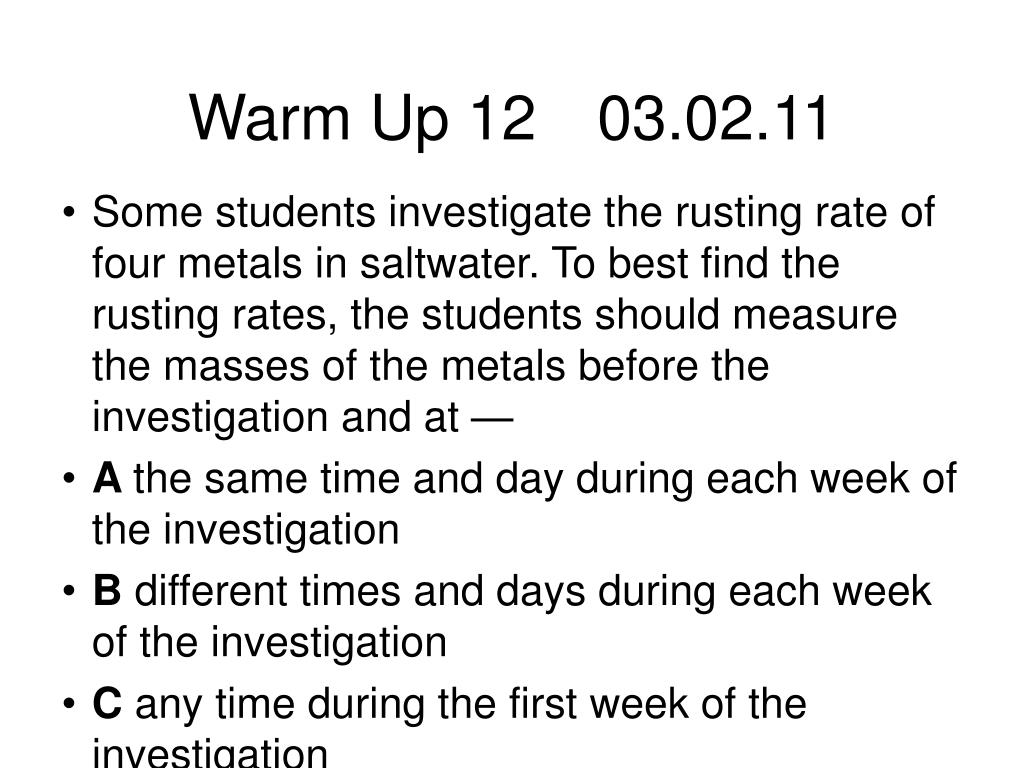

  20. Warm Up 12 03.02.11 Some students investigate the rusting rate of four metals in saltwater. To best find the rusting rates, the students should measure the masses of the metals before the investigation and at — A the same time and day during each week of the investigation B different times and days during each week of the investigation C any time during the first week of the investigation D one randomly selected time during the investigation

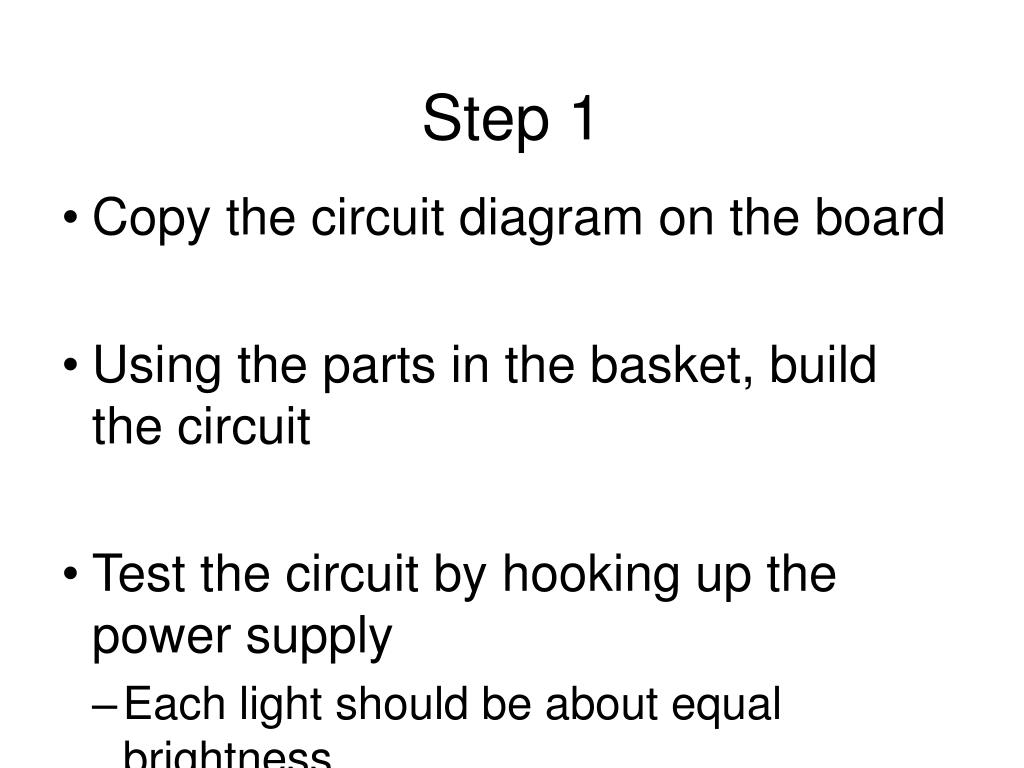

  21. Step 1 • Copy the circuit diagram on the board • Using the parts in the basket, build the circuit • Test the circuit by hooking up the power supply • Each light should be about equal brightness

  22. Step 2 • Unhook lights from the power leads • Lights should be OFF • Everyone needs to create the data chart and fill it in. • We will use the data as part of our notes

  23. Create a Data Chart

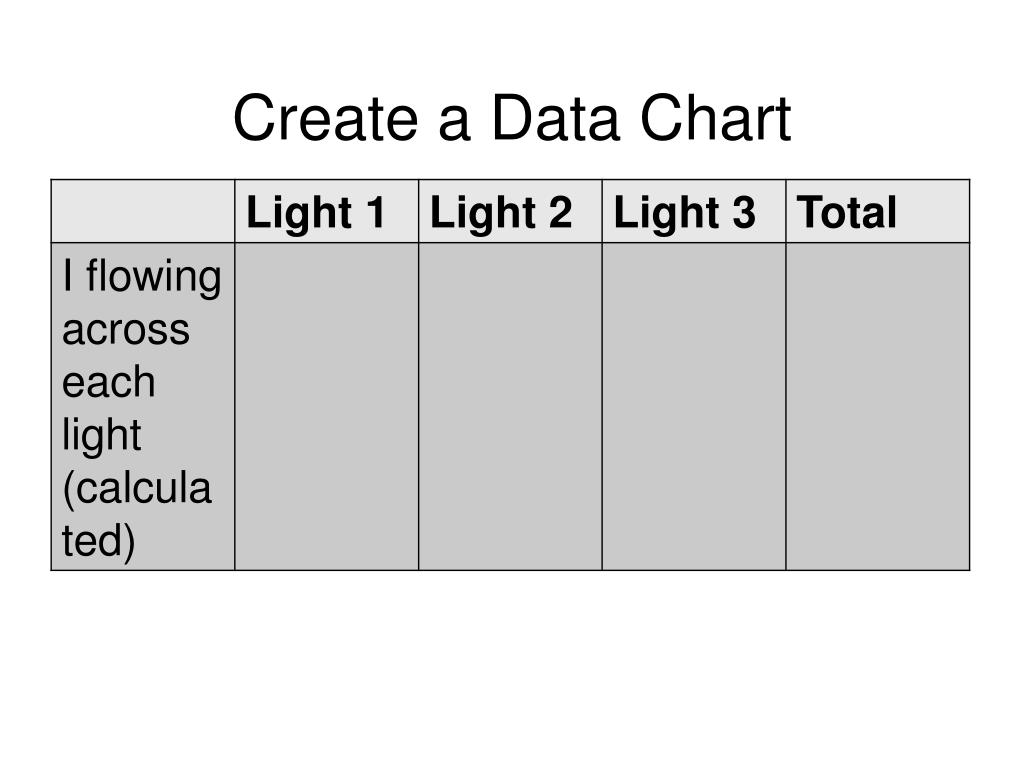

  24. Create a Data Chart

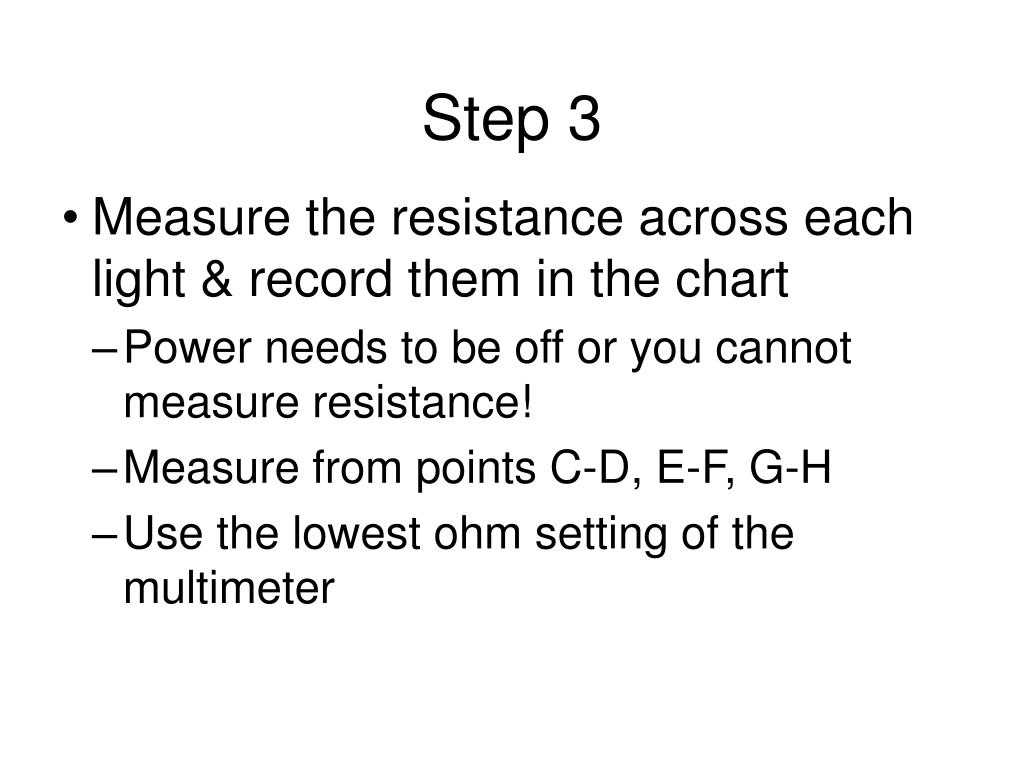

  25. Step 3 • Measure the resistance across each light & record them in the chart • Power needs to be off or you cannot measure resistance! • Measure from points C-D, E-F, G-H • Use the lowest ohm setting of the multimeter

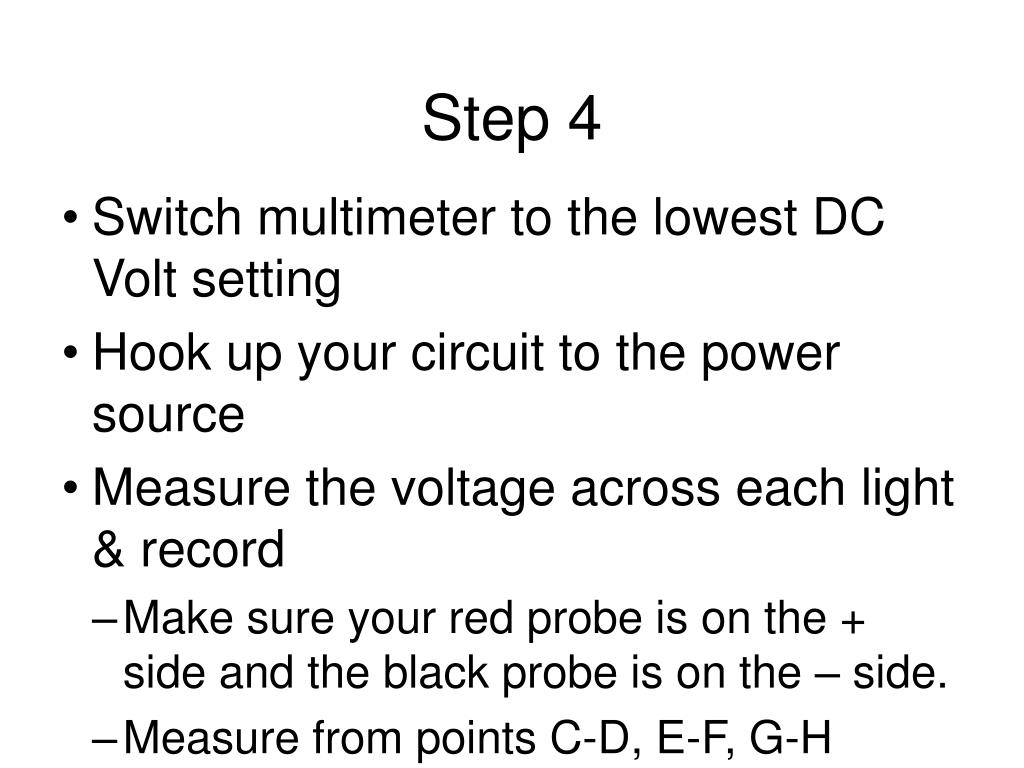

  26. Step 4 • Switch multimeter to the lowest DC Volt setting • Hook up your circuit to the power source • Measure the voltage across each light & record • Make sure your red probe is on the + side and the black probe is on the – side. • Measure from points C-D, E-F, G-H

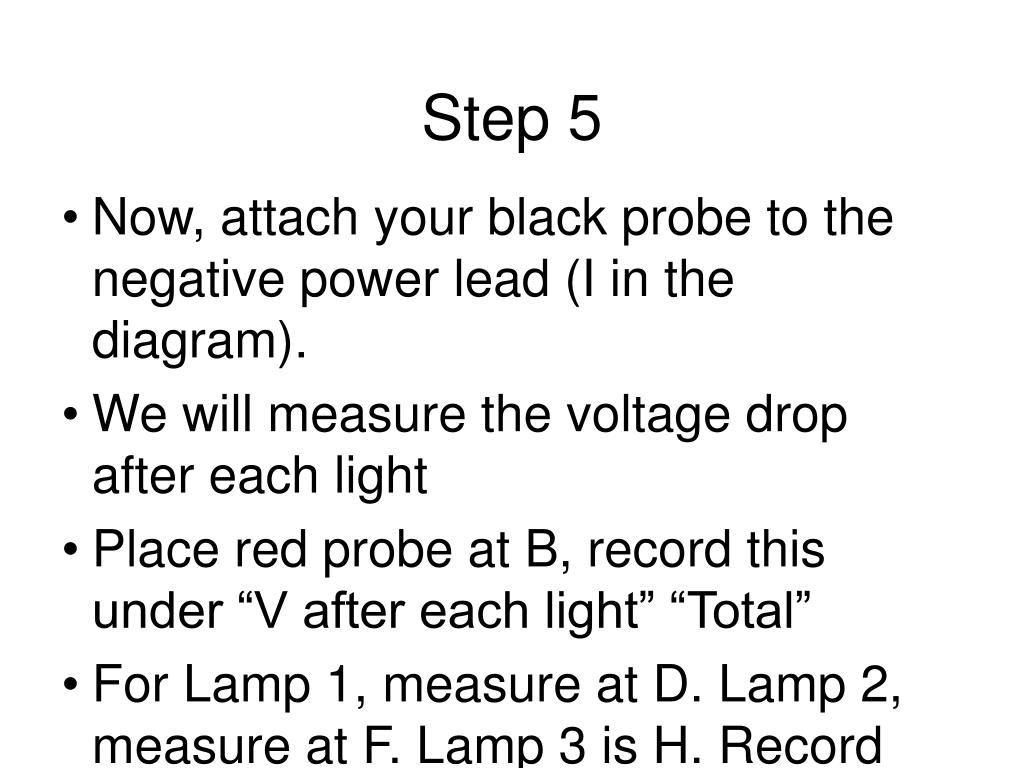

  27. Step 5 Now, attach your black probe to the negative power lead (I in the diagram). We will measure the voltage drop after each light Place red probe at B, record this under “V after each light” “Total” For Lamp 1, measure at D. Lamp 2, measure at F. Lamp 3 is H. Record the data

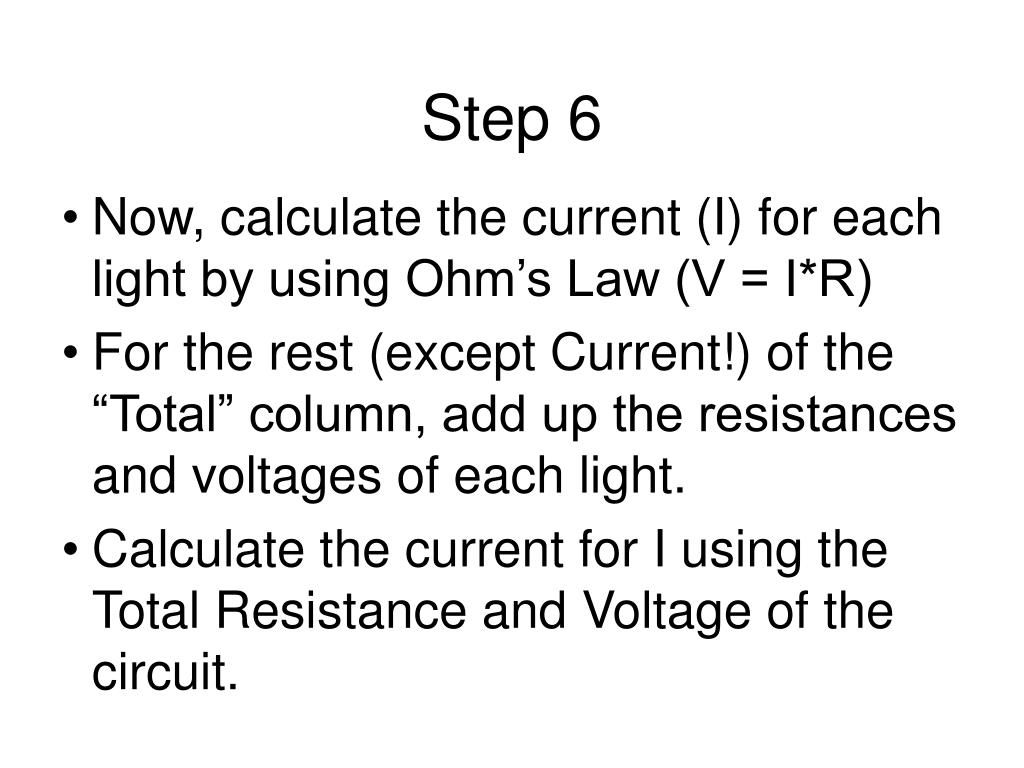

  28. Step 6 Now, calculate the current (I) for each light by using Ohm’s Law (V = I*R) For the rest (except Current!) of the “Total” column, add up the resistances and voltages of each light. Calculate the current for I using the Total Resistance and Voltage of the circuit.

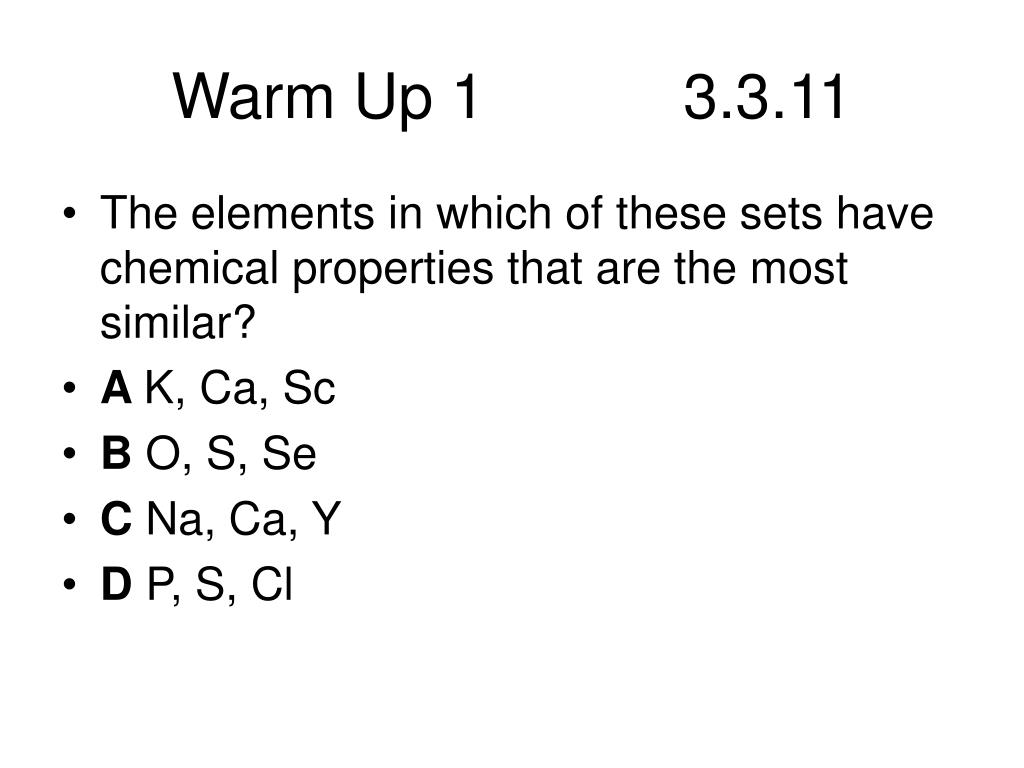

  29. Warm Up 1 3.3.11 • The elements in which of these sets have chemical properties that are the most similar? • A K, Ca, Sc • B O, S, Se • C Na, Ca, Y • D P, S, Cl

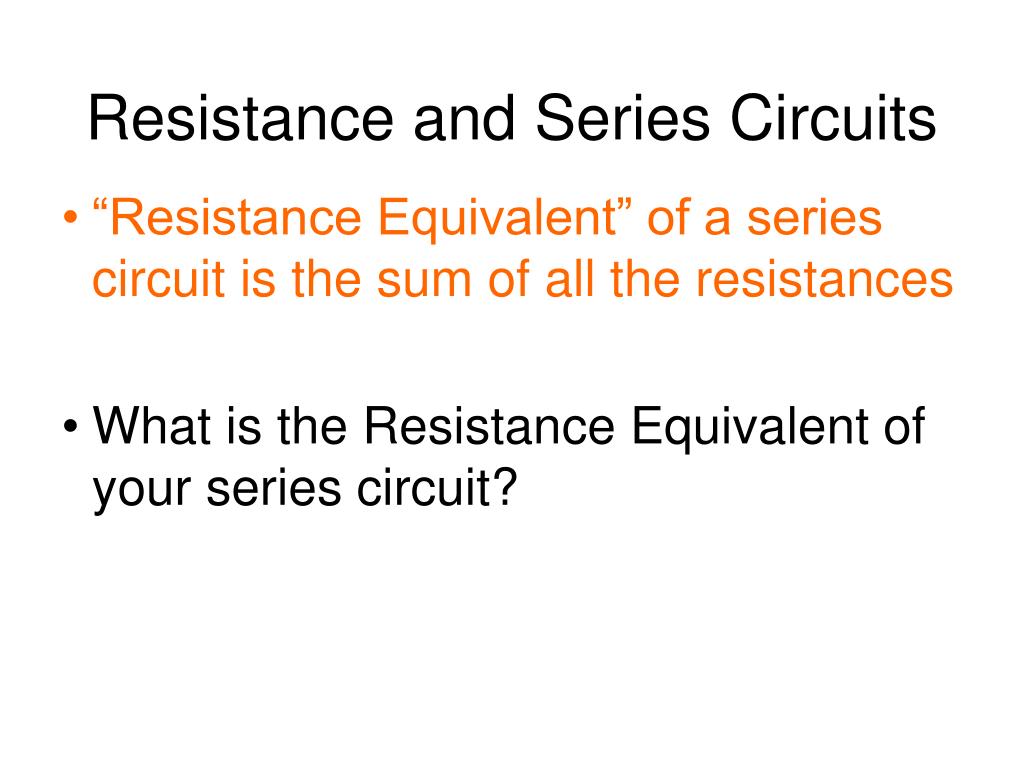

  30. Resistance and Series Circuits • “Resistance Equivalent” of a series circuit is the sum of all the resistances • What is the Resistance Equivalent of your series circuit?

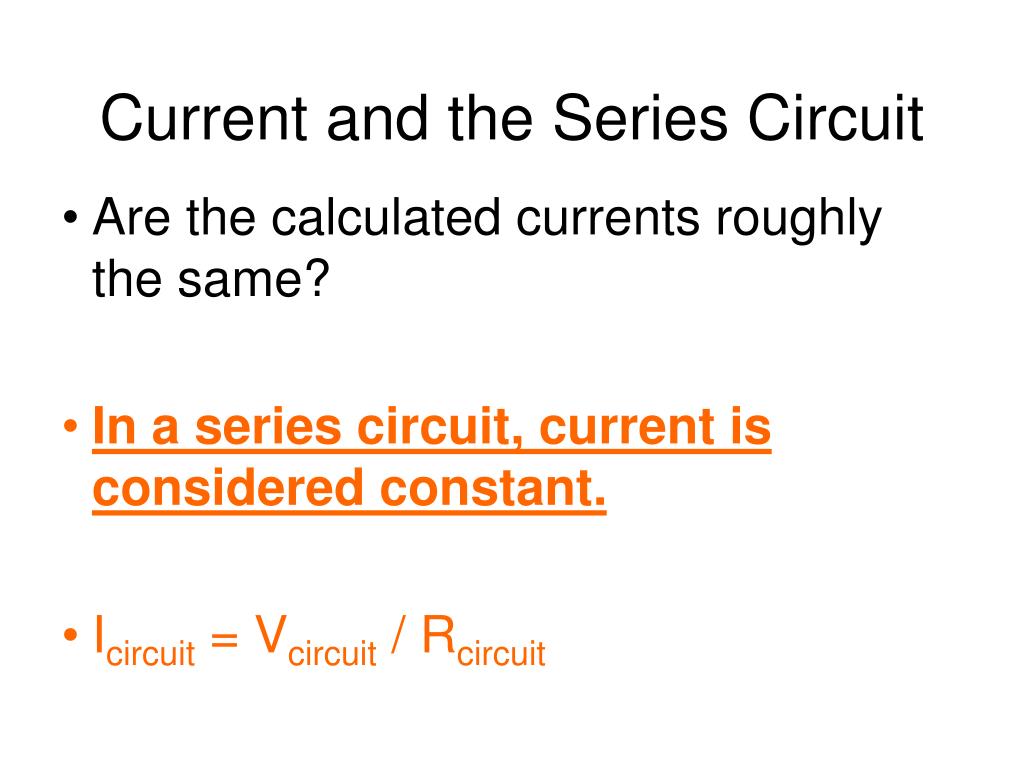

  31. Current and the Series Circuit Are the calculated currents roughly the same? In a series circuit, current is considered constant. Icircuit = Vcircuit / Rcircuit

  32. Voltages and a Series Circuit Is there a pattern between the individual voltages and the voltage drop at each light? In a series circuit, the voltage across a load is equal to the voltage drop of the load.

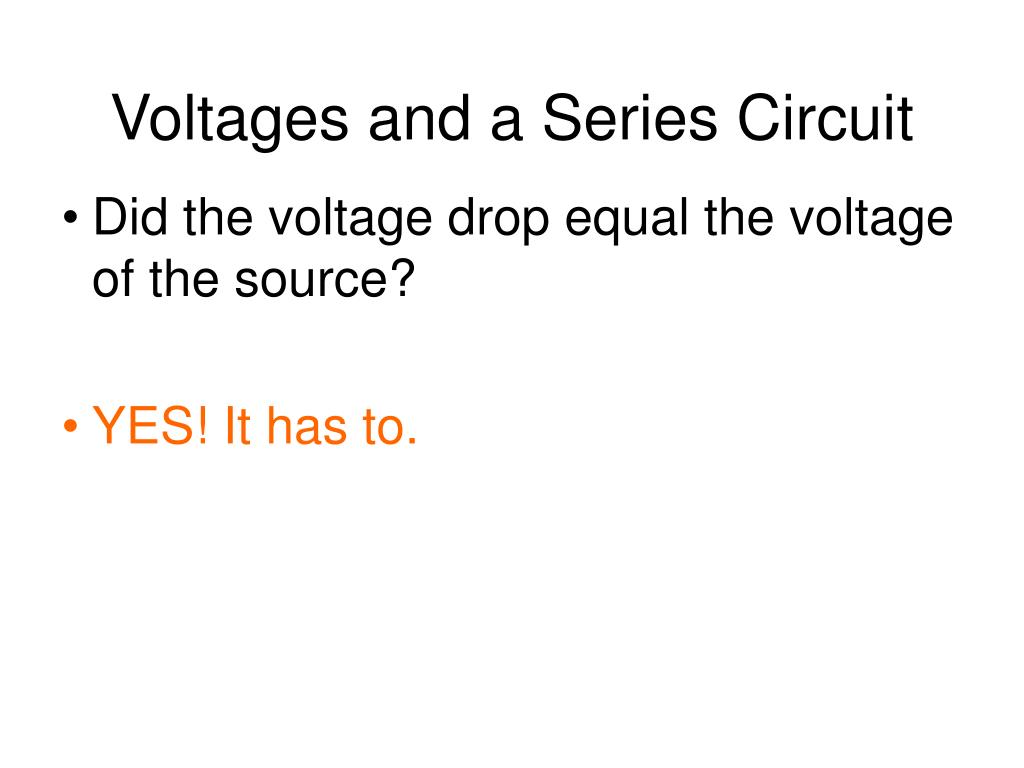

  33. Voltages and a Series Circuit Did the voltage drop equal the voltage of the source? YES! It has to.

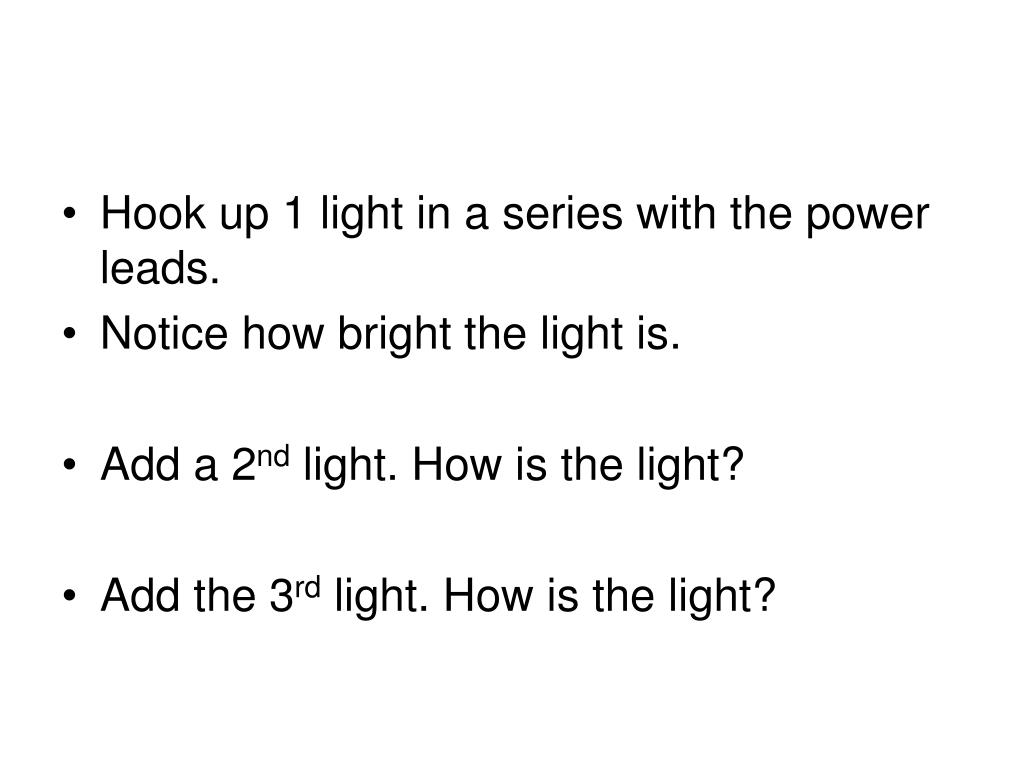

  34. Hook up 1 light in a series with the power leads. • Notice how bright the light is. • Add a 2nd light. How is the light? • Add the 3rd light. How is the light?

  35. Why did the light decrease in brightness? • In series, the electricity has to pass through each load. Current is slowed down for the entire circuit.

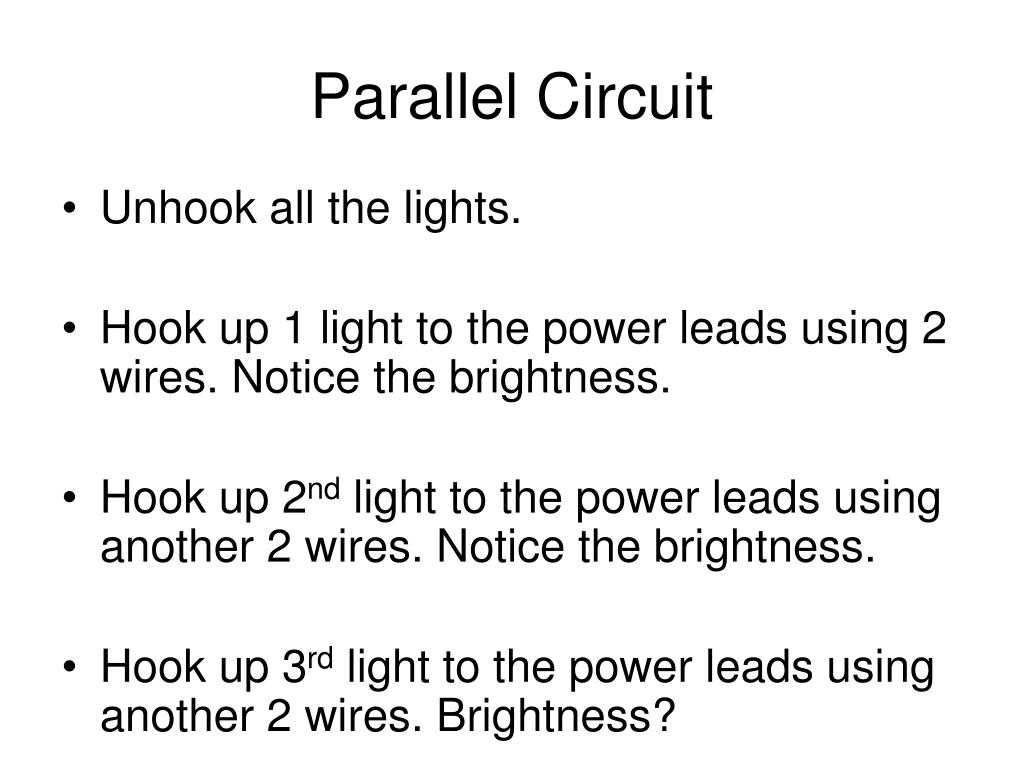

  36. Parallel Circuit • Unhook all the lights. • Hook up 1 light to the power leads using 2 wires. Notice the brightness. • Hook up 2nd light to the power leads using another 2 wires. Notice the brightness. • Hook up 3rd light to the power leads using another 2 wires. Brightness?

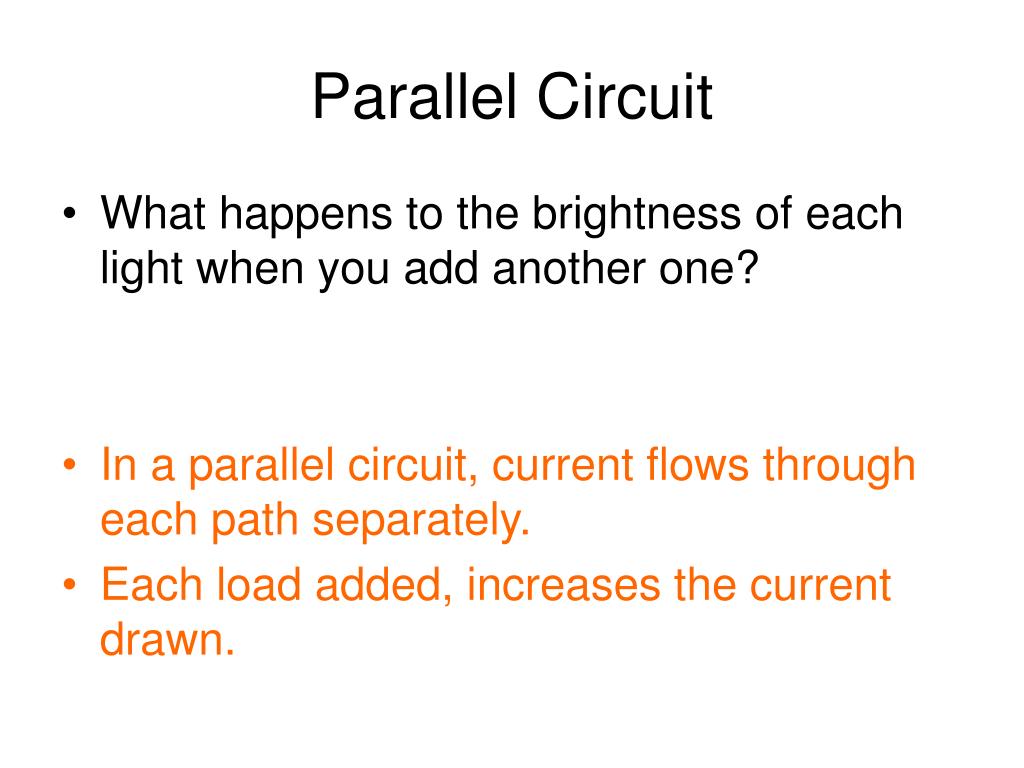

  37. Parallel Circuit • What happens to the brightness of each light when you add another one? • In a parallel circuit, current flows through each path separately. • Each load added, increases the current drawn.

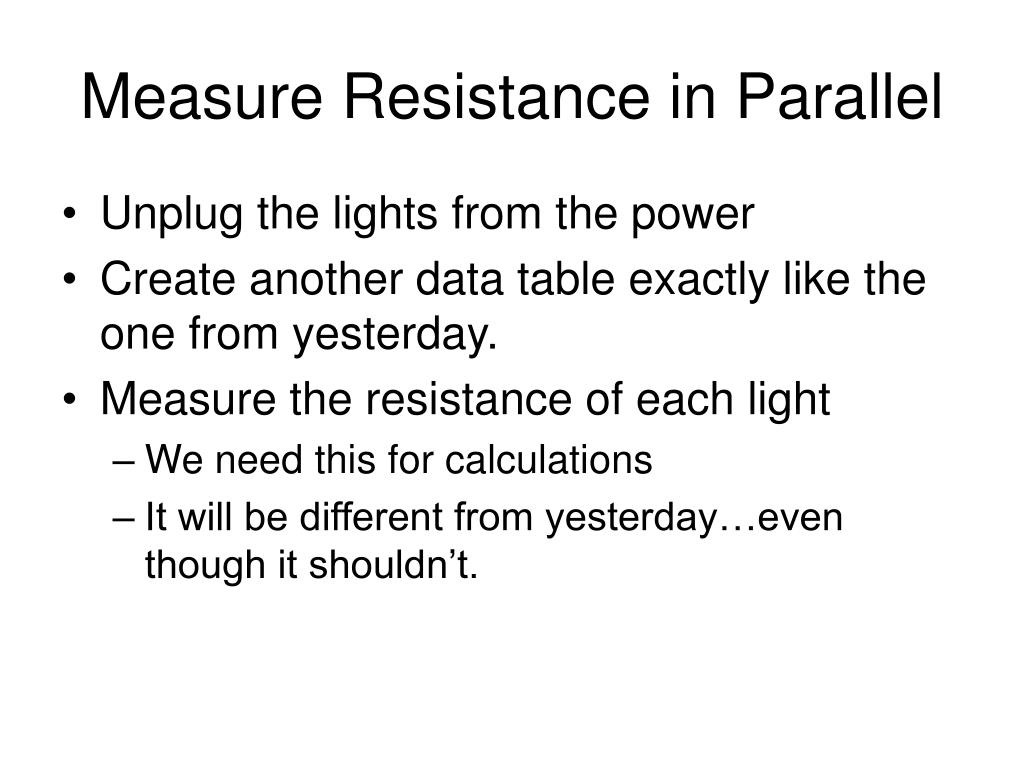

  38. Measure Resistance in Parallel • Unplug the lights from the power • Create another data table exactly like the one from yesterday. • Measure the resistance of each light • We need this for calculations • It will be different from yesterday…even though it shouldn’t.

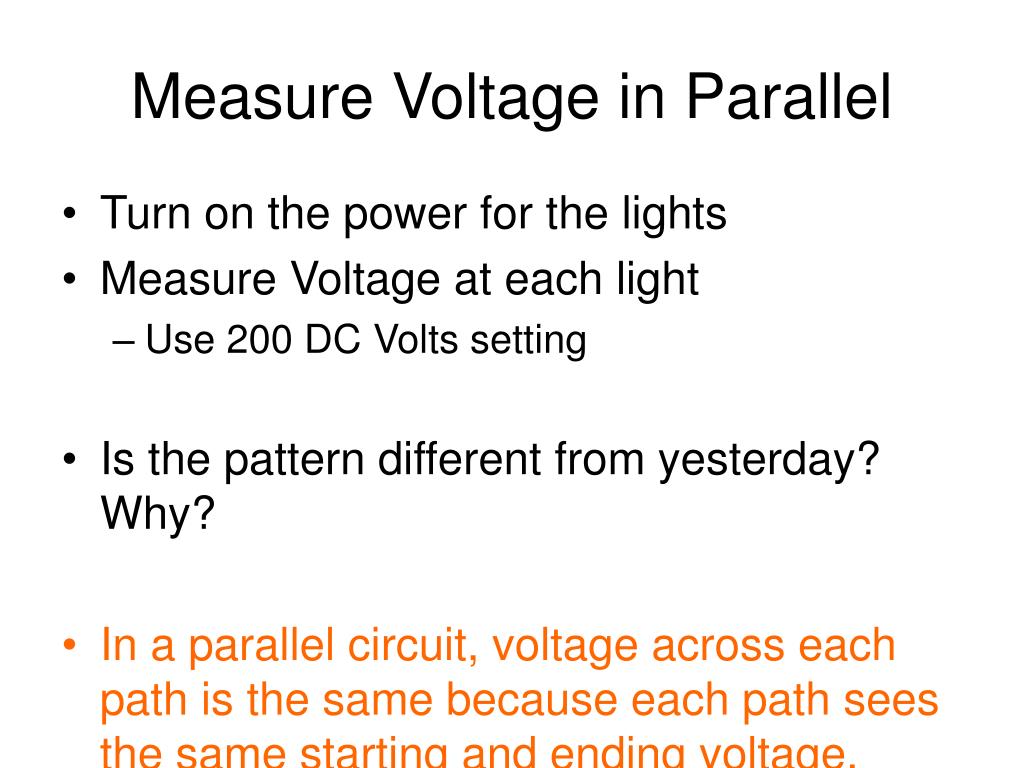

  39. Measure Voltage in Parallel • Turn on the power for the lights • Measure Voltage at each light • Use 200 DC Volts setting • Is the pattern different from yesterday? Why? • In a parallel circuit, voltage across each path is the same because each path sees the same starting and ending voltage.

  40. Current in Parallel • Calculate current using the measured Resistance and Voltage • Unlike a series circuit, current in a parallel circuit is not constant. • Light bulbs were equally bright, meaning….? • Each new path needs more current.
