  1. GP Applications • Two main areas of research • Testing genetic programming in areas other techniques have been applied to. • Applying genetic programming to problems that have not been previously solved. • Examples of applications • Data mining • Image processing • Computer graphics • Natural language processing • Board games

  2. GP Parameters • Standard parameters • Population size (M) • Number of generations • Tournament size • Application rates for each of the genetic operators • Maximum tree depth • Bound • Maximum offspring size • These parameters are varied in an attempt to find a solution.

  3. Reporting on GP Results • GP reports must specify: • A description of the objective. • The terminal set used. • The function set used. • The fitness cases used. • The raw fitness measure. • Hits criterion. • The population size. • The number of generations. • The success predicate used. • The method used to create the initial population. • The seeds of the random number generator used on successful runs together with the corresponding solution found on each of these runs.

  4. Describing the Performance of a GP System • Hits histogram • Standardized fitness histogram • Structural complexity histogram • Variety histogram • Number of runs that must be performed to find a solution. • Calculating the computational effort needed to find a solution.

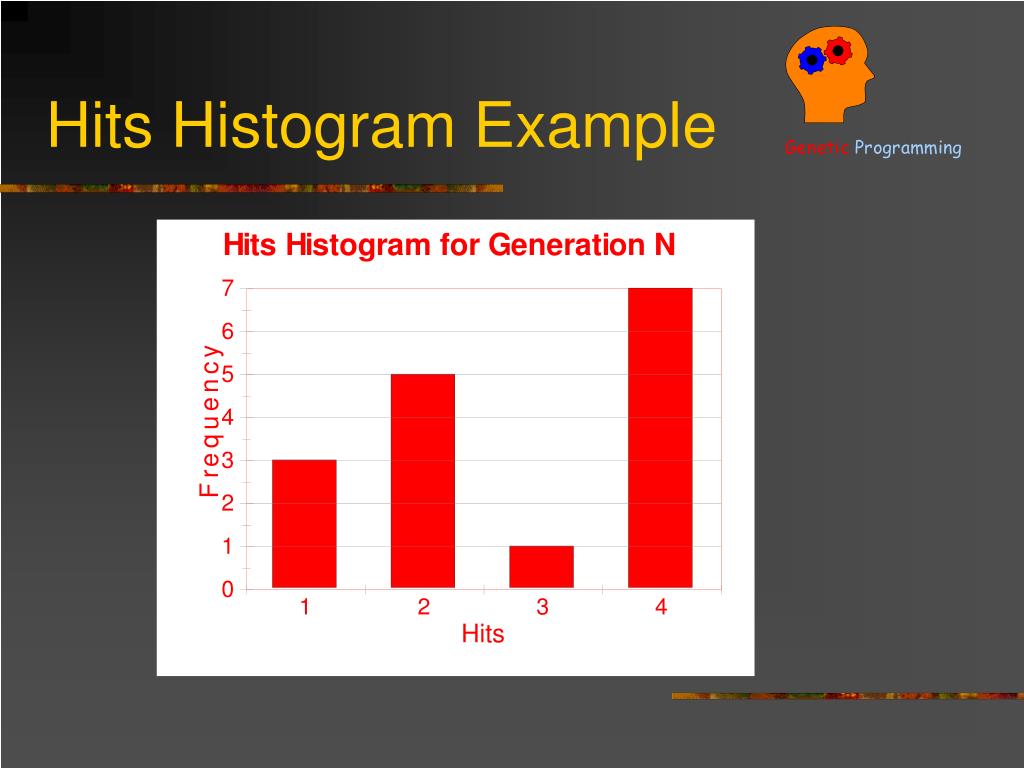

  5. Hits Histogram Example

  6. Creating a Hits Histogram • A hits histogram is created for each generation. • Count the number of individuals that have n hits. • n usuallyranges from 0 to the number of fitness cases • Plot the number of individuals with n hits against each n value.

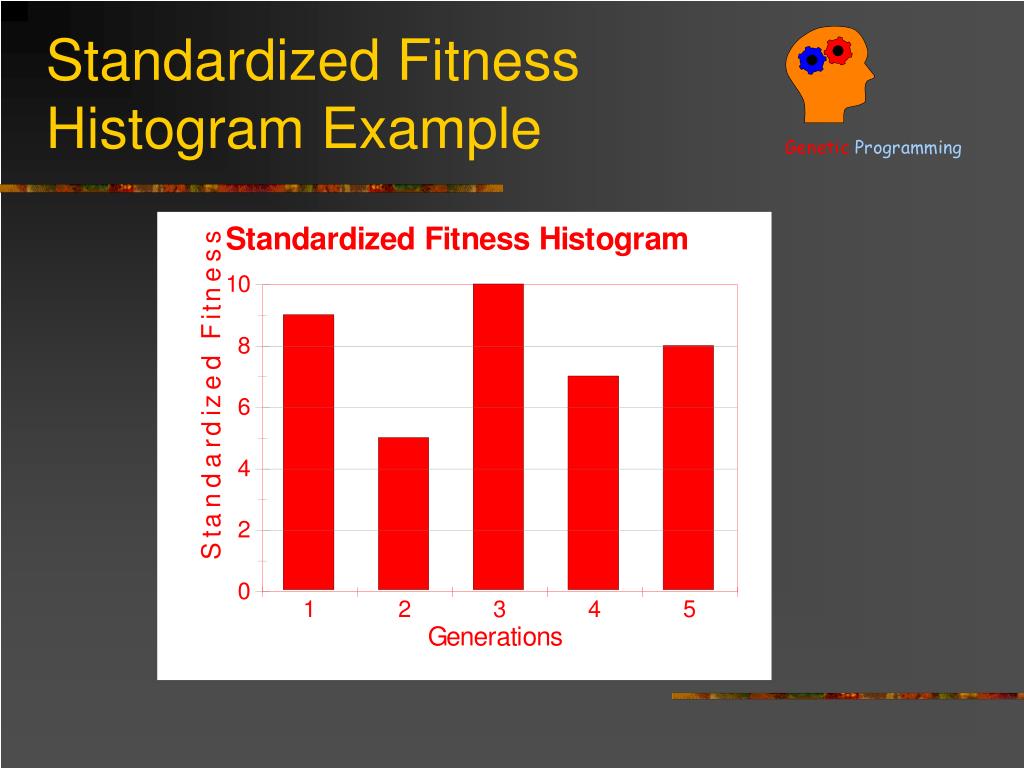

  7. Standardized Fitness Histogram Example

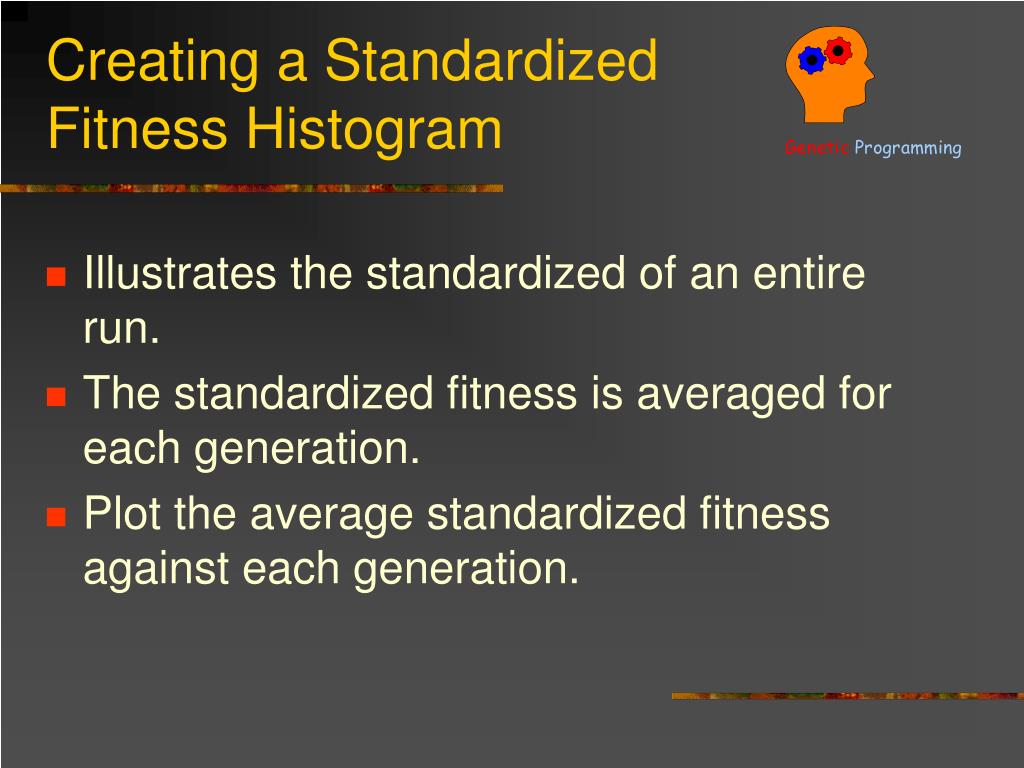

  8. Creating a Standardized Fitness Histogram • Illustrates the standardized of an entire run. • The standardized fitness is averaged for each generation. • Plot the average standardized fitness against each generation.

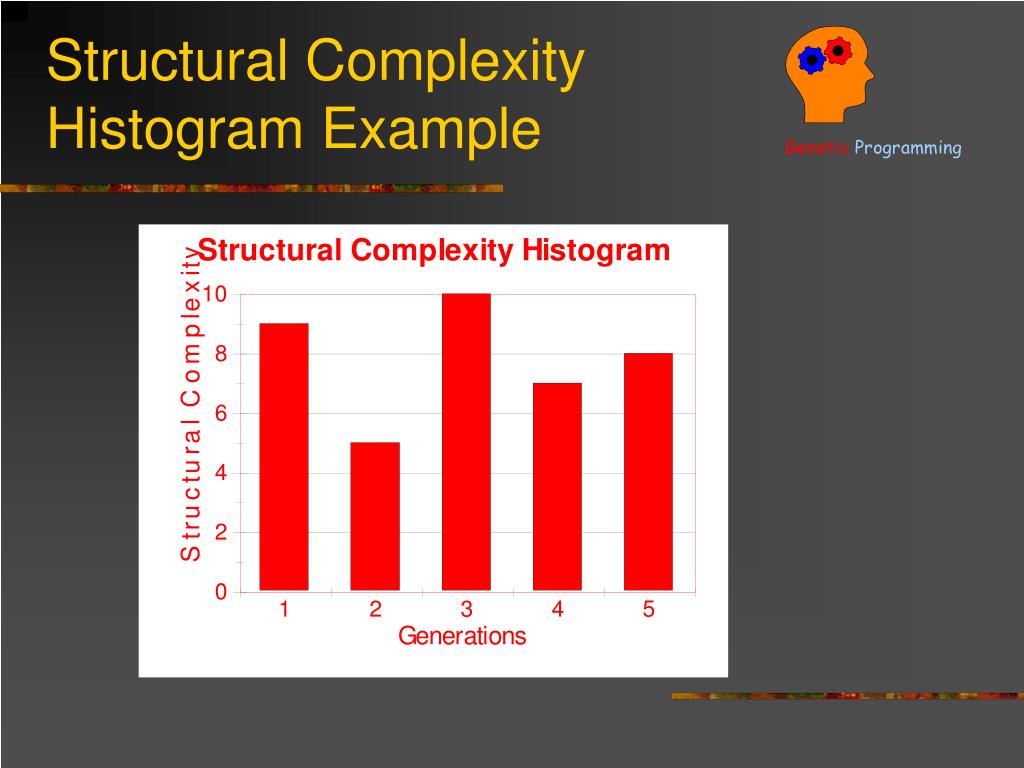

  9. Structural Complexity Histogram Example

  10. Creating a Structural Complexity Histogram • Illustrates the structural complexity over an entire run. • Calculate the size, i.e. the number of nodes, of each individual in a generation. • Calculate the average tree size for each generation. • Plot the average tree size for each generation.

  11. Variety Variety = 60% Variety = 100%

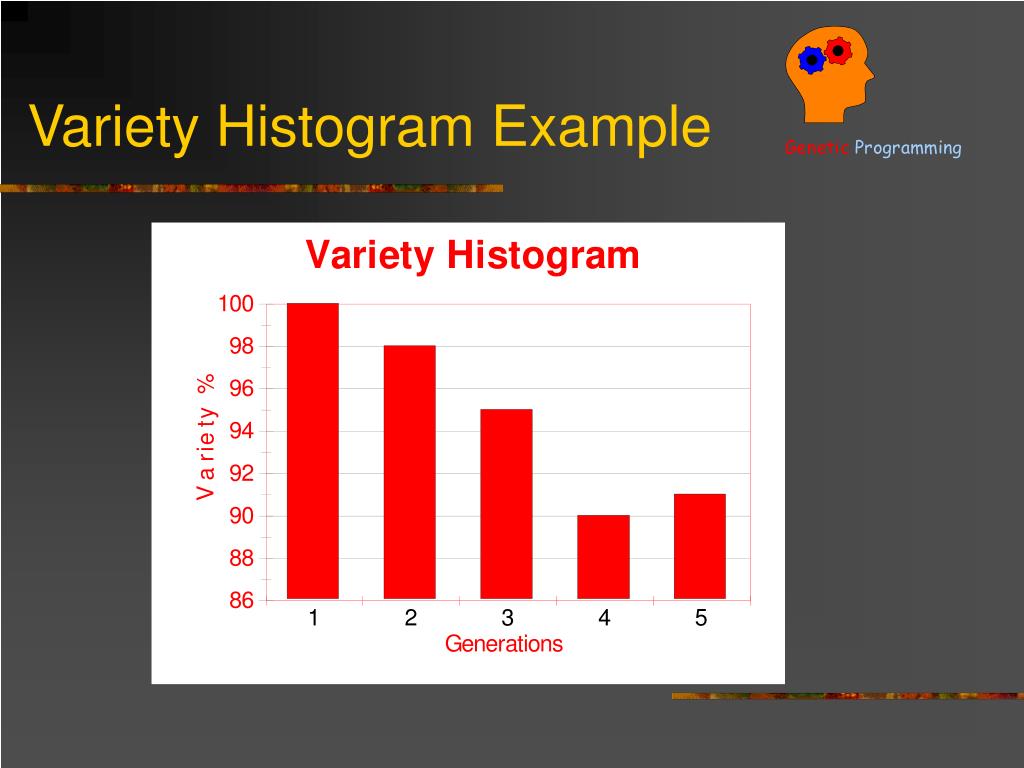

  12. Variety Histogram Example

  13. Creating a Variety Histogram • Illustrates the variety over an entire run. • Calculate the variety percentage for each generation. • Plot the variety percentage against each generation.

  14. Calculating the Number of Runs Needed • The probability, x, that a successful solution to a problem will be found in R independent runs of the GP algorithm. • x = 1 - ( 1 - P(M, i))R where P(M,i) is the cumulative probability of success by generation i, using population M. • P(M,i) is calculated by finding the total number of runs that succeeded before or ongeneration i and dividing this total by the total number of runs conducted. • The number of runs needed is given by: • R(x, M, i) = log ( 1 – x ) (note: the ceiling is taken) log (1 – P(M, I))

  15. Calculating Computational Effort • The number of individuals that must be examined as part of the search for the generational control model, i.e. the computational effort, is then calculated using: • f(x, M, i) = R(x, M, i)*M*i • The following equation is used to calculate the number of individuals that will be examined in a steady-state system with a fixed population size: • f(x, M, i) = R(x, M, i) * i

  16. Example How many runs are needed to find a solution with a 99% probability by generation 15? What is the computational effort needed?
