  1. DiFX Overview Adam Deller NRAO 3rd DiFX workshop, Curtin University, Perth

  2. Outline • SVN layout • mpifxcorr: The heart of DiFX • Data management and flow • The “Core” of the mpifxcorr • Scaling and writing of visibilities • I will focus on this segment of DiFX • Briefly, the surrounding infrastructure: • vex2difx: input/calc file generator • calcif2: Geometric model generator • difx2fits: FITS builder 3rd DiFX workshop, Curtin University, Perth

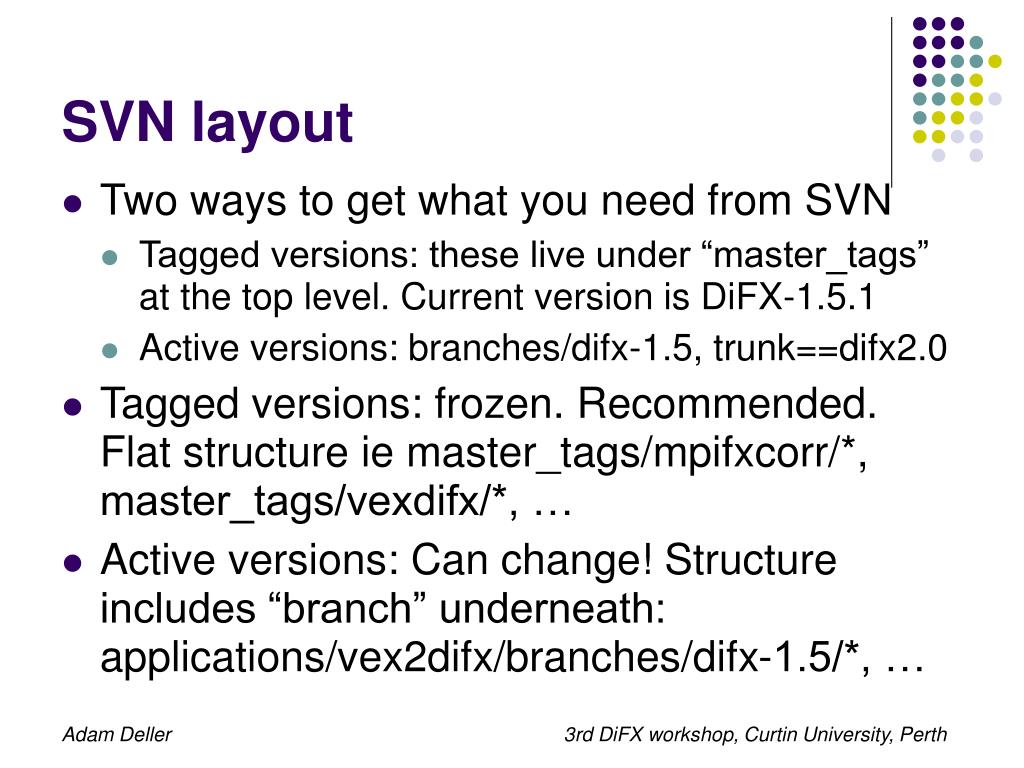

  3. SVN layout • Two ways to get what you need from SVN • Tagged versions: these live under “master_tags” at the top level. Current version is DiFX-1.5.1 • Active versions: branches/difx-1.5, trunk==difx2.0 • Tagged versions: frozen. Recommended. Flat structure ie master_tags/mpifxcorr/*, master_tags/vexdifx/*, … • Active versions: Can change! Structure includes “branch” underneath: applications/vex2difx/branches/difx-1.5/*, … 3rd DiFX workshop, Curtin University, Perth

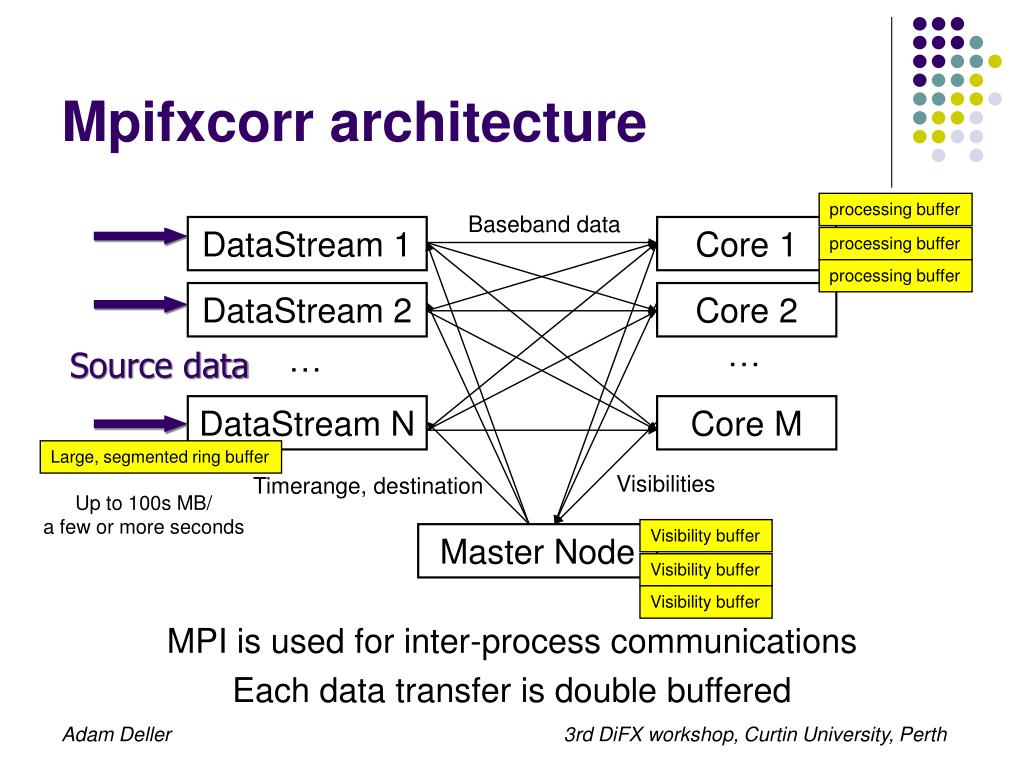

  4. Baseband data DataStream 1 Core 1 DataStream 2 Core 2 … … processing buffer processing buffer DataStream N Core M processing buffer Visibilities Timerange, destination Source data Master Node Visibility buffer Visibility buffer Visibility buffer Mpifxcorr architecture Large, segmented ring buffer Up to 100s MB/ a few or more seconds MPI is used for inter-process communications Each data transfer is double buffered 3rd DiFX workshop, Curtin University, Perth

  5. FxManager correlation flow • Start at the requested time, step one block of FFTs at a time until end of correlation • DiFX1.5 implementation: Contiguous time. Skip if time has no active “Configuration” • DiFX2.0 implementation: correlate one scan at a time - whole scan either matches Configuration or not (contiguous not required) • As visibilities are completed, release lock on visibility buffer slot (second thread writes out) 3rd DiFX workshop, Curtin University, Perth

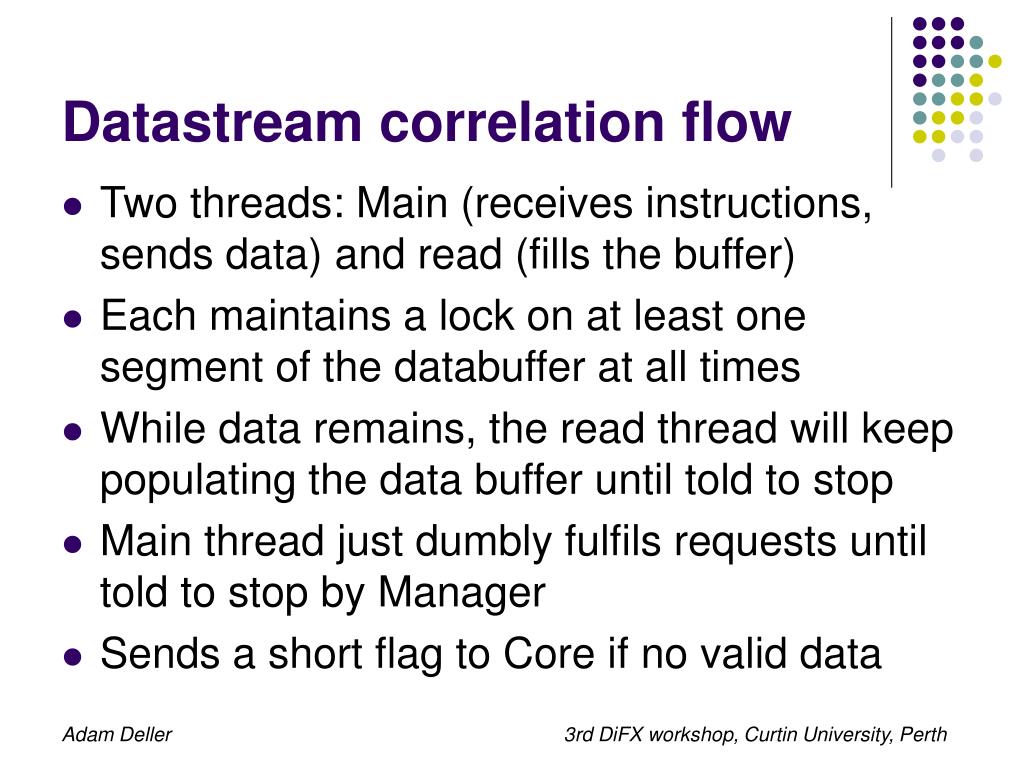

  6. Datastream correlation flow • Two threads: Main (receives instructions, sends data) and read (fills the buffer) • Each maintains a lock on at least one segment of the databuffer at all times • While data remains, the read thread will keep populating the data buffer until told to stop • Main thread just dumbly fulfils requests until told to stop by Manager • Sends a short flag to Core if no valid data 3rd DiFX workshop, Curtin University, Perth

  7. Datastream correlation flow • Start time • Valid samples • Num sent • MPI_Send * handle • Lock Read thread Requestedtime sent to Core Data buffer “Segment” “Send” Send thread FFT = 2x num channels ….. 3rd DiFX workshop, Curtin University, Perth

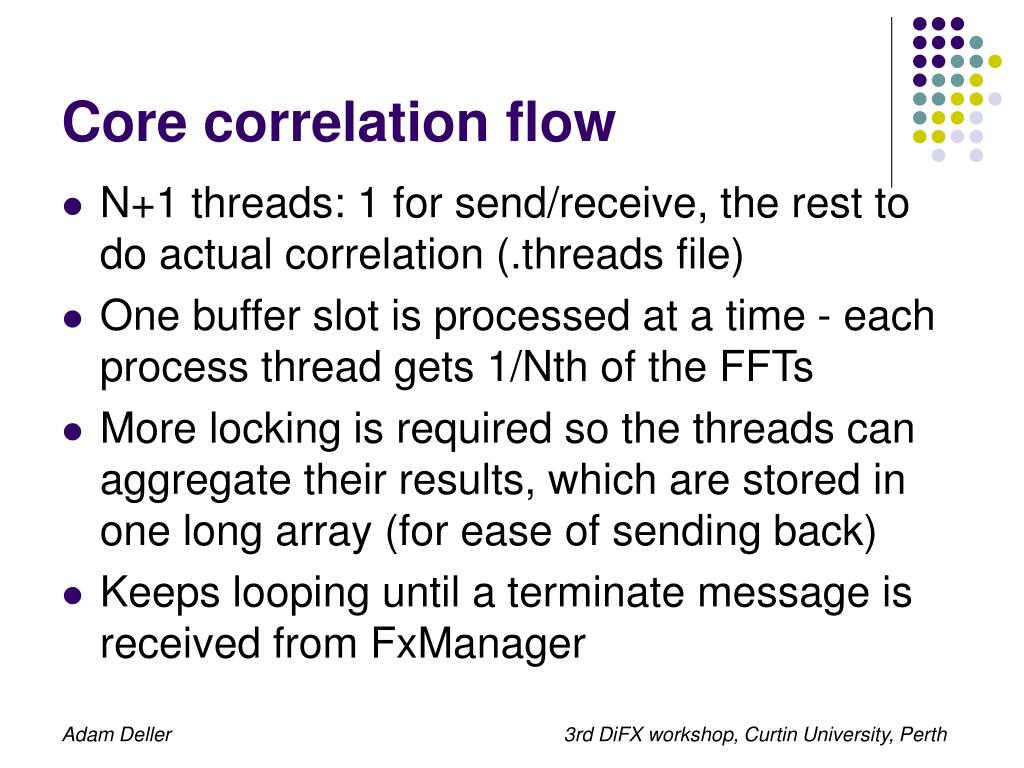

  8. Core correlation flow • N+1 threads: 1 for send/receive, the rest to do actual correlation (.threads file) • One buffer slot is processed at a time - each process thread gets 1/Nth of the FFTs • More locking is required so the threads can aggregate their results, which are stored in one long array (for ease of sending back) • Keeps looping until a terminate message is received from FxManager 3rd DiFX workshop, Curtin University, Perth

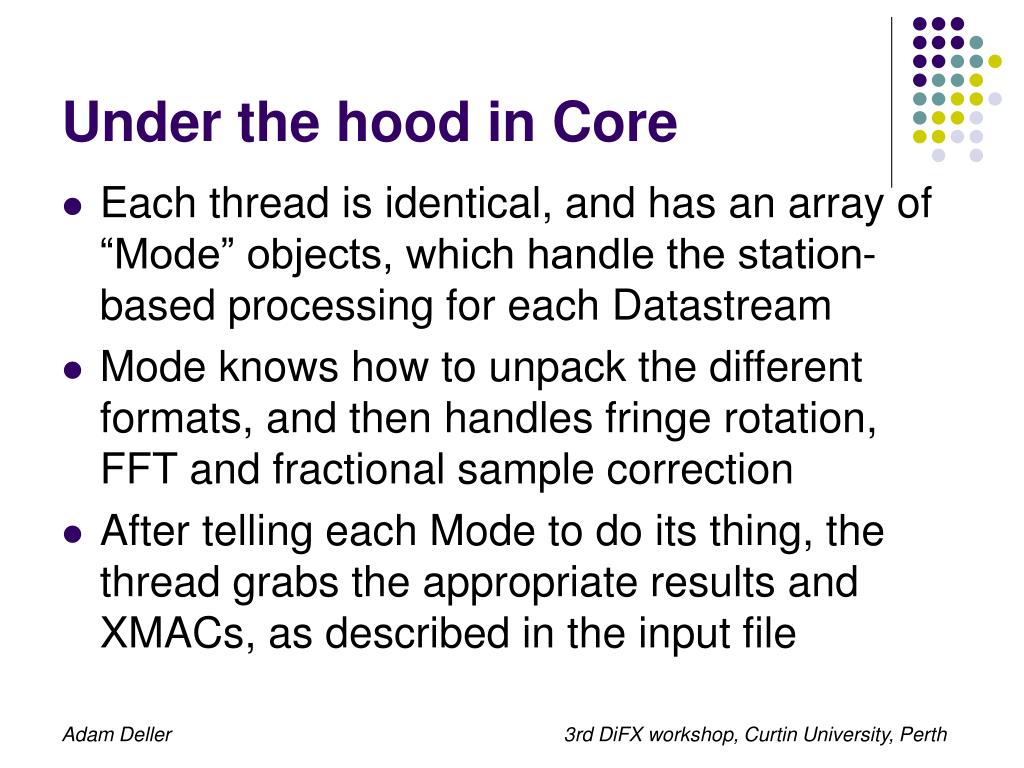

  9. Under the hood in Core • Each thread is identical, and has an array of “Mode” objects, which handle the station-based processing for each Datastream • Mode knows how to unpack the different formats, and then handles fringe rotation, FFT and fractional sample correction • After telling each Mode to do its thing, the thread grabs the appropriate results and XMACs, as described in the input file 3rd DiFX workshop, Curtin University, Perth

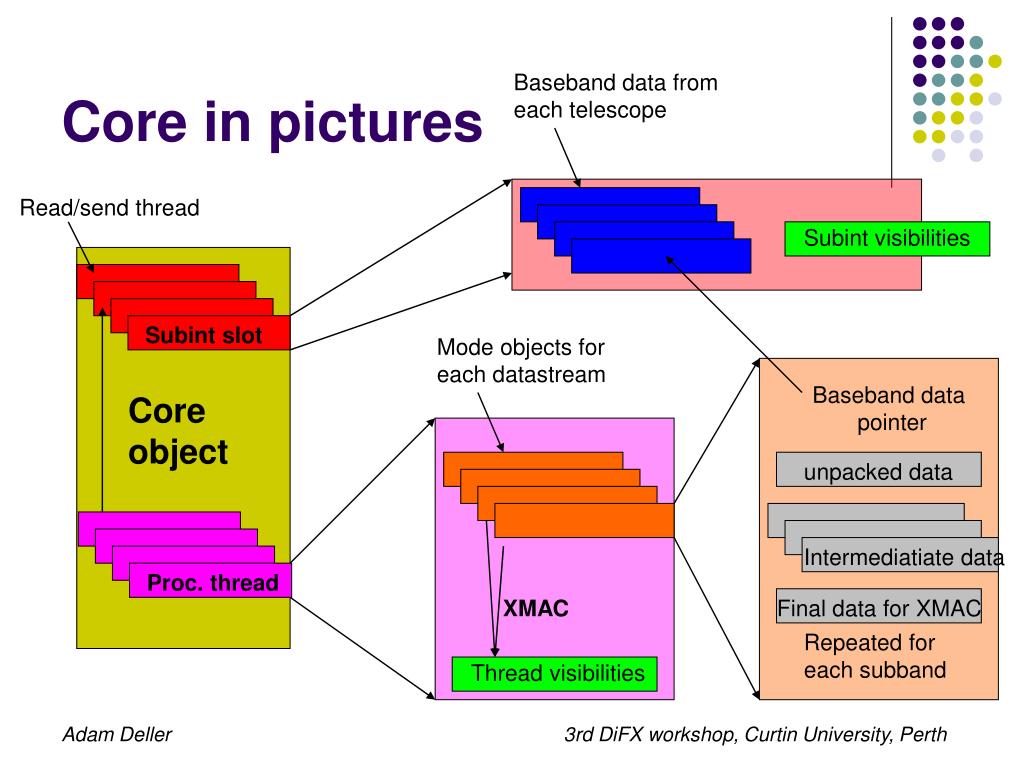

  10. Core in pictures Baseband data fromeach telescope Read/send thread Subint visibilities Subint slot Mode objects foreach datastream Baseband data pointer Coreobject unpacked data Intermediatiate data Proc. thread XMAC Final data for XMAC Repeated for each subband Thread visibilities 3rd DiFX workshop, Curtin University, Perth

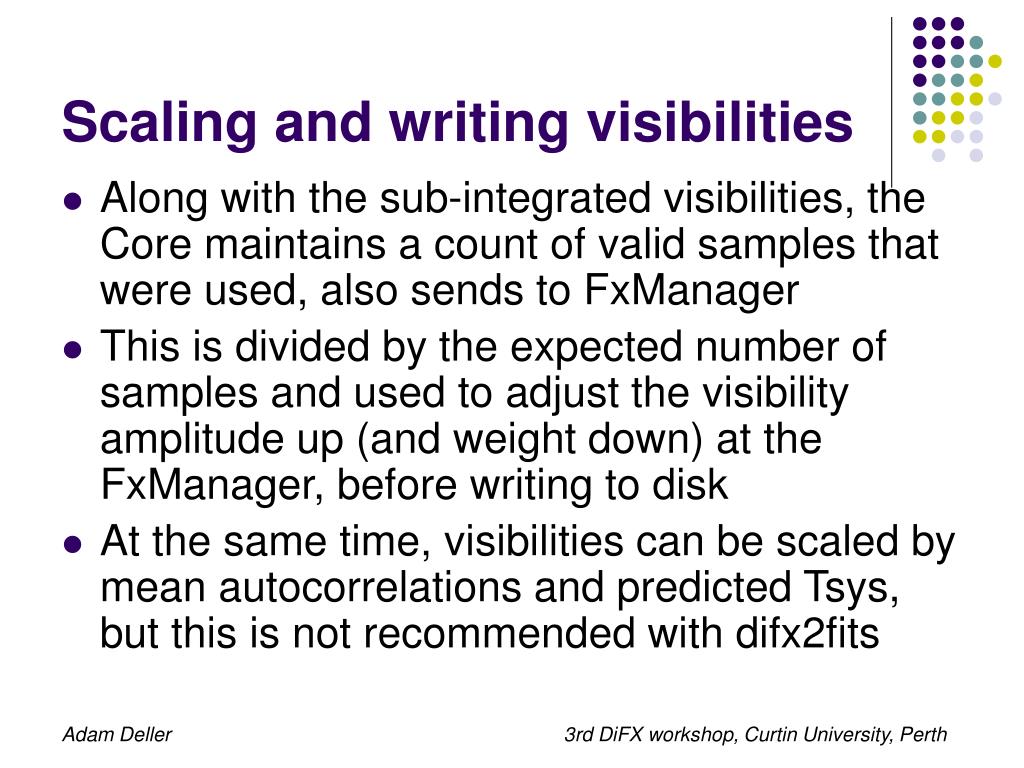

  11. Scaling and writing visibilities • Along with the sub-integrated visibilities, the Core maintains a count of valid samples that were used, also sends to FxManager • This is divided by the expected number of samples and used to adjust the visibility amplitude up (and weight down) at the FxManager, before writing to disk • At the same time, visibilities can be scaled by mean autocorrelations and predicted Tsys, but this is not recommended with difx2fits 3rd DiFX workshop, Curtin University, Perth

  12. vex2difx: control file generator • Walter will speak in much more detail on this • For the running of DiFX, its two important outputs are the .input file (which describes the setup of the correlator) and the .calc file (which describes the antenna positions, scan durations, source coords etc) • Input .v2d file must provide vex file that describes observation; can also override defaults for numchannels, int time, … 3rd DiFX workshop, Curtin University, Perth

  13. .input file tables • Common: other files, start/stop etc • Configuration: Number of channels, anything that might want to change from one scan to the next • Freq: IF frequencies, bandwidth, sideband • Datastream: Setup for each telescope • Baseline: What bands to correlate • Data/network: Where to load the data from 3rd DiFX workshop, Curtin University, Perth

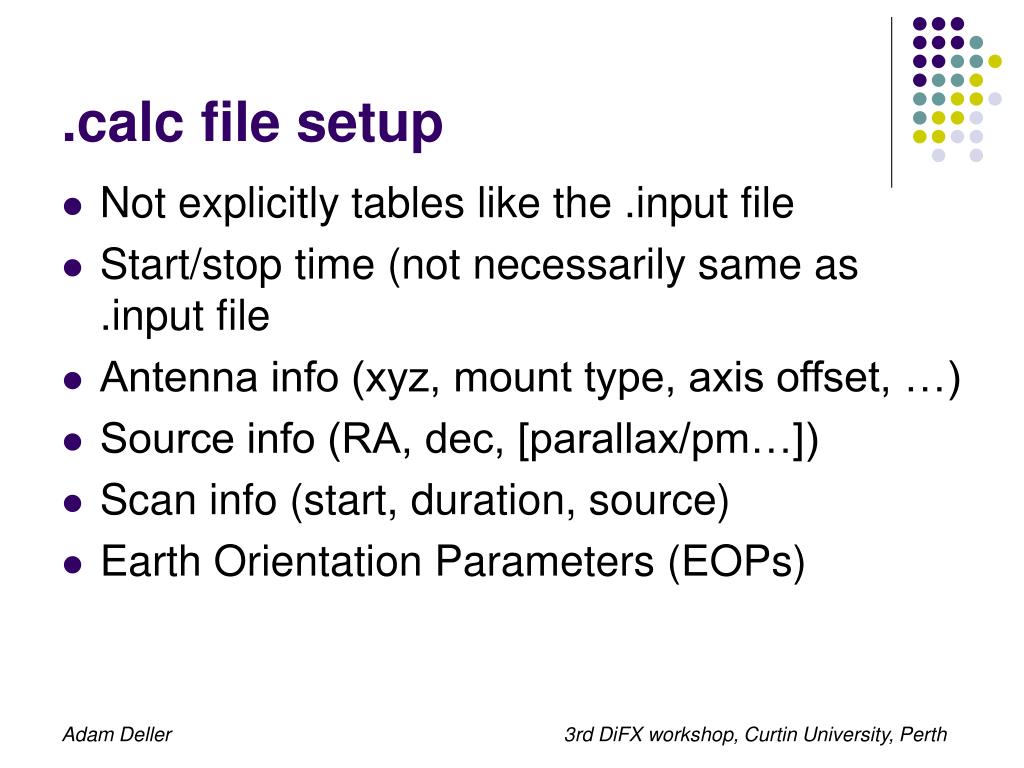

  14. .calc file setup • Not explicitly tables like the .input file • Start/stop time (not necessarily same as .input file • Antenna info (xyz, mount type, axis offset, …) • Source info (RA, dec, [parallax/pm…]) • Scan info (start, duration, source) • Earth Orientation Parameters (EOPs) 3rd DiFX workshop, Curtin University, Perth

  15. calcif2: geometric model gen. • calcif2 takes the info given in the .calc file and produces predicted delays and uvws for each datastream • This is stored in two forms: • A densely packed series of samples (usually every second). This is the .delay and .uvw file used by DiFX1.5, which interpolates the samples • A less densely sampled set of polynomials (usually every 2 minutes). This is the .im file used by DiFX2.0 - it’s a bit smaller/more efficient 3rd DiFX workshop, Curtin University, Perth

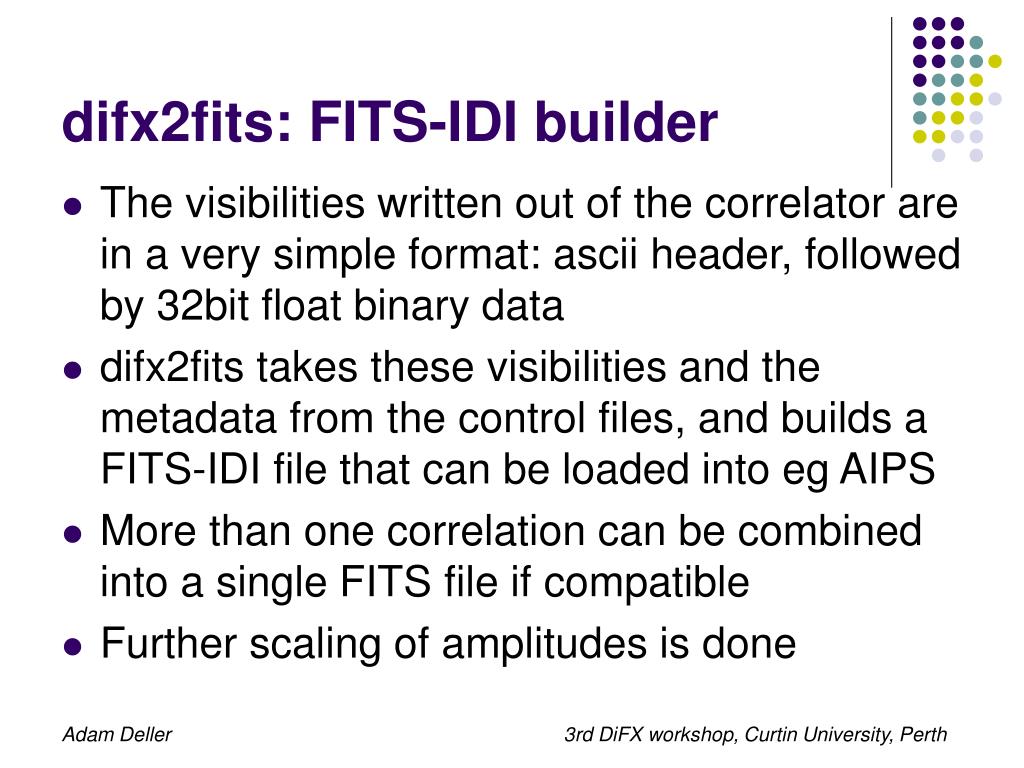

  16. difx2fits: FITS-IDI builder • The visibilities written out of the correlator are in a very simple format: ascii header, followed by 32bit float binary data • difx2fits takes these visibilities and the metadata from the control files, and builds a FITS-IDI file that can be loaded into eg AIPS • More than one correlation can be combined into a single FITS file if compatible • Further scaling of amplitudes is done 3rd DiFX workshop, Curtin University, Perth

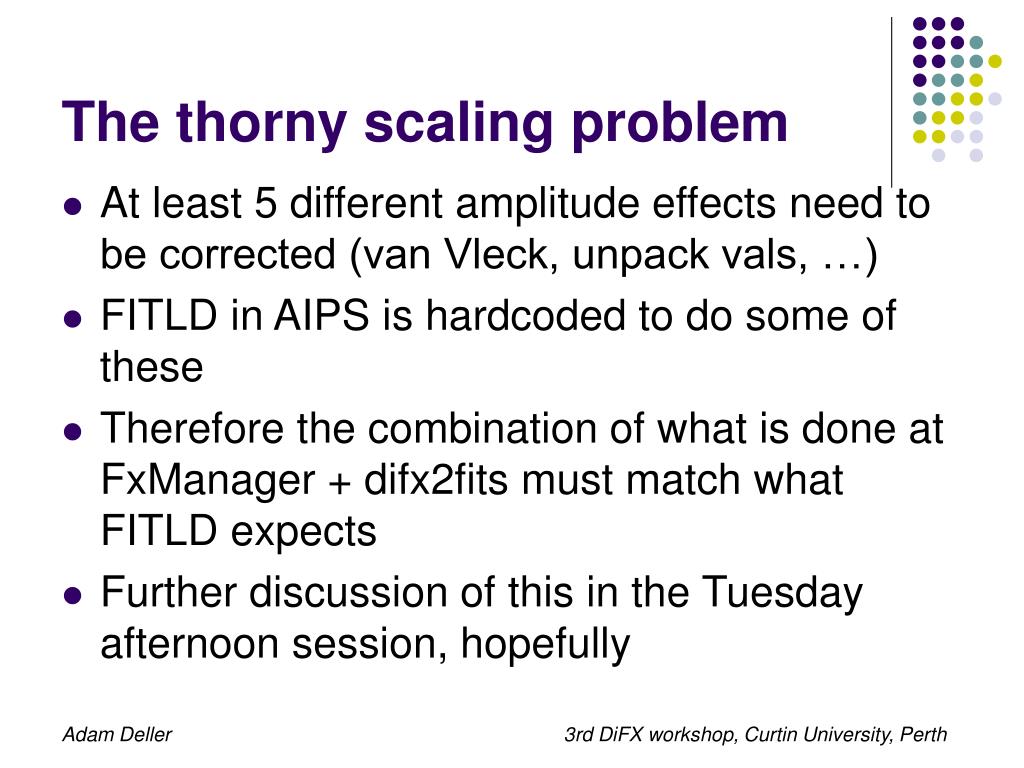

  17. The thorny scaling problem • At least 5 different amplitude effects need to be corrected (van Vleck, unpack vals, …) • FITLD in AIPS is hardcoded to do some of these • Therefore the combination of what is done at FxManager + difx2fits must match what FITLD expects • Further discussion of this in the Tuesday afternoon session, hopefully 3rd DiFX workshop, Curtin University, Perth

  18. Recap: correlation flow chart In: Out: Generate .v2d file nothing .v2d vex2difx .v2d .input, .calc calcif2 .calc ..delay/uvw/im ?? local info, .input Generate .threads/machine file .threads/machines .input/delay/uvwmachines, .threads Correlate: mpifxcorr .difx (visibilities) Difx2fits .difx, .input, .im FITS file 3rd DiFX workshop, Curtin University, Perth
