Presentation Transcript
Slide1 l.jpg

Inter-Sensor Validation of NDVI time series from AVHRR, SPOT-Vegetation, SeaWIFS, MODIS, and LandSAT ETM+

Molly E. Brown +

Jorge E. Pinzon+

Jeffery T. Morisettex

Kamel Didan*

Compton J. Tuckerx

+ SSAI, NASA Goddard Space Flight Center * Soil, Water and Environmental Sciences

Greenbelt, MD 20771 University of Arizona

xNASA Goddard Space Flight Center

Greenbelt, MD 20771

Molly E. Brown, PhD


Overview l.jpg
Overview

  • Data used in study

    • Global NDVI datasets, LandSAT ETM+ for comparison

  • Methods

    • Spectral, spatial and temporal considerations

    • Global 1 degree datasets

    • CEOS sites and drought locations

  • Results

  • Discussion – data continuity from AVHRR through MODIS to VIIRS

Molly E. Brown, PhD


Vis nir swir band comparison l.jpg

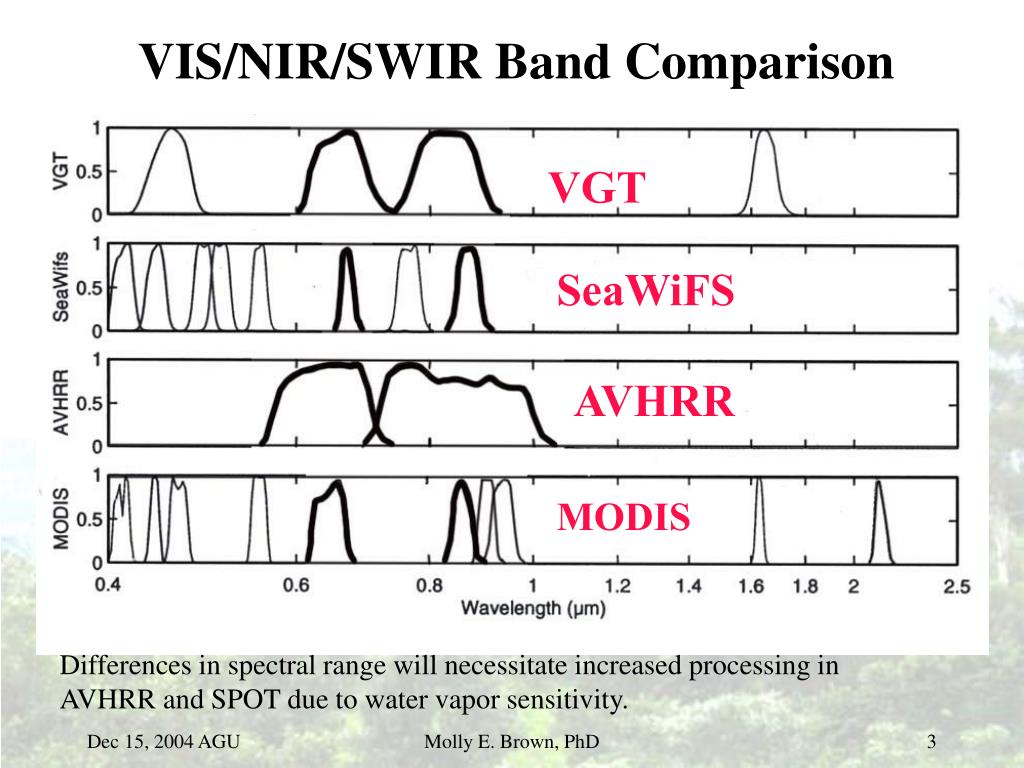

VIS/NIR/SWIR Band Comparison

VGT

SeaWiFS

AVHRR

MODIS

Differences in spectral range will necessitate increased processing in

AVHRR and SPOT due to water vapor sensitivity.

Molly E. Brown, PhD


Slide4 l.jpg
Data

Molly E. Brown, PhD


Validation methods 59 sites l.jpg

CEOS Land Validation Sites

Validation Methods:59 Sites

  • Aggregations to monthly time step and 1 degree resolution for pixel by pixel comparison.

  • Global hemispherical means created to provide direct comparison of NDVI behavior.

  • Comparisons of time series created from 25x25 km box at native temporal and spatial resolutions: CEOS sites, locations of droughts, deserts, agricultural production regions, etc.

  • Anomaly and seasonal characteristics evaluated

  • Atmospherically corrected, 25x25km subsets of selected LandSAT ETM+ scenes provide a base for comparison of datasets.

Molly E. Brown, PhD



Slide7 l.jpg

  • Global averages show that

  • Four sensors have similar

  • signals.

  • Improvements in AVHRR

  • NDVI have reduced many

  • differences between the

  • sensors, enabling a direct

  • comparison between the

  • records:

    • Longer base means for anomaly

    • Multiple data sources for NDVI

    • More work to be done for

    • data integration to be operational

Molly E. Brown, PhD


Slide8 l.jpg

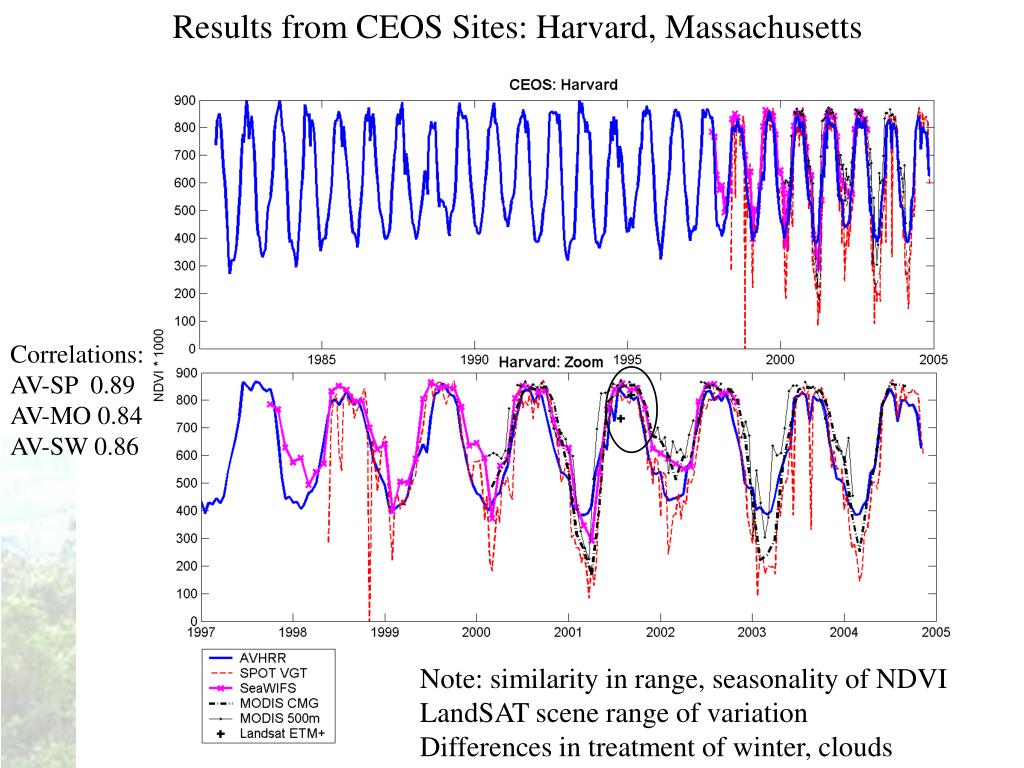

Results from CEOS Sites: Harvard, Massachusetts

Correlations:

AV-SP 0.89

AV-MO 0.84

AV-SW 0.86

Note: similarity in range, seasonality of NDVI

LandSAT scene range of variation

Differences in treatment of winter, clouds

Molly E. Brown, PhD


Slide9 l.jpg

Correlations:

AV-SP 0.85

AV-MO 0.82

AV-SW 0.66

Correlations:

AV-SP 0.59

AV-MO 0.65

AV-SW 0.59

Molly E. Brown, PhD


Slide10 l.jpg

+

Correlations

AV-SP 0.60

AV-MO 0.33

AV-SW 0.38

MODIS cloud and aerosol atmospheric correction

explains the differences between MODIS and the other sensors.

Molly E. Brown, PhD



Conclusions l.jpg
Conclusions

  • Many lessons have been learned from the creation of a consistent NDVI record from AVHRR

    • How to integrate sensors with different gains (NOAA 7-14 and NOAA 16-17)

    • Overcome sensor limitations to reduce clouds, reduce noise and improve image coherence

  • More work to be done on further integrating the records of AVHRR, MODIS, SPOT, SeaWIFS to maximize their various strengths, minimizing their weaknesses

  • AVHRR – MODIS – VIIRS data continuity will be required to maximize length of record to answer important science questions

Molly E. Brown, PhD


Slide13 l.jpg

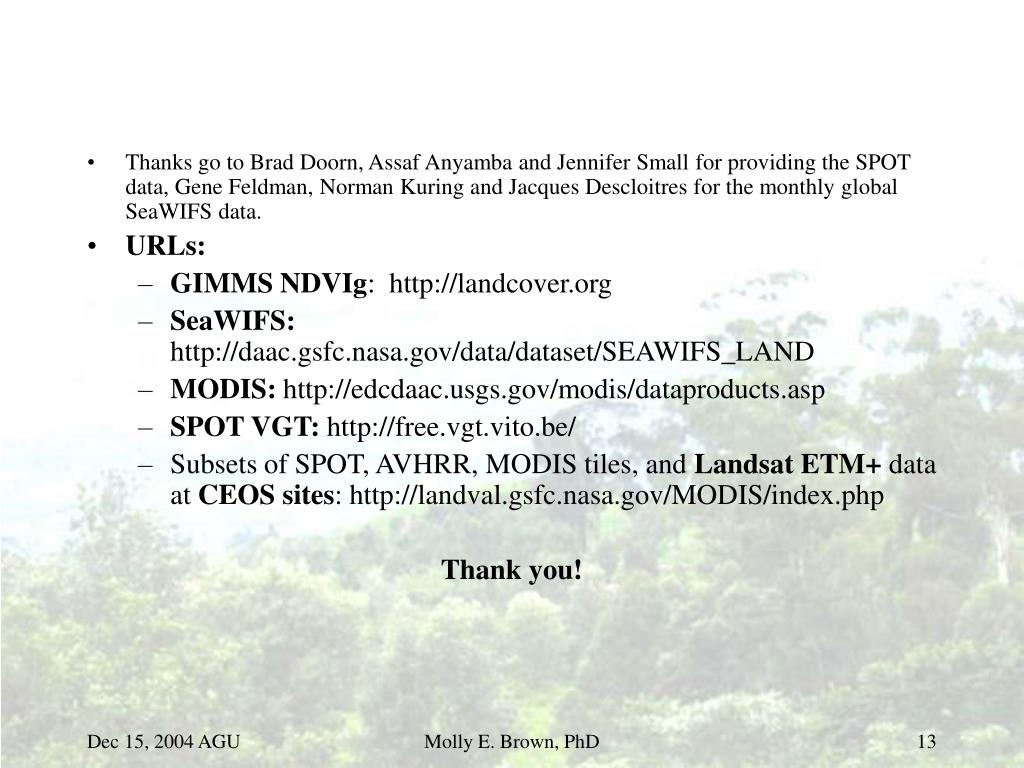

  • Thanks go to Brad Doorn, Assaf Anyamba and Jennifer Small for providing the SPOT data, Gene Feldman, Norman Kuring and Jacques Descloitres for the monthly global SeaWIFS data.

  • URLs:

    • GIMMS NDVIg: http://landcover.org

    • SeaWIFS: http://daac.gsfc.nasa.gov/data/dataset/SEAWIFS_LAND

    • MODIS: http://edcdaac.usgs.gov/modis/dataproducts.asp

    • SPOT VGT: http://free.vgt.vito.be/

    • Subsets of SPOT, AVHRR, MODIS tiles, and Landsat ETM+ data at CEOS sites: http://landval.gsfc.nasa.gov/MODIS/index.php

      Thank you!

Molly E. Brown, PhD
