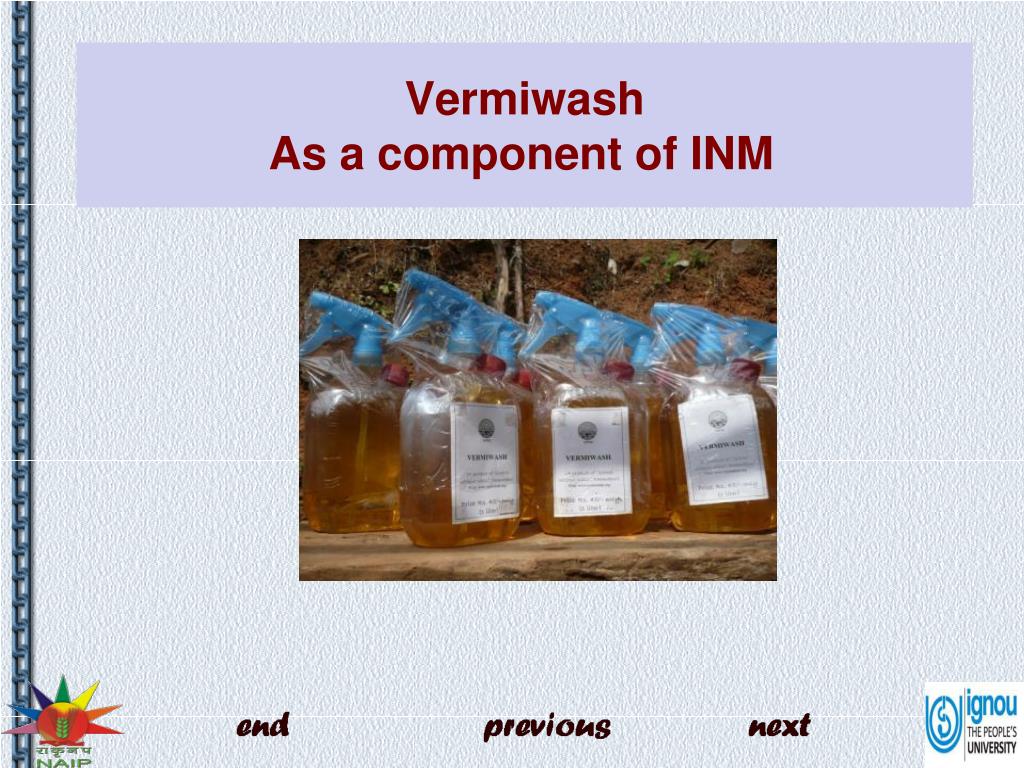

Vermiwash As a component of INM PowerPoint Presentation
Download Presentation
Vermiwash As a component of INM

Loading in 2 Seconds...

play fullscreen
1 / 14

Vermiwash As a component of INM - PowerPoint PPT Presentation


  • 533 Views
  • Uploaded on

Vermiwash As a component of INM . Introduction. Vermiwash : As a component of INM . Vermiwash , a liquid bio-fertilizer can be collected through the column of activated earthworm.

loader
I am the owner, or an agent authorized to act on behalf of the owner, of the copyrighted work described.
capcha
Download Presentation

PowerPoint Slideshow about 'Vermiwash As a component of INM' - major


Download Now An Image/Link below is provided (as is) to download presentation

Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author.While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server.


- - - - - - - - - - - - - - - - - - - - - - - - - - E N D - - - - - - - - - - - - - - - - - - - - - - - - - -
Presentation Transcript
introduction
Introduction

Vermiwash: As a component of INM

Vermiwash, a liquid bio-fertilizer can be collected through the column of activated earthworm.

It contains plant growth hormones like auxins and cytokinin apart from nitrogen, phosphorus, potash and other micronutrients.

slide3

Vermiwash: As a component of INM

Agriculturally Important Microbes in Vermiwash

Phosphate solublizing bacteria(PSB).

Nitrogen fixing bacteria

Azotobacter sp

Rhizobium sp.

slide4

Vermiwash: As a component of INM

Benefits of Vermiwash

Vermiwash acts as a plant tonic and helps to reduce many plant diseases

A mixture of vermiwash (1litre) with cow urine (1litre) in 10 litres of water acts as bio-pesticides and liquid manure.

principle of vermiwash production
Principle of Vermiwash production

Vermiwash: As a component of INM

  • The trickling of water takes away all the body secretions of the earthworm along with it and also other nutrients from the decomposed materials.
  • The collected water contains many nutrients readily available to the crop plants.
composition of vermiwash
Composition of Vermiwash

Vermiwash: As a component of INM

The composition of vermiwash is as follow:

pH 7.48 ± 0.03

Organic carbon% 0.008 ± 0.001

Nitrogen% 0.01 ± 0.005

Available phosphorous% 1.69 ± 0.05

Potassium (ppm) 25 ± 2

micro nutrients in vermiwash
Micro-nutrients in Vermiwash

Vermiwash: As a component of INM

microbial composition of vermi wash
Microbial composition of vermi-wash

Vermiwash: As a component of INM

requirements for the production of vermiwash
Requirements for the production of Vermiwash

Vermiwash: As a component of INM

Bucket with tap

Earthworms

Cow dung

method of preparation of vermiwash
Method of preparation of vermiwash

Vermiwash: As a component of INM

Drill a hole at the base of the container to fix a tap to it.

Select one sufficiently large container made of concrete or plastic bucket .

method of preparation of vermiwash1
Method of preparation of Vermiwash

Vermiwash: As a component of INM

Introduce about 2000 earthworms into the container.

A base layer of gravel or broken small pieces of bricks are placed upto height of 10-15 cm.

On the coarse sand layer place 40-45 cm pre-decomposed organic wastes and moisten the different layers by using water.

integrated vermiwash unit
Integrated Vermiwash Unit

Vermiwash: As a component of INM

Vermiwash unit may be established with vermicomposting beds for large scale production.

precautions
Precautions

Vermiwash: As a component of INM

Water should be poured slowly.

Do not mix un-decomposed material while, watering.

Do not add any green material.

Do not allow to compact the contents.

let us sum up
Let Us Sum Up

Vermiwash: As a component of INM

Vermiwash, a liquid fertilizer collected after the passage of water through a column of worm activation is very useful as a foliar spray.

It contains plant growth hormones like auxins and cytokinin apart from nitrogen, phosphorus, potash and other micro nutrients.

It contains nitrogen fixing bacteria like Azotobacter sp., Arobactericum sp. and Rhizobium sp. and some phosphate solublizing bacteria.

It acts as a plant tonic and helps to reduce many plant diseases.
