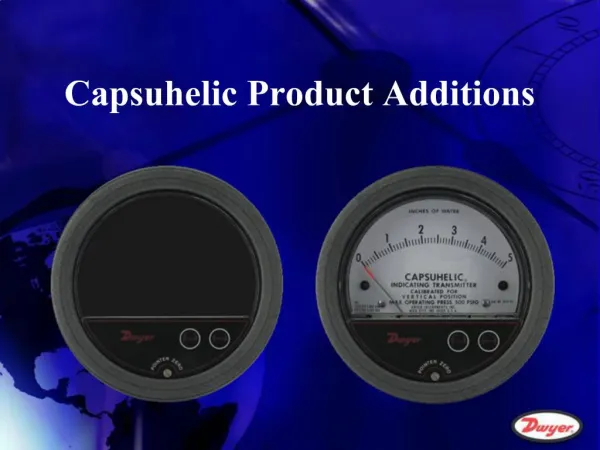

    1. Capsuhelic Product Additions

    2. Introduction Two New High Impact Products One Developed from Years of Customer Requests 2nd is an Improvement on an Older Popular Transmitter

    3. 631 Wet/Wet Transmitters New Sensing Technology for Low Pressures 2 Versions 631H: Replaces old 630A 631B: Capsuhelic Indicating Transmitter

    4. 631H Wet/Wet Transmitter Similar to old 630A Brass Case-NEMA 4X Ranges from 0.5" w.c. to 25" w.c. 500 PSIG max. Pressure ±2% full scale Accuracy Digital push-button Zero & Span on face

    5. 631B Wet/Wet Transmitter Capsuhelic Gage Transmitter w/ Brass Case Ranges from 0.5" w.c. to 25" w.c. 500 PSIG max. Pressure ±3% full scale Accuracy (2% on 4-20 mA output) Digital push-button Zero & Span on face

    6. 631 Specification Summary 500 PSIG Maximum Static Rating Brass Case Silicone Diaphragm; Optional Buna or Viton 0-175ºF Compensated Temperature Limit 4-20 mA output; Future Voltage output Accuracies: 631H = 2% 631B = 2% output, 3% on gage • NEMA 4X with 4 pin M12 connector

    7. 631 Series Applications Monitor Flow from Orifice Plate or Averaging Sensor Monitor Process Filters Monitor D.P. on Liquid Cooling Systems such as Chillers Monitor D.P. on Systems where a High Static Pressure May Exist

    8. Proposed List Pricing 631B Capsuhelic Transmitter = $450 631H Transmitter = $399
