    Presentation Transcript
    1. HDV – New Additions Mel Medina Sr. Product Manager Professional Video

    2. $ 7,900.00 LIST Avail.: NOW New HDV B&I Deck HVR-1500 • Professional level feature set • Fast transport response equivalent to DVCAM Master Series • 6-pin i.LINK interface • RS-422A 9-pin interface • Emergency Eject • Utilizes head-cleaner and tape cleaning blade • Internal test signal generator (bars + tone) • Wide Variety of Interfaces • Product features, pricing and specifications are subject to change without prior notice.

    3. Switchable Recording & Playback Switchable 60i / 50i • HDV (REC / PLAY) • DVCAM (REC / PLAY) • DV (REC / PLAY) • DVCPRO 25 (PLAY)

    4. W I D E Variety of Interface options • Standard Definition • Composite • S-Video • i.LINK • SDI • AES/EBU • High Definition • i.LINK (I/O) • HD-SDI (O) • AES/EBU (O)

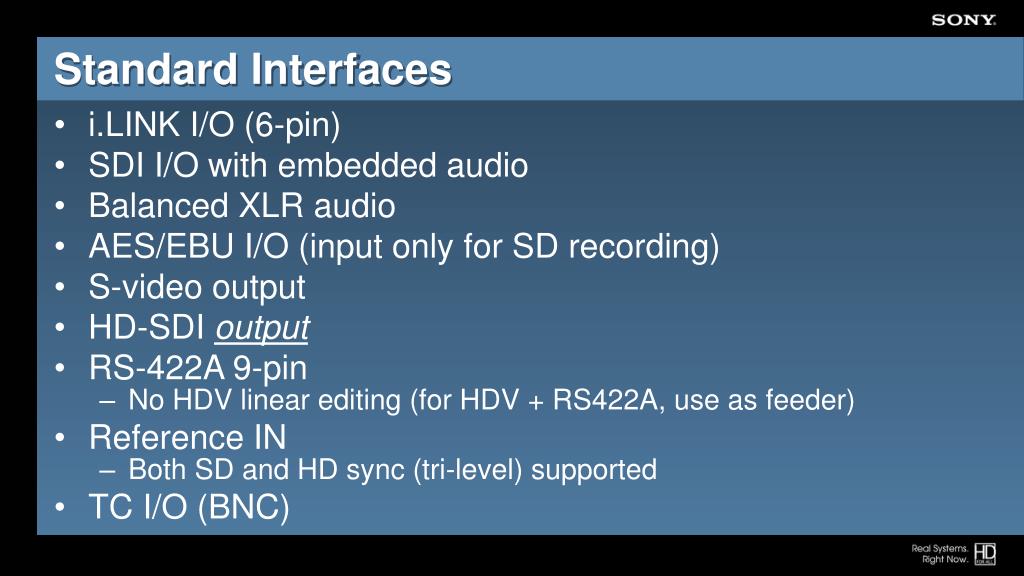

    5. Standard Interfaces • i.LINK I/O (6-pin) • SDI I/O with embedded audio • Balanced XLR audio • AES/EBU I/O (input only for SD recording) • S-video output • HD-SDI output • RS-422A 9-pin • No HDV linear editing (for HDV + RS422A, use as feeder) • Reference IN • Both SD and HD sync (tri-level) supported • TC I/O (BNC)

    6. Playback Formats

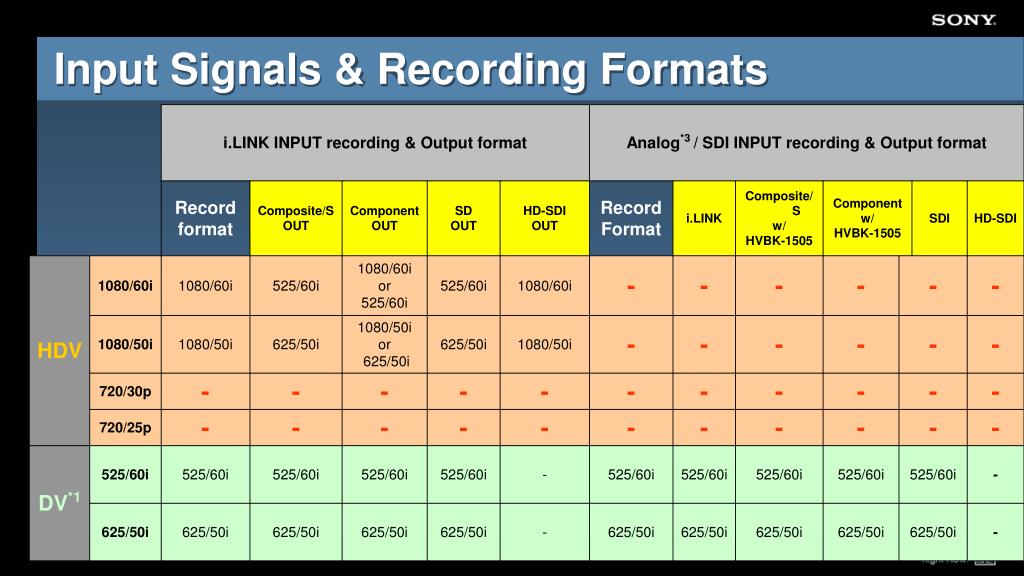

    7. Input Signals & Recording Formats

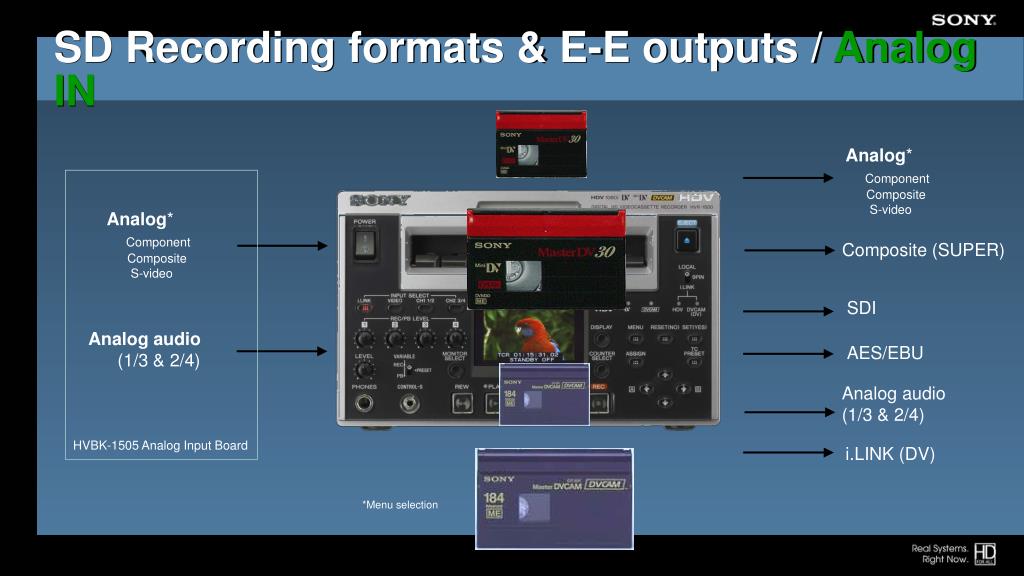

    8. SD Recording formats & E-E outputs / Analog IN Analog* Component Composite S-video Analog* Component Composite S-video Composite (SUPER) SDI Analog audio (1/3 & 2/4) AES/EBU Analog audio (1/3 & 2/4) HVBK-1505 Analog Input Board i.LINK (DV) *Menu selection

    9. SD Recording formats & E-E outputs / i.LINK IN Analog* Component Composite S-video Composite (SUPER) SDI i.LINK AES/EBU Analog audio (1/3 & 2/4) *Menu selection

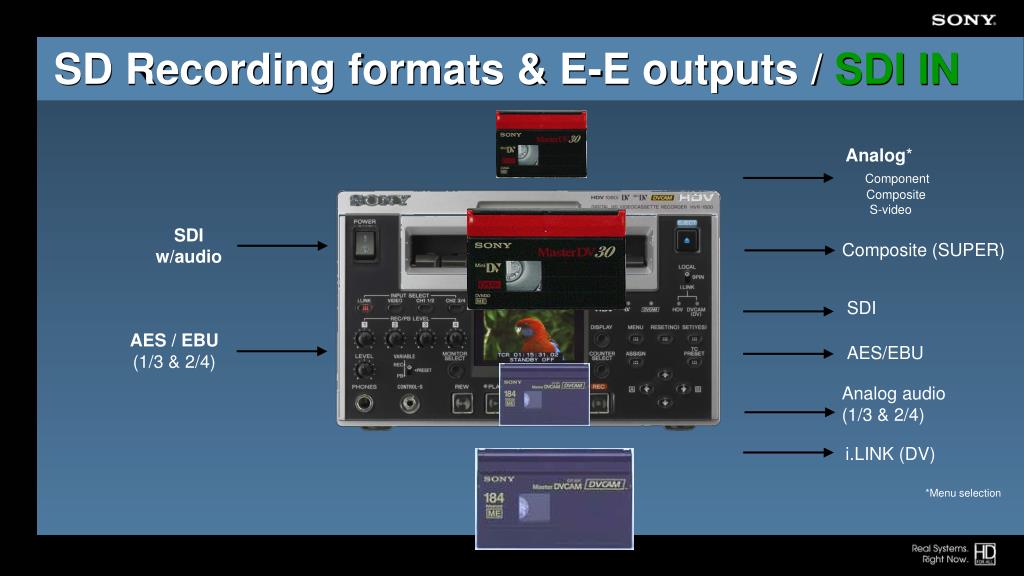

    10. SD Recording formats & E-E outputs / SDI IN Analog* Component Composite S-video SDI w/audio Composite (SUPER) SDI AES / EBU (1/3 & 2/4) AES/EBU Analog audio (1/3 & 2/4) i.LINK (DV) *Menu selection

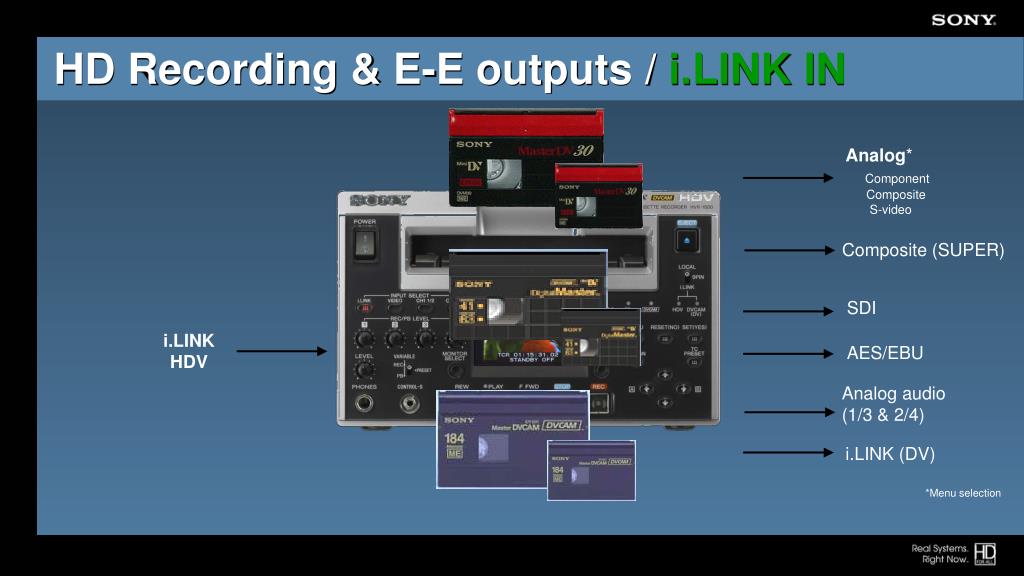

    11. HD Recording & E-E outputs / i.LINK IN Analog* Component Composite S-video Composite (SUPER) SDI i.LINK HDV AES/EBU Analog audio (1/3 & 2/4) i.LINK (DV) *Menu selection

    12. Optional Interface Boards

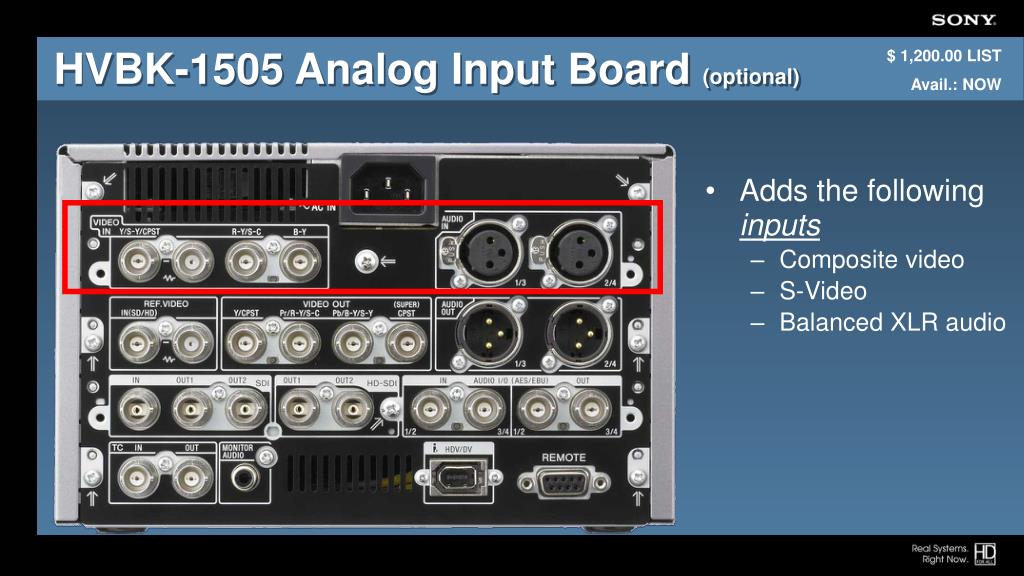

    13. $ 1,200.00 LIST Avail.: NOW HVBK-1505 Analog Input Board (optional) • Adds the following inputs • Composite video • S-Video • Balanced XLR audio

    14. LIST = approx. $ 2k Avail.: Summer 2007 HVBK-1520 Format Converter Board • PB Cross conversion from 1080i to 720P or vice versa • Playback HDV tape: 1080/60i HD-SDI out: 720/60P • Playback HDV tape: 1080/50i HD-SDI out: 720/50P • Playback HDV tape: 720/30P HD-SDI out: 1080/60i • Up-conversion (EE & PB) • Playback SD tapes • Up-convert signal via HD-SDI out • DV25/60i 1080/60i or 720/60P • DV25/50i 1080/50i or 720/50P • SDI input HD-SDI EE output: 1080/60i or 720/60P 1080/50i or 720/50P

    15. Tape format Output i.LINK OUT Composite/S OUT*2 Component OUT*2 SD-SDI OUT HD-SDI OUT HDV 1080/60i 1080/60ior 525 525 1080/60ior 525 525 1080/60ior 720/60P 1080/50i 1080/50ior 625 625 1080/50ior 625 625 1080/50ior 720/50P 720/29.97P - 525 720/60Por 525 525 720/60P or1080/60i DV*1 525 525 525 525 525 1080/60ior 720/60P 625 625 625 625 625 1080/50ior 720/50P Playback Formats (w/new HVBK-1520)

    16. Input Signals & Recording Formats (w/HVBK-1520)

    17. Tapeless Recording

    18. $ 1,890.00 LIST Avail.: NOW HVR-DR60 • 60 GB Storage Capacity • Approx. 4.5 Hour Recording Time • Records video to disk at same time camcorder records to tape for Hybrid Recording™ automatic master creation. • Can be used for Tapeless Recording with select Sony camcorders • Transfers video at ~3x real time (Approx. 80Mbps) • Up to 13.5 hour run time when used with NP-F970 battery • Compact & lightweight • Approx. 3” x 2” x 4” @ .5 lbs. • Product features, pricing and specifications are subject to change without prior notice.

    19. Total Tapeless Recording Capability • Tapeless recording* capability when used with a variety of Sony camcorders • HVR-V1U • DSR-450WS • DSR-570WS • DSR-390 (*No tape loaded / trigger with on-camera REC button).

    20. Extensive recording compatibility • Three recording modes: Synchro, Follow, and Self • Synchro mode is compatible with • HVR-V1U • DSR-450WS • DSR-400 • DSR-570WS • DSR-390 • DSR-250 • HVR-Z1U • Follow mode is suitable for camcorders which do not have the external record control function. (May lag up to 2 sec. behind camera) • HVR-A1U • DSR-PD170 & PD150 • DSR-PDX10 • Self mode for recording or playback of HDV and DV material from various sources, including VTRs.

    21. NLE Compatibility

    22. NLE Compatibility (updated 5/24/07)

    23. Affordable 24p HD Acquisition HVR-V1U • Same form factor as DSR-PD170 • Ideal for low budget cinema market • Utilizes advanced Sony imager and processing technologies

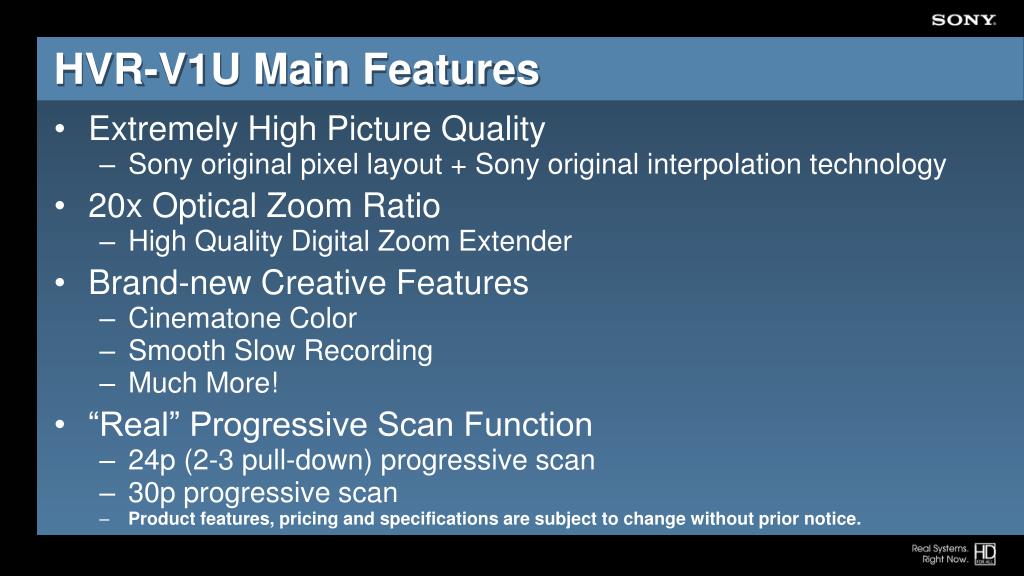

    24. HVR-V1U Main Features • Extremely High Picture Quality • Sony original pixel layout + Sony original interpolation technology • 20x Optical Zoom Ratio • High Quality Digital Zoom Extender • Brand-new Creative Features • Cinematone Color • Smooth Slow Recording • Much More! • “Real” Progressive Scan Function • 24p (2-3 pull-down) progressive scan • 30p progressive scan • Product features, pricing and specifications are subject to change without prior notice.

    25. 3 ClearVid CMOS Sensor System Sony Original Pixel Interpolation Technology New Imager • Higher Sensitivity • Full HD Resolution

    26. The Results?? EXCELLENT!

    27. Excellent Results!!

    28. How do we stack up?? AG-HVX200 Horizontal Resolution

    29. Pictures tell all… Company “P” Company “C” HVR-V1U

    30. Pictures tell all… Company “P”

    31. HVR-V1U Pictures tell all…

    32. Company “C” Pictures tell all…

    33. Comparison with the HVR-Z1U

    34. Comparison with the HDR-FX7 Operational Features Function HVR-V1 HDR-FX7 Remarks 60i:24P/30P Progressive Scan Yes No 50i:25P Interval Recording Yes No Yes Color Bar with Audio Tone No Camera Profile Cam + MS Cam only 3 / 6 / 12 Sec Smooth Slow Rec 6 Sec only Exposure Type Type1 / Type2 Type1 only White Balance OUTDOOR LEVEL Yes No i.LINK External Rec. Control Yes No Hours Meter Yes No Yes Date Rec. No HVR-V1 specific features Additional features from the HDR-FX7 The same difference between the HVR-Z1 and the HDR-FX1

    35. Assign Buttons Function HVR-V1 HDR-FX7 Remarks Last Scene Review Yes No Hyper Gain Yes No Shot Transition Start Timer Yes No Yes Shot Transition Rec Synchro No Function HVR-V1 HDR-FX7 Remarks Yes CinemaTone Color No OFF/ON Knee Point Yes No Auto/H/M/L Yes Black Compensation No OFF/Stretch/Compress Cinematone Gamma Type1 / Type 2 Type1 only Output Function HVR-V1 HDR-FX7 Remarks Squeeze/Letter Box/ Edge Crop Letter box signal cannot be outputted via i.LINK Down Convert Squeeze/Letter Box HVR-V1 specific features Additional features from the HVR-Z1 The same difference between the HVR-Z1 and the HDR-FX1 Comparison with the HDR-FX7 Picture Profile

    36. Function HVR-V1 HDR-FX7 Remarks Metric / Feet Focus display Metric only Shutter speed display Second / Degree Second only 14:9 & 15:9 aspect markers are only displayed at all scan mode. 4:3/13:9/14:9/15:9 Aspect Marker No 90% safety zone marker is only displayed at all scan mode. 80% / 90% Safety Zone Marker No All scan mode is available only CAM mode Yes All Scan Mode No Viewfinder Color / B/W Color only Bar / Number Zoom display Bar only HVR-V1 specific features Additional features from the HVR-Z1 The same difference between the HVR-Z1 and the HDR-FX1 Display Differences

    37. Differences in Audio Settings Function HVR-V1 HDR-FX7 Remarks Audio Level Exclusive Volume Menu Audio Rec. Level L/R separate Yes No Mic Noise Reduction Yes No XLR Manual Gain Yes No Link/Separate XLR Input1 level Yes No MIC/LINE XLR Input1 Trim Yes No OFF/-8dB/-16dB XLR Input1 Wind Yes No OFF/ON XLR Input2 level Yes No MIC/LINE XLR Input2 Trim Yes No OFF/-8dB/-16dB XLR Input2 Wind Yes No OFF/ON Yes External Stereo Mic Jack No Bilingual No Yes OFF/MIAN/SUB Additional features from the HDR-FX7 The same difference between the HVR-Z1 and the HDR-FX1

    38. Function HVR-V1 HDR-FX7 Remarks Yes TC Link No TC/UB Display Yes No TC Preset Yes No UB Preset Yes No TC Format Yes No TC Run Yes No TC Make Yes No UB Date Rec. Yes No Yes Zero Set Memory No Timecode functional differences HVR-V1 specific features The same difference between the HVR-Z1 and the HDR-FX1

    39. DigitalMaster™ Professional Media

    40. DigitalMaster™ Tape Factory Pack-In withHVR-1500 HDV™ Video Recorder

    41. DigitalMaster™ Tape Factory Pack-In withHVR-Z1U Camcorder

    42. Maximize Your Customer’s HDV Experiencethrough Using DigitalMaster™ Tape • One piece of DigitalMaster™ tape is being packed-in with every HVR-Z1U Camcorder and HVR-1500 HDV™ Video Recorder at the factory to encourage your Professional HDV customers to use the highest quality 6mm tape from the start! • Sony DigitalMaster™ tape is the recommended tape for Pro HDV recording due to significantly superior characteristics: 30% greater durability 60% fewer drop-outs and 95% fewer errors vs. Sony Consumer DV tape • Pro HDV Camcorder purchasers are adopting DigitalMaster™ tape • In CY06, on average, every purchaser of a Sony Professional HDV camcorder used 25 pieces of DigitalMaster™ tape • For Information on DigitalMaster™ tape products and Sony Authorized Professional Media Dealers, please visit www.sony.com/promedia or contact Leslie Franklin @ 201-476-8787 or leslie.franklin@am.sony.com
