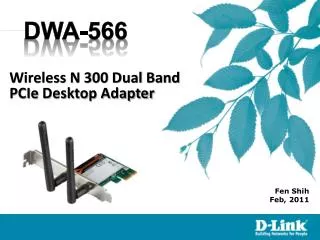

  1. DWA-566 Wireless N 300 Dual Band PCIe Desktop Adapter Fen Shih Feb, 2011

  2. DWA-566 Market Analysis &Product Feature

  3. Market Analysis • Wireless Technology • Dual-band (2.4/5 GHz), 2-stream 11n technology with PCIe interface. • Compliant with IEEE 802.11a/b/g/n • Optimized Support for Multimedia Streaming • More and more devices or applications require higher voice and video stream or bandwidth • Demand to Speed/Data Rate • Users’demand to transmit speed and data rate grows due to the more and more multimedia application • Best Range is getting important • Create a robust and stable signal that travels farther and reduces dead spots • Easy Wi-Fi Protected Setup • Connect to network in a more secure environment with an easy connection setup process via WPS.

  4. Product Features • IEEE 802.11n 2x2 up to 300Mpbs 2.4/5 GHz Dual-band PCI Express Interface Smaller PCB dimension Standard / Short Bracket Windows XP, Vista and 7 OS support Wireless N 300 Dual Band PCIe Desktop Adapter

  5. Product Position &Selling Point

  6. Product Position High DWA-566 Feature • Support 802.11n technology • 2.4/5GHz Dual band • 2x2, up to 300mbps • PCIe interface DWA-556 • Support 802.11n technology • 2.4GHz Single band • 2x3, up to 300mbps • PCI interface DWA-547/552 • Support 802.11n technology • 2.4GHz Single band • 2x3, up to 300mbps • PCI interface Strength Weakness Low P r i c e Low High Low

  7. Selling Point • Dual-Band Technology • Concurrent dual-band 2.4GHz and 5GHz to support different applications at the same time • Clear 5GHz band to get better transmission quality • Optimal Performance • MIMO technology uses multiple radios to create a robust signal that travels farther • Reduce dead spot with whole house coverage • PCI Express Interface • Much faster than legacy PCI cards • Fits any standard PCI Express slot – x1, x4, x8, x16. • Offers increased bandwidth, reliability, and more functionality than a standard PCI network card. • Total Network Security • Support WEP, WPA and WPA2, WPA2 encryption help to keep your communications and information private. • Wi-Fi Protected Setup (WPS)

  8. Dual-band Technology More and more consumer electronic products support dual-concurrent 2.4 and 5 GHz, the 2.4 GHz band for data applications and 5 GHz for multimedia • BENEFITS OF DUAL-BAND • 2.4 GHz is a narrow, relatively crowded band for data functions and 5 GHz is a wide, clean band for better video streaming and gaming • Dual-band network for enhanced multi-device support • Multiple radios per band to create robust signals for great speed and range • Offers optimal performance when connected to Wireless A/B/G/N networks • Great for environment where network interference and household devicesis likely

  9. Better Connections by Less Interference ! Use Clear 5GHz to prevent from 2.4GHz noises

  10. DWA-566 Use Case The user can use 2.4GHz for data access and 5GHz for video streaming DWA-566 DWA-566

  11. Optimal Performance Compatible with current equipment No more dead spots Throughput Enhancement Total Security Range Extension Wireless G DWA-566 Wireless N dual-band PCIe Adapter Enjoy the faster and stable connection speed and range with 802.11n Technology that DWA-556 provides.

  12. Wi-Fi Protected Setup Guide Secure and Easy Setup by WPS • Without technical experience required, WPS offers the easiest way to set up secure network by D-Link UI WPS button.
