Chapter 15, Problem 3

correct. Chapter 15, Problem 3. Consider a hypothetical device that takes 1000 J of heat from a hot reservoir at 300K, ejects 200 J of heat to a cold reservoir at 100K, and produces 800 J of work. Does this device violate the second law of thermodynamics ? 1. Yes 2. No.

maisie-mcconnell
Download Presentation

Chapter 15, Problem 3

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

  1. correct Chapter 15,Problem 3 Consider a hypothetical device that takes 1000 J of heat from a hot reservoir at 300K, ejects 200 J of heat to a cold reservoir at 100K, and produces 800 J of work. Does this device violate the second law of thermodynamics ? 1. Yes 2. No • W (800) = Qhot (1000) - Qcold (200) • Efficiency = W/Qhot = 800/1000 = 80% • Max eff = 1 - 100/300 = 67% .

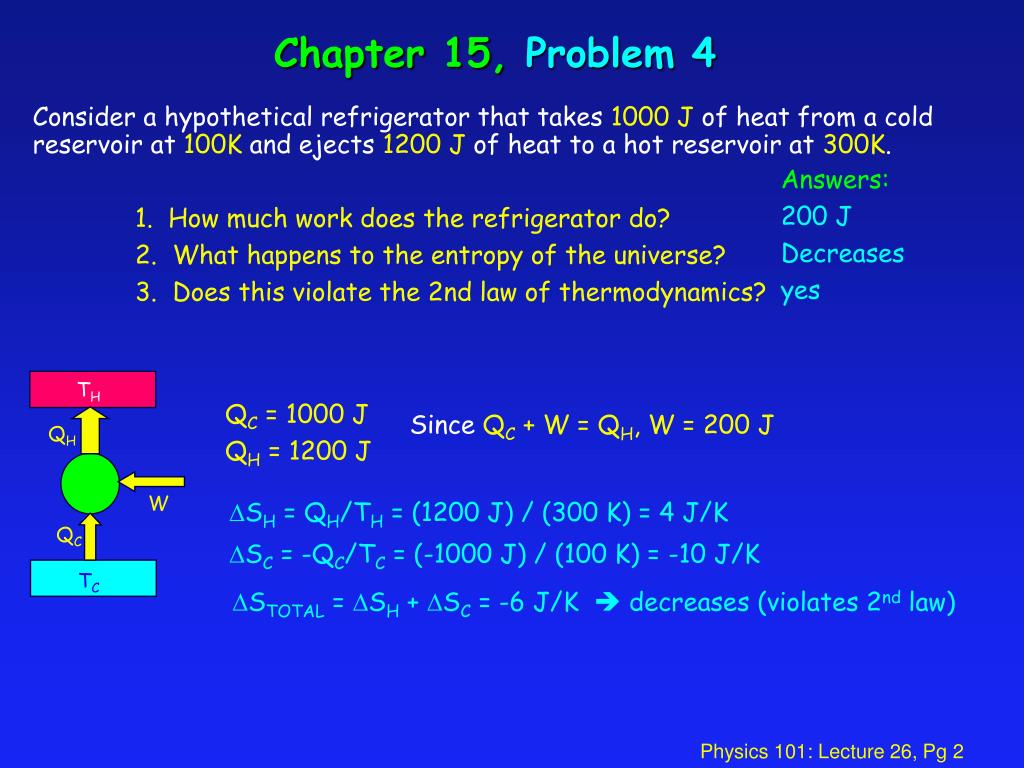

  2. TH QH W QC TC Chapter 15,Problem 4 Consider a hypothetical refrigerator that takes 1000 J of heat from a cold reservoir at 100K and ejects 1200 J of heat to a hot reservoir at 300K. 1. How much work does the refrigerator do? 2. What happens to the entropy of the universe? 3. Does this violate the 2nd law of thermodynamics? Answers: 200 J Decreases yes QC = 1000 J QH = 1200 J Since QC + W = QH, W = 200 J DSH = QH/TH = (1200 J) / (300 K) = 4 J/K DSC = -QC/TC = (-1000 J) / (100 K) = -10 J/K DSTOTAL = DSH + DSC = -6 J/K  decreases (violates 2nd law)

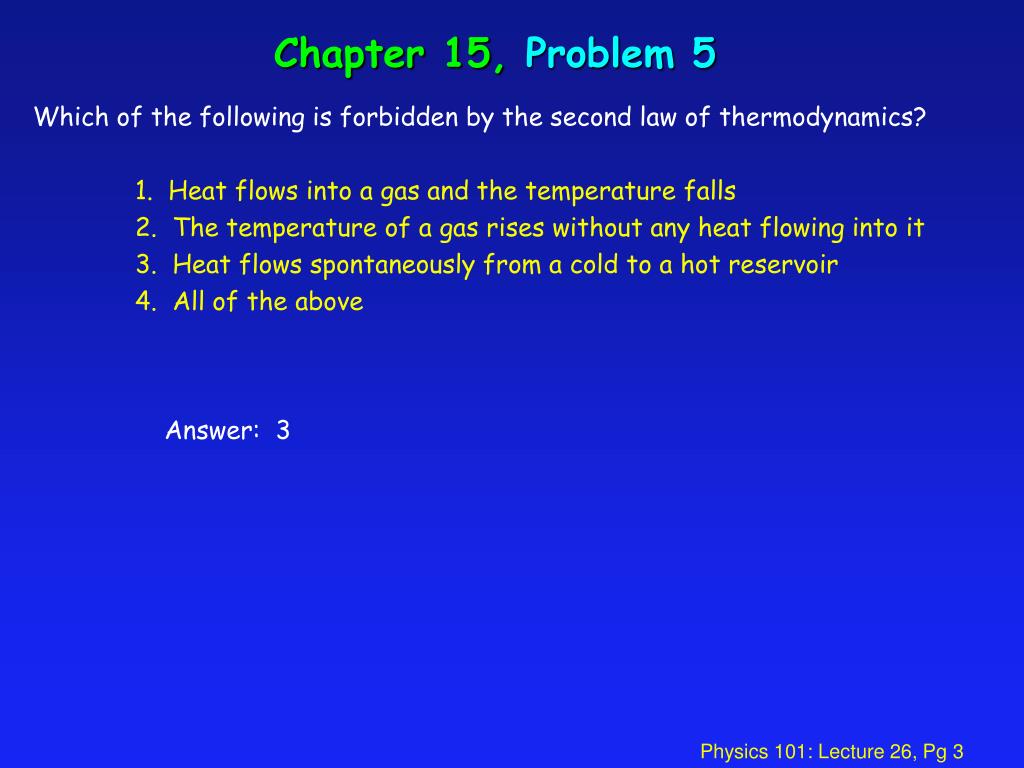

  3. Chapter 15,Problem 5 Which of the following is forbidden by the second law of thermodynamics? 1. Heat flows into a gas and the temperature falls 2. The temperature of a gas rises without any heat flowing into it 3. Heat flows spontaneously from a cold to a hot reservoir 4. All of the above Answer: 3
