athrun

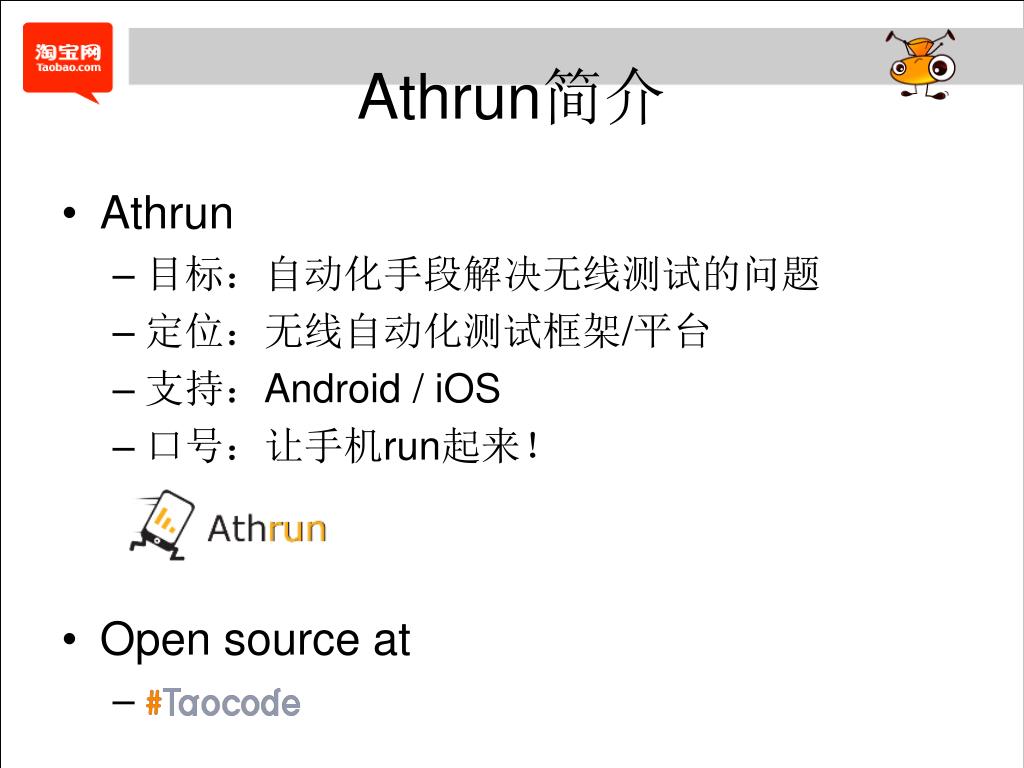

Athrun简介
  • Athrun
    • 目标:自动化手段解决无线测试的问题
    • 定位:无线自动化测试框架/平台
    • 支持:Android / iOS
    • 口号:让手机run起来!
  • Open source at
slide6

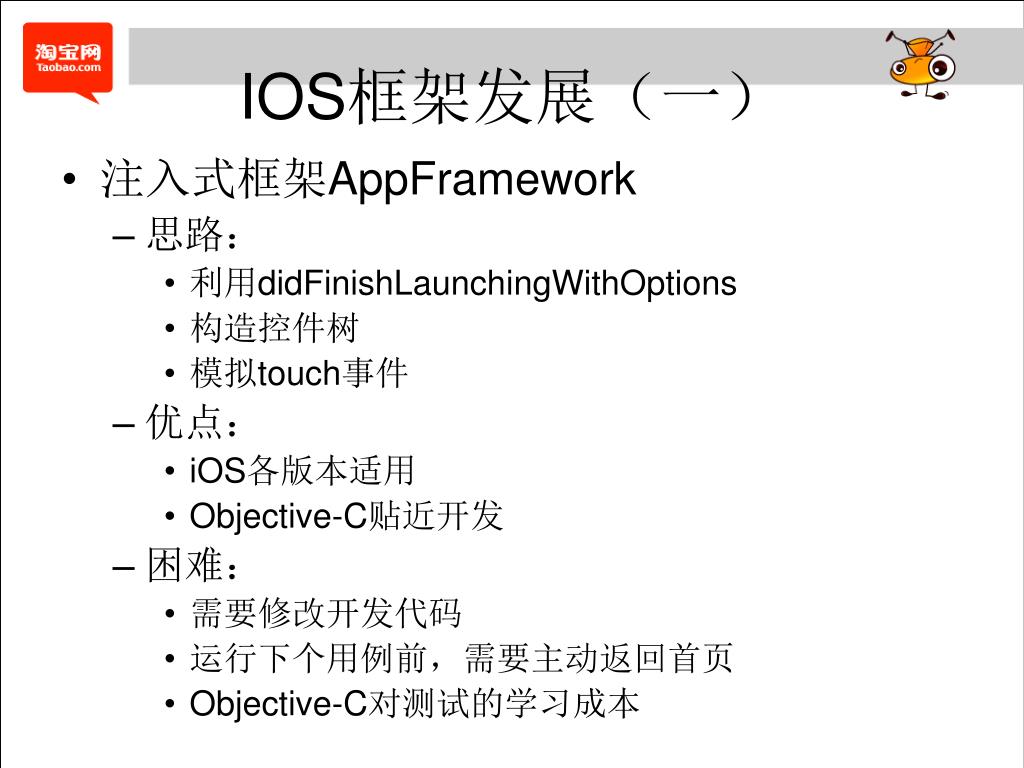

IOS框架发展(一)
  • 注入式框架AppFramework
    • 思路:
      • 利用didFinishLaunchingWithOptions
      • 构造控件树
      • 模拟touch事件
    • 优点:
      • iOS各版本适用
      • Objective-C贴近开发
    • 困难:
      • 需要修改开发代码
      • 运行下个用例前,需要主动返回首页
      • Objective-C对测试的学习成本
slide7

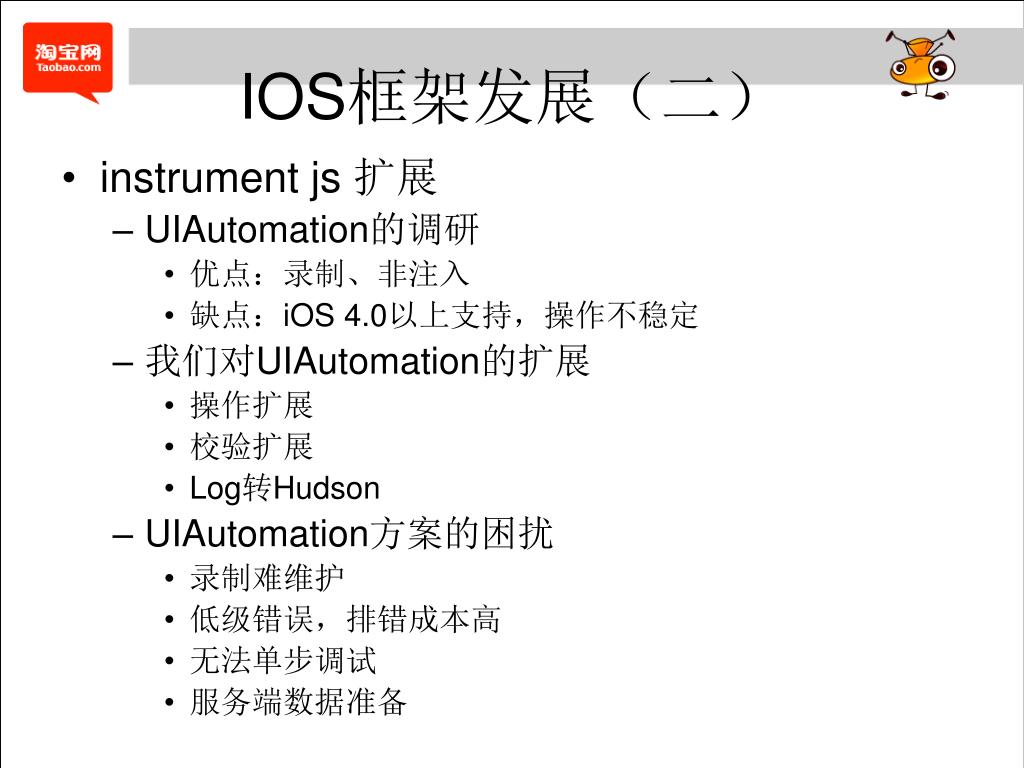

IOS框架发展(二)
  • instrument js扩展
    • UIAutomation的调研
      • 优点:录制、非注入
      • 缺点:iOS 4.0以上支持,操作不稳定
    • 我们对UIAutomation的扩展
      • 操作扩展
      • 校验扩展
      • Log转Hudson
    • UIAutomation方案的困扰
      • 录制难维护
      • 低级错误,排错成本高
      • 无法单步调试
      • 服务端数据准备
slide8

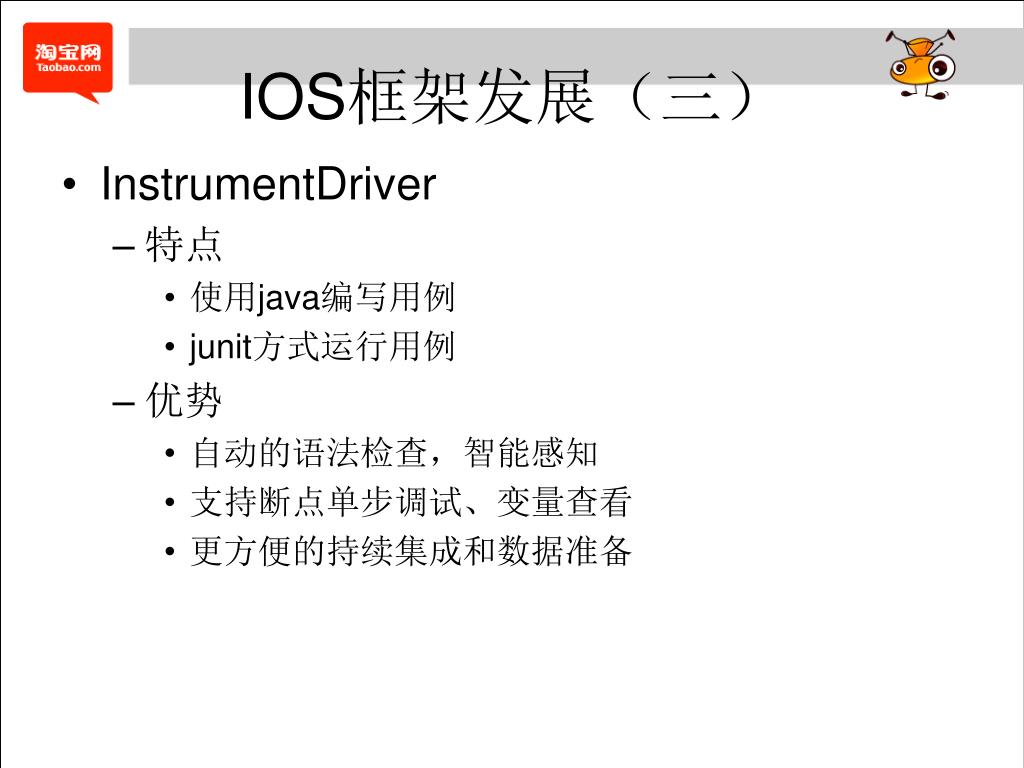

IOS框架发展(三)
  • InstrumentDriver
    • 特点
      • 使用java编写用例
      • junit方式运行用例
    • 优势
      • 自动的语法检查,智能感知
      • 支持断点单步调试、变量查看
      • 更方便的持续集成和数据准备
slide10
API介绍
  • API风格:
    • 面向UI对象
    • 支持数组
    • 与UIAutomation兼容
    • 录制的脚本可以运行
  • 根节点:
    • UIATarget
      • static localTarget()
      • printElementTree
      • scrollUp/Down/Left/Right
      • frontMostApp
    • UIAApplication
    • alert
    • keyboard
    • UIANavigationBar
    • mainWindow
    • win=UIATarget.localTarget().frontMostApp().mainWindow()
  • UIAWindow(win)
    • 继承自UIAElement
  • UIAElement
    • elements
    • T findElementByText(String text, Class<T> elmentType)
    • tap
    • touchAndHold
slide11

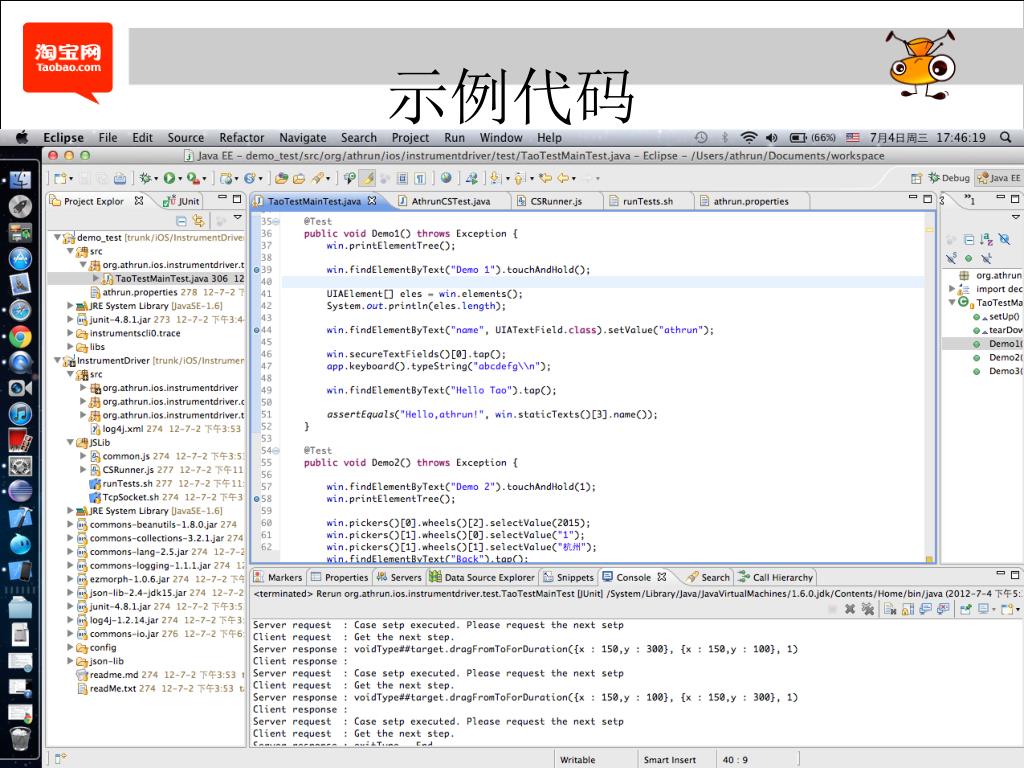

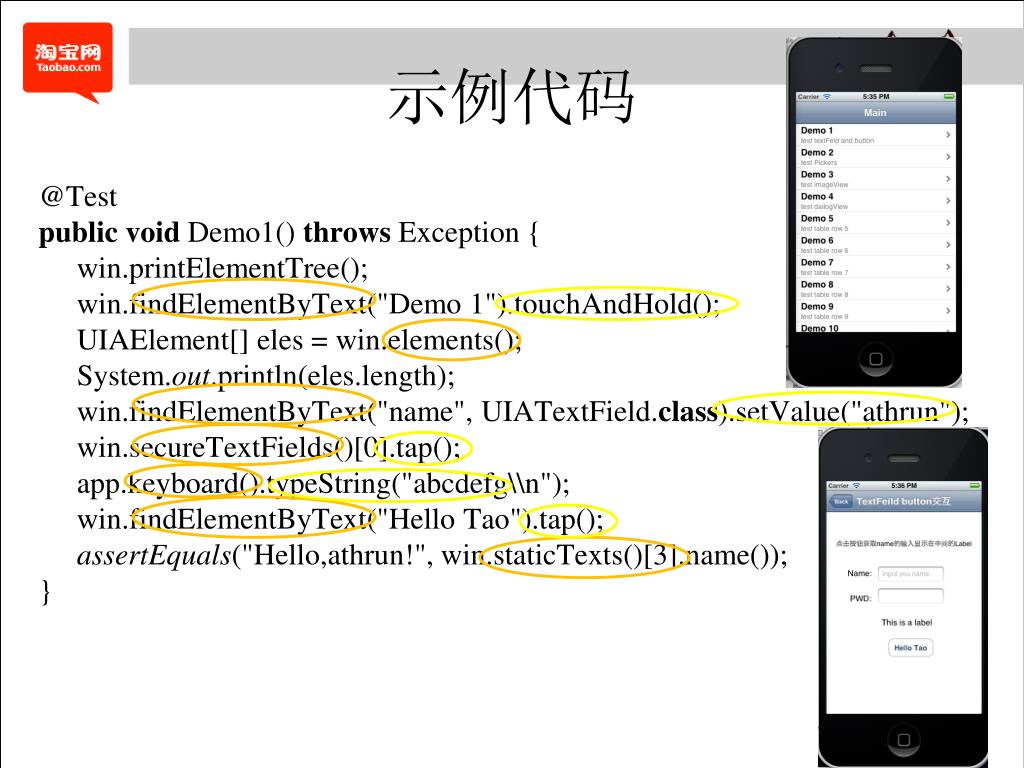

示例代码

@Test

publicvoid Demo1() throws Exception {

win.printElementTree();

win.findElementByText("Demo 1").touchAndHold();

UIAElement[] eles = win.elements();

System.out.println(eles.length);

win.findElementByText("name", UIATextField.class).setValue("athrun");

win.secureTextFields()[0].tap();

app.keyboard().typeString("abcdefg\\n");

win.findElementByText("Hello Tao").tap();

assertEquals("Hello,athrun!", win.staticTexts()[3].name());

}

slide13

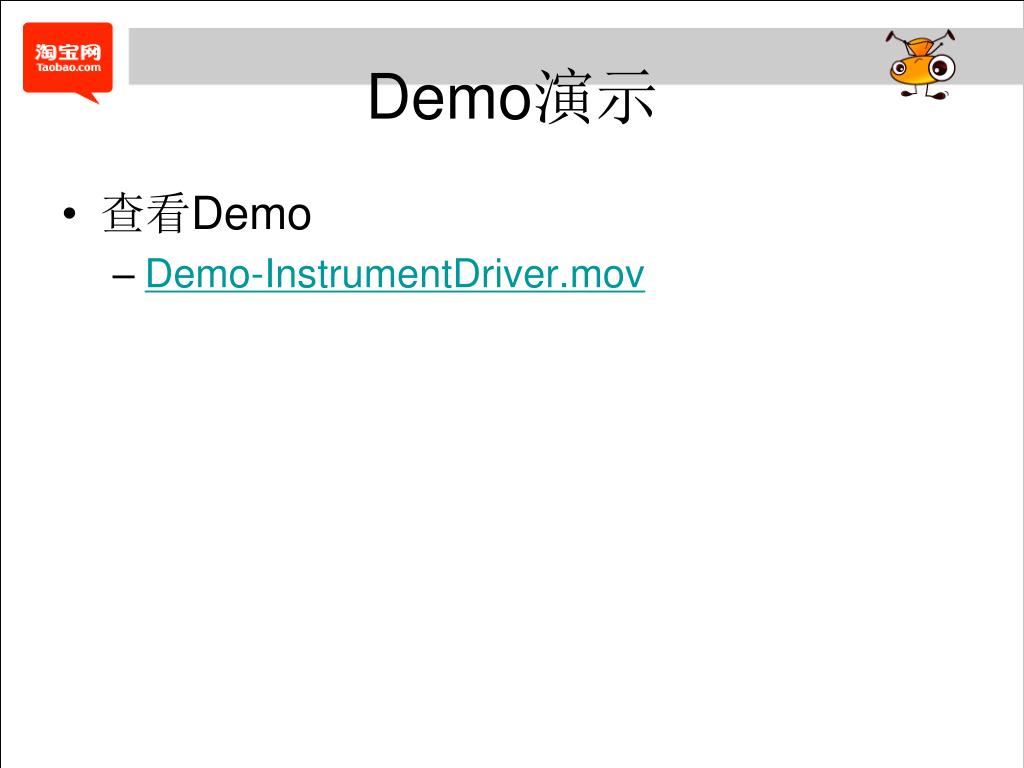

Demo演示
  • 查看Demo
    • Demo-InstrumentDriver.mov
slide15

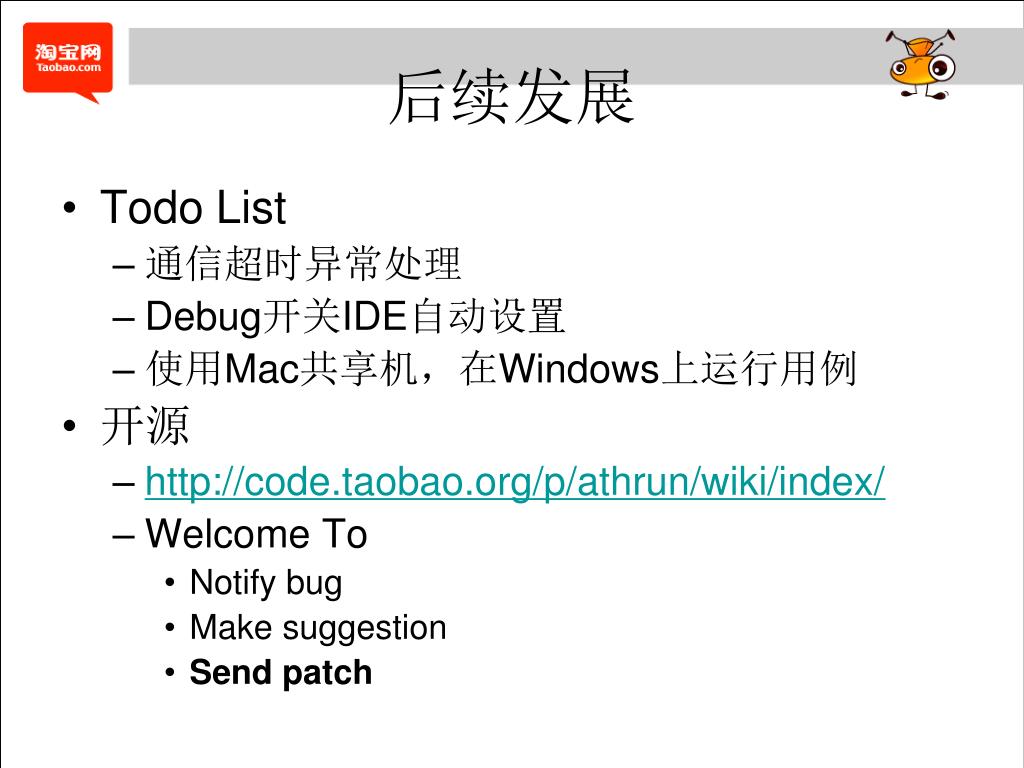

后续发展
  • Todo List
    • 通信超时异常处理
    • Debug开关IDE自动设置
    • 使用Mac共享机,在Windows上运行用例
  • 开源
    • http://code.taobao.org/p/athrun/wiki/index/
    • Welcome To
      • Notify bug
      • Make suggestion
      • Send patch
