Instrument

14

INSTRUMENT

23 JAN 2003

20 MAR 2003

20 Feb 2003

DEPARTURE

PROCEDURES

14


Instrument

  • ACTION: Plan and conduct a departure from an airfield

  • CONDITION: As an Army Aviator with all appropriate publications).

  • STANDARD: IAW FM 3-04.240, DOD Flip, and AR 95-1.


  • Instrument

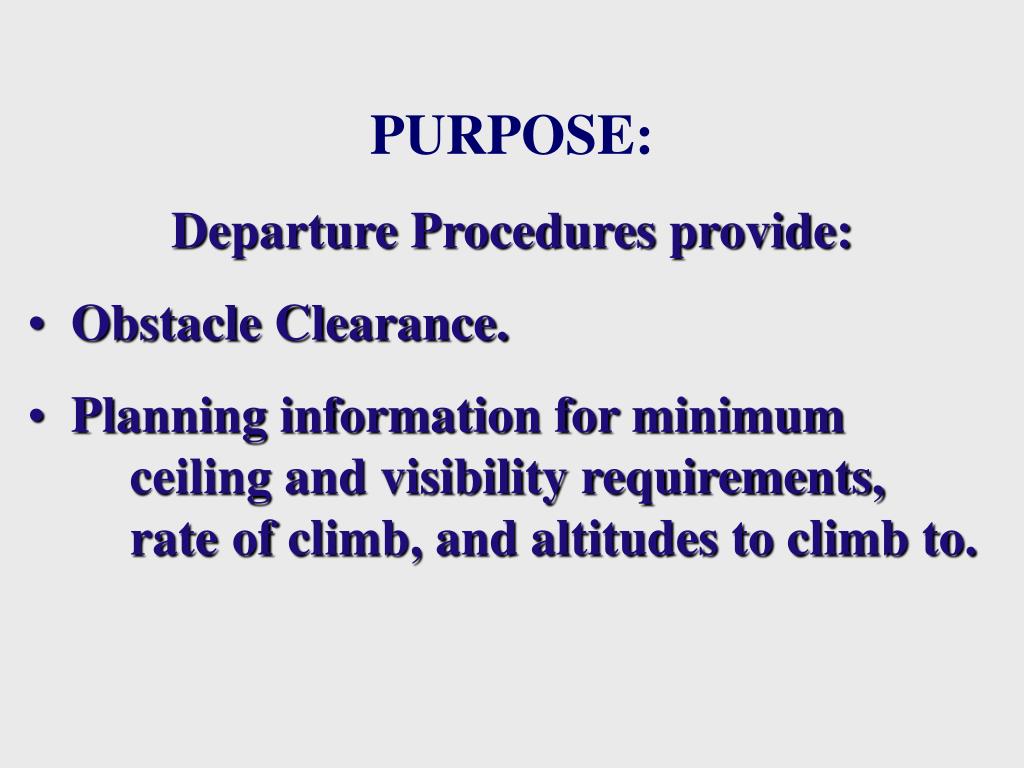

    • PURPOSE:

    • Departure Procedures provide:

    • Obstacle Clearance.

    • Planning information for minimum ceiling and visibility requirements,rate of climb, and altitudes to climb to.



    Instrument

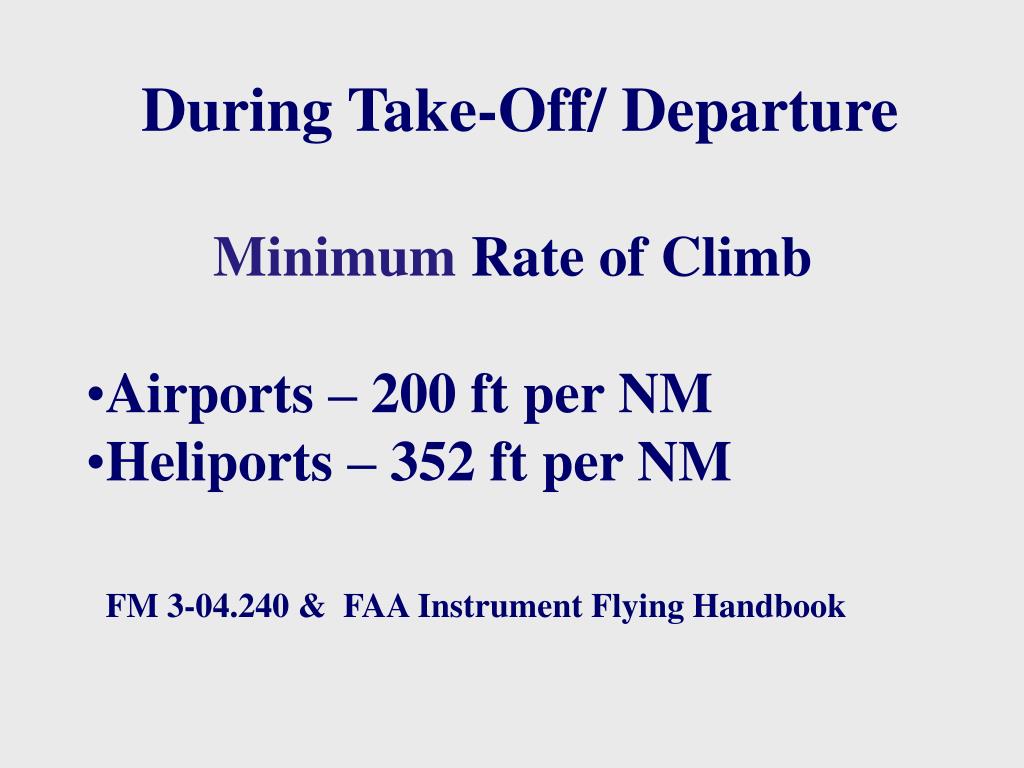

    • During Take-Off/ Departure

    • Minimum Rate of Climb

      • Airports – 200 ft per NM

      • Heliports – 352 ft per NM

    • FM 3-04.240 & FAA Instrument Flying Handbook


    Instrument

    During Take-Off/ Departure

    Climb to 400 ft above airport/heliport elevation before any turn.

    Higher altitudes may be required.

    TB AVN 1-2130 SP, FAA Instrument Flying Handbook

    Determine rate of climb.


    Instrument

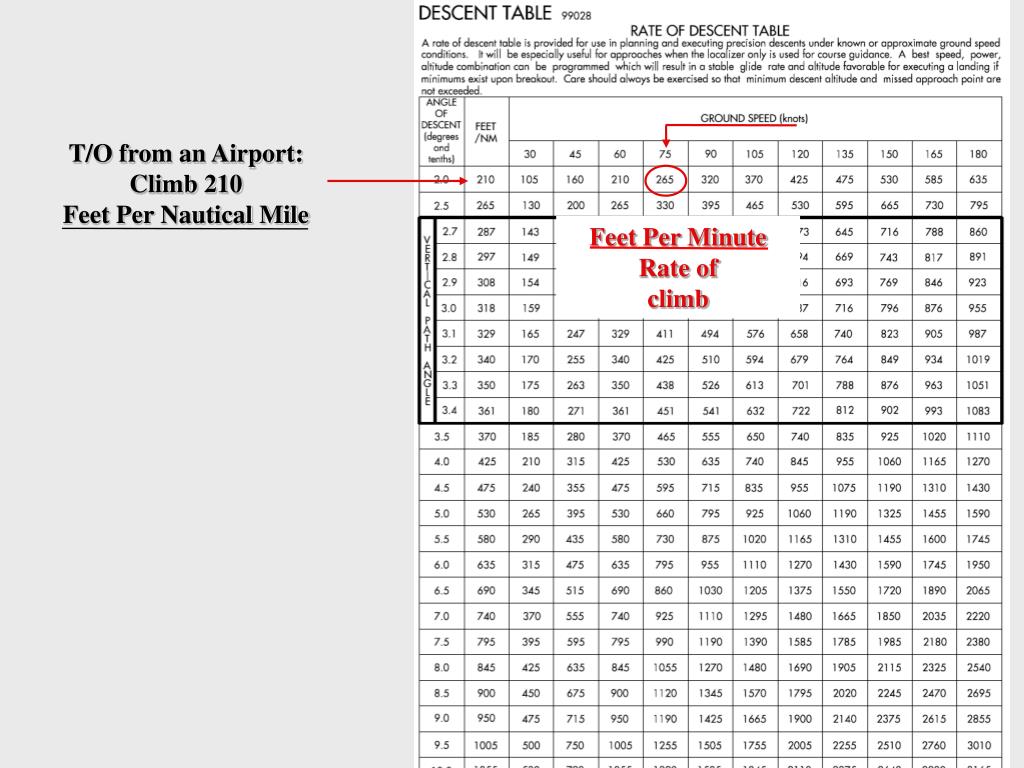

    T/O from an Airport: Climb 210 Feet Per Nautical Mile

    Feet Per Minute

    Rate of

    climb


    Instrument

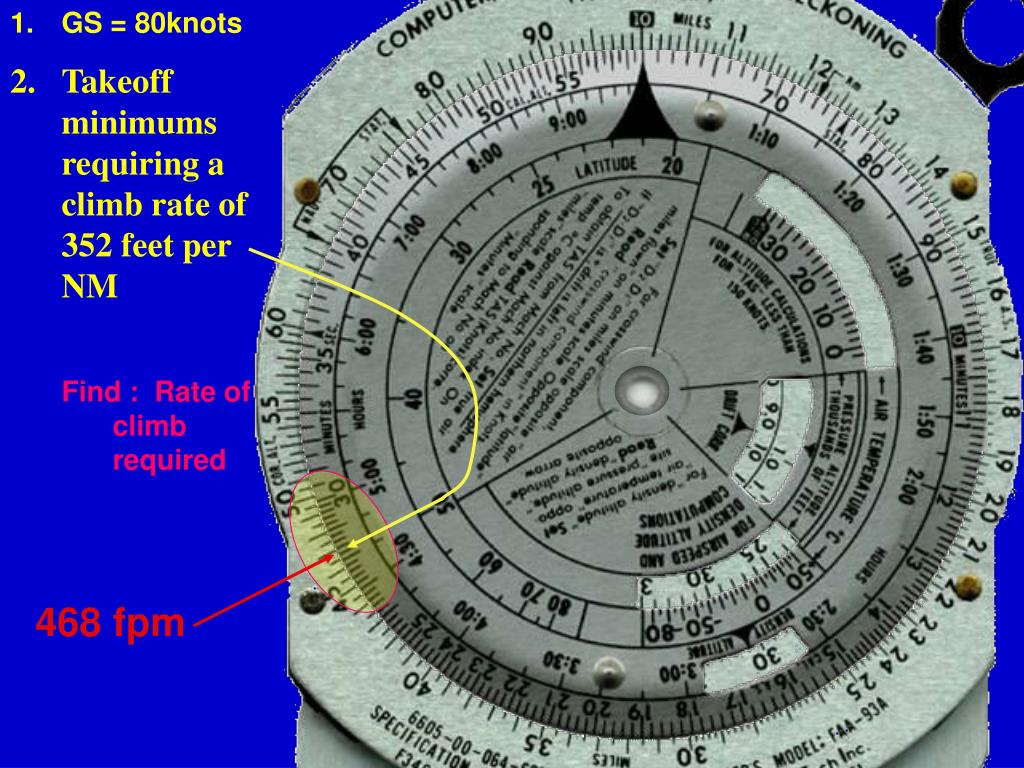

    • GS = 80knots Nautical Mile

    • Takeoff minimums requiring a climb rate of 352 feet per NM

      • Find : Rate of climb required

    468 fpm


    Instrument

    TYPES OF Nautical Mile

    DEPARTURE PROCEDURES

    (DP’s)


    Instrument

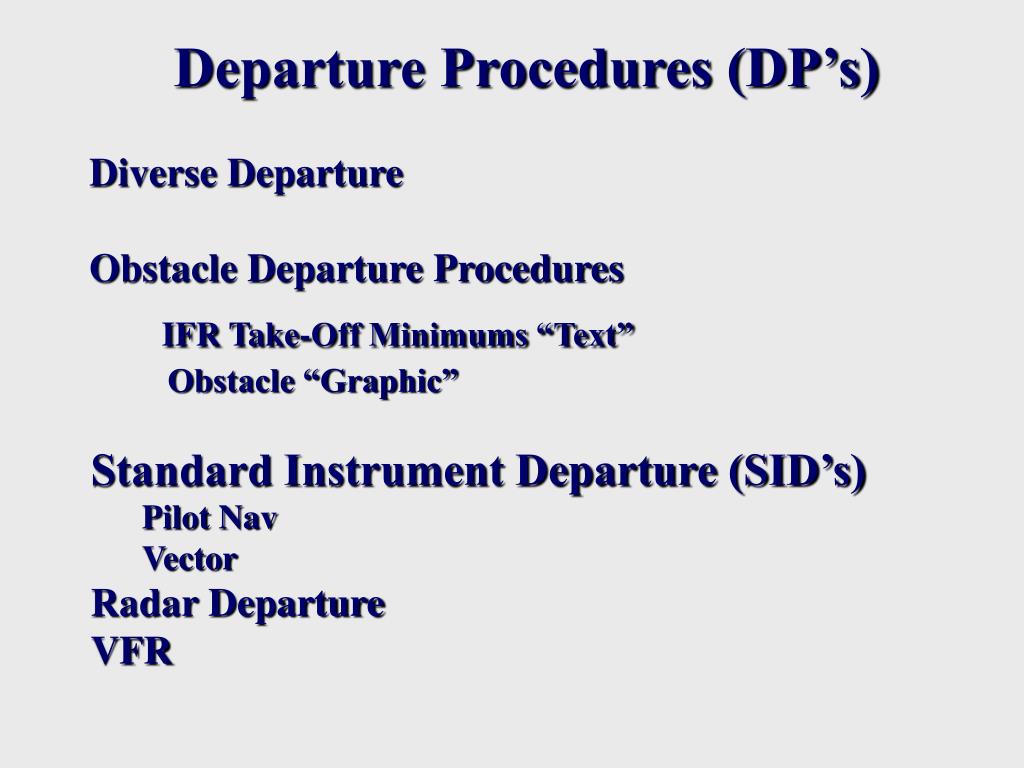

    • Departure Procedures (DP’s) Nautical Mile

    • Diverse Departure

    • Obstacle Departure Procedures

      • IFR Take-Off Minimums “Text”

      • Obstacle “Graphic”

      • Standard Instrument Departure (SID’s)

        • Pilot Nav

        • Vector

      • Radar Departure

      • VFR


    Instrument

    TAKE-OFF REQUIREMENTS Nautical Mile


    Instrument

    • AR 95-1, Ch 5, Para 5-3 Nautical Mile

    • a. Ceiling and Visibility requirements for the person flying the aircraft at Take-Off.

    • Less than 50 hrs actualWx as PC – 100 - ¼

    • More than 50 hrs actual Wx as PC – 0-0

      • b. Comply with non-standard procedures when published.


    Instrument

    DEPARTURE PROCEDURES Nautical Mile


    Instrument

    DIVERSE DEPARTURE Nautical Mile

    No obstacles, identified, at an airport with an instrument approach, that encroach into the Obstacle Identification Slope.

    A turn in any direction at the minimum rate of climb will avoid any obstacle.


    Instrument

    DIVERSE DEPARTURE Nautical Mile

    Airports without

    Take-Off Minimums

    listed have no

    obstacles that penetrate

    the OIS.


    Instrument

    Obstacle Departure Procedures (ODP) Nautical Mile

    (Text)

    And

    Take-Off Minimums


    Instrument

    Obstacle Departure Procedures Nautical Mile

    (Text)

    • Preplanned IFR Departure Procedure

    • Provides Obstruction Clearance

    • May require: Greater than standard ceiling and/or visibility.

    • A specified altitude before turning.

    • A greater than 200 ft per NM Climb rate.

    • May be flown without an ATC Clearance.

    • May have information about obstacles only.


    Instrument

    Use Table of Contents Nautical Mile

    Index Of Instrument Procedure

    Charts

    Determine if IFR Take-Off minimums (Non Standard) are published for departure airport.

    (Non-Standard Wx Minimum, ODP, and/or obstruction information)


    Instrument

    “Obstacle” Nautical Mile

    DepartureProcedure

    (Graphic)


    Instrument

    Obstacle Departure Procedures Nautical Mile

    (Graphic)

    • Preplanned IFR Departure Procedure

    • Published in graphic and text format.

    • Provides Obstruction Clearance

    • May be flown without an ATC Clearance.


    Instrument

    May be filed in a flight plan Nautical Mile

    Using the computer code –

    (KENO 1 • KENO)


    Instrument

    Standard Instrument Nautical Mile

    Departure

    (SID)


    Instrument

    • Standard Instrument Departure Nautical Mile

    • (SID’s)

      • An ATC requested and developed procedure.

      • Requires Radar services for development and use.

      • ATC clearance required.


    Instrument

    • PURPOSE: Nautical Mile

    • Expedite clearance delivery.

    • Facilitate seamless transition between Take-Off and en-route operations.

    • Reduces Pilot/Controller work load.

    • Ensure obstacle clearance (avoidance).


    Instrument

    Where Can I Depart From? Nautical Mile

    AIRPORT SKETCH

    (from Approach Chart)

    Location and layout of helipads

    Airport elevation


    Instrument

    Use Table of Contents Nautical Mile

    Index Of Instrument

    Procedure

    Charts

    Determine if a

    Standard Instrument Departure (SID)

    is available for an airport.


    Instrument

    SID LEGEND Nautical Mile

    NAVAIDS

    ROUTES

    ALTITUDES

    MINIMUM SAFE ALTITUDE


    Instrument

    MARGIN INFORMATION Nautical Mile

    NOTE FORMAT:

    CLIOS 2 • CLIOS

    Name of procedure

    Computer coded identifier for use on flight plans

    Originating Agency

    Area served

    Pilot Nav


    Instrument

    PLAN VIEW Nautical Mile

    Current Weather

    Receive ATC clearance.

    Hover Taxi Instructions

    Hover Taxi Instructions

    Communication Information

    Clearance for TAKE-OFF

    ATC controller after Take-off

    As directed by ATC

    NAVAID Information

    Published Routes

    Radials


    Instrument

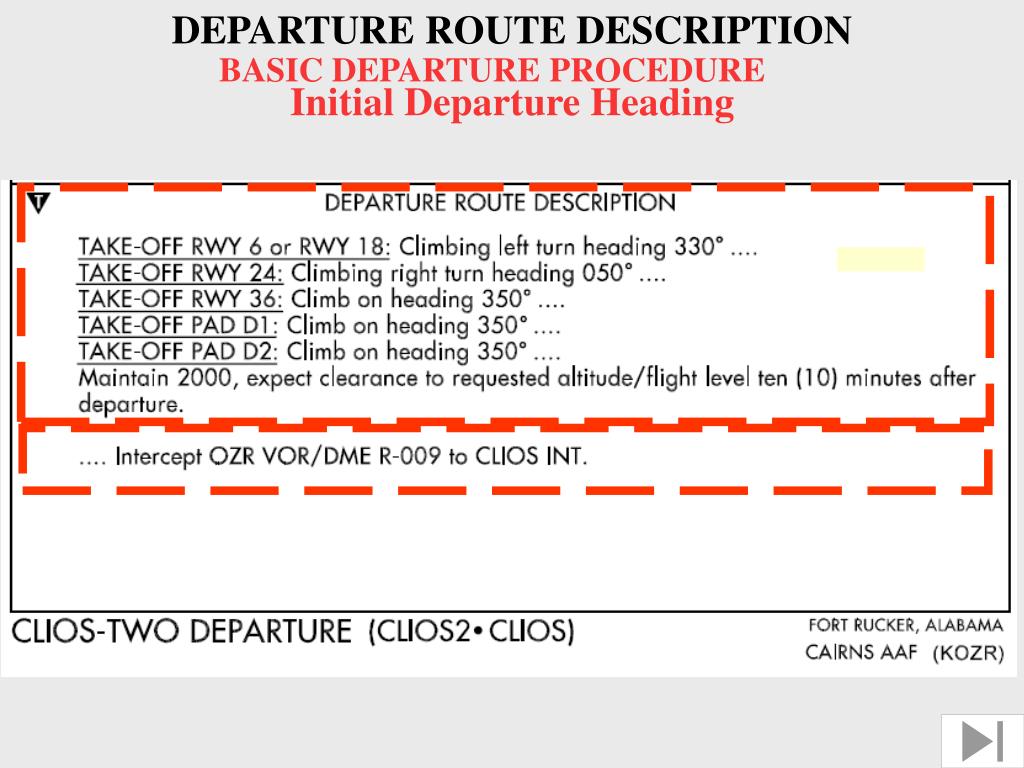

    DEPARTURE ROUTE DESCRIPTION Nautical Mile

    Initial Departure Heading

    BASIC DEPARTURE PROCEDURE


    Instrument

    SID Nautical Mile ends at CLIOS intersection


    Instrument

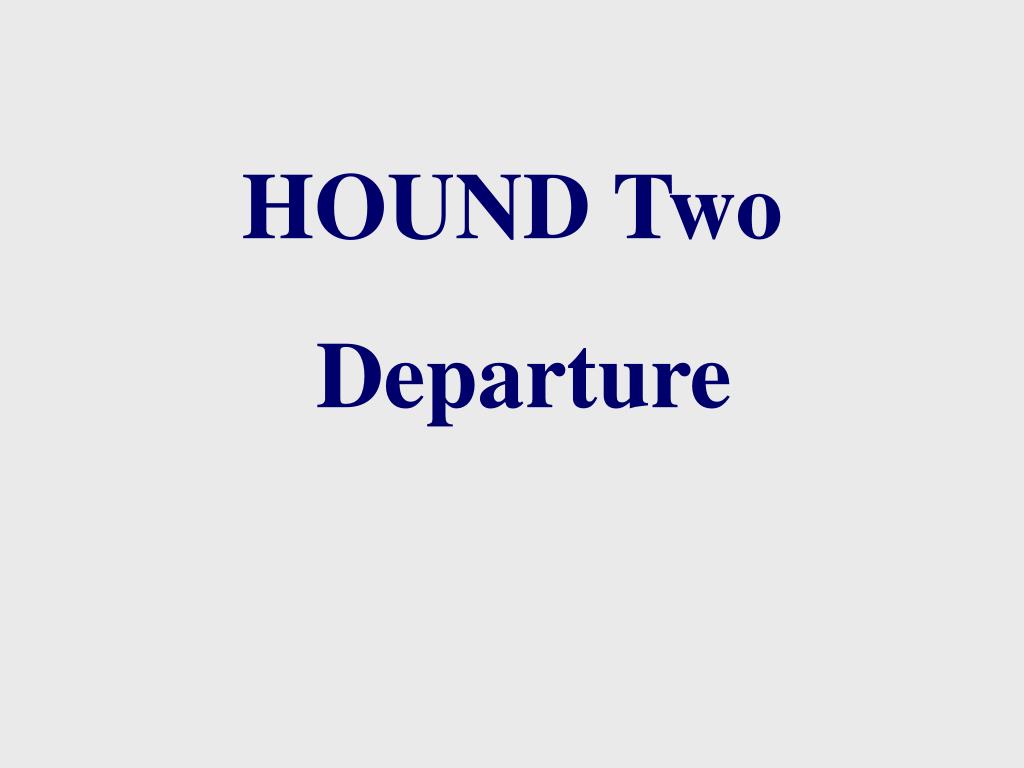

    HOUND Two Nautical Mile

    Departure


    Instrument

    Pilot Nav Nautical Mile


    Instrument

    SID Nautical Mile ends at HOUND intersection


    Instrument

    OPPTO Two Nautical Mile

    Departure


    Instrument

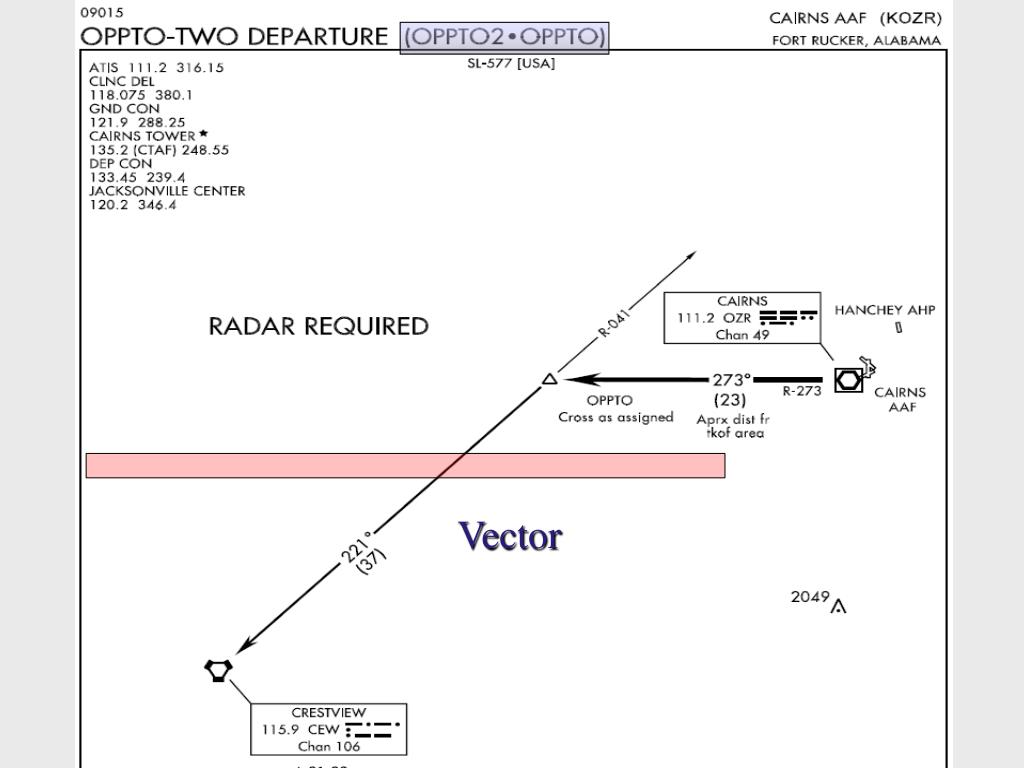

    Vector Nautical Mile


    Instrument

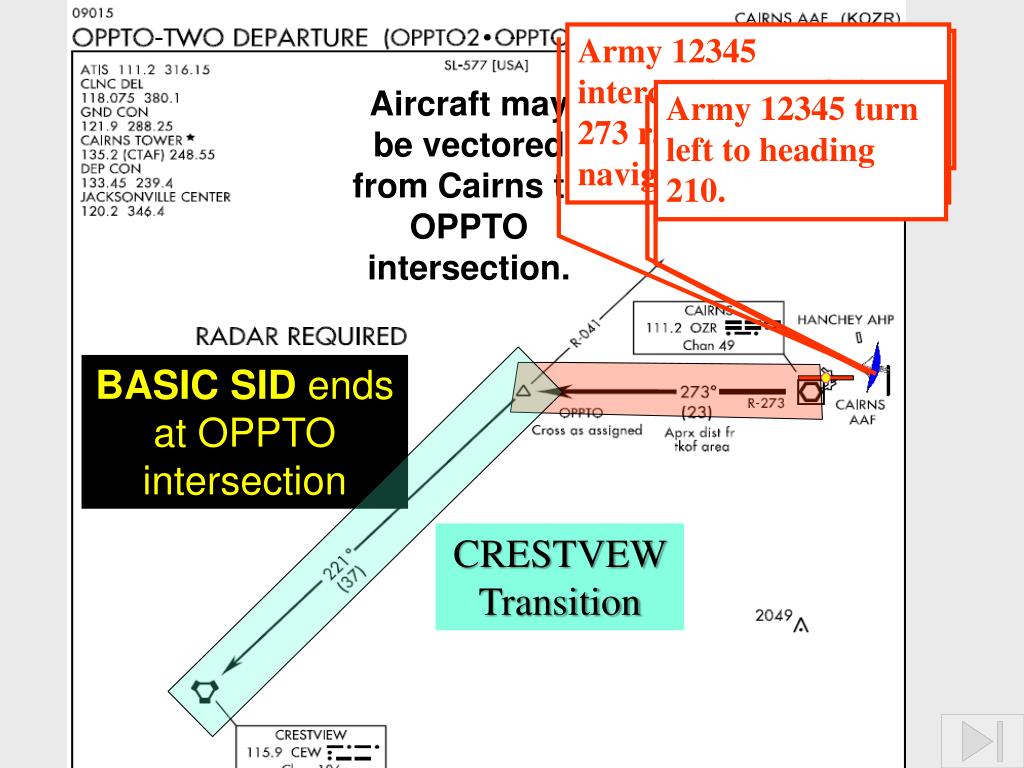

    Army 12345 intercepting the Cairns 273 radial. Resume own navigation.

    Army 12345 turn left to heading 300.

    Aircraft may be vectored from Cairns to OPPTO intersection.

    Army 12345 turn left to heading 210.

    BASIC SID ends at OPPTO intersection

    CRESTVEW Transition


    Instrument

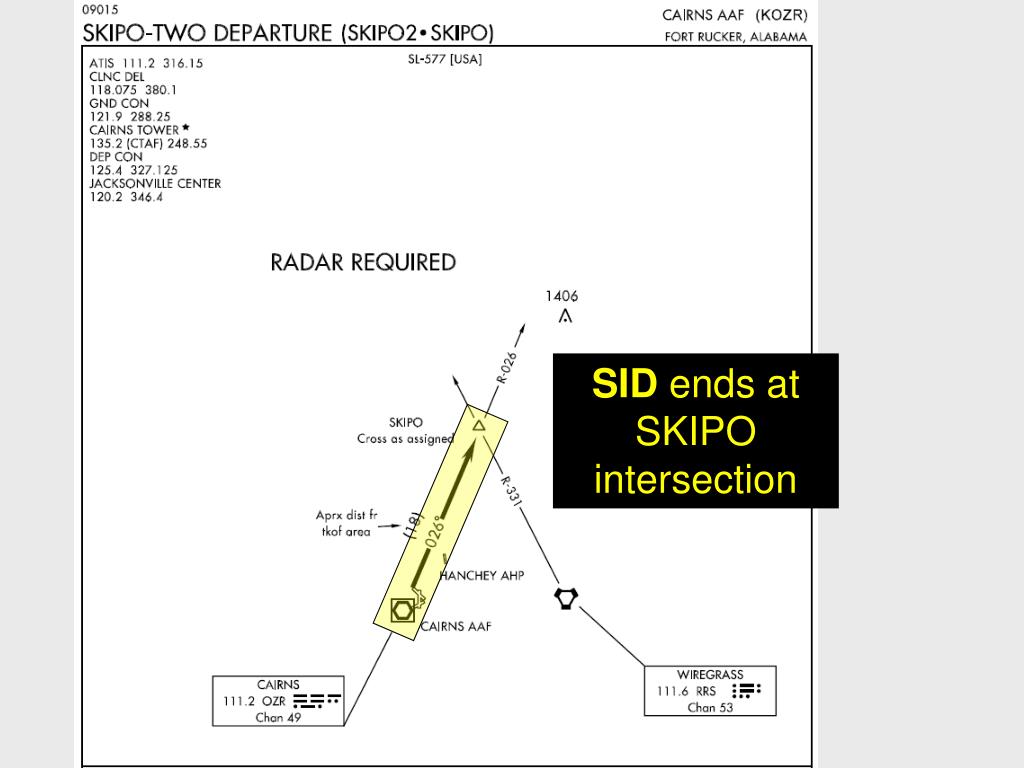

    SKIPO Two navigation.

    Departure


    Instrument

    Pilot Nav navigation.


    Instrument

    Basic navigation.SID ends at SKIPO intersection

    SID ends at SKIPO intersection


    Instrument

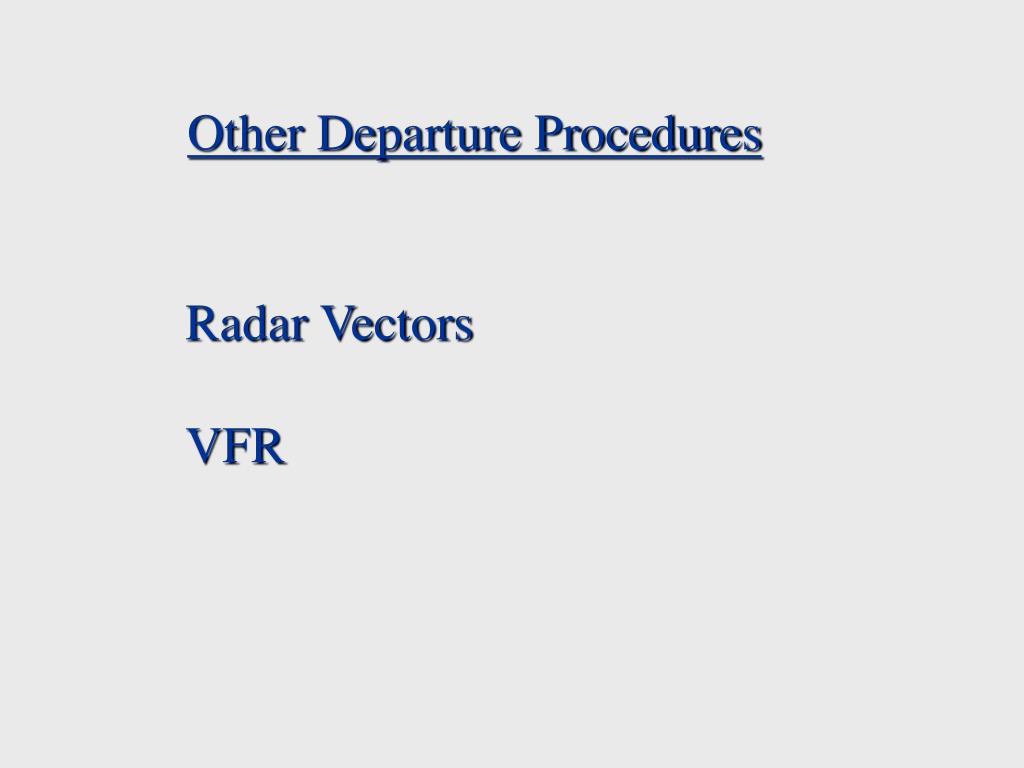

    Other navigation.Departure Procedures


    Instrument

    Other Departure Procedures navigation.

    Radar Vectors

    VFR


    Instrument

    Obtain an ATC Clearance navigation.

    An authorization to conduct

    IFR/IMC operations


    Instrument

    Obtain an ATC Clearance navigation.

    • Towered Airport

      • Clearance Delivery

      • Ground Control


    Instrument

    Obtain an ATC Clearance navigation.

    • Airport w/o Tower or Tower Closed

      • Radio (FSS)

        • RCO (Remote Communications Outlet)

        • GCO (Ground Communications Outlet)

      • Telephone (1-800 WX BRIEF)

      • 992-7433


    Instrument

    ? navigation.

    QUESTIONS


    Instrument

    Check on Learning navigation.

    1. What is the purpose of a departure procedure?

    To provide obstacle avoidance, information and procedures

    2. What are the types of departure procedures?

    • Obstacle departure procedure (ODP).

    • Standard Instrument Departure (SID).

    3. Who do you contact to obtain an ATC

    Clearance at an airport with an operating

    control tower.

    Clearance Delivery if there is one, otherwise

    Ground Control.


    Instrument

    Break Time navigation.

    Be back in place before altimeter reaches zero.


    Instrument

    You Transmit. AFSS Receives navigation.

    AFSS Transmits. You Listen
