  1. Does Hypervisor Matter in OpenStack Greg ElkinbardSenior Technical Director

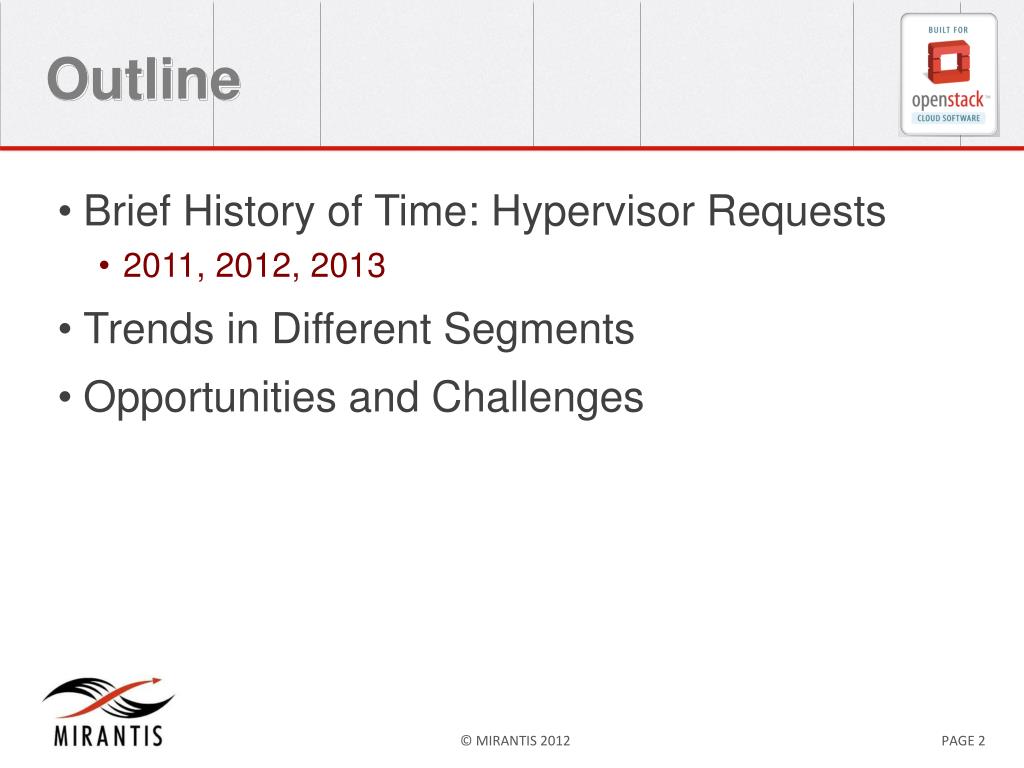

  2. Outline • Brief History of Time: Hypervisor Requests • 2011, 2012, 2013 • Trends in Different Segments • Opportunities and Challenges

  3. 2011 • Hypervisors • XEN • Default choice given Rackspace and Amazon use • KVM • Bleeding edge users

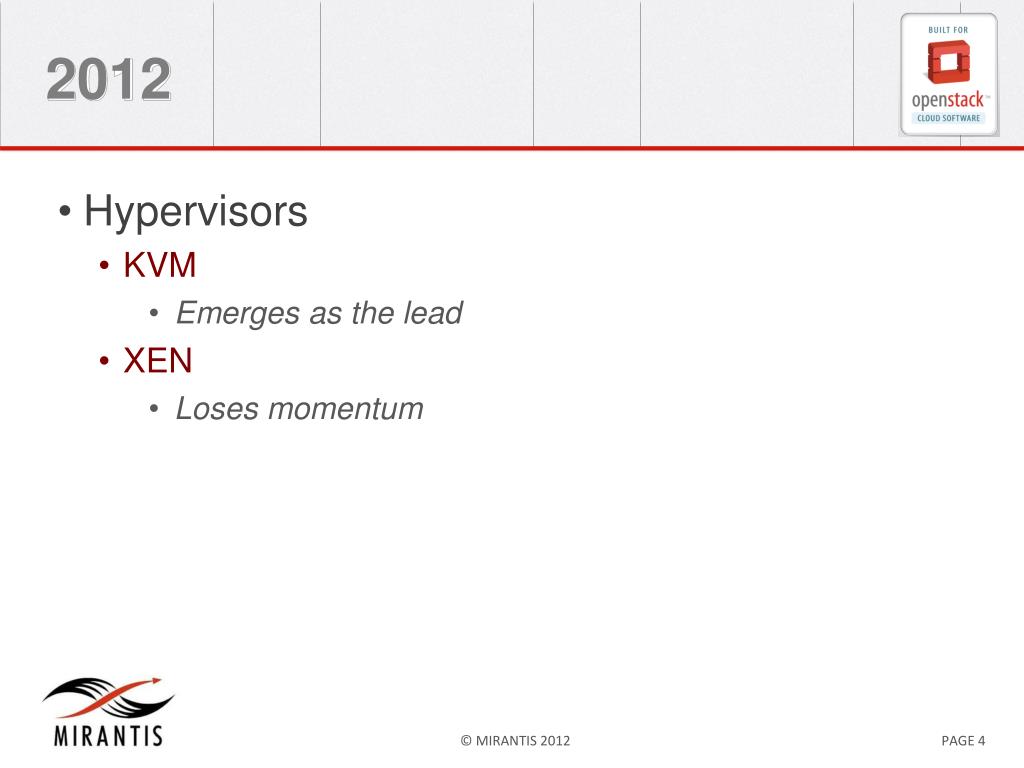

  4. 2012 • Hypervisors • KVM • Emerges as the lead • XEN • Loses momentum

  5. 2013 • Hypervisors • KVM • Maintains lead (around 90%+ for Mirantis) • Vmware • Emerges as a surprising second choice • Containers (LXC, Parallels, Docker) • Web Hosting and SAS focused • Xen and HyperV • Infrequent requests

  6. Trends • Telco/ISP public clouds • Single hypervisor • KVM • Internet focused companies • Single hypervisor • KVM • Web Hosting and SAS sub-segments • Single or multi hypervisors • Containers (LXC, Parallels, Docker) • KVM • Enterprise • Multi hypervisors • KVM and vCenter/ESXi

  7. Opportunities and Challenges • Multi-hypervisor use cases • Advantages and Issues • KVM • vCenter/ESXi • Containers (LXC, Docker, Parallels)

  8. Multi Hypervisor Use Cases • Existing virtualization infrastructure • Extend instead of replace • Provide a common API • Hedge bets against bugs and vendor pricing • Utilize additional features • Virtual appliances not supported by other platforms • Advanced features not directly supported by OpenStack

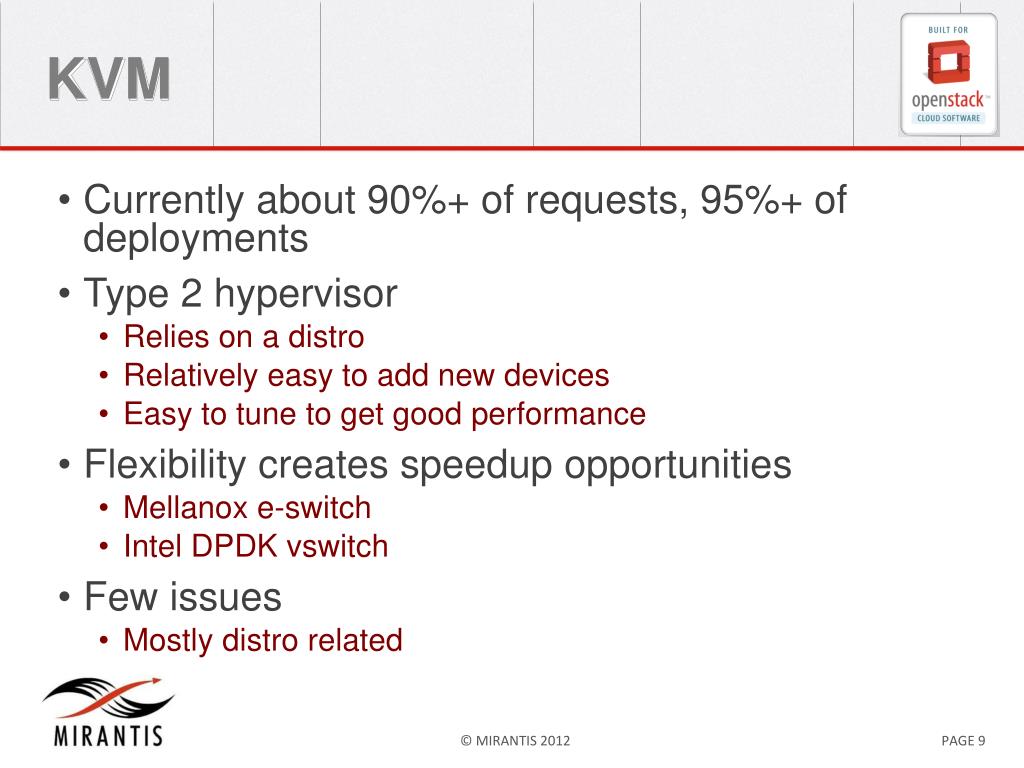

  9. KVM • Currently about 90%+ of requests, 95%+ of deployments • Type 2 hypervisor • Relies on a distro • Relatively easy to add new devices • Easy to tune to get good performance • Flexibility creates speedup opportunities • Mellanox e-switch • Intel DPDK vswitch • Few issues • Mostly distro related

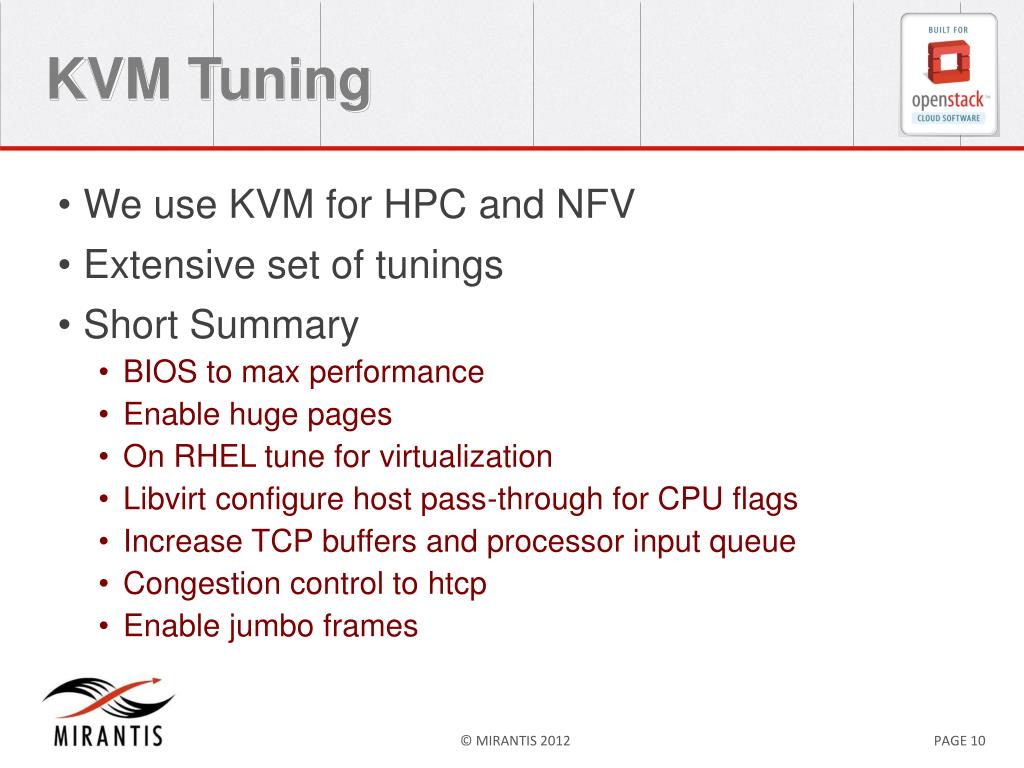

  10. KVM Tuning • We use KVM for HPC and NFV • Extensive set of tunings • Short Summary • BIOS to max performance • Enable huge pages • On RHEL tune for virtualization • Libvirt configure host pass-through for CPU flags • Increase TCP buffers and processor input queue • Congestion control to htcp • Enable jumbo frames

  11. KVM performance results • KVM with OVS • With tuning 7-8 Gbits/s VM throughput (jumbo frames) • KVM with Mellanox • Throughput host to host: 19.4 Gbit/s • VM to VM on same host: 13.9 Gbit/s • VM to VM on different hosts: 23.1 Gbit/s • KVM with Intel OVS DPDK • Alternative to dedicated hardware • Good performance even for small packets • 7Gbit/s for 64 byte packets • 9.6Gbit/s for 512 byte packets

  12. KVM Features and Issues • Widest set of OpenStack Features • https://wiki.openstack.org/wiki/HypervisorSupportMatrix • Issues • Difficult to transfer images from other hypervisors • Older versions of QEMU in RHEL/CentOS require virtio drivers • SCSI emulation in Ubuntu • Updated CentOS with latest QEMU

  13. VMware ESXi • Currently about 8-10% of requests, 5%+ of deployments • Primarily vCenter • Type 1 hypervisor • Does not need a linuxdistro • VMware controls the code, 3rd party packages must be signed. • VMware is supporting both ESXi and vCenter APIs

  14. VMware OpenStack Compatibility • Good compatibility with OpenStack Features • https://wiki.openstack.org/wiki/HypervisorSupportMatrix • Pause, Un-Pause and Resize missing • Caveats (Grizzly) • Network integration • Nova-net no security groups • Neutron requires Nicira commercial plugin • Glance integration inefficient • Only a single datastore is supported • With Cinder only iSCSI type volumes are supported • Only linked clones are supported

  15. Vmware OpenStack Havana • Linked and Full clones are supported • Multiple VC clusters can be managed by a single driver • Config drive support • Cinder support for VMDK based Volumes • vShield Edge Driver support for NVP plugin (FWaaS, LBaaS)

  16. VMware Networking • Nicira NVP/NSX • Cisco 1000V (future) • Accelerated Options • NVP using STT • VN-Tag, SR-IOV & Cisco Switches (VM-FEX)

  17. Containers • Currently about 5%+ of requests, 0 deployments • Low overhead alternative • Hundreds of guests • All Apps belong to a single tenant • Fragmented space • LXC • Parallels • Docker • Limited OpenStack support but interest is growing

  18. LXC OpenStack Support • VM – only launch, reboot and terminate • Networking – basic VLANs • Possible to get Neutron/OVS to work • Volumes – officially no Cinder support • Possible to hack something
