  1. Surveying 101 ~ Plotting Property Descriptions ~ International Right of Way Association June 14, 2011 – Atlanta, Georgia Instructor - Gary R. Kent, L.S. The Schneider Corporation

  2. Discussion Topics The U.S. Public Land Survey System Types of Legal Descriptions Aliquot Parts Exercises Understanding & Plotting angles (directions) Direction exercises Understanding & Plotting distances Distance exercises Plotting Metes & Bounds Description Exercises Curves

  3. The U.S. Public Land Survey System

  4. The U.S. Public Land Survey System

  5. The U.S. Public Land Survey System

  6. The U.S. Public Land Survey System

  7. Parts of a Land Description Caption Body Qualifications/Exceptions

  8. Caption Gives general location Limits Title Not all descriptions have or need a caption

  9. Body Gives specific location

  10. Qualifications/Exceptions Give careful consideration to what belongs here from a Surveying standpoint!

  11. Types of Legal Descriptions Metes and Bounds Part of the Northeast Quarter of Section 15, Township 17 North, Range 4 East of the Second Principal Meridian in Hamilton County, Indiana being described as follows: Beginning at the Northeast corner of said Northeast Quarter; thence North 89 degrees 35 minutes 46 seconds West along the north line thereof a distance of 1201.35 feet…

  12. Types of Legal Descriptions Lot/Block (Subdivision) Lot 23 in Pebblebrook, Section 4, an Addition in Hamilton County, Indiana per plat thereof recorded as Instrument Number 91-12345 in the Office of the Hamilton County Recorder.

  13. Types of Legal Descriptions Area/Acreage Ten acres by parallel lines off the entire north end of the tract of the following described tract of land: Part of the Northeast Quarter of Section 15, Township 17 North, Range 4 East of the Second Principal Meridian in Hamilton County, Indiana being described as follows: Beginning at the Northeast corner of said Northeast Quarter; thence North 89 degrees 35 minutes 46 seconds West along the north line thereof a distance of …

  14. Types of Legal Descriptions Aliquot Part The West Half of the Southwest Quarter of the Northeast Quarter of Section 15, Township 17 North, Range 4 East of the Second Principal Meridian in Hamilton County, Indiana,. Containing 20 acres, more or less.

  15. Types of Legal Descriptions Bounds Forty acres of land in Section 15, Township 17 North, Range 4 East of the Second Principal Meridian in Hamilton County, Indiana being bounded on the north by the land of Kent, on the East by the land of Juarez, on the South by the land of Conover and on the West by the land of Rayback.

  16. Types of Legal Descriptions Strip Description Part of the Northeast Quarter of Section 15, Township 17 North, Range 4 East of the Second Principal Meridian in Hamilton County, Indiana being a strip of land 20 feet in width, the centerline of which is described as follows: Commencing at the Northeast corner of said Northeast Quarter; thence North 89 degrees 35 minutes 46 seconds West along the north line thereof a distance of 1201.35 feet to the Point of Beginning; thence South 01 degrees 15 minutes 06 seconds West parallel with the east line of said Northeast Quarter a distance of a distance of 1167.88 feet to the Point of Termination.

  17. Property line Centerline angle point on property line This area could inadvertently be included Strip Centerline Strip Centerline This area could inadvertently be missed

  18. Types of Legal Descriptions Combination Descriptions Division Line Proportional Parts Linear

  19. Types of Legal Descriptions Linear 100 feet by parallel lines off the entire north end of the following described tract: Part of the Northwest Quarter of Section 12, Township 36 North, Range 8 East in Allen County, Indiana being described as follows: Beginning at the northwest corner of said northwest quarter; thence North 89 degrees 12 minutes 07 seconds East along the north line thereof a distance of 1200.00 feet…

  20. Types of Legal Descriptions Division Line All that part of Lot 20 in Bridlewood Addition, per plat thereof recorded in Plat Book 18, Page 20 in the Office of the Recorder of Boone County, Indiana lying north of the following described line: Commencing at the northeast corner of said Lot 20; thence on a plat bearing of South 00 degrees 01 minutes 35 seconds West along the east line thereof a distance of 125.00 feet to the Point of Beginning; thence North 88 degrees 37 minutes 25 seconds West a distance of 212.57 feet to the west line of Lot 20 and the Terminus.

  21. Types of Legal Descriptions Proportional Parts The East half of Lot 20 in Bridlewood Addition, per plat thereof recorded in Plat Book 18, Page 20 in the Office of the Recorder of Boone County, Indiana.

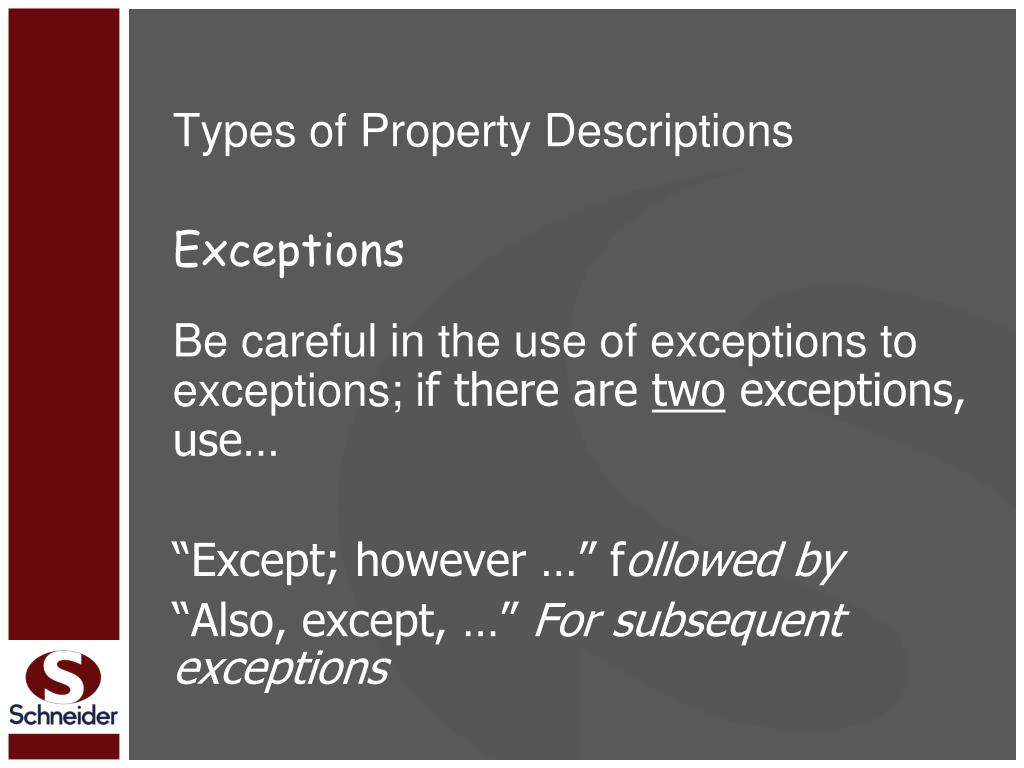

  22. Types of Property Descriptions Exceptions Be careful in the use of exceptions to exceptions; if there are two exceptions, use… “Except; however …” followed by “Also, except, …” For subsequent exceptions

  23. Exercise #1 Plot the following aliquot parts on the sketch of a section: Southwest Quarter (SW¼) Northwest Quarter of the Southeast Quarter (NW¼, SE¼) East Half of the Northwest Quarter (E½, NW¼) South Half of the Southeast Quarter of the Northeast Quarter (S½, SE¼, NE¼)

  24. Exercise #1

  25. Exercise #2 Identify the marked aliquot parts of a section:

  26. Measuring Angles & Describing Directions

  27. Measuring Angles & Describing Directions

  28. Measuring Angles & Describing Directions

  29. Measuring Angles & Describing Directions

  30. Directions – Exercise #3

  31. Directions – Exercise #4

  32. Directions – Exercise #5

  33. Directions – Exercise #5

  34. Directions – Exercise #5

  35. Distances See Conversion Table in handout

  36. Scaling Distances – Exercise #6

  37. Scaling Distances – Exercise #7

  38. Plotting Metes & Bounds Descriptions Exercises #8-11 See Pp. 25-26 in handout.

  39. Curves in Descriptions To be properly described, there must be two mathematical elements plus information on the direction or orientation

  40. Curves in Descriptions

  41. Curves in Descriptions

  42. The Schneider Corporation Gary R. Kent, L.S. Director, Integrated Services 8901 Otis AvenueIndianapolis, IN 46216Phone - 317.826.7134Fax - 317.826.7110 gkent@schneidercorp.com Contact me!
