  1. ECE 875:Electronic Devices Prof. Virginia Ayres Electrical & Computer Engineering Michigan State University ayresv@msu.edu

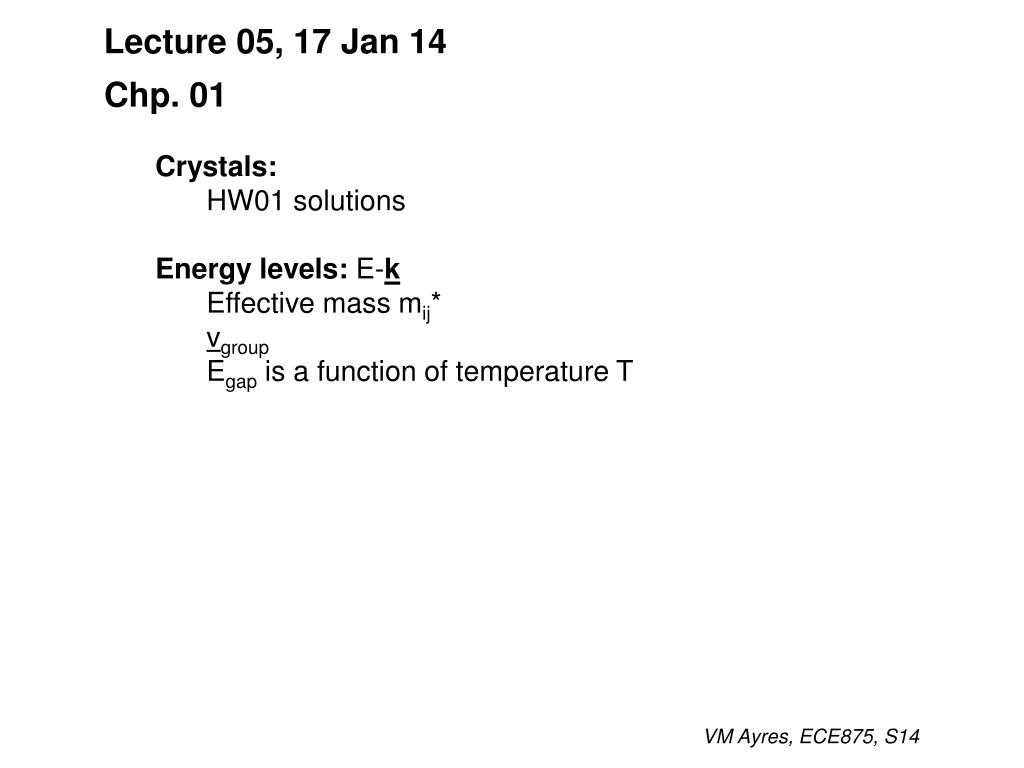

  2. Lecture 05, 17 Jan 14 • Chp. 01 • Crystals: • HW01 solutions • Energy levels: E-k • Effective mass mij* • vgroup • Egap is a function of temperature T VM Ayres, ECE875, S14

  3. VM Ayres, ECE875, S14

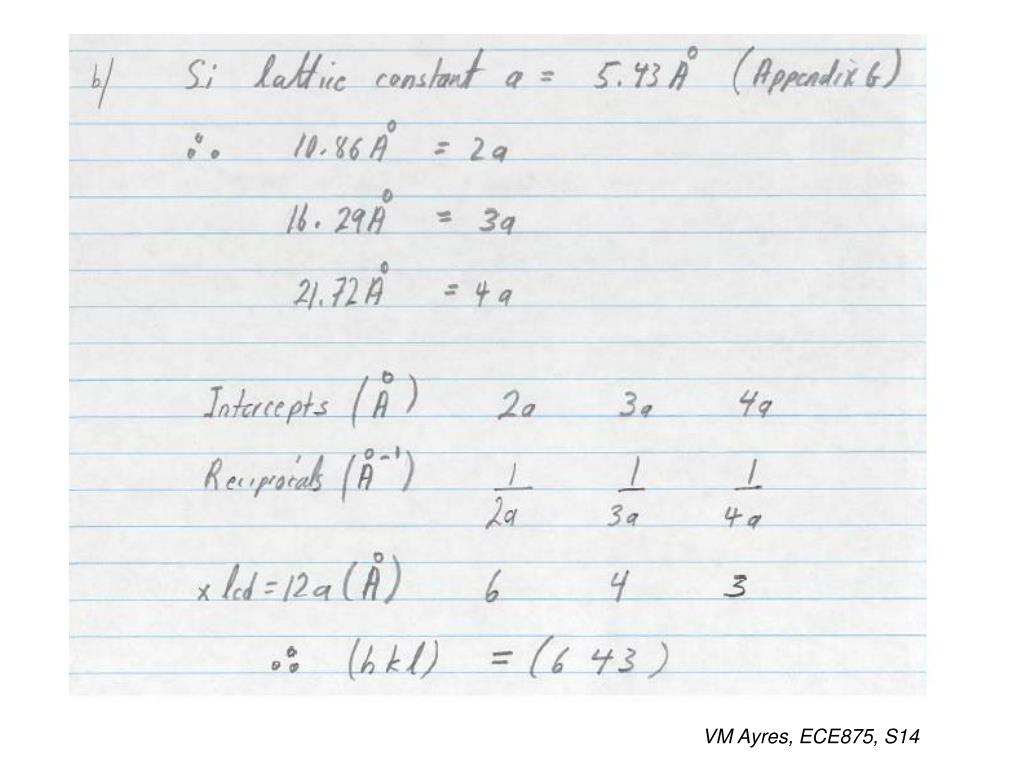

  4. VM Ayres, ECE875, S14

  5. VM Ayres, ECE875, S14

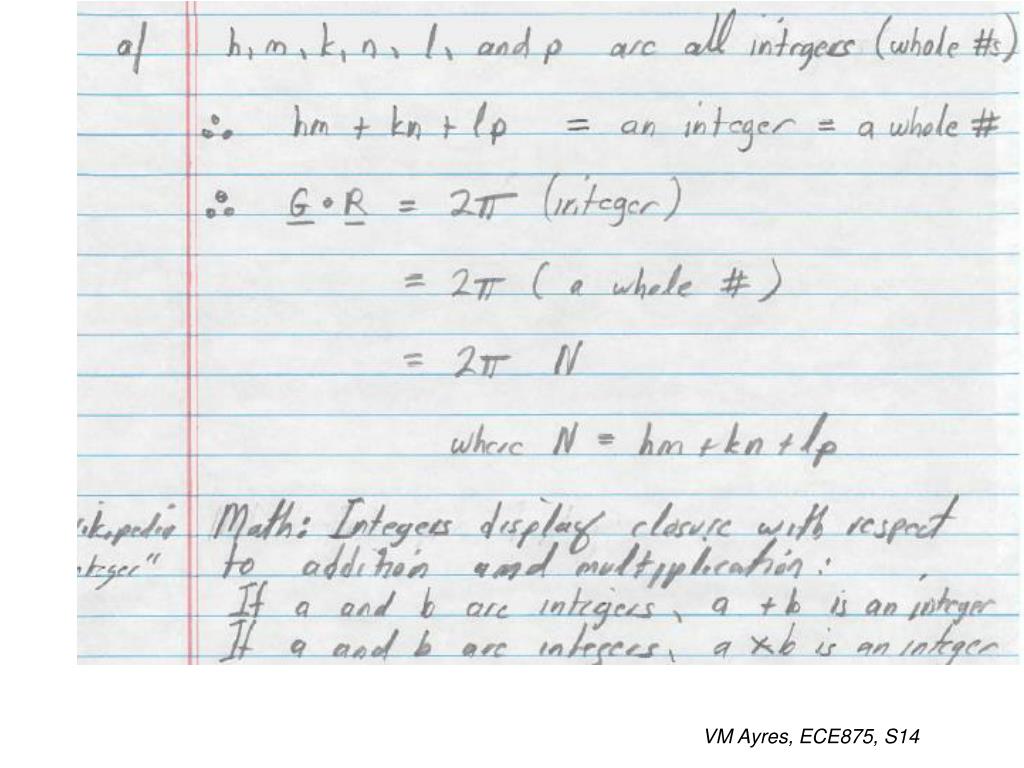

  6. VM Ayres, ECE875, S14

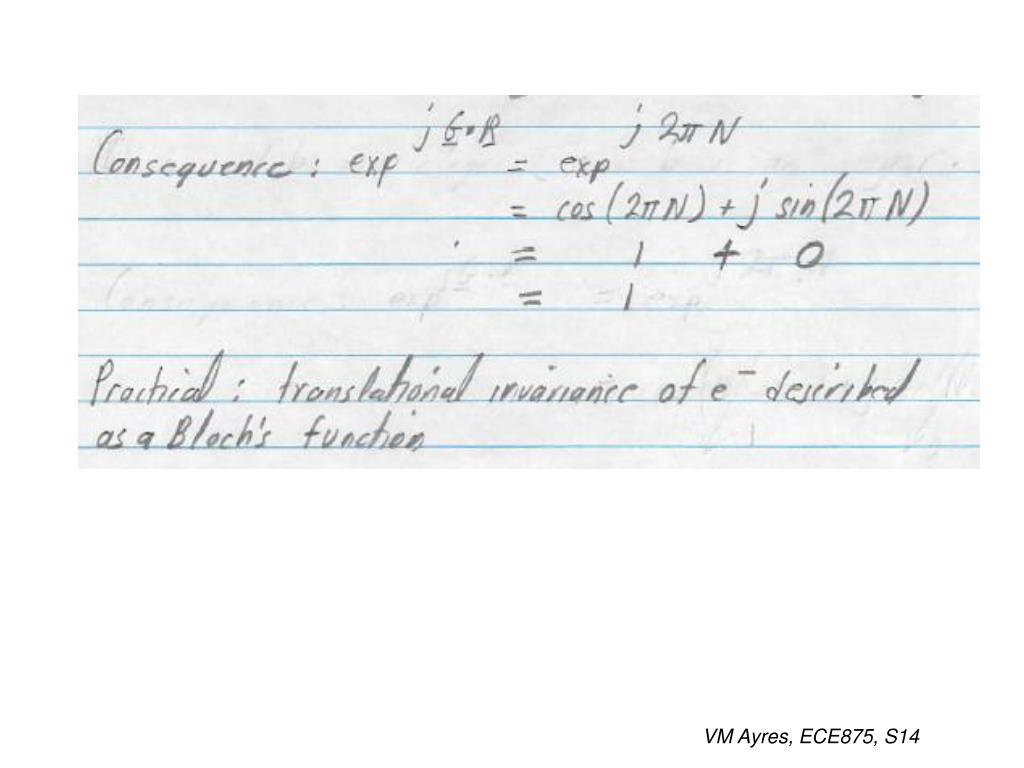

  7. VM Ayres, ECE875, S14

  8. VM Ayres, ECE875, S14

  9. R’ ≠ R VM Ayres, ECE875, S14

  10. math except 0 physically: to describe |R’|: Z = a whole number ≠ 0 VM Ayres, ECE875, S14

  11. VM Ayres, ECE875, S14

  12. VM Ayres, ECE875, S14

  13. VM Ayres, ECE875, S14

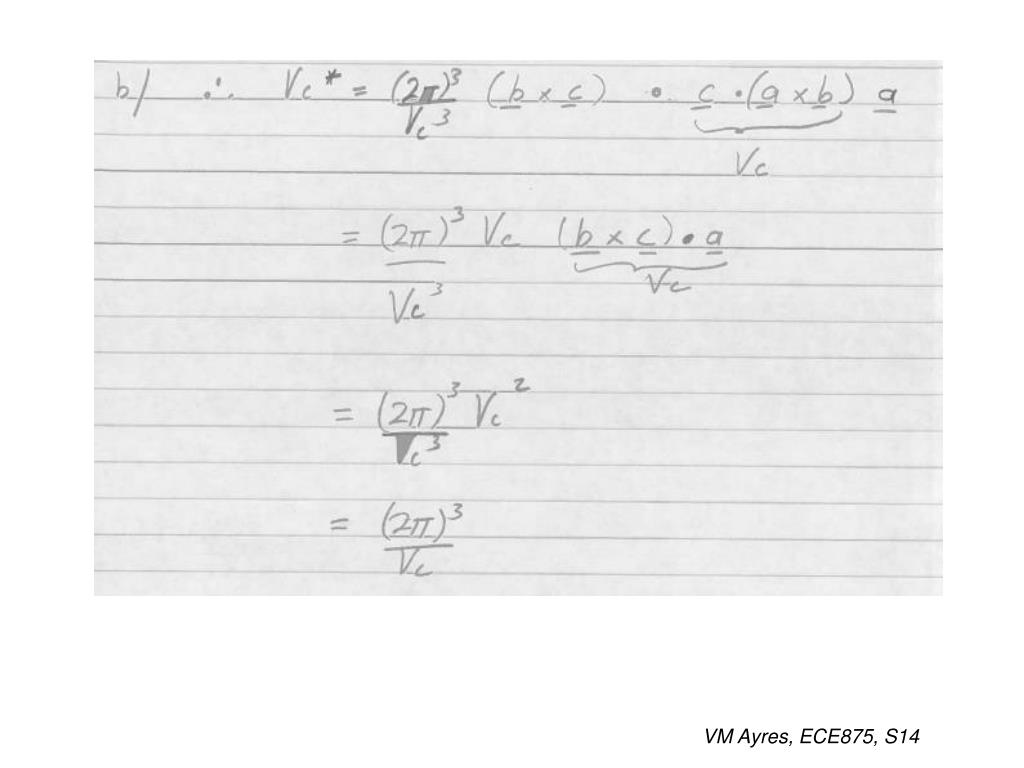

  14. VM Ayres, ECE875, S14

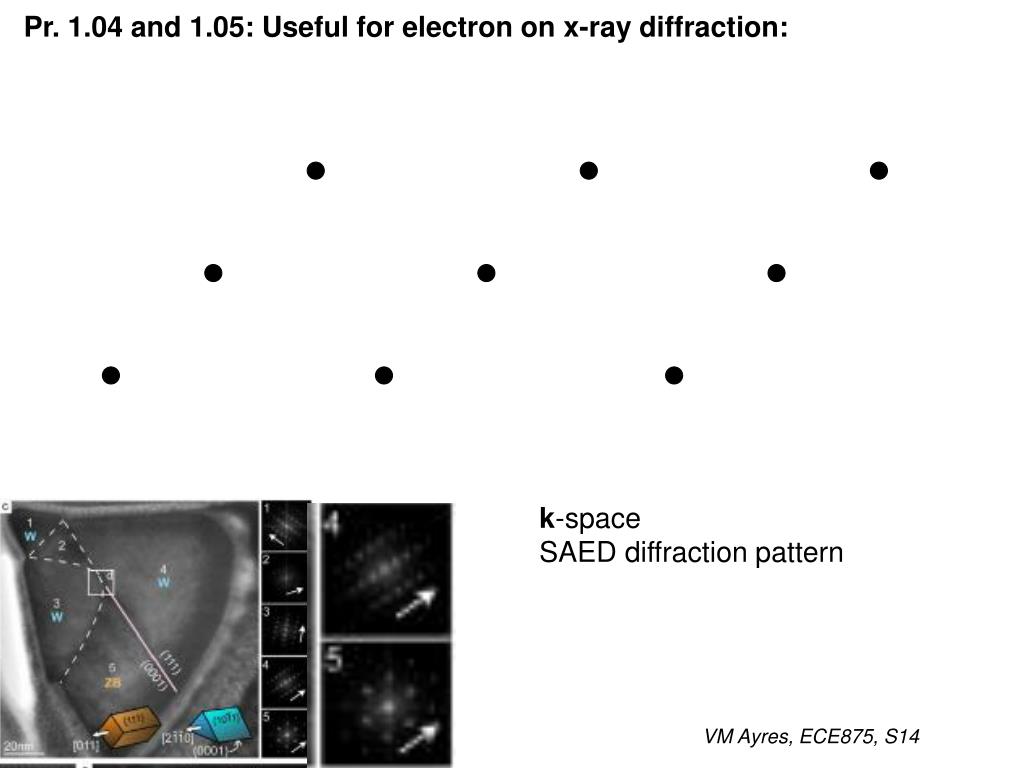

  15. Pr. 1.04 and 1.05: Useful for electron on x-ray diffraction: k-space SAED diffraction pattern VM Ayres, ECE875, S14

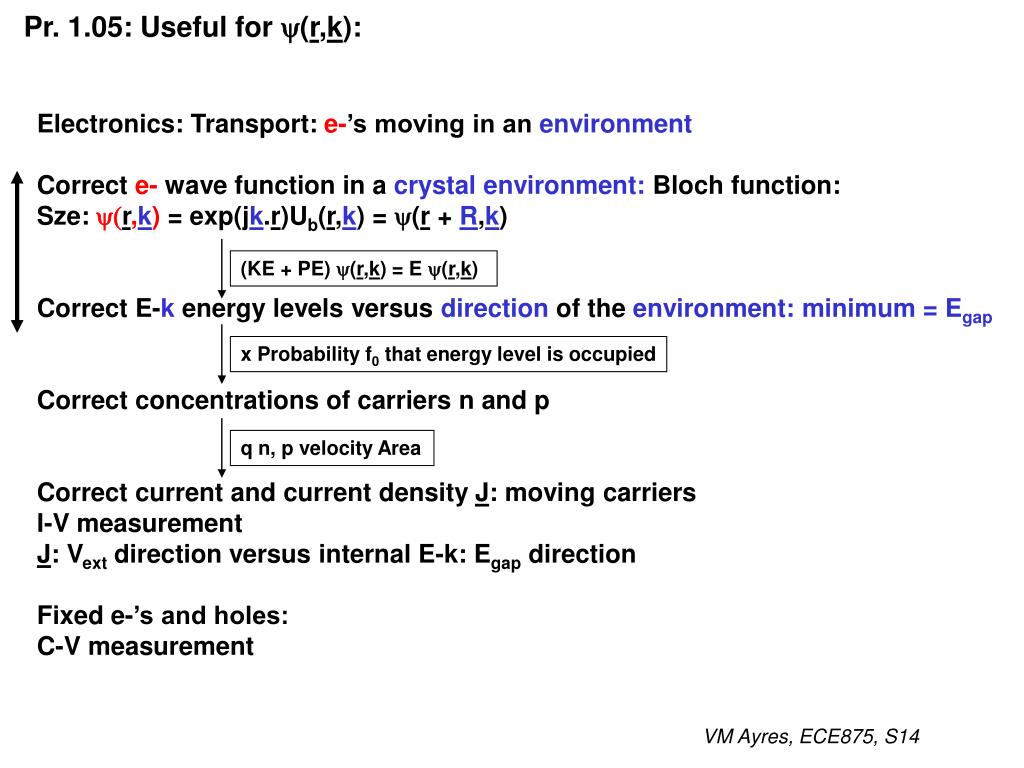

  16. Pr. 1.05: Useful for y(r,k): Electronics: Transport: e-’s moving in an environment Correct e- wave function in a crystal environment:Bloch function: Sze:y(r,k) = exp(jk.r)Ub(r,k) = y(r + R,k) Correct E-k energy levels versus direction of the environment: minimum = Egap Correct concentrations of carriers n and p Correct current and current density J: moving carriers I-V measurement J: Vext direction versus internal E-k: Egap direction Fixed e-’s and holes: C-V measurement (KE + PE) y(r,k) = E y(r,k) x Probability f0 that energy level is occupied q n, p velocity Area VM Ayres, ECE875, S14

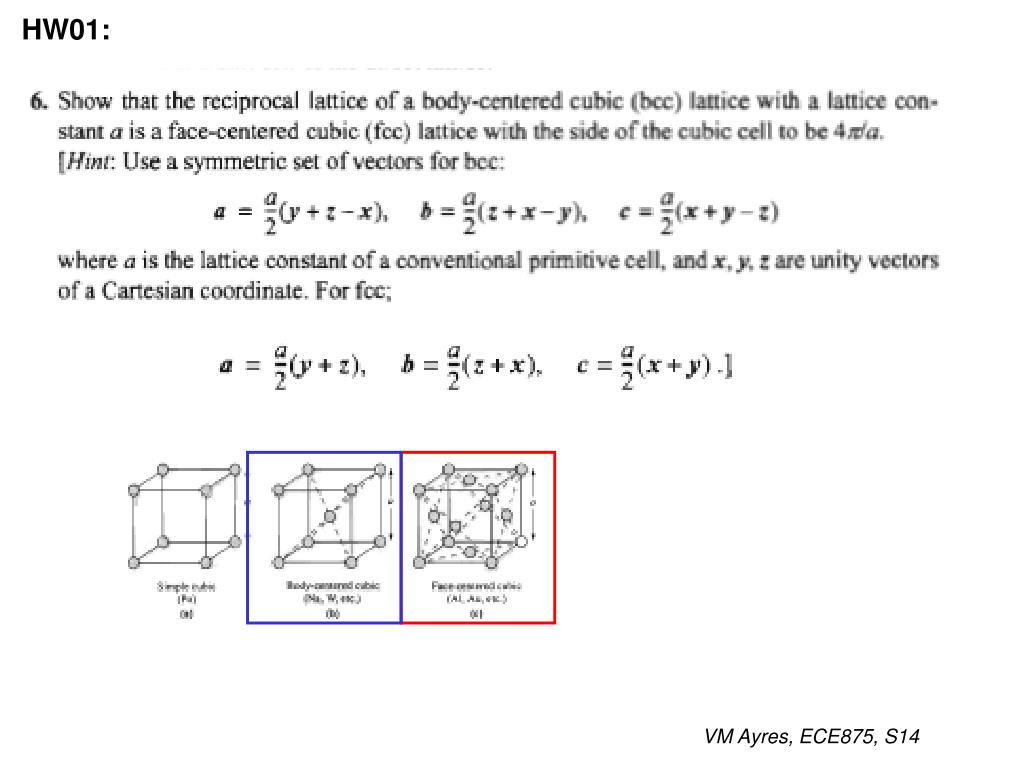

  17. HW01: VM Ayres, ECE875, S14

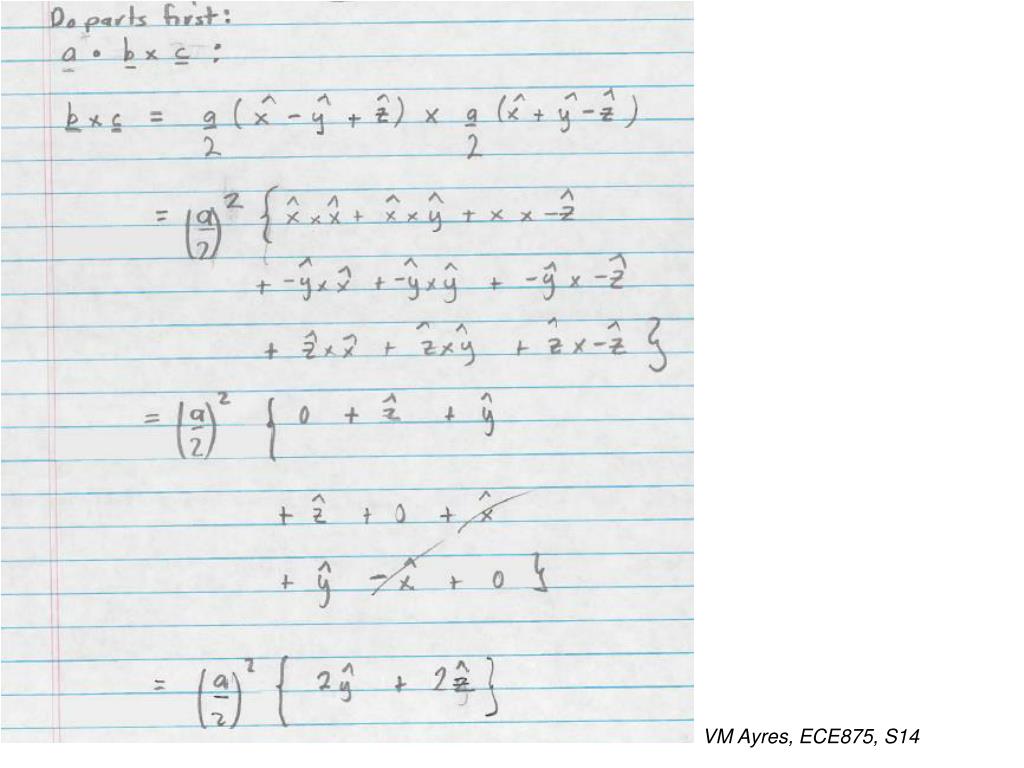

  18. VM Ayres, ECE875, S14

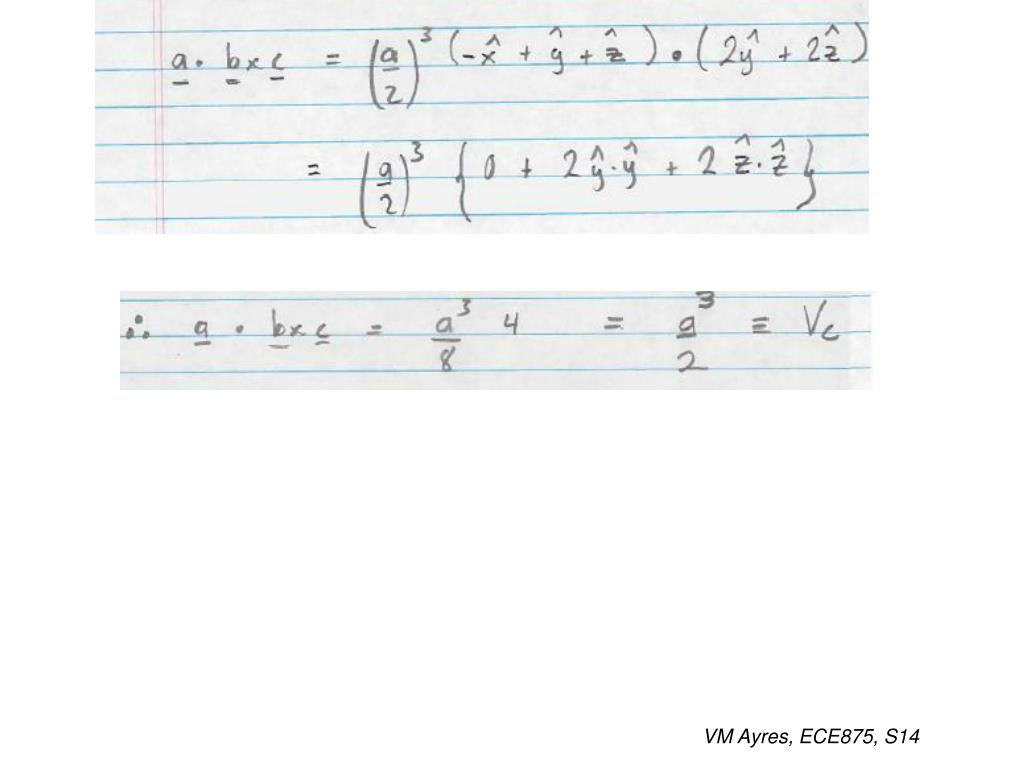

  19. VM Ayres, ECE875, S14

  20. VM Ayres, ECE875, S14

  21. VM Ayres, ECE875, S14

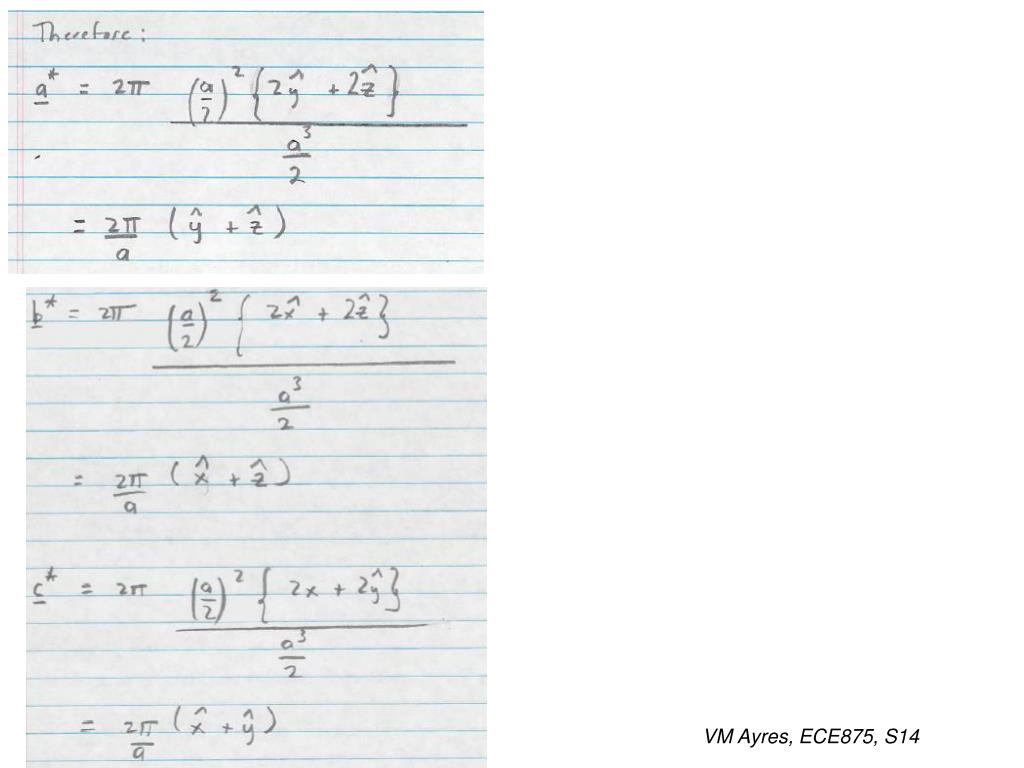

  22. VM Ayres, ECE875, S14

  23. VM Ayres, ECE875, S14

  24. Why assigned: fcc bcc Get similar Start: Find a*, b*, c*: VM Ayres, ECE875, S14

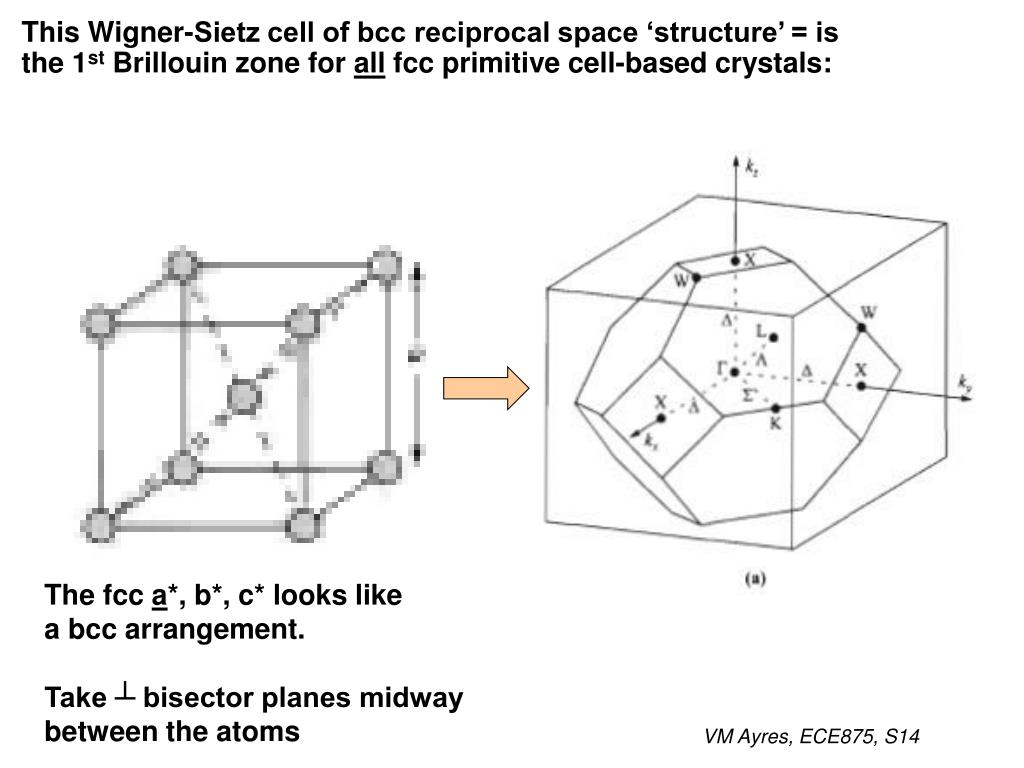

  25. This Wigner-Sietz cell of bcc reciprocal space ‘structure’ = is the 1st Brillouin zone for all fcc primitive cell-based crystals: The fcc a*, b*, c* looks like a bcc arrangement. Take ┴ bisector planes midway between the atoms VM Ayres, ECE875, S14

  26. fcc-type Wigner Seitz cell is useful for HW02 Pr. 1.08: Si: VM Ayres, ECE875, S14

  27. Lecture 05, 17 Jan 14 • Chp. 01 • Crystals: • HW01 solutions • Energy levels: E-k • Effective mass mij* • vgroup • Egap is a function of temperature T VM Ayres, ECE875, S14

  28. E k VM Ayres, ECE875, S14

  29. VM Ayres, ECE875, S14

  30. Given: Can you find an effective mass? A group velocity? VM Ayres, ECE875, S14

  31. Egap as a function of temperature T: Sze, p. 15: Stated without proof: This approximation in eq’n (12) works well in Si and GaAs: VM Ayres, ECE875, S14

  32. Egap as a function of temperature T: Sze, p. 15: Stated without proof: This approximation in eq’n (12) works well in most cases: VM Ayres, ECE875, S14

  33. Egap as a function of temperature T: Sze, p. 15: Stated without proof: This approximation in eq’n (12) works well in most cases: VM Ayres, ECE875, S14

  34. VM Ayres, ECE875, S14

  35. Egap (0 K) is in Appendix F; a an b are not Note that everything is 300 K except Egap (0 K) Note differences between Egap (300 K) and Egap (0 K) VM Ayres, ECE875, S14

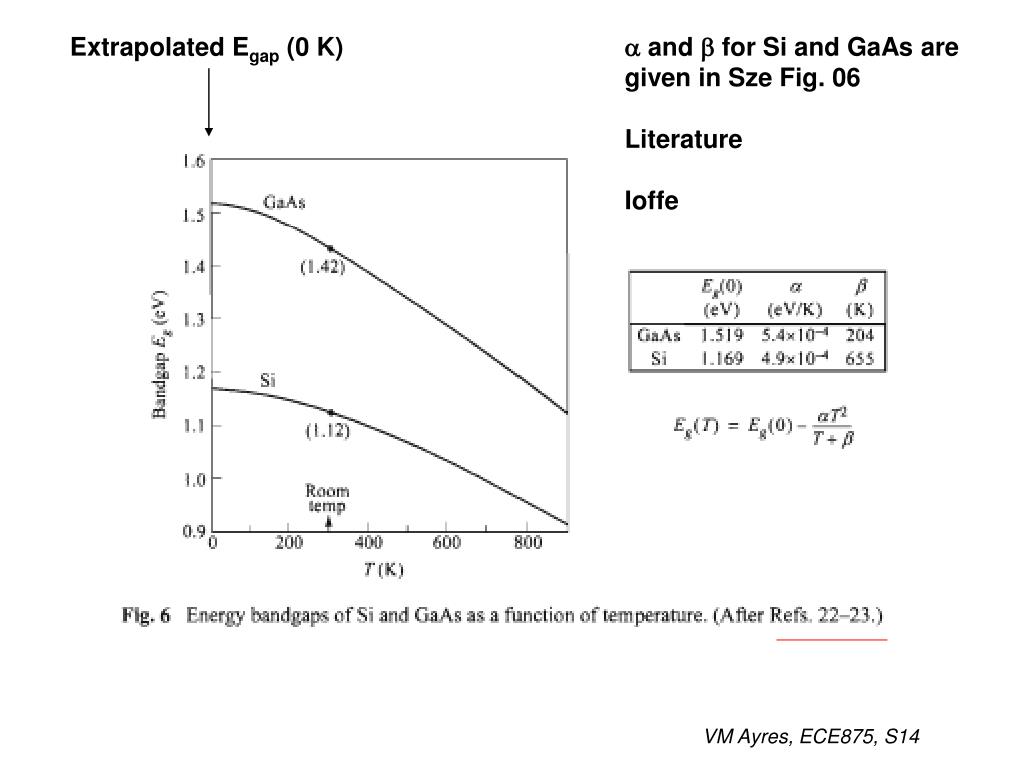

  36. Extrapolated Egap (0 K) a and b for Si and GaAs are given in Sze Fig. 06 Literature Ioffe VM Ayres, ECE875, S14

  37. Example problem: A satellite in low earth orbit experiences a temperature swing of +200oC sun side to – 200oC dark side. Its electronics are Si-based. Find the range of Egap and compare it to operation on earth. VM Ayres, ECE875, S14

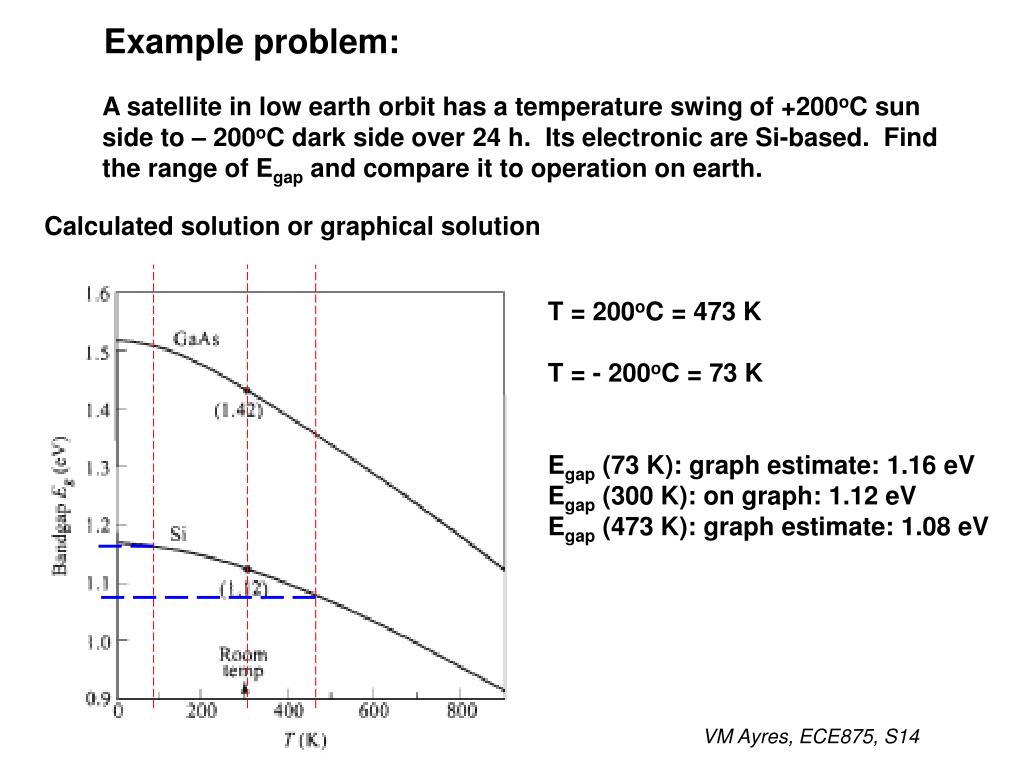

  38. Example problem: A satellite in low earth orbit has a temperature swing of +200oC sun side to – 200oC dark side over 24 h. Its electronic are Si-based. Find the range of Egap and compare it to operation on earth. Calculated solution or graphical solution T = 200oC = 473 K T = - 200oC = 73 K Egap (73 K): graph estimate: 1.16 eV Egap (300 K): on graph: 1.12 eV Egap (473 K): graph estimate: 1.08 eV VM Ayres, ECE875, S14

  39. Will explore further in photodetector sensitivities in Chp. 13 VM Ayres, ECE875, S14
