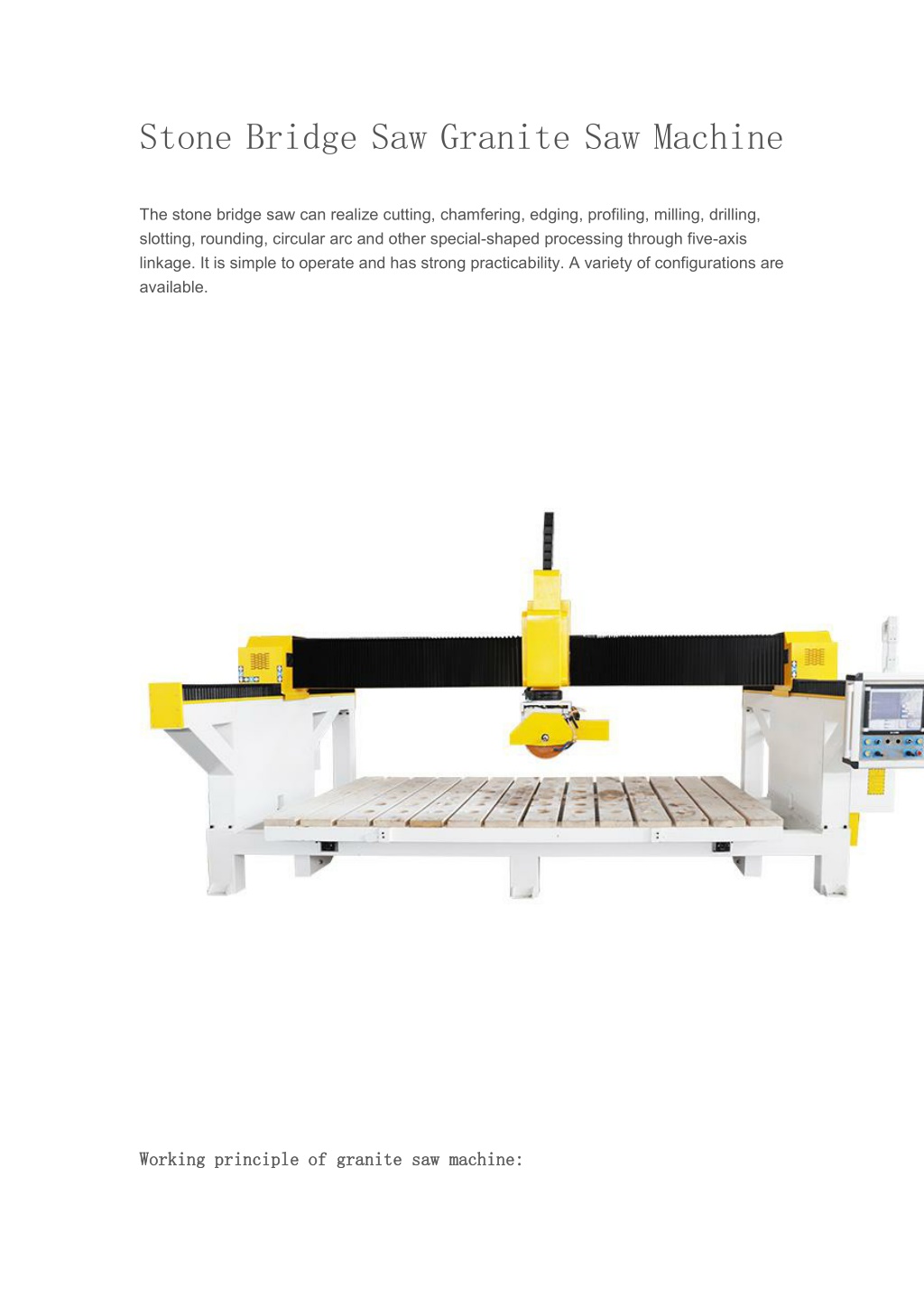

  1. Stone Bridge Saw Granite Saw Machine The stone bridge saw can realize cutting, chamfering, edging, profiling, milling, drilling, slotting, rounding, circular arc and other special-shaped processing through five-axis linkage. It is simple to operate and has strong practicability. A variety of configurations are available. Working Working principle principle of of granite granite saw saw machine: machine:

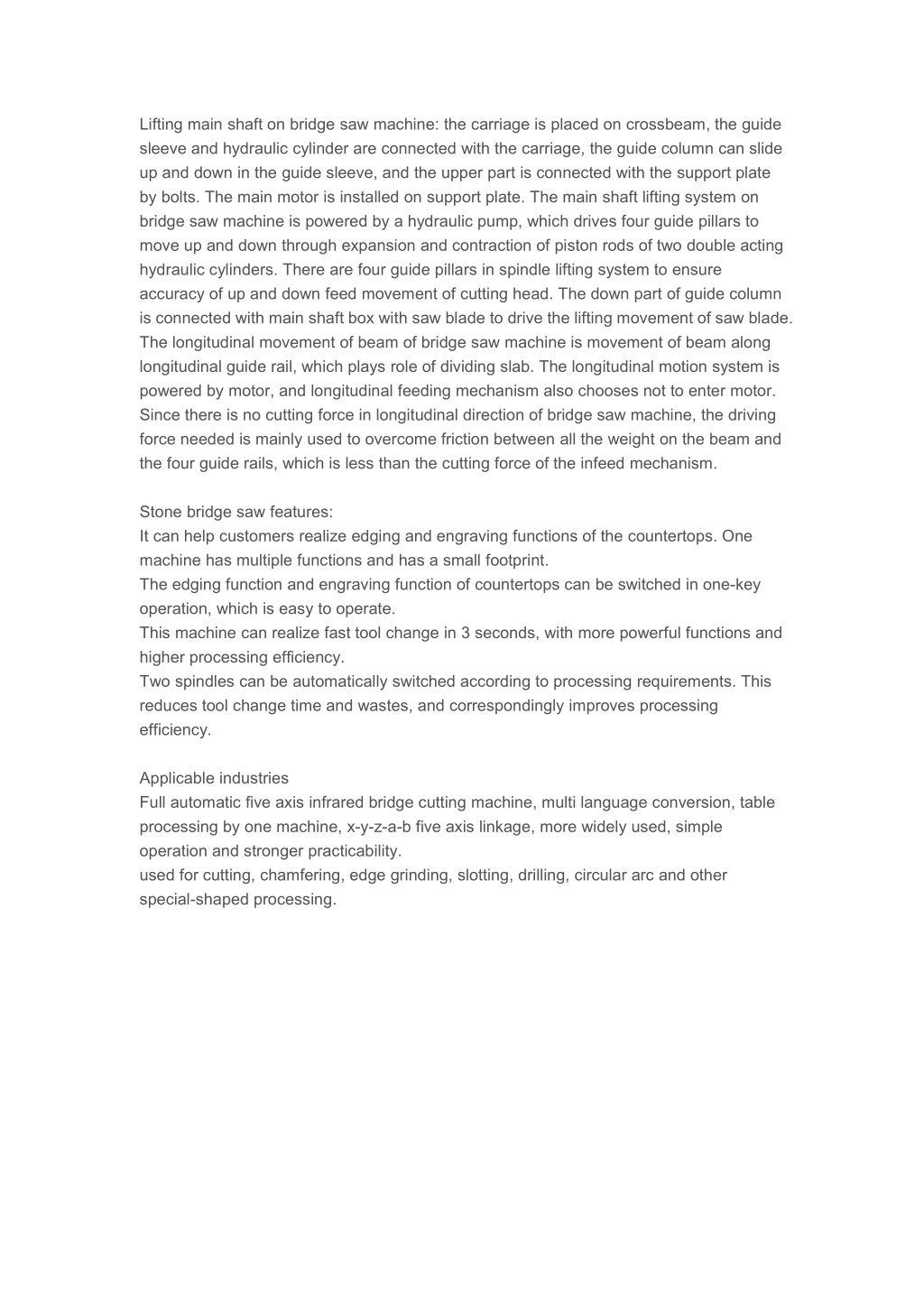

  2. Lifting main shaft on bridge saw machine: the carriage is placed on crossbeam, the guide sleeve and hydraulic cylinder are connected with the carriage, the guide column can slide up and down in the guide sleeve, and the upper part is connected with the support plate by bolts. The main motor is installed on support plate. The main shaft lifting system on bridge saw machine is powered by a hydraulic pump, which drives four guide pillars to move up and down through expansion and contraction of piston rods of two double acting hydraulic cylinders. There are four guide pillars in spindle lifting system to ensure accuracy of up and down feed movement of cutting head. The down part of guide column is connected with main shaft box with saw blade to drive the lifting movement of saw blade. The longitudinal movement of beam of bridge saw machine is movement of beam along longitudinal guide rail, which plays role of dividing slab. The longitudinal motion system is powered by motor, and longitudinal feeding mechanism also chooses not to enter motor. Since there is no cutting force in longitudinal direction of bridge saw machine, the driving force needed is mainly used to overcome friction between all the weight on the beam and the four guide rails, which is less than the cutting force of the infeed mechanism. Stone bridge saw features: It can help customers realize edging and engraving functions of the countertops. One machine has multiple functions and has a small footprint. The edging function and engraving function of countertops can be switched in one-key operation, which is easy to operate. This machine can realize fast tool change in 3 seconds, with more powerful functions and higher processing efficiency. Two spindles can be automatically switched according to processing requirements. This reduces tool change time and wastes, and correspondingly improves processing efficiency. Applicable industries Full automatic five axis infrared bridge cutting machine, multi language conversion, table processing by one machine, x-y-z-a-b five axis linkage, more widely used, simple operation and stronger practicability. used for cutting, chamfering, edge grinding, slotting, drilling, circular arc and other special-shaped processing.
