Good Price Mini Acrylic Cutting Machine For Sale

1. Good Price Mini Acrylic Cutting Machine For Sale The advantage of this Mini acrylic cutting machine is that it is suitable for the processing of diversified and complex products or diversified processing, and has a wide range of uses.Price:8000-9000$

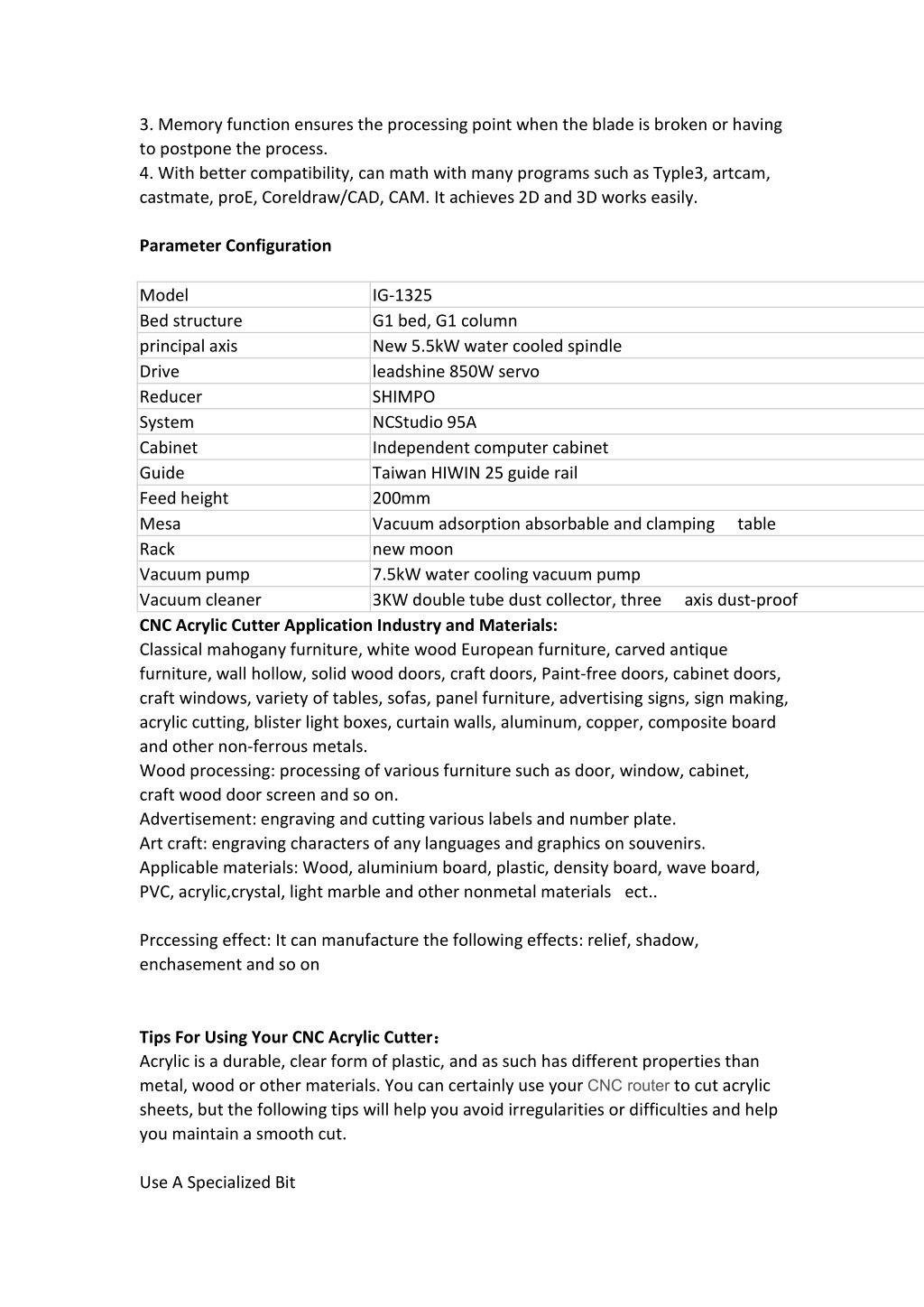

2. Main Main Features Features of 1. Integrally cast lathe bed, firm and non-deforming, high rigidity and high accuracy, adopts Taiwan line guide rail. 2. Use high speed drive motor,also servo motors for optional. of CNC CNC Acrylic Acrylic Cutter: Cutter:

3. 3. Memory function ensures the processing point when the blade is broken or having to postpone the process. 4. With better compatibility, can math with many programs such as Typle3, artcam, castmate, proE, Coreldraw/CAD, CAM. It achieves 2D and 3D works easily. Parameter Configuration Model Bed structure principal axis Drive Reducer System Cabinet Guide Feed height Mesa Rack Vacuum pump Vacuum cleaner CNC Acrylic Cutter Application Industry and Materials: Classical mahogany furniture, white wood European furniture, carved antique furniture, wall hollow, solid wood doors, craft doors, Paint-free doors, cabinet doors, craft windows, variety of tables, sofas, panel furniture, advertising signs, sign making, acrylic cutting, blister light boxes, curtain walls, aluminum, copper, composite board and other non-ferrous metals. Wood processing: processing of various furniture such as door, window, cabinet, craft wood door screen and so on. Advertisement: engraving and cutting various labels and number plate. Art craft: engraving characters of any languages and graphics on souvenirs. Applicable materials: Wood, aluminium board, plastic, density board, wave board, PVC, acrylic,crystal, light marble and other nonmetal materials ect.. IG-1325 G1 bed, G1 column New 5.5kW water cooled spindle leadshine 850W servo SHIMPO NCStudio 95A Independent computer cabinet Taiwan HIWIN 25 guide rail 200mm Vacuum adsorption absorbable and clamping new moon 7.5kW water cooling vacuum pump 3KW double tube dust collector, three table axis dust-proof Prccessing effect: It can manufacture the following effects: relief, shadow, enchasement and so on Tips For Using Your CNC Acrylic Cutter： Acrylic is a durable, clear form of plastic, and as such has different properties than metal, wood or other materials. You can certainly use your CNC router to cut acrylic sheets, but the following tips will help you avoid irregularities or difficulties and help you maintain a smooth cut. ： Use A Specialized Bit

4. Be sure to use a bit specifically designed for cutting acrylic, as standard wood or metal bits won’t do as good a job with chip removal and can cause a rougher cut as a result. These bits can usually be found at your local hardware store. Select A Larger Bit Size When cutting acrylic, a larger bit size tends to do a better job removing the chips than a smaller one. Try to use the largest bit size possible that is still conducive to your project. As a starting point, a 0.25” bit seems to be workable for most acrylic sheets. Secure The Acrylic Acrylic tends to vibrate, so make sure it’s held down securely when you begin cutting. Too much movement and shaking will make your cut rough and uneven. Cut At A Steady Rate One of the most common problems with using a CNC router to cut acrylic is that when the acrylic heats up due to the friction, the edges of the cut tend to melt and remold, effectively bonding the acrylic back to itself after you cut through it. You can minimize this issue by increasing the IPM so that the bit and the plastic are not in contact any longer than necessary. Don’t be reckless, but cut through the acrylic as quickly and steadily as you can while maintaining control. Keep The Acrylic Cool If you are still having problems with the acrylic re-bonding due to the heat, you may have better luck if you put the acrylic in a freezer for an hour or so before cutting it, so the starting temperature is lower. Also, feel free to use a cool mister on the plastic and the blade from time to time to moderate the temperature.
