  1. Vision ScreeningPart I: Eye Pathology Hilary Suzawa Med/Peds August 2007

  2. Frequency • Vision problems in 5-10% of preschoolers • 3 main problems • Refractive Error • Strabismus • 4% preschoolers • Amblyopia • Strabismus is most common cause of amblyopia • 40% of those with Strabismus develop amblyopia • Leading cause of monocular vision loss in 20-70 yo

  3. Refractive Error • Focusing problems • Myopia (nearsightedness) • Eyeball too long • Image focuses in front of retina • Hyperopia (farsightedness) • Eyeball too short • Image focuses behind the retina • Astigmatism • Cornea is misshapen

  4. Myopia

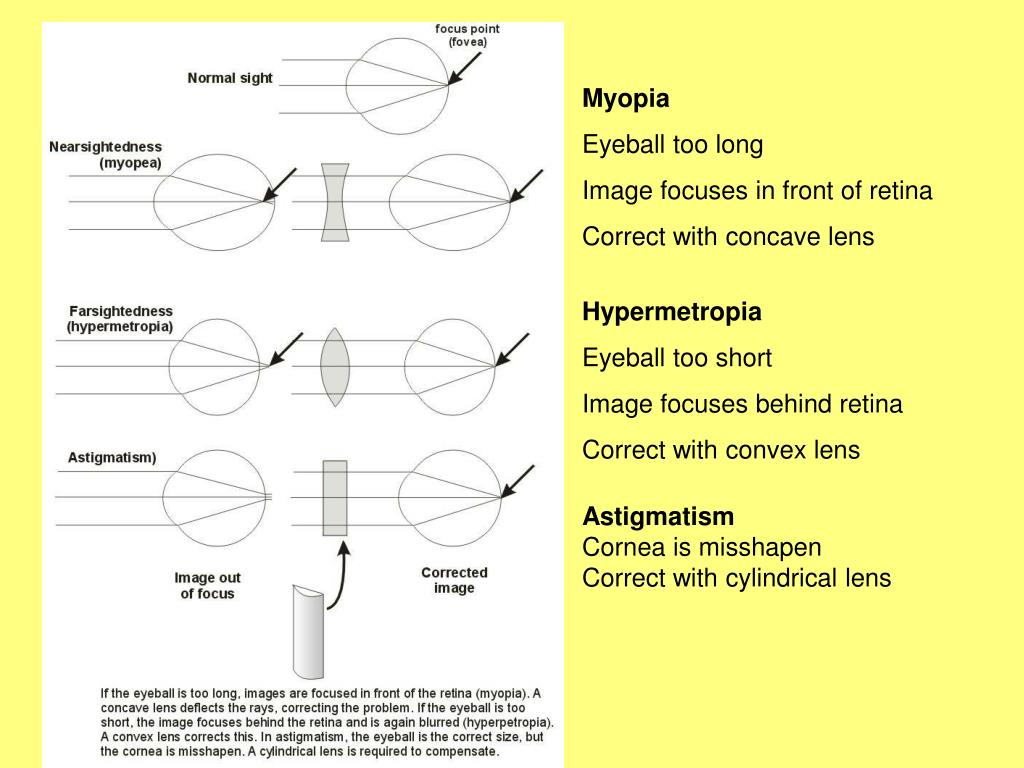

  5. Myopia Eyeball too long Image focuses in front of retina Correct with concave lens Hypermetropia Eyeball too short Image focuses behind retina Correct with convex lens Astigmatism Cornea is misshapen Correct with cylindrical lens

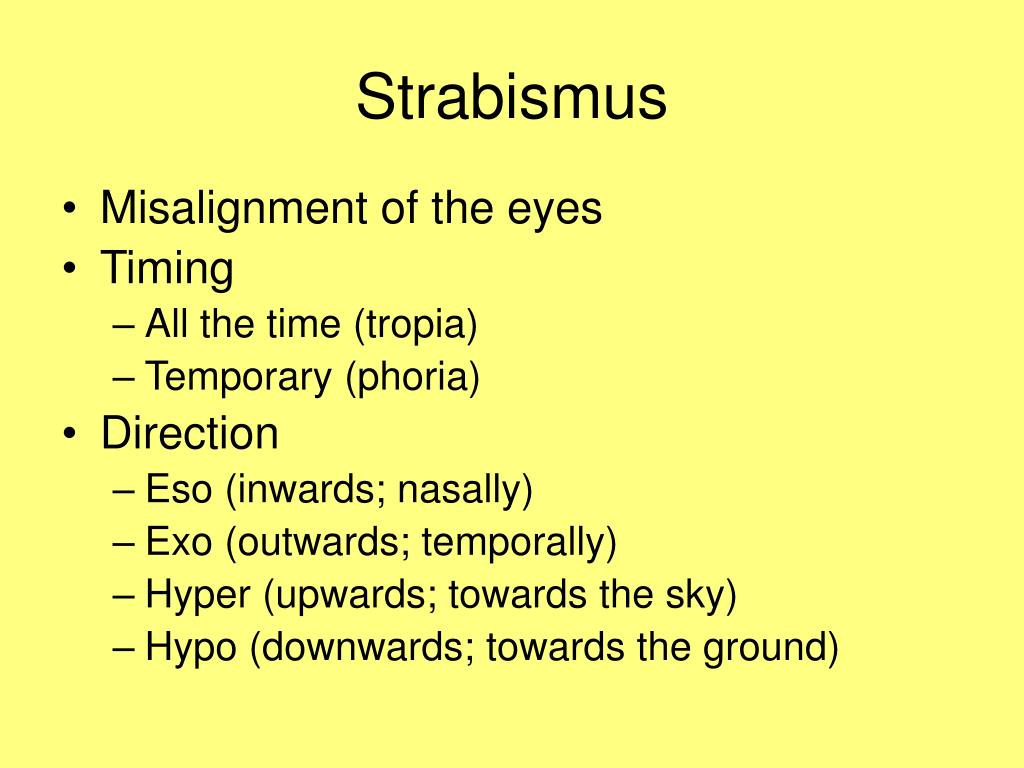

  6. Strabismus • Misalignment of the eyes • Timing • All the time (tropia) • Temporary (phoria) • Direction • Eso (inwards; nasally) • Exo (outwards; temporally) • Hyper (upwards; towards the sky) • Hypo (downwards; towards the ground)

  7. Strabismus • Medial (eso) deviations are the most common ocular deviations • Account for >50% of all cases of strabismus

  8. Esotropia and Exotropia

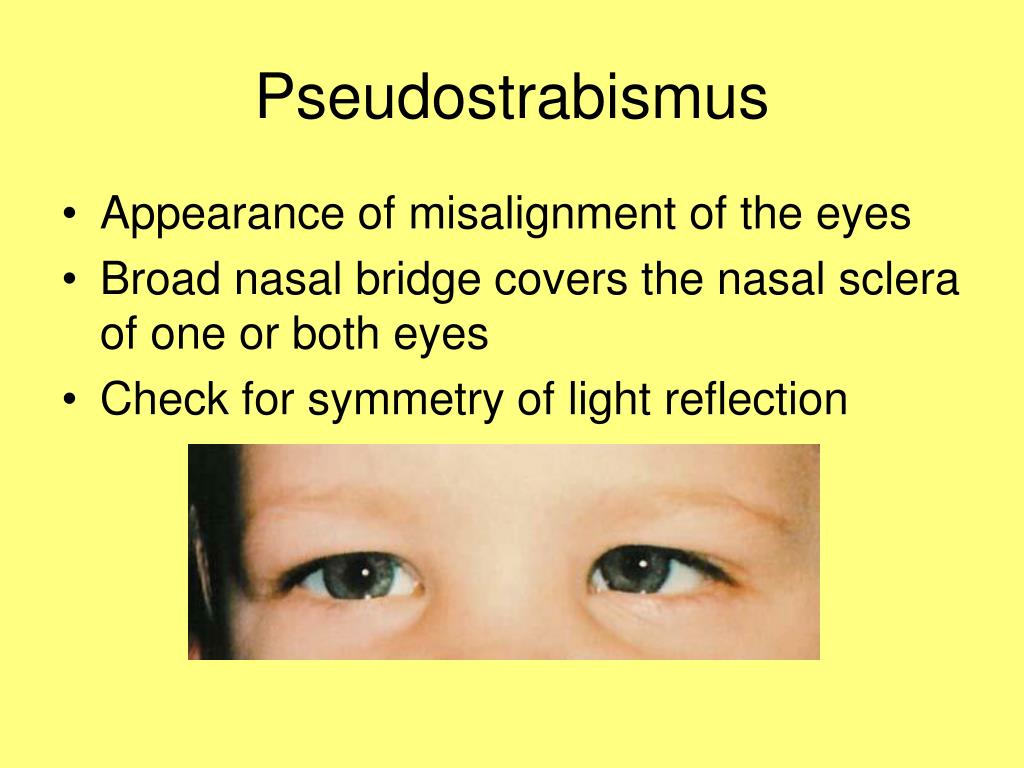

  9. Pseudostrabismus • Appearance of misalignment of the eyes • Broad nasal bridge covers the nasal sclera of one or both eyes • Check for symmetry of light reflection

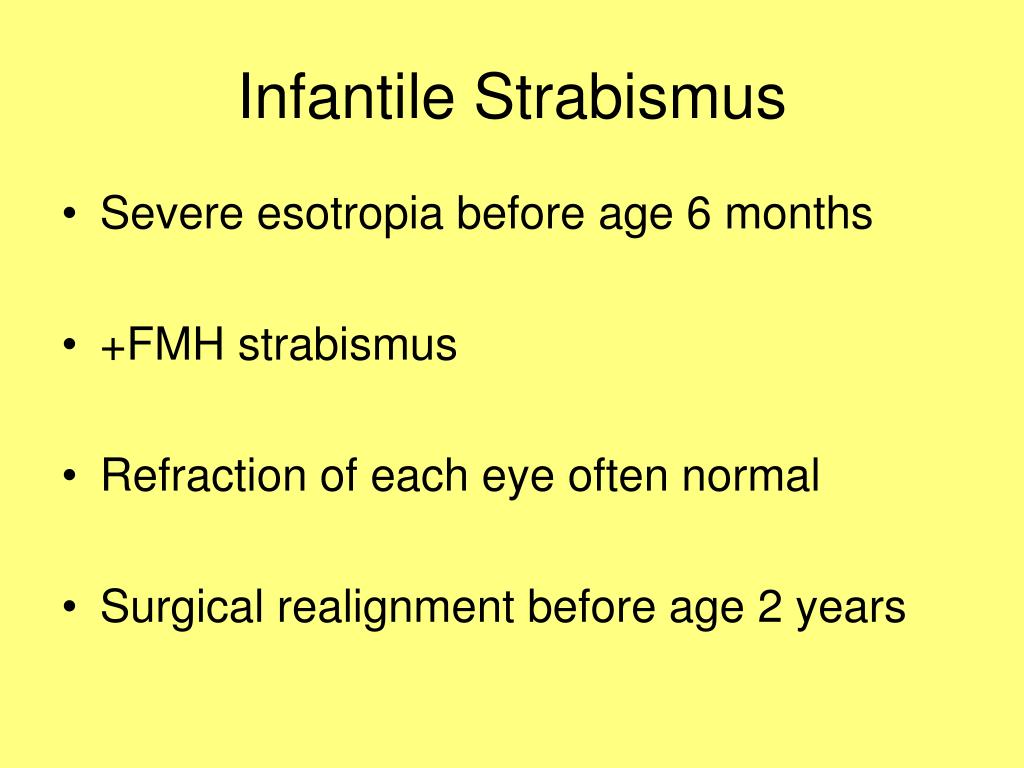

  10. Infantile Strabismus • Severe esotropia before age 6 months • +FMH strabismus • Refraction of each eye often normal • Surgical realignment before age 2 years

  11. Accommodative Esotropia • Most children normally have mild hyperopia (farsighted) • Severe hyperopia may lead to accommodative esotropia

  12. Accommodative Esotropia • In order to overcome the refractive error (hypermetropia) the eye accommodates leading to medial deviation • Often hereditary • Average onset at age 2-3 years • Glasses to correct

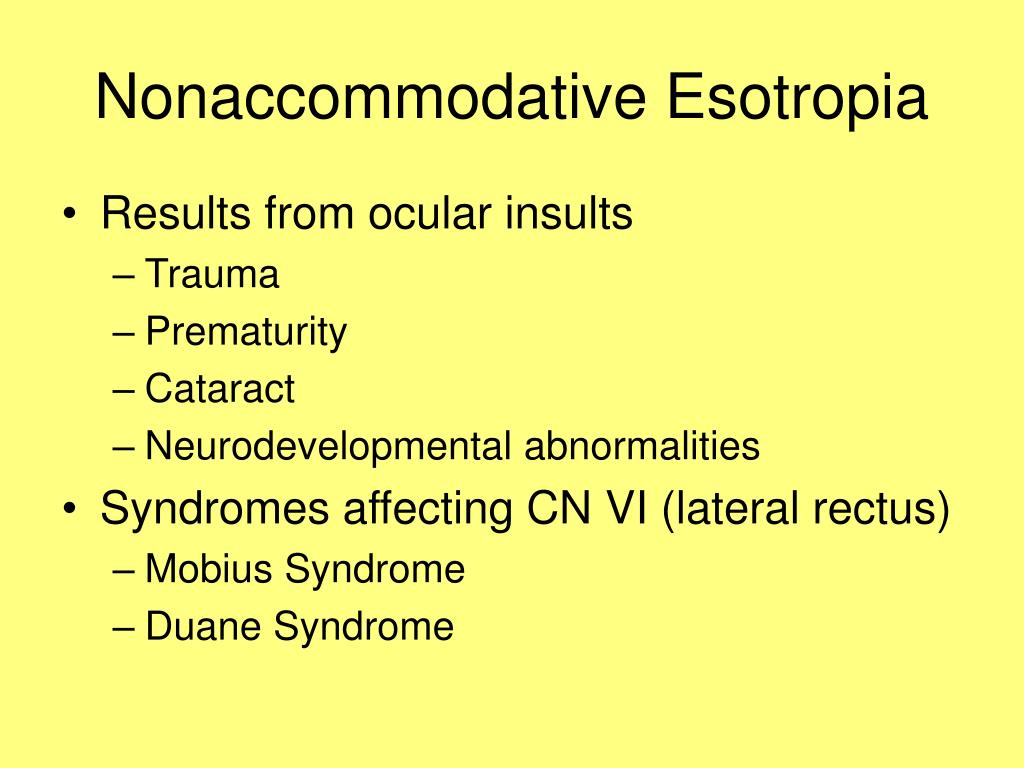

  13. Nonaccommodative Esotropia • Results from ocular insults • Trauma • Prematurity • Cataract • Neurodevelopmental abnormalities • Syndromes affecting CN VI (lateral rectus) • Mobius Syndrome • Duane Syndrome

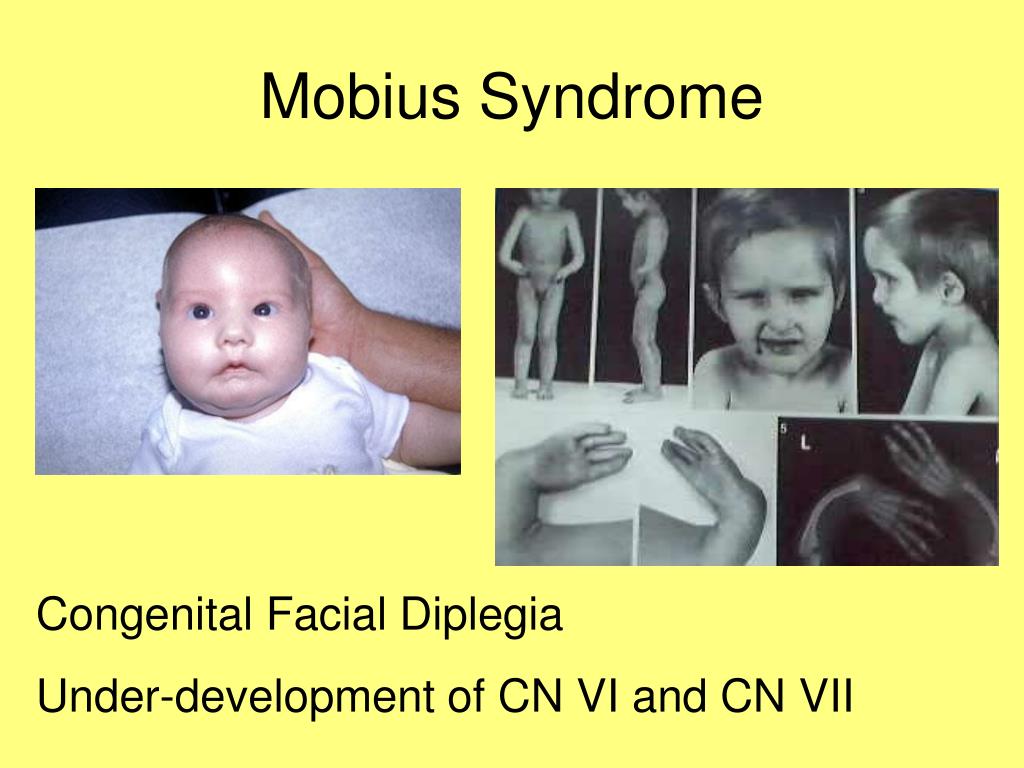

  14. Mobius Syndrome Congenital Facial Diplegia Under-development of CN VI and CN VII

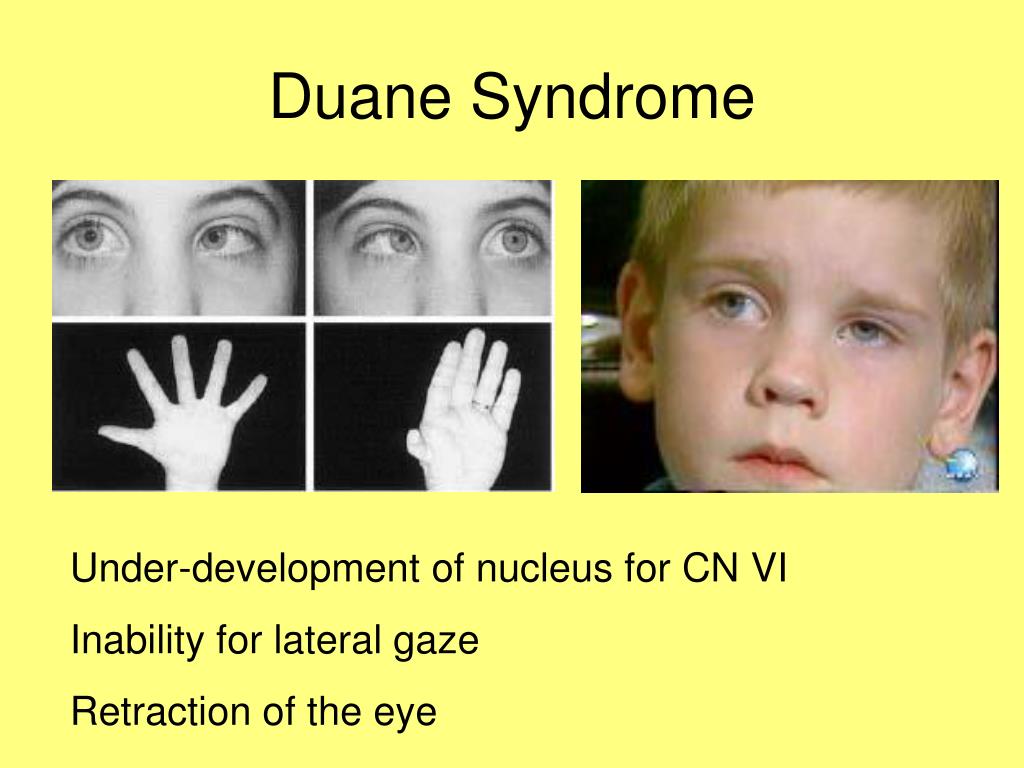

  15. Duane Syndrome Under-development of nucleus for CN VI Inability for lateral gaze Retraction of the eye

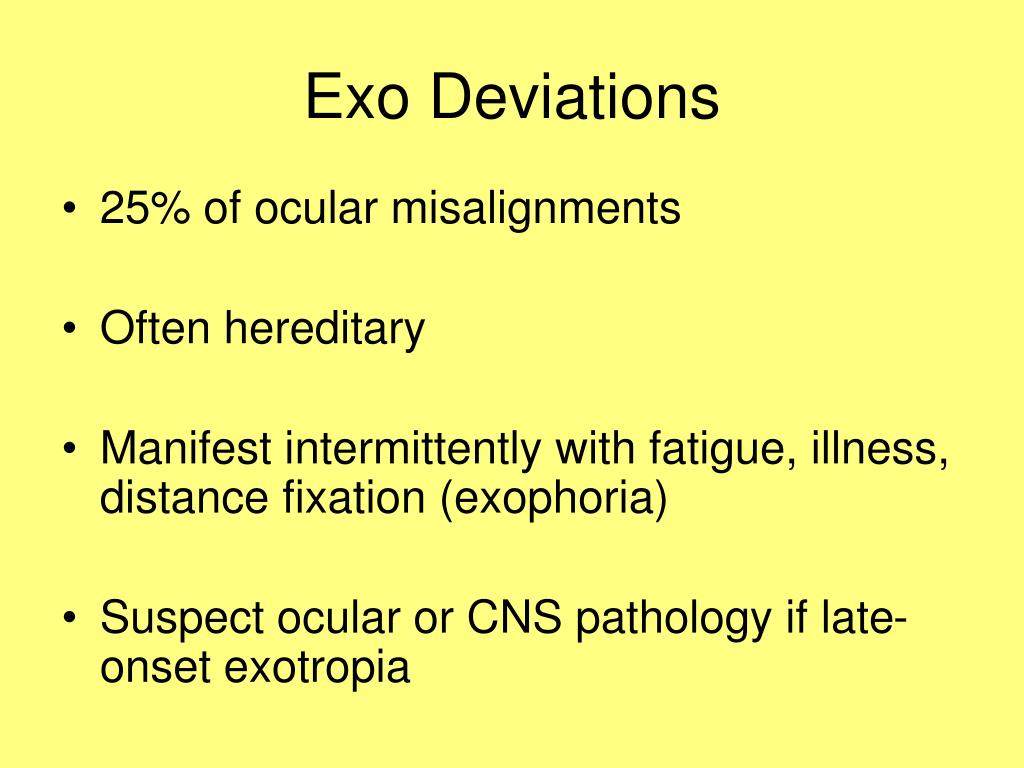

  16. Exo Deviations • 25% of ocular misalignments • Often hereditary • Manifest intermittently with fatigue, illness, distance fixation (exophoria) • Suspect ocular or CNS pathology if late-onset exotropia

  17. Vertical Deviations • <10% ocular misalignments • Often compensatory head tilt to minimize diplopia • CN IV paresis • Brown Syndrome—defect in superior oblique muscle • Retro-orbital tumors • Thyroid ophthalmopathy • Facial Trauma

  18. Brown Syndrome Superior Oblique Tendon Sheath Syndrome Restriction of eye elevation with adduction

  19. Amblyopia • Loss of visual acuity due to active cortical suppression of the vision of an eye

  20. Causes of Amblyopia • Strabismus—misalignment • Anisometropia—one eye has a different length from the other resulting in a different focusing ability (refractive error) • Visual deprivation—not using an eye

  21. Causes of Amblyopia • Strabismus • Esotropia, Exotropia, Hypertropia • Anisometropia • Hyperopia, Astigmatism, Aniseikonia (unequal retinal images—rare) • Visual Deprivation • Unilateral: Cataract, ptosis, opaque cornea, hyphema, prolonged patching, prolonged use atropine drops • Bilateral: Cataract, nystagmus

  22. Hemangioma

  23. Hyphema Blood in anterior chamber of the lens

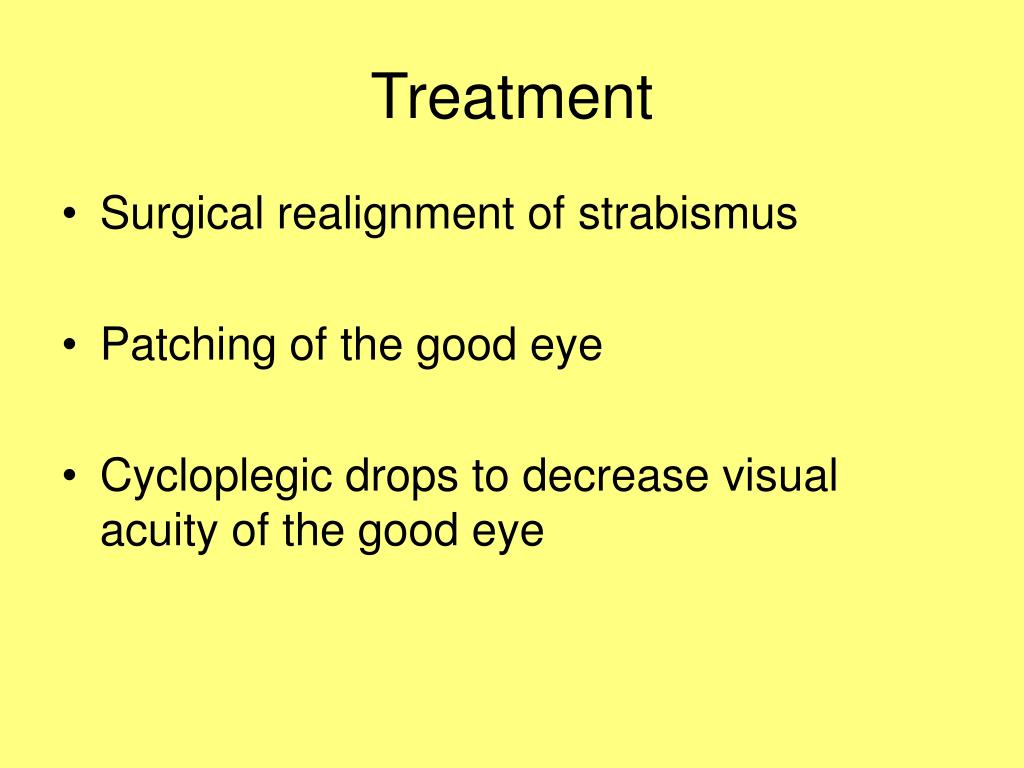

  24. Treatment • Surgical realignment of strabismus • Patching of the good eye • Cycloplegic drops to decrease visual acuity of the good eye

  25. Bibliography • Broderick, Peter. Pediatric Vision Screening for the Family Physician. American Family Physician 1998; 58 (3). • Tingley, Donald. Vision Screening Essentials: Screening Today for Eye Disorders in the Pediatric Patient. Pediatrics in Review. 2007; 28 (2): 54-61.

  26. Vision ScreeningPart II: Clinical Evaluation Hilary Suzawa Med/Peds August 2007

  27. Clinical Screening • Goal of screening is to preserve vision • Birth-3 years • Check anatomy and gross visual assessments • >3 years • Start visual acuity screening

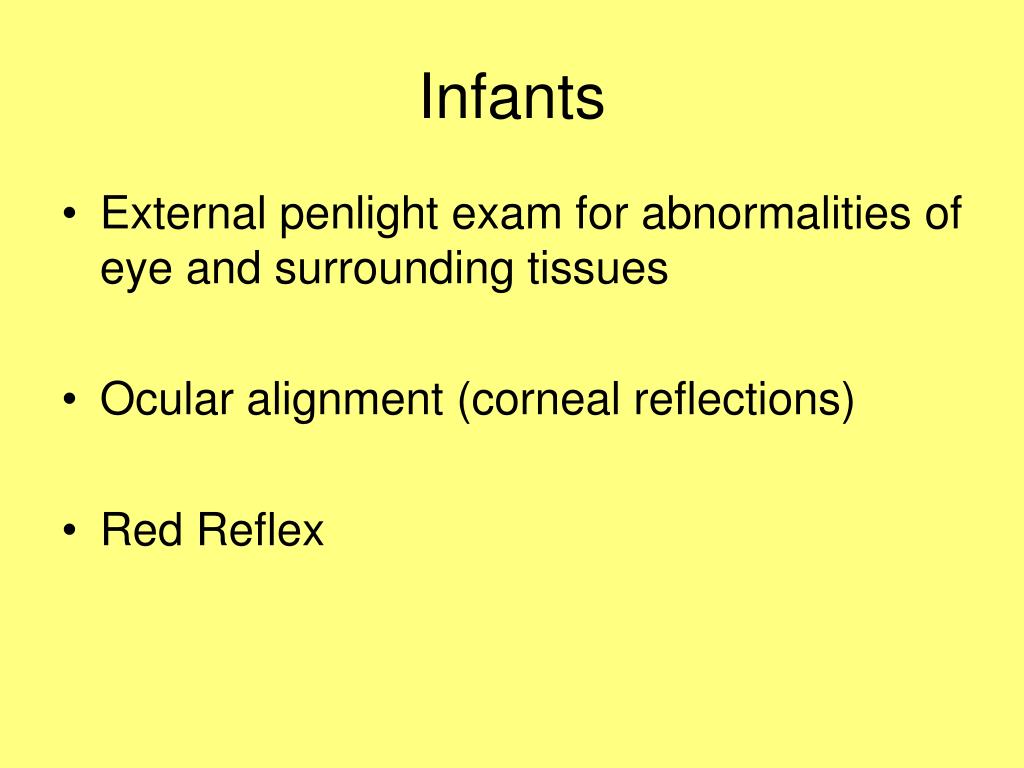

  28. Infants • External penlight exam for abnormalities of eye and surrounding tissues • Ocular alignment (corneal reflections) • Red Reflex

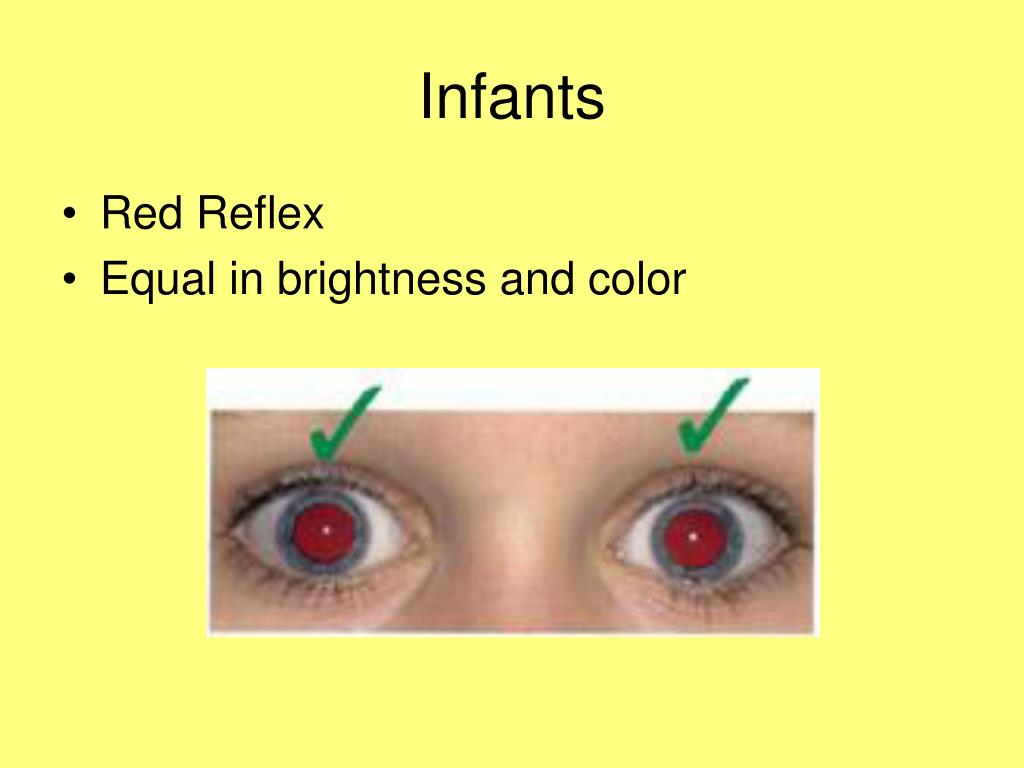

  29. Infants • Red Reflex • Equal in brightness and color

  30. Abnormal Red Reflex

  31. Abnormal Red Reflex • Abnormal (Leukocoria) • Anisometropia (varying eye length) • Refractive error • Cataract • Retinoblastoma • If abnormal Red Reflex, refer to ophtho

  32. Congenital Cataract

  33. Retinoblastoma

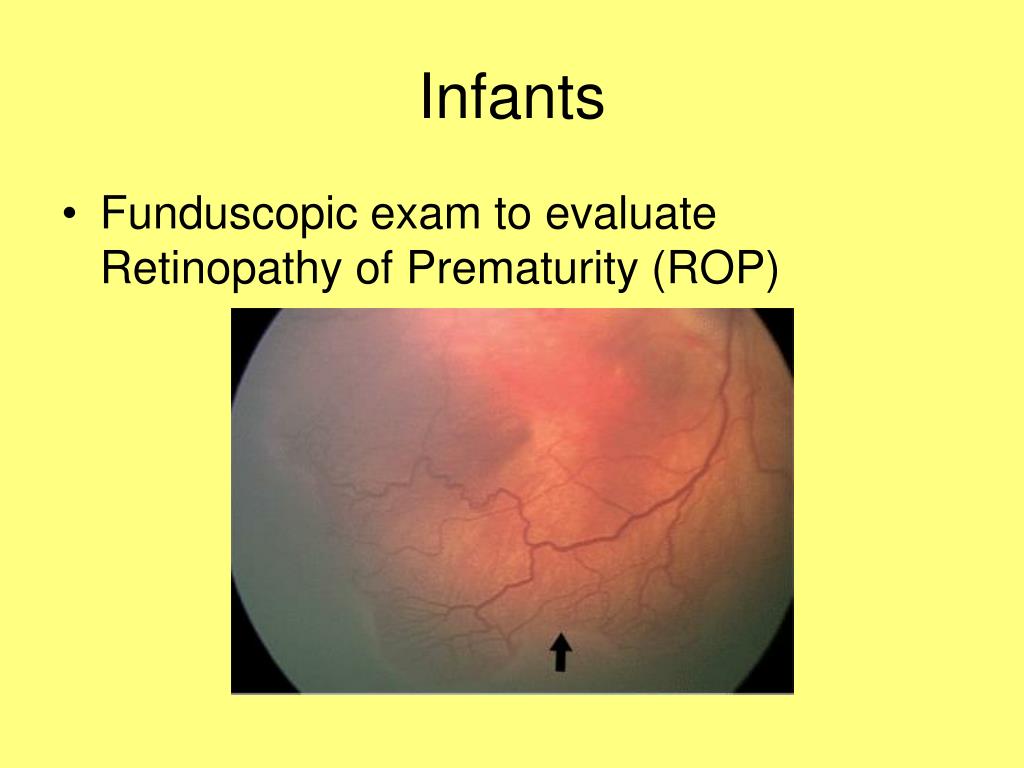

  34. Infants • Funduscopic exam to evaluate Retinopathy of Prematurity (ROP)

  35. Infants • Check if equal responsiveness to light stimulus • Visual acuity 20/400 at 1 month and improves with age to 20/20 by age 8 years

  36. Normal Vision Development

  37. Stereopsis

  38. 6 months • Ability to fix and follow light, face, or small toy • External penlight exam for abnormalities of eye and surrounding tissues • Pupil exam • Ocular alignment (corneal reflections) • Red Reflex

  39. 3-4 years • Visual acuity by appropriate eye chart (picture or tumbling E) • External penlight exam for abnormalities of eye and surrounding tissues • Pupil exam • Ocular alignment (ocular movements, cover test and corneal reflections) • Red Reflex and +/-fundus exam

  40. 5-6 years • Visual acuity by appropriate eye chart (Snellen) • External penlight exam for abnormalities of eye and surrounding tissues • Pupil exam • Ocular alignment (ocular movements, cover test and corneal reflections) • Red Reflex and +/-fundus exam

  41. Visual Acuity Tests

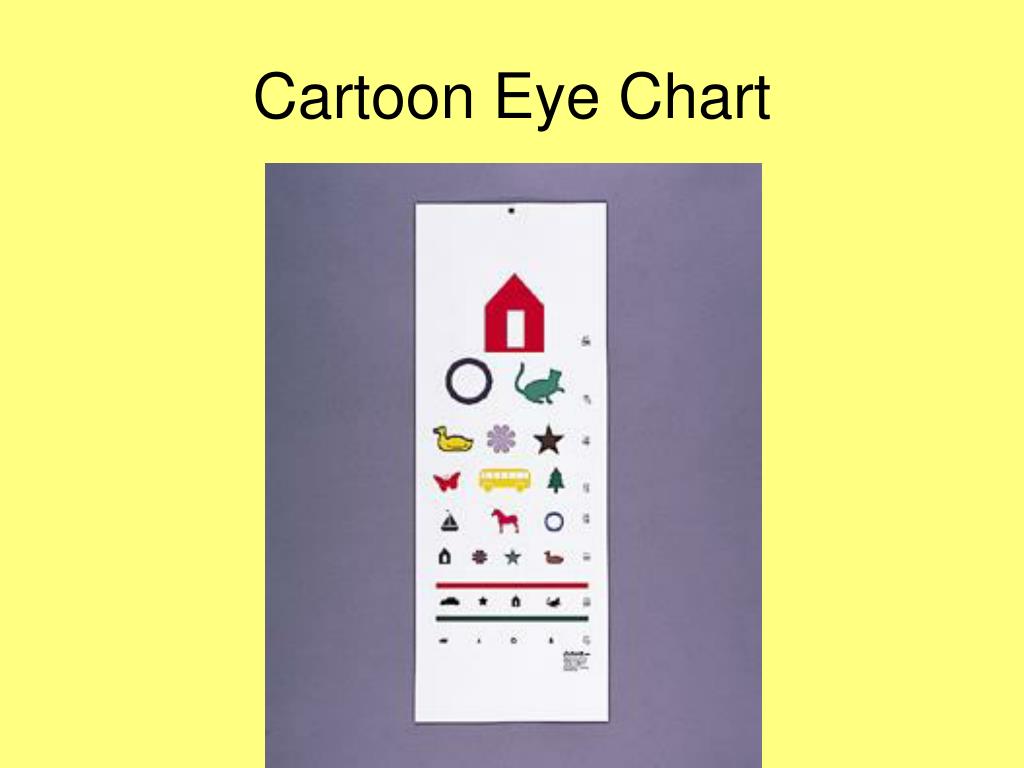

  42. Cartoon Eye Chart

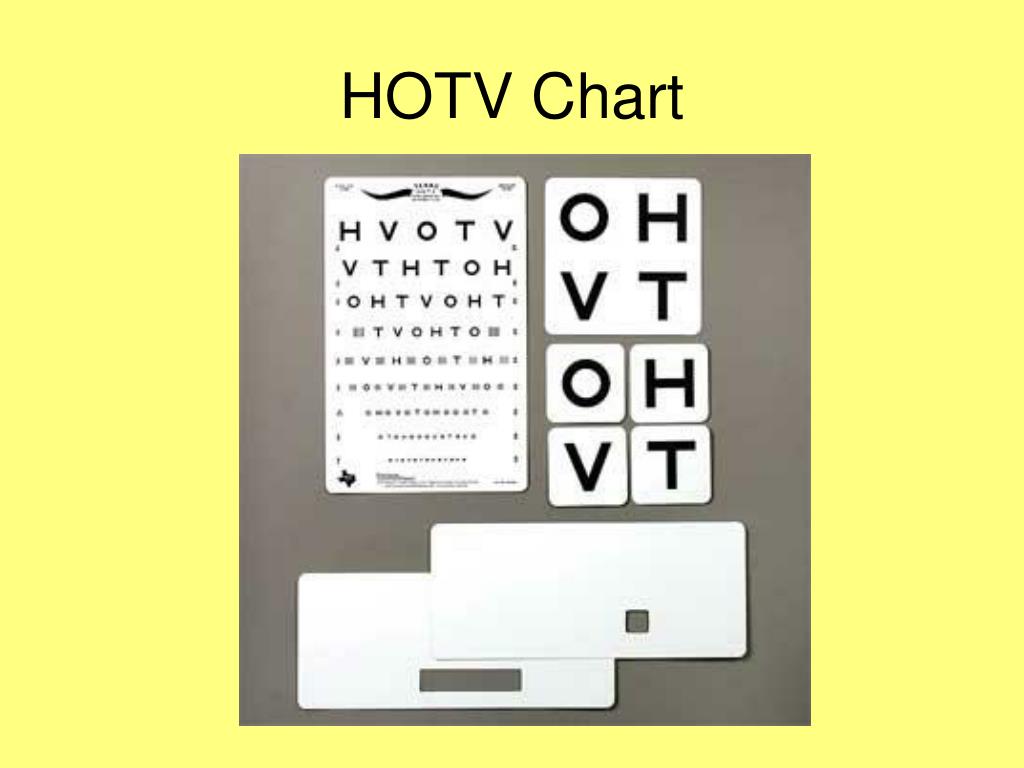

  43. HOTV Chart

  44. Tumbling E

  45. Snellen Eye Chart

  46. Feline Eye Chart

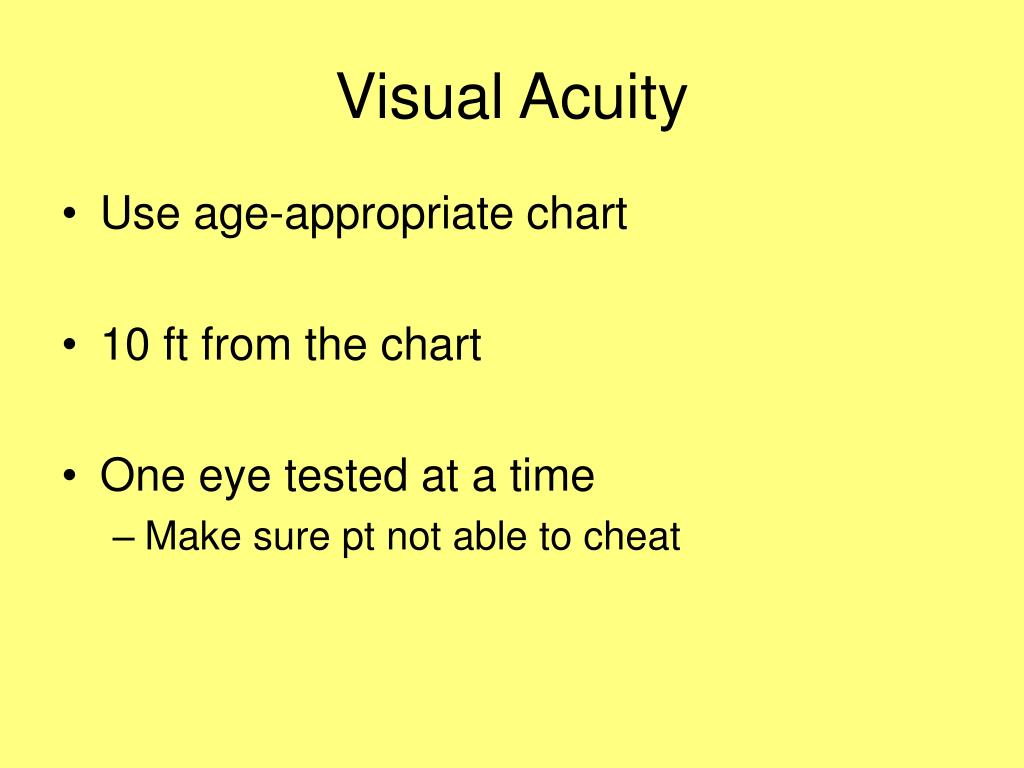

  47. Visual Acuity • Use age-appropriate chart • 10 ft from the chart • One eye tested at a time • Make sure pt not able to cheat

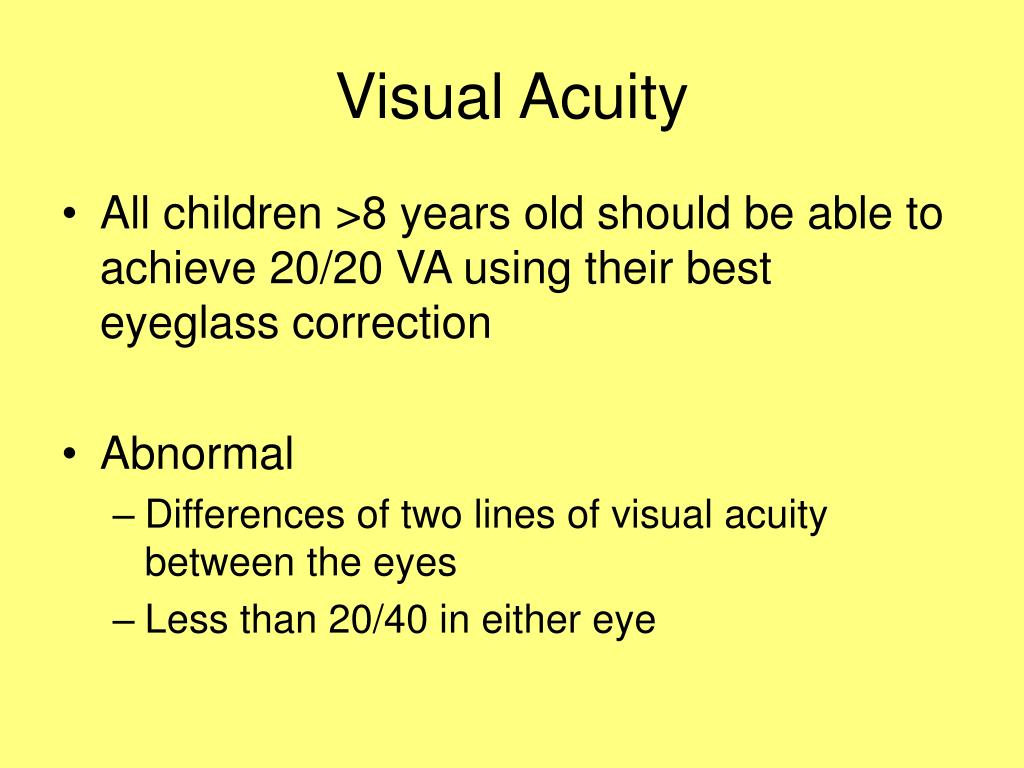

  48. Visual Acuity • All children >8 years old should be able to achieve 20/20 VA using their best eyeglass correction • Abnormal • Differences of two lines of visual acuity between the eyes • Less than 20/40 in either eye

  49. Strabismus Testing • Tropia—full-time eye misdirection • Phoria—tendency for the eye to turn when disturbances in binocularity occur (eg one eye is covered) • Distinguish using Cover/Uncover Testing

  50. Cover Testing • Patient fixates on a target • Place a cover over one eye • Normal—uncovered eye does not move • Abnormal—uncovered eye moves to look at target tropia • If the eye moved nasally (exotropia) • If the eye moved temporally (esotropia)
