a proxy smoothing service for variable bit rate streaming video

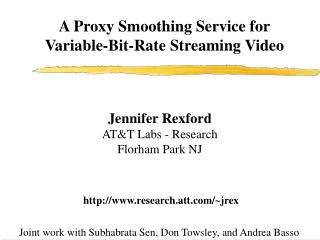

A Proxy Smoothing Service for Variable-Bit-Rate Streaming Video

Jennifer Rexford

AT&T Labs - Research

Florham Park NJ


Joint work with Subhabrata Sen, Don Towsley, and Andrea Basso

  • Background and motivation
    • Burstiness of compressed video streams
    • Smoothing techniques for stored video
  • Online smoothing of variable-bit-rate video
    • Sliding-window smoothing algorithm
    • Performance evaluation on MPEG traces
  • Integration of smoothing with prefix caching
    • Caching initial frames of popular video streams
    • Resource allocation across multiple streams
  • Prototype proxy smoothing service
    • Software design of proxy service in Windows NT
    • MPEG-2 PC-based video streaming testbed
  • Conclusions and ongoing work
video streaming applications
Video Streaming Applications
  • Live, interactive video
    • Video teleconferencing, video phones, etc.
    • Tight delay constraints to support interactivity
  • Stored, non-interactive video
    • Movies, distance learning, Web videos, etc.
    • Video recorded in advance; loose delay constraints
  • Live, non-interactive video
    • Course lectures, news, sporting events, conferences
    • Video not recorded in advance; loose delay constraints
challenges of video streaming
Challenges of Video Streaming
  • High bandwidth requirements of compressed video
    • 4-6 Megabits/second for high quality MPEG2 streams
  • Burstiness of frame sizes on several time scales
    • MPEG group-of-pictures structure (I, P, B frames)
    • Differences in action and detail within/across scenes
  • Bandwidth limitations on clients and links
    • 10 or 100 Mbps shared local area network
    • 27 Mbps cable channel, 1.5 Mbps ADSL
  • Lack of end-to-end control of path from source
  • Poor delay, throughput, and loss in the Internet
approaches to handling variability
Approaches to Handling Variability
  • Constant-bit-rate encoding of each stream
    • Adjust quality of encoding to stay at constant rate
    • Quality degradation during scenes with action & detail
  • Statistical multiplexing of variable rate streams
    • Rely on mixing to reduce the aggregate peak rate
    • Limited effectiveness on access links
  • Selective discard of packets/frames in stream
    • Discard packets/frames during transient congestion
    • Noticeable degradation in video quality
  • Transcoding or layered encoding to reduce bit rate
    • Re-encode the video stream at different quality at proxy
    • Quality degradation; hard to transcode at link speeds
smoothing stored video
Smoothing Stored Video

For prerecorded video streams:

  • All video frames stored in advance at server
  • Prior knowledge of all frame sizes (fi, i=1,2,..,n)
  • Prior knowledge of client buffer size (b)
  • workahead transmission into client buffer



b bytes




smoothing constraints
Smoothing Constraints

Given frame sizes {fi} and buffer size b

    • Buffer underflow constraint (Lk = f1 + f2 + … + fk)
    • Buffer overflow constraint (Uk = min(Lk + b, Ln))
    • Find a schedule Sk between the constraints
  • O(n) algorithm minimizes peak and variability


number of bytes

rate changes



time (in frames)

limitations of smoothing model
Limitations of Smoothing Model
  • Assumes prerecorded stored video
    • but… need to support live and precorded video
  • Assumes smoothing is performed by server
    • but… server is in the domain of another provider
  • Assumes end-to-end control of the network
    • but… the Internet is decentralized
  • Assumes server knows the client buffer size
    • but… the client may be in a different domain
online smoothing
Online Smoothing

Source or proxy can delay the stream by w time units:

Larger window w reduces burstiness, but…

  • Larger buffer at the source/proxy
  • Larger processing load to compute schedule
  • Larger playback delay at the client

stream with

delay w



b bytes











Online Smoothing Model

  • Arrival of Aibits to proxy by time i in frames
  • Smoothing buffer of B bits at proxy
  • Smoothing window (playout delay) of w frames
  • Playout of Di-w bits by client by time i
  • Playout buffer of b bits at client
  • transmission of Si bits by proxy by time i
online smoothing14
Online Smoothing
  • Must send enough to avoid underflow at client
    • Si must be at least Di-w
  • Cannot send more than the client can store
    • Si must be at most Di-w + b
  • Cannot send more than the data that has arrived
    • Si must be at most Ai
  • Must send enough to avoid overflow at proxy
    • Si must be at least Ai - B

max{Di-w, Ai - B} <= Si <= min{Di-w + b, Ai}

online smoothing constraints
Online Smoothing Constraints

Source/proxy has w frames ahead of current time t:

don’t know

the future

number of bytes




time (in frames)



Modified smoothing constraints as more frames arrive...

smoothing star wars
Smoothing Star Wars

GOP averages

30-second window

2-second window

  • MPEG-1 Star Wars,12-frame group-of-pictures
  • Max frame 23160 bytes, mean frame 1950 bytes
  • Client buffer b=512 kbytes
reducing computational complexity
Reducing Computational Complexity
  • No need to compute schedule at every time unit
    • Limited information from new frame arrivals
    • Limited impact on trajectory of the schedule
  • Execute online algorithm every a time units
    • Perform O(w) work every a time units
    • Limit number of rate changes
  • Performance implications
    • Very small increases in peak and variance of rates
    • Setting a = w/2 performs almost as well as a = 1
parameters in smoothing model
Parameters in Smoothing Model
  • Algorithm parameters
    • Window w (in number of frame slots)
    • Client buffer size b (in bytes)
    • Source/proxy buffer size B (in bytes)
    • Computation interval a (in frames)
    • Frame-size prediction interval p (in frames)
  • Performance metrics
    • Peak rate of the smoothed stream
    • Coefficient of variation (standard-deviation/mean)
    • Effective bandwidth (given buffer and loss rate)
peak rate vs window size varying client buffer size for mpeg 1 wizard of oz
Peak Rate vs. Window Size (varying client buffer size for MPEG-1 Wizard of Oz)
  • Dramatic decrease in bandwidth variability
  • Online algorithm approaches offline scheme
  • Ten-second window gives most of the gain
peak rate vs client buffer varying window size for mpeg 1 wizard of oz
Peak Rate vs. Client Buffer(varying window size for MPEG-1 Wizard of Oz)
  • Significant reductions with a few Mbytes of buffer
  • Diminishing returns for larger client buffer sizes
  • Window size w should scale with buffer size b
proxy vs client buffer varying prediction under 512 kbyte total buffer 30 frame window
Proxy vs. Client Buffer(varying prediction under 512-kbyte total buffer & 30-frame window)
  • Need buffer at each end for good performance
  • Even buffer for large P, more at proxy for small P
  • Simple prediction schemes are very effective
prefix caching to avoid start up delay
Prefix Caching to Avoid Start-Up Delay
  • Avoid start-up delay for prerecorded streams
    • Proxy caches initial part of popular video streams
    • Proxy starts satisfying client request more quickly
    • Proxy requests remainder of the stream from server
  • smooth over large window without large delay
  • Use prefix caching to hide other Internet delays
    • TCP connection from browser to server
    • TCP connection from player to server
    • Dejitter buffer at the client to tolerate jitter
    • Retransmission of lost packets
  • apply to “point-and-click” Web video streams
new questions
New Questions
  • Video streaming protocol
    • How to get the proxy in the path?
    • How to receive an initial copy of the prefix?
    • How to retrieve the remaining frames of the video?
  • Smoothing model
    • What changes in the smoothing constraints?
    • What changes in the basic performance properties?
  • Proxy resource allocation
    • How much prefix is needed to hide Internet delays?
    • How to allocate between caching and smoothing?
    • How to allocate resources across multiple streams?
protocol issues
Protocol Issues
  • Ensuring that requests go through the proxy
    • Configuration of proxy in client browser or player
    • Placement of transparent proxy in the path
  • Caching of the initial frames of the video
    • Server replication of the prefix
    • Proxy prefetching of the prefix
    • Proxy caching of prefix after first request
  • Transparent retrieval of remaining frames
    • Range request operation in HTTP 1.1
    • Absolute positioning in RTSP
changes to smoothing model
Changes to Smoothing Model
  • Separate parameter s for client start-up delay
  • Prefix cache stores the first w-s frames
  • Arrival vector Ai includes cached frames
  • Prefix buffer does not empty after transmission
  • Send entire prefix before overflow of bs
  • Frame sizes may be known in advance (cached)







performance evaluation
Performance Evaluation
  • Comparison to original online smoothing model
    • Pro: can have large window and small start-up delay
    • Pro: performance is virtually indistinguishable
    • Con: storing prefix nearly doubles buffer requirement
    • Con: may be difficult to smooth at beginning of video
  • Allocation of prefix and smoothing buffers
    • Small prefix buffer limits size of smoothing window
      • small window w restricts workahead smoothing
    • Large prefix buffer limits size of smoothing buffer
      • small bs requires aggressive transmission schedule
peak rate vs window size varying total proxy buffer size for mpeg 1 wizard of oz
Peak Rate vs. Window Size(varying total proxy buffer size for MPEG-1 Wizard of Oz)
  • Convex, cup-shaped curve of peak rate vs. buffer
  • Simple binary search for optimal allocation
  • Heuristic: pick largest w that does not constrain bs
allocating resources across streams
Allocating Resources Across Streams
  • Performance issues
    • Limited buffer (M) and/or bandwidth (B) at proxy
    • Collection of V videos with different popularity
    • Videos with different sequences of frame sizes
  • Optimization problem
    • Allocate prefix buffer bp for each video v =1,…, V
    • Allocate smoothing buffer bs for each of nv requests
    • Obey constraint on buffer (M) or bandwidth (B)
    • Minimize the usage of the other resource (M or B)
simplifying the problem
Simplifying the Problem
  • Complex resource allocation problem
    • Assign bp, bs, and w for each video v
    • Buffer requirement: sumv{bp(v) + nv * bs(v)}
    • Bandwidth requirement:sumv{nv * peak(v)}
  • Reduce problem to selecting w for each video
    • Select same bs and w across all requests for v
    • Select prefix buffer bp as first w-s frames
    • Select bs as max smoothing buffer for window w
greedy algorithm
Greedy Algorithm
  • Further simplifying the problem
    • Selecting w determines bp(v), bs(v), and peak(v)
    • Consider the nv*peak(v) vs. bp(v)+nv*bs(v)curve
    • Curve is piecewise-linear, convex, non-increasing
  • Greedy algorithm for buffer constraint M
    • Select the videowith steepest initial slope
    • Assign buffer space to this video for max gain
    • Repeat until reaching the buffer constraint M
  • Greedy algorithm for bandwidth constraint B
    • Repeat until not exceeding bandwidth constraint B
illustration of greedy algorithm
Illustration of Greedy Algorithm




bandwidth for video 2

bandwidth for video 1




buffer for video 1

buffer for video 2

building a smoothing proxy
Building a Smoothing Proxy
  • Performance results
    • Memory: a few megabytes of RAM is sufficient
    • CPU: 1-2 msec to smooth 30 sec (300 MHz PC)
    • Bandwidth: 2-4 Mbps feasible on personal computer
  • Solution with off-the-shelf components
    • 300 MHz Pentium Pro with 192 megabytes of RAM
    • Input and output on 10 megabit/second Ethernet
    • Windows NT operating system with WinSock 2.0
reality sets in
Reality Sets In
  • Video stream is packetized, not a fluid
    • Smoothing constraints must be applied to packets
    • Proxy cannot transmit the stream at arbitrary rates
  • System does not have support for traffic shaping
    • Cannot control the inter-packet spacing at fine scale
    • E.g., 2 msec spacing for 15-packets frames (30 fps)
  • Interrupt latency, timer jitter, and data copying
    • Limited control over time expiration times
    • Latency in processing I/O and timer operations
    • Need to avoid extra copying of video frames
time sharing the processor
Time-Sharing the Processor
  • Reception of incoming packets
    • Smooth over more frames by receiving often
    • Avoid double-copy from kernel to user space
    • Avoid the worst-case scenario of overflow
  • Computation of smooth schedule
    • Must run often enough to maximize smoothing
    • Fortunately, does not need to read or write data
  • Transmission of packets according to schedule
    • Must run often enough to control packet spacing
    • Avoid the bad case of sending a large burst
    • Avoid the worst case of client underflow
key design decisions
Key Design Decisions
  • Single thread of control
    • No operating system control over fine-grain sharing
  • High-performance counter for timing operations
    • Timers are too inaccurate (tens of milliseconds)
    • How often should the counter be checked?
  • Overlapped I/O to avoid double copying
    • Receive and send directly to/from the user-space buffer
    • How many outstanding sends and receives?
  • Explicit pacing of packet transmissions
    • How often should the send routine be invoked?
livenet mpeg 2 testbed developed by andrea basso glenn cash and reha civanlar
LiveNet MPEG-2 Testbed(developed by Andrea Basso, Glenn Cash, and Reha Civanlar)
  • MPEG-2 encoder
    • MPEG-2 encoder board (MPEGXpress)
    • Software to read into buffers and stream into network
  • Real-time packetizer
    • Parses MPEG-2 stream and divides frames into slices
    • Packing slices into Real-Time Protocol (RTP) packets
  • MPEG-2 decoder
    • Software for packet reception and error concealment
    • MPEG-2 decoder board (DarimVision)


  • Online smoothing model
    • Applicable to many non-interactive applications
    • Significantly lowers burstiness of compressed video
    • Enables high-quality video across access networks
  • Prefix caching
    • Hides start-up delay for smoothing and other operations
    • Effective resource allocation schemes at the proxy
  • Practical application
    • Transparent to the origin video source/server
    • Implementation with commercial off-the-shelf parts
    • Integration with MPEG-2 and Real-Time Protocol

Ongoing Work

  • Prototyping the proxy smoothing service
    • Completion of implementation of proxy service
    • Performance evaluation of parameterized system
  • Combining smoothing with other mechanisms
    • Discard, transcoding, feedback, and retransmission
    • Exploiting prefix cache to hide additional latency
  • Measurement of Web-initiated video streaming
    • Collection of video packet traces in AT&T WorldNet
    • Study of potential for (partial) caching at the proxy
