  1. Real-time smoothing for network adaptive video streaming Kui Gao, Wen Gao, Simin He, Yuan Zhang J. Vis. Commun. Image R. 16 (2005)

  2. Outline • Motivation • The architecture of network-adaptive streaming system • A Real-time dynamic smoothing algorithm • How to select and schedule packets • How to retransmit the lost packet • Simulation results • Conclusion

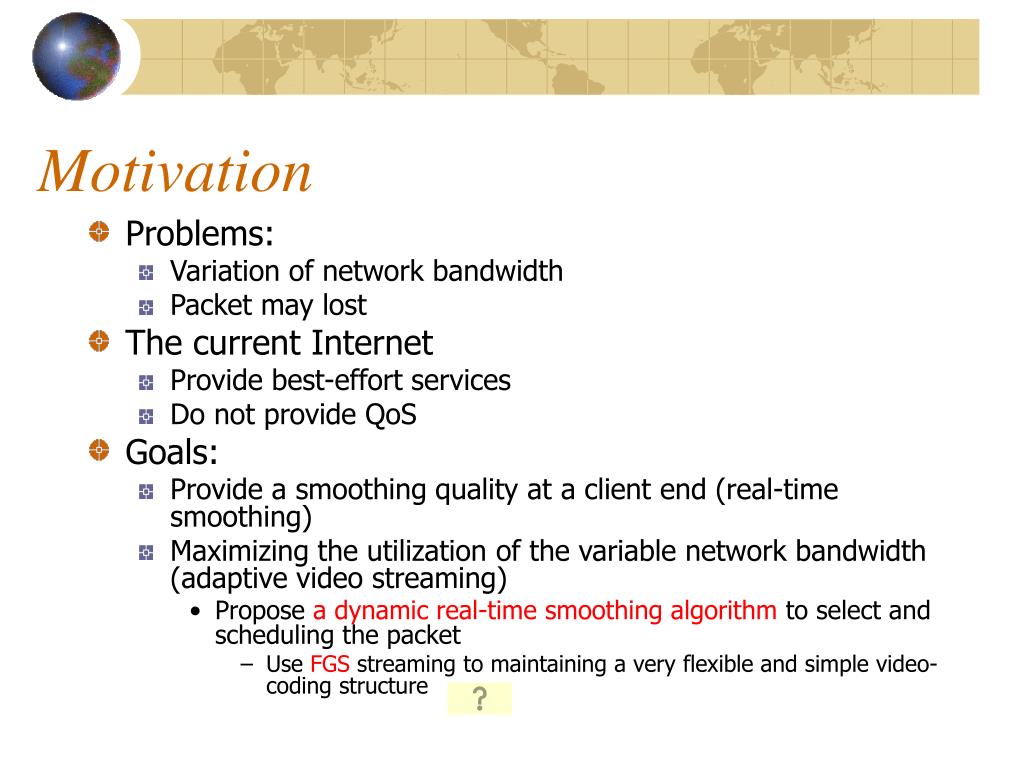

  3. Motivation • Problems: • Variation of network bandwidth • Packet may lost • The current Internet • Provide best-effort services • Do not provide QoS • Goals: • Provide a smoothing quality at a client end (real-time smoothing) • Maximizing the utilization of the variable network bandwidth (adaptive video streaming) • Propose a dynamic real-time smoothing algorithm to select and scheduling the packet • Use FGS streaming to maintaining a very flexible and simple video-coding structure

  4. The architecture of network-adaptive streaming system Server Client Use a real-time smoothing algorithm Feedback information includes: Packet loss rate, RTT(round-trip time)

  5. How to select and schedule the packet • Considerations • Playback distortion (lost, damaged) • Network bandwidth • Packet Deadline (arrive before the playback time) • Packet dependency • Summary • Different portions of video bitstream have different contributions to the video quality. • The important packets (with large distortions) can be transmitted earlier. • The packets of base layer are the most important. Feedback information

  6. When packet loss, how to recover • Use retransmission scheme to recover lost packet • But not all lost packet can be recovered • Due to the available network bandwidth and the delivery deadline constraint • Summary: • The lower layer has more chances to retransmit its packets.

  7. The characteristics of the transmission buffer (1/2) • The packet in transmission buffer has two states: • In the ready states: • Can be scheduled for transmission • In the blocked states: • Can not be scheduled until packet loss or its timeout RTO≦tout • How to select a packet to transmit at tcur from the transmission buffer • Sbuf is the set of all the ready packets Sbuf = {pi,j|ai,j≦tcur and tcur+ci,j≦di and in ready state} pi,j: the packet of the jth layer in frame Fi ai,j: release time (the earliest time the packet in the buffer) ci,j: process time of pi,j di:deadline (the latest time pi,j should be sent to client)

  8. The characteristics of the transmission buffer (2/2) • How to select • First step • Server selects the ready packets of base layer with earliest deadline firstly (EDF) • Second step • If no base layer packets in ready state, the serer select and schedule the ready packets of enhancement layers • In enhancement layer • According to rate-distortion decision • If the packets have same distortion, packet with earliest deadline are served first

  9. client The transmission flow ai: the earliest time the packetin the buffer Feedback includes: packet loss rate & RTT(round-trip time) ACK: packet unloss NAK: packet loss Layer 3 Layer 3 Layer 3 Layer 3 Layer 2 Layer 2 Layer 2 Layer 2 Layer 1 Layer 1 Layer 1 Layer 1 Base 0 Base 0 Base 0 Base 0 (1) According to feedbackto decide ai (release time) …4 3 2 1 (Frames) ai=4 ai=3 ai=2 ai=1 (3) Base layer transmit first Enhancement layer transmit according to the distortion (2) Put packets into buffer according to ai Ready state Layer 3 Layer 3 Layer 2 Layer 2 Layer 1 Layer 1 Base 0 Base 0 Block state Feedback information & (ACK or NAK) Transmit buffer

  10. A Real-time smoothing algorithm • n frames, a scalable media stream F = {F0,F1,…,Fn-1} • m: the number of layers • pi,j (0≦i≦n-1, 0≦j≦m): the packet of the jth layer in frame Fi • ai: release-time (the earliest time pi,j in the transmission buffer) • di: deadline (the latest time pi,j should be sent to client) • assume the packets in the same frame have the same ai and di • ploss(t): packet loss rate • RTT(t): round-trip-time • RTO(t): retransmission timeout • The processing time of pi,j: ci,j = bi,j/X(t) • bi,j: the size of the packet pi,j • X(t): the available network bandwidth at time t • The fulfill-time of pi,j : fi,j = si,j + ci,j • si,j: the scheduler time of pi,j (fulfill-time = scheduler time + processing time) feedback information

  11. How to decide the release time (ai) • MPEG-4 video can accept an error rate of 10-5 or lower • How to decide the release time (the earliest time pi,j into the transmission buffer) • If the release time is too early • The transmission buffer must be very large • If the release time is too late • There is no chance to retransmission • It is important to select the retransmission times K for lossy packets of the base layer • Let be the total loss probability of the pi,0 through K times retransmission, we get the smallest K that ≦10-5 • ai = di–K * RTO (K & RTO decided by feedback) • di: deadline (the latest time pi,j should be sent to client)

  12. Constraint of playback (In enhancement layer) (1/2) • It can be • Arbitrarily truncated (decided by the available channel bandwidth) • Tolerate the channel errors • A packet pi,j can be selected and scheduled if satisfied • The current time is later than release time(ai ≦ tcur ) • The fulfill-time is earlier than deadline (ai≦ tcur andtcur +ci,j≦ di ) p.s: ci,j = process time of pi,j • According to rate-distortion optimized decision

  13. Constraint of playback (In enhancement layer) (2/2) • Assume the quantization of a frame is Q • if the maximum number bit-plane of a frame is m, and the last bit-plane is z, then Q=2m-z • A distortion model built for uniform quantizer (UQ) is • The distortion of packet pi,j is • The total quality is when J is maximize, the total quality is the best

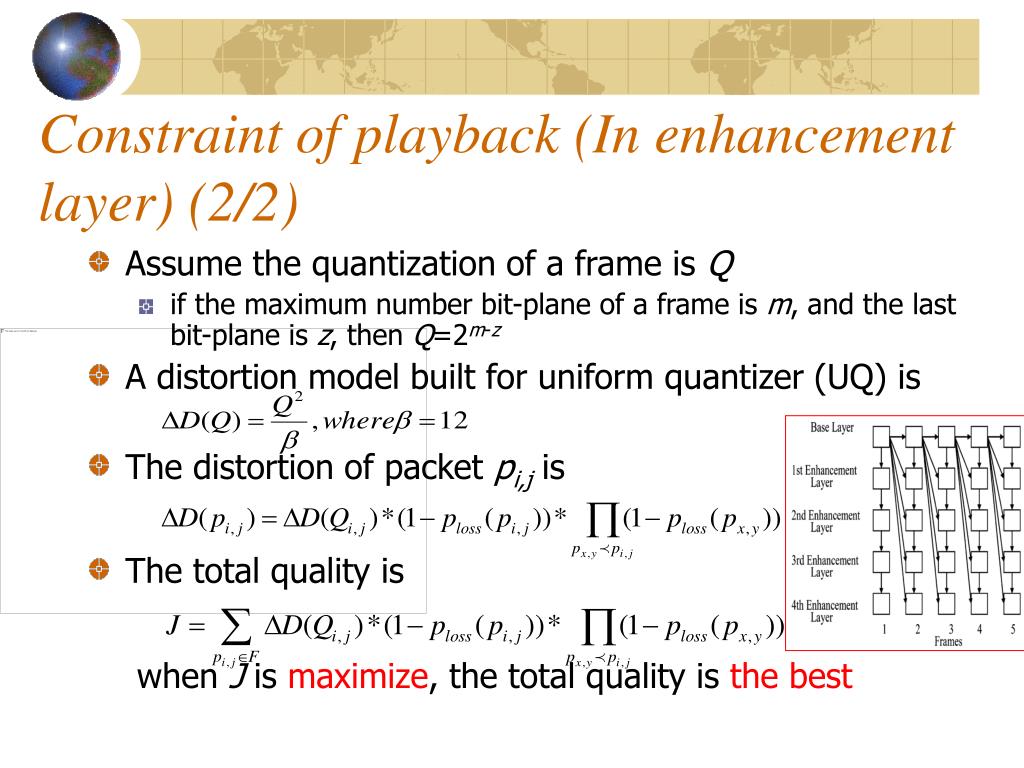

  14. Simulation results (1/3) • Use TFRC protocol to decide the sending rate • s: the packet size, R is RTT (round-trip time), tRTO is retransmission timeout value, and p is the pack loss ratio. • The sequences include Foreman, Coastguard and Akiyo • Encoded with 30 frames per second • There are 7 enhancement layer • The playback frame rate is 30Hz

  15. Simulation results (2/3)

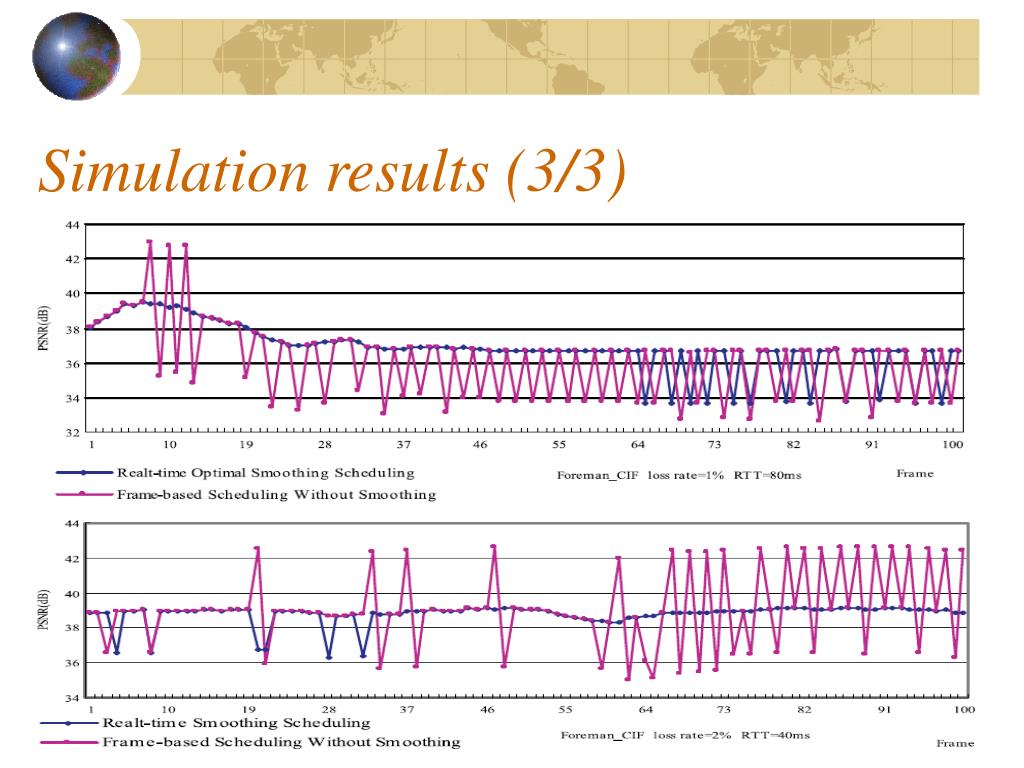

  16. Simulation results (3/3)

  17. Conclusion • Propose a real-time smoothing algorithm • According to feedback information • to select and schedule the packet • under a rate-distortion optimized • The algorithm improves • the utility of the bandwidth • smoothes the playback quality
