  1. Bond WI as a parameter for the evaluation of ore variability in current grinding plant design practice

  2. Authors • Douglas M. Mazzinghy a, Vladmir K. Alves a, Claudio L. Schneider b* • (a) Vale – Centro de Desenvolvimento Mineral, Brazil • (b) Cetem – Centro de Tecnologia Mineral, Brazil

  3. MOTIVATION Design and scale-up of grinding plants for Green Field projects at Vale’s CDM • Copper ores • Iron ores • Apatite ores • Other projects

  4. OBJECTIVES • To characterize the ore body for milling design • To design a grinding circuit that attends 80% of the ore body • To be able to design the milling circuit using modern simulation and scale-up techniques

  5. The Bond WI • Single parameter that can be easily incorporated in variability analysis • Parameter is required for over 150 drill core samples • Time frame for all grinding tests and conceptual design is usually less than one year

  6. The Bond WI • A good lab can perform 1.5 Bond tests per day totaling 100 days of continuing testing • Sample requirements is large for drill core campaigns • Use of simplified procedures may reduce time requirements significantly (and costs) as well as sample requirements

  7. The Bond WI • The “Anaconda” procedure has been shown to produce statistics that are equal to the complete Bond test (the distributions of BWI have the same average, standard deviation, form, etc….) • Anaconda requires only about 1kg of crushed drill core sample

  8. The Bond WI • A good lab can perform ten Anaconda tests per day

  9. Typical Anaconda test results for project GFPA

  10. Calculation of the distribution of BWI fr a subset of drill core samples from GFPA

  11. Calculation of BWI80 for a subset of drill core samples from GFPA

  12. The variability of Anaconda BWI for all drill core samples from project GFPA BWI80 = 19 kWh/t

  13. Q: While the BWI variability campaign is being run do we need to wait for its results to run H-F scale up tests? A: No. We run H-F scale-up tests in a number of samples right at the beginning of the variability campaign. For these samples we also run BWI standard tests.

  14. The H-F scale-up procedure test results for the scale-up samples

  15. The Bond standard BWI results for the scale-up samples

  16. We pick the sample with the measured BWI that is closest to the value of BWI80 from the variability campaign

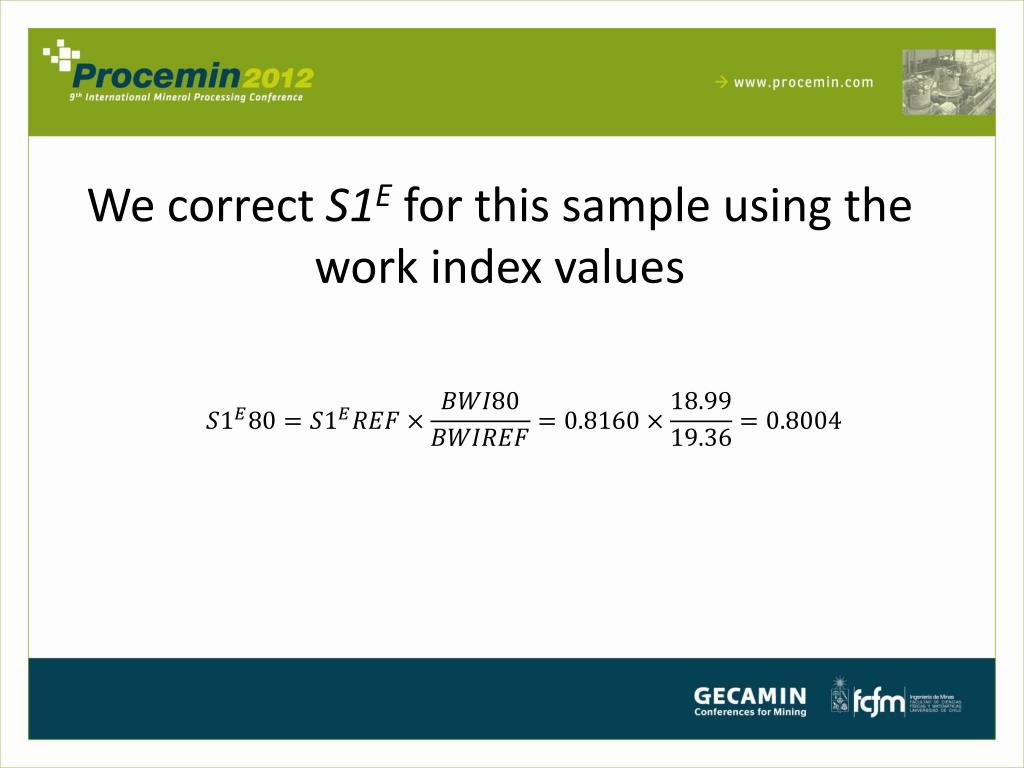

  17. We correct S1E for this sample using the work index values

  18. And we scale-up the grinding circuit for 80% of the ore body using these parameters

  19. Discussion • The correction is feasible because both parameters (BWI and S1E) are multiplied by mill power at scale-up so that the amount of additional power that would be required by both methods are exactly equal.

  20. Conclusion • BWI may be used as a parameter in assessing ore body variability with advantage. • Simplified BWI techniques can be used as all that is required is the value of BWI80, not the sample that generated this BWI80

  21. Acknowledgements • This work was sponsored by Vale.
