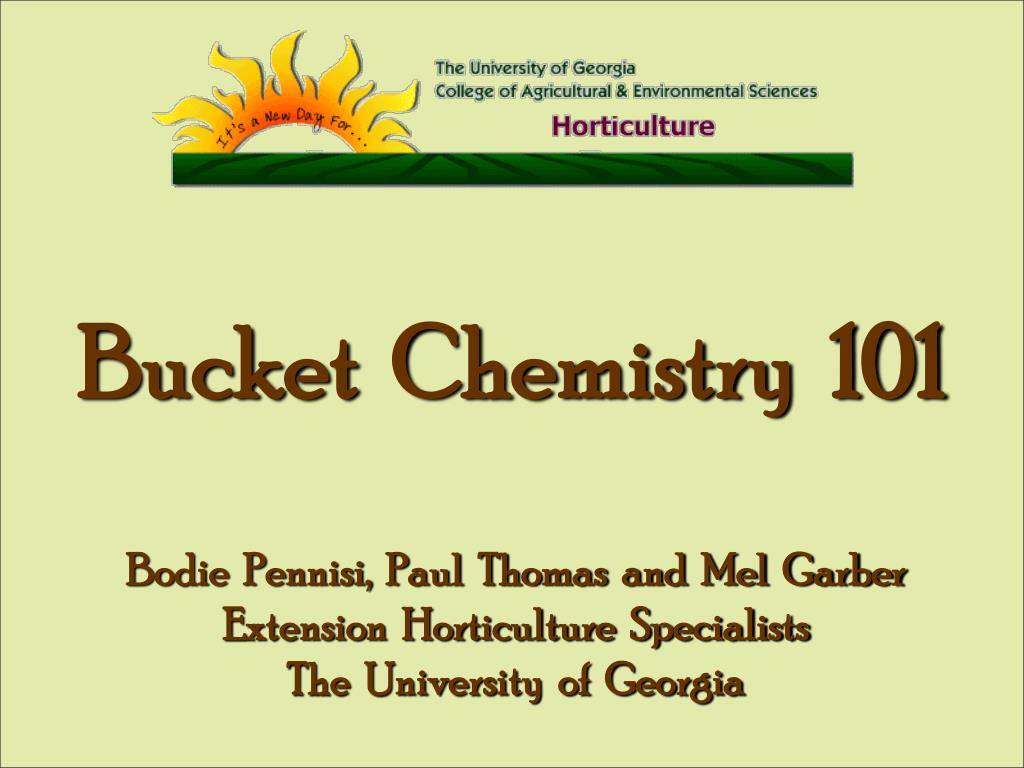

  1. Bucket Chemistry 101 Bodie Pennisi, Paul Thomas and Mel Garber Extension Horticulture Specialists The University of Georgia

  2. Bucket Chemistry

  3. Fertilizer Problems Are Not That Bad !

  4. The Way To Tackle Them Is …

  5. Greenhouse Crops and Fertilizer Recommendations

  6. Fertilizer Stock Tank

  7. PROPORTIONER A device used in a fertigation system to control the rate of fertilizer applied through the system.

  8. Fertilizer Injector or Proportioner Stock Fertilizer Tank 1 part stock solution Water line 100 parts of water Injector ratio 1 : 100 Irrigation line to plants

  9. Fertilizer Injector or Proportioner Stock Tank Water line 1 part stock solution 5 gal 25 50 100 200 500 etc. x parts of water Injector ratios 2% 1% 0.5% 1% 1:50 = 1:100 = 1:200 = 1:500 = To get from ratios to percent: (1/50) x 100 = 2% To get from percent to ratios : 100/2%=1:50

  10. Fertilizer recommendations for greenhouse crops are given as either ppm of a specific fertilizer nutrient or in pounds and ounces (weight basis) of a fertilizer formulation per 100 gallons of water Parts per million (ppm) One part of a substance into one million parts of another substance

  11. Things You Need To Know To Solve ppm Problems: • Recommended fertilizer application rate. • Example: 8 ounces per 100 gal or 200 ppm nitrogen • 2. Fertilizer formulation and analysis. • Example: 20-10-20 • Injection ratio • Example: 1:100 • Size of stock tank in gallons • Example: 25 gallons

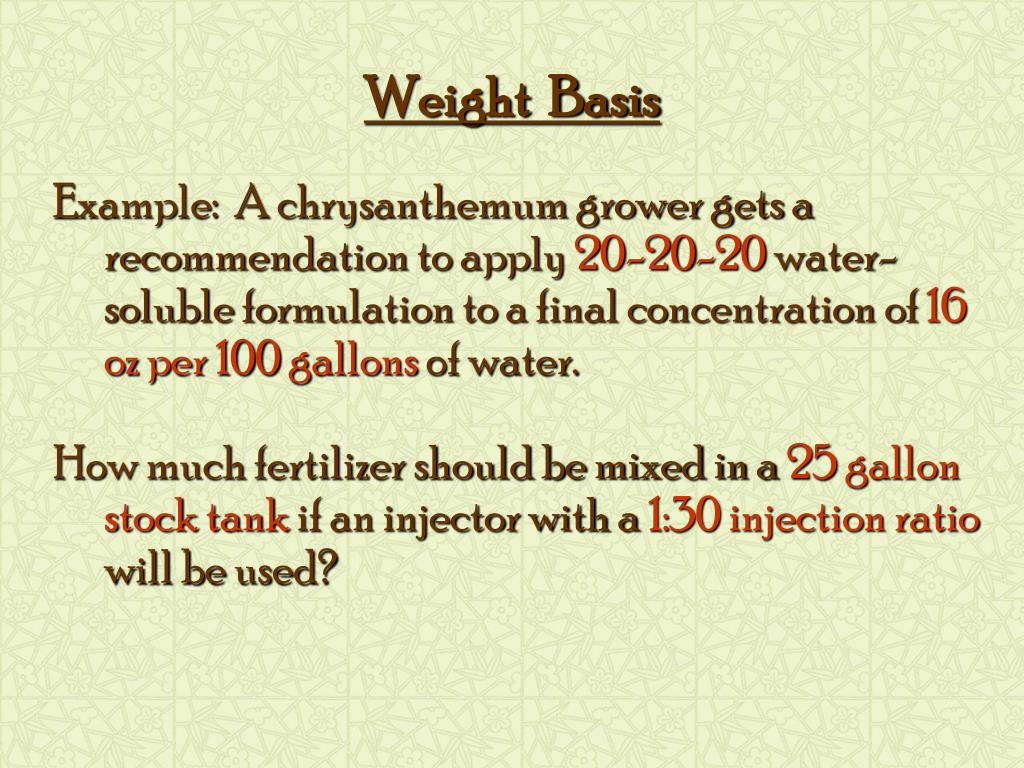

  12. Weight Basis Example: A chrysanthemum grower gets a recommendation to apply 20-20-20 water-soluble formulation to a final concentration of 16 oz per 100 gallons of water. How much fertilizer should be mixed in a 25 gallon stock tank if an injector with a 1:30 injection ratio will be used?

  13. Things You Need To Know To Solve This Problem: • Recommended fertilizer application rate. • 16 ounces per 100 gal • 2. Fertilizer formulation and analysis. • 20-20-20 • Injection ratio • 1:30 • Size of stock tank in gallons • 25 gallons

  14. Solution Step 1: Adjust the rate for the stock tank size using the following equation: Equation 1 oz per 100 gal = oz fertilizer per stock tank 100 / Stock Tank Size (gal) 16.0 oz per 100 gal= 4.0 oz of 20-20-20 100 / 25 gal

  15. Solution Step 2: Adjust the rate for the injection ratio: Equation 2 oz per stock tank x injector ratio = oz per stock tank using injector 4.0 oz per 25 gal x 30 = 120.0 oz per 25 gal @ 1:30 ratio

  16. Commercial Fertilizer (ppm) Example: A pansy grower gets a recommendation to apply 150 ppm nitrogen using 20-10-20 water-soluble formulation. How much fertilizer should be mixed in a 25 gallon stock tank if an injector with a 1:100 injection ratio will be used?

  17. Things You Need To Know To Solve This Problem: • Recommended fertilizer application rate. • 150 ppm nitrogen • 2. Fertilizer formulation and analysis. • 20-10-20 • Injection ratio • 1:100 • Size of stock tank in gallons • 25 gallons

  18. The Rule of 75 1 oz / 100 gal = 75 ppm • HOW DID WE GET THIS ? One ounce (28 grams) of any pure dry substance that will dissolve 100% in a volume of 100 gal equals 75 ppm 1 oz = 28 g or 28,000 mg 28,000 mg ÷ 379 L = 73.88 ppm ( 1 gal = 3.79 L 100 gal = 379 L )

  19. Solution Step 1: Convert the ppm recommendation to a weight basis using the following equation: Equation 3 desired ppm = oz fertilizer per 100 gal % of fertilizer nutrient x 0.75 150 ppm = 10.0 oz of 20-10-20 per 100 gal 20 % x 0.75 (final solution)

  20. Solution Step 2: Use equation 1 to adjust for a stock tank size of 25 gallons: oz per 100 gal = oz fertilizer per tank 100 / Tank Size (gal) 10.0 oz per 100 gal = 2.5 oz of 20-10-20 per 25 gal 100 / 25 gal

  21. Solution Step 3: Use equation 2 to adjust the rate for a 1:100 injection ratio: (In other words, concentrate it! ) oz per stock tank x injector ratio = oz per stock tank using injector 2.5 oz per 25 gal x 100 = 250.0 oz per 25 gal using a 1:100 injection ratio

  22. Solution Are You Done ? Step 4: Convert ounces to pounds and ounces where: 16 ounces = 1 pound (dry) 250.0 oz per 25 gal = 15 lbs 10 oz 20-10-20 16 oz/lb (. . . .in a 25 gallon stock tank) This will give you 150 ppm with a 1/100 ratio

  23. Not Yet ! How many parts per million of actual phosphorus and potassium will be applied with the 150 ppm N from the 20-10-20 ? Equation 4: Oz fertilizer per 100 gal x 0.75 x percent nutrient = the ppm desired nutrient . Phosphorus 10.0 oz per 100 gal x 0.75 x 10% P2O5 = 75 ppm P2O5

  24. Not Yet ! For actual phosphorus : P2O5 is actually only 44% elemental phosphorus Therefor 75 ppm P2O5 x 0.44 = 33 ppm actual phosphorus

  25. Equation 4 – Now lets find the potassium true value! Oz fertilizer per 100 gal x 0.75 x percent nutrient = ppm desired nutrient Potassium 10.0 oz per 100 gal x 0.75 x 20% K2O = 150 ppm K2O in solution For actual potassium : K2O is 83% elemental potassium 150 ppm K2O x 0.83 = 124.5 ppm actual potassium

  26. Final analysis: 150 ppm N : 33 ppm P : 124.5 ppm K
