Presentation Transcript

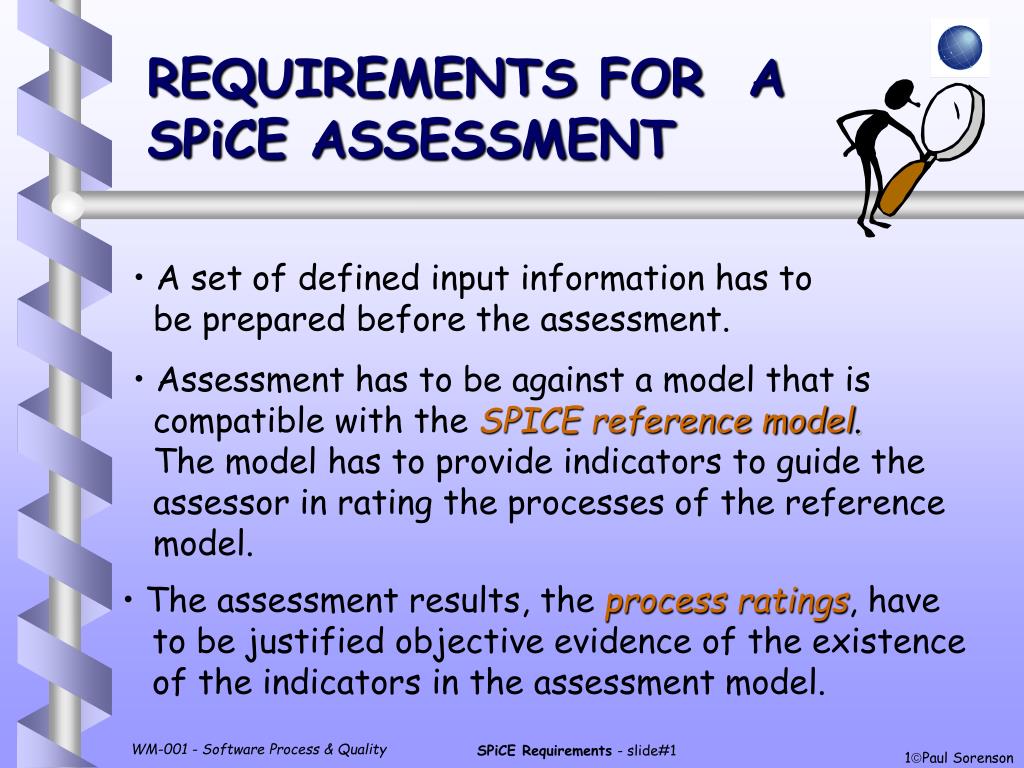

requirements for a spice assessment
REQUIREMENTS FOR ASPiCE ASSESSMENT
  • A set of defined input information has to
  • be prepared before the assessment.
  • Assessment has to be against a model that is
  • compatible with the SPICE reference model.
  • The model has to provide indicators to guide the
  • assessor in rating the processes of the reference
  • model.
  • The assessment results, the process ratings, have to be justified objective evidence of the existence
  • of the indicators in the assessment model.

SPiCE Requirements - slide#1

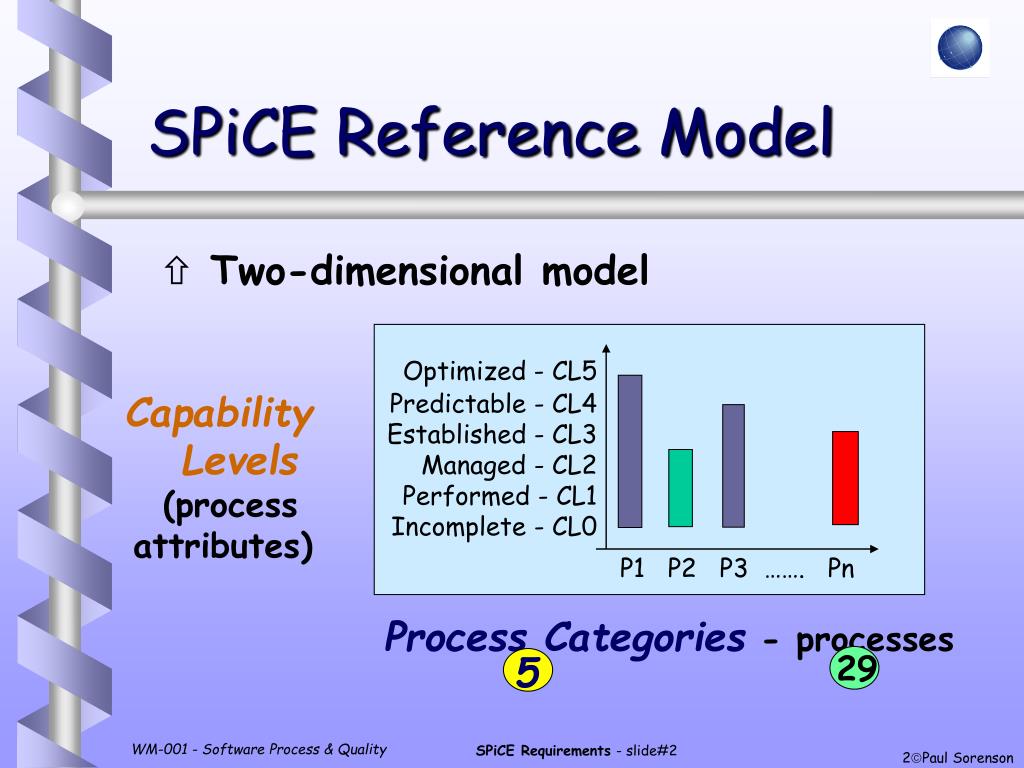

spice reference model

Optimized - CL5

Predictable - CL4

Established - CL3

Managed - CL2

Performed - CL1

Incomplete - CL0

P1 P2 P3 ……. Pn

29

5

SPiCE Reference Model
  • Two-dimensional model

Capability

Levels

(process

attributes)

Process Categories - processes

SPiCE Requirements - slide#2

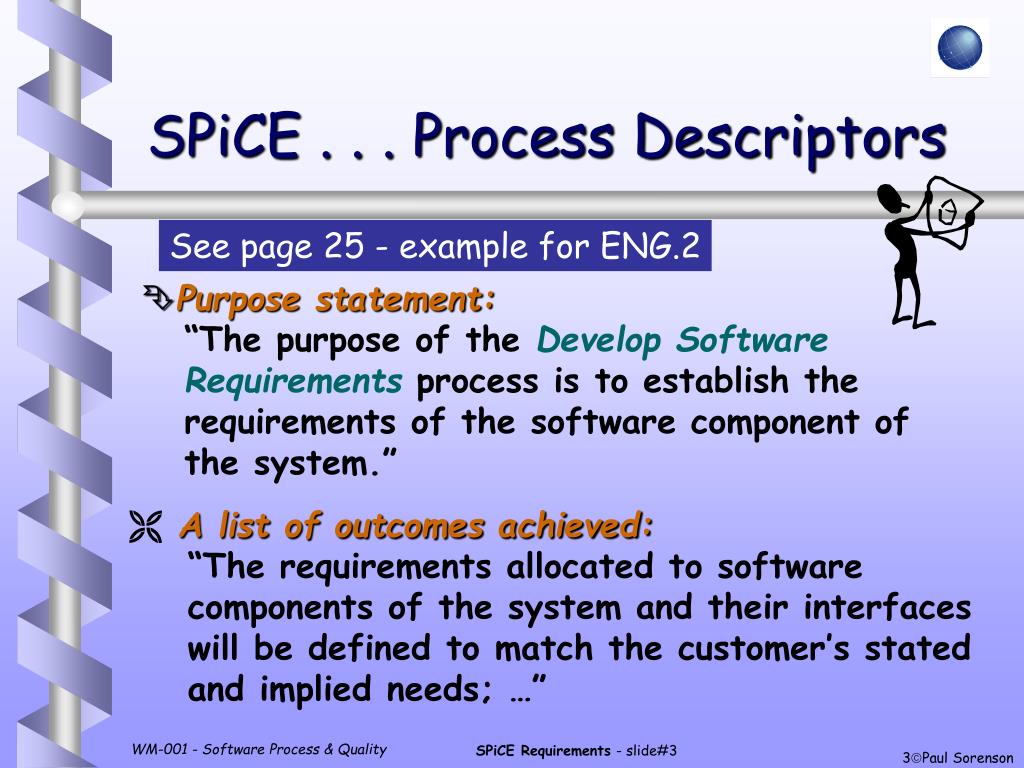

spice process descriptors
SPiCE . . . Process Descriptors

See page 25 - example for ENG.2

  • Purpose statement: “The purpose of the Develop Software Requirements process is to establish the requirements of the software component of the system.”
  • A list of outcomes achieved: “The requirements allocated to software components of the system and their interfaces will be defined to match the customer’s stated and implied needs; …”

SPiCE Requirements - slide#3

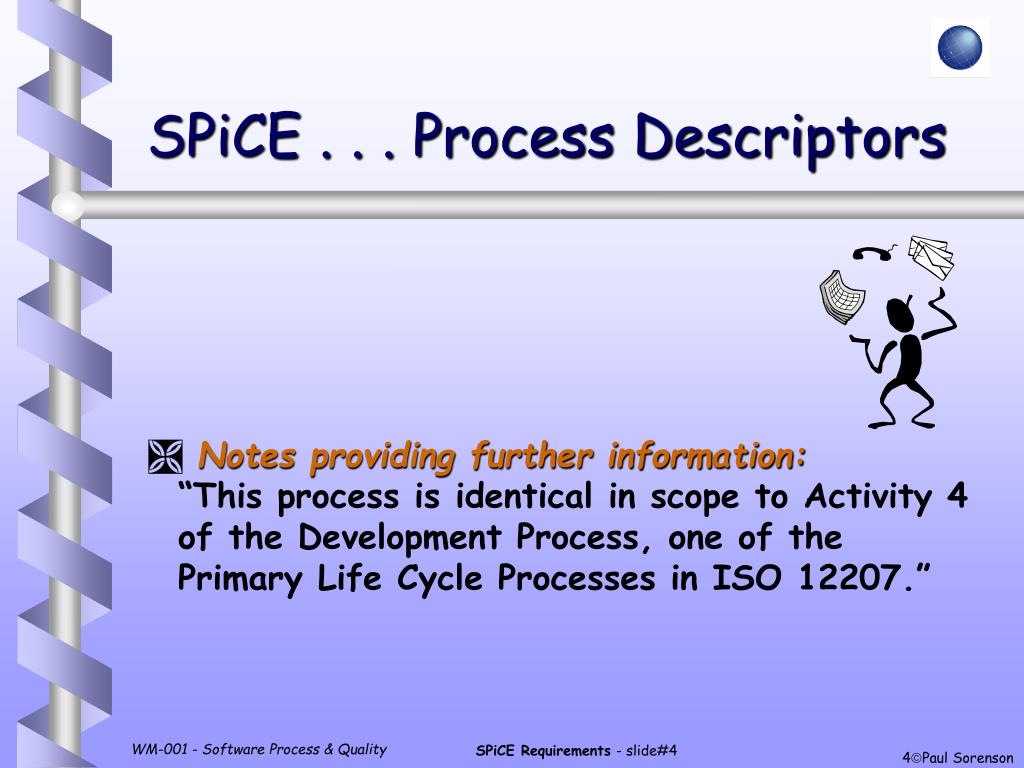

spice process descriptors4
SPiCE . . . Process Descriptors
  • Notes providing further information: “This process is identical in scope to Activity 4 of the Development Process, one of the Primary Life Cycle Processes in ISO 12207.”

SPiCE Requirements - slide#4

spice capability levels

5.Optim.

Optimized

Managed

Defined

Repeatable

Initial

4.Predictable

2.Managed

3.Established

0.Incomplete

1.Performed

SPiCE . . . Capability Levels

CMM

SPiCE Requirements - slide#5

spice compatible assessment model
SPiCE . . . Compatible Assessment Model
  • Model purpose- for process assessment.
  • Model scope - a subset of the process dimension and a “continuous” subset of the levels of the capability dimension.
  • Mapping - elements of the model are mapped to the elements of the SPICE reference model.
  • Translation - the mechanism for converting the data collected against the assessment model into the SPICE rating scheme.

SPiCE Requirements - slide#6

spice assessment hierarchy

Process Process ….. Process

Process Process Process

...

Instance Instance Instance

Attribute Attribute ….Attribute

Indicator Indicator …... Indicator

SPiCE . . . Assessment Hierarchy

Process Category [5]

Assess

Determine

SPiCE Requirements - slide#7

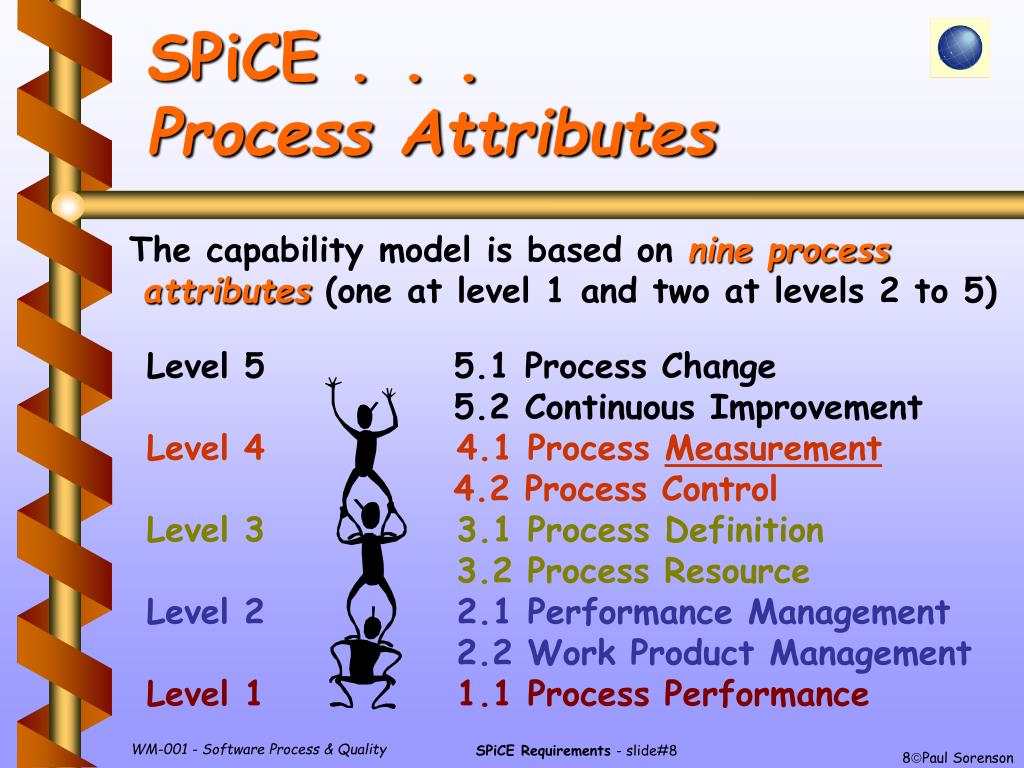

spice process attributes
SPiCE . . . Process Attributes

The capability model is based on nine process attributes (one at level 1 and two at levels 2 to 5)

Level 5 5.1 Process Change 5.2 Continuous ImprovementLevel 4 4.1 Process Measurement 4.2 Process ControlLevel 3 3.1 Process Definition 3.2 Process ResourceLevel 2 2.1 Performance Management 2.2 Work Product ManagementLevel 1 1.1 Process Performance

SPiCE Requirements - slide#8

spice process indicators
SPiCE . . . Process Indicators
  • Indicators - are used to support the assessor’s judgement in rating process attributes. Generally there are process performance indicators and process management indicators.
  • Objective evidence - based on the indicators, must be documented to justify assessment ratings
  • Example indicators - work products, practices, records, reports.

SPiCE Requirements - slide#9

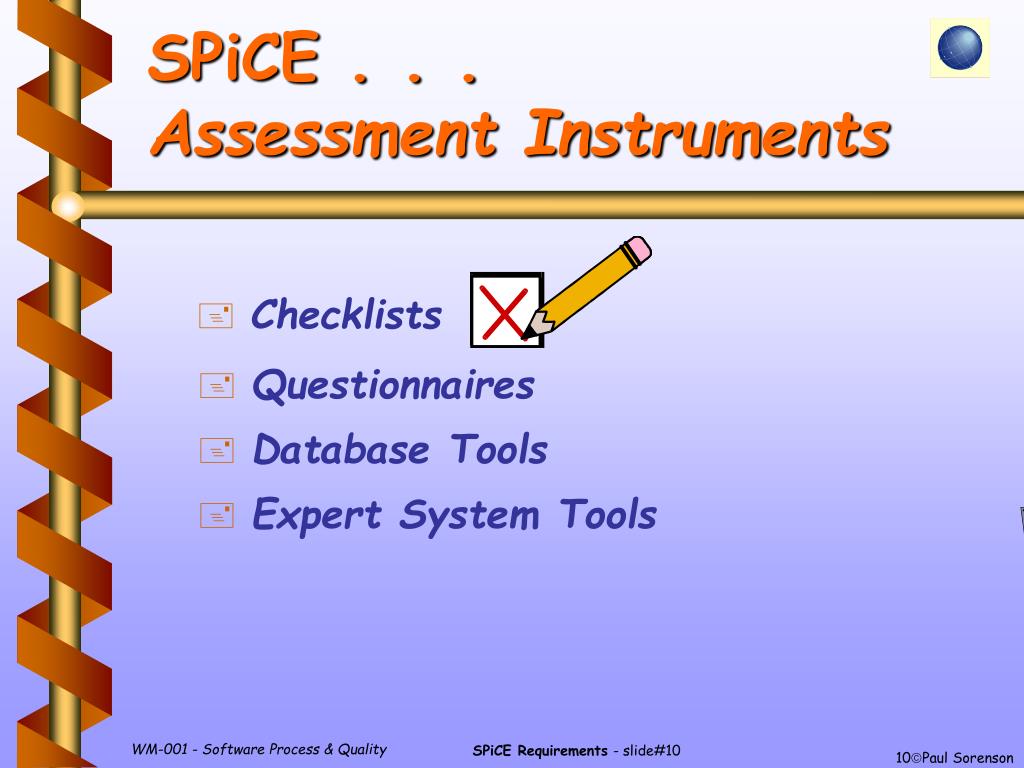

spice assessment instruments
SPiCE . . . Assessment Instruments
  • Checklists
  • Questionnaires
  • Database Tools
  • Expert System Tools

SPiCE Requirements - slide#10

spice assessment process
SPiCE . . . Assessment Process
  • Each process in the assessment scope is assessed by examining one or moreprocess instances(e.g. each time the code for a new software product is written, a process instance of an implemented software design is created.)
  • The assessment process is based on the set of process instances selected that satisfy the purpose and scope of the assessment.

SPiCE Requirements - slide#11

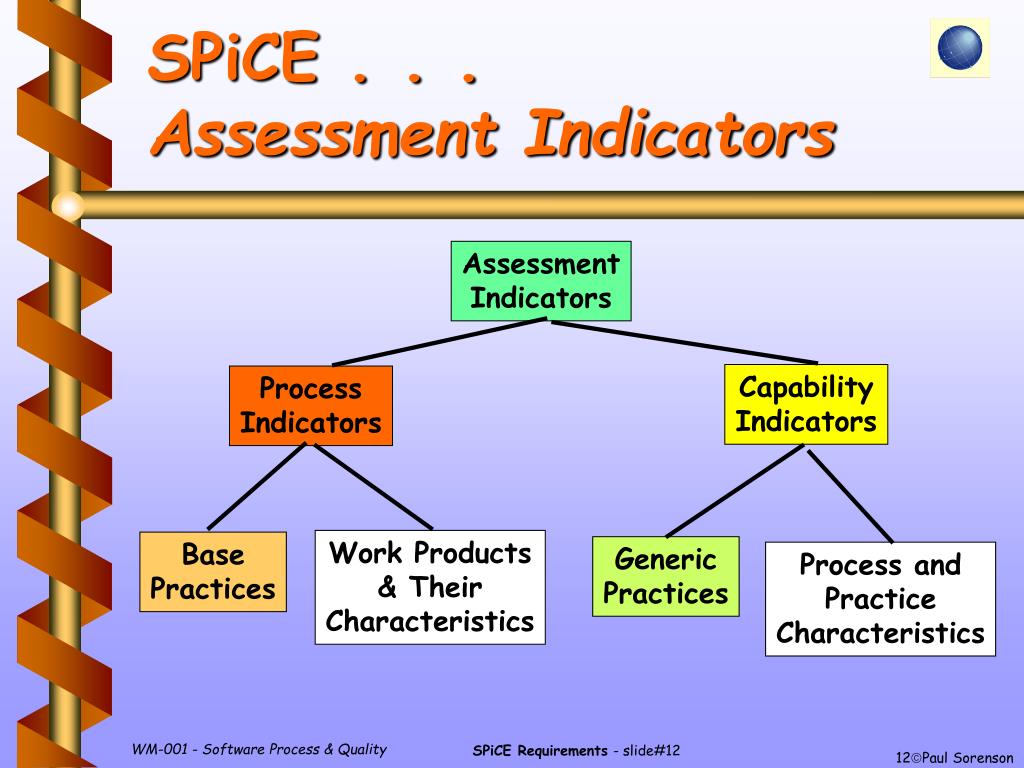

spice assessment indicators

Capability

Indicators

Process

Indicators

Work Products

& Their

Characteristics

Base

Practices

Generic

Practices

Process and

Practice

Characteristics

SPiCE . . . Assessment Indicators

Assessment

Indicators

SPiCE Requirements - slide#12

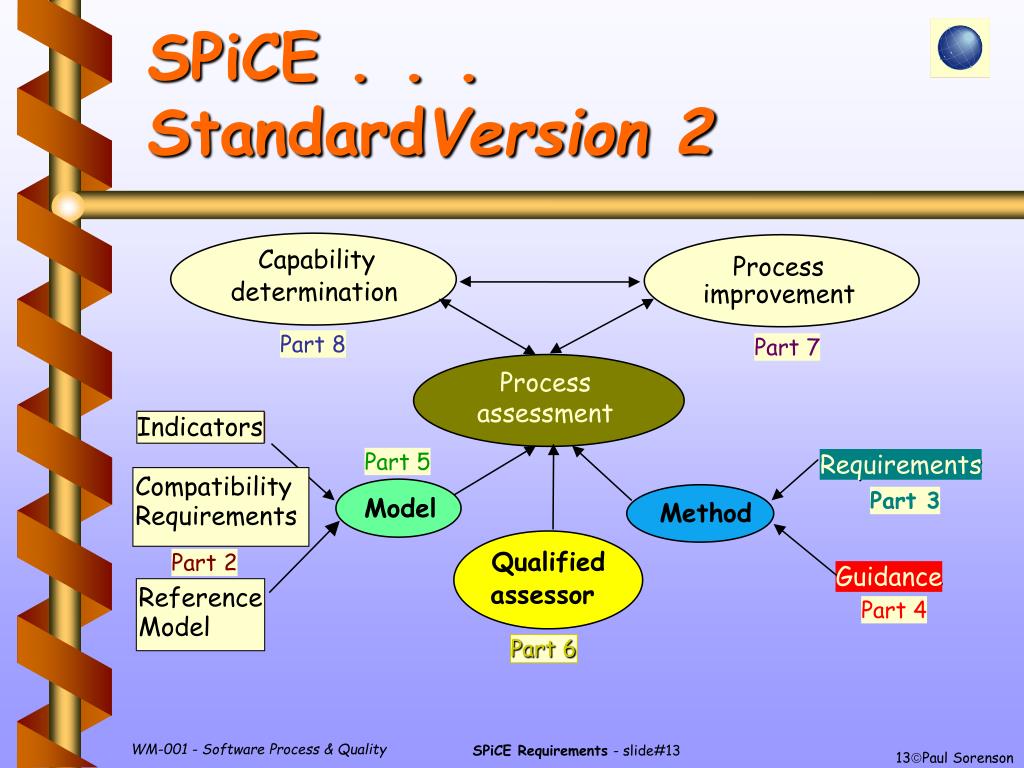

spice standard version 2

Requirements

Requirements

Part 3

SPiCE . . . StandardVersion 2

Capability

Process

determination

improvement

Part 8

Part 7

Process

assessment

Indicators

Indicators

Part 5

Compatibility

Model

Method

Requirements

Qualified

Part 2

Guidance

Guidance

assessor

Reference

Part 4

Model

Part 6

SPiCE Requirements - slide#13

spice process improvement steps
SPiCE . . . Process Improvement Steps

SPiCE Requirements - slide#14
