Presentation Transcript
slide1

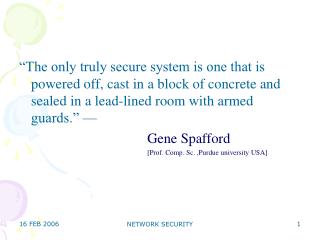

“The only truly secure system is one that is powered off, cast in a block of concrete and sealed in a lead-lined room with armed guards.” —

Gene Spafford

[Prof. Comp. Sc. ,Purdue university USA]

NETWORK SECURITY

rc6 as aes

RC6 AS AES

Ronald L. Rivest

M.J.B. Robshaw

Yiqun Lisa Yin

Ray Sidney

Presented by

HARISH KUMAR LOHAR

2005H103020

NETWORK SECURITY

outline
Outline
  • What is AES
  • Candidates for AES
  • Design Issues
  • RC6 – Introduction
  • RC6 – Detail
  • Performance
  • Security
  • Comparison with RIJNDAEL.
  • Coclusion

NETWORK SECURITY

what is aes
What is AES?
  • The AES was issued as FIPS PUB 197 by NIST. The AES algorithm was selected in October 2001 and the standard was published in November 2002.
  • NIST's intent was to have a cipher that will remain secure well into the next century.
  • AES supports key sizes of 128 bits, 192 bits, and 256 bits, in contrast to the 56-bit keys offered by DES.

NETWORK SECURITY

candidates for aes
Candidates for AES
  • MARS-
        • IBM,KEY SIZE 448 BITS,16 ROUND,Integer addition and bitwise XOR.
  • RC6
        • RSA LABORATORIES.
  • SERPENT
        • Ross Anderson[UK],Eli Biham[ISRAEL],Lars Kundsen[NORWAY],32 Rounds,S-Boxes same as DES.
  • TWO FISH
        • Submitted by Bruce Schneier, John Kelsey, Doug Whiting, David Wagner, Chris Hall, and Niels Ferguson (United States), Blowfish,feistel network,complex and difficult to analyze
  • RIJNDAEL
        • Joan Daemen and Vincent Rijmen (Belgium)
        • Fast, simple, secure, versatile
        • Rijndael is unconventional in that its blocks are matrices of elements i. In the 128-bit version
        • 10 rounds, In each round the individual bytes are transformed, the rows are rotated, and the columns are multiplied to a constant matrix,XORing of the resulting array to a round key.

NETWORK SECURITY

design issues
Design Issues
  • Security Simplicity Versatility
  • Use data-dependent rotations to achieve a high level of security.
  • Adapt RC5 to meet AES requirements.
  • Take advantage of a new primitive for increased security and efficiency.
  • 32x32 multiplication, which executes quickly on

modern processors, to compute rotation amounts.

NETWORK SECURITY

rc6 introduction
RC6 - Introduction
  • RSA Laboratories (United States).
  • RC6 is a parameterized, fast and simple algorithm based on the well-trusted RC5 cipher.
  • Submission consists of 20 rounds.
  • Uses of 32-bit variable rotations and integer multiplications.
  • Uses Four -32 bit register.
  • RC6-w/r/b.[w – words size ,r – round , b -key size in byte]
  • Operations
        • a + b integer addition modulo 2w
        • a - b integer subtraction modulo 2w
        • a b bitwise exclusive-or of w-bit words
        • a b integer multiplication modulo 2w
        • a<<<b rotate the w-bit word a to the left by the amount given by the least signicant lg w bits of b
        • a>>>b rotate the w-bit word a to the right by the amount given by the least signicant lg w bits of b

NETWORK SECURITY

slide8

Key Schedule

Input:

User-supplied b byte key preloaded into the c-word

array L[0; : : : ; c - 1]

Number r of rounds

Output:

w-bit round keys S[0; : : : ; 2r + 3]

Procedure:

S[0] = Pw

for i = 1 to 2r + 3 do

S[i] = S[i - 1] + Qw

A = B = i = j = 0

v = 3 maxfc; 2r + 4g

for s = 1 to v do

{

A = S[i] = (S[i] + A + B)<<<3

B = L[j] = (L[j] + A + B)<<<(A + B)

i = (i + 1)mod(2r + 4)

j = (j + 1)modc

}

P32 = B7E15163 and Q32 = 9E3779B9 (hexadecimal)

NETWORK SECURITY

slide9

Encryption

Input:

Plaintext stored in four w-bit input registers A;B;C;D

Number r of rounds

w-bit round keys S[0; : : : ; 2r + 3]

Output:

Ciphertext stored in A;B;C;D

Procedure:

B = B + S[0]

D = D + S[1]

for i = 1 to r do

{

t = (B x (2B + 1))<<<lg w

u = (D x (2D + 1))<<<lg w

A = ((A xor t)<<<u) + S[2i]

C = ((C xor u)<<<t) + S[2i+ 1]

(A,B,C,D) = (B,C,D,A)

}

A = A + S[2r + 2]

C = C + S[2r + 3]

NETWORK SECURITY

slide10

Decryption

Input:

Ciphertext stored in four w-bit input registers A;B;C;D

Number r of rounds

w-bit round keys S[0; : : : ; 2r + 3]

Output:

Plaintext stored in A;B;C;D

Procedure:

C = C - S[2r + 3]

A = A - S[2r + 2]

for i = r downto 1 do

{

(A;B;C;D) = (D; A;B;C)

u = (D x (2D + 1))<<<lg w

t = (B x(2B + 1))<<<lg w

C = ((C - S[2i + 1])>>>t xor u

A = ((A - S[2i])>>>u) xor t

}

D = D - S[1]

B = B - S[0]

NETWORK SECURITY

rc6 round
RC6 Round

NETWORK SECURITY

security
Security

8b 1408

  • Exhaustive search - 2 to 2

704

  • Meet in Middle Attack – 2
  • Chances that two 256 bit key will yield same key Array.

2x256 – 44x3 -896 -70

2 = 2 = 10

  • No timing attacks since rotation are data dependent
  • No known weak keys.
  • No known related-key attacks.
  • Round keys appear to be a “random” function of the supplied key.
  • Bonus: key expansion is quite “one-way”- difficult to infer supplied key from round keys.

NETWORK SECURITY

performance
Performance
  • CPU cycle /Operation[200 Mhz processor]

Java Borland C Assembly

Key Setup 110000 2300 1108

Encryption 16200 616 254

Decryption 16500 566 254

  • Encryption Rate [Megabits/sec]

Encryption 1.57 41.5 100.8

Decryption 1.55 45.2 100.8

  • On 8 bit processor

Intel MCS51 ( 1 Mhz clock )

Encrypt/decrypt at 9.2 Kbits/second(13535 cycles/block)

Key setup in 27 milliseconds

Only 176 bytes needed for table of round keys.

Fits on smart card (< 256 bytes RAM).

NETWORK SECURITY

rc6 why not chosen
RC6 – why not chosen?
  • On 8-bit processors, RC6 does not generally perform as well as some of the other AES finalists.
  • The ultra-secure key schedule had an impact on the key agility of the cipher.
  • The key schedule and the use of multiplication added some complexity to hardware implementations and impacted hardware performance .
  • The performance profile of RC6 on 64-bit machines was volatile. On some processors, RC6 easily out-performed all other finalists .Yet, on Intel’s IA-64 architecture, surprisingly poor support for multiplication meant that the performance of RC6 was hindered .

NETWORK SECURITY

rc6 vs rijndael
RC6 Vs RIJNDAEL
  • RIJNDAEL WINS:
      • 8 bit platforms
      • hardware implementations ..[but ASIC]
  • CLOSE FIGHT:
      • DSP
      • FPGAs
  • RC6 WINS:
      • ARMs,PENTIUM II,PRO,III AND POWER PC
      • ADVANCE PROCESSOR
      • JAVA PLATFORM
      • CODE SIZE AND MEMORY REQUIREMENTS

“RC6 was beyond a doubt the easiest candidate to implement on a

32 bits machine, as is illustrated by its incredibly short code .On

a speed point of view, RC6 is impressive too.”

– Hachez, Koeune, and Quisquater

NETWORK SECURITY

aes submission panel
AES Submission Panel

From left to right:

Ross Anderson, Ron. Rivest, Vincent Rijmen, Bruce Schneier, and Shai Halevi

Source:

http://csrc.nist.gov/CryptoToolkit/aes/round2/conf3/submitters1.jpg

NETWORK SECURITY

conclusion
Conclusion
  • SIMPLE
  • SECURE
  • FAST
  • COMPACT
  • FUTURE

“ IMPOSSIBLE IS SOMETHING UNTRIED”

NETWORK SECURITY

glossary
Glossary
  • NIST

– National Institute of Standards and technology.

  • AES

– Advance Encryption Standard.

  • RC

– Rivest Cipher or Ron’s Code

  • FIPS

– Federal Information Processing Standards

NETWORK SECURITY

references
REFERENCES
  • AES candidates..

http://www.rsasecurity.com/rsalabs/node.asp?id=2236

  • AES III [APRIL 13-14,2000] Conference Link:

http://csrc.nist.gov/CryptoToolkit/aes/round2/conf3/aes3conf.htm

  • The Effects of Multiple Algorithms in the Advanced Encryption Standard

http://csrc.nist.gov/CryptoToolkit/aes/round2/conf3/papers/06-iharvey.pdf

  • R.L. Rivest, M.J.B. Robshaw, R. Sidney, and Y.L. Yin. The RC6 Block Cipher.v1.1, August 20, 1998. Available fromwww.rsasecurity.com/rsalabs/aes/
  • AES and Future Resiliency: More Thoughts And Questions

By Don B. Johnson

djohnson@certicom.com

March 10, 2000

  • CRIPTOR1.0. VLSI Implementation of the RC6 Block Cipher

Erica Mang

Computers Department,

University of Oradea, 5 Armatei Romane Str., 3700, Oradea, Romania

NETWORK SECURITY

slide20

QUERIES?

THANKS TO ALL OF YOU FOR LISTENING SO ATTENTIVELY AND PATIENTLY……………
