communicating with devices

Communicating with Devices

Prasun Dewan

Department of Computer Science

University of North Carolina

dewan@unc.edu

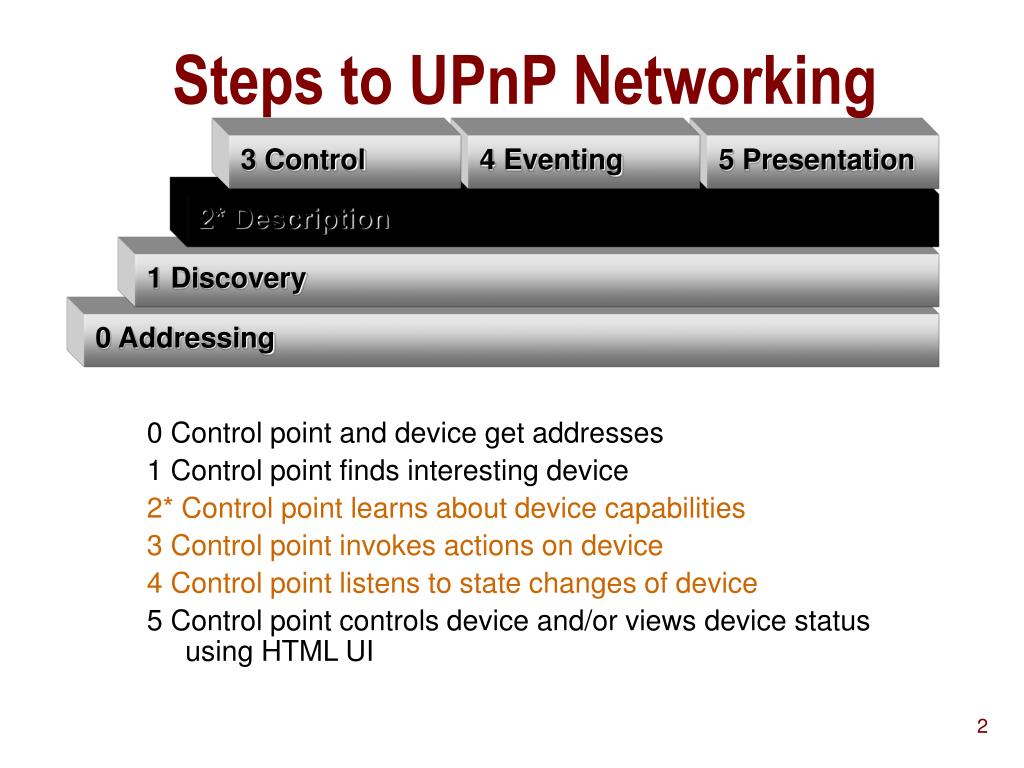

steps to upnp networking
Steps to UPnP Networking

3 Control

4 Eventing

5 Presentation

0 Control point and device get addresses

1 Control point finds interesting device

2* Control point learns about device capabilities

3 Control point invokes actions on device

4 Control point listens to state changes of device

5 Control point controls device and/or views device status using HTML UI

2* Description

1 Discovery

0 Addressing

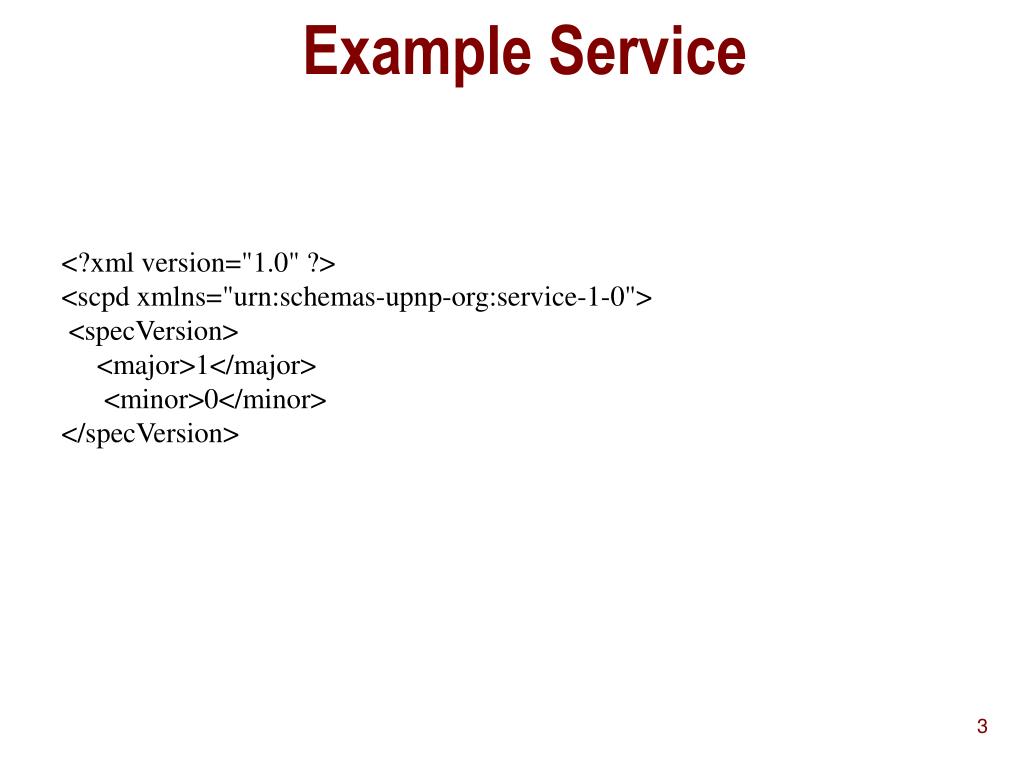

example service
Example Service

<?xml version="1.0" ?>

<scpd xmlns="urn:schemas-upnp-org:service-1-0">

<specVersion>

<major>1</major>

<minor>0</minor>

</specVersion>

example action list
Example Action List

<actionList>

<action>

<name>PowerOn</name>

</action>

<action>

<name>SetChannel</name>

<argumentList>

<argument>

<name>Channel</name>

<relatedStateVariable>Channel</relatedStateVariable>

<direction>in</direction>

</argument>

</argumentList>

</action>

….

<actionList>

example variables
Example Variables

<serviceStateTable>

<stateVariable sendEvents="yes">

<name>Power</name>

<dataType>Boolean</dataType>

<defaultValue>0</defaultValue>

</stateVariable>

<stateVariable sendEvents="yes">

<name>Channel</name>

<dataType>i4</dataType>

<allowedValueRange>

<minimum>1</minimum>

<maximum>100</maximum>

<step>1</step>

</allowedValueRange>

<defaultValue>1</defaultValue>

</stateVariable>

…..

</serviceStateTable>

example server code
Example Server Code
  • Object processMessages (Message message) {
    • switch (message.kind)
    • case GET_VAR_REQUEST:
    • switch ((GetVarMessage) message).varName)
    • case “Channel”: message.result = getChannel();
    • case ACTION_REQUEST:
    • actionMessage = (ActionMessage) message.
    • switch (actionMessage.actionName)
    • case “setChannel”: setChannel(parseString(actionMessage.params[0]))
  • }
  • int channel;
  • int getChannel () { return curentChannel};
  • void setChannel (int newChannel) {
  • channel = newChannel;
  • UPnP.announce(“Channel”, toString(getChannel());
  • }
  • ...
high programming cost
High Programming Cost
  • Device developer must:
    • define the XML-based external representation of the device
    • translate the client operation-invocation and variable-access requests to local operation-invocations
    • announce variable change notifications
  • Exporting functionality requires more code than implementing it in example Intel device
    • not counting UI code
  • Cost proportional to complexity of type.
    • Reason for not allowing complex types?
high maintenance cost
High Maintenance Cost
  • Information repeated multiple times
    • operation implementation code
    • action list
    • state variable table
    • message processing code
    • event announcement code
  • All repetitions must be changed
    • tedious
    • error-prone
  • Channel -> Current Channel requires 9 changes!
changed action list
Changed Action List

<actionList>

<action>

<name>PowerOn</name>

</action>

<action>

<name>SetCurrentChannel</name>

<argumentList>

<argument>

<name>CurrentChannel</name>

<relatedStateVariable>CurrentChannel</relatedStateVariable>

<direction>in</direction>

</argument>

</argumentList>

</action>

….

<actionList>

changed state variable table
Changed State Variable Table

<serviceStateTable>

<stateVariable sendEvents="yes">

<name>Power</name>

<dataType>Boolean</dataType>

<defaultValue>0</defaultValue>

</stateVariable>

<stateVariable sendEvents="yes">

<name>CurrentChannel</name>

<dataType>i4</dataType>

<allowedValueRange>

<minimum>1</minimum>

<maximum>100</maximum>

<step>1</step>

</allowedValueRange>

<defaultValue>1</defaultValue>

</stateVariable>

…..

</serviceStateTable>

changed server code
Changed Server Code
  • Object processMessages (Message message) {
    • switch (message.kind)
    • case GET_VAR_REQUEST:
    • switch ((GetVarMessage) message).varName)
    • case “CurrentChannel”: message.result = getCurrentChannel();
    • case ACTION_REQUEST:
    • actionMessage = (ActionMessage) message.
    • switch (actionMessage.actionName)
    • case “setCurrentChannel”: setCurrentChannel(parseString(actionMessage.params[0]))
  • }
  • int channel;
  • int getCurrentChannel () {return channel};
  • void setCurrentChannel (int newChannel) {
  • channel = newChannel;
  • UPnP.announce(“CurrentChannel”, toString(getCurrentChannel());
  • }
  • ...
ideal developer effort
Ideal Developer Effort

int channel;

int getChannel () { return channel};

void setChannel (int newChannel) {

channel = newChannel;

}

...

no programmer defined types
No Programmer-Defined Types
  • XML defines 24 data types
      • ui1, ui2, ui4, i1, i2, i4, int
      • r4, r8, number, fixed.14.4, float
      • char, string
      • date, dateTime, dateTime.tz, time, time.tz
      • boolean
      • bin.base64, bin.hex
      • uri
      • uuid
no programmer defined types14

Dynamic programmer-defined collection

No Programmer-Defined Types
  • Only supports predefined types
    • state variables
    • action parameters
  • No way to model dynamic composites
generating action list
Generating Action List

External Description

Device Code

Actions

Generator

generating action descriptions
Mainly syntactic issue

Static approach

precompiler

Dynamic approach

reflection

vcr.getClass().getMethods()

method.getName()

method.getParameterTypes()

Done in ICrafter (Stanford)

How to get related state variable?

Generating Action Descriptions

int channel;

int getChannel () { return channel};

void setChannel (int newChannel) {

channel = newChannel;

}

<action list>

<action>

<name>SetCurrentChannel</name>

<argumentList>

<argument>

<name>NewChannel</name> <relatedStateVariable>

CurrentChannel

</relatedStateVariable>

<direction>in</direction>

</argument>

</argumentList>

</action>

….

</actionList>

why variables
Why variables?
  • Clients may view device as state manager
    • Because their user has this view.
      • VCR user interface
    • May compose state
      • aggregating sensors
    • More abstract to associate events with variable changes rather than method invocations
      • Channel changed vs.SetChannel called
    • Similarly access and concurrency control state specific
generating external representation
Generating External Representation

External Description

Actions

Device class

Generator

Variables

  • Problem in general unsolvable
  • Need help from programmer
generating variable descriptions
Basic idea

Object state stored in internal vars.

Make them public.

Drawbacks

Violates encapsulation

Changing internal representation changes clients

Not all state may be stored

How to get

Related state vars

Min, max range

How to generate events

public var could be changed directly

Generating Variable Descriptions

public int channel;

int getChannel () { return channel};

void setChannel (int newChannel) {

channel = newChannel;

}

<serviceStateTable>

<stateVariable sendEvents="yes">

<name>Channel</name>

<dataType>i4</dataType>

<allowedValueRange>

<minimum>1</minimum>

<maximum>100</maximum>

<step>1</step>

</allowedValueRange>

<defaultValue>1</defaultValue>

</stateVariable>

…..

</serviceStateTable>

interface based extraction
Abstract data type helps by exposing logical structure using standard system-defined interface (TreeNode)

Approach used in Swing table widget

Equivalent to writing external description

extra programming effort

extra maintenance effort

no type checking (everything TreeNode)

Cannot generate types of variables

must use common interfaces and associated object files

Interface-based extraction

public class VCR implements TreeNode{

int channel;

int getChannel () { return channel};

void setChannel (int newChannel) {

channel = newChannel;

}

}

publicVector getVarNames();

publicTreeNodegetVar(StringfieldName);

public void setVar(String fieldName, val TreeNode)

pattern based approach
Can use relationships between operation names and signatures to

derive external variables (properties)

channel : int

related state variable

setChannel changes channel

Relationships defined by Java beans

Pattern-based Approach

int channel;

int getChannel () { return channel};

void setChannel (int newChannel) {

channel = newChannel;

}

simple properties in java
Simple Properties in Java
  • Defined by a pair of ‘getter’/’setter’ methods:

String getTitle();

void setTitle(String newTitle)

define a title property of type String.

  • In general,

<PropertyType> get<PropertyName>()

void set<PropertyName>(<PropertyType>)

define a simple property named <PropertyName> of type <PropertyType> with read/write semantics.

role of javabeans properties
Role of JavaBeans Properties
  • ‘Properties are discrete named attributes of a Java Bean that can affect its appearance, or its behavior.’
    • typical properties:
      • font
      • color
      • size
properties as record fields
Properties as Record Fields

int channel;

int getChannel () { return channel};

void setChannel (int newChannel) {

channel = newChannel;

}

Main idea:

  • consider properties as elements of the logical structure of the object.
  • record fields

Problems

  • Forces conventions
    • Channel() instead of getChannel()?
    • Legacy code
    • Min, max range?

<serviceStateTable>

<stateVariable sendEvents="yes">

<name>Channel</name>

<dataType>i4</dataType>

<allowedValueRange>

<minimum>1</minimum>

<maximum>100</maximum>

<step>1</step>

</allowedValueRange>

<defaultValue>1</defaultValue>

</stateVariable>

…..

</serviceStateTable>

property specification
Property Specification
  • Approach:
    • separate property specification and interpretation
  • Mechanism
    • introduce a pattern language for property specification
pattern specifications

User-defined, but less work and no duplication

Implementation must conform to specified pattern

Pattern specifications

Pattern specification

Property Extractor

Property Definitions

Device Operations

  • Approach:
    • separate property specification and interpretation
  • Mechanism
    • introduce a pattern language for property specification
examples
Examples

Literals

Free Variables Unified

  • Specification 1

String getTitle();

void setTitle(String newTitle)

define a title property of type String.

  • Specification 2

Stringtitle();

void setTitle(String newTitle)

define a title property of type String.

  • Grammar?
    • Methods as sentences
    • Property name and types not known
    • Must be extracted
  • Unification
    • Methods as facts
    • Property names and types as unified variables
property specification language
Property Specification Language
  • Canonical representation of method signatures:

<return_type> method_name(arg1_type, …,argN_type)

  • An example specification: simple properties

1. Method pattern specifications:

getter = <.GetType.> get.PropName.()

setter = <void> set.PropName.(.SetType.)

    • pattern variables: GetType, PropName, SetType
  • example matches:

getter:String getTitle()

{GetType == “String”,PropName == “Title”}

setter:void setTitle(String)

{SetType == “String”, PropName == “Title”}

java bean specification with constraints
Java Bean Specification with Constraints

property

type = simple

access methods = getter, setter

getter = <.GetType.> get.PropName.()

setter = <void> set.PropName.(.SetType.)

constraints

getter.PropName == setter.PropName

getter.GetType == setter.SetType

name = getter.PropName

end

examples30
Examples
  • Specification 1

String getTitle();

void setTitle(String newTitle)

define a title property of type String.

  • Specification 2

Stringtitle();

void setTitle(String newTitle)

define a title property of type String.

alternative bean specification
Alternative Bean Specification

property

type = simple

access methods = getter, setter

getter = <.GetType.>.PropName.()

setter = <void> set.PropName.(.SetType.)

constraints

getter.PropName == setter.PropName

getter.GetType == setter.SetType

name = getter.PropName

end

properties as record fields32
Properties as Record Fields

int channel;

int getChannel () { return channel};

void setChannel (int newChannel) {

channel = newChannel;

}

  • Allows
    • Channel() instead of getChannel()
    • Legacy code
  • Issues
    • Min, max range?

<serviceStateTable>

<stateVariable sendEvents="yes">

<name>Channel</name>

<dataType>i4</dataType>

<allowedValueRange>

<minimum>1</minimum>

<maximum>100</maximum>

<step>1</step>

</allowedValueRange>

<defaultValue>1</defaultValue>

</stateVariable>

…..

</serviceStateTable>

min max extensions
Min, Max Extensions

Additional Constraints

Property

type = simple

access methods = min, max

min = <int> getMin.PropName.()

max = <int> getMax.PropName.()

step = <int> getStep.PropName.()

constraints

getter.PropName==min.PropName== max.PropName

end

alternative min max extensions
Alternative Min, Max Extensions

Constraints on variable declarations

property

type = simple

access fields = min, max, step

min = <final> <int> MIN_.PropName.

max = <final> <int> MAX_.PropName.

step = <final> <int> STEP_.PropName.

constraints

min.PropName==max.PropName== step.PropName

== getter.PropName

end

no programmer defined types35

Dynamic programmer-defined collection

No Programmer-Defined Types
  • Only supports predefined types
    • state variables
    • action parameters
  • No way to model dynamic composites
two issues
Two issues
  • Representation of programmer-defined types in XML
    • Seems to be syntactic issue
  • Generating external representation
    • Static (Record) structures addressed
      • JavaBeans defines field properties
      • Language allows convention definitions
    • Dynamic structures?
indexed properties in java
Indexed Properties in Java
  • An indexed property is

a simple property of an array type:

Section[] getSection()

void setSection( Section[] section)

with two additional methods:

Section getSection( int index)

void setSection( Section s, int index)

  • Emulates array semantics in procedural languages
understand java vector
Understand Java Vector
  • Cannot support programmer-defined dynamic list

class VCR {

void power();

int getCurrentChannel() ;

void setCurrentChannel(int newVal) ;

Vector getSettings();

void setSettings(Vector newVal)

}

example programmer defined list
Example Programmer-defined List

class VCR {

void power();

int getCurrentChannel() ;

void setCurrentChannel(int newVal) ;

int size();

Setting elementAt(int index);

void removeElement(Setting newVal);

void addElement (Setting newVal);

void setElementAt(Setting newVal,

int index);

}

sequence properties
Sequence properties

insert = <void> insert.Prop.at( int, .InsType.)

remove = <void> remove.Prop.at( int)

lookup = <.GetType.> .Prop.At( int)

set = <void> set.Prop.At( int, .SetType.)

count = <int> size()

property

type = sequence

accessmethods = insert, remove, lookup, count, set

constraints

insert.Prop == remove.Prop == lookup.Prop

insert.InsType == lookup.SetType == lookup.GetType

name = insert.Prop

element type = insert.InsType

publicint size();

publicint settingAt(int index);

publicvoid setSettingAt(int index, Setting newVal);

publicvoid insertSettingAt(int index, Setting newVal);

programmer defined types in external representation
Programmer-Defined Types in External Representation
  • Concrete Constructors
    • Pascal enumeration
    • Subrange
    • Hashtable
    • Array
    • Sequence (variable size list)
    • Record
  • Not abstract types
    • Appliance object is abstract type
    • Must deconstruct object so that variables are known, that is, must map it to concrete type
pattern specifications42
Pattern specifications

Pattern specification

Property Extractor

Property Definitions

Device Operations

Programmer must conform to specified pattern

conforming to patterns
Conforming to Patterns
  • Makes code understandable to humans
  • Also makes code understandable to system tools
    • Bean builder
    • Property Extractor
  • Unlike Bean framework, the patterns chosen by users
  • System adapts to application interfaces rather than vice versa
  • More flexible than the alternative of system-defined interfaces
    • Pattern specification without pattern variables is simply an interface
sequence interface
Sequence interface

insert = <void> insertElementat( int, Object)

remove = <void> removeElementAt( int)

lookup = Object elementAt( int)

set = <void> setElementAt( int, Object)

count = <int> size()

property

type = sequence

accessmethods = insert, remove, lookup, count, set

name = vector

element type = Object

  • Fixes method names
  • Fixes element type to Object
    • not Setting
    • no type checking

publicint size();

publicint elementAt(int index);

publicvoid setElementAt(int index, Object newVal);

publicvoid insertElementAt(int index, Object newVal);

publicvoid insertElementAt(int index, Object newVal);

pattern variables allowing multiple methods names element types
Pattern Variables Allowing Multiple Methods Names/Element Types

insert = <void> insert.Prop.at( int, .InsType.)

remove = <void> remove.Prop.at( int)

lookup = <.GetType.> .Prop.At( int)

set = <void> set.Prop.At( int, .SetType.)

count = <int> size()

property

type = sequence

accessmethods = insert, remove, lookup, count, set

constraints

insert.Prop == remove.Prop == lookup.Prop

insert.InsType == remove.SetType == lookup.GetType

name = insert.Prop

element type = insert.InsType

publicint size();

publicint elementAt(int index);

publicvoid setElementAt(int index, Object newVal);

publicvoid insertElementAt(int index, Object newVal);

public void removeElementAt(int index, Object newVal)

publicint size();

publicint settingAt(int index);

publicvoid setSettingAt(int index, Setting newVal);

publicvoid insertSettingAt(int index, Setting newVal);

publicvoid removeElementAt(int index);

alternative sequence properties with same access methods
Alternative Sequence properties with same access methods

insert = <void> insert.Prop.at( int, .InsType.)

remove = <void> remove.Prop.at( int)

index = <.GetType.> .Prop.At( int)

set = <void> set.Prop.At( int, .SetType.)

count = <int> count()

property

type = sequence

accessmethods = insert, remove, index, count, set

constraints

insert.Prop == remove.Prop == index.Prop

insert.InsType == remove.SetType == lookup.GetType

name = insert.Prop

element type = insert.InsType

publicint count();

publicint settingAt(int index);

publicvoid setSettingAt(int index, Setting newVal);

publicvoid insertSettingAt(int index, Setting newVal);

publicvoid removeElementAt(int index);

alternative sequence properties with different access methods
Alternative Sequence properties with different access methods

insert = <void> insert.Prop.at( int, .InsType.)

remove = <void> remove.Prop.at( int)

iterate = Enumeration elements()

set = <void> set.Prop.At( int, .SetType.)

property

type = sequence

accessmethods = insert, remove, iterate, set

constraints

insert.Prop == remove.Prop == lookup.Prop

insert.InsType == remove.SetType == lookup.GetType

name = insert.Prop

element type = insert.InsType

public Enumeration elements();

publicvoid setSettingAt(int index, Setting newVal);

publicvoid insertSettingAt(int index, Setting newVal);

publicvoid removeElementAt(int index);

reducing high programming cost

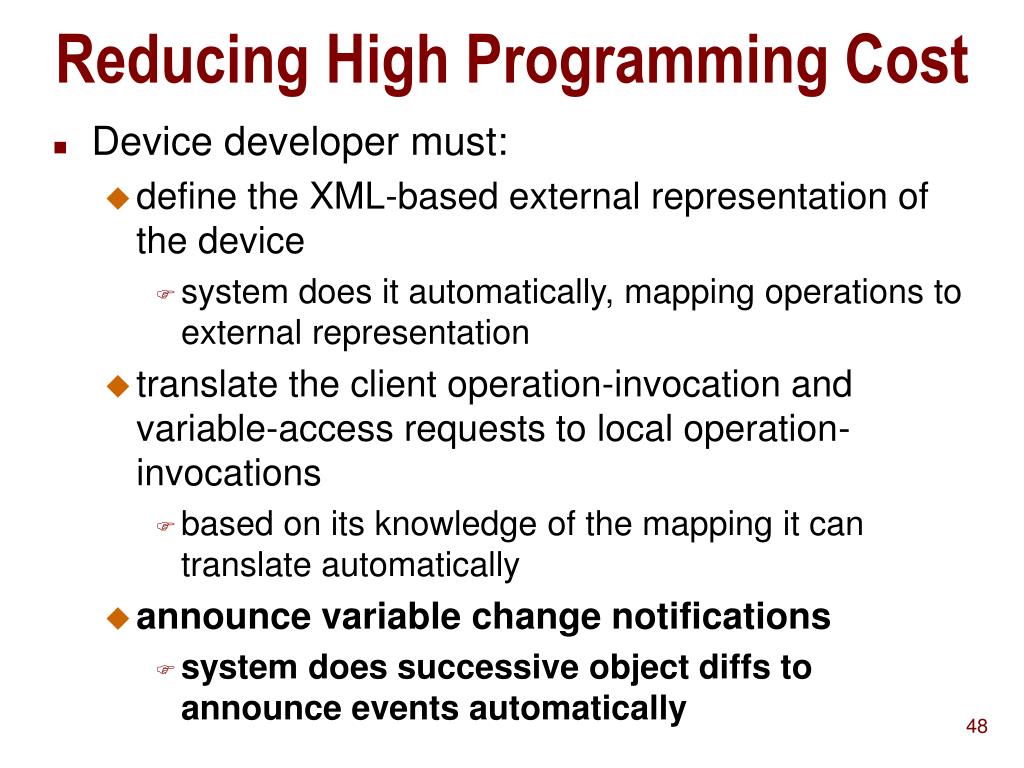

Reducing High Programming Cost
  • Device developer must:
    • define the XML-based external representation of the device
      • system does it automatically, mapping operations to external representation
    • translate the client operation-invocation and variable-access requests to local operation-invocations
      • based on its knowledge of the mapping it can translate automatically
    • announce variable change notifications
      • system does successive object diffs to announce events automatically
generating events
Subscription Manager

Separate from device

Allows clients to register interests in device

Forwards announcements to them

Differ assumes subscription manager exists

Takes successive snapshots

When?

How?

Generating Events

Device Object

Differ

Subscription Manager

register interest

forward event

Client

when snapshots taken

More maintainable

When Snapshots Taken?
  • Client requests
    • user refreshed
    • wants the differences rather than complete values
  • Some client has taken an action on device
    • informs some global object about it
    • other clients can now be notified
  • Timer-based
    • differ polls
    • when upto date information not crucial
  • Device requests
    • Differ.announce() vs.
    • UPnP.announce(“Channel”, toString(getChannel());
how snapshots compared
Operations diff(s1, s2)

for each property p of s1 and s2

diffs += diff (s1.p1, s2.p2)

How Snapshots Compared?

diff(o1,o2) returns a sequence of operations that when applied to o1 take it to o2.

how properties found
How properties found?

property

type = sequence

accessmethods = getter, setter ...

  • Property extraction based on pattern specifications.
  • But pattern specifications defined and interpreted by user.
    • matchedProperty.getMethod(“getter”).invoke (params)
    • “getter” is user-defined
  • Also multiple access methods possible per property type
    • indexing and iteration for sequences
  • Need a standard device-independent interface for each property constructor
device independent interface
Device Independent Interface
  • Unix file operations for all devices
    • do not model structured objects
  • UPnP
    • standard operation to read any variable
    • no standard operation to write variable
      • client must determine device-specific write operation via relatedStateVariable clause
      • no programmer-defined types
  • Need standard operations for each property
    • say indexing for sequence
    • how mapped to device-specific methods?
mapping approaches

Device-Indep

Device-Dep

read()

get ()

write()

set ()

Mapper

Device

Device

Property Handlers

Device

Mapping Approaches
  • Global table/registry
    • Standard OS approach
    • may not have one to one mapping from device-independent to device-dependent
      • indexing to iteration
  • Mapping per device?
    • Additional effort on device programmer
  • Per-pattern mapping
    • done by property handlers
    • apply to multiple device classes
property handlers
Property Handlers

property

type = sequence

accessmethods = elements, ...

...

handlers

lookup = IteratorToIndexing

...

  • Specified in pattern definition
  • Implement device-indep interface

interface Indexing {

Object elementAt(Object target, MatchedProperty mp, int index;

}

class IteratorToIndexing implements Indexing {

...

Object elementAt(Object target, MatchedProperty mp, int index {

Enumeration elements = mp.getMethod( ”elements")).invoke(target,

null);

for (i = 0; i < index; i++)

elements.nextElement();

return elements.nextElement();

}

}

three levels of indirection
Three Levels of Indirection
  • Level 0
    • Client calls operation directly
      • device.elementAt(index)
      • bound to specific names
  • Level 1
    • Client calls pattern-specific access methods
      • mp.getMethod(“index”).invoke(device, {index})
      • lookup may be bound to elementAt() or settingAt()
  • Level 2
    • Client calls property handler
    • mp.getClass(“lookup”).newInstance().invoke ( device, mp, {index})
    • Independent of access methods
      • indexing
      • iteration
three levels of indirection57
Three Levels of Indirection

mp.getPropertyHandler (“lookup”). invoke(device, mp, {index})

mp.getAccessMethod(“index”). invoke(device, {index})

mp.getAccessMethod(“iterate”). invoke(device, {})

device1.elementAt (index)

device2.settingAt(index)

device3.iterate ()

late binding vs programmability efficiency
Late Binding vs. Programmability/Efficiency
  • The later the binding
    • the more levels of indirection
    • the more awkward the programming
    • the less efficient the program
  • Choose the minimum amount of indirection for the lateness desired
  • Device-independent interface meant really for system functions such as diff
    • may be useful to clients
vassil s thesis
Vassil’s thesis
  • Reduces programming cost
    • No cost of exporting functionality to distributed clients
    • Like RPC, but accommodates late binding as UPnP does
      • dynamic service discovery
  • Reduces maintenance cost
    • No duplication of information as it is all automatically generated.
  • Supports predefined and programmer-defined types
    • Makes reduction of programming and maintenance costs harder
reducing high prog maintenance cost

Generated automatically

Reducing High Prog/Maintenance Cost
  • Information manually repeated multiple times
    • operation implementation code
    • action list
    • state variable table
    • message processing code
    • event announcement code
  • Channel -> Current Channel requires 9 changes!
    • getChannel -> getCurrentChannel
    • setChannel -> setCurrentChannel

2

slide61

Architecture

Device Operations

Access Specification

Event Generator

Property Specification

External Description Generator

Device Handler

Subscription Manager

Access Controller

Differ

Property Extractor

Inter-Process Communication

Device-Independent Interface

Reflection
