assignment 3
Assignment 3
  • Due March 23
    • Fourth years plan for thesis collision
    • We’ll provide lots of details to keep the assignment doable
  • Morphing algorithm
last class
Last Class
  • We discussed vision physiology andperception of gradients
  • Today:
  • Color perception
  • Color representations
specifying color
Specifying Color
  • Color perception usually involves three quantities:
    • Hue: Distinguishes between colors like red, green, blue, etc
    • Saturation: How far the color is from a gray of equal intensity
    • Lightness: The perceived intensity of a reflecting object
  • Sometimes lightness is called brightness if the object is emitting light instead of reflecting it.
  • In order to use color precisely in computer graphics, we need to be able to specify and measure colors.
combining colors

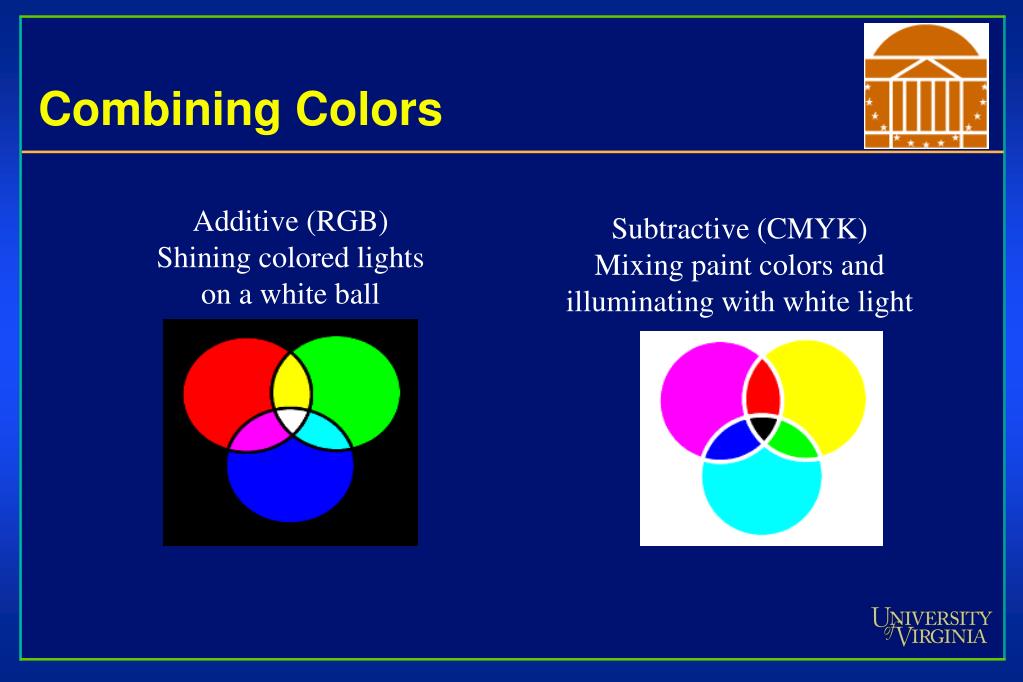

Combining Colors

Additive (RGB)

Shining colored lightson a white ball

Subtractive (CMYK)

Mixing paint colors andilluminating with white light

how do artists do it
How Do Artists Do It?
  • Artists often specify color as tints, shades, and tones of saturated (pure) pigments
  • Tint: Gotten by adding white to a pure pigment, decreasing saturation
  • Shade: Gotten byadding black to a pure pigment, decreasing lightness
  • Tone: Gotten by adding white and black to a pure pigment

White

Tints

Pure Color

Tones

Grays

Shades

Black

hsv color space
HSV Color Space
  • Computer scientists frequently use an intuitive color space that corresponds to tint, shade, and tone:
    • Hue - The color we see (red, green, purple)
    • Saturation - How far is the color from gray (pink is less saturated than red, sky blue is less saturated than royal blue)
    • Brightness (Luminance) - How bright is the color (how bright are the lights illuminating the object?)
hsv color model
HSV Color Model
  • Hue (H) is the angle around the vertical axis
  • Saturation (S) is a valuefrom 0 to 1 indicatinghow far from the verticalaxis the color lies
  • Value (V) is the height of the hexcone”
hsv color model1
HSV Color Model

H S V Color

0 1.0 1.0 Red

120 1.0 1.0 Green

240 1.0 1.0 Blue

* 0.0 1.0 White

* 0.0 0.5 Gray

* * 0.0 Black

60 1.0 1.0 ?

270 0.5 1.0 ?

270 0.0 0.7 ?

Figure 15.16&15.17 from H&B

intuitive color spaces
Intuitive Color Spaces
  • A top-down view of hexcone
hsv color space1
HSV Color Space
  • A more intuitive color space
    • H = Hue
    • S = Saturation
    • V = Value (or brightness)

Saturation

Value

Hue

precise color specifications
Precise Color Specifications
  • Pigment-mixing is subjective --- depends on human observer, surrounding colors, lighting of the environment, etc
  • We need an objective color specification
  • Light is electromagnetic energy in the 400 to 700 nm wavelength range
  • Dominant wavelength is the wavelength of the color we “see”
  • Excitation purity is the proportion of pure colored light to white light
  • Luminanceis the amount (or intensity) of the light
electromagnetic spectrum

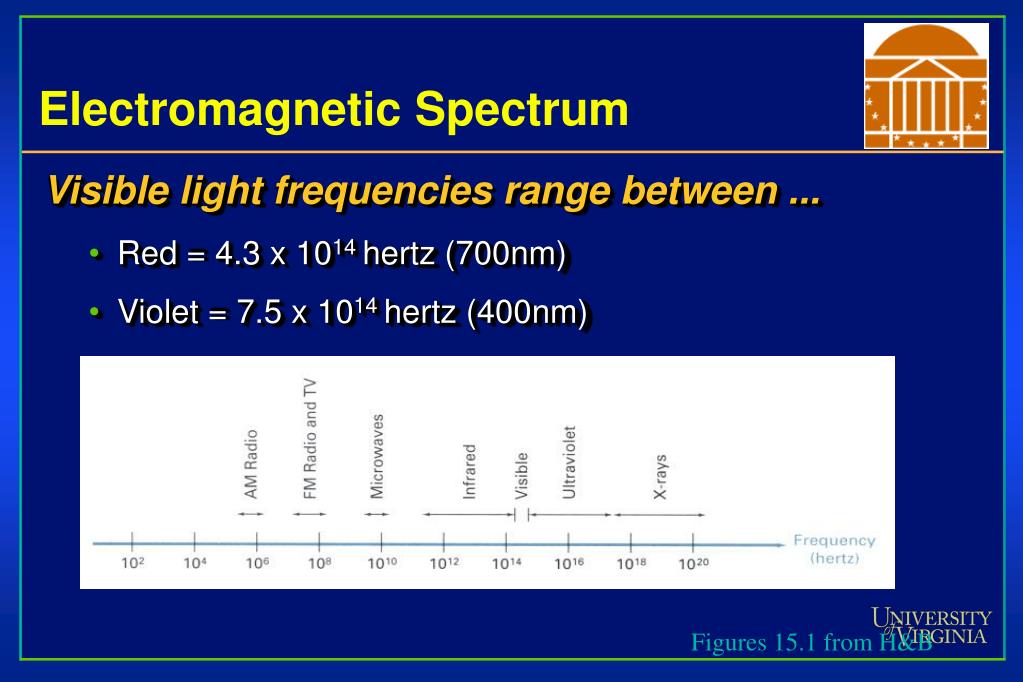

Electromagnetic Spectrum
  • Visible light frequencies range between ...
    • Red = 4.3 x 1014 hertz (700nm)
    • Violet = 7.5 x 1014 hertz (400nm)

Figures 15.1 from H&B

visible light
Visible Light
  • Hue = dominant frequency (highest peak)
  • Saturation = excitation purity (ratio of highest to rest)
  • Lightness = luminance (area under curve)

White Light

Orange Light

Figures 15.3-4 from H&B

how well do we see color
How well do we see color?
  • What color do we see the best?
    • Yellow-green at 550 nm
  • What color do we see the worst?
    • Blue at 440 nm
  • Flashback: Colortables (colormaps) for color storage
    • Which RGB value gets the most bits?
  • Can perceive color differences of 10 nm at extremes (violet and red) and 2 nm between blue and yellow
  • Metamers – different energy radiations look like the same color
  • Color perception also affected by surrounding light and adaptation
just noticeable difference jnd

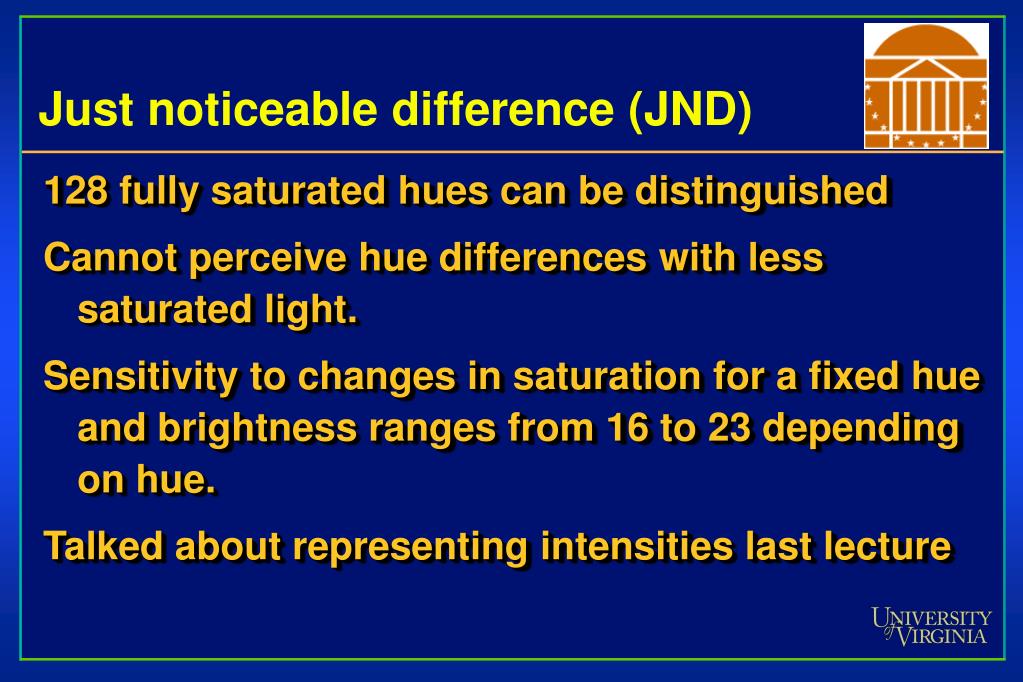

Just noticeable difference (JND)
  • 128 fully saturated hues can be distinguished
  • Cannot perceive hue differences with less saturated light.
  • Sensitivity to changes in saturation for a fixed hue and brightness ranges from 16 to 23 depending on hue.
  • Talked about representing intensities last lecture
human color vision
Human Color Vision
  • Humans have 3 light sensitive pigments in their cones, called L, M, and S
  • Each has a different spectral response curve:
  • This leads to metamerism
  • “Tristimulus” color theory
color spaces
Color Spaces
  • Three types of cones suggests color is a 3D quantity. How to define 3D color space?
  • Idea:
    • Shine given wavelength () on a screen
    • User must control three lasers producing three wavelengths (say R=700nm, G=546nm, and B=436nm)
    • Adjust intensity of RGB until colors are identical
    • Note phosphors of TV are not perfect RGBemitters as the results to right demonstrate
a problem exists
A Problem Exists
  • Exact target match (l) with phosphors not possible
    • Some red had to be added to target color to permit exact match using “knobs” on RGB intensity output of CRT
    • Equivalently (theoretically), some red could have been removed from CRT output
    • Figure shows that red phosphor must remove some cyan for perfect match
    • CRT phosphors cannot remove cyan, so 500 nm cannot be generated
cie color space
CIE Color Space
  • No standard set of three wavelengths can be combined to generate all other wavelengths.
  • The CIE(Commission Internationale d’Eclairage) defined three hypothetical lights X, Y, and Z with these spectra:
  • Idea: any wavelength  can be matched perceptually by positivecombinations of X, Y, and Z

x ~ R

y ~ G

z ~ B

cie color space1

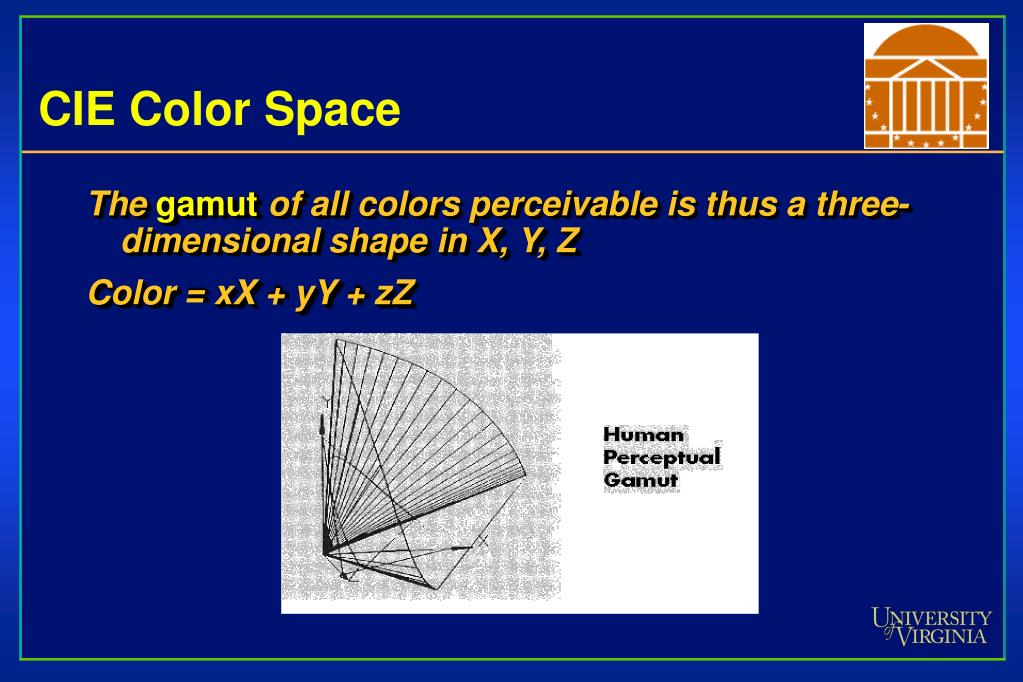

CIE Color Space
  • The gamut of all colors perceivable is thus a three-dimensional shape in X, Y, Z
  • Color = xX + yY + zZ
cie chromaticity diagram 1931
CIE Chromaticity Diagram (1931)
  • For simplicity, we often project to the 2D plane x + y + z = 1
    • x = x / (x+y+z)
    • y = y / (x+y+z)
    • z = 1 – x - y
device color gamuts
Device Color Gamuts
  • Since X, Y, and Z are hypothetical light sources, no real device can produce the entire gamut of perceivable color
  • Example: CRT monitor
device color gamuts1
Device Color Gamuts
  • We can use the CIE chromaticity diagram to compare the gamuts of various devices:
  • Note, for example, that a color printercannot reproduceall shades availableon a color monitor
a problem with xyz colors
A Problem With XYZ Colors
  • If we have two colors C1 and C2, and we add DC to both of them, the differences between the original and new colors will not be perceived to be equal
  • This is due to the variation of the just noticeable differences in saturated hues
  • XYZ space is not perceptually uniform
  • LUV space was created to address this problem
rgb color space color cube
RGB Color Space (Color Cube)
  • Define colors with (r, g, b) amounts of red, green, and blue
rgb color gamuts
RGB Color Gamuts
  • The RGB color cube sits within CIE color space something like this:
converting color spaces
Converting Color Spaces
  • Simple matrix operation:
  • The transformation C2 = M-12 M1 C1yields RGB on monitor 2 that is equivalent to a given RGB on monitor 1
yiq color space
YIQ Color Space
  • YIQis the color model used for color TV in America. Y is brightness,I (orange-cyan) & Q (green-magenta) are color
    • Note: Yis the same as CIE’s Y
    • Result: Use the Y alone and backwards compatibility with B/W TV!
    • These days when you convert RGB image to B/W image, the green and blue components are thrown away and red is used to control shades of grey (usually)
converting color spaces1
Converting Color Spaces
  • Converting between color models can also be expressed as such a matrix transform:
  • Note the relative unimportance of blue in computing the Y
perceptually uniform color space
Perceptually Uniform Color Space
  • Color space in which Euclidean distance between two colors in space is proportional to the perceived distance
    • CIE, RGB, not perceptually uniform
      • Example with RGB
      • LUV was created to be perceptually uniform
the cmy color model
The CMY Color Model
  • Cyan, magenta, and yellow are the complements of red, green, and blue
    • We can use them as filters to subtract from white
    • The space is the same as RGB except the origin is white instead of black
  • This is useful for hardcopy devices like laser printers
    • If you put cyan ink on the page, no red light is reflected
    • Add black as option (CMYK) to match equal parts CMY
halftoning

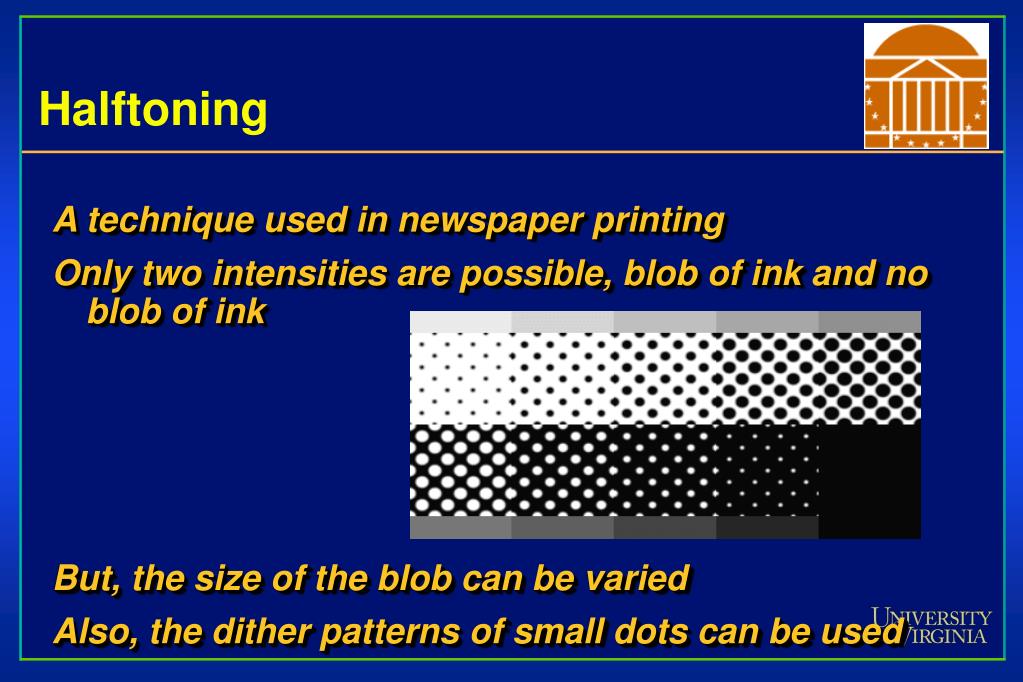

Halftoning
  • A technique used in newspaper printing
  • Only two intensities are possible, blob of ink and no blob of ink
  • But, the size of the blob can be varied
  • Also, the dither patterns of small dots can be used
halftoning moire patterns
Halftoning – Moire Patterns
  • Repeated use of same dot pattern for particular shade results in repeated pattern
    • Perceived as a moire pattern
    • Instead, randomize halftone pattern
dithering
Dithering
  • Halftoning for color images
