How to configure Linksys WRT-120N wireless Access-Point(AP) router

How to configure Linksys WRT-120N wireless Access-Point(AP) router. 1. Your AP router config parameters can be found taped on top of your AP router. 4. This port should connect to the internet.

lupita
Download Presentation

How to configure Linksys WRT-120N wireless Access-Point(AP) router

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

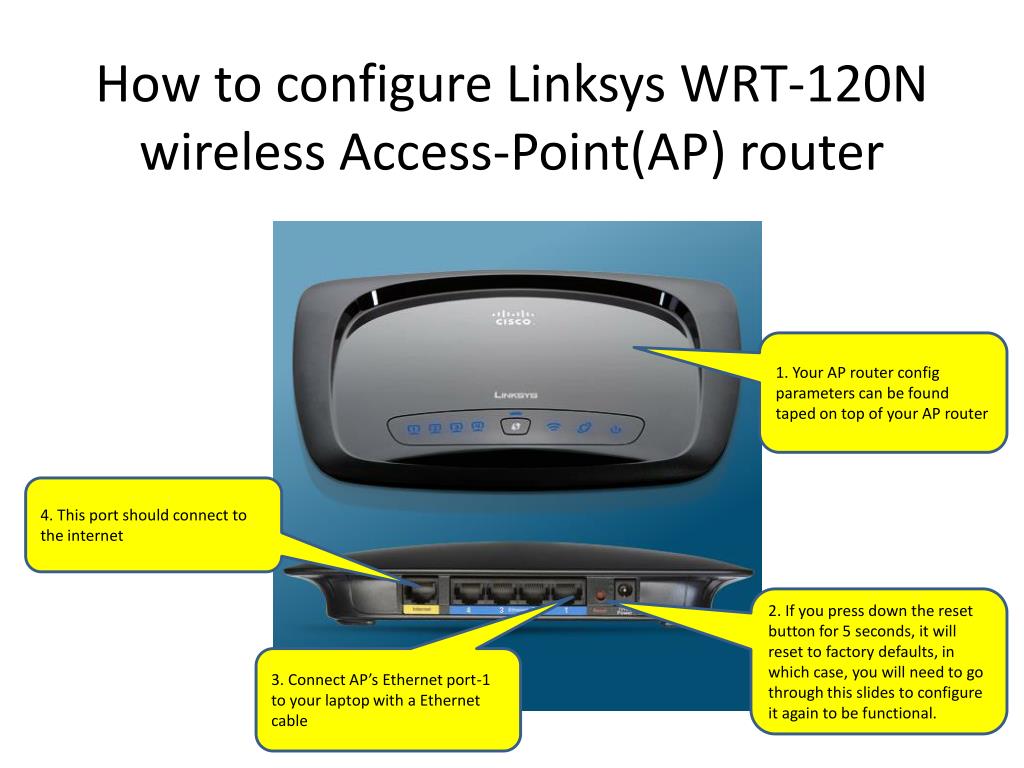

  1. How to configure Linksys WRT-120Nwireless Access-Point(AP) router 1. Your AP router config parameters can be found taped on top of your AP router 4. This port should connect to the internet 2. If you press down the reset button for 5 seconds, it will reset to factory defaults, in which case, you will need to go through this slides to configure it again to be functional. 3. Connect AP’s Ethernet port-1 to your laptop with a Ethernet cable

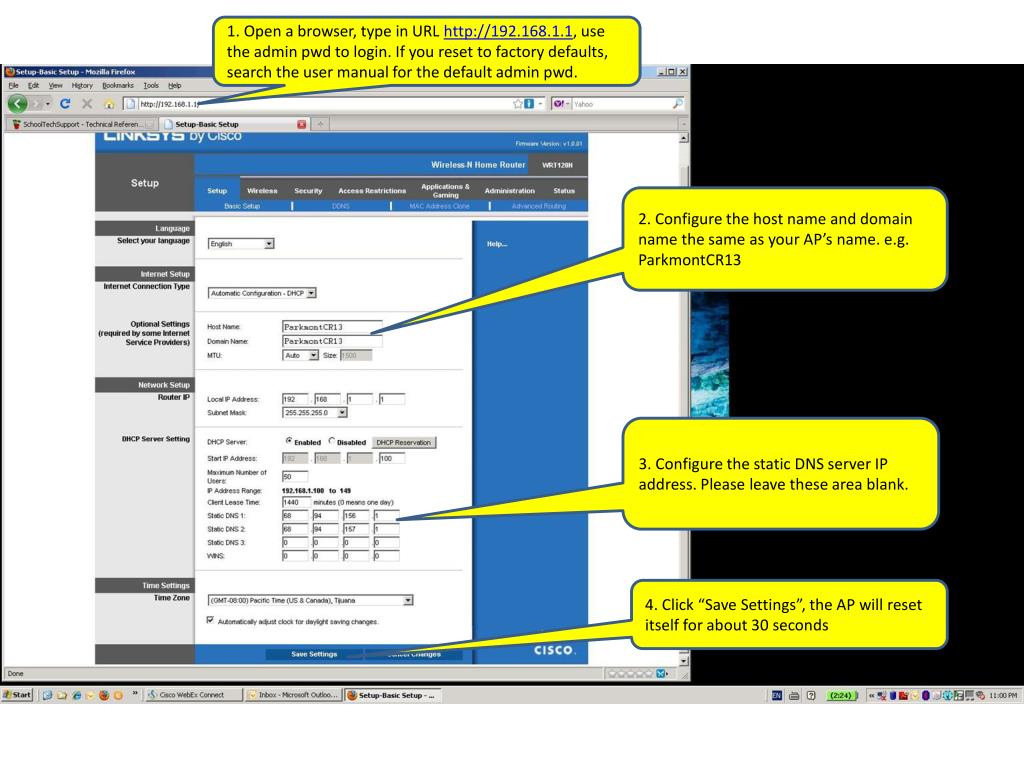

  2. 1. Open a browser, type in URL http://192.168.1.1, use the admin pwd to login. If you reset to factory defaults, search the user manual for the default admin pwd. 2. Configure the host name and domain name the same as your AP’s name. e.g. ParkmontCR13 3. Configure the static DNS server IP address. Please leave these area blank. 4. Click “Save Settings”, the AP will reset itself for about 30 seconds

  3. 6. Click on the “Wireless” tab, choose “Basic Wireless Settings” sub-tab. 7. Type in the AP’s name as SSID, e.g. ParkmontCR13. The rests are the same as defaults. 8. Click Save Settings

  4. 9. Click on the Wireless Security sub-tab 10. Choose “WPA Personal” as Security Mode 11. Enter your AP’s encryption key. It should be taped on the back of your wireless router/AP. 12. Click Save Settings. You’re done. The rests are the same as defaults.
