  1. 900Mbps Dual Band Ceiling MountWireless Access Point WDAP-C7400

  2. Presentation Outlines • Product Position • Product Overview • Product Installation • Product Benefits • Product Features • Applications • Web UI & Software • Product Comparison • Appendix

  3. 11N Wireless AP • 5dBi detachable antenna • 802.3af PoE PD IAP-2000PE/2001PE Wireless Ceiling Mount AP - Dual Band, High Power - 802.3at PoE PD WDAP-C7400 Wireless In-wall AP - Built-in USB charger - 802.3af PoE PD WNAP-W2200 11N Wireless AP • 3dBi detachable antenna • 802.3af PoE PD WNAP-1120PE 11N Wireless Repeater/ Travel Router - Multiple Modes - Wall Plug WNAP-1260 Wireless Ceiling Mount AP - 802.3af PoE PD - WDS Repeater WNAP-C3220 11N Wireless AP • 4dBi detachable antenna WNAP-1110 Product Position • PLANET 11n Indoor Wireless AP Series 900Mbps 3T3R Dual Band 300Mbps 2T2R 2.4G 150Mbps 1T1R 2.4G Fast Ethernet LAN Gigabit LAN

  4. Product Overview Dimensions: 200 x 40mm (Φ x H) Weight: 450g Power: IEEE 802.3at PoE/PD 40 mm 200 mm 200 mm Front View Side View Rear View

  5. Product Overview Hardware Interface – LED/Port/Button 2.4GHz WiFi Power LED 5GHz WiFi Reset Button Gigabit LAN Port 3 x Hidden Dual Band High gain Antenna 802.3at PoE PD Port

  6. Product Installation

  7. ProductBenefits 900Mbps Wi-Fi Dual Band Capability 500mW High Power Management Utility WDAP-C7400 802.3at PoE PD Gigabit LAN Port Ceiling Mount Design Multi- Operation Modes

  8. Product Benefits • Gigabit Ethernet Connectivity • Built-in Gigabit Ethernet connection ports support cable length dynamically and link down per port power saving. • 11n Ultra High Speed Wireless Connectivity • Supports IEEE 802.11a/b/g/nDual Band standard with 3T3R MIMO antenna technology; therefore, it can provide the wireless speed up to 900Mbps which is 18 times faster than the traditional 11g Access Point. • High output power up to 500mW, boosting 20X more coverage. • Hardware Design • Slim & Stylish Ceiling Mount Design • 802.3at Power over EthernetDesign

  9. IEEE Compliant Wireless LAN & Wired LAN Compliant with IEEE 802.11a/b/g/n wireless technology Wireless data rate up to 900Mbps Product Features 900Mbps 450Mbps 18X Faster 300Mbps 150Mbps 54Mbps WDAP-C7400

  10. High Power, High Gain boosting 20X more coverage. High output power up to 500mW 4.5dBi Dual Band high gain antenna x 3 Product Features

  11. Easy Deployment and Setup Supports Planet Smart Discovery and Centralized Management Utilityto help administrator configure quickly and monitor remotely. Supports SNMP for the central management Supports 802.3at PD power scheme, which can be powered by 802.3at PSE. Ceiling Mount Design makes wiring invisible, and easy to deploy onto the ceiling or wall. Product Features

  12. Product Feature - PoE

  13. Product Feature – Ceiling Mount Design Slim, Smooth & Ceiling Mountable

  14. Multiple Operation Modes for various applications Wireless Modes: AP WDS Bridge (PtP, PtMP) Repeater (WDS+AP) Universal Repeater (AP+Client) Supports up to 8 Multi-SSID in 2.4GHz, and 2 Multi-SSID in 5GHz. Supports WMM (Wireless QoS) that gives priority to multimedia running through your wireless network. Product Features

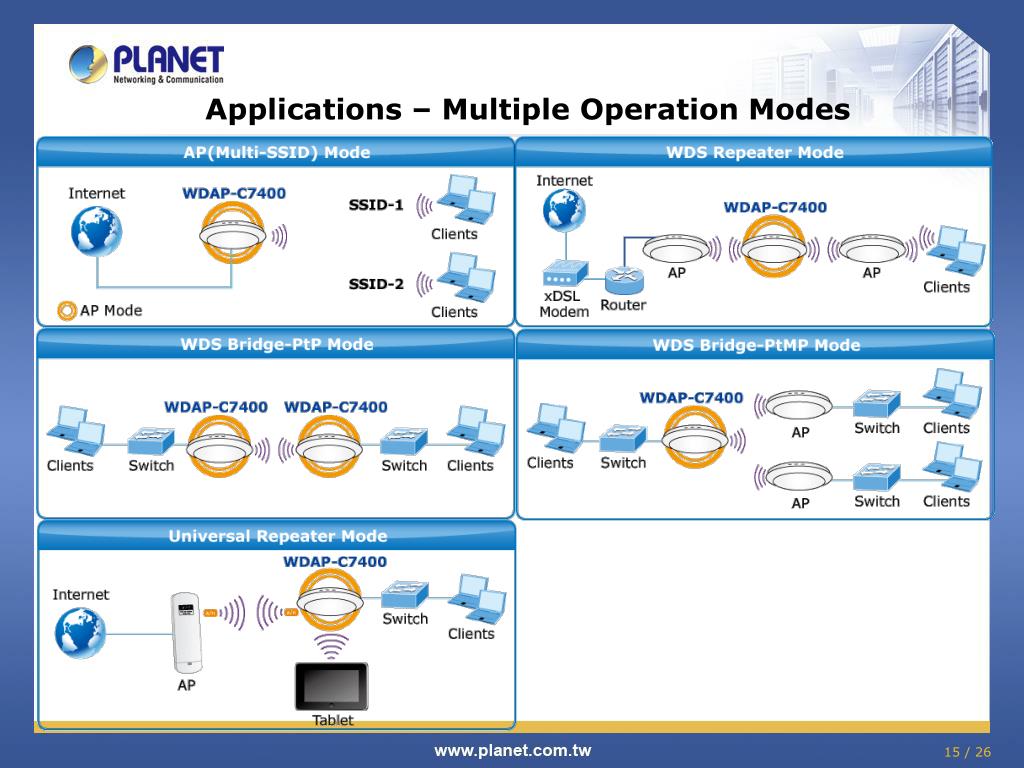

  15. Applications – Multiple Operation Modes

  16. Applications – Multi-SSID 2.4GHz: Up to 8 Multi-SSIDs 5GHz: Up to 2 Multi-SSIDs

  17. Secure and Advanced Wireless Features Advanced security: 64-/128-bit WEP WPA/WPA2 WPA-PSK/WPA2-PSK(TKIP/AES encryption) 802.1x SupportsMAC address Filtering Supports AP isolation making each single client own a separate virtual network Supports SSID hidden feature to protect wireless network from unauthorized access Product Features

  18. Applications – WiFi Home Networking

  19. Applications – LAN/WLAN WDAP-C7400 802.3at PoE Switch

  20. Web UI Clear & Simple! Easy to set up!

  21. Smart Discovery Utility • Easy to search currently connected APs

  22. Comparison - Planet Indoor APs

  23. Related Products – Wireless Adapter Appendix

  24. Related Products – 802.3at PoE Switch (1/2) Appendix

  25. Related Products – 802.3at PoE Switch (2/2) Appendix

  26. Appendix Target Markets Telecom to Business Telecom to Residential Public Area Access Hotel, Resort, Library… Benefits Maximum Bandwidth Multiple Applications Wide Coverage Flexible in deployment Saving wiring cost Profitable Products Check these out WNAP-W2200 WNAP-C3220 WNAP-1260 WNAP-1120PE WNAP-1110 Meeting all your requirements High Speed, High Performance Solution for Hotels & Residents Indoor Access Points PoE Access Points AP supported central management
