  1. Recap on Basis Sets Pablo Ordejon ICMAB-CSIC

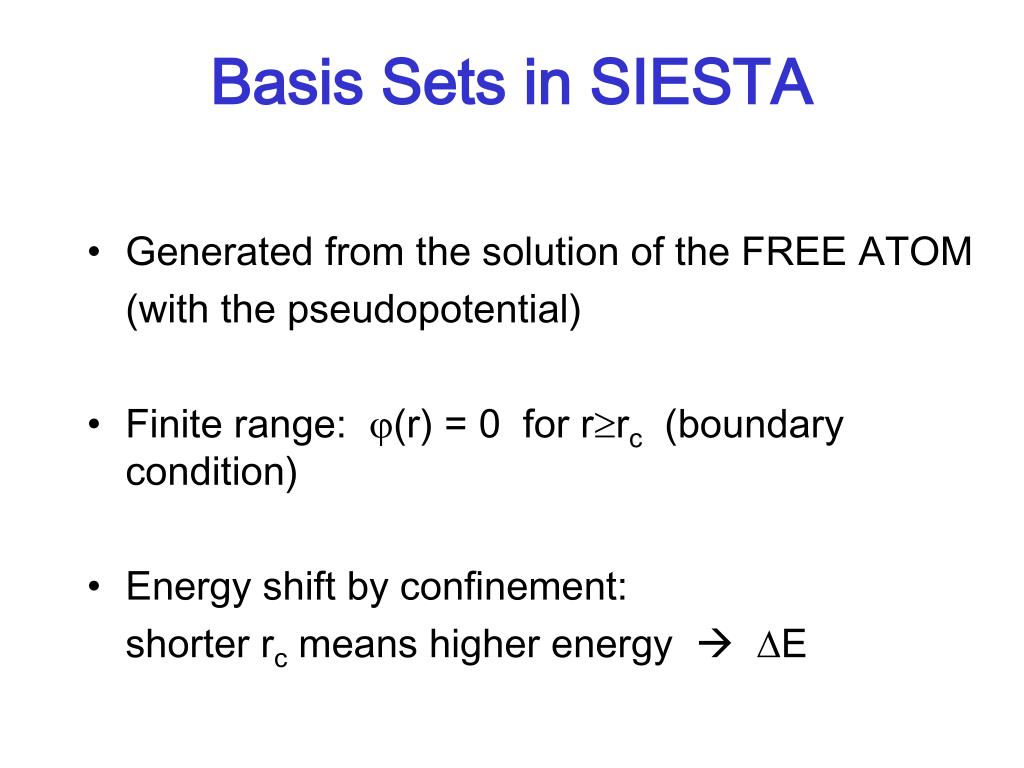

  2. Basis Sets in SIESTA • Generated from the solution of the FREE ATOM (with the pseudopotential) • Finite range: (r) = 0 for rrc (boundary condition) • Energy shift by confinement: shorter rc means higher energy  E

  3. Single- (SZ)and First-  in MZ bases

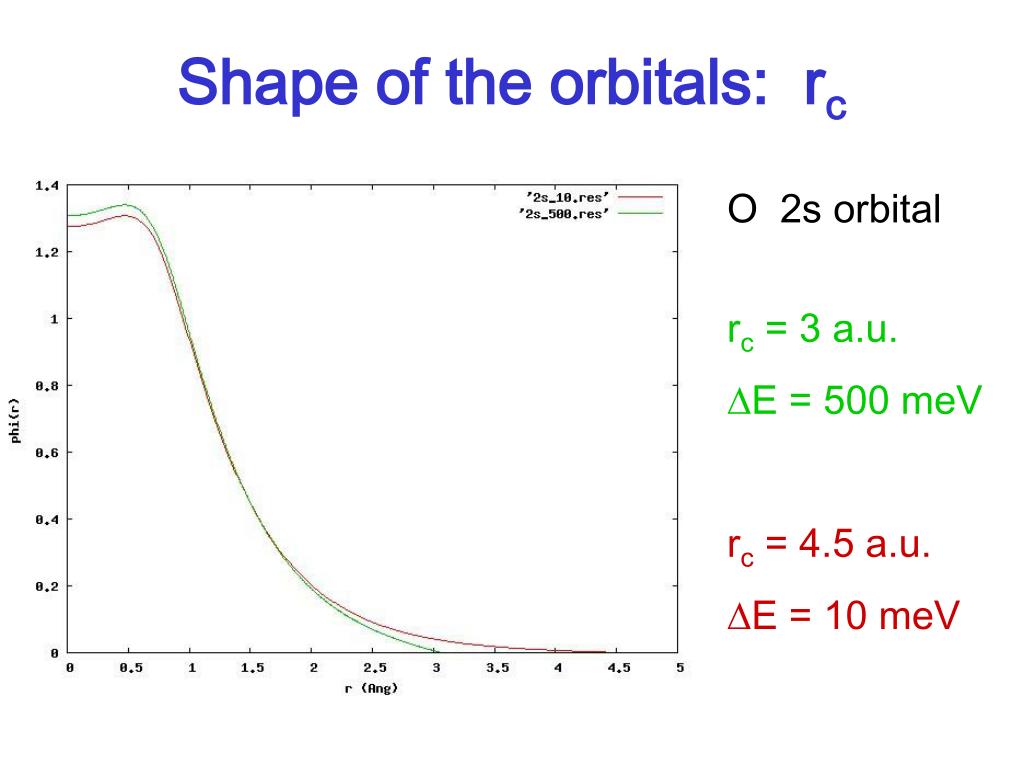

  4. Shape of the orbitals: rc O 2s orbital rc = 3 a.u. E = 500 meV rc = 4.5 a.u. E = 10 meV

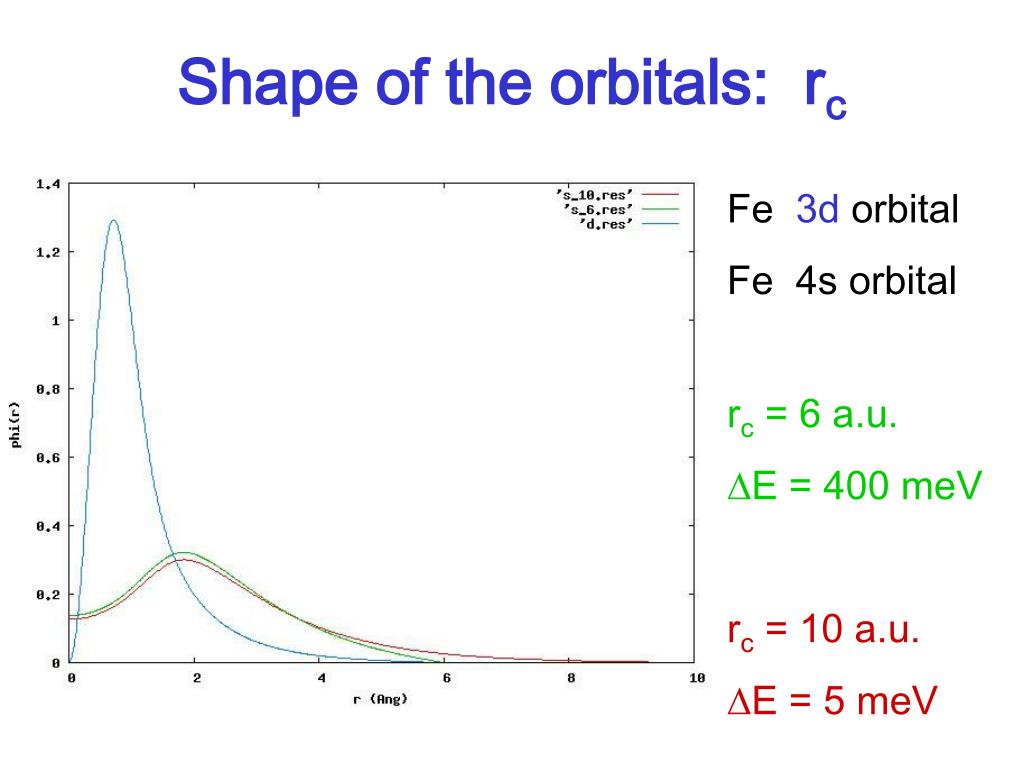

  5. Shape of the orbitals: rc Fe 3d orbital Fe 4s orbital rc = 6 a.u. E = 400 meV rc = 10 a.u. E = 5 meV

  6. Energy vs. rc - Molecules H2O

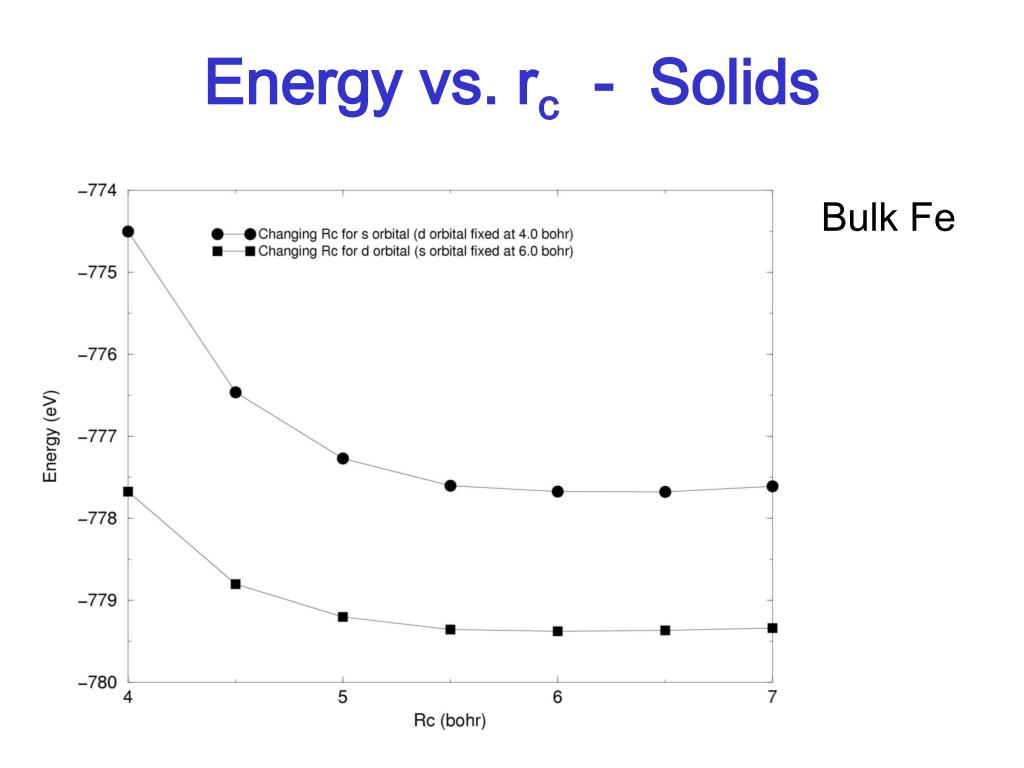

  7. Energy vs. rc - Solids Bulk Fe

  8. Second-  in DZ bases

  9. Split Valence Gaussians SZ DZ

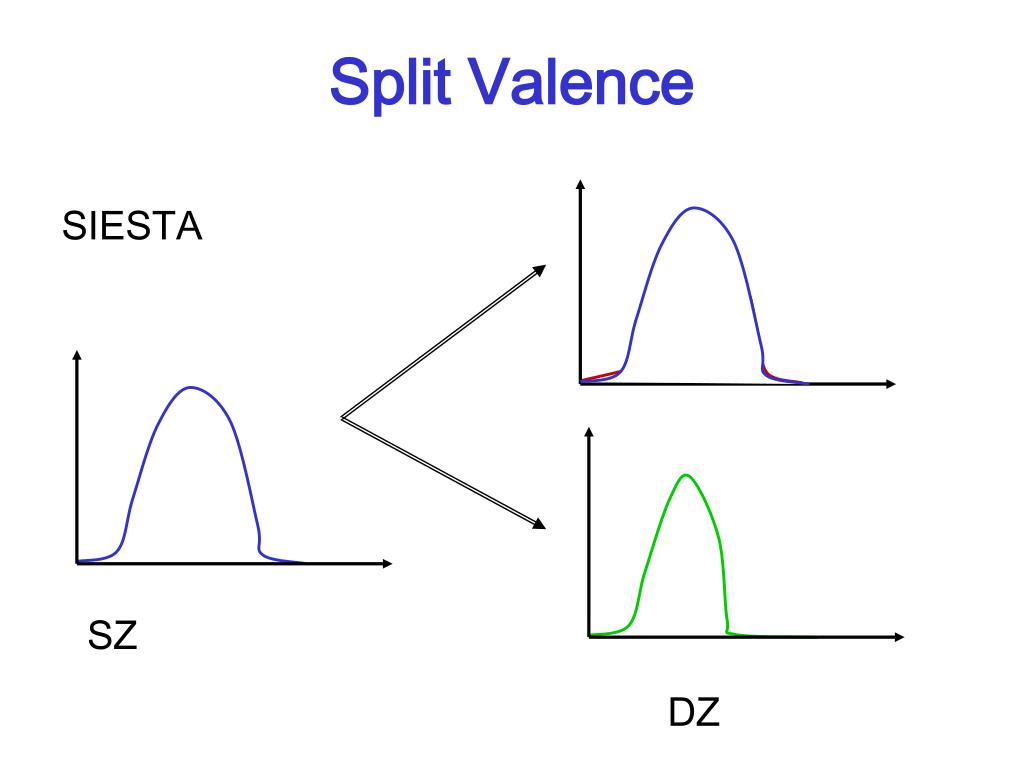

  10. Split Valence SIESTA SZ DZ

  11. Shape of the orbitals: DZ O 2s orbital E = 10 meV SplitNorm 0.15

  12. Shape of the orbitals: DZ O 2s orbital E = 500 meV SplitNorm 0.15
