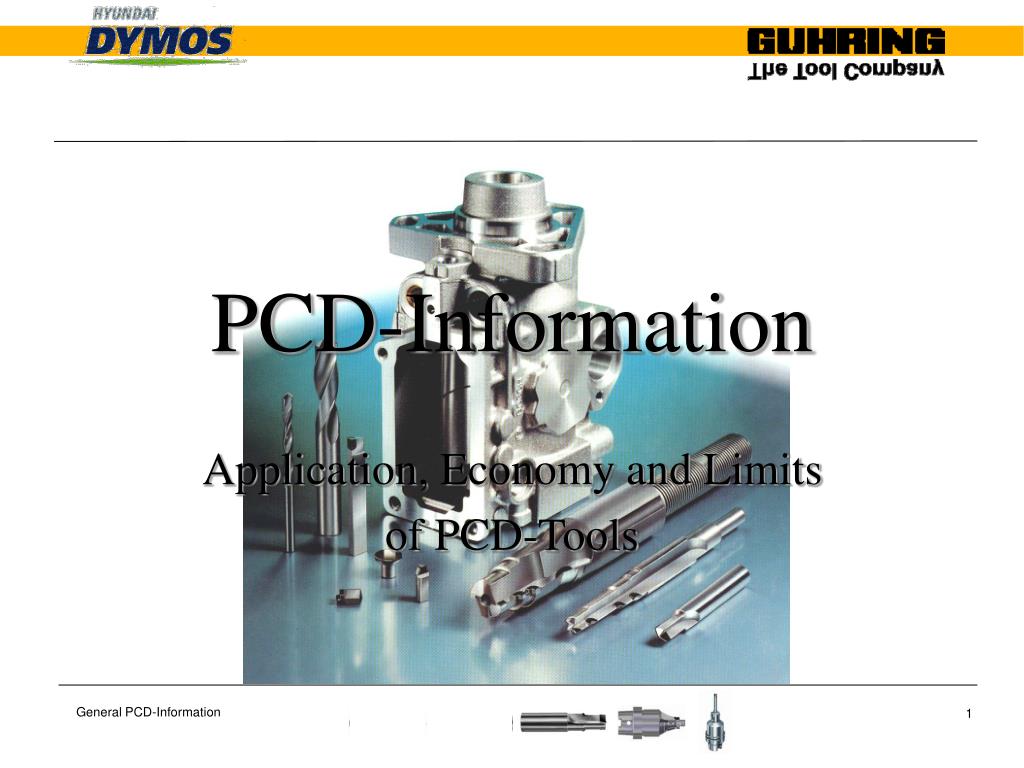

  1. PCD-Information Application, Economy and Limits of PCD-Tools General PCD-Information

  2. Light-MetalsAluminium andits alloysMagnesium andits alloysMMC What Can Be Machined With PCD ? Non-FerrousMetalsBrass-AlloysBronzeCopper-AlloysCarbide Non-MetalsWoodReinforced PlasticsGraphiteCeramics Usually it is not possible to work ferrous materials with PCD-tools because of the affinity of carbon to iron ! General PCD-Information

  3. Why Is PCD Economical ? • Extremly High Tool Life (5 - 100 Times Of Uncoated Carbide) • High Finish-Quality (In Form, Deviation and Surface Finish) • High Accuracy Of Size Over Tool Life • Increase Machine Efficiency • Increase Capability • Increase Productivity General PCD-Information

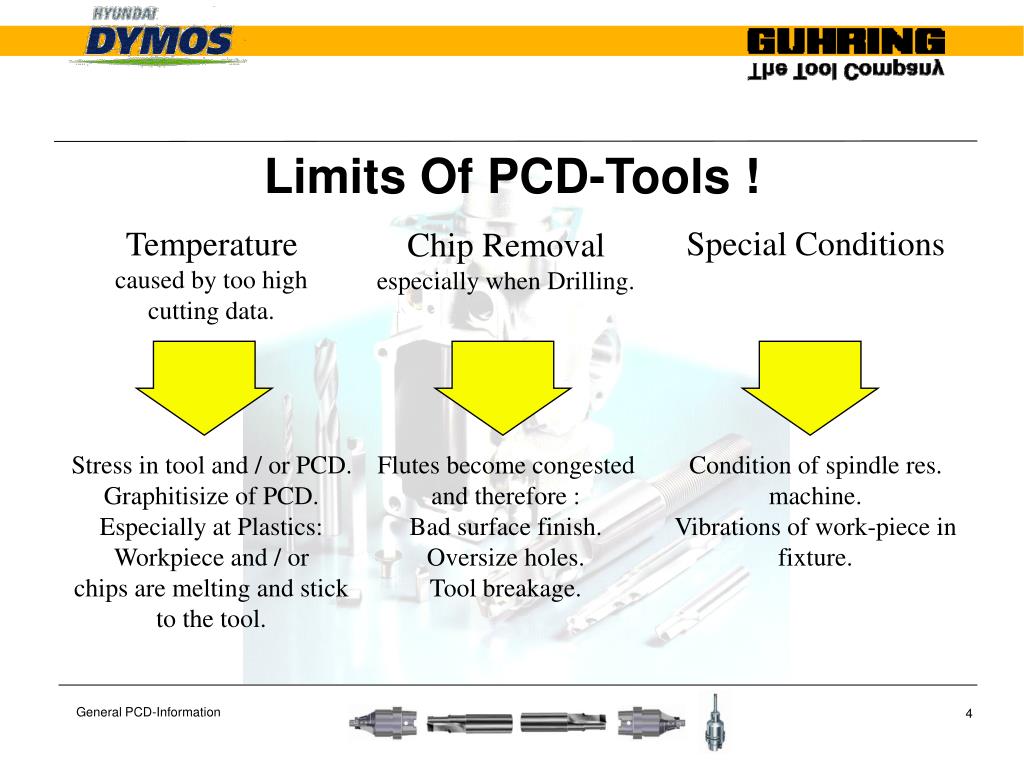

  4. Temperaturecaused by too highcutting data. Limits Of PCD-Tools ! Special Conditions Chip Removalespecially when Drilling. Stress in tool and / or PCD.Graphitisize of PCD.Especially at Plastics:Workpiece and / orchips are melting and stick to the tool. Flutes become congested and therefore :Bad surface finish.Oversize holes.Tool breakage. Condition of spindle res. machine.Vibrations of work-piece in fixture. General PCD-Information

  5. Cutting Data For PCD-Tools General PCD-Information

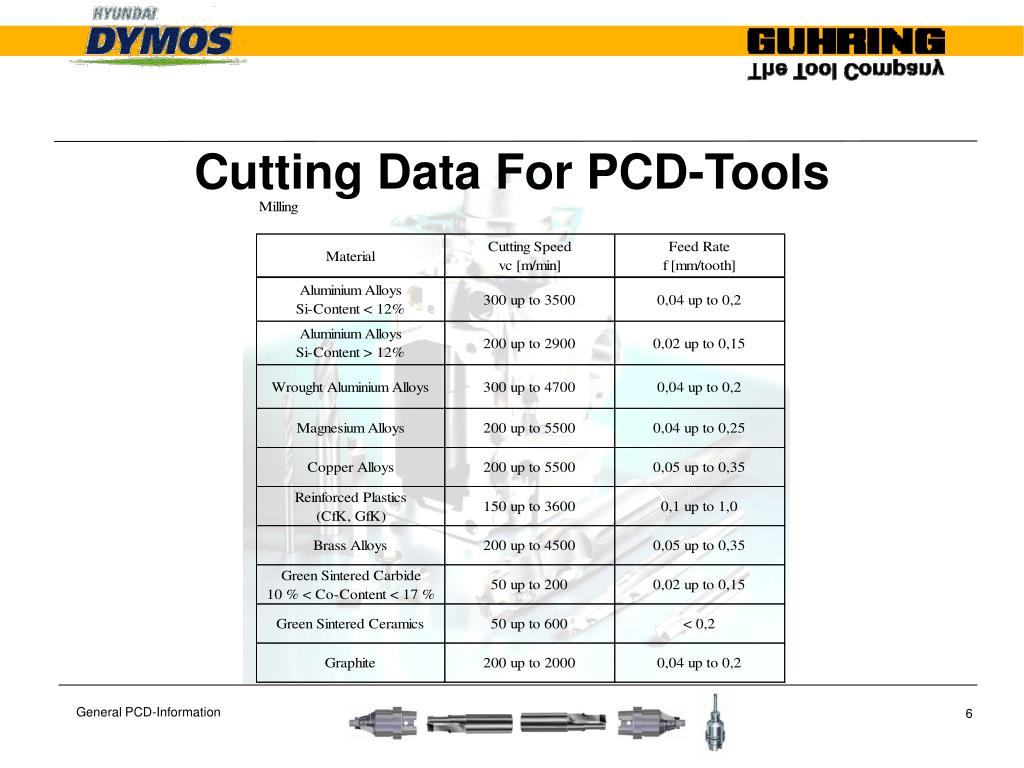

  6. Cutting Data For PCD-Tools General PCD-Information

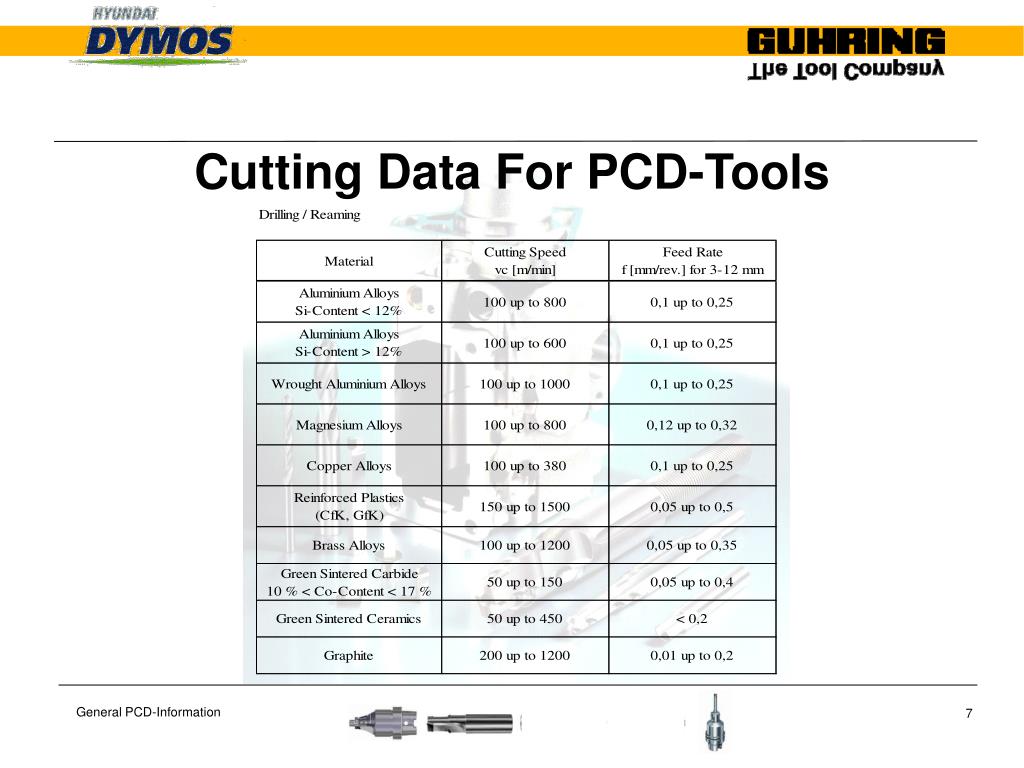

  7. Cutting Data For PCD-Tools General PCD-Information
