  1. Power and Cooling at Texas Advanced Computing Center Tommy Minyard, Ph.D. Director of Advanced Computing Systems 42nd HPC User Forum September 8, 2011

  2. TACC Mission & Strategy The mission of the Texas Advanced Computing Center is to enable scientific discovery and enhance society through the application of advanced computing technologies. To accomplish this mission, TACC: • Evaluates, acquires & operatesadvanced computing systems • Provides training, consulting, anddocumentation to users • Collaborates with researchers toapply advanced computing techniques • Conducts research & development toproduce new computational technologies Resources & Services Research & Development

  3. Recent History of Systems at TACC • 2001 – IBM Power4 system, 1 TFlop, ~300kW • 2003 – Dell Linux cluster, 5 TFlops, ~300 kW • 2006 – Dell Linux blade cluster, 62 TFlops ~500 kW, 16 kW per rack • 2008 – Sun Linux blade cluster, Ranger, 579 TFlops, 2.4 MW, 30kW per rack • 2011 – Dell Linux blade cluster, Lonestar 4, 302 Tflops, 800 kW, 20kW per rack

  4. TACC Data Centers • Commons Center (CMS) • Originally built in 1986 with 3,200 sq. ft. • Designed to house large Cray systems • Retrofitted multiple times to increase power/cooling infrastructure, ~1 MW total power • 18” raised floor, standard CRAC cooling units • Research Office Complex (ROC) • Built in 2007 as part of new office building • 6,400 sq.ft., 1 MW original designed power • Refitted to support 4 MW total power for Ranger • 30” raised floor, CRAC and APC In-Row Coolers

  5. CMS Data Center Previously

  6. CMS Data Center Now

  7. Lonestar 4 Dell Intel 64-bit Xeon Linux Cluster22,656 CPU cores (302 TFlops) 44 TB memory, 1.8 PB disk

  8. Lonestar 4 Front Row

  9. Lonestar 4 End of Rows

  10. Lonestar 4 Electrical Panels

  11. ROC Data Center Houses Ranger,Longhorn, Corral, and other support systems Built in 2007 and already nearing capacity

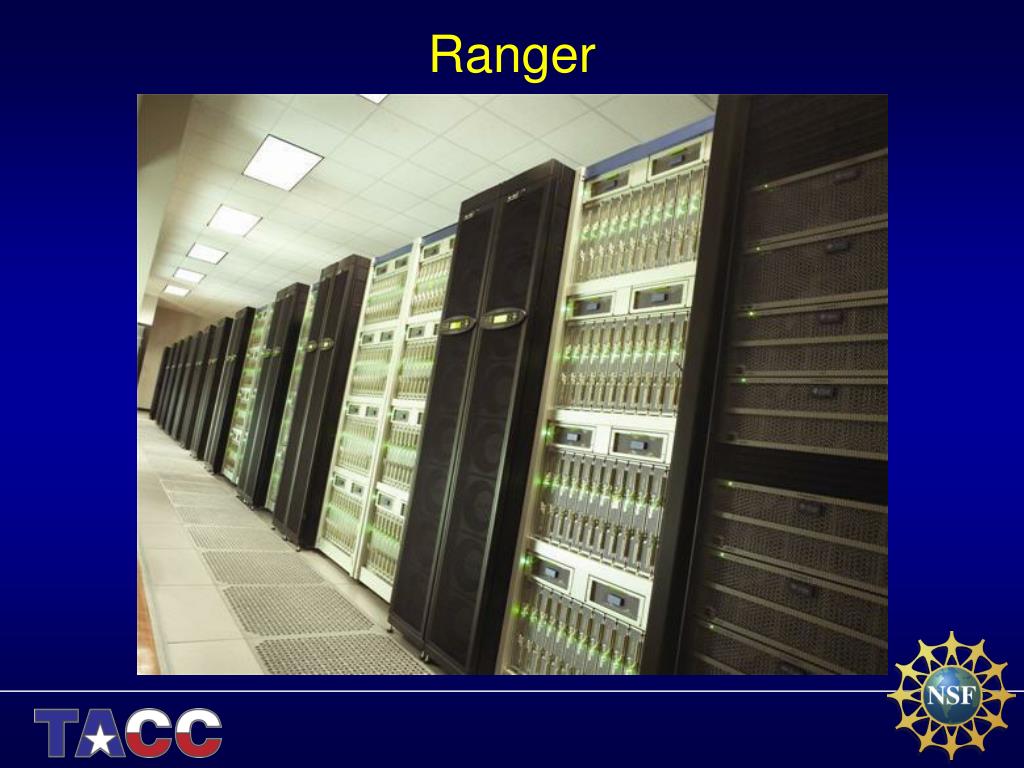

  12. Ranger

  13. Data Center of the Future • Exploring flexible and efficient data center designs • Planning for 50 kW per rack, 10 MW total system power in the near future • Prefer 480V power distribution to racks • Exotic cooling ideas not excluded • Thermal storage tanks • Immersion cooling

  14. Immersive Cooling – Green Revolution Cooling Servers suspended in mineral oil Improves heat transfer and more efficient “transport” of heat than air Requires refit of servers to remove fans

  15. Summary • Data center/rack power densities increasing • Efficiency of delivering power and cooling the heat generated becoming substantial • Air cooling reaching limits of cooling capability • Future data centers will require more “exotic” or customized cooling solutions for very high power density
