Presentation Transcript
5u atca shelf october 2007

5U ATCA Shelf October 2007

-Proprietary and Confidential-

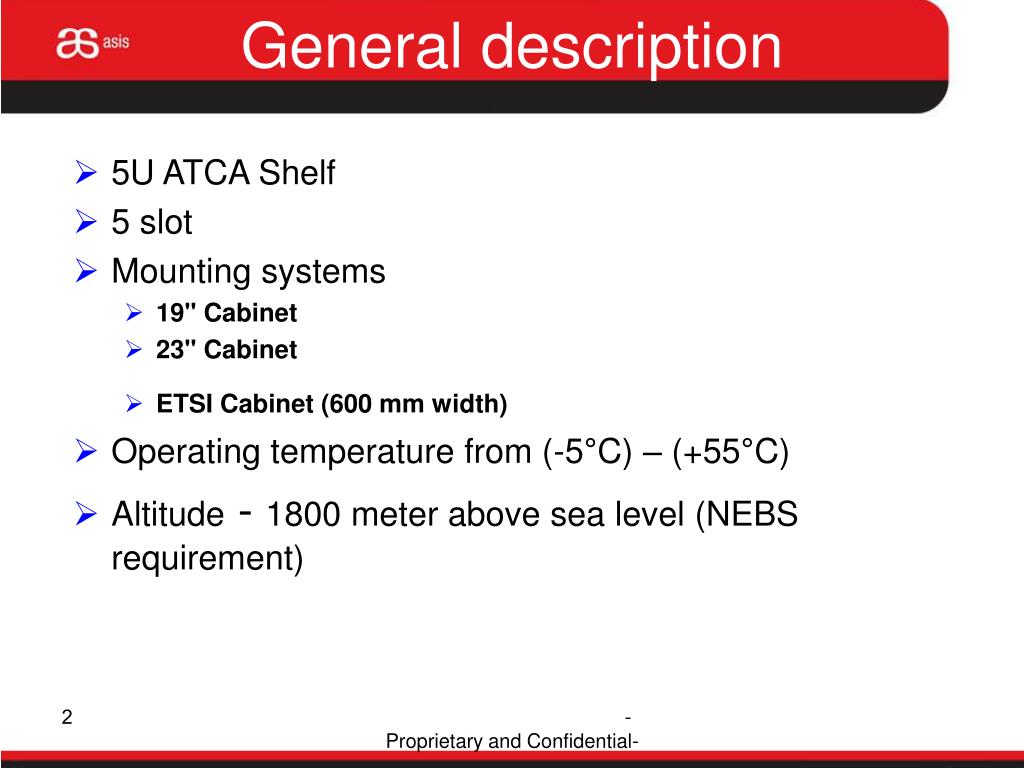

general description
General description
  • 5U ATCA Shelf
  • 5 slot
  • Mounting systems
    • 19'' Cabinet
    • 23'' Cabinet
    • ETSI Cabinet (600 mm width)
  • Operating temperature from (-5°C) – (+55°C)
  • Altitude - 1800 meter above sea level (NEBS requirement)

 -Proprietary and Confidential-

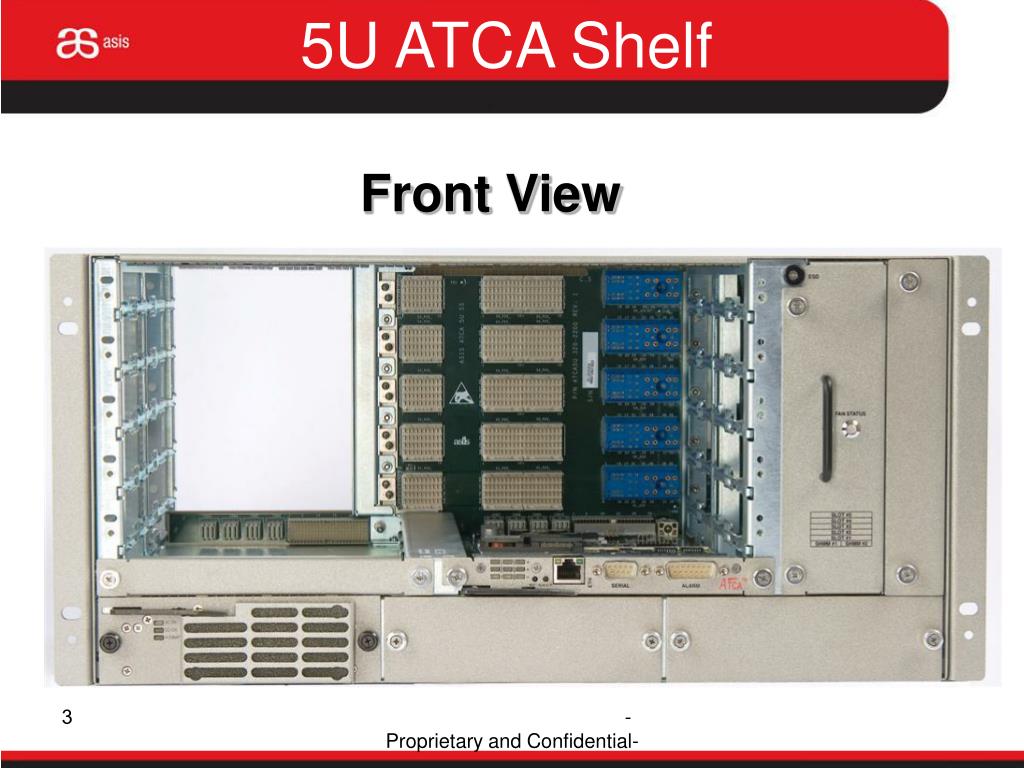

5u atca shelf
5U ATCA Shelf

Front View

 -Proprietary and Confidential-

5u atca shelf1
5U ATCA Shelf

Rear View

 -Proprietary and Confidential-

slide5

Mechanical

Chassis Material

  • Material: Steel 1010-1016, zinc plated, Painted.
  • 90% of the parts are assembled by riveting – reduce assembly costs & complexity

 -Proprietary and Confidential-

general description1
General description

Front view

Shelf manager x2

Shelf ID EEPROM Cover

Rear view

 -Proprietary and Confidential-

slide7

Mechanical

Height: 222 mm (5U)

385.8 MM

448 MM

 -Proprietary and Confidential-

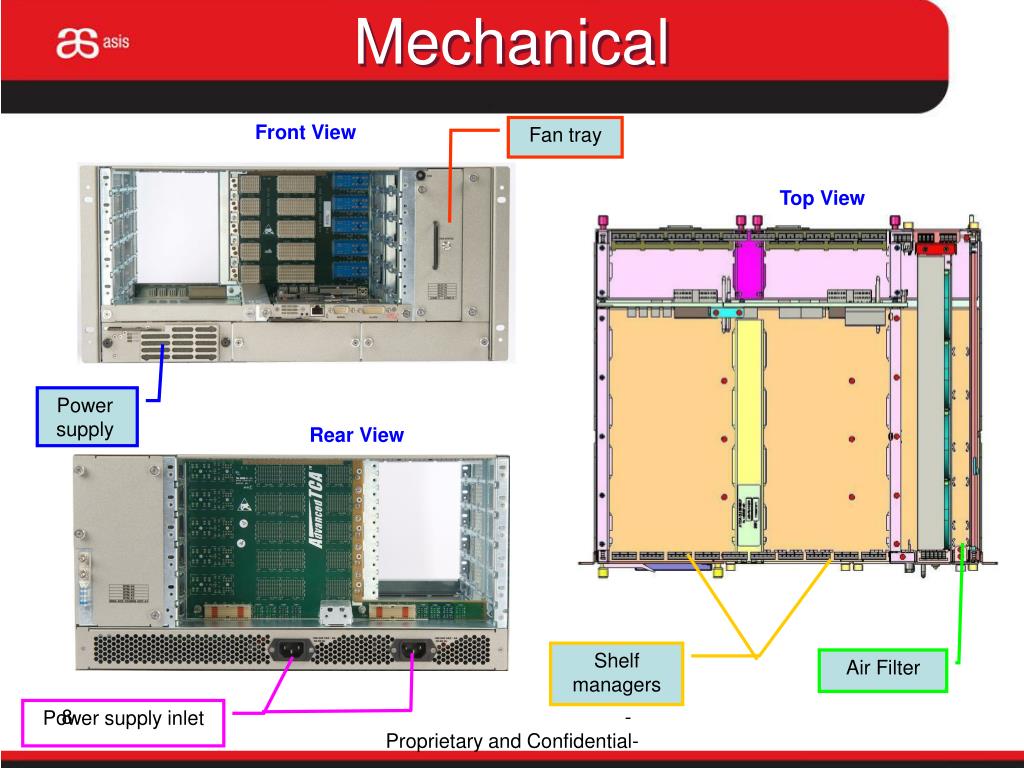

slide8

Mechanical

Front View

Fan tray

Top View

Power supply

Rear View

Shelf managers

Air Filter

 -Proprietary and Confidential-

Power supply inlet

slide9

Mechanical

Mechanical

Components:

  • Chassis
  • Air filter
  • Shelf managers
  • Power Supplies
  • Cable management
  • Fan tray
  • Backplane

 -Proprietary and Confidential-

slide10

Air Filter

  • Meet NEBS requirements
  • Filters all the air which is flowing into the shelf, both front and RTM areas.
  • Easy maintenance

Captive screw, locking filter to chassis

Easy to open and replace the air filter material

 -Proprietary and Confidential-

slide11

Air filter

Air filter presence is detected using a switch on the fan card

 -Proprietary and Confidential-

shelf manager
Shelf Manager

Front LEDs

Ethernet

Alarm

Serial

Alarm Clear

Reset switch

 -Proprietary and Confidential-

shelf manager1
Shelf Manager

 -Proprietary and Confidential-

the shelf manager board
The Shelf manager Board

Main functionality:

  • Compliant with PICMG 3.0
  • Fan tray control
  • Temperature monitoring
  • Discrete alarm outputs
  • LED Alarms display
  • Pigeon point ShMM500 module
  • Front and rear Ethernet connection.
  • Application blades control and power-up
  • Hot swappable and redundant
  • Remote access via Web interface, SNMP, RMCP and CLI

 -Proprietary and Confidential-

slide15

Power supply

  • Dimensions:
    • Width –114 mm
    • Depth – 278 mm
    • Height – 44.45 mm

Air Filter

Hot Swap Lever

Status LEDs

 -Proprietary and Confidential-

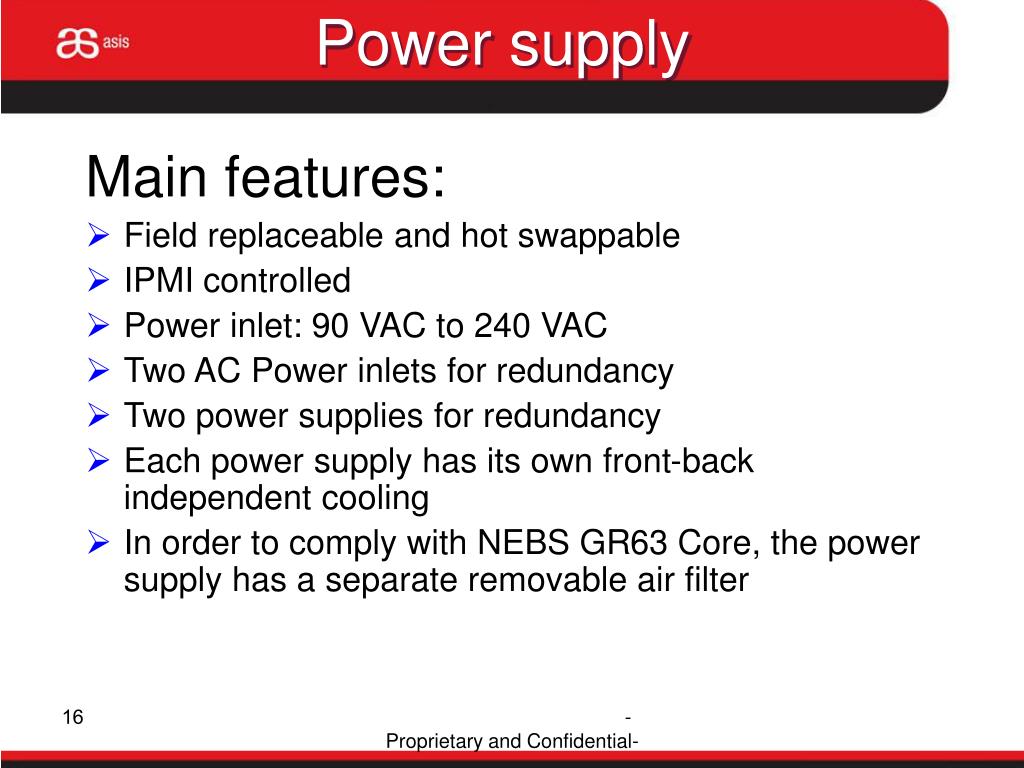

power supply
Power supply

Main features:

  • Field replaceable and hot swappable
  • IPMI controlled
  • Power inlet: 90 VAC to 240 VAC
  • Two AC Power inlets for redundancy
  • Two power supplies for redundancy
  • Each power supply has its own front-back independent cooling
  • In order to comply with NEBS GR63 Core, the power supply has a separate removable air filter

 -Proprietary and Confidential-

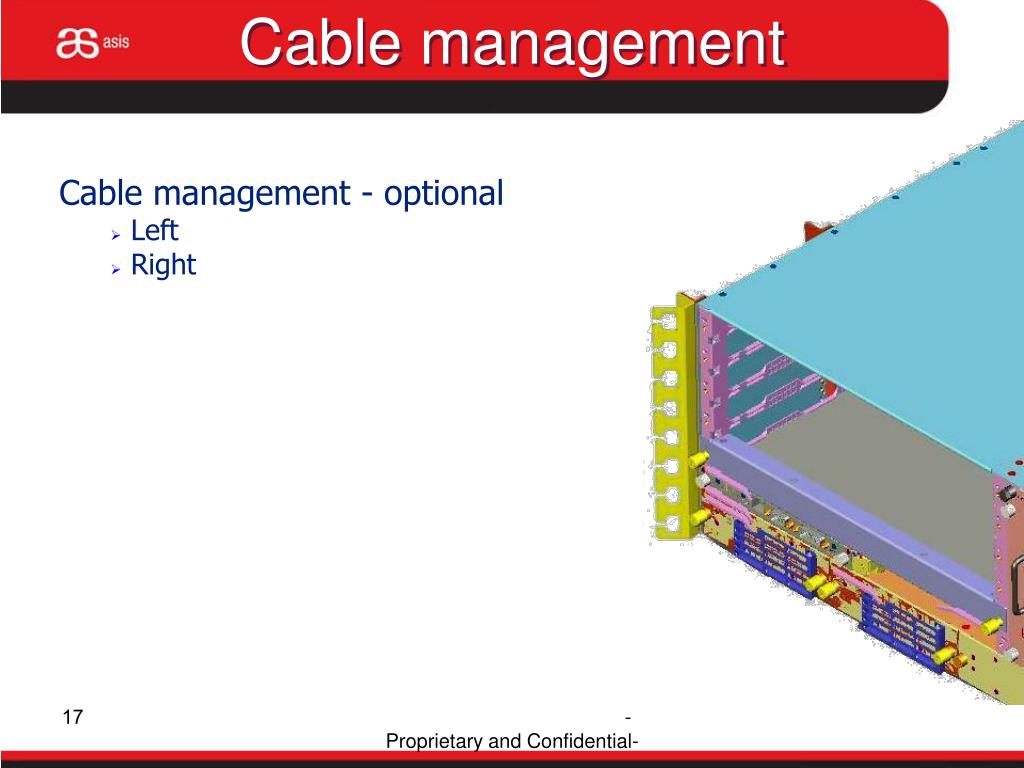

slide17

Cable management

  • Cable management - optional
    • Left
    • Right

 -Proprietary and Confidential-

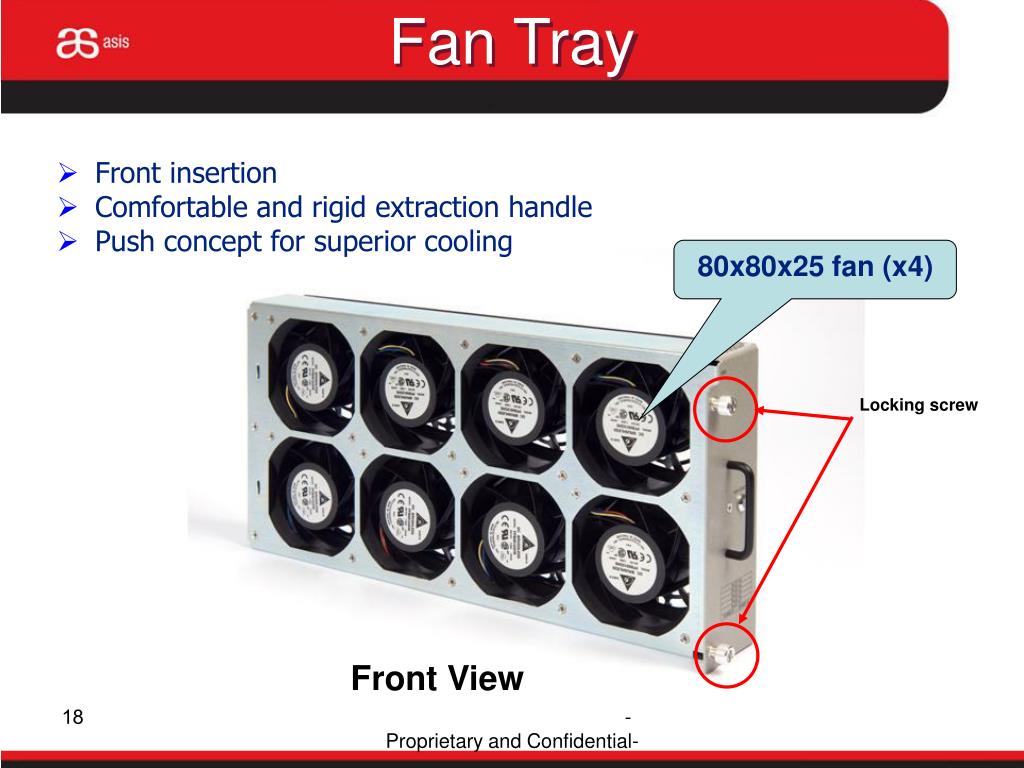

slide18

Fan Tray

  • Front insertion
  • Comfortable and rigid extraction handle
  • Push concept for superior cooling

80x80x25 fan (x4)

Locking screw

Front View

 -Proprietary and Confidential-

slide19

Backplane

Zone 1

Zone 2

FRONT VIEW

Left Shelf manager

Right Shelf manager

Right Power Supply

Left Power Supply

 -Proprietary and Confidential-

slide20

Backplane

E²prom and fan tray connection

Rear VIEW

Left Rear Connectivity

Right Rear Connectivity

 -Proprietary and Confidential-

backplane
Backplane

Main features:

  • Five AdvancedTCA slots
  • Fabric interface with full mesh interconnect.
  • Dual-star Ethernet signalling environment on the Base interface.
  • Bussed IPMI
  • Two hub slots
  • Update channel between slots 1&2 and 3&4
  • Full compliance with AdvancedTCA™ electrical and mechanical specifications
  • Rear connectivity for the shelf managers enables to route the Ethernet and serial links to the shelf rear area.

 -Proprietary and Confidential-

slide22

E²prom’s

  • Redundant and hot-swappable.
  • Easy access and removal.

Replaceable E²prom

 -Proprietary and Confidential-

slide23

RFI

EMC sealed chassis

The RED lines represent EMC sealed areas. Sealing is being achieved by the

use of EMI gaskets, springs and proper EMC design practices.

 -Proprietary and Confidential-
