  1. 1. Parts for Refrigerator and Freezer 2. Parts for Cold Storage

  2. Parts for Refrigerator and Freezer Compressors Drier Filter Thermostat

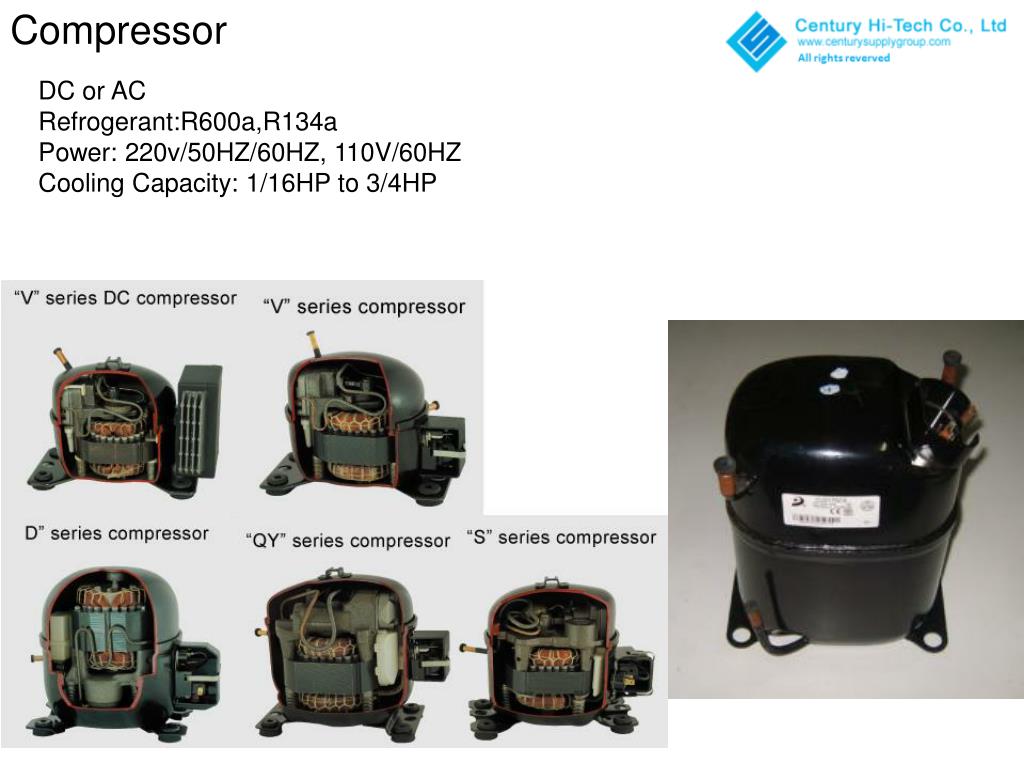

  3. Compressor DC or AC Refrogerant:R600a,R134a Power: 220v/50HZ/60HZ, 110V/60HZ Cooling Capacity: 1/16HP to 3/4HP

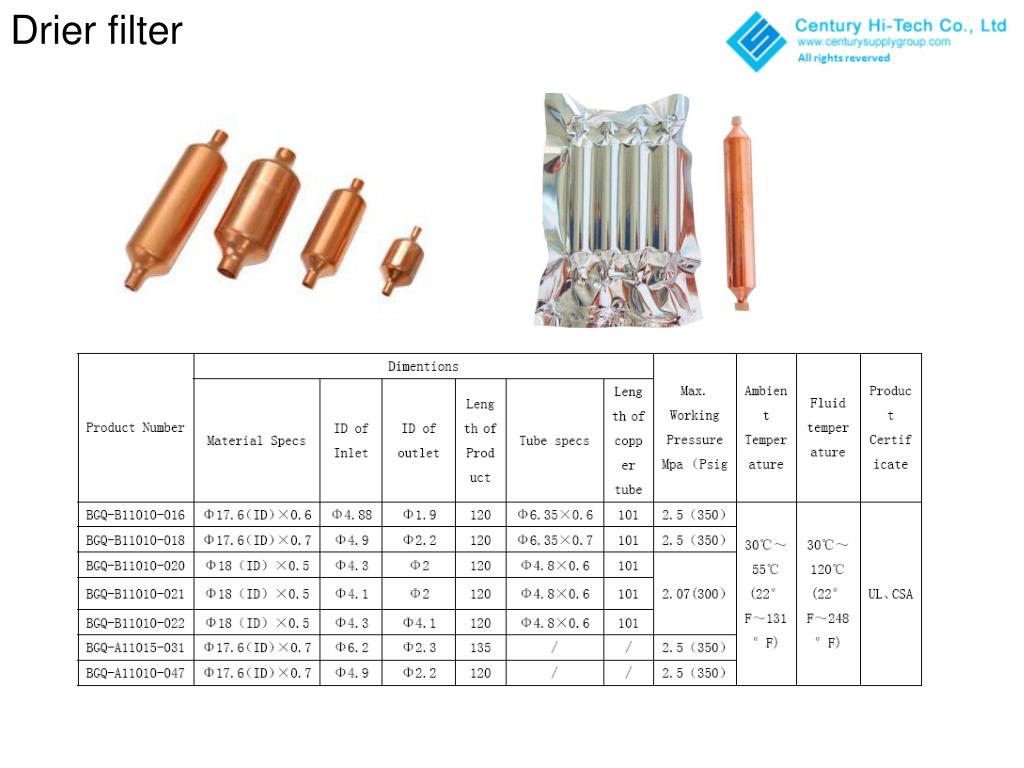

  4. Drier filter

  5. Thermostat Danfoss Series Thermostat This product series is based on fixed-temperature rest. It has the functions of force-stop and not automatism defrost. When cam lies in different place, the temperature for out also different, but the temperature for start machine will not charge. It is applicable for frozen case, direct-cold, two-door dual-temperature refrigerator. Open machine temperature:+3 ~ +6 ℃          Stop machine temperature:-15 ~ -28 ℃ Temperature control scope:≤ 20 ℃                Differential:12 ~ 35 ℃ This product series is based on fixed-temperature rest. It has the function of force-stop and provides high accuracy in temperature control, wide temperature control range and dependability is high. It is best applicable for frozen case, direct-cold, two-door dual-temperature refrigerator and Multi-door alternate refrigeration refrigerator. Available temp:15 ~ -28 ℃                   Temperature control scope:≤ 25 ℃    Differential: 7~12 ℃ 077B0021 077B6208

  6. Ranco Series Thermostat This product series is based on fixed-temperature rest. It has the function of force-stop not-stop and provides high accuracy in temperature control, wide temperature control range and dependability is high. It is best applicable for frozen case,  direct-cold, two-door dual  -  temperature refrigerator, Multi-door alternate refrigeration refrigerator , water dispenser   and cold-drink machine. Available temp: +15 ~ -35 ℃               Temperature control scope:≤25 ℃          Differential:5 ~ 14 ℃ K50-P1110) K50-P1126 K50-P1127 K50-P1125 K54-P1118-VB-7 K50-P1117

  7. Ranco Series Thermostat  This product series is best applicable for frozen case and refrigerators. If the all temperature exceed the temperature for start machine for a certain number, the signal puts through, the alarm signal emerges. Available temp:7 ~ -36 ℃                   Temperature control scope:≤30 ℃          Differential:4 ~ 12 ℃ K54-P1102 K54-P1102(VS5)

  8. Ranco Series Thermostat

  9. Ranco Series Thermostat This product series is based on fixed-temperature rest. It has the function of force-stop, provides high accuracy in temperature control and defrost . It is best  applicable for frozen  case and refrigerates the cabinet.        Available temp:+7 ~ -28 ℃Temperature control scope:≤15 ℃        Differential:4 ~ 10 ℃                      Melts frost replacement temperature:3 ~ 7 ℃

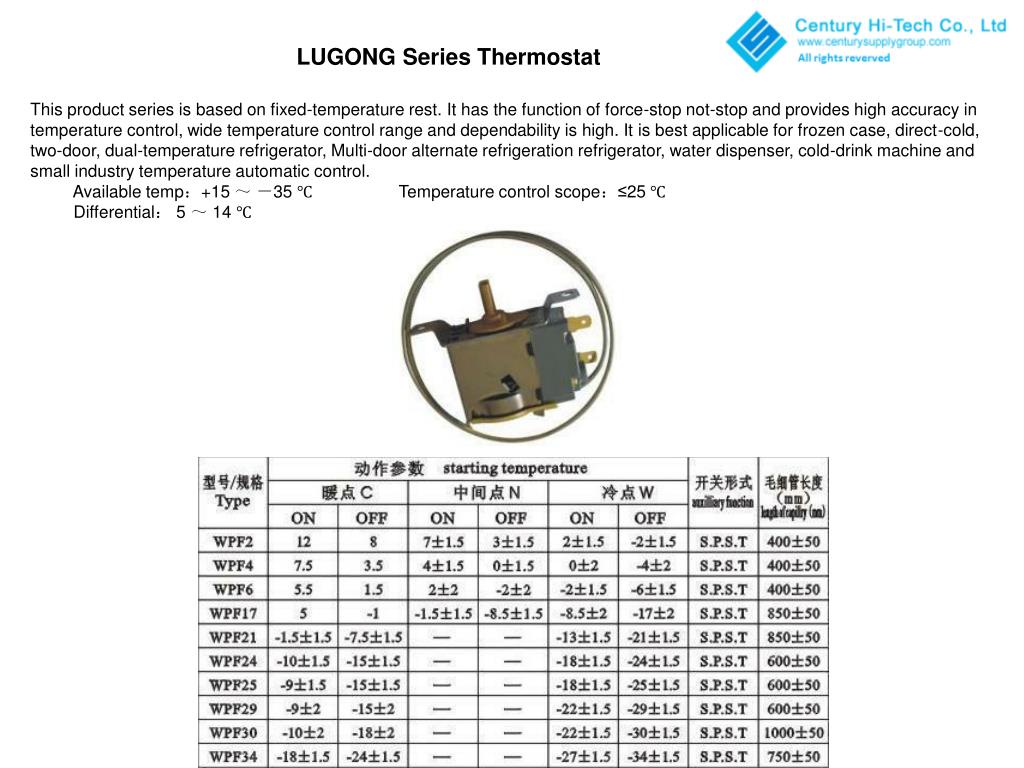

  10. LUGONG Series Thermostat This product series is based on fixed-temperature rest. It has the function of force-stop not-stop and provides high accuracy in temperature control, wide temperature control range and dependability is high. It is best applicable for frozen case, direct-cold, two-door, dual-temperature refrigerator, Multi-door alternate refrigeration refrigerator, water dispenser, cold-drink machine and small industry temperature automatic control.          Available temp:+15 ~ -35 ℃                  Temperature control scope:≤25 ℃               Differential: 5 ~ 14 ℃

  11. LUGONG Series Thermostat This product series is based on fixed-temperature rest. It has the function of force-stop opens and defrost. When cam lies in different place, the temperature for out also different. But the temperature for start machine will not change. It is best applicable for frozen case, direct-cold, two-door, dual-temperature refrigerator.     Open machine temperature:+3 ~ +6 ℃     Stop machine temperature:-2 ~ -32 ℃     Temperature control scope:max20 ℃          Differential:7 ~ 36 ℃

  12. 2. Parts for Cold Storage Check Valve Freezer Plate Access Valve Rotalock Valve Thread Cut-Off Valve Welding Cut-Off Valve Maneurop Valve Absorber Hose Axial Fan Shaded Pole Motor Drier Filter Suction Line Drier Filter Drier Filter Core High Pressure Receiver Horizontal Type Receiver Air Liquid Separator Oil Separator Removable Oil Separator Core Changeable Drier Filter Bitzer Refrigeration Unit Maneurop Refrigeration Unit Tecumseh Condensing Unit Coppeland Condensing Unit Thermostat HD Copper Tube Single Pressure Control Double Pressure Control Double Contact Pressure Control Two Grade Pressure Control Vacuum Series Pressure Control Fixed Point Pressure Control Differential Pressure Control Delay Differential Pressure Control Flow Switch Solenoid Valve Vacuum Solenoid Valve Unloading Valve Water Solenoid Valve Thermal Expansion Valve Replaceable Expansion Valve Hot Air Bypass Valve Pressure Controlled Water Valve Ball Valve Hand-Cut Off Valve Sight Glass

  13. Thermostat

  14. HD COPPER TUBE

  15. For easy and correct purchase, please connect with our sales for more information before any purchase.

  16. Thanks for connecting with us

  17. Century Hi-Tech Co., LTDCompany Address: NO. 305 CAIHONG ROAD (S) JIANGDONG NINGBO CHINATel: 0086-574-88081126Fax: 0086-574-88081126Company E-mail: sales@centurysupplygroup.comcenturyhitech@gmail.com WWW.CENTURYSUPPLYGROUP.COM Sales: Mr. Leigh Chen Mobile: 86-137-3609-1151 E-mail: cs.leighchen@gmail.com MSN: chenzhengqd@hotmailcom SKYPE: AUXSZY1322 Sales: Ms. Jane Shen Mobile:86-189-5744-1976 E-mail: cs.janeshen@gmail.com MSN: shenzhouyan@hotmail.com SKYPE: AUXSZY1322
