Presentation Transcript

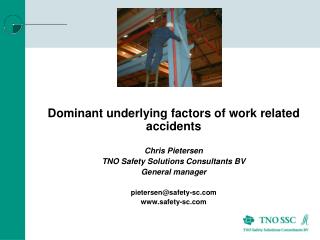

slide1
Dominant underlying factors of work related accidents
  • Chris Pietersen
  • TNO Safety Solutions Consultants BV
  • General manager
  • pietersen@safety-sc.com
  • www.safety-sc.com
tno ssc
TNO SSC
  • Life Cycle Safety
  • Technical Safety:
  • Hazard Identification and SIL Classification according to IEC 61508
  • Qualitative Risk Evaluation e.g. by using Risk Graphs or- Matrices
  • Quantitative Risk Analysis as also required by authorities (Location Specific Risk and Group Risk)
  • Organisational Safety:
  • Organisational factors associated with Safety
  • Measuring effectiveness from audits en accident analysis studies
  • The Tripod beta method for determining the problem area’s in an organization
  • Safety Culture:
  • Safety Culture Maturity assessment
  • Behaviour Safety Programs
statistics of work related incidents
Statistics of work related incidents

BP Texas refinery explosion 2005

17 people killed due to overfilling

and release from ventstack.

Previous five years: OSHA recordable injury rate: down with 70%; Fatality rate with 75%!

What is the story?

contradiction
Contradiction?
  • The five most important underlying factors on company level:
  • ·Eroded work environment: resistance to change, lack of motivation and trust.
  • ·No process safety practice and systematic risk reduction practices. Many reorganization took place: lack of communication en clarity about responsibilities.
  • ·Poor hazard awareness and understanding of process safety.
  • ·Poor performance management, no adequate indications of problem area’s.
missed opportunities
“Missed Opportunities”
  • Trevor Kletz: (4/12/2000, Singapore):

We find only a single cause (often last one in chain)

We find only the immediate causes

We list human error in a too general way

We list causes we can do little about

We do not share our lessons

We forget the lessons

analysis of work related incidents accidents
Analysis of work related incidents/ accidents
  • Near misses and small incidents are rooted in the same problem area’s.
  • Perform a thorough analysis for the different types of incidents, severity is not a good measure. RCA or Tripod study.
  • ‘ Manipulation’ of accident statistics by management will lower safety credibility dramatically
bow tie model

PREVENT

CONSEQUENCES

MITIGATE

HAZARDS

INCIDENT

BEHAVIOUR

ORGANISATION

ENGINEERING

LOD, LOP, Hazard management measure

Barrier

Bow-tie model
safety measures or barriers
Safety Measures or Barriers
  • The performance of a Risk Inventory for the specific work activities: JSA and/or TRA. For larger projects, a Safety and Health Plan need to be made.
  • The procedure to ensure a safe workplace by means of safe constructions and/or by removing the hazard from the installation (e.g. high voltage, hazardous material under pressure in a pipe).
  • -  Workpermit: Before the work can start, often a workpermit is necessary to make sure that also the hazards of the rest of the installations are taken into account.
  • -  The use of the relevant Personal Protection Equipment (PPE).
risk inventory and safety and health plan dutch ri e v g plan
Risk Inventory and Safety and Health PlanDutch: RI&E, V&G plan)
  • The main problem is that the seemingly generic nature of the work (‘working at height’) has induced generic risk analysis results (e.g. a TRA for working at height in general). In using these, this barrier is ineffective and in fact counter productive to its purpose: to take specific safety measures for the specific job.
  • The reporting often is a ‘copy and paste’ result from previous reports. Added value for safety: zero.
procedure to make sure that the installation is safe
Procedure to make sure that the installation is safe
  • This concerns to make sure that the electrical power is removed, that the pipes are free of pressure and inert, etc.
  • In a company, normally standard procedures exist for this.
  • The immediate cause of failure of this barrier is trivial: it is just the fact that these procedures are not always completely followed. Or are not complete or not (completely) understood
preconditions
Preconditions
  • Job not seen as risky, seen as a routine job.
  • Work permit not sufficiently focused on work related risks.
  • Risk analysis too generic.
  • Work preparation activities not adequate.
  • Creating a safe installation to work on: not done by the right (experienced) people.
  • Project organisation not clear enough.
  • Importance and role of the procedure not well understood or procedure not complete/correct.
underlying factors latent failures
Underlying factors (Latent Failures)
  • Safety perception and behavior different at different levels in the company (Safety culture problem).
  • Practice and procedures: 2 worlds.
  • Not enough personnel with required knowledge/ experience.
  • Almost continuous company reorganizations, creating blind spots in SHE.
  • Project management in the company is not focused enough (in an early enough phase) at work safety.
  • System for responsibility and supervision is not clear.
ten elements of safety culture maturity
Ten elements of Safety Culture Maturity®

Visible management commitment

Safety communication

Productivity versus safety

Learning organisation

Participation in safety

Health & safety resources

Risk-taking behavior

Trust between management and frontline staff

Industrial relations and job satisfaction

Safety training

(SCM method Keil Centre)

necessary steps in learning from incidents
Necessary steps in learning from incidents
  • Detection of a SHE incident
  • Reporting of the incident
  • Analysis of the incident
  • Establishing of the learning effects
  • Implementation of the learning effects
  • Checking the effectiveness of the implementation
step 4 establishing learning effects
Step 4: Establishing learning effects

INTENTIONS

ACTIONS

CONSEQUENCES

Management

Supervisors

Operational staff

1

RESOURCES

e.g. time, money,

people, materials

DRIVERS

WORKING

standards,

ENVIRONMENT

policies

incidents

METHODS

e.g. planning,

coordination, control

3

2

1: Single

-

loop learning

2: Double

-

loop learning

3: Triple

-

loop learning

learning loops
Learning loops
  • Single-loop learning affects the way operational goals are achieved:
    • Without changing the goals, methods or resources.
    • It can be described as doing the same things better. It is visible in modifications of a task protocol, working instructions or procedures.
  • Double-loop learning affects norms and organizational targets:
    • It can be described as doing things in a better way. Such changes are visible as changes in resources and methods used.
  • Triple-loop learning affects the drivers (policies and values) of an organization on a high level.
    • It can be described as doing other things.
conclusions
Conclusions
  • Dominant underlying factors for work related accidents in the process industry have been identified from incident analysis studies
  • Accident statistics generally are not a good indicator for process safety.
  • Perform thorough accident analysis studies for underlying factors for a variaty of types
  • Learning lessons from accidents only start with the analysis. See the 6 steps.
