Presentation Transcript
Stratified randomization in clinical trials l.jpg

Stratified Randomization in Clinical Trials

Katherine L. Monti, Ph.D.

Senior Statistical Scientist and

Director of the Massachusetts Office, Rho, Inc.

Adjunct Associate Professor, Biostatistics

University of North Carolina


Outline l.jpg
Outline

  • Introduction

  • Motivation for this work: “Stratification can’t hurt”

  • Literature search

    • Why stratify? Advantages

    • Why not stratify? Disadvantages

    • Considerations if stratification is going to take place

    • Alternatives

    • Limitations of the literature


Outline3 l.jpg
Outline

  • Explore the notion that “stratification can’t hurt”

    • Description of the simulation

    • Results

  • Conclusions


Introduction l.jpg
Introduction

  • Stratification is generally undertaken so that treatment comparisons can be made within relatively homogenous groups of experimental units.

  • Stratification in clinical trials is different from classical stratification in survey sampling, or from blocking in experimental design.


Introduction5 l.jpg
Introduction

  • In survey sampling, the population is divided into subgroups (strata). There is a defined sampling frame. Each stratum is randomly sampled with a known sample size.

  • In experimental design, treatments are assigned within blocks, which are defined by factors that are generally determinable and often controllable (e.g., temp, water level in a greenhouse setting). Again, the sample size in each block is part of the design.


Introduction6 l.jpg
Introduction

In clinical trials…

  • The sample size for each factor level is often unknown until the end of the study.

    • Exception: when sampling is halted differentially by strata to force balanced strata.

  • The “blocking” factors are generally not controllable (e.g., stage of disease, concomitant medication usage).


  • Introduction7 l.jpg
    Introduction

    • Sometimes stratification is beneficial in clinical trials.

    • Some trialists maintain that it is never harmful.

      • Is that the case?


    Motivation l.jpg

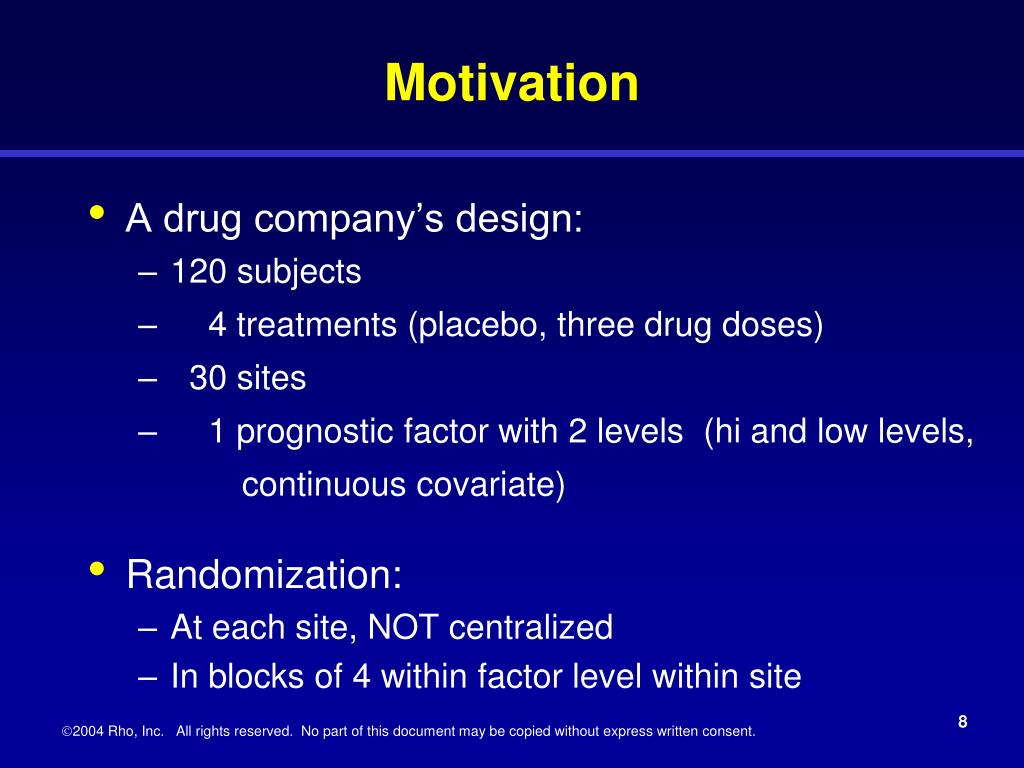

    Motivation

    • A drug company’s design:

      • 120 subjects

      • 4 treatments (placebo, three drug doses)

      • 30 sites

      • 1 prognostic factor with 2 levels (hi and low levels,

        continuous covariate)

    • Randomization:

      • At each site, NOT centralized

      • In blocks of 4 within factor level within site


    Motivation9 l.jpg
    Motivation

    • 120 subjects / (30 sites) = 4 subjects per site

      With 4 treatments, perfect balance overall would occur without stratification.

    • 120 subjects / (30 sites x 2 levels) = 2 subjects per site for each levelWith 4 treatments, balance is not assured if randomization occurs within level.


    Motivation10 l.jpg

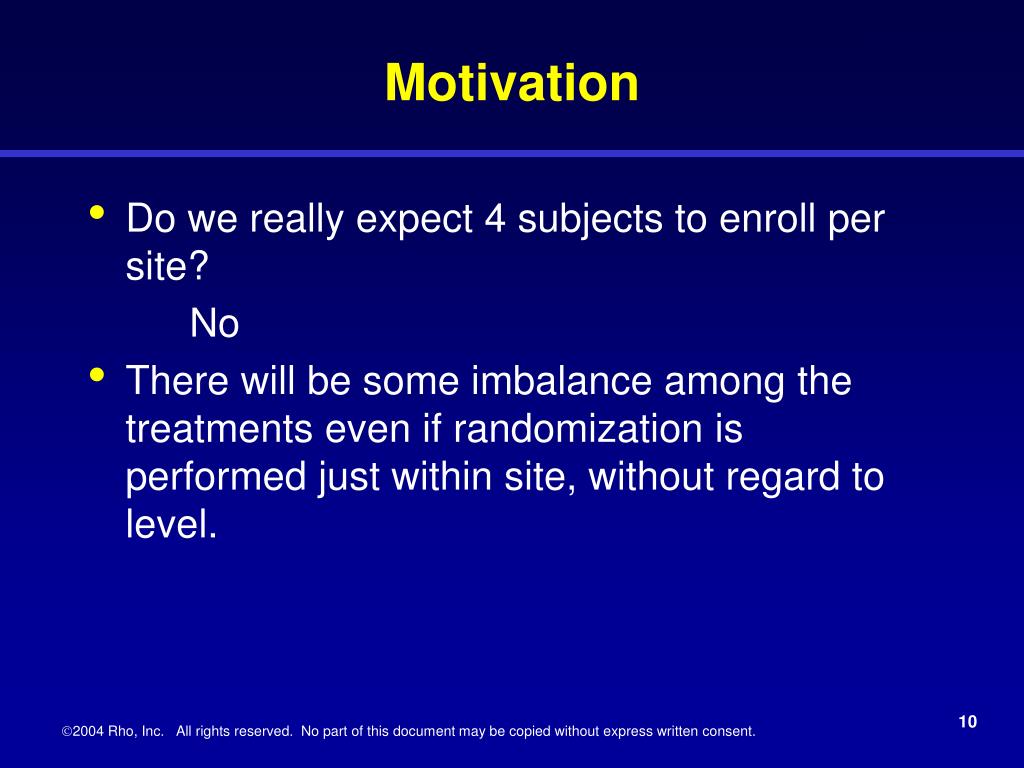

    Motivation

    • Do we really expect 4 subjects to enroll per site?

      No

    • There will be some imbalance among the treatments even if randomization is performed just within site, without regard to level.


    Motivation11 l.jpg
    Motivation

    • Those designing the study thought that randomizing within factor level

      • would increase balance in the design

      • “couldn’t hurt”

    • Others argued that randomizing within factor level would increase the overall imbalance in the design.


    Literature l.jpg

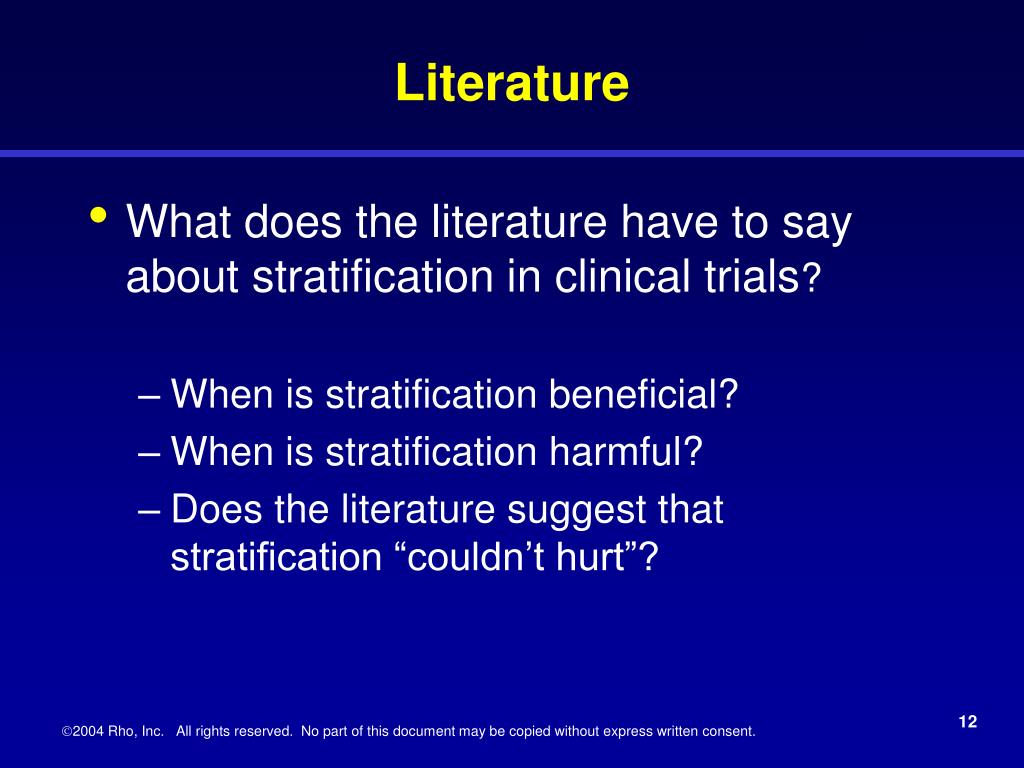

    Literature

    • What does the literature have to say about stratification in clinical trials?

      • When is stratification beneficial?

      • When is stratification harmful?

      • Does the literature suggest that stratification “couldn’t hurt”?


    Why stratify advantages l.jpg
    Why stratify? Advantages

    • Keep variability of subjects within strata as small as possible and between-strata variability as large as possible in order to have the most precision of the treatment effect (Chow and Liu, 1998)

    • Avoid imbalance in the distribution of treatment groups within strata

      • Efficiency, credibility


    Why stratify advantages14 l.jpg
    Why stratify? Advantages

    • Protect against Type I and Type II errors

    • Avoid confounding

    • Satisfy prevailing investigator preconceptions about study design

    • Provide credibility to choice of analysis covariates

      • Stratification variables are definitely specified a priori.


    Why not stratify disadvantages l.jpg
    Why not stratify? Disadvantages

    • Gains (power/efficiency) that can occur with stratification is often small, particularly once

      (# subjects) / (# treatments) > 50

    • More costly

    • More complicated trial

      • Greater opportunity to introduce randomization error


    One alternative adaptive allocation l.jpg
    One Alternative: Adaptive allocation

    • Dynamic allocation / adaptive allocation

      • Minimization by Taves

      • Pocock and Simon’s method

      • Zelen’s method

      • Begg and Iglewicz

      • Others


    Minimization l.jpg
    Minimization

    • Keep track of the current imbalance and assign the treatment to a new subject to reduce the existing imbalance between strata

    • Advantages:

      • Produces less imbalance than simple permuted blocks

      • Canaccommodate more factors


    Minimization18 l.jpg
    Minimization

    • Disadvantages:

      • Need to keep track of current imbalance (central randomization)

      • None of the assignments are completely random

      • Since it only aims to balance marginal totals of multiple factors, precision is only increased if the interaction between prognostic factors is not pronounced. (Tu et. al., 2000)


    Another alternative post stratification l.jpg
    Another Alternative: Post-stratification

    • If stratification is not done at randomization, covariate analysis can be performed.

      • Easier and less costly to implement

      • Often nearly as efficient

      • May be less convincing, particularly if covariate was not mentioned in the protocol

      • Cannot correct for cases of extreme imbalance or confounding of covariates



    Consider l.jpg
    Consider

    • How well is the stratification variable measured?

      • If the covariates used to stratify are imprecisely assessed, then may introduce error.

    • Is the stratification variable related to outcome?

      • If not, the gain in efficiency may be small or negative.

    • How many strata will there be?


    Number of strata l.jpg

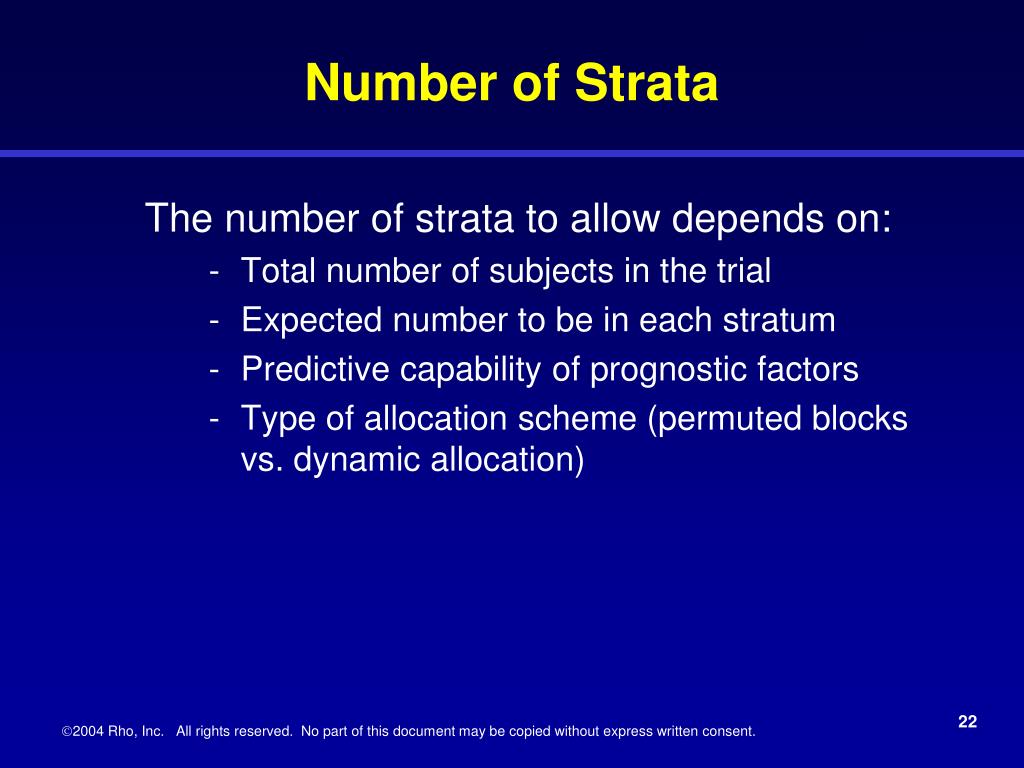

    Number of Strata

    The number of strata to allow depends on:

    • Total number of subjects in the trial

    • Expected number to be in each stratum

    • Predictive capability of prognostic factors

    • Type of allocation scheme (permuted blocks vs. dynamic allocation)


    Number of strata23 l.jpg
    Number of Strata

    • The number of strata should be less than

      (total sample size) / (block size). (Hallstrom and Davis, 1988)

      • In our case, N=120, B=4,

        • Recommendation: < 30 strata

        • Design: 60 strata

    • Stratification begins to fail (in terms of balance) if the total number of strata is greater than approximately N/2 (for 2 treatments). (Therneau, 1993)

      • or N/k, k= number of treatments


    Number of strata24 l.jpg

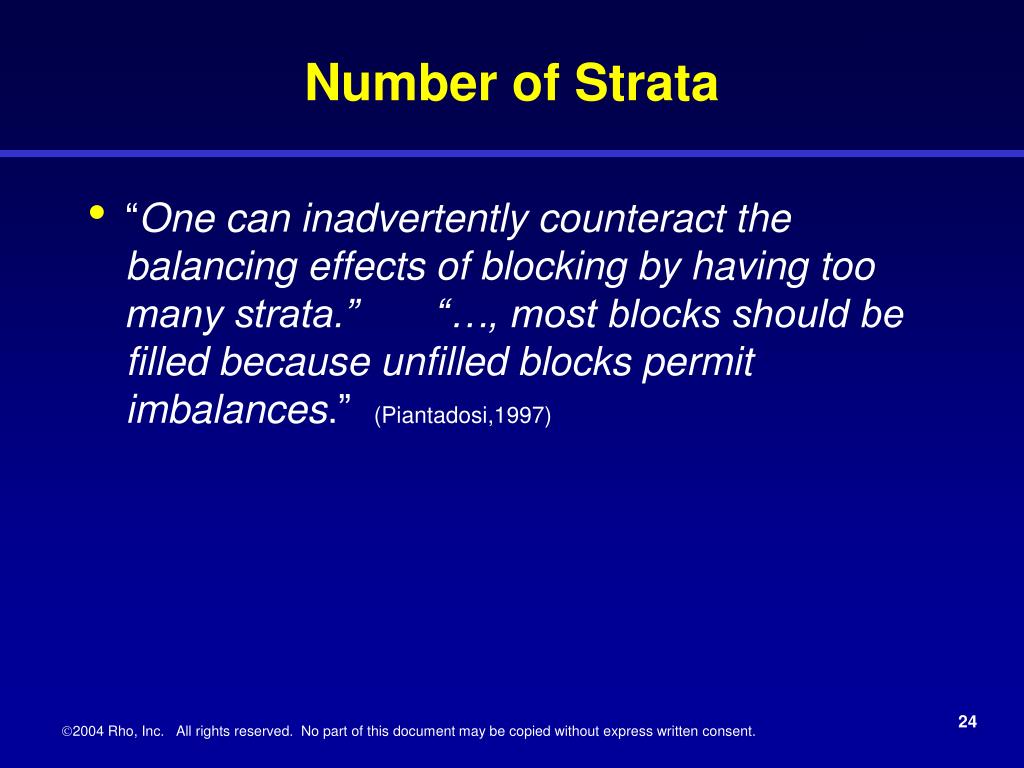

    Number of Strata

    • “One can inadvertently counteract the balancing effects of blocking by having too many strata.” “…, most blocks should be filled because unfilled blocks permit imbalances.” (Piantadosi,1997)


    Number of strata25 l.jpg

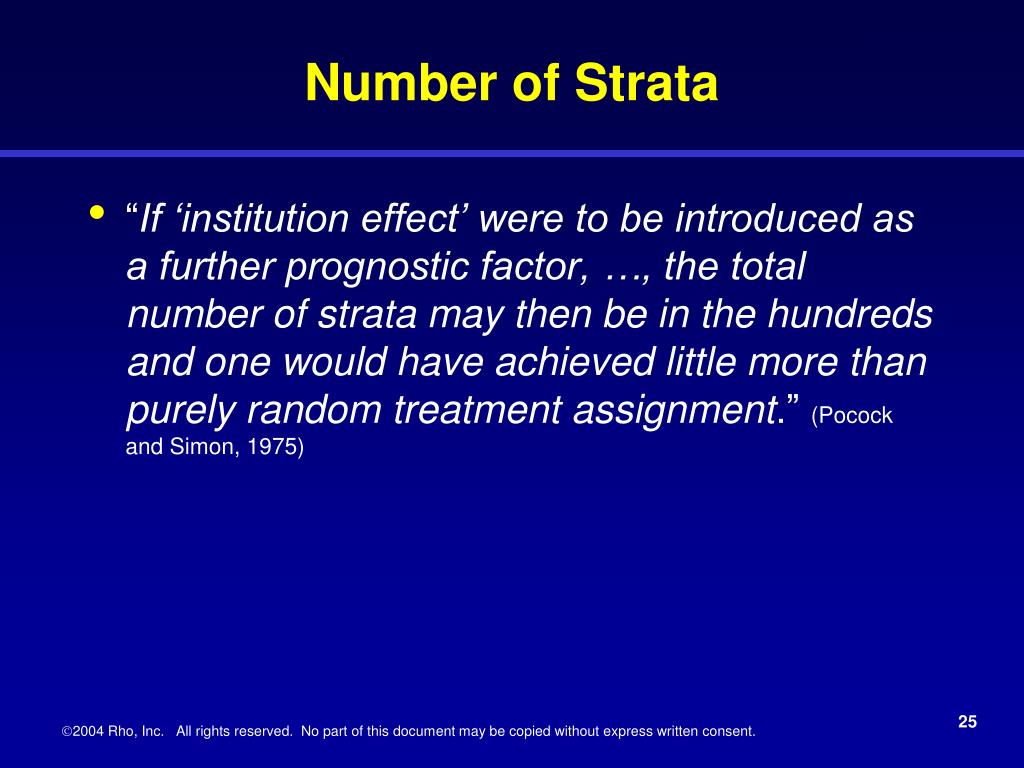

    Number of Strata

    • “If ‘institution effect’ were to be introduced as a further prognostic factor, …, the total number of strata may then be in the hundreds and one would have achieved little more than purely random treatment assignment.” (Pocock and Simon, 1975)


    Number of strata26 l.jpg

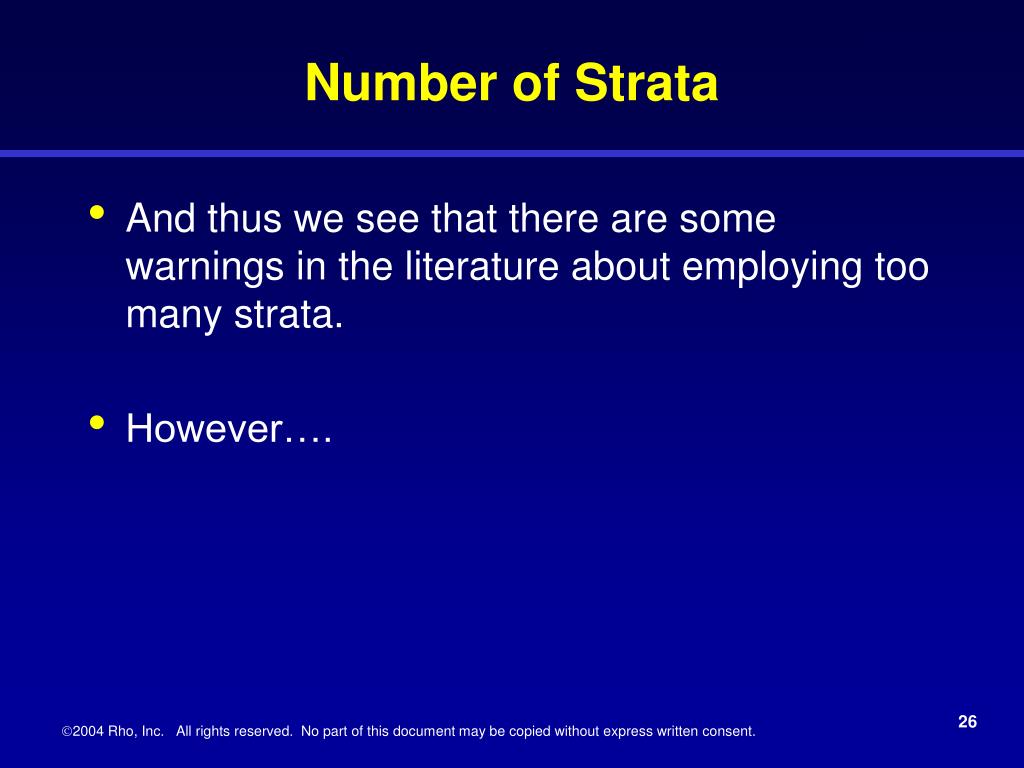

    Number of Strata

    • And thus we see that there are some warnings in the literature about employing too many strata.

    • However….


    Conclusions of the literature search l.jpg

    Conclusions of the Literature Search

    Authors are still concluding that “Stratification is … harmless always, useful frequently, and important rarely”.

    (Kernan et al., 1999)

    (Caveat: Elsewhere in the article, Kernan et al recommend against overstratification, but this is the topic sentence of their discussion section.)


    Limitations of the literature l.jpg
    Limitations of the Literature

    • Literature refers mostly to trials of two treatments.

    • In the statistical literature, little attention is paid to operational disadvantages of more complex designs.


    Conclusions of the literature search29 l.jpg
    Conclusions of the Literature Search

    Consider stratifying only if:

    • Prognostic factors are known to be related to the outcome and are easy to collect prior to randomization.

    • Operational costs justify any gain.

    • Sample size is small ( N < 100), but the stratified design does not induce imbalance.

      • The number of strata should be less than

        (total sample size) / (block size).(Hallstrom and Davis, 1988)


    Stratification can t hurt l.jpg

    “Stratification can’t hurt.”

    The notion that stratification “couldn’t hurt”

    remains in current literature

    is being advanced by some trialists

    This conclusion should be reconsidered.


    Stratification can t hurt31 l.jpg

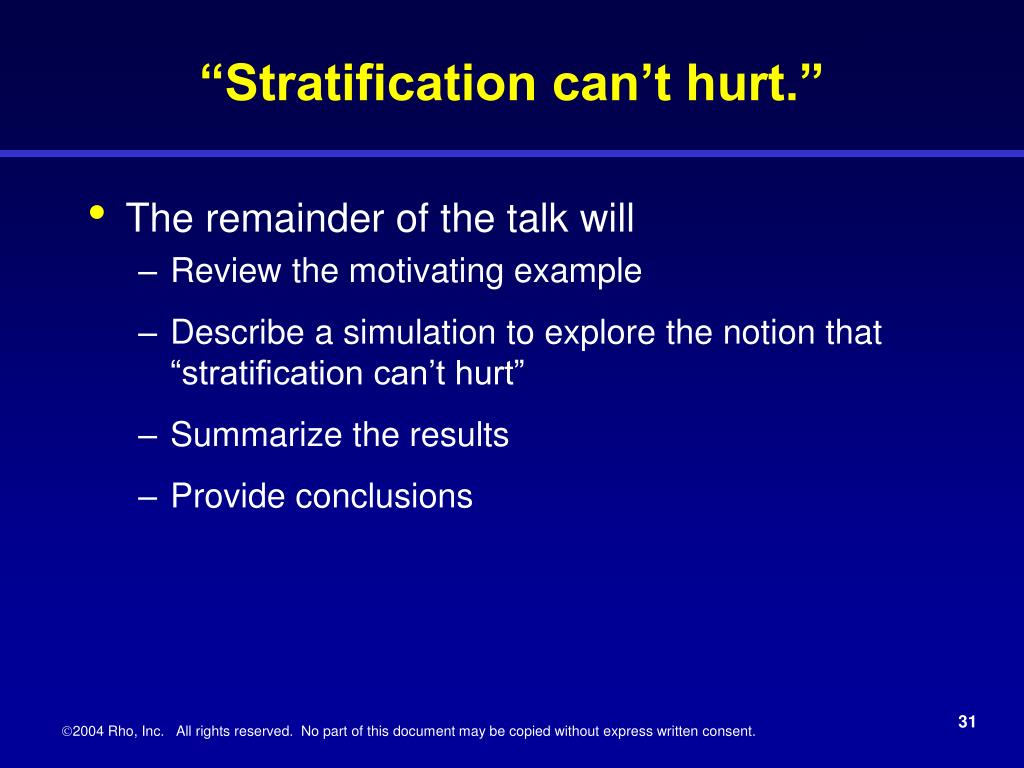

    “Stratification can’t hurt.”

    • The remainder of the talk will

      • Review the motivating example

      • Describe a simulation to explore the notion that “stratification can’t hurt”

      • Summarize the results

      • Provide conclusions


    Motivation32 l.jpg
    Motivation

    • A drug company’s design:

      • 120 subjects

      • 4 treatments (placebo, three drug doses)

      • 30 sites

      • 1 prognostic factor with 2 levels (hi and low levels, continuous covariate)

    • Randomization:

      • At each site, NOT centralized

      • In blocks of 4 within factor level within site


    Operational difficulties l.jpg

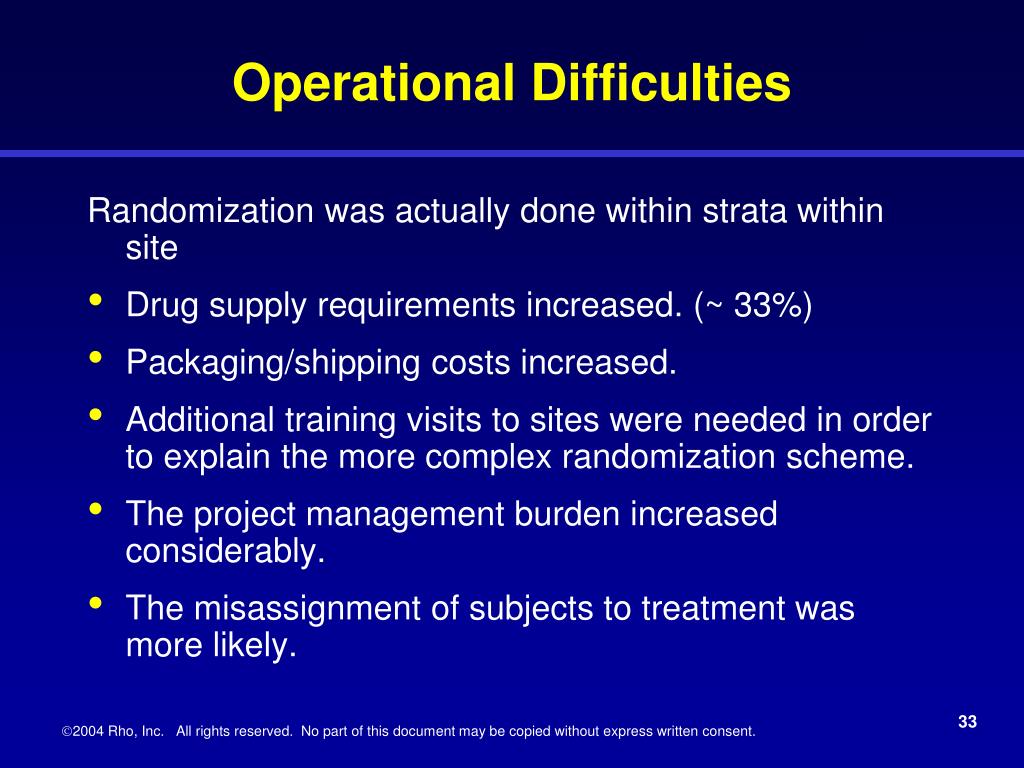

    Operational Difficulties

    Randomization was actually done within strata within site

    • Drug supply requirements increased. (~ 33%)

    • Packaging/shipping costs increased.

    • Additional training visits to sites were needed in order to explain the more complex randomization scheme.

    • The project management burden increased considerably.

    • The misassignment of subjects to treatment was more likely.


    Imbalance l.jpg

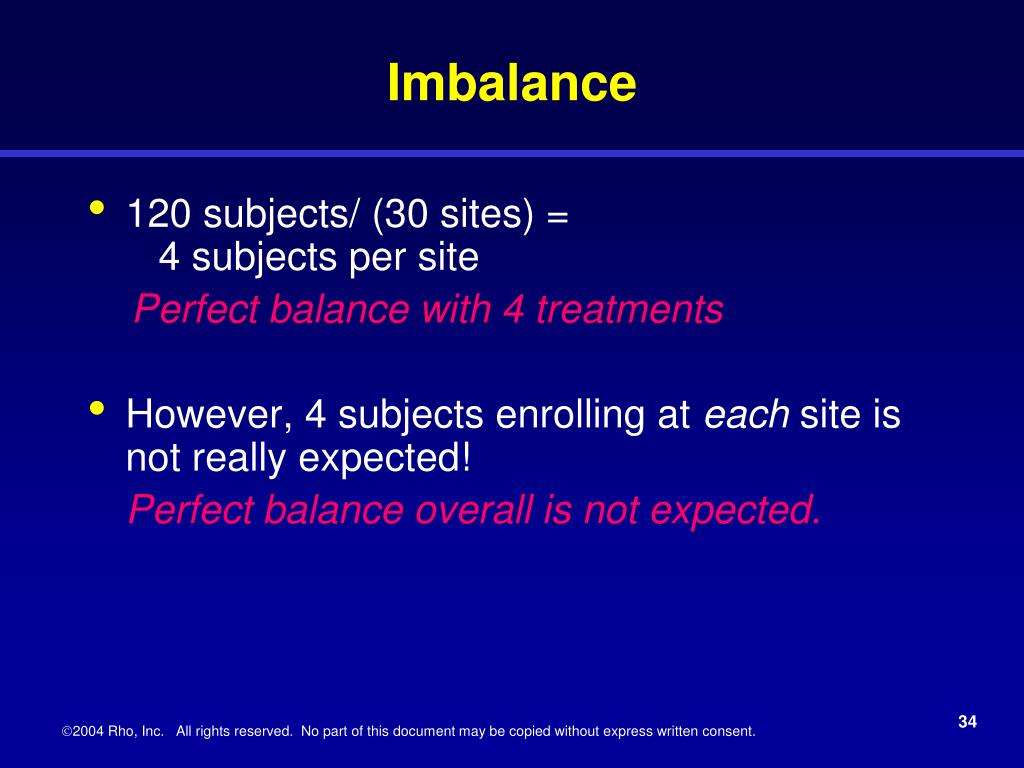

    Imbalance

    • 120 subjects/ (30 sites) = 4 subjects per site

      Perfect balance with 4 treatments

    • However, 4 subjects enrolling at each site is not really expected!

      Perfect balance overall is not expected.


    Imbalance35 l.jpg

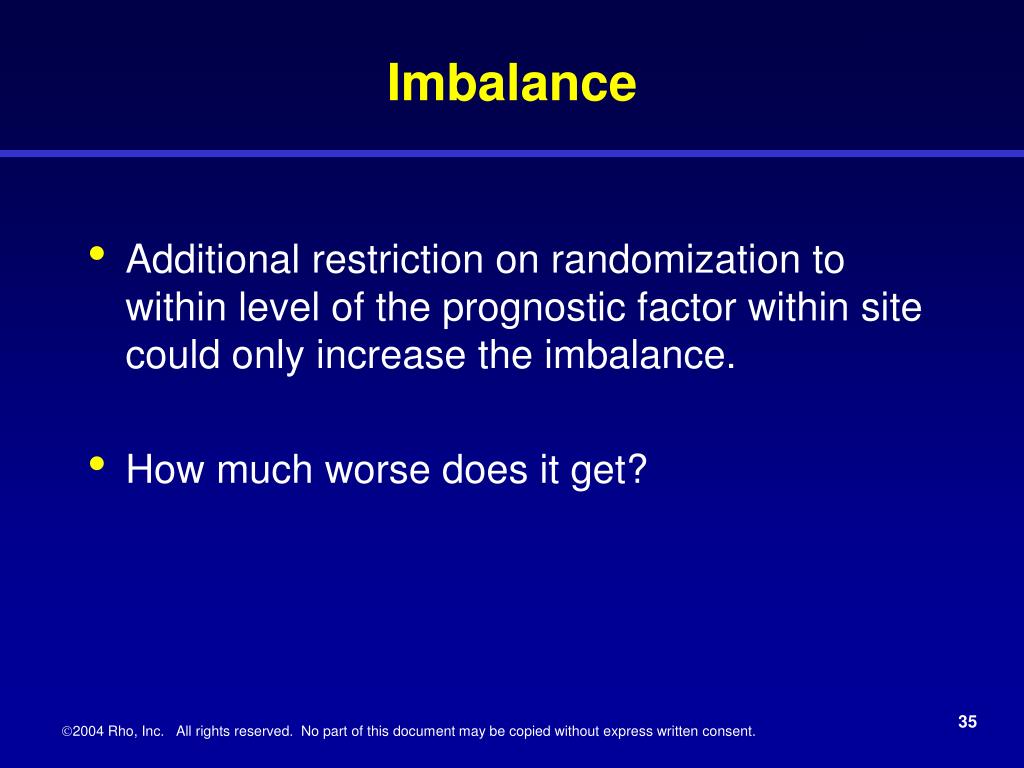

    Imbalance

    • Additional restriction on randomization to within level of the prognostic factor within site could only increase the imbalance.

    • How much worse does it get?


    Simulation l.jpg
    Simulation

    • I set out to compare the magnitude of the treatment imbalance if randomization were performed in permuted blocks of 4:

      • within site (WS) (30 strata)

      • within level of the factor within site (WLWS) (60 strata)

    • I used simulation.


    Simulation37 l.jpg
    Simulation

    • The general approach was this:

      • I don’t now how many subjects would enroll in each site, so I used a variety of guesses regarding the enrollment pattern.

      • I don’t know how many subjects in each strata are going to enroll, but I assumed an underlying 50:50 ratio and forced 50:50 enrollment in some cases.

      • I don’t know in what order subjects will enter the trial, but I assumed that subjects enter randomly with respect to their strata status in each site.


    Simulation38 l.jpg
    Simulation

    • Once I “identified” the number of subjects in each strata at each site and the order in which they enrolled, I randomized them to treatment twice: once randomly WS and once randomly WLWS.

    • Did that 10,000 times for each enrollment pattern.

    • Compared the balance of WS to WLWS randomization.


    Enrollment patterns l.jpg

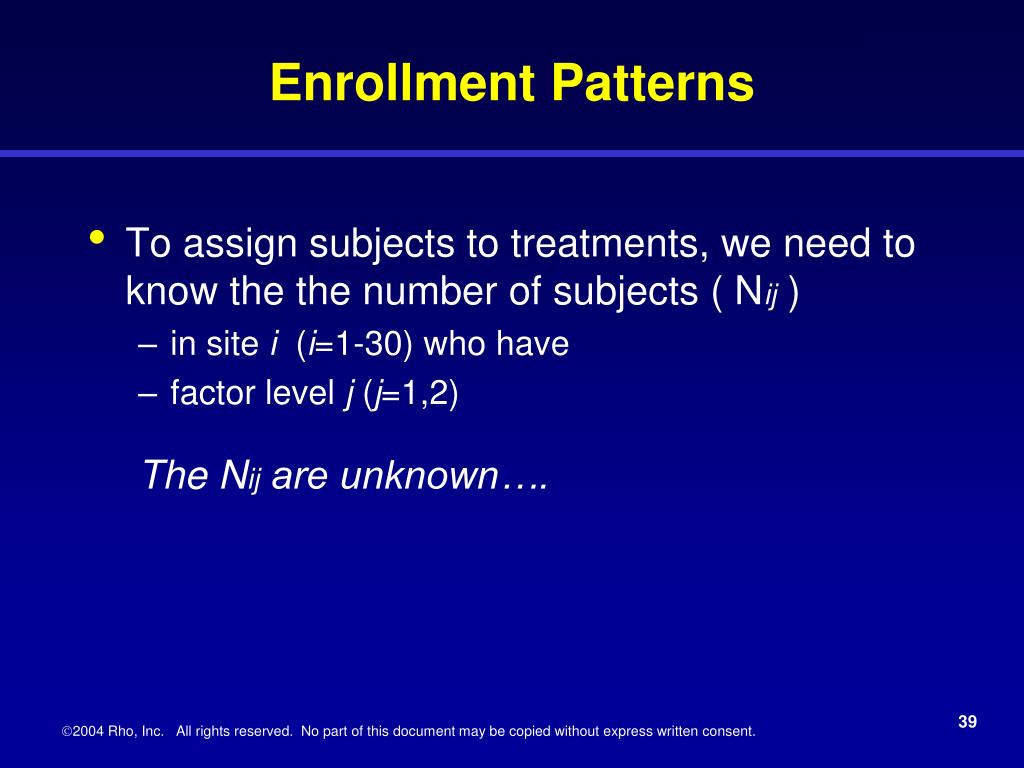

    Enrollment Patterns

    • To assign subjects to treatments, we need to know the the number of subjects ( Nij )

      • in site i (i=1-30) who have

      • factor level j (j=1,2)

        The Nij are unknown….


    Enrollment patterns40 l.jpg
    Enrollment Patterns

    …So we make assumptions

    • However, instead of prescribing the exact Nij for each i and j in the simulation, I defined 9 different enrollment patterns for the 60 site/level combinations.


    Enrollment patterns41 l.jpg
    Enrollment Patterns

    • Each enrollment pattern assumed a distribution of the number of subjects in the 60 site/levels, so that there were:

      • 30 sites, 2 levels per site

      • 0-8 subjects in each of the 60 site/level strata

      • 120 subjects

    • Some enrollment patterns forced balance between the factor levels:

      N.1 = N.2 = 120/2 = 60 subjects per stratum


    Slide42 l.jpg

    No. Subjects

    Enrollment Plan

    1

    2,3*

    4,5*

    6,7*

    8

    9

    0

    6

    10

    5

    30

    1

    20

    14

    12

    11

    2

    60

    20

    16

    16

    15

    3

    20

    14

    12

    8

    4

    6

    10

    6

    30

    5

    2

    6

    1

    7

    1

    8

    1

    Entries are the number of strata having the indicated number of subjects.

    * Plans forced a balance between strata across sites (60 subjects per strata overall).


    An enrollment pattern l.jpg
    An Enrollment Pattern

    • EX: Pattern 2:

      • 20 site/levels strata w/ 3 subjects

      • 20 site/levels strata w/ 2 subjects

      • 20 site/levels strata w/ 1 subject

        Total of 60 site/level strata w/ 60+40+20 = 120 subjects

        Here, Nij = 1, 2 or 3

    • Given that pattern

      • The 60 strata were randomly paired to construct 30 sites.

      • Ni1 / Ni2 for site i could be any of the following: 3/3, 3/2, 3/1, 2/3, 2/2, 2/1, 1/3, 1/2, or 1/1


    An enrollment pattern44 l.jpg

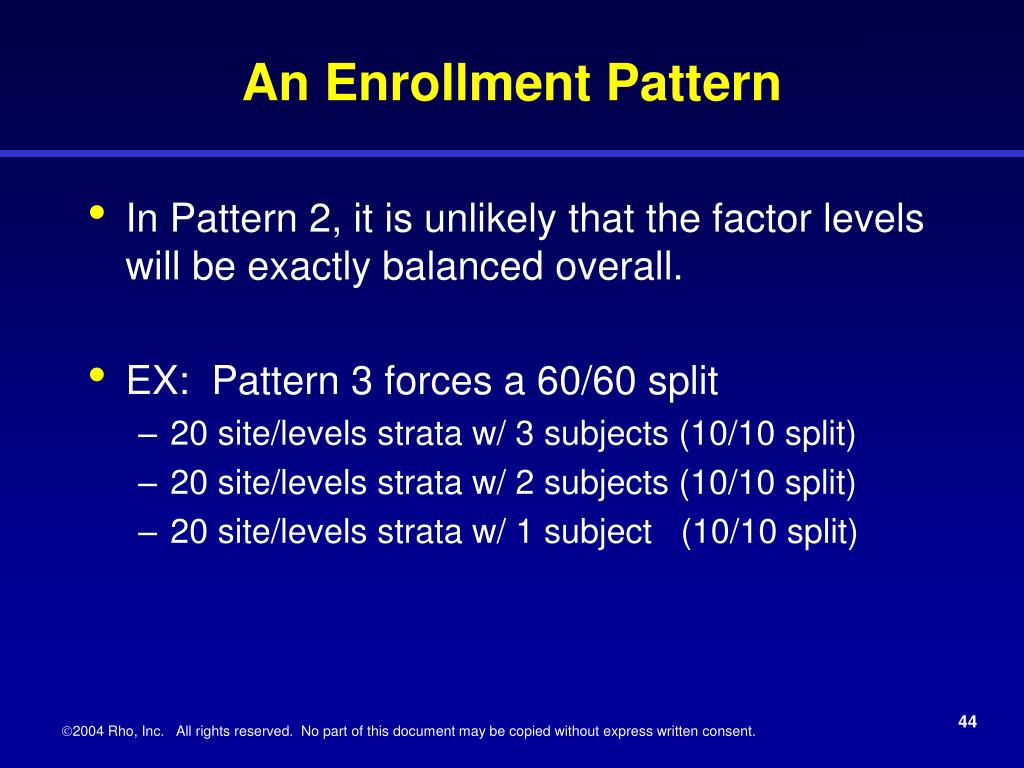

    An Enrollment Pattern

    • In Pattern 2, it is unlikely that the factor levels will be exactly balanced overall.

    • EX: Pattern 3 forces a 60/60 split

      • 20 site/levels strata w/ 3 subjects (10/10 split)

      • 20 site/levels strata w/ 2 subjects (10/10 split)

      • 20 site/levels strata w/ 1 subject (10/10 split)


    Enrollment patterns45 l.jpg

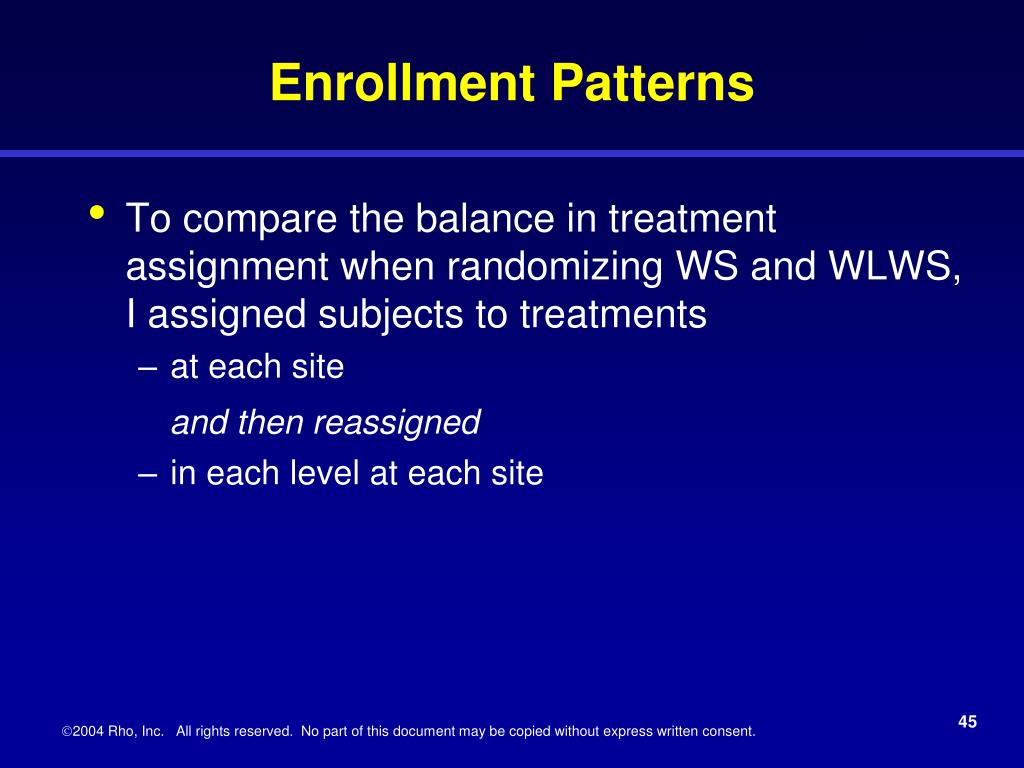

    Enrollment Patterns

    • To compare the balance in treatment assignment when randomizing WS and WLWS, I assigned subjects to treatments

      • at each site

        and then reassigned

      • in each level at each site


    Simulation46 l.jpg

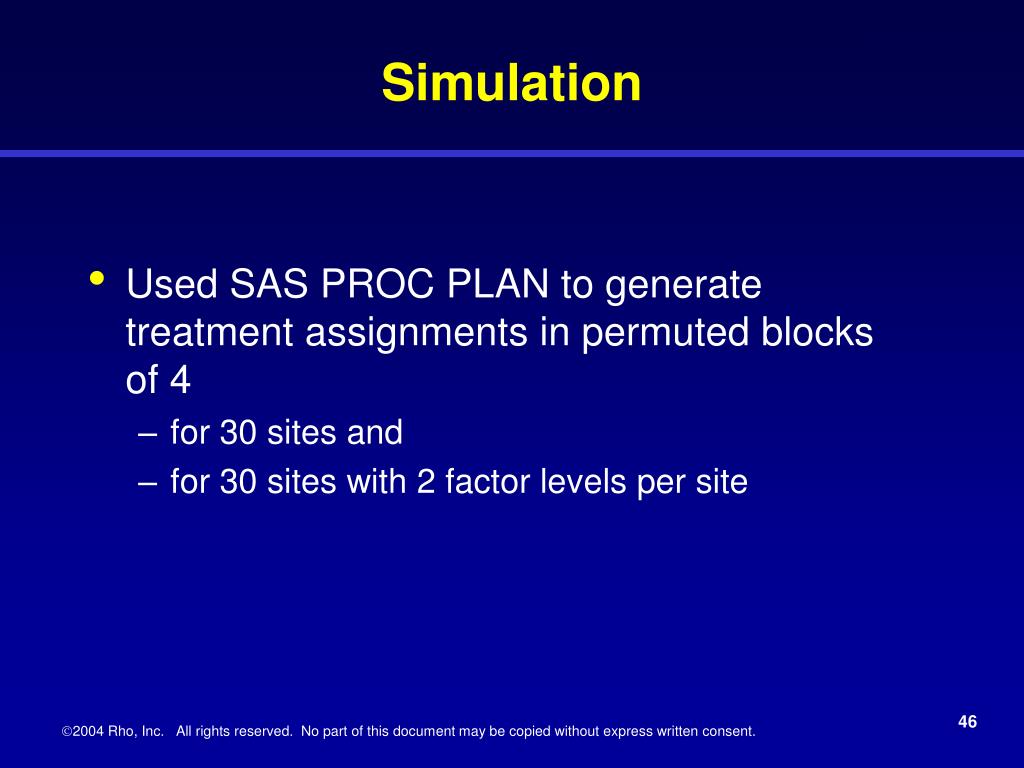

    Simulation

    • Used SAS PROC PLAN to generate treatment assignments in permuted blocks of 4

      • for 30 sites and

      • for 30 sites with 2 factor levels per site


    Evaluation criteria l.jpg
    Evaluation Criteria

    • For each enrollment pattern, we want to be able to compare the treatment balance when randomization is performed WS and WLWS using permuted blocks of 4 treatments.


    Evaluation criteria48 l.jpg
    Evaluation Criteria

    • There are two types of treatment balance:

      • Overall balanceThe extent to which the treatment assignments are balanced overall.

      • Within-level balanceThe extent to which the treatment assignments are balanced within each of the 2 factor levels.


    Evaluation criteria49 l.jpg
    Evaluation Criteria

    • 4 criteria used to assess the randomization results of each simulated run are reported here:

      • N[1] = smallest N of the 4 treatments

      • N[1] + N[2] = smallest total sample size for any comparison of treatments

      • % loss of power compared to a completely balanced design for the comparison based on N[1] + N[2] for a study designed for 90% power

      • N[4] – N[1] = maximum difference in sample sizes


    Evaluation criteria50 l.jpg
    Evaluation Criteria

    • Overall, treatment balance would beachieved if

      • N1 = N2 = N3 = N4 = 120/4 = 30

      • N[1] = 30

      • N[1] + N[2] = 60

      • No loss of power relative to complete balance

      • N[4] – N[1] = 0


    Simulation scheme l.jpg
    Simulation Scheme

    • Do for enrollment pattern (EP) = 1 to 9

      • Do 10,000 replications:

        • Generate 60 strata of subjects (per EP).

          • Assign random numbers to each subject (to determine order of enrollment at the site and the order of enrollment in the level at the site).

          • Assign a random number to each stratum (to identify the levels, 1 vs 2).

        • Randomly pair the 60 strata into 30 sites. (The stratum with the lower random number is level 1.)


    Simulation scheme52 l.jpg
    Simulation Scheme

    • Randomly assign treatments WS based on the order of enrollment in the site, then -determine the sample size of each treatment -compute the evaluation criteria

    • Randomly assign treatments WLWS based on the order of enrollment in the site/level, then -determine the sample size of each treatment -compute the evaluation criteria

  • Retain all the evaluation criteria, go to next iteration

  • Go to next enrollment pattern


  • Results reported l.jpg
    Results Reported

    • For each EP there are 10,000 values of the evaluation criterion

      • when randomizing WS

      • when randomizing WLWS


    Slide54 l.jpg

    No. Subjects

    Enrollment Plan

    1

    2,3*

    4,5*

    6,7*

    8

    9

    0

    6

    10

    5

    30

    1

    20

    14

    12

    11

    2

    60

    20

    16

    16

    15

    3

    20

    14

    12

    8

    4

    6

    10

    6

    30

    5

    2

    6

    1

    7

    1

    8

    1

    Entries are the number of strata having the indicated number of subjects.

    * Plans forced a balance between strata across sites (60 subjects per strata overall).


    Slide59 l.jpg

    *

    * For EP 9, there are 4 subjects for each stratum, but the strata are not balanced, so it is not necessarily the case that each treatment has 15 observations. Therefore, the sum N{1}+N[2} can be less than 30.


    Conclusions l.jpg
    Conclusions

    • With a relatively large number of treatments:

      • Randomizing within numerous small sites can lead to some treatment imbalance and loss of power.

      • Randomization within levels of a prognostic factor in those small sites will generally

        • Increase the treatment imbalance overall

        • Increase the loss of power in overall pairwise comparisons

        • Do little to reduce the treatment imbalance within the levels of the prognostic factor

        • Increase cost of conducting the trial

        • Increase the complexity of the trial and the chance of errors in randomization


    Conclusions62 l.jpg
    Conclusions

    • Is it the case that stratification by prognostic factor “can’t hurt”?

      • NO: In some cases, stratification can hurt

        • Statistically (power)

        • Operationally(money)


    Contact information l.jpg
    Contact Information

    KMonti@RhoWorld.com

    Slides: www.rhoworld.com


    Acknowledgements l.jpg
    Acknowledgements

    Gretchen Marcucci, M.S.

    Stephen Gilbert, Ph.D.


    References l.jpg
    References

    • Begg CB, Iglewicz B. A treatment allocation procedure for sequential clinical trials. Biometrics36: 81-90, 1980

    • Chow SC, Liu JP. Design and Analysis of Clinical Trials. John Wiley and Sons; 1998.

    • Hallstrom A, Davis K. Imbalance in treatment assignments in stratified block randomization. Control Clin Trials 1988; 9:375-382.

    • Kernan WN, Viscoli CM, Makuch RW, et al. Stratified randomization for clinical trials. J Clin Epidemiolol 1999; 52: 19-26.

    • Piantadosi, S. Clinical Trials. A methodologic perspective. John Wiley and Sons; 1997.

    • Pocock SJ, Simon R. Sequential treatment assignment with balancing for prognostic factors in the controlled clinical trial. Biometrics 1975; 31:103-115.

    • Taves DR. Minimization: A new method in assigning patient to treatment and control group. Clinical Pharmacology and Therapeutics 15: 443-453, 1974.

    • Therneau TM. How many stratification factors is "too many" to use in a randomization plan? Control Clinical Trial 14: 98-108, 1993.

    • Tu D, Shalay K, Pater J Adjustment of treatment effect for covariates in clinical trials: Statistical and Regulatory Issues Drug Info Journal 34:511-523, 2000.

    • Zelen M. The randomization and stratification of patients to clinical trials. Journal of Chronic Dis, 27:365-375, 1974 .
