  1. Protein phosphatases

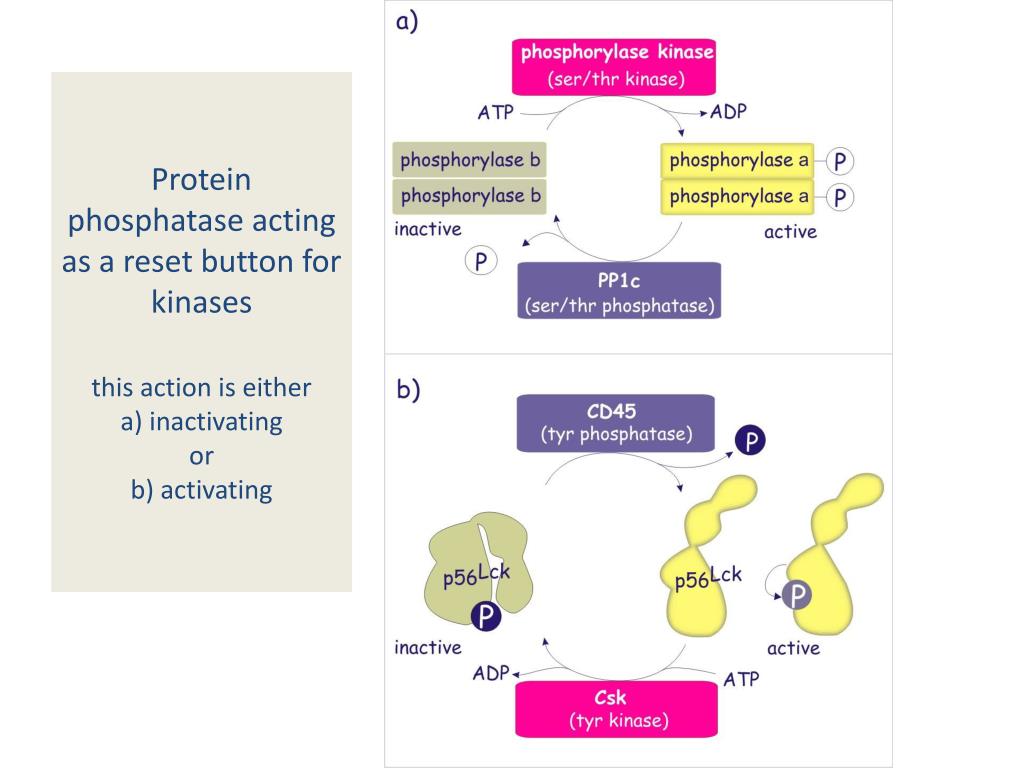

  2. Protein phosphatase acting as a reset button for kinasesthis action iseithera) inactivatingorb) activating

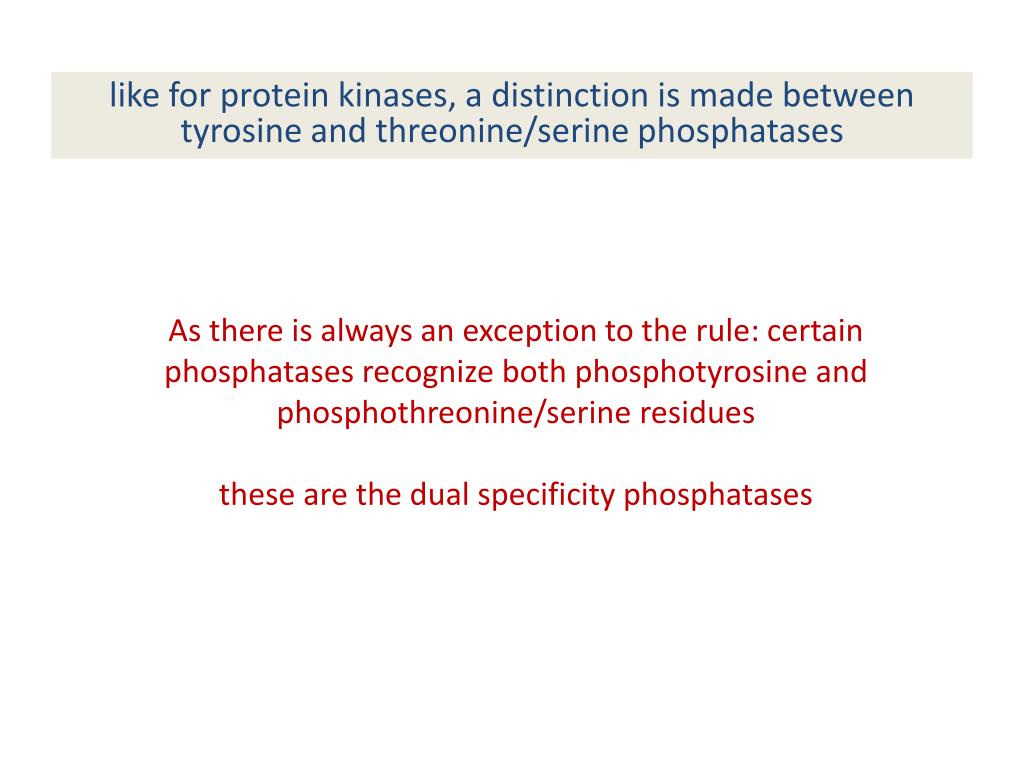

  3. like for protein kinases, a distinction is made between tyrosine and threonine/serine phosphatases As there is always an exception to the rule: certain phosphatases recognize both phosphotyrosine and phosphothreonine/serine residues these are the dual specificity phosphatases

  4. { serine threonine { tyrosine serine threonine tyrosine {

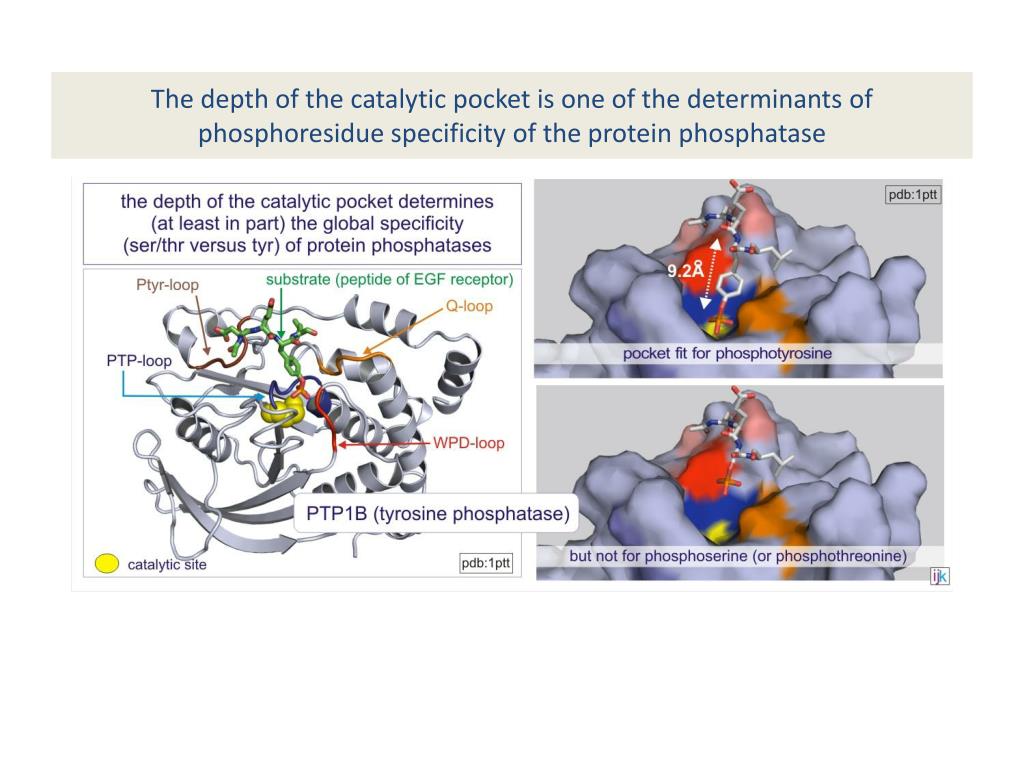

  5. The depth of the catalyticpocketis one of the determinants of phosphoresiduespecificity of the protein phosphatase

  6. Serine / threonine phosphatases

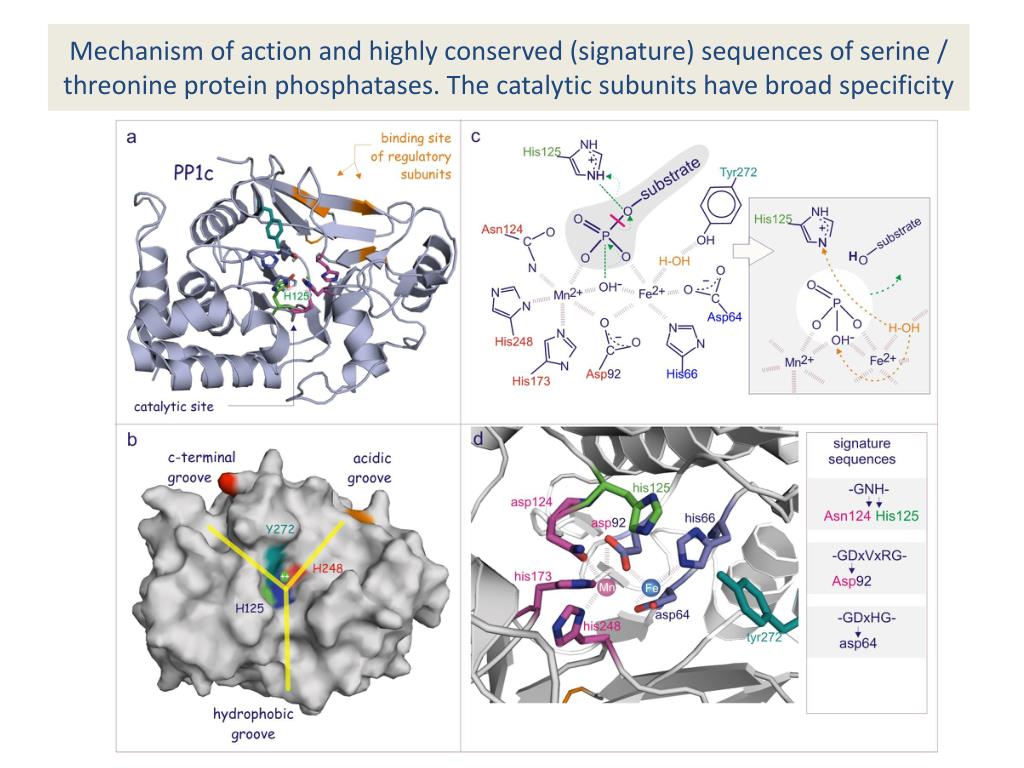

  7. Mechanism of action and highlyconserved (signature) sequences of serine / threonineprotein phosphatases. The catalyticsubunits have broadspecificity

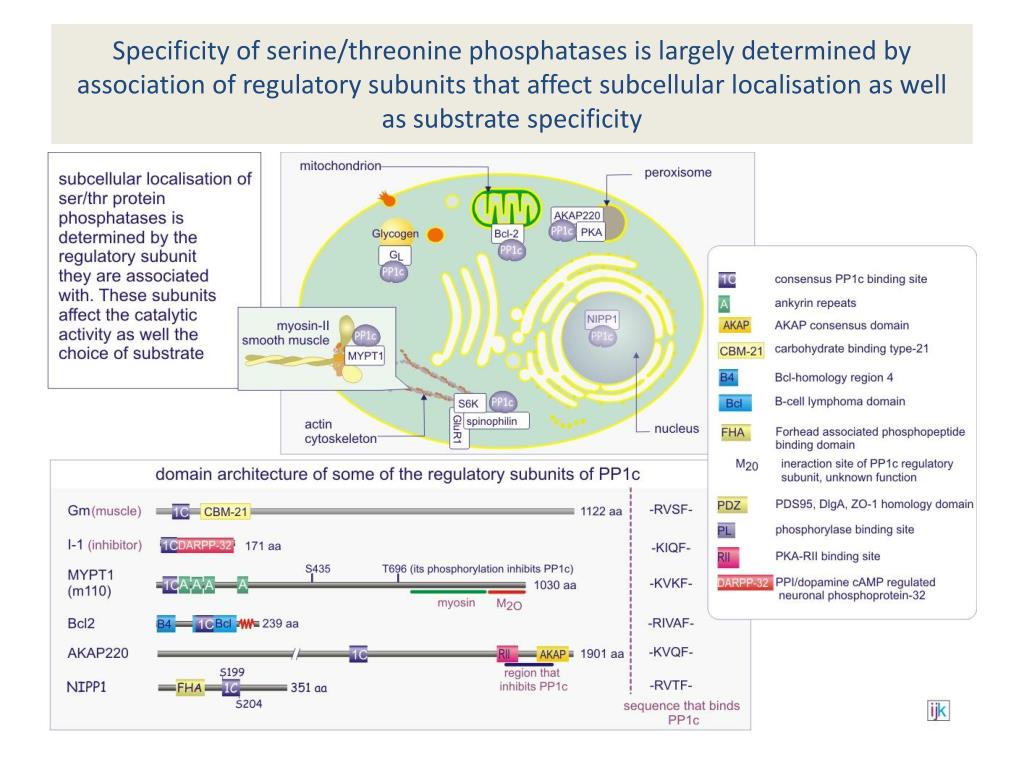

  8. Specificity of serine/threonine phosphatases islargelydetermined by association of regulatorysubunitsthat affect subcellular localisation as well as substratespecificity

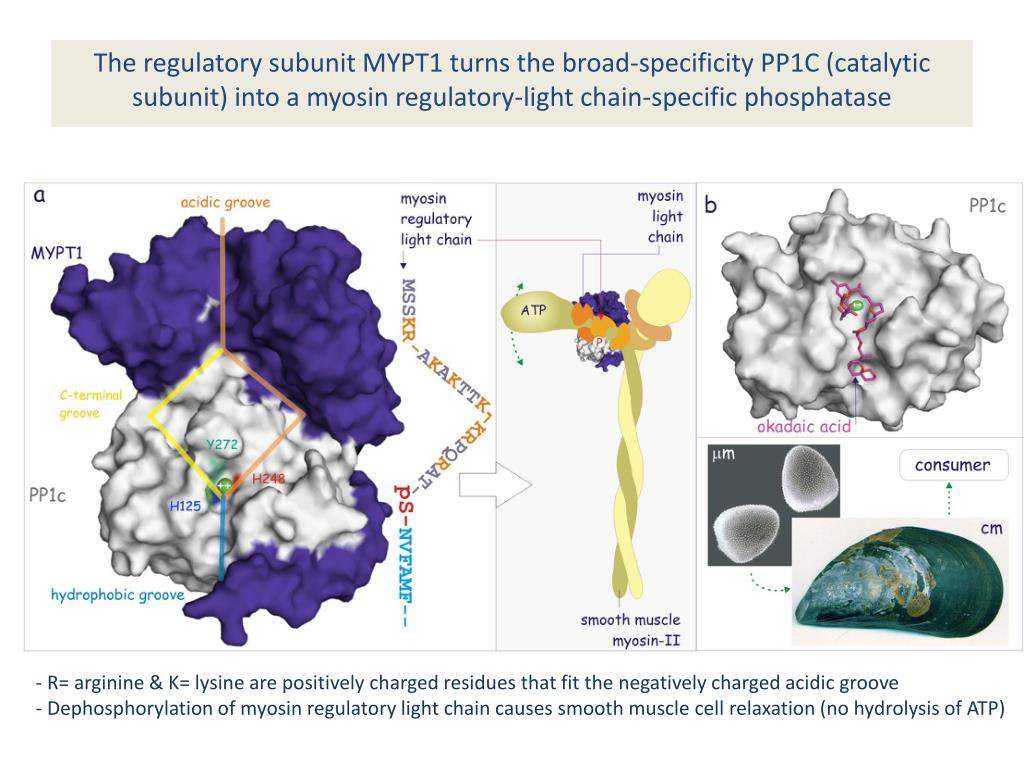

  9. The regulatorysubunit MYPT1 turns the broad-specificity PP1C (catalyticsubunit) into a myosinregulatory-light chain-specific phosphatase - R= arginine & K= lysine are positivelychargedresiduesthat fit the negativelychargedacidic groove - Dephosphorylation of myosinregulatorylight chaincauses smooth muscle cell relaxation (no hydrolysis of ATP)

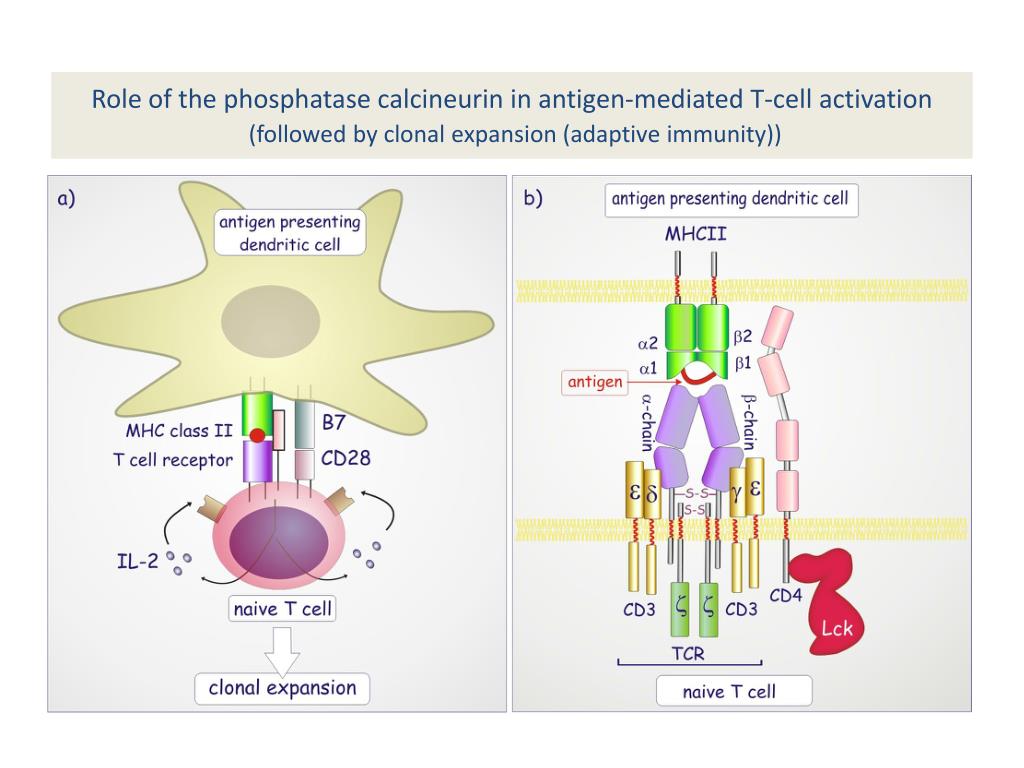

  10. Role of the phosphatase calcineurin in antigen-mediated T-cell activation(followed by clonal expansion (adaptive immunity))

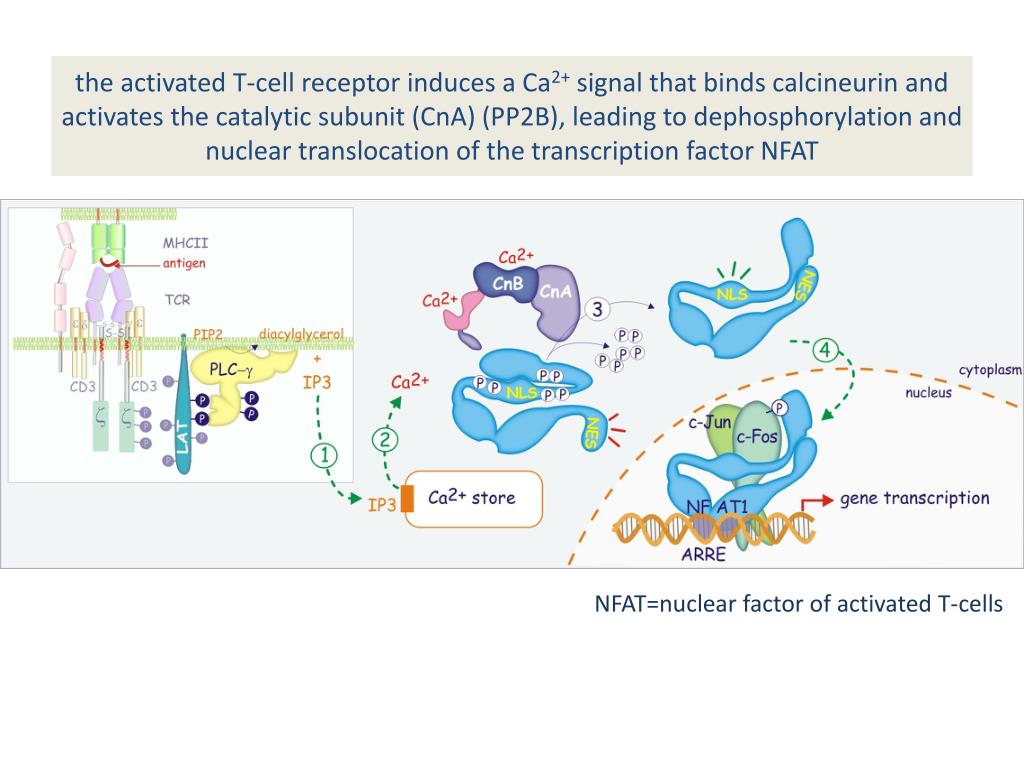

  11. the activated T-cellreceptorinduces a Ca2+ signal thatbindscalcineurin and activates the catalyticsubunit (CnA) (PP2B), leading to dephosphorylation and nuclear translocation of the transcription factor NFAT NFAT=nuclear factor of activated T-cells

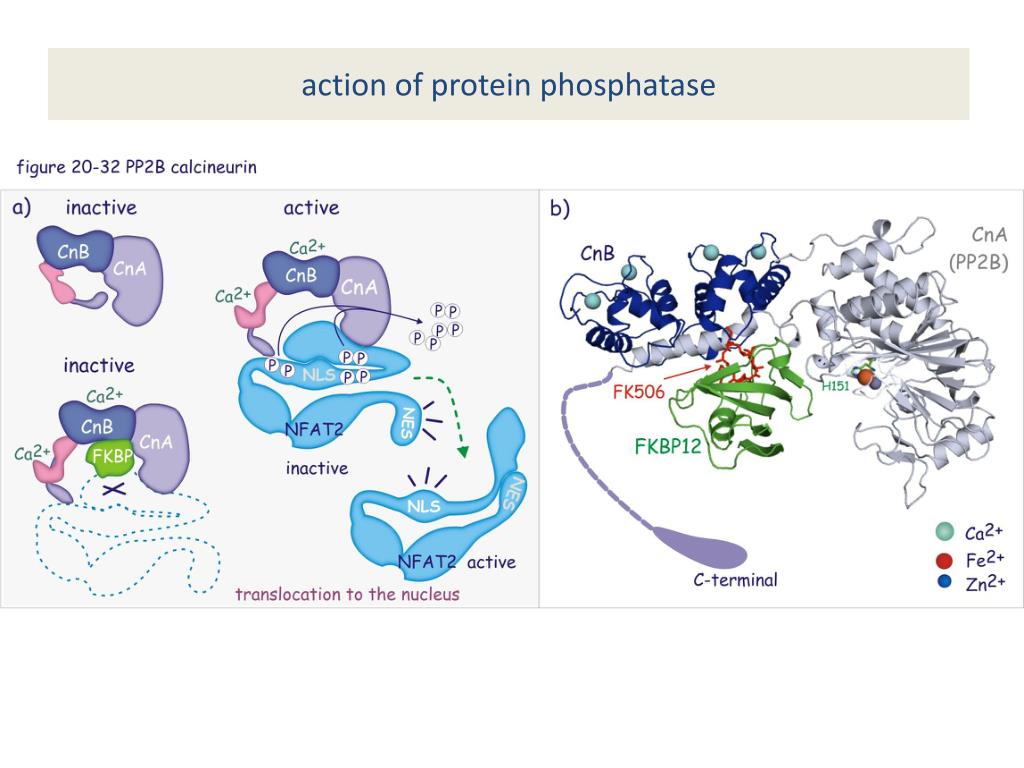

  12. action of protein phosphatase

  13. tyrosine protein phosphates (PTP)

  14. twostepmechanism of action of protein tyrosine phosphatases

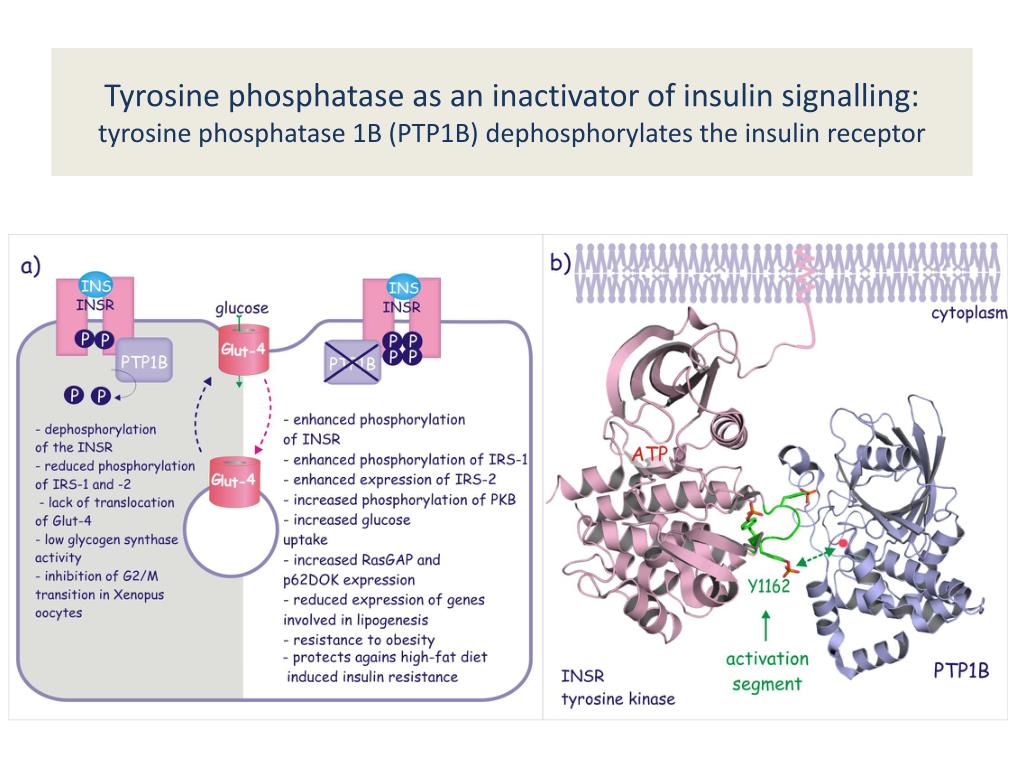

  15. Tyrosine phosphatase as an inactivator of insulinsignalling: tyrosine phosphatase 1B (PTP1B) dephosphorylates the insulinreceptor

  16. Certain tyrosine phosphatases have tumoursuppressorfunctions (by opposing to deragulated tyrosine protein kinases)

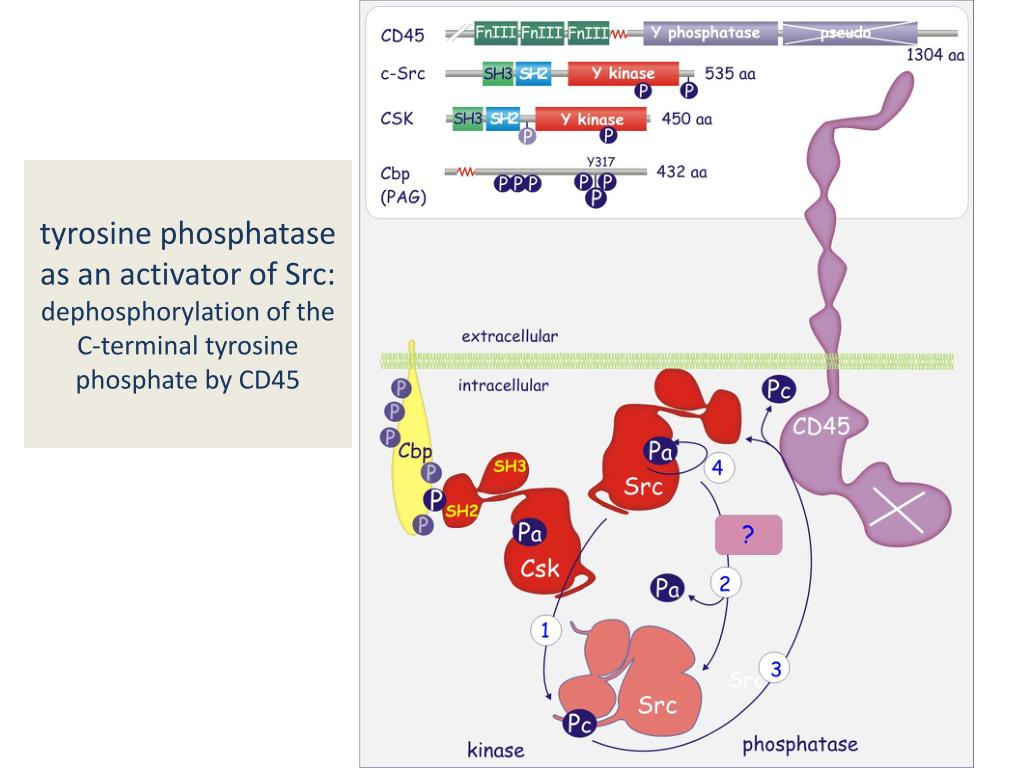

  17. tyrosine phosphatase as an activator of Src: dephosphorylation of the C-terminal tyrosine phosphate by CD45

  18. the SH2 domainbound to the C-terminal phosphotyrosinekeeps the kinase in an incompetent conformation dephosphorylationremovesthisconstraint and isfollowed by autophosphorylation. The kinase isnowfullycompetent

  19. PTEN qualifies by its structure and itssequence as a tyrosine phosphatase but itprefersinositollipidsand acts as a inositollipid phosphatase (important tumoursuppressorrole)

  20. PTEN removes the phosphates that have been added by PI 3-kinase PI 3-kinase isactivated by growthfactors (includinginsulin) and plays an important role in growthregulation and cellsurvival thisexplainswhyloss of PTEN isinvolved in cell transformation (cancer development)
