Finding the Area of a Rectangle

Finding the Area of a Rectangle. Objectives To calculate areas of rectangles To calculate areas of polygons made of rectangles. 1 cm. 1 cm. Area is the measure of how much space a shape takes up. We measure it in squares such as square centimetres or metres etc.

love
Download Presentation

Finding the Area of a Rectangle

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript


  1. Finding the Area of a Rectangle

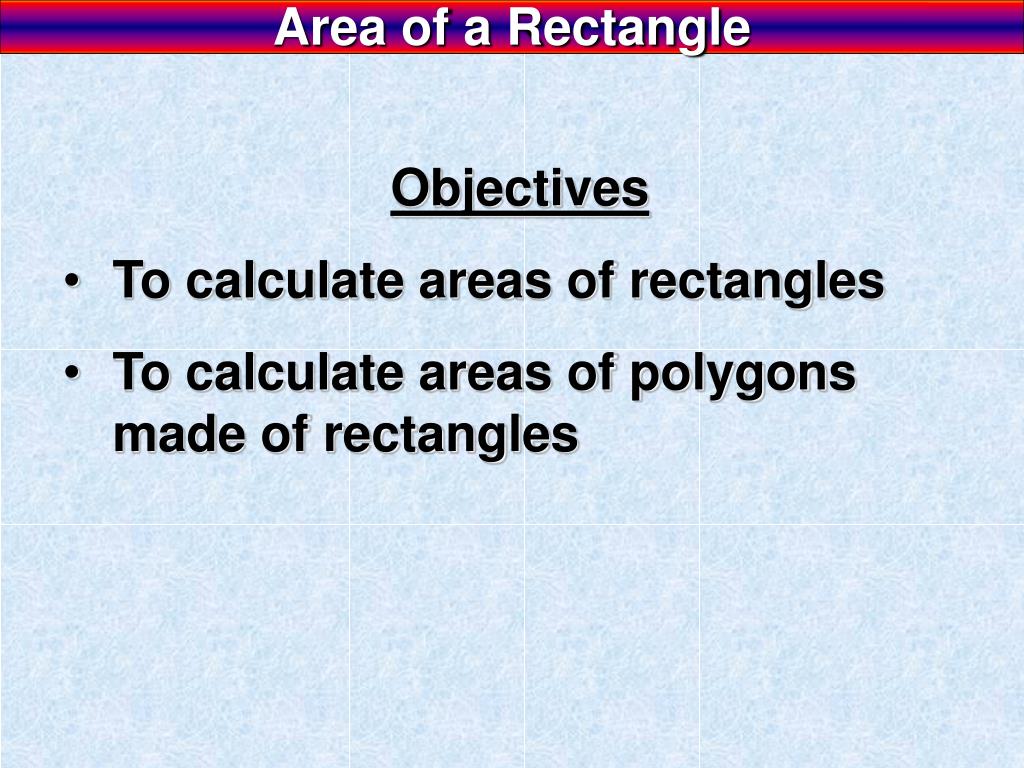

  2. Objectives • To calculate areas of rectangles • To calculate areas of polygons made of rectangles

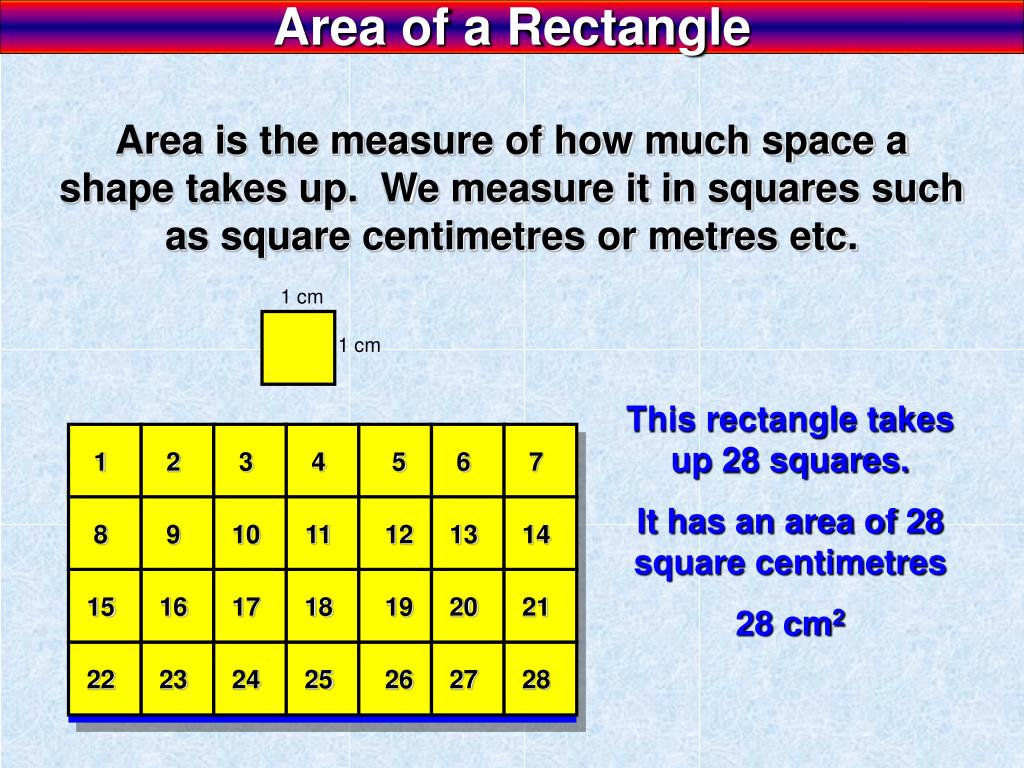

  3. 1 cm 1 cm Area is the measure of how much space a shape takes up. We measure it in squares such as square centimetres or metres etc. This rectangle takes up 28 squares. It has an area of 28 square centimetres 28 cm2 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28

  4. It could take a long time to cover shapes in squares. Luckily there is an quicker way. 7 cm 4 cm × = 28 cm2

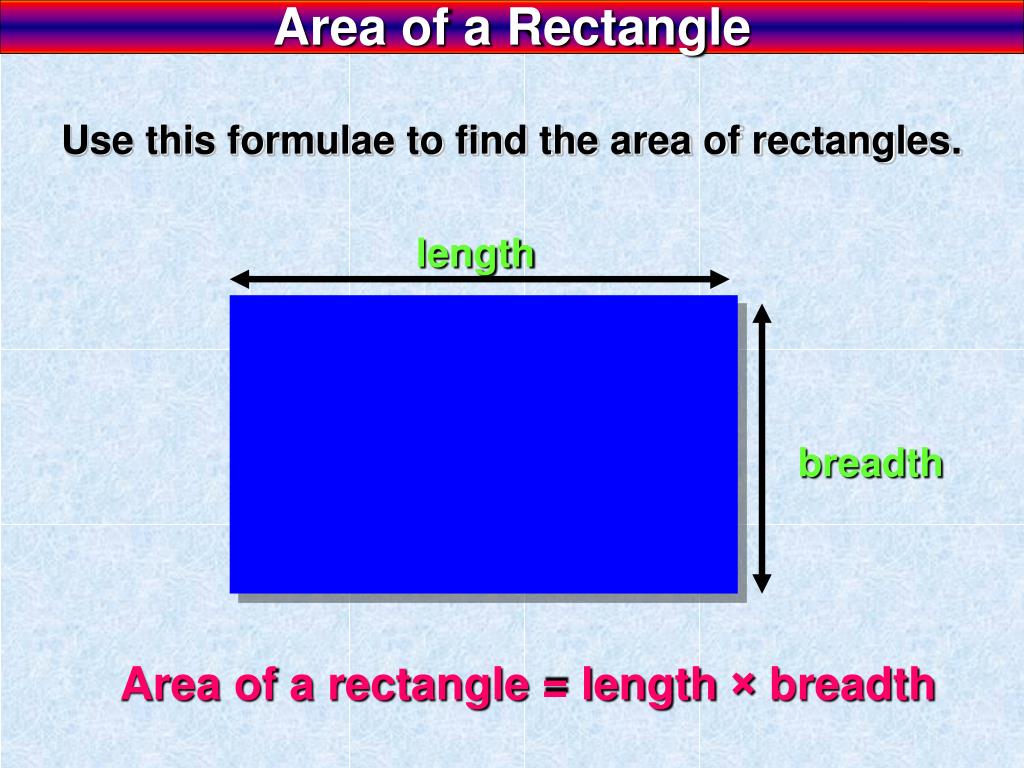

  5. Use this formulae to find the area of rectangles. length breadth Area of a rectangle = length × breadth

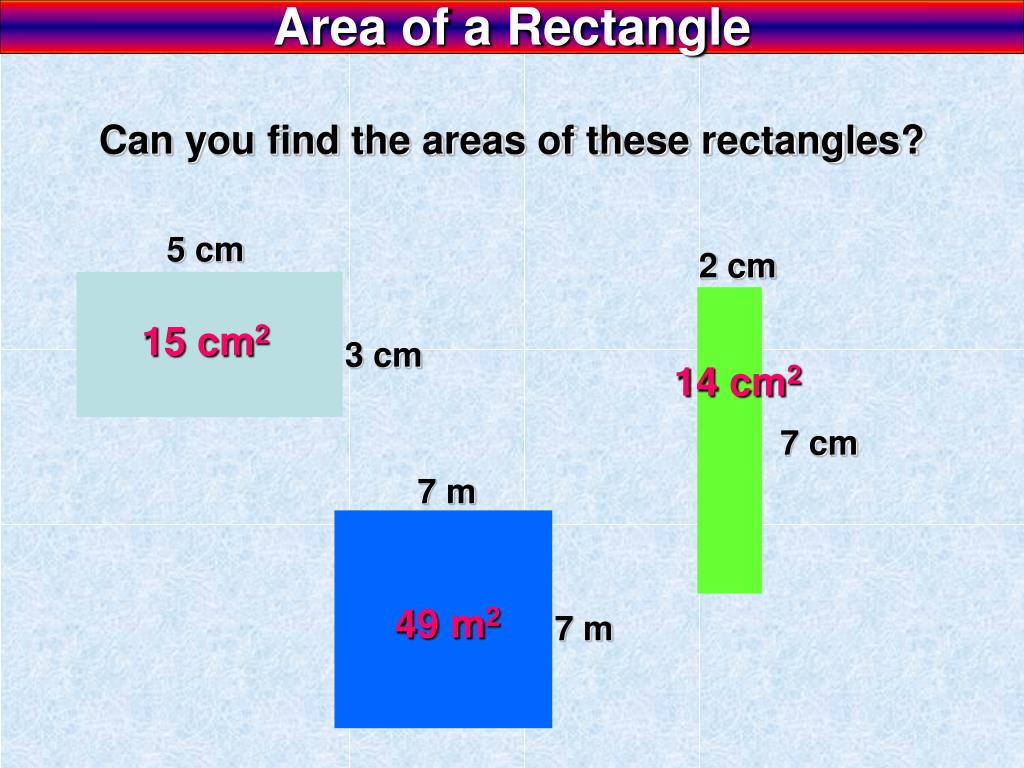

  6. 5 cm 2 cm 3 cm 7 cm 7 m 7 m Can you find the areas of these rectangles? 15 cm2 14 cm2 49 m2

  7. Can you think of a way to find the area of this shape? 5 cm 6 cm 7 cm 3 cm 12 cm

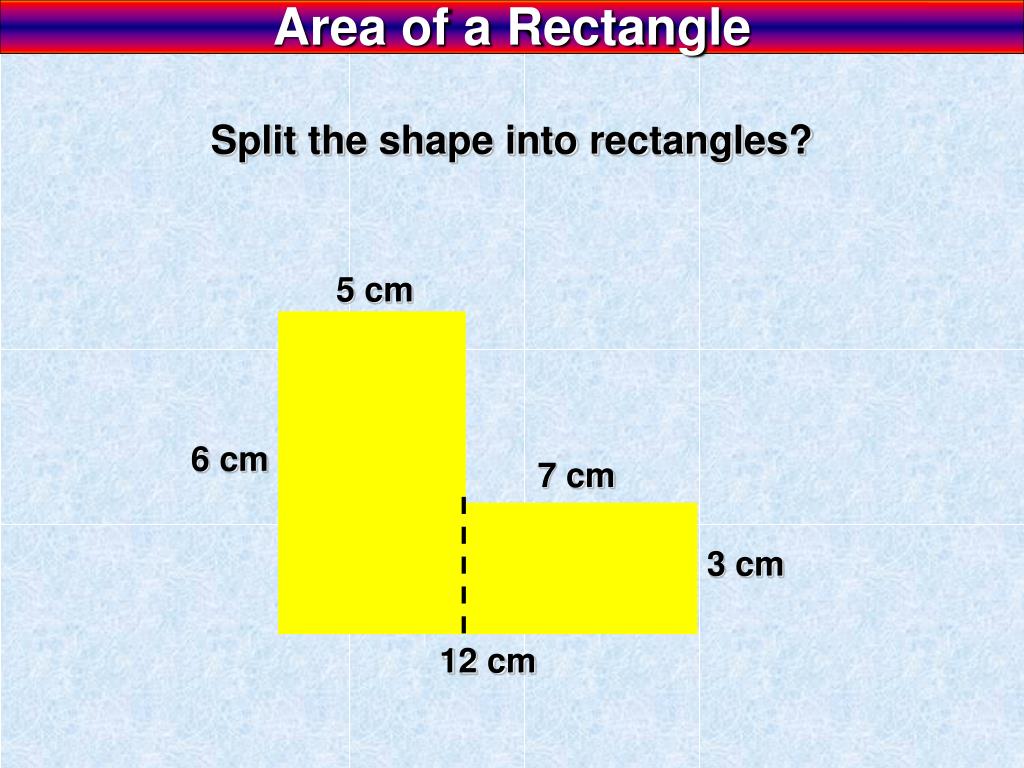

  8. Split the shape into rectangles? 5 cm 6 cm 7 cm 3 cm 12 cm

  9. Find the area of each rectangle? 5 cm 5 × 6 = 30 cm2 7 × 3 = 21 cm2 6 cm 7 cm 3 cm

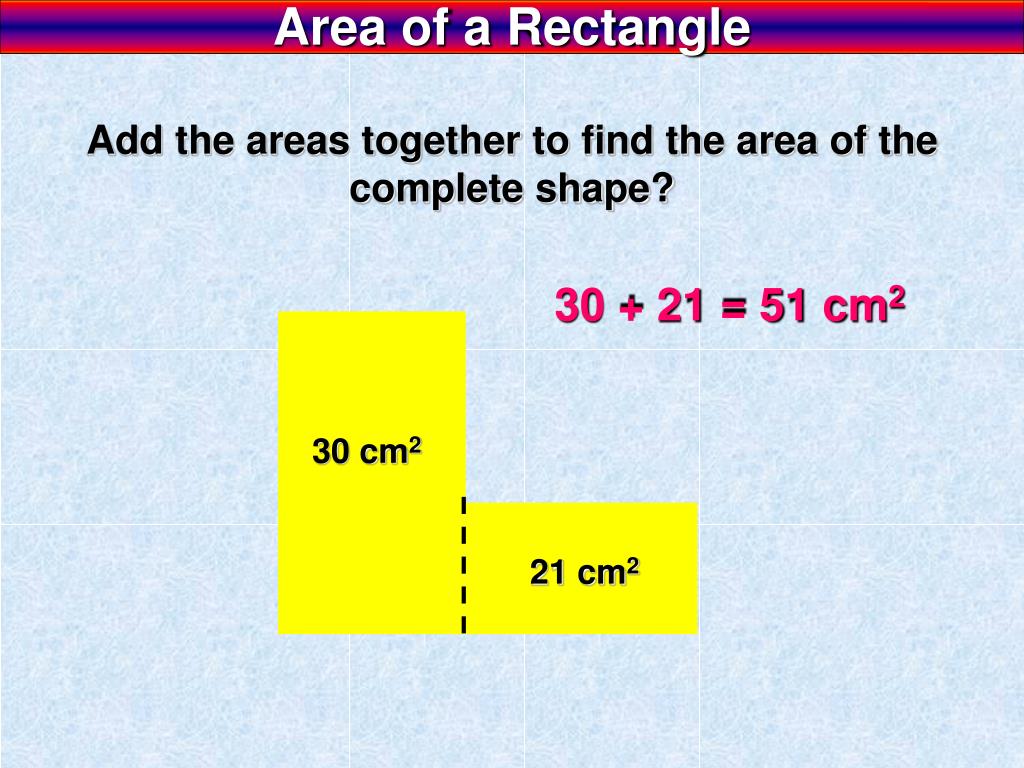

  10. Add the areas together to find the area of the complete shape? 30 + 21 = 51 cm2 30 cm2 21 cm2

  11. 2 cm 4 cm 11 cm 7 cm 5 cm Can you find the areas of these shapes? 6 m 22 m2 3 m 4 m 43 cm2 1 m 4 m

  12. Here is a challenge can you work out the area of this shape with a hole in it? 2 cm 5 cm 5 cm 10 cm Clue: Take the area of the hole from the area of the whole! 50 cm2 – 10 cm2 = 40 cm2

  13. Remember: Area of a rectangle = length × breadth length breadth Split more complicated shapes into rectangles and find the area of each rectangle then add them together. Over to you.
