Filter Inspection Techniques

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

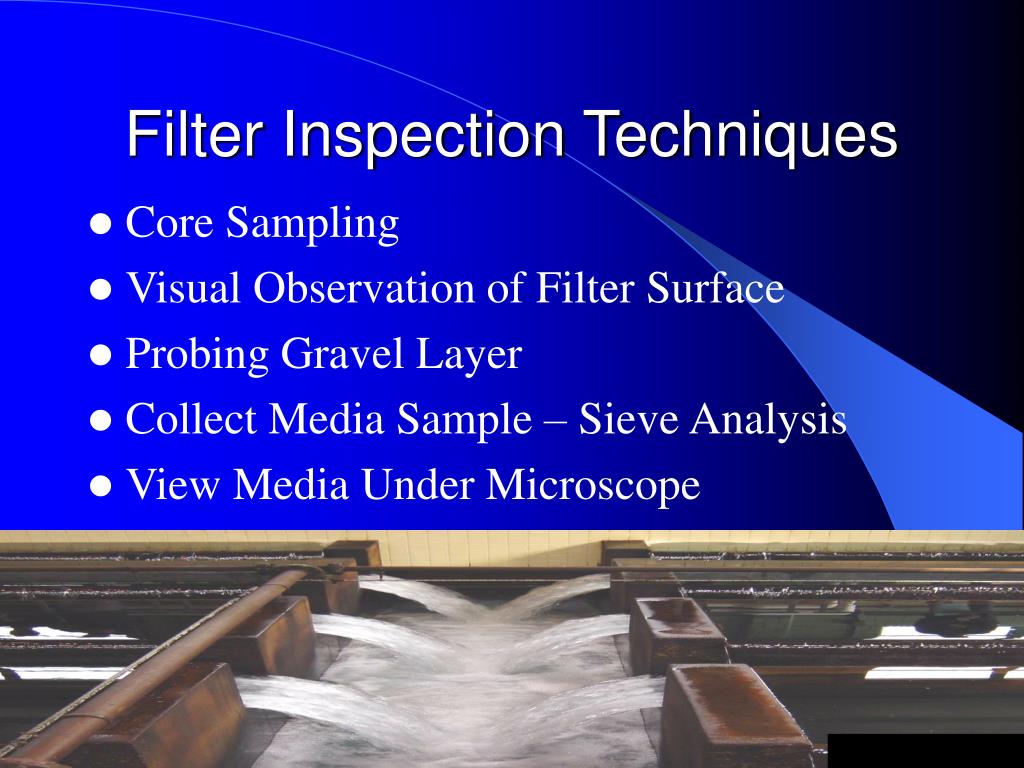

  1. Filter Inspection Techniques • Core Sampling • Visual Observation of Filter Surface • Probing Gravel Layer • Collect Media Sample – Sieve Analysis • View Media Under Microscope

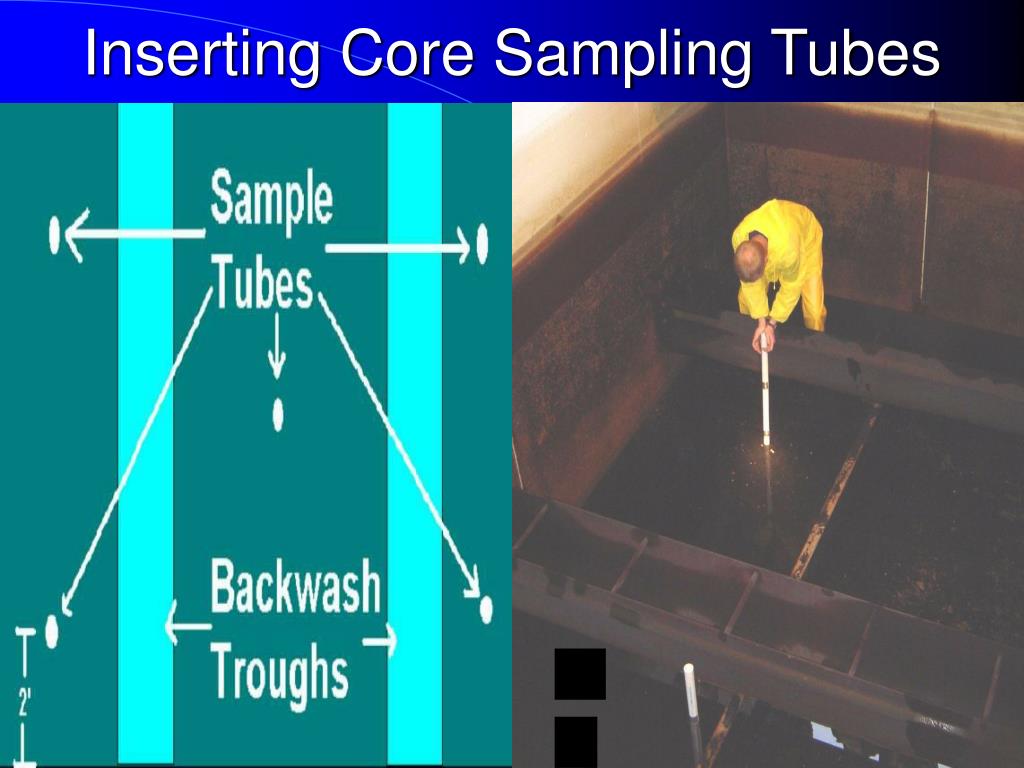

  2. Inserting Core Sampling Tubes

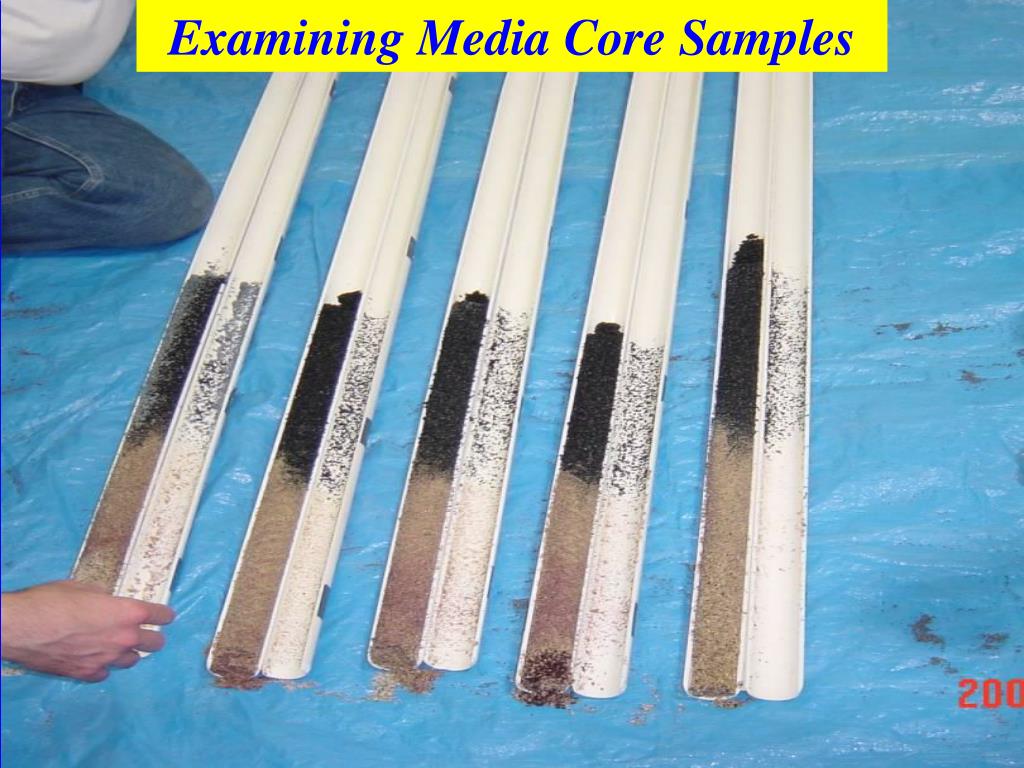

  3. Examining Media Core Samples

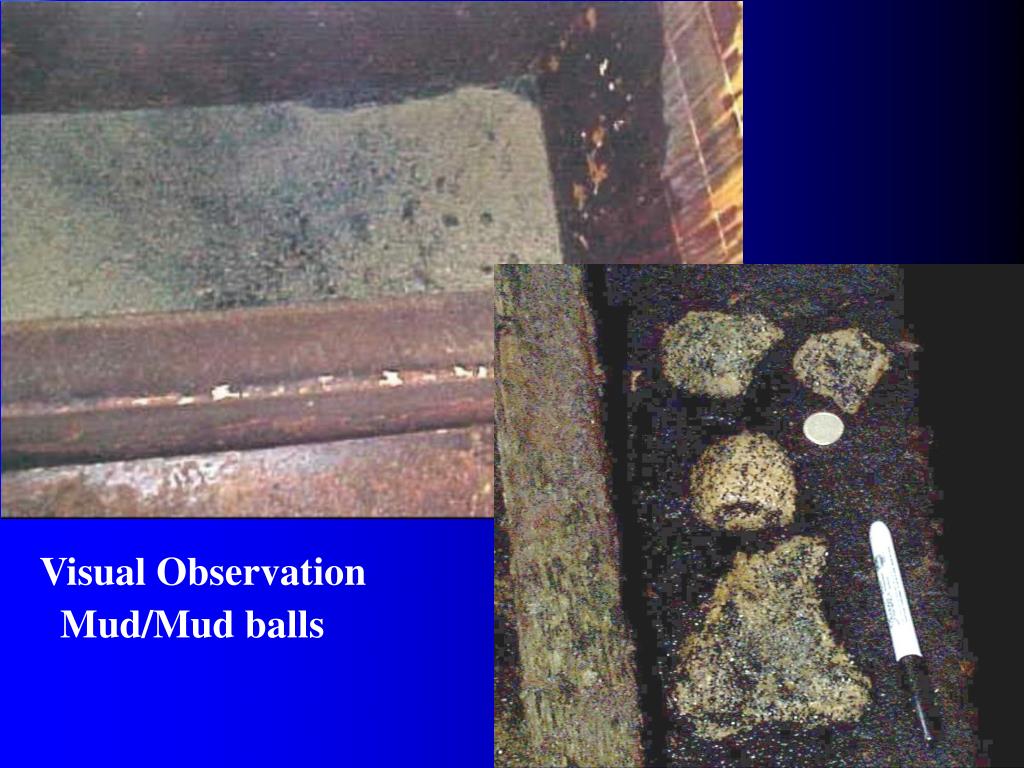

  4. Visual Observation Mud/Mud balls

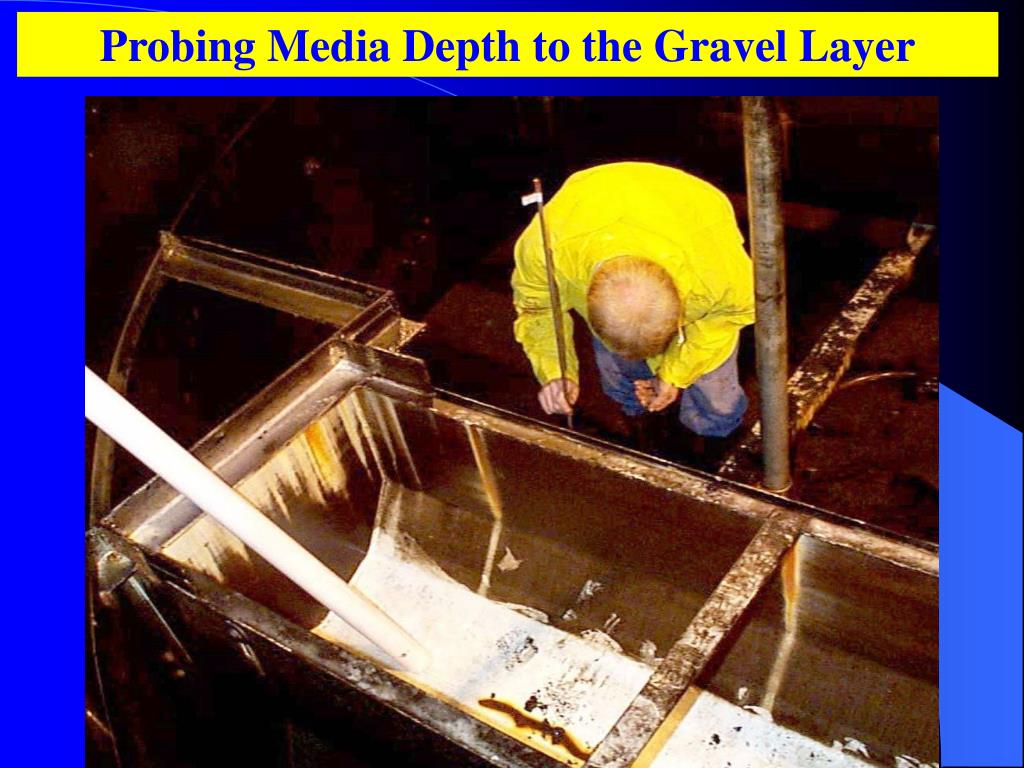

  5. Probing Media Depth to the Gravel Layer

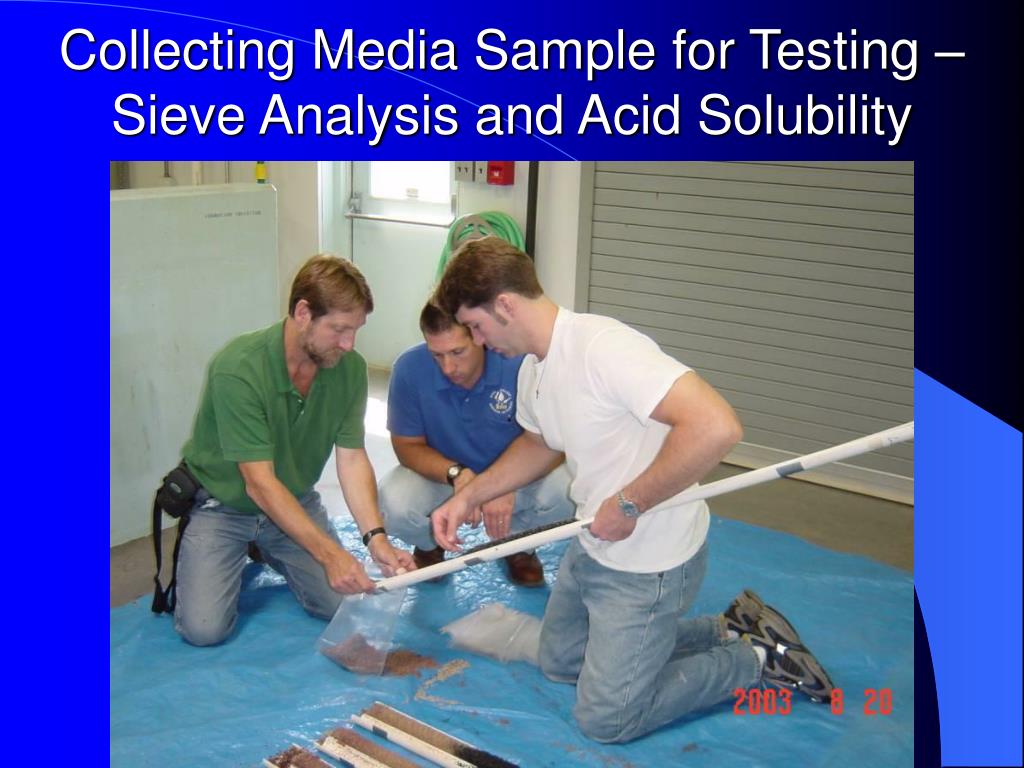

  6. Collecting Media Sample for Testing – Sieve Analysis and Acid Solubility

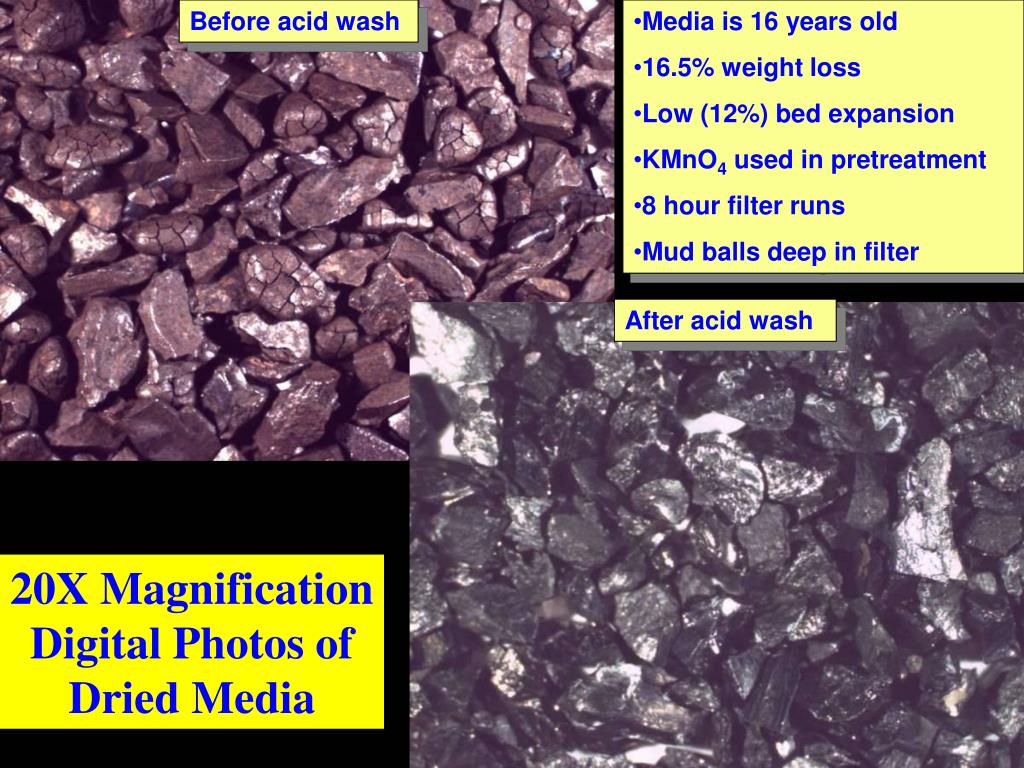

  7. Before acid wash • Media is 16 years old • 16.5% weight loss • Low (12%) bed expansion • KMnO4 used in pretreatment • 8 hour filter runs • Mud balls deep in filter Afteracid wash 20X Magnification Digital Photos of Dried Media
