Presentation Transcript
entrained bed reactor

Entrained Bed Reactor

Quak Foo Lee

Department of Chemical and Biological Engineering

entrained bed reactor1
Entrained Bed Reactor
  • Entrained bed, pneumatic transport reactor
  • Riser reactor, raining bed reactor
    • Dilute suspension of solids and usually reactors have large L/D ratio
    • Near plug flow
    • If feed particles are all of the same size, them all have same residence time

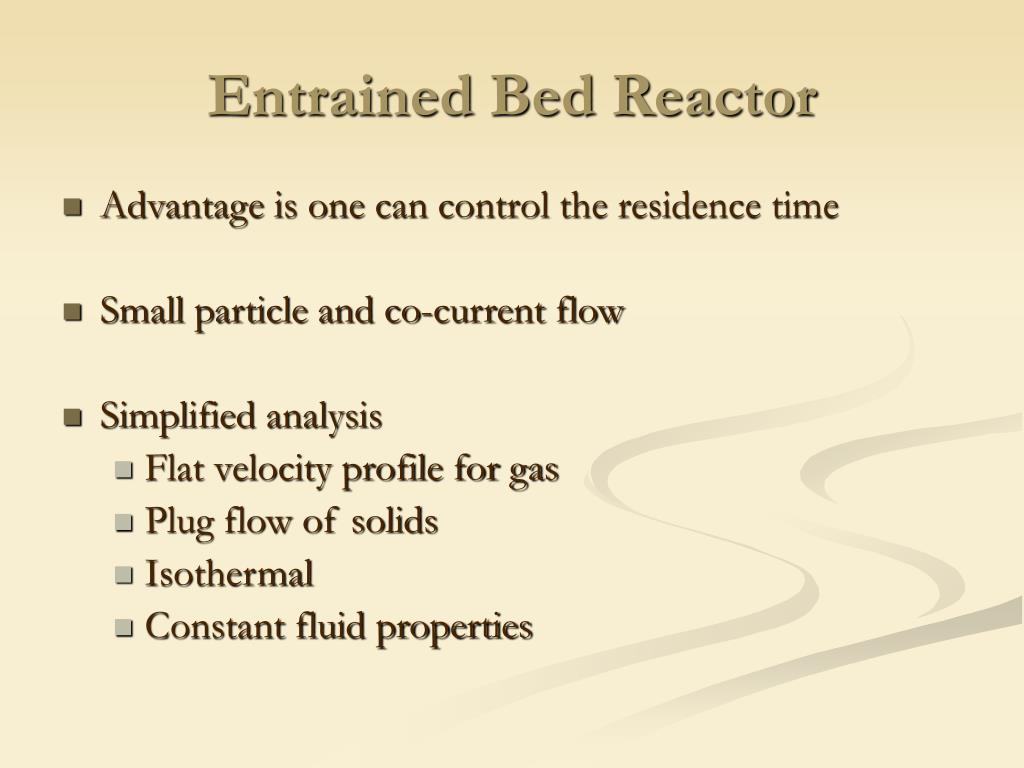

entrained bed reactor2
Entrained Bed Reactor
  • Advantage is one can control the residence time
  • Small particle and co-current flow
  • Simplified analysis
    • Flat velocity profile for gas
    • Plug flow of solids
    • Isothermal
    • Constant fluid properties
reactor configurations
Reactor Configurations

Gas + Solid

Down flow

Up flow

D

L

Gas + Solid

riser reactor
Riser Reactor

Upward particle velocity

Superficial

gas velocity

Settling velocity of particle

Gas + Solids

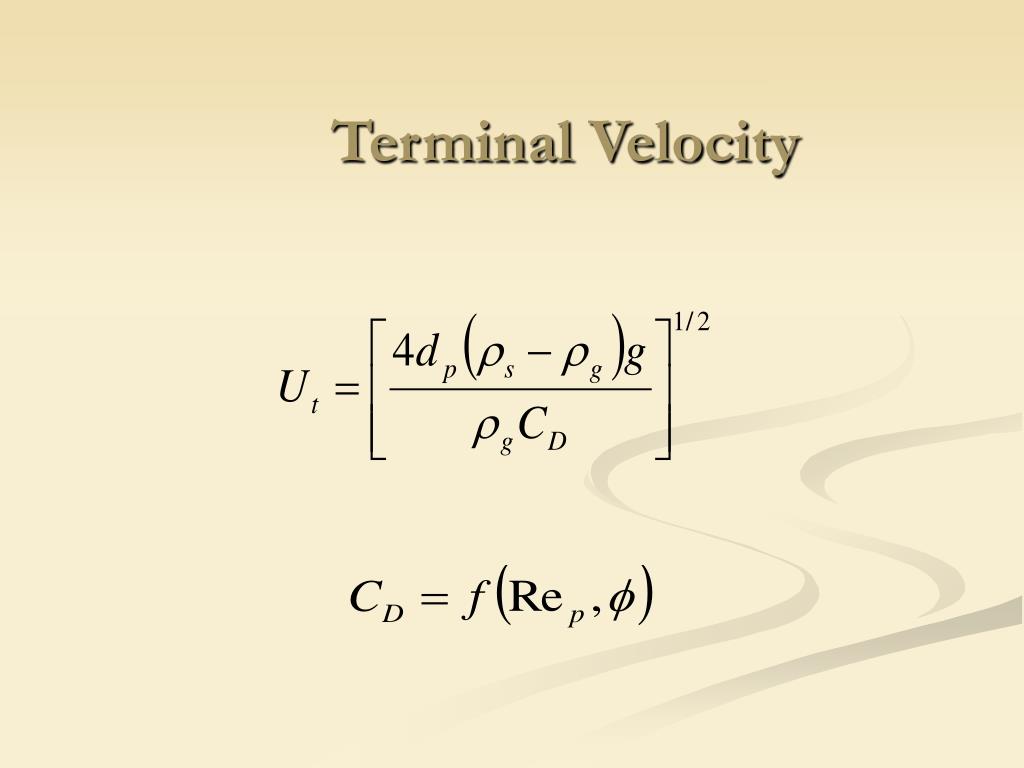

Terminal velocity of a single particle in an unbounded fluid

Note: Concentration of solids is low

example
Example
  • If we considered U0 ~Up, and we have 1 mol of gas reacting with 1 mol of solid of Mwt = 100 g/mol and p = 2 g/cm3
slide10
For uniform gas composition
  • Plug flow of solids

Where,  = time for complete reaction

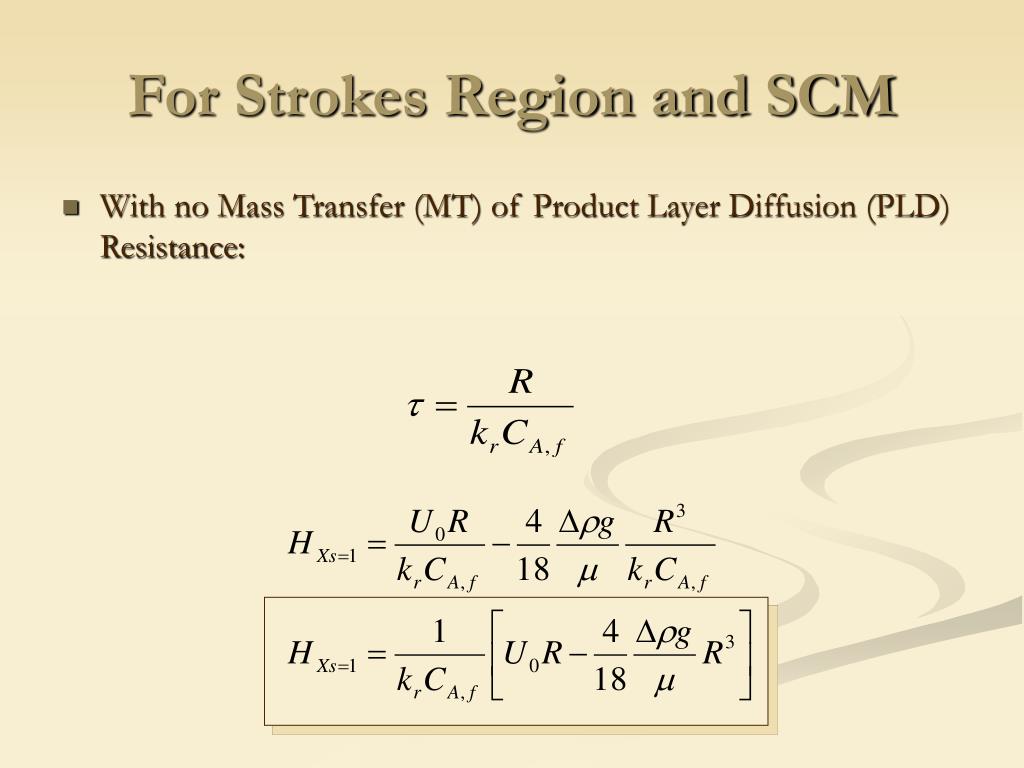

for strokes region and scm
For Strokes Region and SCM
  • With no Mass Transfer (MT) of Product Layer Diffusion (PLD) Resistance:
critical point
Critical Point

Goes through a maximum

at some critical R

Hcrit

Hmax

HXs=1

Rcrit

R

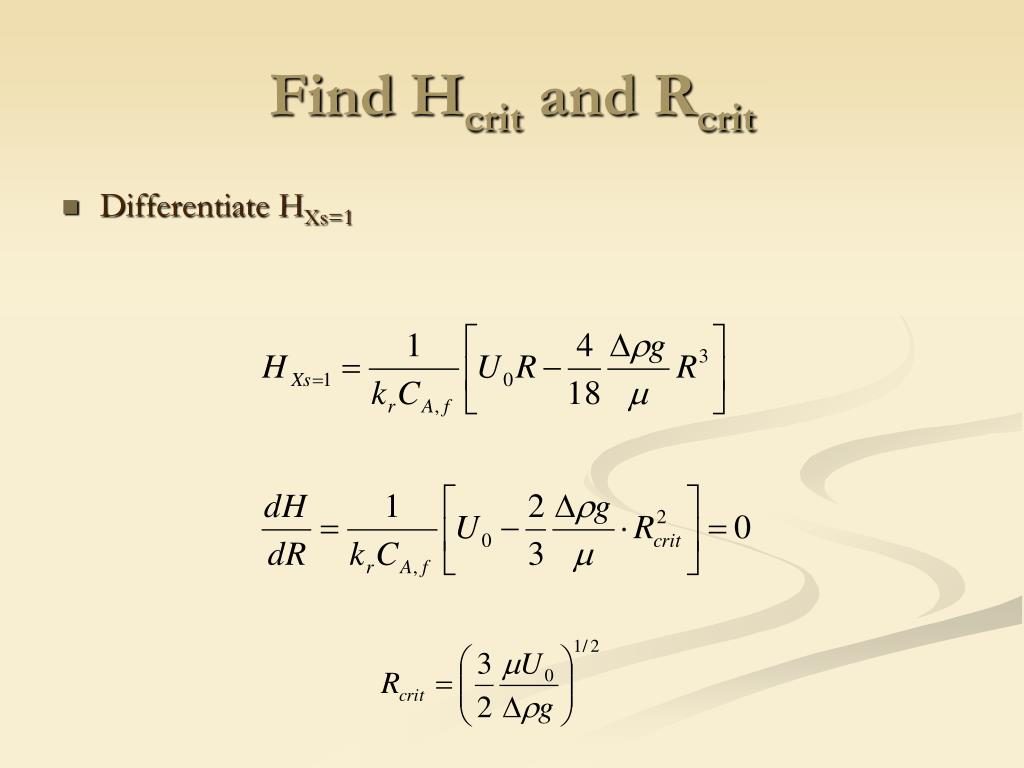

find h crit and r crit
Find Hcrit and Rcrit
  • Differentiate HXs=1
find h crit and r crit1
Find Hcrit and Rcrit
  • Substitute Rcrit into HXs=1 to get Hcrit

Note: To transport largest particles through the system:

within the strokes region
Within the Strokes Region

Substitute U0 into Hcrit to get

Up flow

notes
Notes
  • Comparison indicates Rcrit ~ 0.77 Rmax
  • One would do a similar calculation for any expression for τ and also can use more general equation for CD.
  • Note: for CA,f to be constant, e.g. at some over reactor height, we need small gas conversion (or large molar excess of species A in gas phase).
down flow raining bed
Down Flow – Raining Bed

Gas + Solid

For some simplified case:

At

For chemical reaction controlling:

Down flow

recall
Recall

Up flow

Down flow

Ratio
