dns domain name service

DNS – Domain Name Service

WeeSan Lee <weesan@cs.ucr.edu>

http://www.cs.ucr.edu/~weesan/cs183/

roadmap

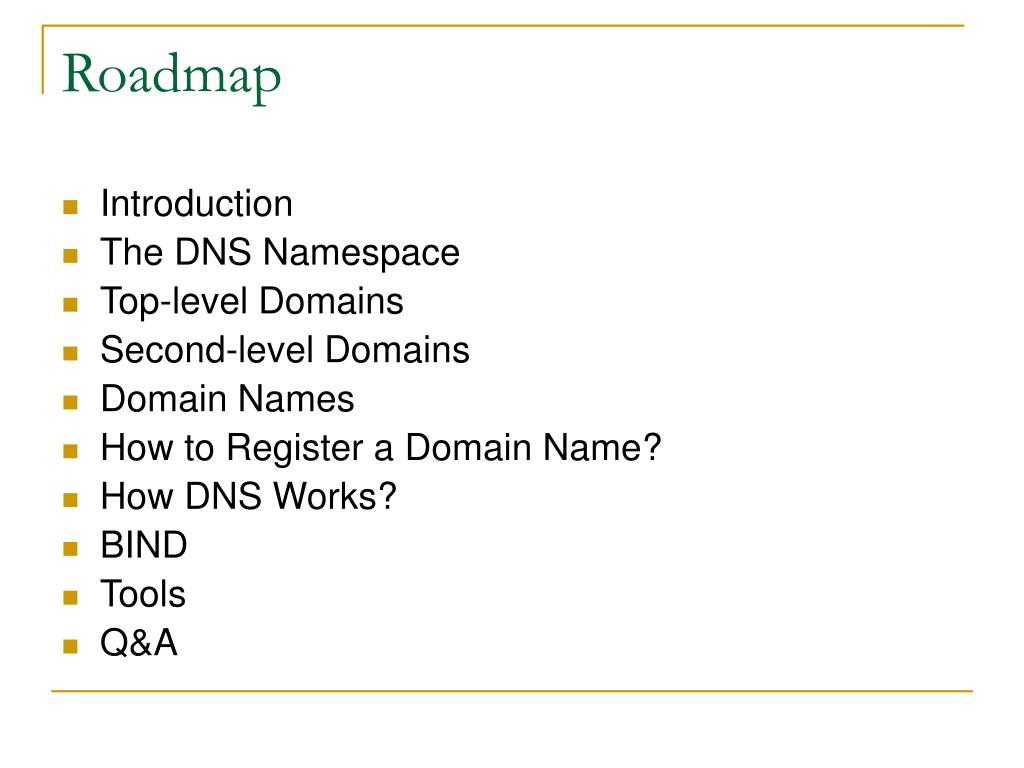

Roadmap
  • Introduction
  • The DNS Namespace
  • Top-level Domains
  • Second-level Domains
  • Domain Names
  • How to Register a Domain Name?
  • How DNS Works?
  • BIND
  • Tools
  • Q&A
introduction

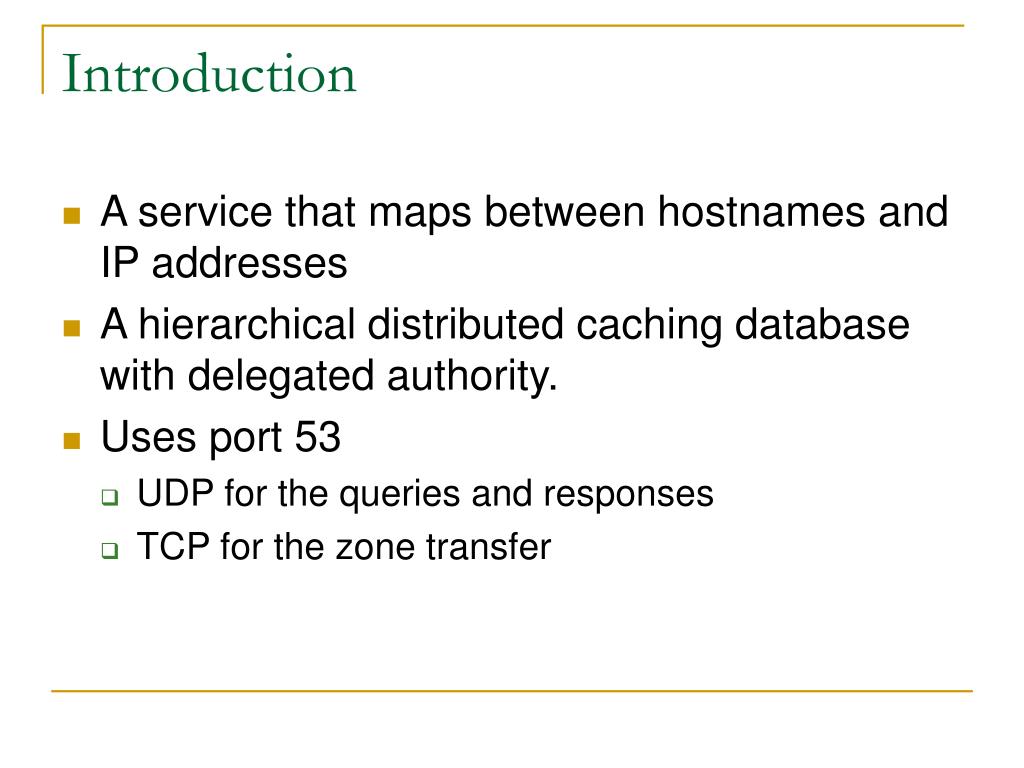

Introduction
  • A service that maps between hostnames and IP addresses
  • A hierarchical distributed caching database with delegated authority.
  • Uses port 53
    • UDP for the queries and responses
    • TCP for the zone transfer
introduction cont

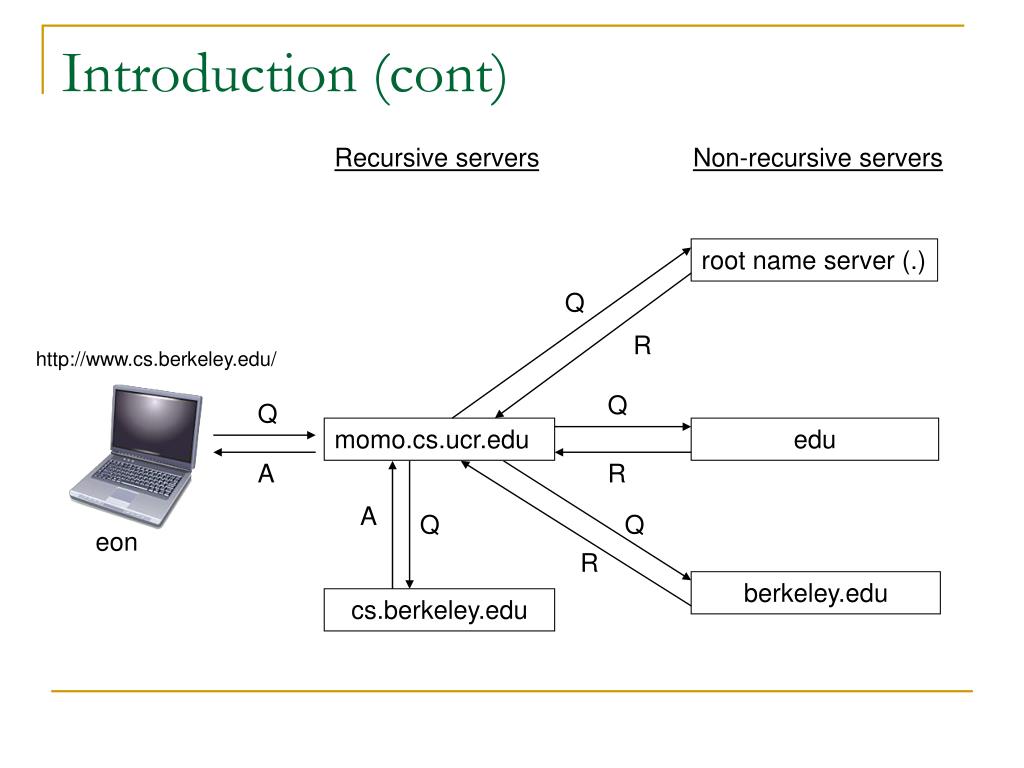

Introduction (cont)

Recursive servers

Non-recursive servers

root name server (.)

Q

R

http://www.cs.berkeley.edu/

Q

Q

momo.cs.ucr.edu

edu

A

R

A

Q

Q

eon

R

berkeley.edu

cs.berkeley.edu

the dns namespace
The DNS Namespace
  • A tree structure that starts with the root (.)
  • Each node represents a domain name
  • 2 branches
    • Forward mapping
      • hostnames → IP addresses
    • Reverse mapping
      • IP addresses → hostnames
top level domains

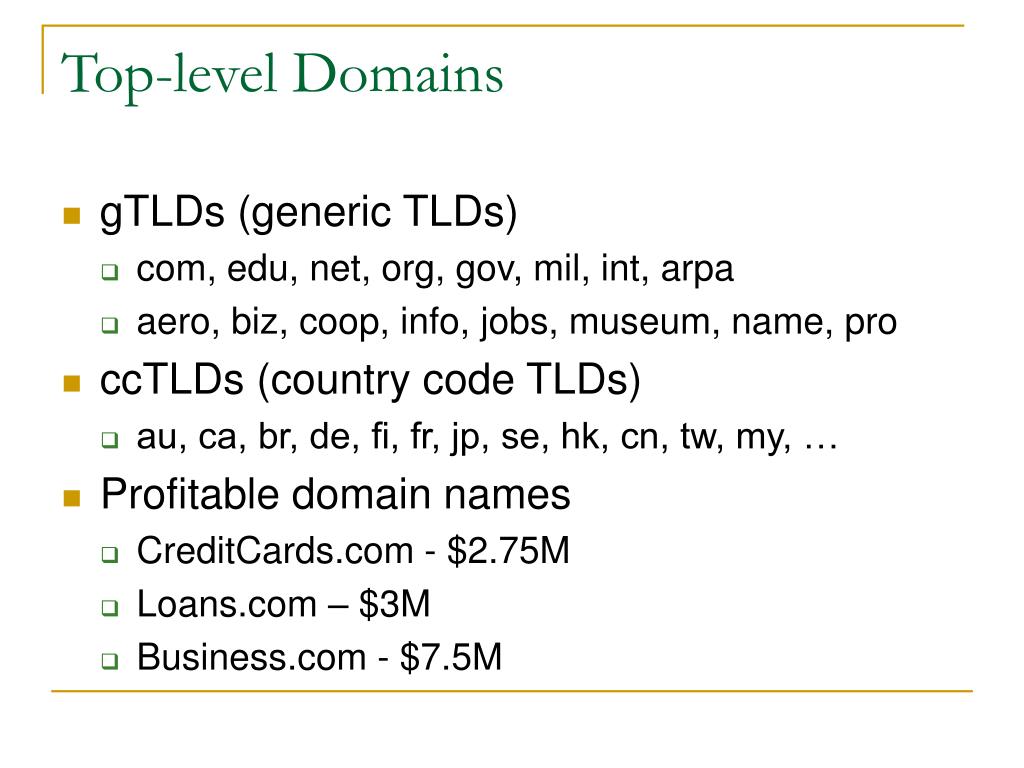

Top-level Domains
  • gTLDs (generic TLDs)
    • com, edu, net, org, gov, mil, int, arpa
    • aero, biz, coop, info, jobs, museum, name, pro
  • ccTLDs (country code TLDs)
    • au, ca, br, de, fi, fr, jp, se, hk, cn, tw, my, …
  • Profitable domain names
    • CreditCards.com - $2.75M
    • Loans.com – $3M
    • Business.com - $7.5M
second level domain name

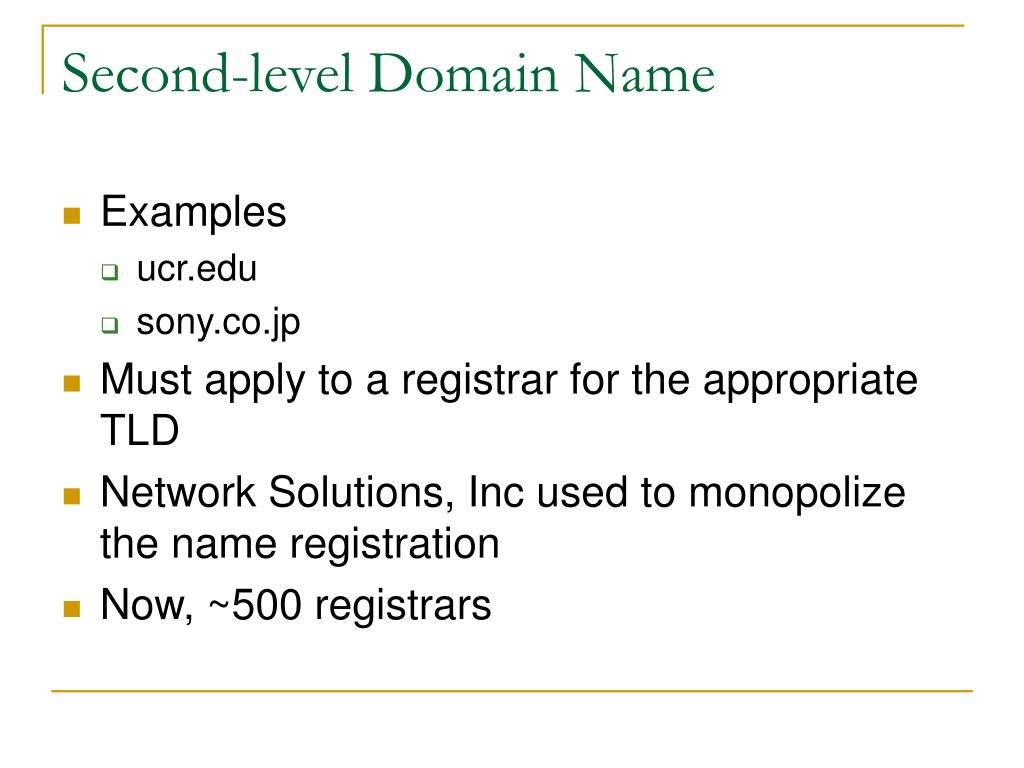

Second-level Domain Name
  • Examples
    • ucr.edu
    • sony.co.jp
  • Must apply to a registrar for the appropriate TLD
  • Network Solutions, Inc used to monopolize the name registration
  • Now, ~500 registrars
domain names

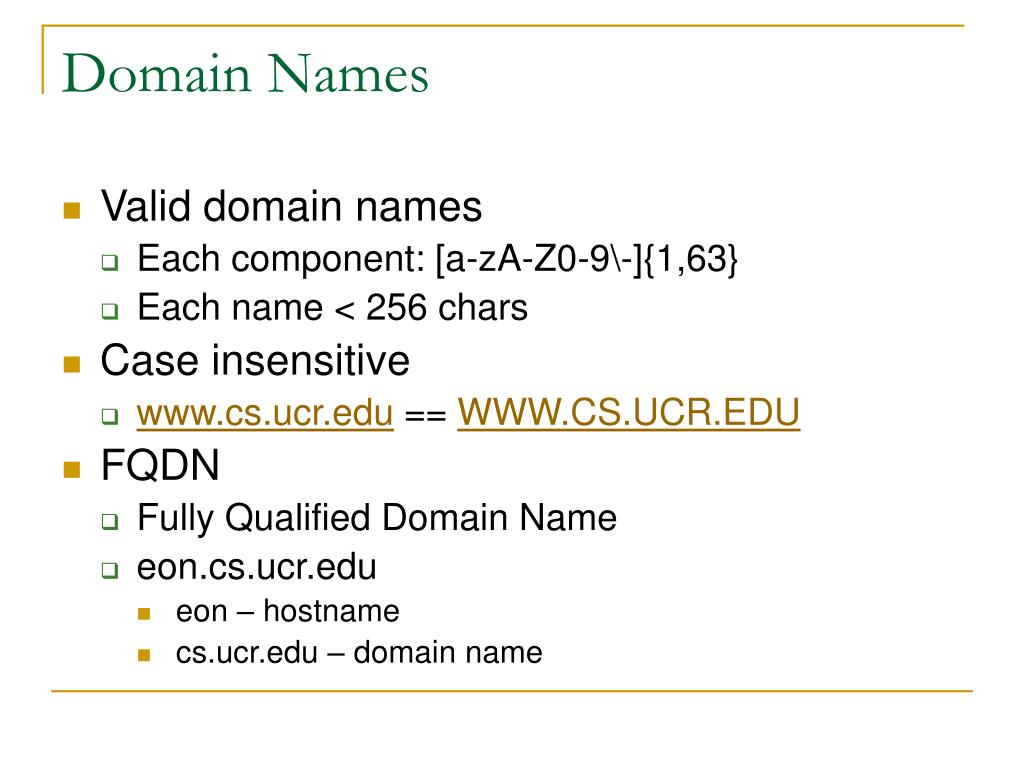

Domain Names
  • Valid domain names
    • Each component: [a-zA-Z0-9\-]{1,63}
    • Each name < 256 chars
  • Case insensitive
    • www.cs.ucr.edu == WWW.CS.UCR.EDU
  • FQDN
    • Fully Qualified Domain Name
    • eon.cs.ucr.edu
      • eon – hostname
      • cs.ucr.edu – domain name
how to register a domain name
How To Register A Domain Name?
  • Pick a domain name of interest
  • Dedicate 2 NS servers
    • RFC1219 stated that each domains should be served by at least 2 servers: a master & a slave
  • One technical contact person
  • One administrative contact person
  • Then, register the name to a registrar of your choice
  • Used to be done via email or fax, now all web-based
how dns works

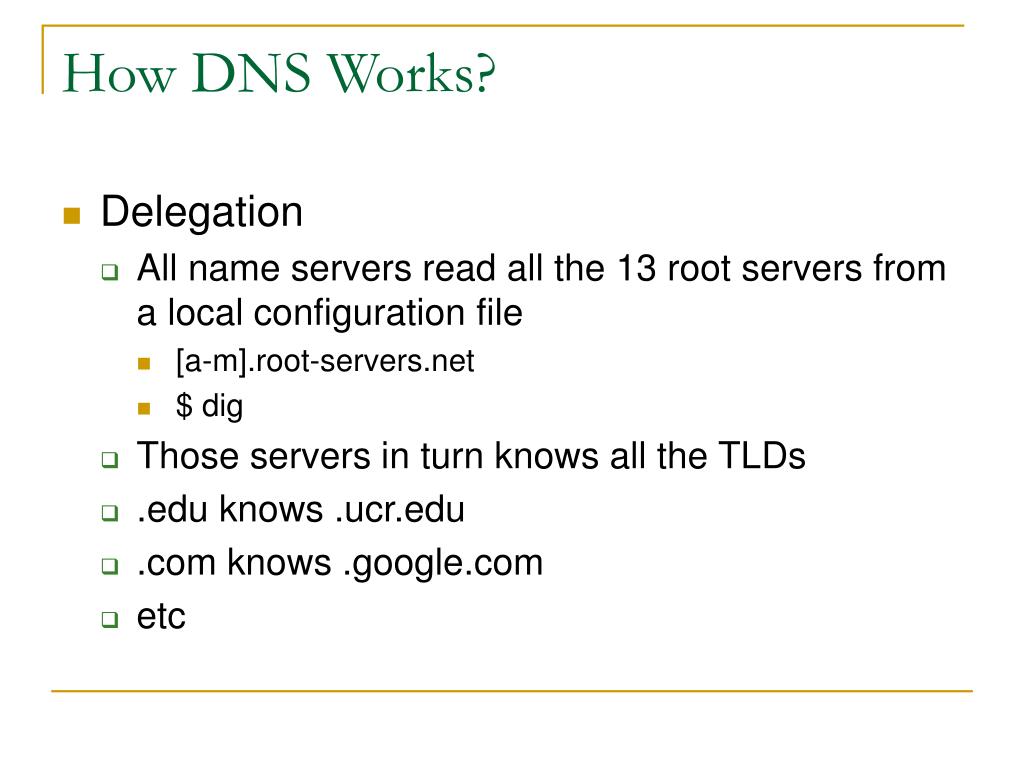

How DNS Works?
  • Delegation
    • All name servers read all the 13 root servers from a local configuration file
      • [a-m].root-servers.net
      • $ dig
    • Those servers in turn knows all the TLDs
    • .edu knows .ucr.edu
    • .com knows .google.com
    • etc
dns caching
DNS Caching
  • DNS servers cache results they receive from other servers
  • Each result is saved based on its TTL
  • Negative caching
    • For nonexistent hostname (for 10 mins)
    • Also for unreachable/unresponsive servers
authoritative vs non authoritative
Authoritative vs. Non-authoritative
  • An authoritative answer from a name server (such as reading the data from the disk) is “guaranteed” to be accurate
  • A non-authoritative answer (such as an answer from the cache) may not
  • Primary and secondary servers are authoritative for their own domains
recursive vs non recursive
Recursive vs. Non-recursive
  • Recursive
    • Queries on a client behalf until it returns either an answer or an error
  • Non-recursive
    • Refers the client to another server if it can’t answer a query
dns database

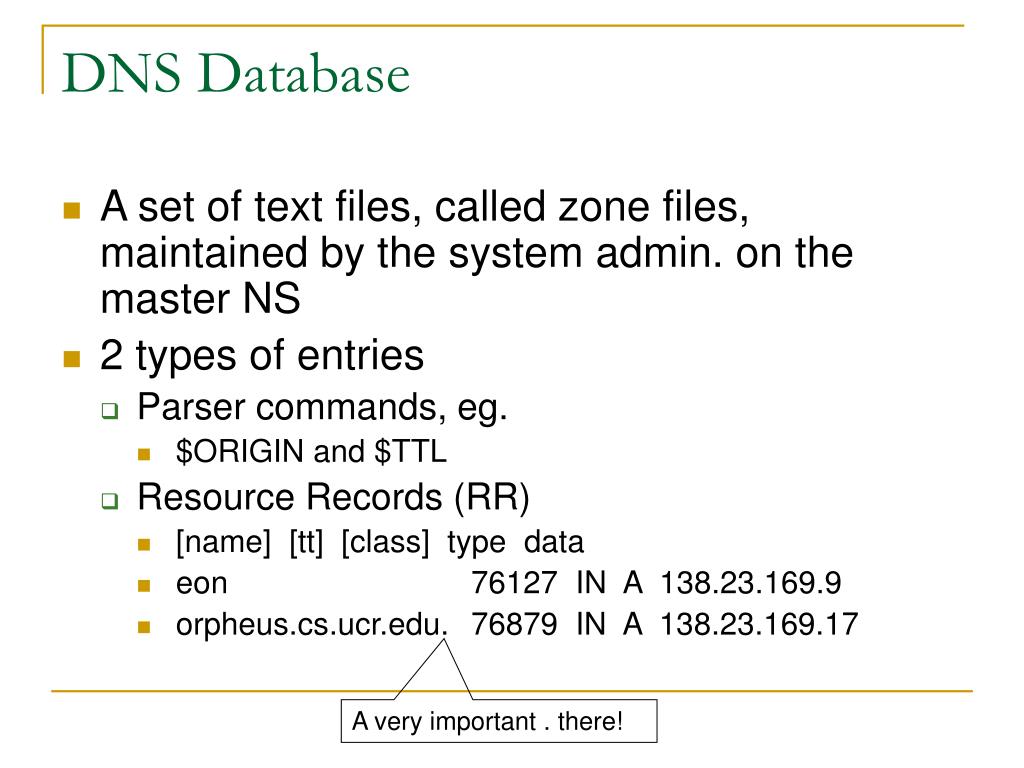

DNS Database
  • A set of text files, called zone files, maintained by the system admin. on the master NS
  • 2 types of entries
    • Parser commands, eg.
      • $ORIGIN and $TTL
    • Resource Records (RR)
      • [name] [tt] [class] type data
      • eon 76127 IN A 138.23.169.9
      • orpheus.cs.ucr.edu. 76879 IN A 138.23.169.17

A very important . there!

dns database cont

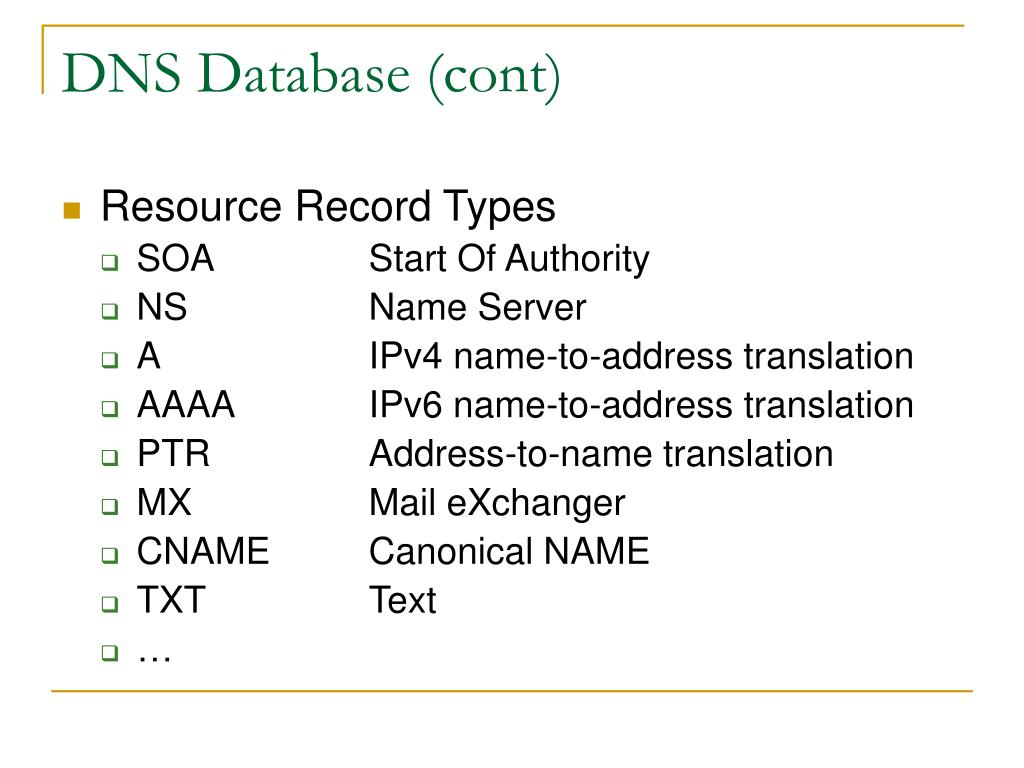

DNS Database (cont)
  • Resource Record Types
    • SOA Start Of Authority
    • NS Name Server
    • A IPv4 name-to-address translation
    • AAAA IPv6 name-to-address translation
    • PTR Address-to-name translation
    • MX Mail eXchanger
    • CNAME Canonical NAME
    • TXT Text
slide16
BIND
  • The Berkeley Internet Name Domain system
  • Current maintainer: Paul Vixie @ ISC
  • BIND 9
  • Use RTT to pick the best root servers and use them in round-robin fashion
  • named
etc named conf

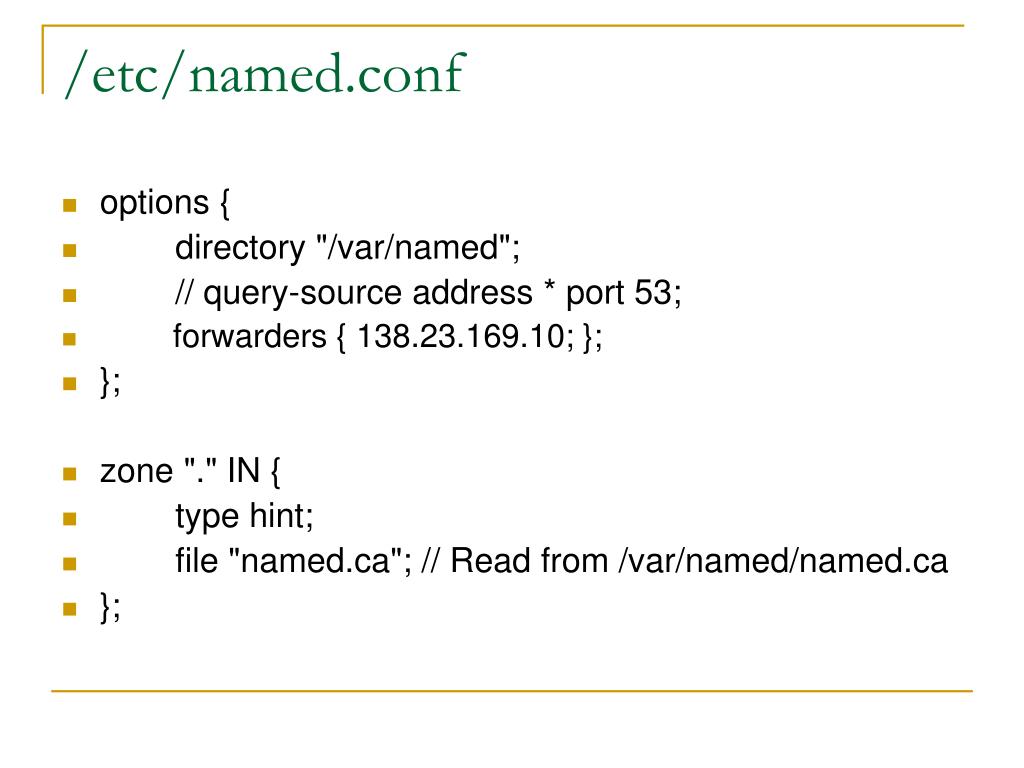

/etc/named.conf
  • options {
  • directory "/var/named";
  • // query-source address * port 53;
  • forwarders { 138.23.169.10; };
  • };
  • zone "." IN {
  • type hint;
  • file "named.ca"; // Read from /var/named/named.ca
  • };
etc named conf18

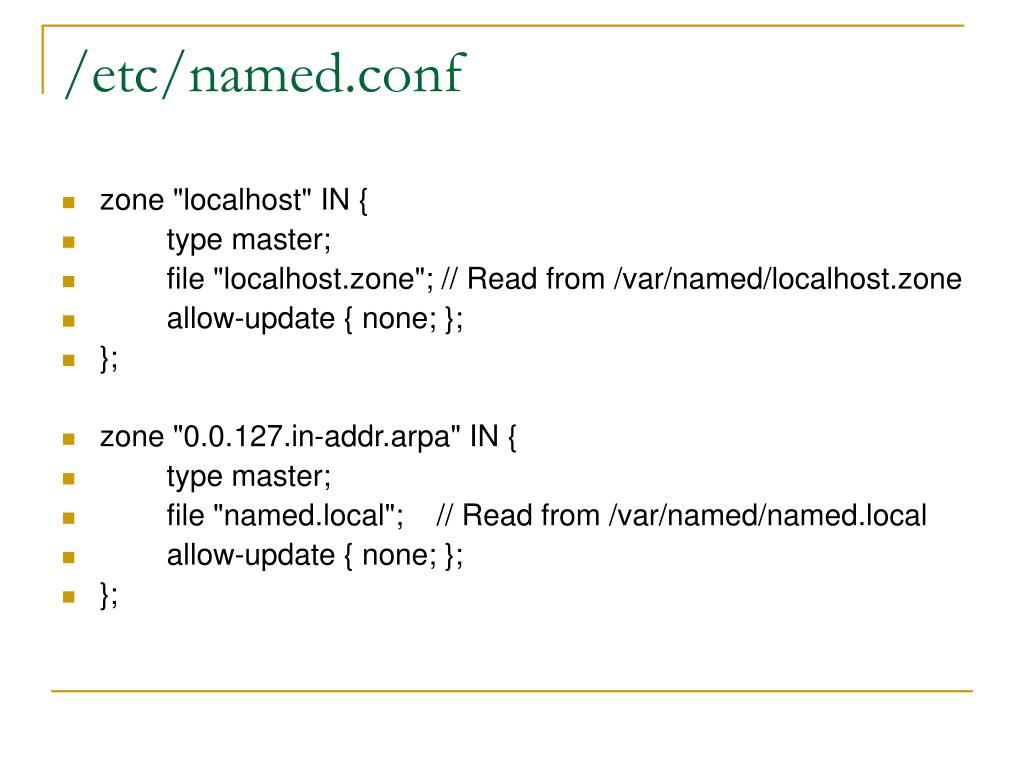

/etc/named.conf
  • zone "localhost" IN {
  • type master;
  • file "localhost.zone"; // Read from /var/named/localhost.zone
  • allow-update { none; };
  • };
  • zone "0.0.127.in-addr.arpa" IN {
  • type master;
  • file "named.local"; // Read from /var/named/named.local
  • allow-update { none; };
  • };
etc named conf19
/etc/named.conf
  • zone "voicense.com" IN {
  • type master;
  • file "voicense.com.zone";
  • };
  • zone "0.0.10.in-addr.arpa" IN {
  • type master;
  • file "voicense.com.rev";
  • };
  • zone "macrohard.com IN {
  • type slave;
  • file "macrohard.com.zone.bak";
  • masters { 10.0.0.1; };
  • };
var named voicense com zone

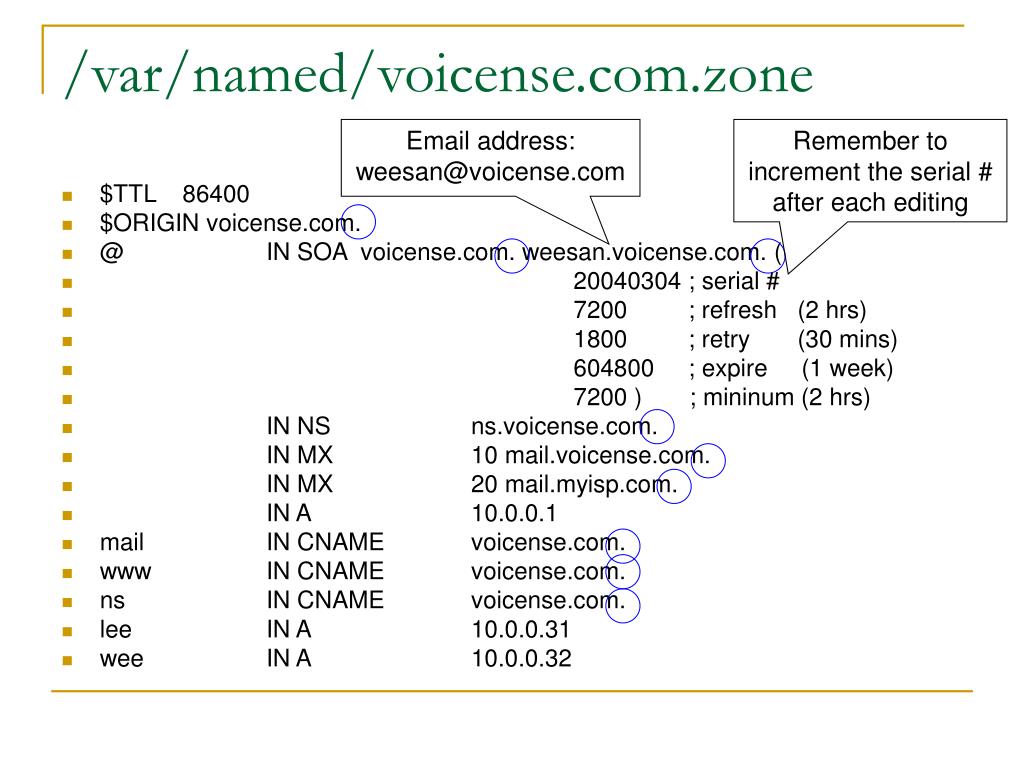

/var/named/voicense.com.zone

Email address: weesan@voicense.com

Remember to increment the serial # after each editing

  • $TTL 86400
  • $ORIGIN voicense.com.
  • @ IN SOA voicense.com. weesan.voicense.com. (
  • 20040304 ; serial #
  • 7200 ; refresh (2 hrs)
  • 1800 ; retry (30 mins)
  • 604800 ; expire (1 week)
  • 7200 ) ; mininum (2 hrs)
  • IN NS ns.voicense.com.
  • IN MX 10 mail.voicense.com.
  • IN MX 20 mail.myisp.com.
  • IN A 10.0.0.1
  • mail IN CNAME voicense.com.
  • www IN CNAME voicense.com.
  • ns IN CNAME voicense.com.
  • lee IN A 10.0.0.31
  • wee IN A 10.0.0.32
var named voicense com zone21

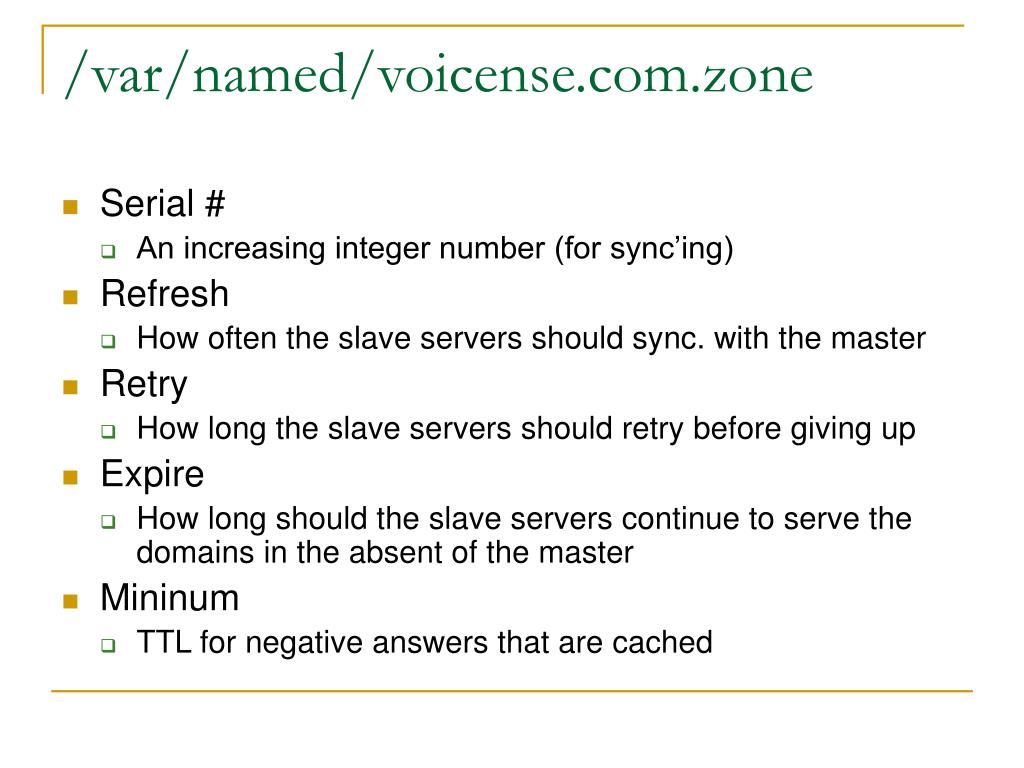

/var/named/voicense.com.zone
  • Serial #
    • An increasing integer number (for sync’ing)
  • Refresh
    • How often the slave servers should sync. with the master
  • Retry
    • How long the slave servers should retry before giving up
  • Expire
    • How long should the slave servers continue to serve the domains in the absent of the master
  • Mininum
    • TTL for negative answers that are cached
var named voicense com rev

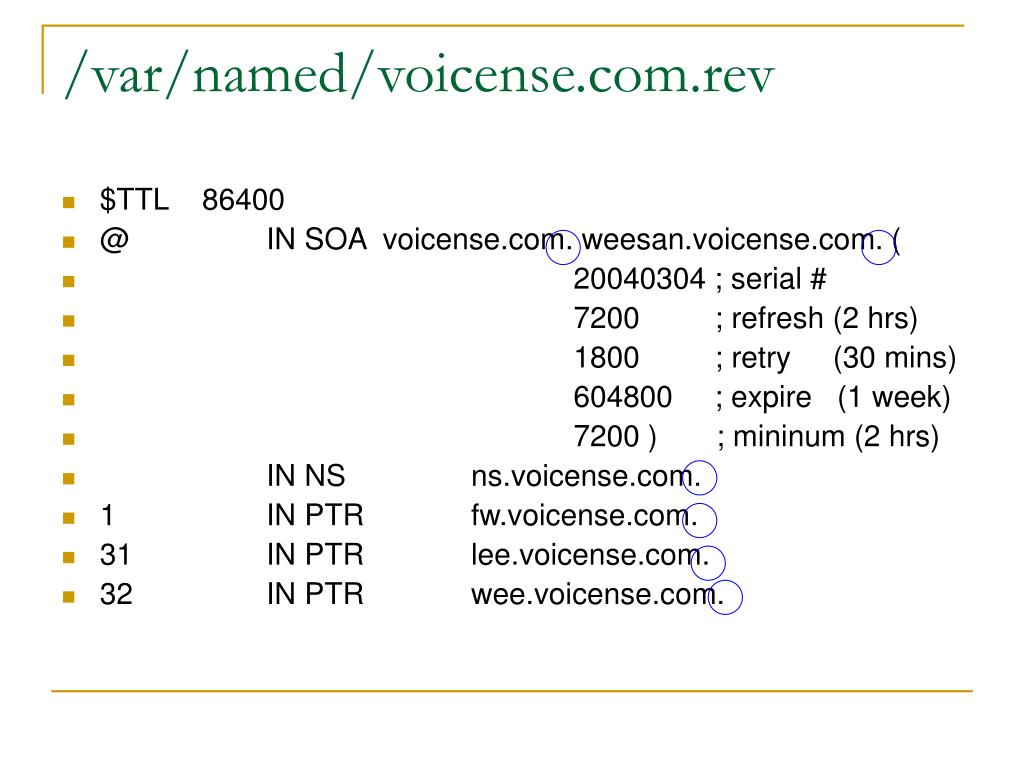

/var/named/voicense.com.rev
  • $TTL 86400
  • @ IN SOA voicense.com. weesan.voicense.com. (
  • 20040304 ; serial #
  • 7200 ; refresh (2 hrs)
  • 1800 ; retry (30 mins)
  • 604800 ; expire (1 week)
  • 7200 ) ; mininum (2 hrs)
  • IN NS ns.voicense.com.
  • 1 IN PTR fw.voicense.com.
  • 31 IN PTR lee.voicense.com.
  • 32 IN PTR wee.voicense.com.
how to load balance a web server

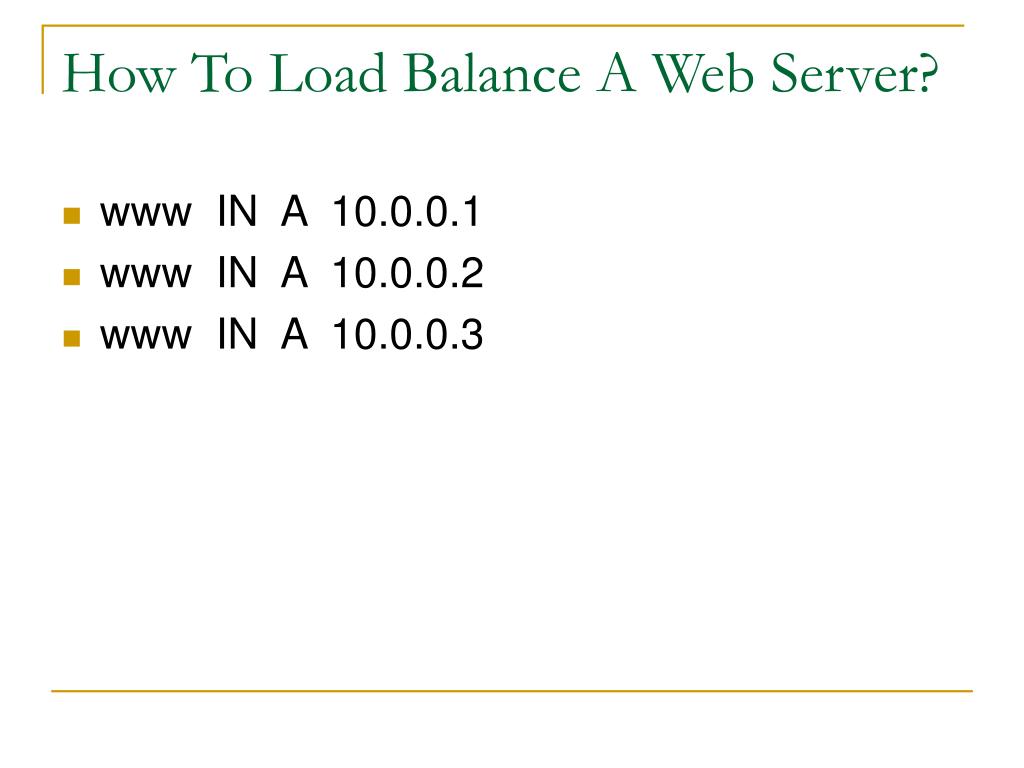

How To Load Balance A Web Server?
  • www IN A 10.0.0.1
  • www IN A 10.0.0.2
  • www IN A 10.0.0.3
how to load balance a web server24

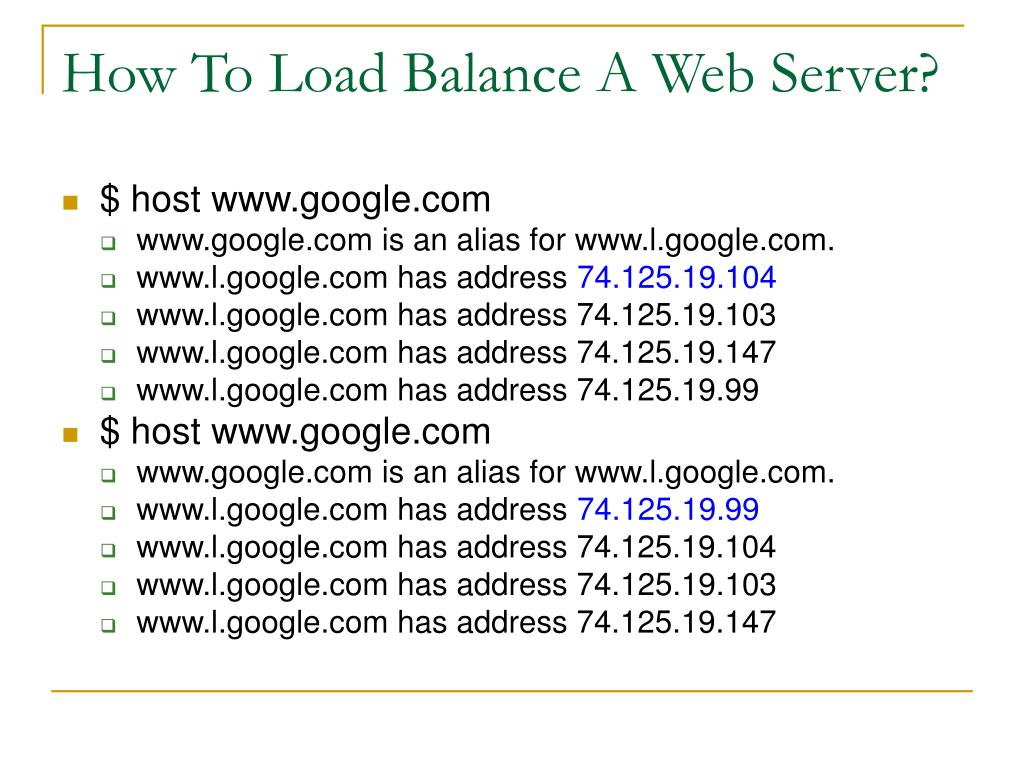

How To Load Balance A Web Server?
  • $ host www.google.com
    • www.google.com is an alias for www.l.google.com.
    • www.l.google.com has address 74.125.19.104
    • www.l.google.com has address 74.125.19.103
    • www.l.google.com has address 74.125.19.147
    • www.l.google.com has address 74.125.19.99
  • $ host www.google.com
    • www.google.com is an alias for www.l.google.com.
    • www.l.google.com has address 74.125.19.99
    • www.l.google.com has address 74.125.19.104
    • www.l.google.com has address 74.125.19.103
    • www.l.google.com has address 74.125.19.147
zone transfer

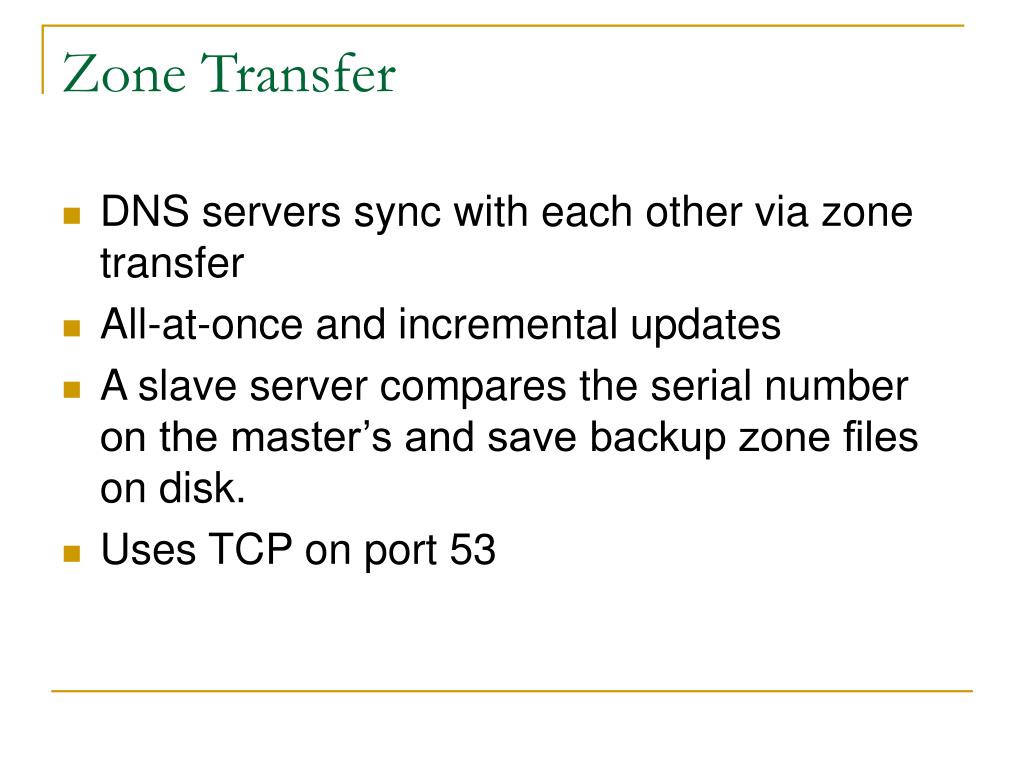

Zone Transfer
  • DNS servers sync with each other via zone transfer
  • All-at-once and incremental updates
  • A slave server compares the serial number on the master’s and save backup zone files on disk.
  • Uses TCP on port 53
tools
Tools
  • dig
    • $ dig eon.cs.ucr.edu
    • $ dig eon.cs.ucr.edu ns
    • $ dig @momo.cs.ucr.edu eon.cs.ucr.edu mx
    • $ man dig
  • host
    • $ host eon.cs.ucr.edu
    • $ host -t ns cs.ucr.edu
    • $ host -t mx eon.cs.ucr.edu momo.cs.ucr.edu
    • $ man host
tools cont

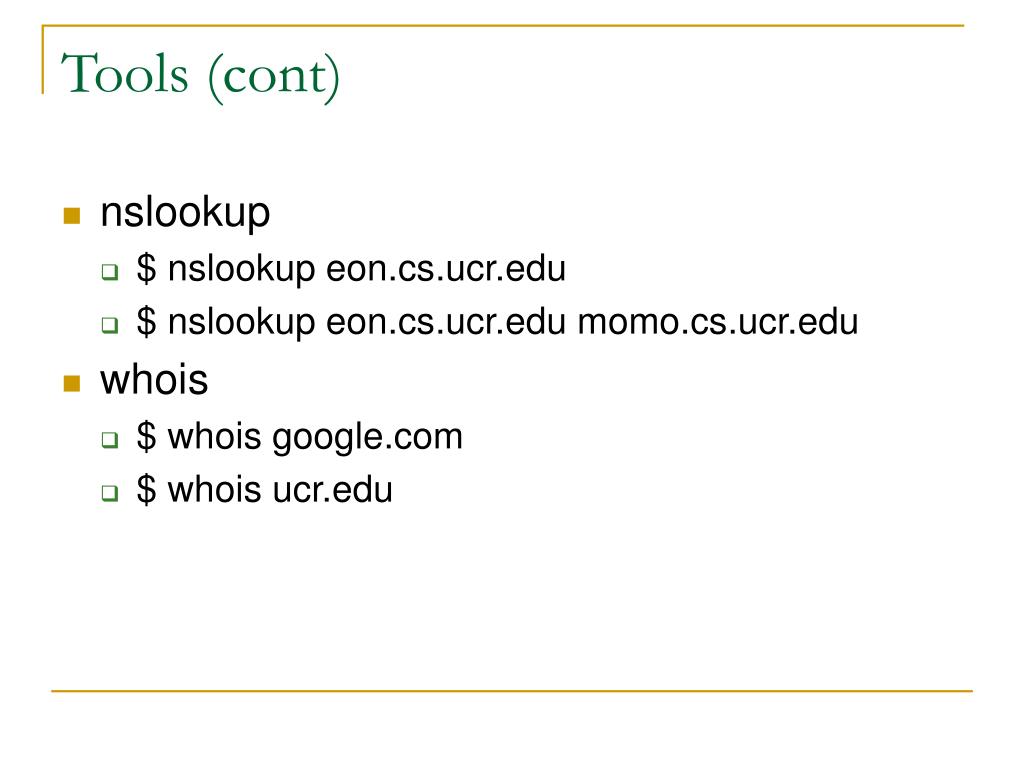

Tools (cont)
  • nslookup
    • $ nslookup eon.cs.ucr.edu
    • $ nslookup eon.cs.ucr.edu momo.cs.ucr.edu
  • whois
    • $ whois google.com
    • $ whois ucr.edu
etc resolv conf

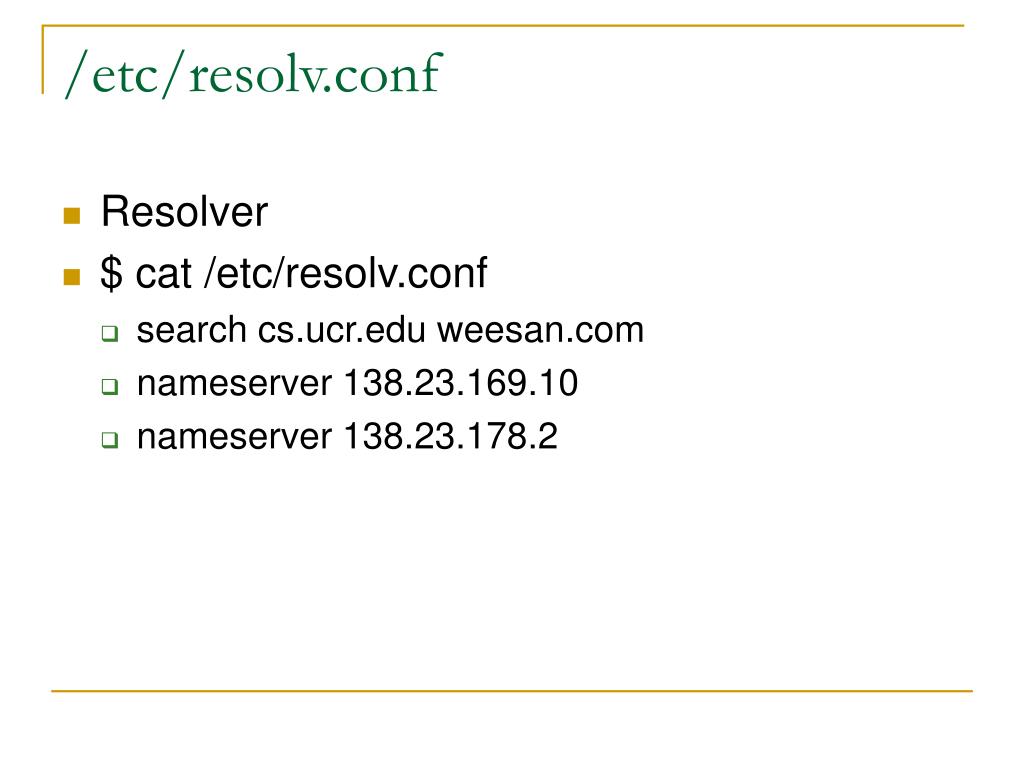

/etc/resolv.conf
  • Resolver
  • $ cat /etc/resolv.conf
    • search cs.ucr.edu weesan.com
    • nameserver 138.23.169.10
    • nameserver 138.23.178.2
etc nsswitch conf

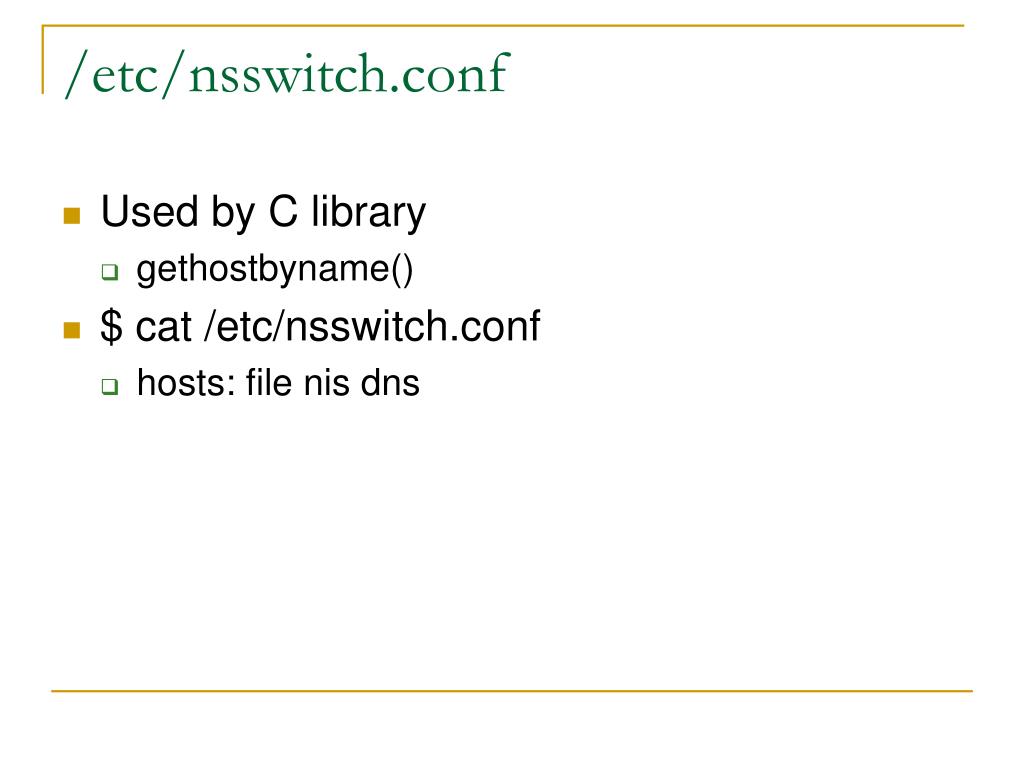

/etc/nsswitch.conf
  • Used by C library
    • gethostbyname()
  • $ cat /etc/nsswitch.conf
    • hosts: file nis dns
reference
Reference
  • LAH
    • Ch 15: DNS – The Domain Name System
