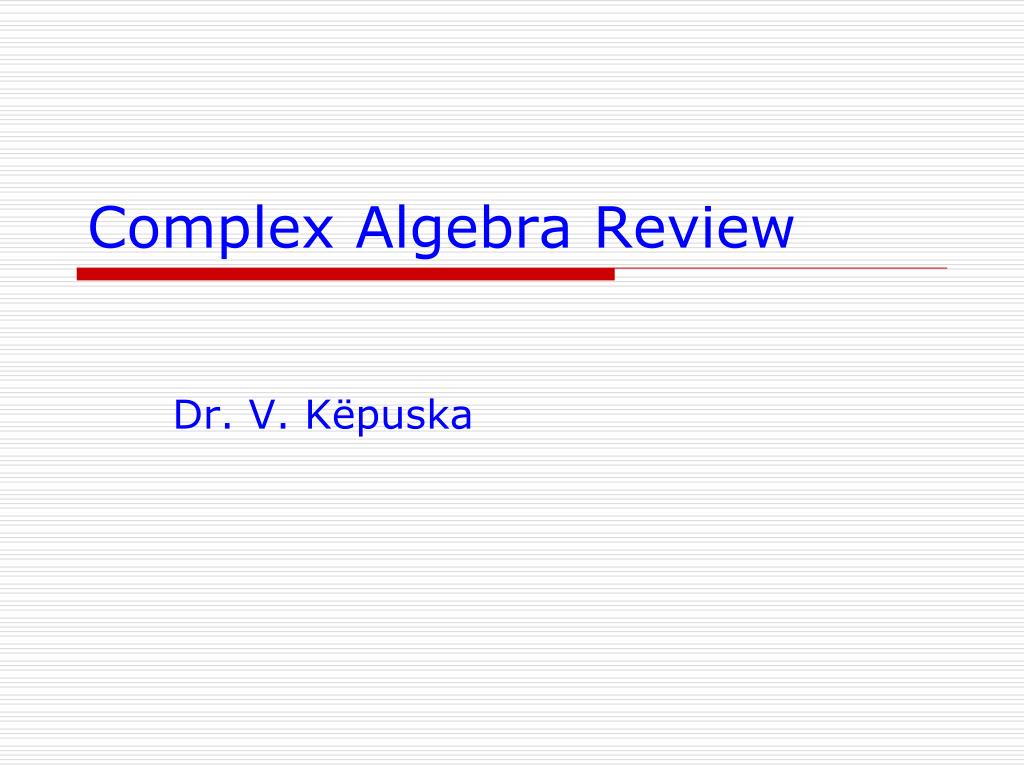

  1. Complex Algebra Review Dr. V. Këpuska

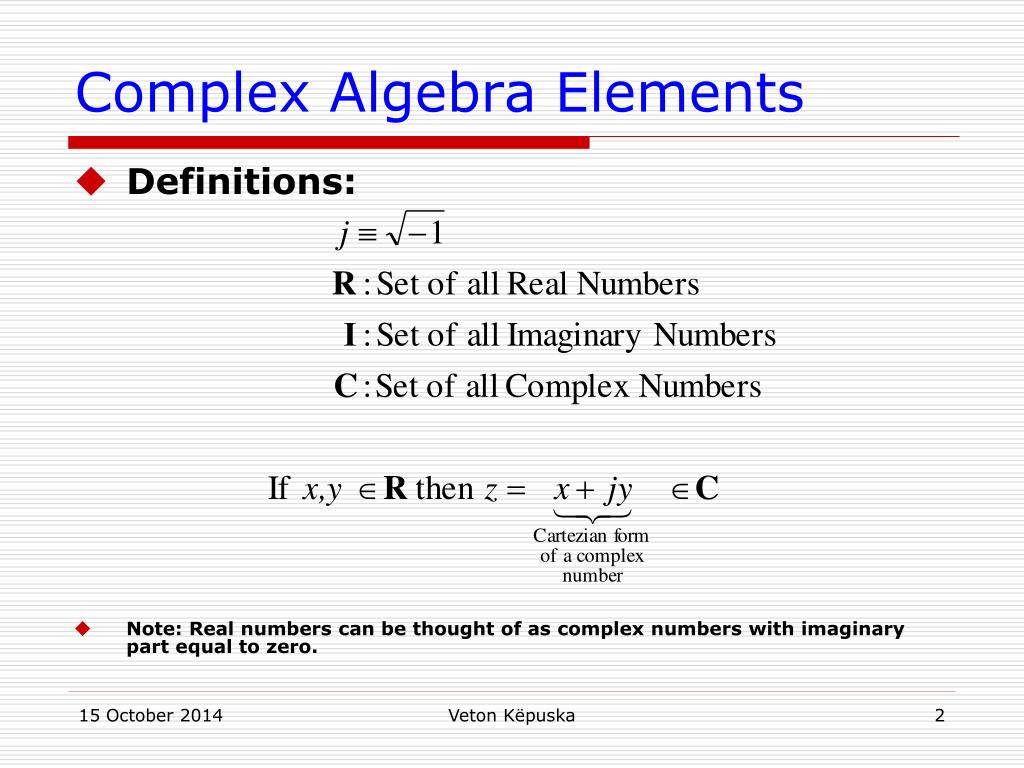

  2. Complex Algebra Elements • Definitions: • Note: Real numbers can be thought of as complex numbers with imaginary part equal to zero. Veton Këpuska

  3. Complex Algebra Elements Veton Këpuska

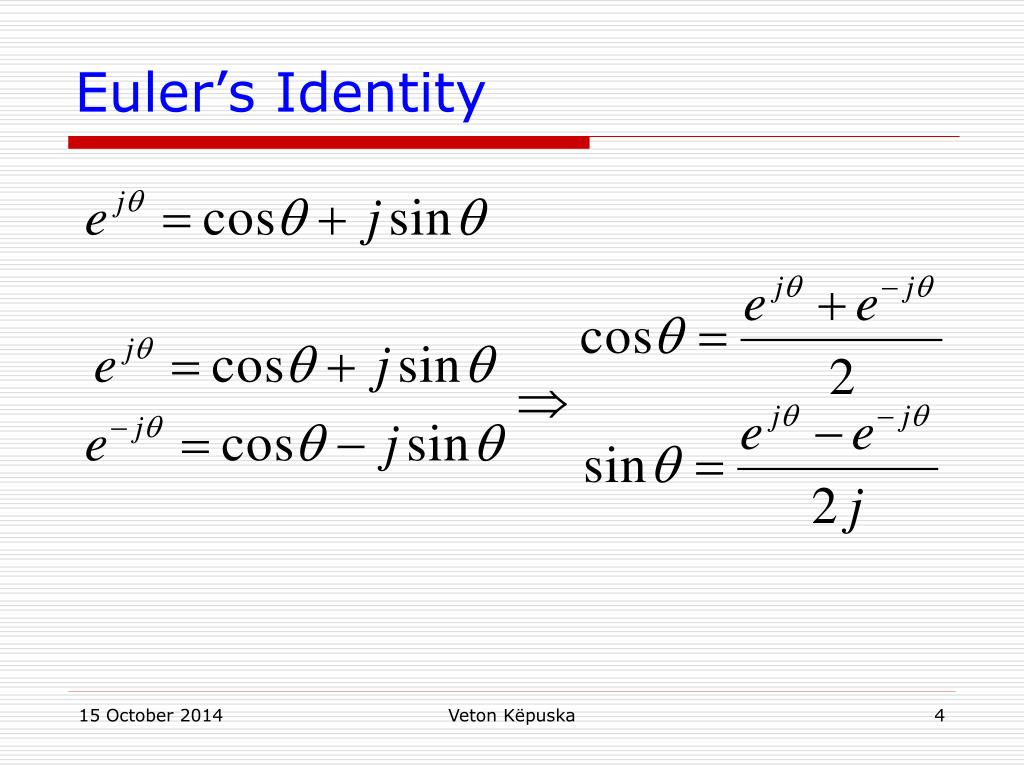

  4. Euler’s Identity Veton Këpuska

  5. Polar Form of Complex Numbers • Magnitude of a complex number z is a generalization of the absolute value function/operator for real numbers. It is buy definition always non-negative. Veton Këpuska

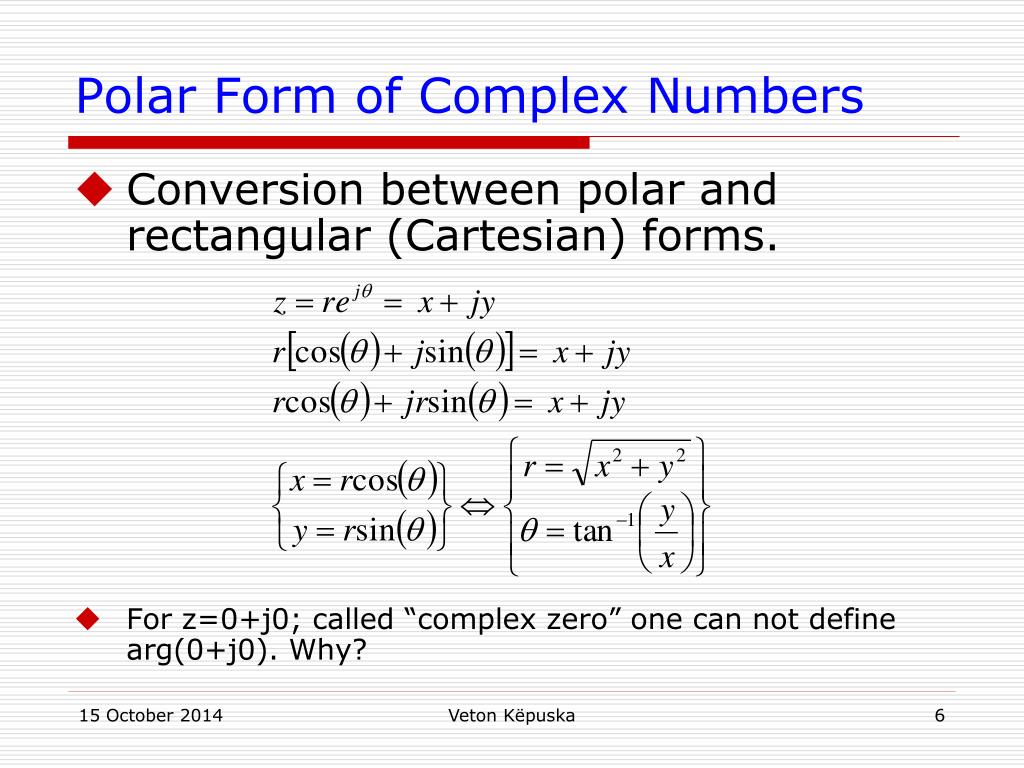

  6. Polar Form of Complex Numbers • Conversion between polar and rectangular (Cartesian) forms. • For z=0+j0; called “complex zero” one can not define arg(0+j0). Why? Veton Këpuska

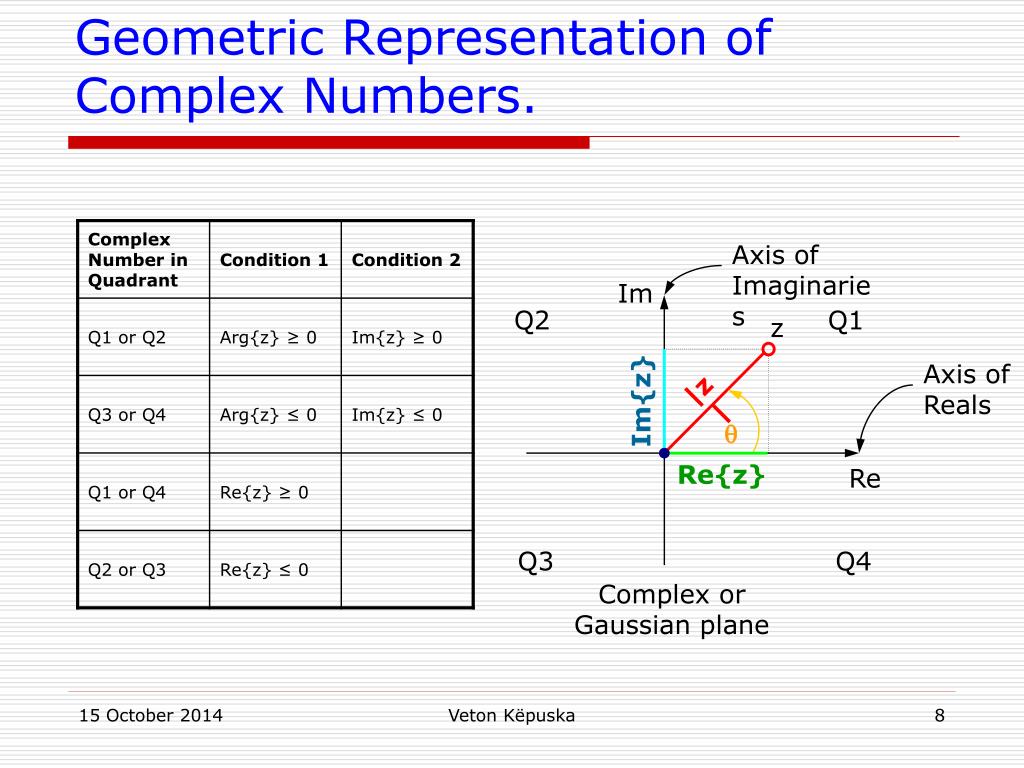

  7. Geometric Representation of Complex Numbers. Axis of Imaginaries Im Q2 Q1 z Axis of Reals |z| Im{z}  Re{z} Re Q3 Q4 Complex or Gaussian plane Veton Këpuska

  8. Geometric Representation of Complex Numbers. Axis of Imaginaries Im Q2 Q1 z Axis of Reals |z| Im{z}  Re{z} Re Q3 Q4 Complex or Gaussian plane Veton Këpuska

  9. Im z1 1 z2 -2 -1 Re z3 -1 Example Veton Këpuska

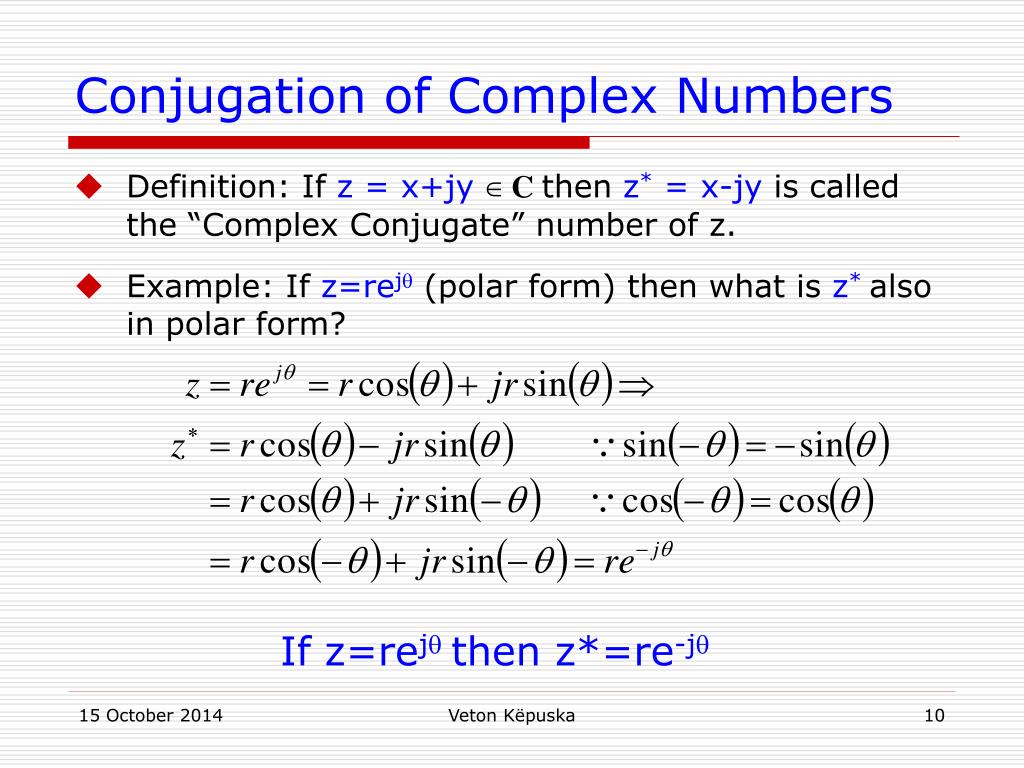

  10. Conjugation of Complex Numbers • Definition: If z = x+jy∈ C then z* = x-jy is called the “Complex Conjugate” number of z. • Example: If z=rej (polar form) then what is z* also in polar form? If z=rej then z*=re-j Veton Këpuska

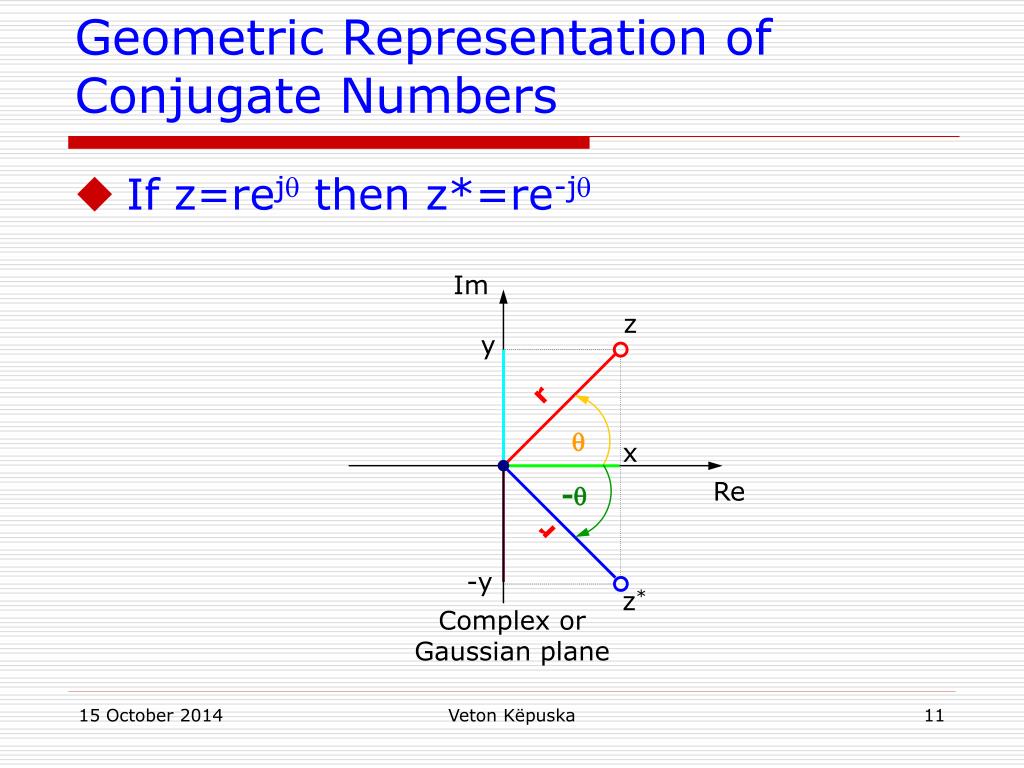

  11. Geometric Representation of Conjugate Numbers • If z=rej then z*=re-j Im z y r  x Re - r -y z* Complex or Gaussian plane Veton Këpuska

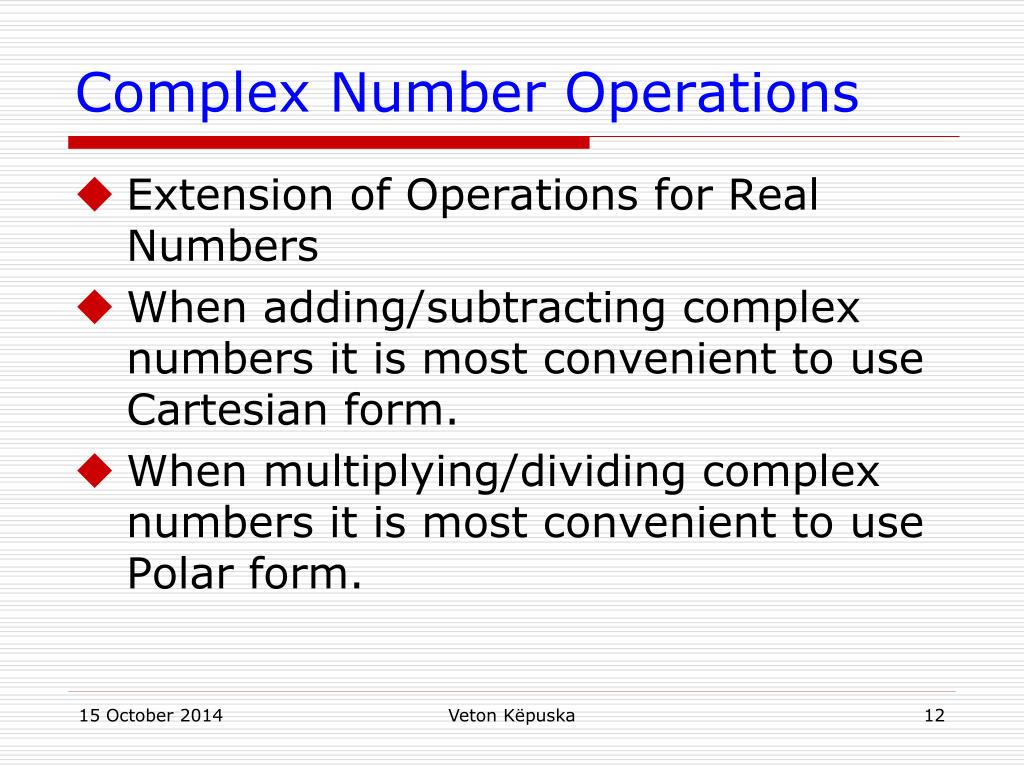

  12. Complex Number Operations • Extension of Operations for Real Numbers • When adding/subtracting complex numbers it is most convenient to use Cartesian form. • When multiplying/dividing complex numbers it is most convenient to use Polar form. Veton Këpuska

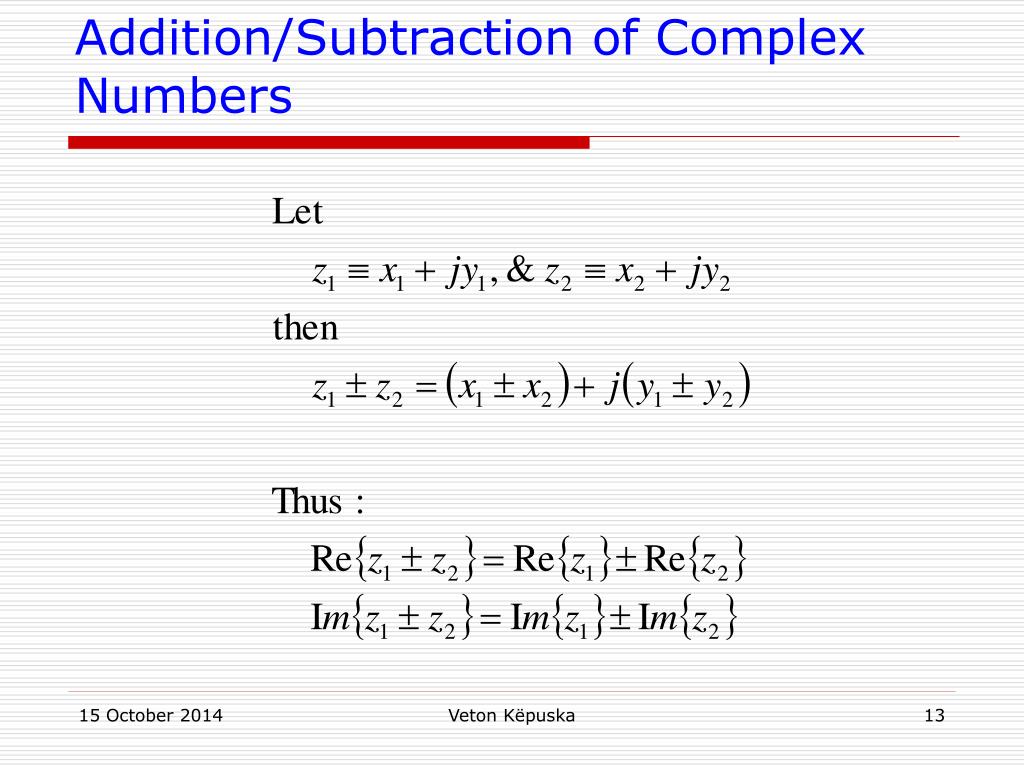

  13. Addition/Subtraction of Complex Numbers Veton Këpuska

  14. Multiplication/Division of Complex Numbers Veton Këpuska

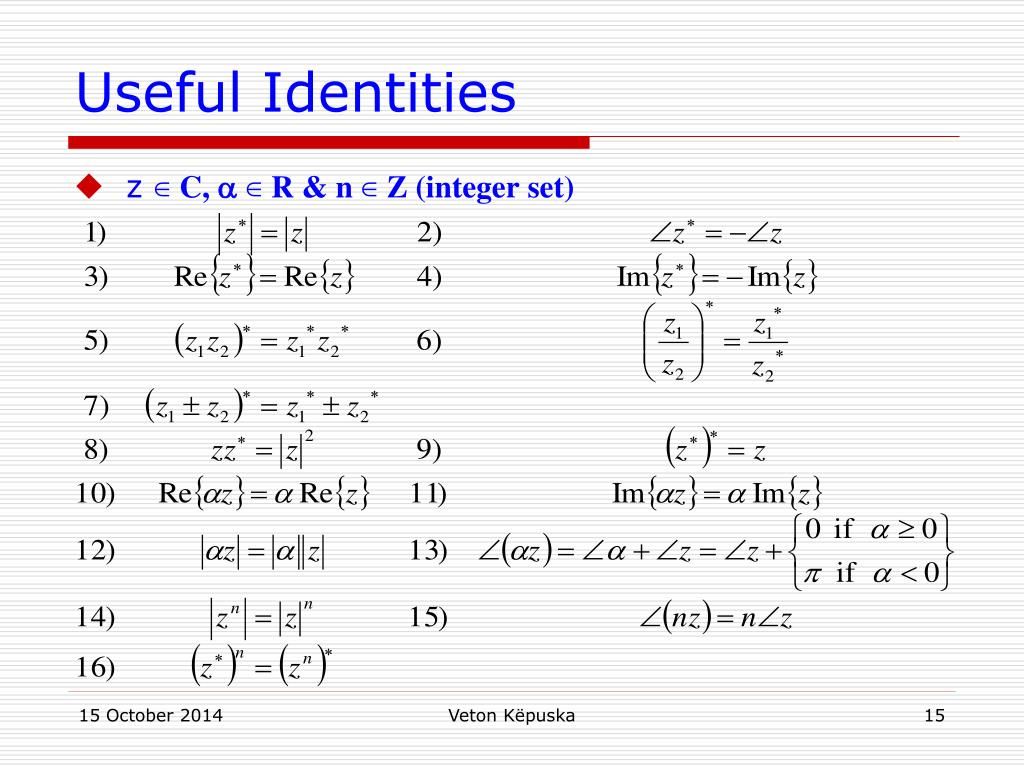

  15. Useful Identities • z ∈ C,  ∈ R & n ∈ Z (integer set) Veton Këpuska

  16. Useful Identities • Example: z = +j0 • =2 then arg(2)=0 • =-2 then arg(-2)= Im j  z -2 -1 0 1 2 Re Veton Këpuska

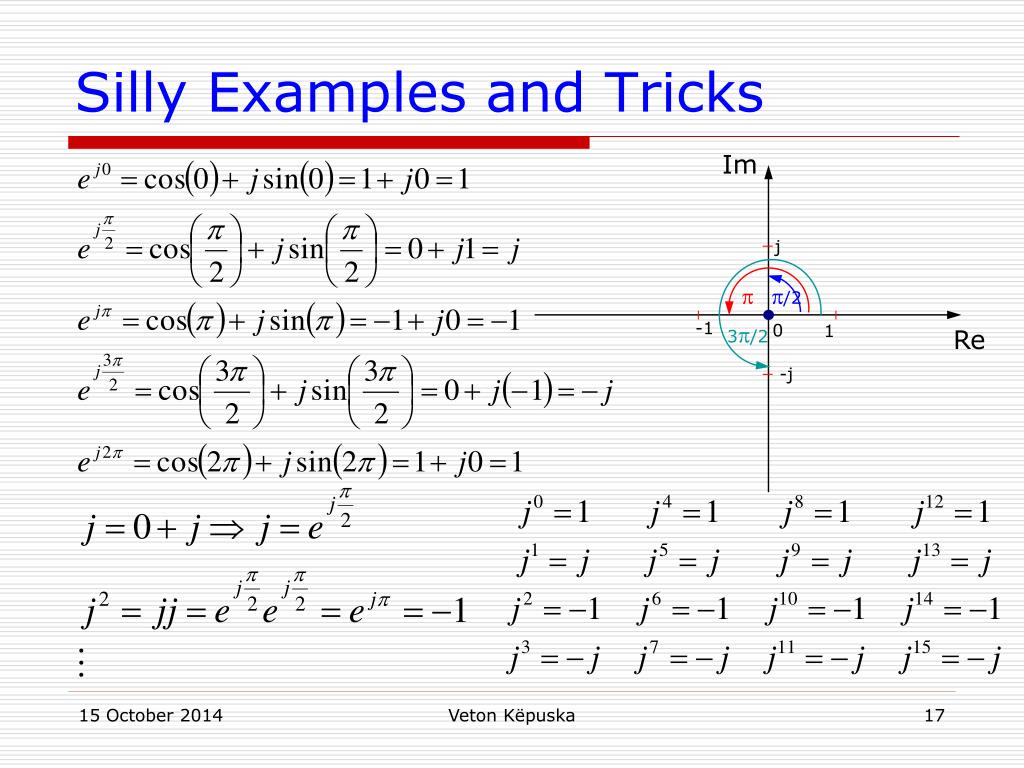

  17. Silly Examples and Tricks Im j  /2 -1 0 3/2 1 Re -j Veton Këpuska

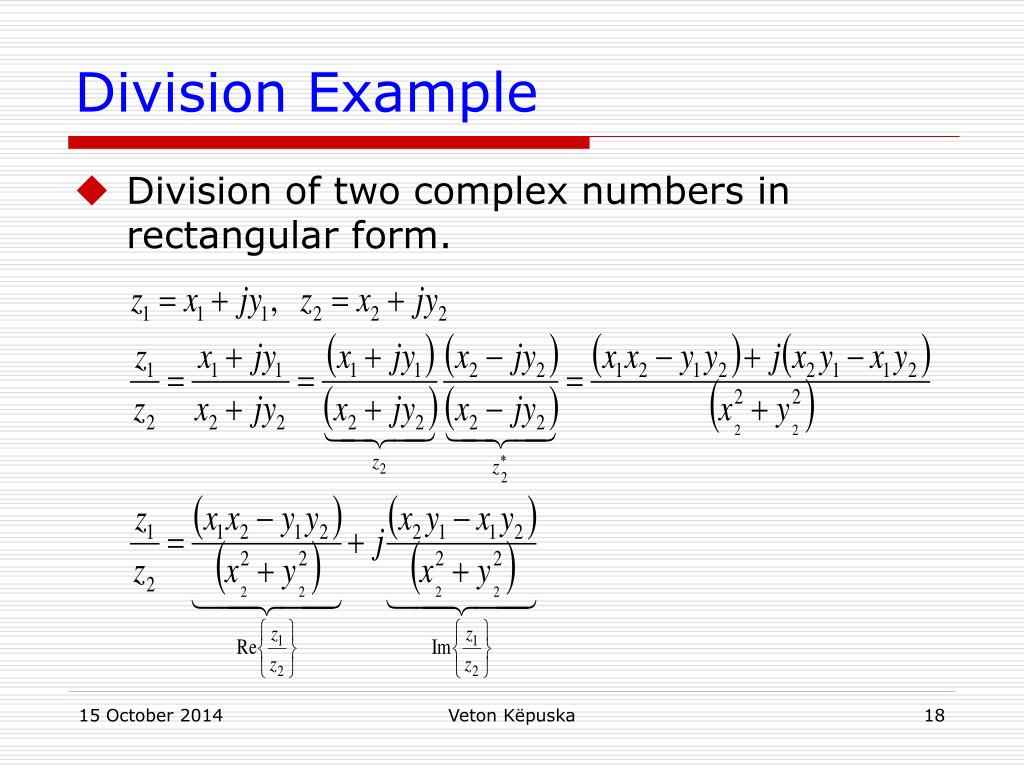

  18. Division Example • Division of two complex numbers in rectangular form. Veton Këpuska

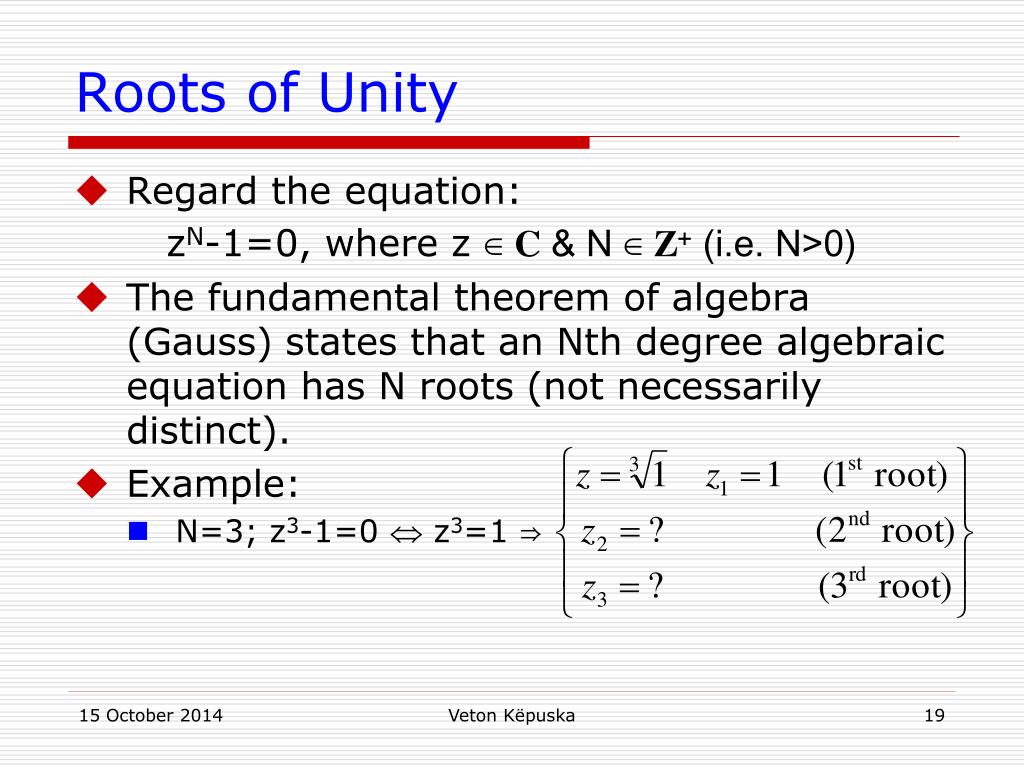

  19. Roots of Unity • Regard the equation: zN-1=0, where z ∈ C & N ∈ Z+ (i.e. N>0) • The fundamental theorem of algebra (Gauss) states that an Nth degree algebraic equation has N roots (not necessarily distinct). • Example: • N=3; z3-1=0  z3=1 ⇒ Veton Këpuska

  20. Roots of Unity • zN-1=0 has roots , k=0,1,..,N-1, where • The roots ofare called Nth roots of unity. Veton Këpuska

  21. Roots of Unity • Verification: Veton Këpuska

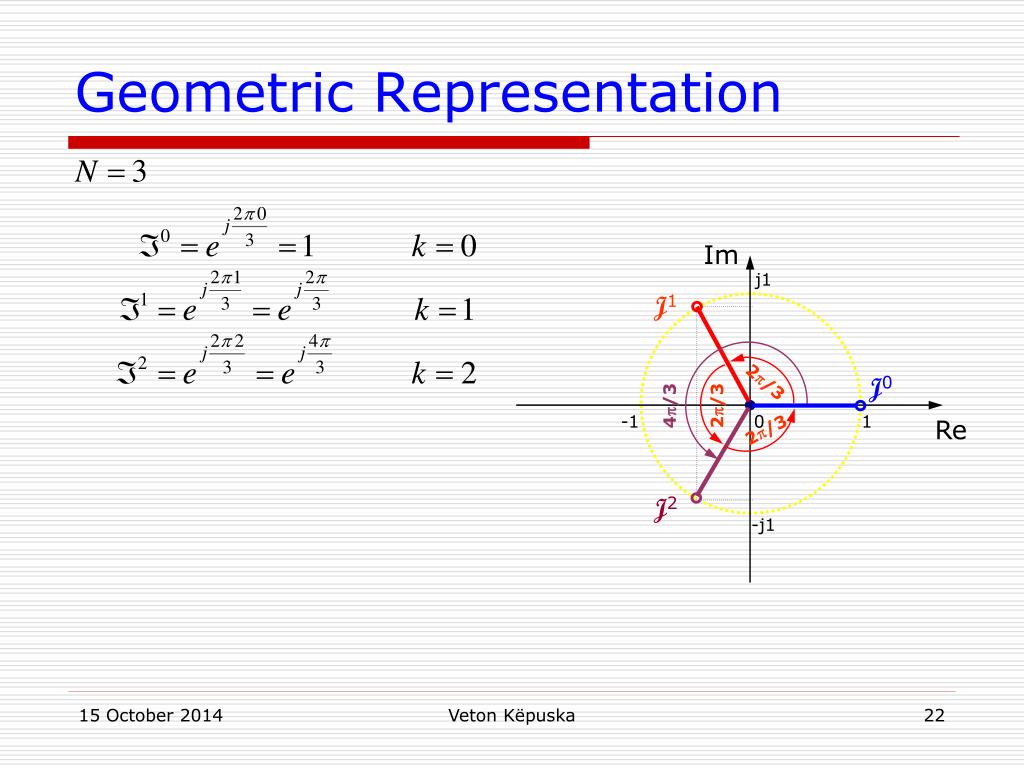

  22. Geometric Representation Im j1 J1 2/3 J0 4/3 2/3 -1 0 1 Re 2/3 J2 -j1 Veton Këpuska

  23. Important Observations • Magnitude of each root are equal to 1. Thus, the Nth roots of unity are located on the unit circle. (Unit circle is a circle on the complex plane with radius of 1). • The difference in angle between two consecutive roots is 2/N. • The roots, if complex, appear in complex-conjugate pairs. For example for N=3, (J1)*=J2. In general the following property holds: JN-k=(Jk)* Veton Këpuska
