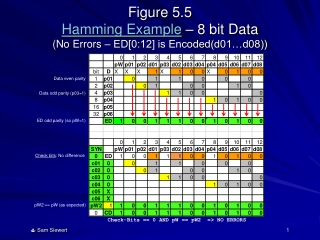

  1. Figure 5.5Hamming Example – 8 bit Data(No Errors – ED[0:12] is Encoded(d01…d08)) Data even parity Data odd parity (p03=1) ED odd parity (so pW=1) Check bits: No difference pW2 == pW (as expected) Check-Bits == 0 AND pW == pW2 => NO ERRORS  Sam Siewert 1

  2. Figure 5.6Hamming Example (Data SBE in Data ED[5]) SBE, bit-flipped (d02 from 1 to 0) SYN encodes bit position (flip ED[5] to restore) pW2 != pW (parity error) Check-Bits != 0 AND pW != pW2 => SBE, CAN CORRECT  Sam Siewert 2

  3. Figure 5.7Hamming Example (Data MBE) MBE, 2 bits-flipped (d02 and d05 both) SYN encodes MBE (out of range for ECC) pW != pW2 (double MBE) Check-Bits != 0 AND pW == pW2 => DOUBLE MBE DETECTED  Sam Siewert 3

  4. Figure 5.8Hamming Example (Parity SBE in Encoded Data) SBE, bit-flipped (p04 from 1 to 0) SYN encodes bit position (flip ED[8] to restore) pW2 != pW (parity error) Check-Bits != 0 AND pW != pW2 => Parity SBE, CAN CORRECT  Sam Siewert 4

  5. Figure 5.9Hamming Example(pW flip – Simple Parity Error, No ED error!) SYN indicates no error (pW flip only possibility) pW2 != pW (parity error) Check-Bits == 0 AND pW != pW2 => pW ERROR  Sam Siewert 5
